How IP65 Touch Panel PCs Improve Reliability in Dusty and Wet Environments

Touch panel PCs used in industrial and commercial environments are often exposed to conditions that ordinary consumer devices are not designed to handle. Dust from production processes, moisture from cleaning, humidity, outdoor temperature changes, and frequent user contact can all affect equipment reliability.

For this reason, enclosure protection is an important consideration when selecting an industrial touch panel PC. An IP65-rated front panel can help protect the user-facing part of the equipment against dust ingress and water exposure, making it more suitable for demanding operating environments.

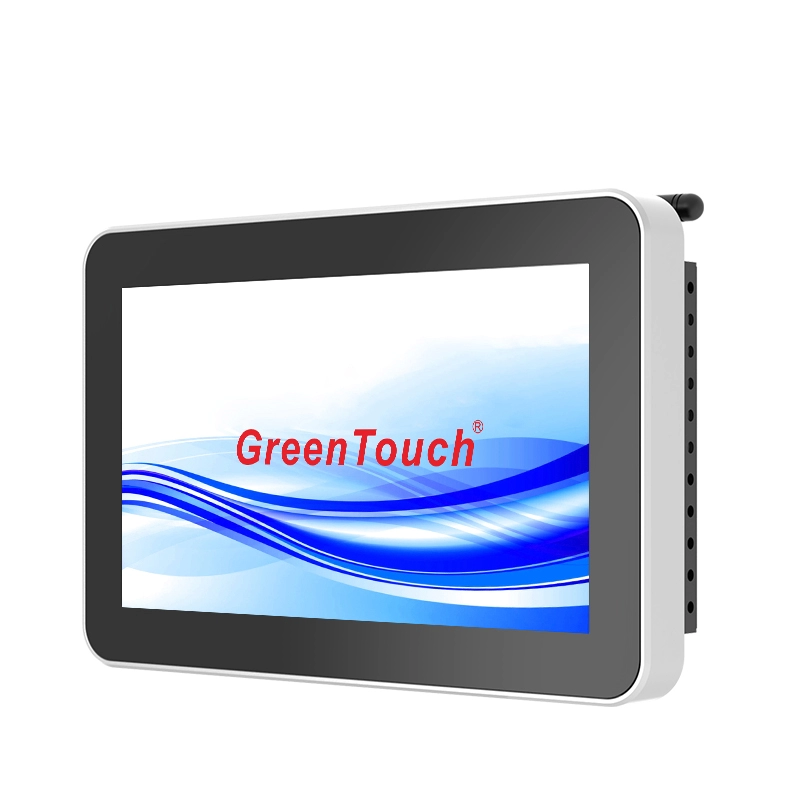

The Close Frame Touch Panel PC 7-27 Inches (3A Series) is designed for applications where interactive computing needs to be combined with practical environmental protection. With IP65 front protection, industrial-grade LCD technology, a wide operating temperature range of -20°C to 70°C, flexible mounting options, and Android-based computing, it can be used across industrial automation, self-service terminals, transportation equipment, healthcare systems, and commercial applications.

What Does IP65 Mean for a Touch Panel PC?

IP65 is an ingress protection rating defined by the IEC 60529 classification system. The first digit refers to protection against solid particles, while the second digit concerns protection against water.

For an IP65 front panel, the "6" indicates a dust-tight level of protection against solid particles. The "5" indicates protection against water jets from different directions under specified test conditions.

This distinction matters when choosing a touch panel PC because the rating applies to a specific part or configuration of a device. Buyers should therefore check whether the stated IP65 protection covers the front of the panel, the complete enclosure, or another specific area.

The 3A Series is specified with IP65 and front protection to resist water and dust. This makes the front surface better suited to environments where dust accumulation or occasional water exposure is part of normal operation.

However, IP65 should not be interpreted as making the entire device waterproof or suitable for immersion. Proper installation and the protection of rear connections remain important.

Why Dust Protection Matters in Industrial Touch Panel PCs

Dust is not just a cosmetic problem. In industrial environments, airborne particles can accumulate around equipment and may eventually affect ventilation openings, connectors, switches, and internal components if the enclosure is not appropriately designed.

Production lines, workshops, warehouses, logistics areas, and equipment control stations can all generate or circulate dust. Even when a touch panel PC is not directly involved in manufacturing, it may be installed close to machinery where airborne particles are present.

A protected front panel can reduce the risk associated with dust entering through the user-facing surface. This is especially useful for touch panel PCs installed in production line human-machine interfaces, workstation terminals, equipment monitoring stations, and other fixed industrial applications.

The Close Frame Touch Panel PC 7-27 Inches (3A Series) combines IP65 front protection with an aluminum alloy frame and painted aluminum alloy back cover. The result is a structure designed for professional environments rather than a conventional consumer tablet placed into an industrial setting.

Water Exposure Is Another Practical Consideration

Industrial and commercial touch terminals can also encounter moisture during cleaning, maintenance, or everyday operation.

For example, a self-service terminal in a public area may need regular surface cleaning. A commercial touch interface may be exposed to accidental splashes. Equipment installed in transportation or building environments may experience changing humidity and occasional water exposure.

IP65 front protection does not eliminate the need for correct installation, but it provides an additional layer of protection for the user-facing side of the panel.

This can be particularly useful when the touch interface needs to remain accessible while the surrounding environment cannot always be kept completely dry.

For system integrators, the key point is to match the protection rating with the actual installation environment. If the equipment will face heavy water exposure, high-pressure cleaning, outdoor weather, or other demanding conditions, the complete system should be evaluated rather than relying on the IP rating of the front panel alone.

IP65 Is Only One Part of Industrial Reliability

Environmental protection is important, but it is not the only factor affecting long-term touch panel PC performance.

The 3A Series uses industrial-grade LCD panels designed for long operating life. It also supports a wide operating temperature range from -20°C to 70°C.

This range can be important for equipment installed in locations where ambient temperatures vary significantly. Industrial control equipment, transportation terminals, warehouses, and semi-outdoor commercial installations may experience temperature conditions that are outside the comfortable range of a typical consumer computer.

A wider operating temperature range gives system designers more flexibility when determining where the touch panel PC can be installed.

The combination of industrial-grade display components and environmental protection is therefore more meaningful than simply looking at IP65 in isolation.

Why the Front Panel Design Matters

The front of a touch panel PC is the part most directly exposed to users and the surrounding environment. It is also where the display, touch interface, and frame meet.

The 3A Series uses a close-frame structure with an aluminum alloy frame and an aluminum alloy painted rear cover. It supports projected capacitive 10-point touch with sensitive sensing and accurate fixed-point interaction.

The touch panel is optically bonded to the LCD panel. This construction can improve the relationship between the touch surface and displayed content while also helping maintain a clean appearance.

The design is available in silver and black, making it suitable for both industrial equipment and commercial installations where the appearance of the terminal is part of the overall product design.

Installation Can Affect Environmental Protection

Even a well-designed touch panel PC can perform poorly if it is installed incorrectly.

The 3A Series supports wall-mounted, desktop, and embedded installation. It provides 75 × 75 mm and 100 × 100 mm VESA mounting options, allowing system integrators to select a suitable installation method based on available space and equipment structure.

For wall-mounted applications, the panel can be installed in either landscape or portrait orientation using compatible brackets, arms, ceiling mounts, or pole mounts.

Embedded installation is useful when the touch panel PC needs to sit flush with a machine or control cabinet. A suitable adapter bracket can be used with the VESA mounting holes to create an integrated installation.

Desktop installation provides another option for workstation terminals, information displays, and commercial interactive systems.

The installation method should be considered alongside IP65 protection. Cable routing, mounting gaps, ventilation, rear connectors, and the surrounding enclosure can all influence the final environmental performance of the complete system.

Connectivity for Industrial and Commercial Systems

Environmental protection does not mean much if the touch panel PC cannot communicate effectively with the rest of the system.

The 3A Series includes HDMI, DC 12V input, LAN, TF, power, audio out, and USB interfaces. The rear connections face downward, which can make cable routing more practical for wall-mounted and embedded installations.

The computing platform is based on Rockchip RK3566, RK3568, or RK3588 processors, with 2–8GB RAM and 32–64GB SSD storage. TF card support provides another option for storage expansion.

For networked applications, the touch panel PC provides a Gigabit Ethernet port and built-in wireless Wi-Fi. This configuration can support applications that need reliable communication with local networks, cloud platforms, control systems, or backend databases.

These features make the Close Frame Touch Panel PC 7-27 Inches (3A Series) suitable for applications such as production line HMI, workstation terminals, self-service ordering systems, transportation ticketing machines, medical self-service terminals, building access control, and interactive digital signage.

Where IP65 Touch Panel PCs Can Be Useful

The practical value of IP65 protection depends on the environment in which the equipment will operate.

In manufacturing, a protected touch panel PC can be installed as an operator interface near production equipment where dust is a regular concern.

In logistics and warehousing, touch terminals may be exposed to dust, frequent handling, and changing ambient conditions. A protected front panel can provide an additional consideration when selecting equipment for these environments.

In public and commercial self-service applications, the equipment may need frequent cleaning and continuous interaction with users. IP65 front protection can be useful as part of a broader design for a durable public-facing terminal.

Transportation applications can also benefit from a combination of wide temperature tolerance, touch interaction, flexible mounting, and environmental protection.

Healthcare and government self-service terminals are other examples where the front surface may need to withstand frequent user interaction and routine cleaning.

Manufacturing Capability Behind the 3A Series

For OEMs and system integrators, environmental specifications should be evaluated alongside the manufacturer's production capabilities.

ShenZhen GreenTouch Technology Co.,Ltd. is a touch product manufacturer with capabilities covering capacitive touch screens, resistive touch screens, infrared touch frames, nano touch foil, touch screen monitors, touch all-in-one PCs, and digital signage products.

The company operates a Class 1000 dust-free lamination workshop and supports G+G, G+FF bonding, and TP+LCM full lamination technologies. Its touch monitor and touch all-in-one manufacturing operations are supported by a 5,000 m² standard production workshop, with reported daily production exceeding 600 touch panels.

Its R&D team includes more than 20 technical engineers and develops more than 50 new products annually. The company also reports more than 20 patent certificates, more than 30 computer software copyrights, and more than 60 other certificates.

For international projects, its quality and product certifications include ISO9001, ISO14001, CE, FCC, CB, RoHS, UL, CCC, and HDMI-related certifications.

What to Check Before Choosing an IP65 Touch Panel PC

IP65 is useful, but it should be evaluated as part of the complete product specification.

Before selecting a touch panel PC for a dusty or wet environment, buyers should check:

1. Which part of the product has the IP65 rating?
2. What type of water exposure will the equipment actually experience?
3. Does the operating temperature range match the installation environment?
4. Is the display designed for long operating periods?
5. How will the panel be mounted and integrated?
6. Are the rear connectors protected after installation?
7. Does the processor and storage configuration meet the application's computing requirements?
8. Is the touch technology appropriate for the expected user interaction?
9. Can the product be customized for the required size, casing, logo, color, camera, Type-C interface, or packaging?

These questions are more useful than choosing a product based solely on the IP65 label.

Conclusion

An IP65 touch panel PC can be a practical choice when equipment needs to operate around dust, moisture, routine cleaning, or changing environmental conditions. However, effective system design requires more than a protection rating. Operating temperature, display durability, mounting structure, connectivity, computing performance, and installation details all contribute to the reliability of the final equipment.

With IP65 front protection, industrial-grade LCD panels, a -20°C to 70°C operating temperature range, multiple mounting options, Gigabit Ethernet, Wi-Fi, and Rockchip-based Android computing, the Close Frame Touch Panel PC 7-27 Inches (3A Series) is designed for a broad range of industrial and commercial applications.

For system integrators and equipment manufacturers looking for a configurable touch computing platform, ShenZhen GreenTouch Technology Co.,Ltd. also provides customization options covering camera, Type-C, size, logo, color, casing, and packaging.

The right IP65 touch panel PC is ultimately the one that matches the actual environment, installation method, and workload of the application. Evaluating these factors together can help reduce avoidable maintenance issues and create a more dependable interactive terminal.
