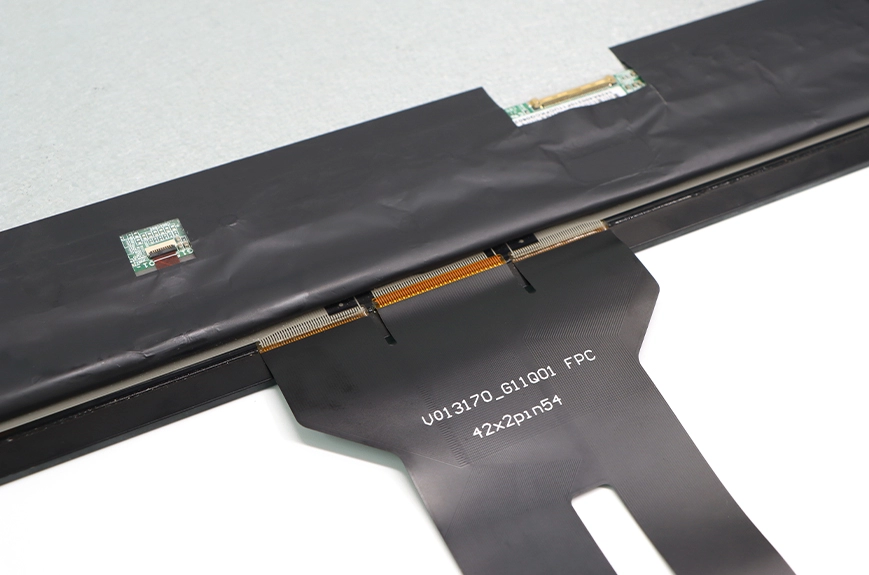

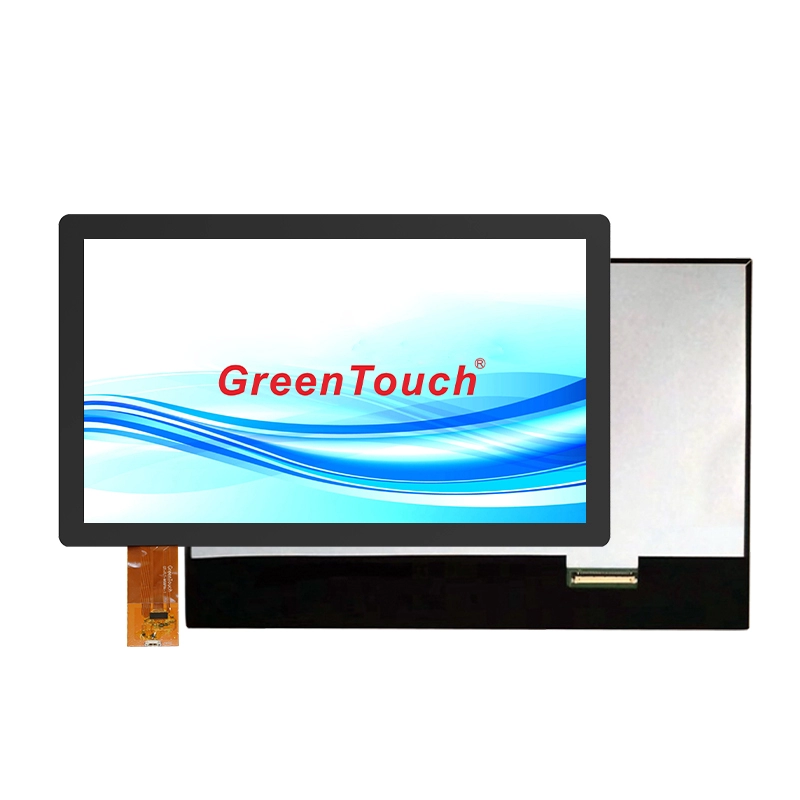

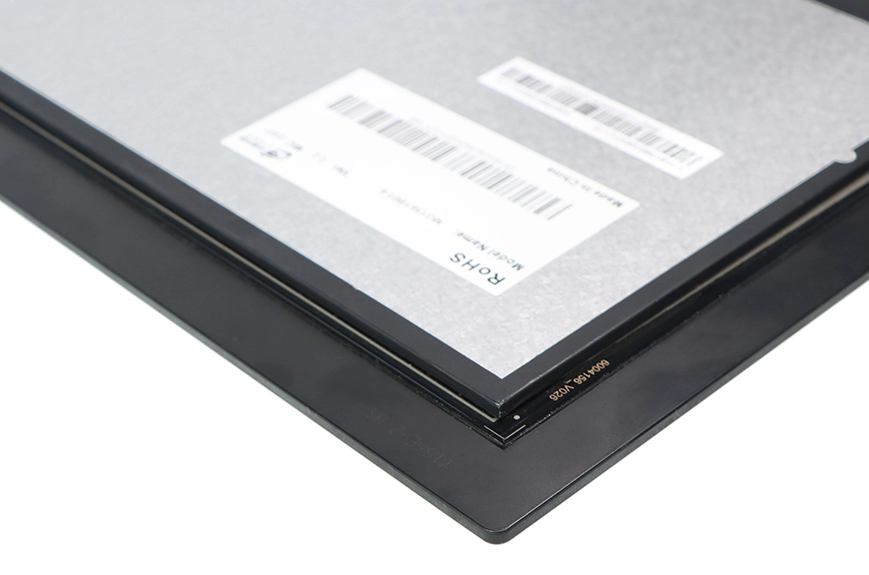

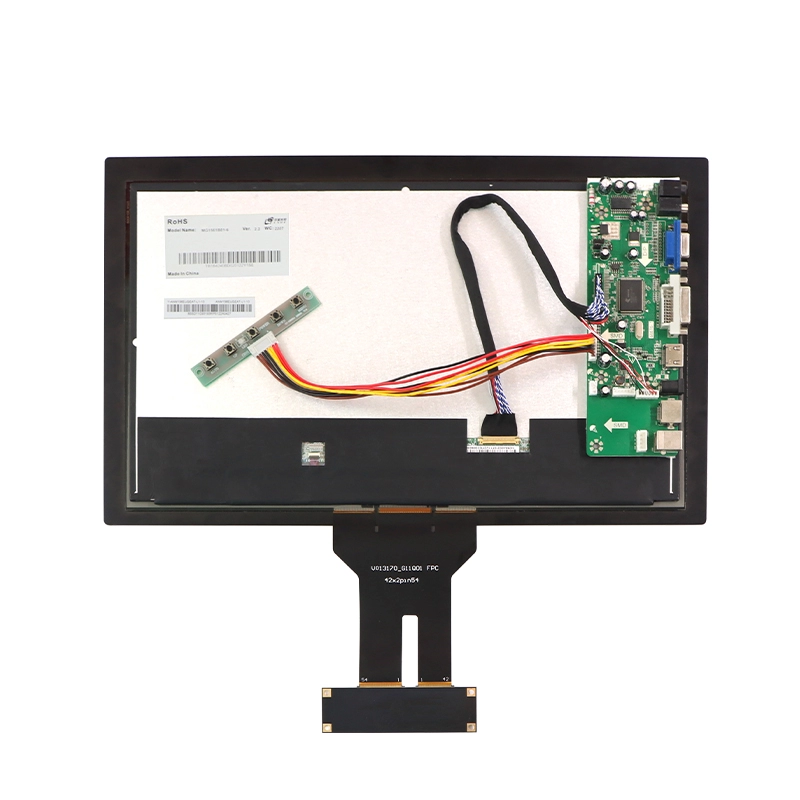

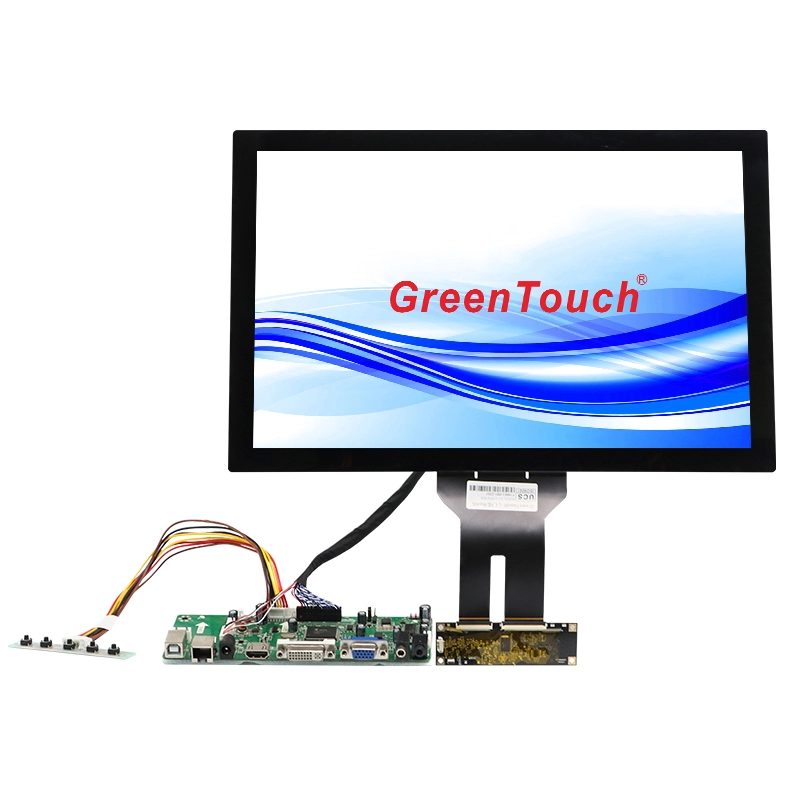

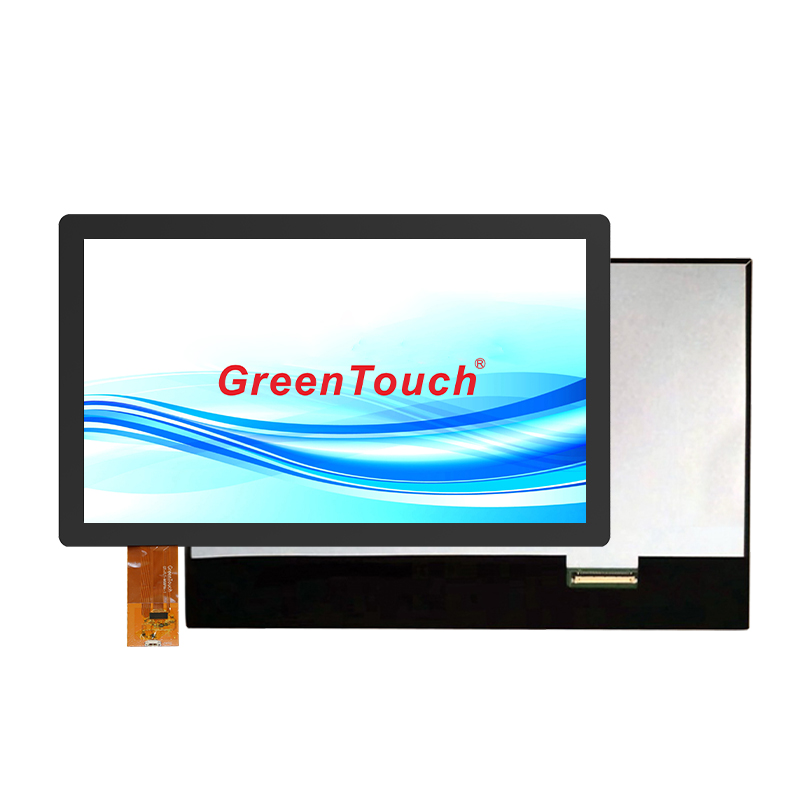

Full-fit Touch Lcd Panel 7 to 27 Inches(Capacitive)

Full-fit Touch Lcd Panel 7 to 27 Inches(Capacitive)

Product Information

Touch Type：4 Wire Resistive,Single Touch

Material：Film+Glass,Film+Film

Resolution：4096 X 4096

Certificates：CE,FCC,RoHS

Operation Systems：Windows,Android,Linux

Features

Pure plane structure,excellent craftsmanship,slim and smooth design,total thickness about 2.3mm.

Accurate touch,high sensitivity,smooth writing,no disconnection,no drift.

Can be sealed against contamination,support NEMA 4/4x/12.

Can meet the pencil hardness 3H per ASTM D3363.

Use mist hard coating & anti-newton rings,prevent scratches.

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
Product Customizable
Application Field
Specification and download

Product Description

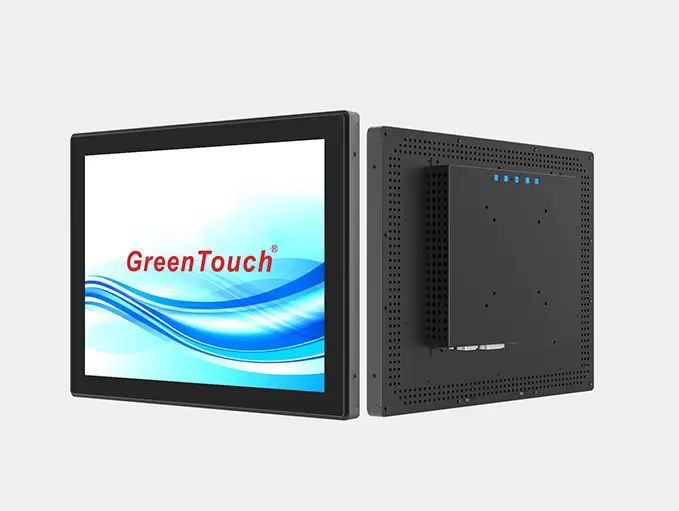

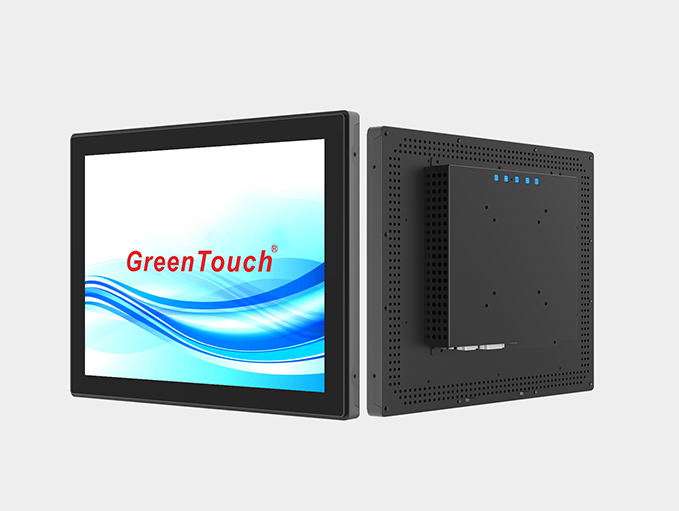

Exceptional Full HD Picture Quality

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colors and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, color, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

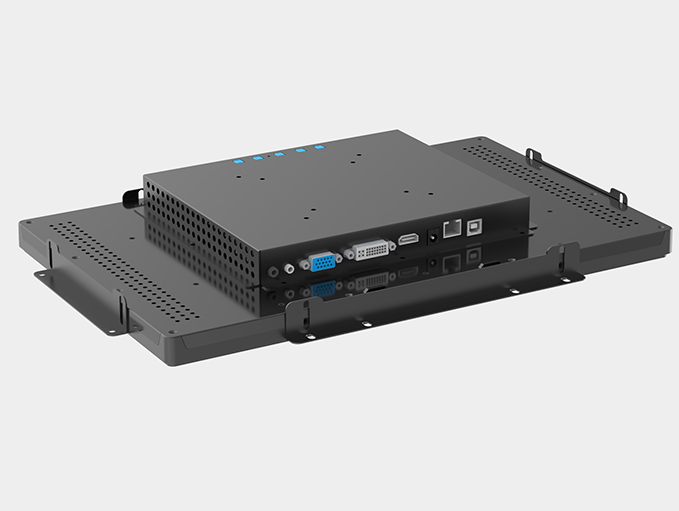

Versatile Connectivity

The Beetronics 27HD7M includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

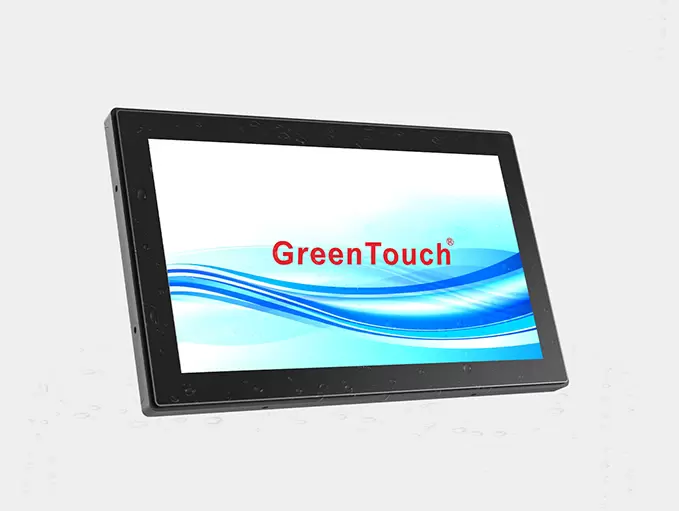

Designed for Professional Use

The 27HD7M is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

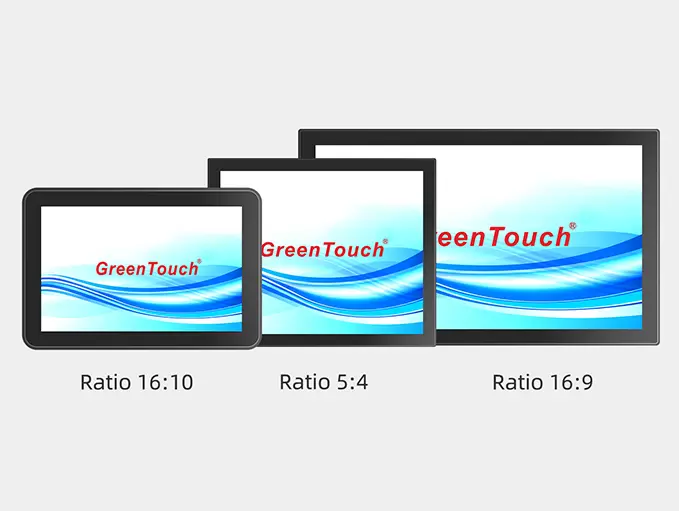

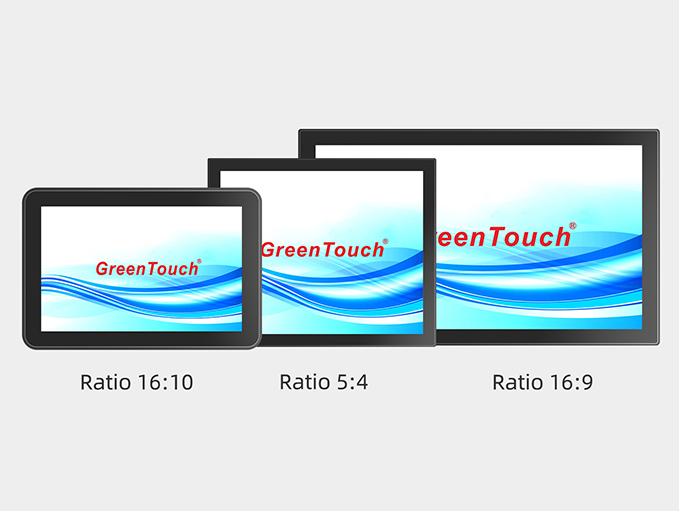

Multiple sizes available

(Ratio 16:10)

Size:10.1”,22”
(Ratio 5:4)
Size:9.7”,10.4”,12.1”,15”,17”,19
(Ratio 16:9)Size:7”,8”,13.3”,15.6”,18.5”,21.5”,23.6”,23.8”,27”,32”,43”,50”,55”

Mounting Options

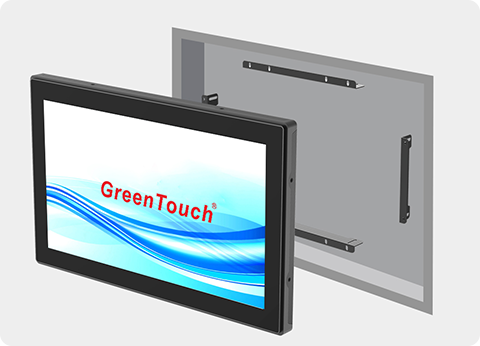

Embedded

Each monitor comes standard with a bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. It is an ideal solution for commercial sales, transportation and entertainment, industrial control, banking, and other fields.

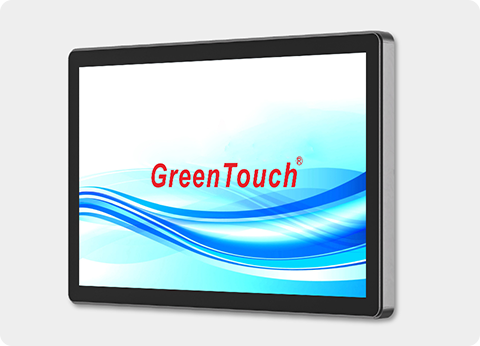

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

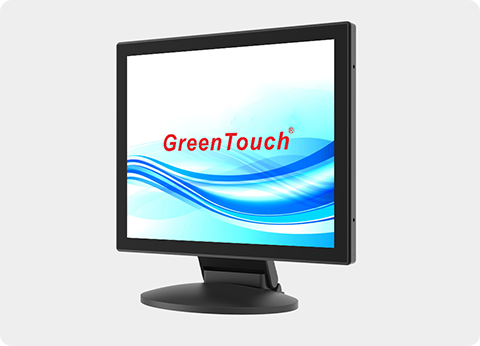

Desktop

The monitor comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 75/100mm VESA mount. This allows the monitor to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Embedded

Each monitor comes standard with a bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. It is an ideal solution for commercial sales, transportation and entertainment, industrial control, banking, and other fields.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

The monitor comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 75/100mm VESA mount. This allows the monitor to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Specifications

测试表格 A B C D E A1 B1 C1 D1 E1 A2 B2 C2 D2 E2 A3 B3 C3 D3 E3 A4 B4 C4 D4 E4

Embedded Manufacturer Beetronics Item Number 27HD7M Previous Model 27 inch Monitor Metal Product Name 2 Years Warranty Download PDF Datasheet Download PDF User Manual Download PDF Quickstart

Panel Diagonal Size 27HD7M Item Number 27HD7M Previous Model 27 inch Monitor Metal Product Name 2 Years Warranty Download PDF Datasheet Download PDF User Manual Download PDF Quickstart

Product Customizable

1.VGA+DVA+HDMI

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Ratio	Thickness	Dimensions	View Area	Drawing Download
7"	GT-CTP-Y070Z-C	16:9	2.9±0.25mm(Without LCD)	182*115mm	155.3*87mm	GT-CTP-Y070Z-C(VB070EI511)
8"	GT-CTP-Y08Z-C	16:9	2.9±0.25mm(Without LCD)	209.6*132.4mm	177.6*100.4mm	GT-CTP-Y08Z-C(NJ080IA-10D)
9.7"	GT-CTP-Y097Z-C	4:3	2.9±0.25mm(Without LCD)	229.6*180.5mm	197.6*148.5mm	GT-CTP-Y097Z-C(LP097X02-SLP2)
10.1"	GT-CTP-Y10.1E-1	16:10	2.9±0.25mm(Without LCD)	255*169.6mm	218*136.6mm	GT-CTP-Y10.1E-1(GV101WXM-N85)
10.4"	GT-CTP-Y10.4Z-C	4:3	2.9±0.25mm(Without LCD)	200.4*253.2mm	160.4*213.2mm	GT-CTP-Y10.4Z-C(VI104VI410)
12.1"	GT-CTP-Y12.1Z-C	4:3	2.9±0.25mm(Without LCD)	286*224.5mm	248*186.5mm	GT-CTP-Y12.1Z-C(PV121X0M-N10)
13.3"	GT-CTP-Y13.3Z-C	16:9	2.9±0.25mm(Without LCD)	342.4*214mm	294.4*166mm	GT-CTP-Y13.3Z-C(DV133FHM-NN0)
15"	GT-CTP-Y15.0E-2	4:3	4.3±0.25mm(Without LCD)	346*270mm	305*229mm	GT-CTP-Y15.0E-2(G150XVN01.1)
15.6"	GT-CTP-Y15.6E-2	16:9	4.3±0.25mm(Without LCD)	388.8*238.8mm	343.5*192.8mm	GT-CTP-Y15.6E-2(LQ156M1G21)
17"	GT-CTP-Y17.0E-1	4:3	3.9±0.25mm(Without LCD)	377*309mm	338.9*271.3mm	GT-CTP-Y17.0E-1(M170ETN01.1)
18.5"	GT-CTP-Y18.5E-1	16:9	3.9±0.25mm(Without LCD)	448.5*273mm	408.5*229mm	GT-CTP-Y18.5E-1(V185BJ1-LE1)
19"	GT-CTP-Y19.0E-1	4:3	4.3±0.25mm(Without LCD)	421*346mm	378.3*303mm	GT-CTP-Y19.0E-1(M190ETN01.0)
21.5"	GT-CTP-Y21.5C-3	16:9	4.3±0.25mm(Without LCD)	523.6*311mm	477.6*268.9mm	GT-CTP-Y21.5C-3(LM215WF3-SLS2)
23.6"	GT-CTP-Y23.6E-1	16:9	3.9±0.25mm(Without LCD)	572.6*341.6mm	522.1*294.4mm	GT-CTP-Y23.6E-1(M236HJJ-250)
23.8"	GT-CTP-Y23.8E-1	16:9	4.3±0.25mm(Without LCD)	577.8*347.8mm	528*298mm	GT-CTP-Y23.8E-1(MV238FHM-N10)
27"	GT-CTP-Y27.0E-1	16:9	4.3±0.25mm(Without LCD)	646.5*368.8mm	597.6*336.2mm	GT-CTP-Y27.0E-1(MV270FHM-N20)
32"	GT-CTP-Y32.0E-1	16:9	4.3±0.25mm(Without LCD)	740*701.4mm	443.5*393.9mm	GT-CTP-Y32.0E-1(DV320FHM-NN0)
