VESA 75 × 75 vs 100 × 100 mm: Mounting Compatibility for Closed Frame Displays

A touchscreen monitor may fit the available display area but still create installation problems if its mounting holes do not match the equipment bracket or enclosure. For OEM projects, this mismatch can lead to extra adapter plates, additional machining, longer assembly times, and more complicated maintenance. Checking the VESA mounting pattern early helps equipment designers avoid these issues before the monitor is integrated into a finished system.

The two mounting patterns commonly considered for compact and mid-sized displays are 75 × 75 mm and 100 × 100 mm. Although the difference between them is only 25 mm in each direction, they are not interchangeable without checking the mounting hardware. The Closed Frame Touch Monitor 7-27 Inches (3A Series) supports both mounting patterns, giving equipment manufacturers more flexibility when designing wall-mounted terminals, desktop workstations, and embedded touch interfaces.

Understanding VESA 75 × 75 mm and 100 × 100 mm

VESA mounting patterns specify the distance between the centers of the mounting holes on the back of a display. A 75 × 75 mm pattern has four holes arranged in a square measuring 75 mm on each side. A 100 × 100 mm pattern uses the same arrangement, but the distance between adjacent hole centers is 100 mm.

These measurements describe hole spacing, not the overall dimensions of the monitor. A display with a larger screen does not automatically use a larger mounting pattern, and two monitors with the same screen size may have different mounting configurations.

The first step in selecting a bracket is therefore to confirm the monitor's actual hole spacing rather than estimating compatibility from screen size or appearance. Designers should also check the screw specification, mounting depth, bracket load rating, and clearance around the rear enclosure. The VESA pattern is an important starting point, but it is only one part of the mechanical interface.

When to Choose 75 × 75 mm or 100 × 100 mm

The appropriate mounting pattern depends on the display, the supporting structure, and the installation environment.

A 75 × 75 mm pattern is often encountered in compact monitor mounts and smaller display assemblies. It can be convenient when the available mounting area is limited, such as on a compact control station, a small self-service terminal, or a space-constrained equipment panel. However, the actual load capacity and suitability of the bracket must still be verified.

A 100 × 100 mm pattern is widely used in monitor arms, wall brackets, and other display mounting accessories. It may be a practical option for installations that already use compatible hardware, helping manufacturers maintain consistency across equipment models.

Neither pattern is universally better. A larger hole spacing does not, by itself, guarantee greater stability. Stability also depends on the bracket construction, fasteners, support surface, monitor weight, and forces applied during operation.

For OEM projects, the most efficient approach is to identify the mounting pattern already used in the equipment design, then confirm that the selected monitor and bracket are compatible. If the existing enclosure has fixed holes, selecting a matching display can reduce redesign work.

How the 3A Series Supports Different Installation Methods

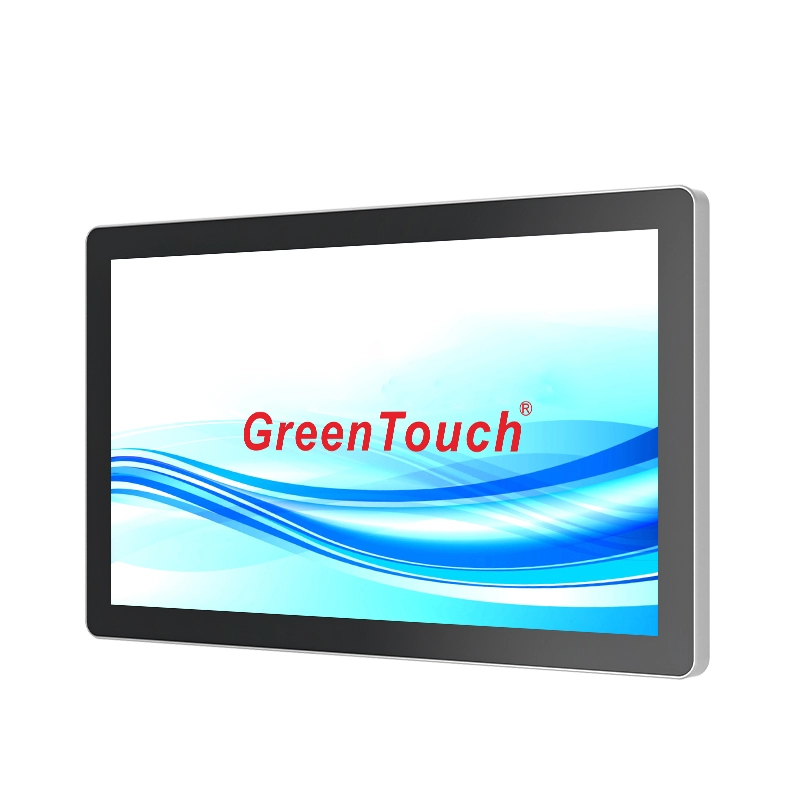

The Closed Frame Touch Monitor 7-27 Inches (3A Series) offers 75 × 75 mm or 100 × 100 mm VESA mounting holes, depending on the applicable configuration. This gives system integrators options when planning installations across a range of equipment types.

Wall-mounted installations are common in information terminals, retail systems, transportation facilities, and industrial work areas. The mounting bracket must support the monitor securely while leaving enough room for cables and connectors. The installation team should also confirm that the wall or mounting surface can carry the combined load of the display, bracket, and any attached accessories.

Desktop installation is useful for operator stations, service counters, and interactive workstations. In these cases, the bracket or stand should provide adequate stability during repeated touch interactions. The position and angle of the screen should allow users to operate the interface comfortably without putting excessive force on the mounting assembly.

Embedded installation requires additional attention because the monitor is integrated into a larger panel or enclosure. The VESA holes can be used with a suitable adapter bracket, while the surrounding bezel or clips secure the display within the panel. The adapter must be designed for the specific monitor dimensions and enclosure geometry. Designers should verify the cutout size, bezel overlap, fastening points, and service access before producing the final panel.

Planning Embedded Mounting Without Reworking the Enclosure

Embedded integration is often more demanding than attaching a monitor to a standard wall bracket. A mounting pattern may align correctly while the display still fails to fit the panel opening or leaves insufficient clearance behind the equipment.

Before manufacturing an enclosure, prepare a dimensional drawing that includes the monitor's external dimensions, mounting-hole coordinates, panel cutout, fastening method, and rear clearance. The drawing should also show the space needed for power and video cables. This is particularly important when the display is installed in a cabinet with limited internal depth.

If the existing panel uses a different hole pattern, a metal adapter plate may provide a practical solution. One side of the plate connects to the monitor's VESA mounting points, while the other side provides fixing points compatible with the equipment panel. The plate should distribute the load appropriately and avoid interference with the monitor housing or connectors.

For repeat production, it is worth validating the complete assembly with a physical sample before approving the enclosure design. A trial installation can reveal issues that are easy to miss in a drawing, including screw access, cable bends, panel interference, and difficulty removing the display for maintenance.

Check Rear Clearance and Cable Access

Mounting compatibility involves more than matching four screw holes. The available space behind the monitor can affect installation time, cable reliability, and future servicing.

The 3A series provides VGA, DVI, HDMI, DisplayPort, microphone, and audio connections, with the interfaces positioned on the back and facing downward. This arrangement can help with cable routing in many installations, but the equipment designer still needs to leave enough room for the selected connectors and their cables.

For a wall-mounted display, check the distance between the rear housing and the wall after the bracket is installed. For embedded equipment, consider whether cables can be connected before the monitor is secured and whether technicians can disconnect them without dismantling unrelated components.

Cable management should also account for strain relief. A cable that is forced into a sharp bend or pulled by its own weight can put stress on the connector. Where the display will be installed in a frequently serviced terminal, accessible cable connections can make replacement and troubleshooting easier.

These checks are especially relevant when several monitor sizes share a common enclosure platform. Even if the mounting pattern remains the same, different screen sizes and housings can change the required clearance.

Consider Screen Orientation and Touch Operation

The 3A series supports horizontal and vertical installation with compatible mounting hardware. Before choosing an orientation, verify that the bracket, enclosure, cable routing, and application interface are all designed for the intended position.

Portrait orientation may suit ticketing terminals, information directories, and interfaces that display long lists. Landscape orientation may be more appropriate for control panels, dashboards, and applications with wider interface layouts.

Because the 3A series uses projected capacitive touch with support for ten touch points, the mounting assembly should remain stable during repeated user interaction. Excessive movement in the bracket can affect the perceived usability of the terminal even when the touch panel itself operates correctly.

The display also features an optically bonded touch panel and LCD, an industrial-grade LCD panel, and front protection rated IP65. These specifications may be relevant to equipment used in demanding commercial or industrial environments. However, the complete installation must still be assessed separately: front-panel protection does not automatically mean that the rear connections or the entire assembled enclosure have the same protection rating.

A Practical Pre-Installation Checklist

Before ordering monitors or releasing an enclosure for production, equipment manufacturers should confirm the following details:

• Mounting pattern: verify whether the required hole spacing is 75 × 75 mm or 100 × 100 mm.

• Fasteners: confirm screw type, engagement depth, and any restrictions specified by the manufacturer.

• Bracket capacity: check the supported load and suitability for the intended mounting position.

• Panel dimensions: confirm the cutout, bezel overlap, and fixing points for embedded installation.

• Rear clearance: allow room for connectors, cable bends, ventilation requirements, and maintenance access.

• Orientation: verify support for the planned portrait or landscape position.

• Touch stability: check that the bracket and enclosure remain stable during repeated touch operation.

• Configuration: confirm the mounting-hole pattern and mechanical drawings for the exact screen size and configuration being ordered.

These checks should be completed against the manufacturer's drawings and the selected mounting accessories, rather than relying solely on a general product description.

Working with a Manufacturer on Custom Integration

For projects that involve multiple screen sizes or customized enclosures, early communication with the monitor manufacturer can reduce mechanical design changes. The discussion should cover mounting-hole spacing, external dimensions, interface locations, required screen orientation, and any customization needed for the casing or other components.

ShenZhen GreenTouch Technology Co., Ltd. manufactures touch products including touch monitors, capacitive and resistive touch screens, infrared touch frames, and touch all-in-one PCs. The company operates a 5,000 m² standard production workshop and a Class 1,000 dust-free lamination workshop, with capabilities covering G+G, G+FF, and TP+LCM full lamination processes. Its quality management systems include ISO 9001 and ISO 14001 certifications.

For an OEM project, it is useful to request the mechanical drawing and verify the exact mounting configuration before finalizing the equipment design. The company also offers customization options for elements such as screen size, logo, color, casing, and packaging, subject to project requirements and confirmation.

Making the Mounting Decision Before Production

Choosing between 75 × 75 mm and 100 × 100 mm mounting holes is a small but important part of display integration. The correct choice depends on the existing bracket, enclosure geometry, installation environment, and maintenance plan. Confirming these details before production can reduce adapter work, simplify assembly, and help avoid costly changes after the equipment has been manufactured.

With support for both mounting patterns and wall-mounted, desktop, and embedded installation methods, the Closed Frame Touch Monitor 7-27 Inches (3A Series) can be considered for a variety of industrial and commercial terminal designs. By checking the exact configuration, rear clearance, fasteners, and panel dimensions in advance, equipment manufacturers can build a more practical and serviceable touch display assembly.
