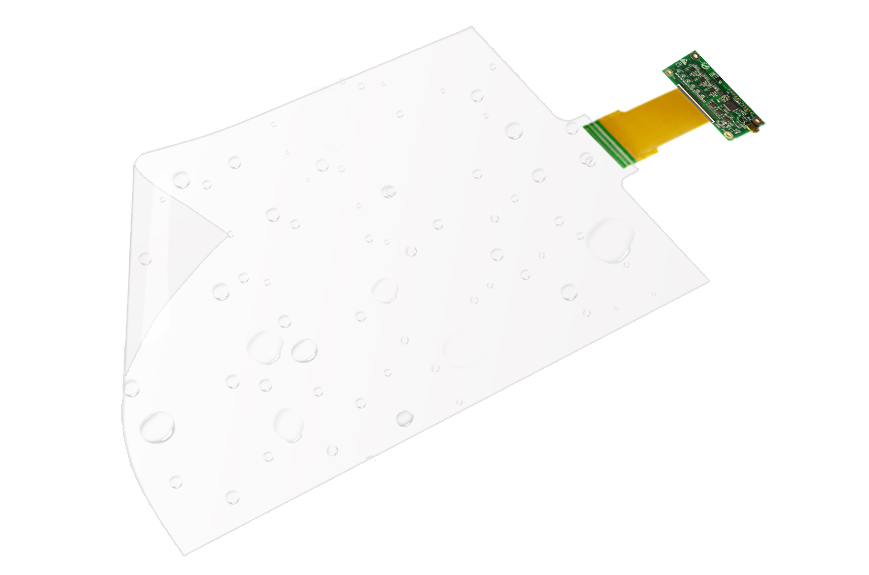

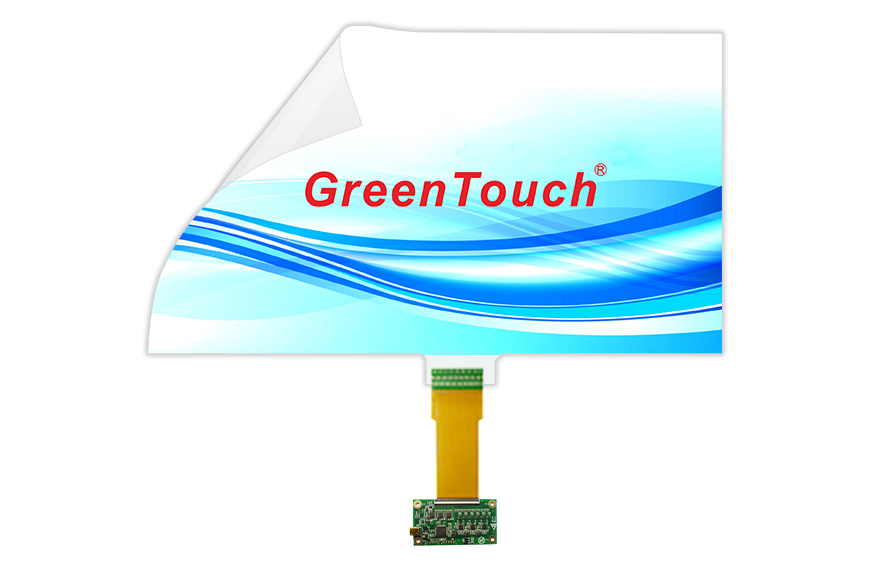

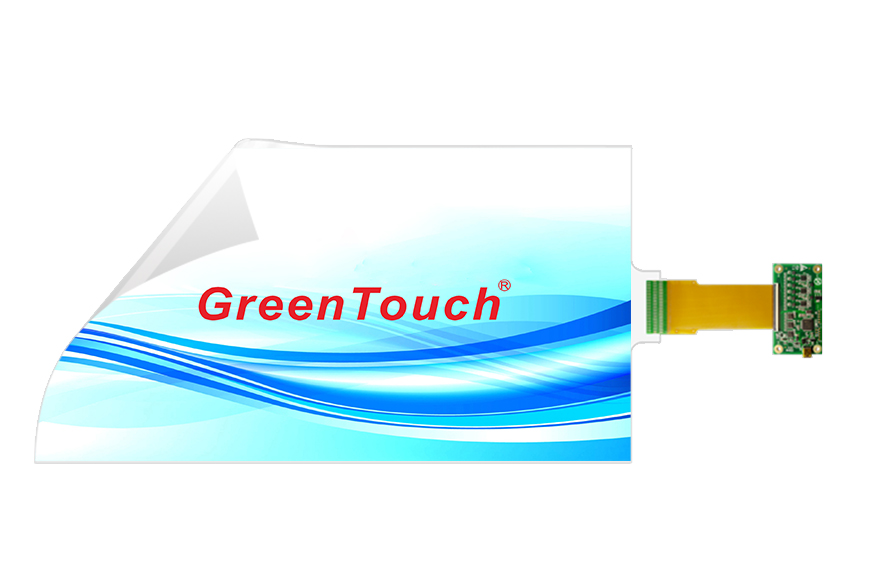

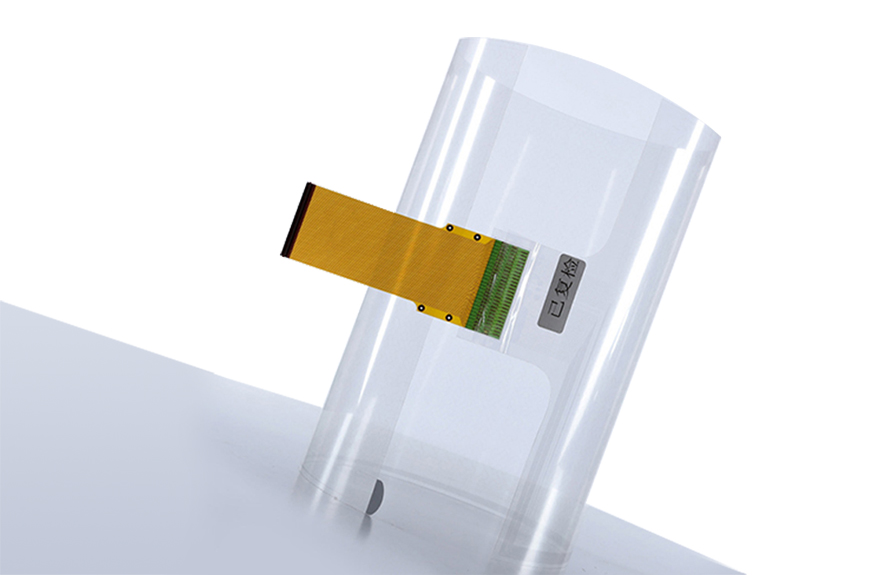

Interactive Touch Foil 10.1 to 32 Inches(XTM Series)

Interactive Touch Foil 10.1 to 32 Inches(XTM Series)

Product Information

Touch Type: Interactive PCAP,12 Points Touch

Material: Ultra-thin 0.2mm transparent PET film

Applicable to: glass,acrylic,Polycarbonate

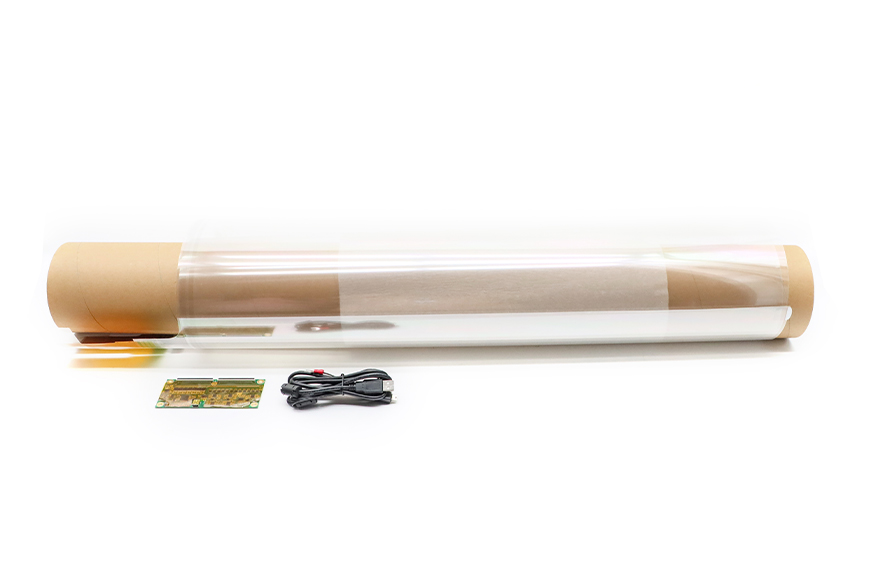

Packing List:Touch Foil*1,Controller*1,USB Line*1

Customizable: Size,Logo,Pasting Services,AG,AF,AR

Features

● Waterproof IP67,vandal proof and anti-pollution

● Transmittance≥93%,strong penetration,full-angle anti-glare

● Can be straight or curved,integrated no frame

● Accurate positioning and touch,no drift,no dead corner touch

● Zero pressure touch,can click,drag,zoom in,zoom out,and rotate

Get a quote

Online Consultation

Product Description
Mounting Steps
Specifications
Application Field
Specification and download

Product Description

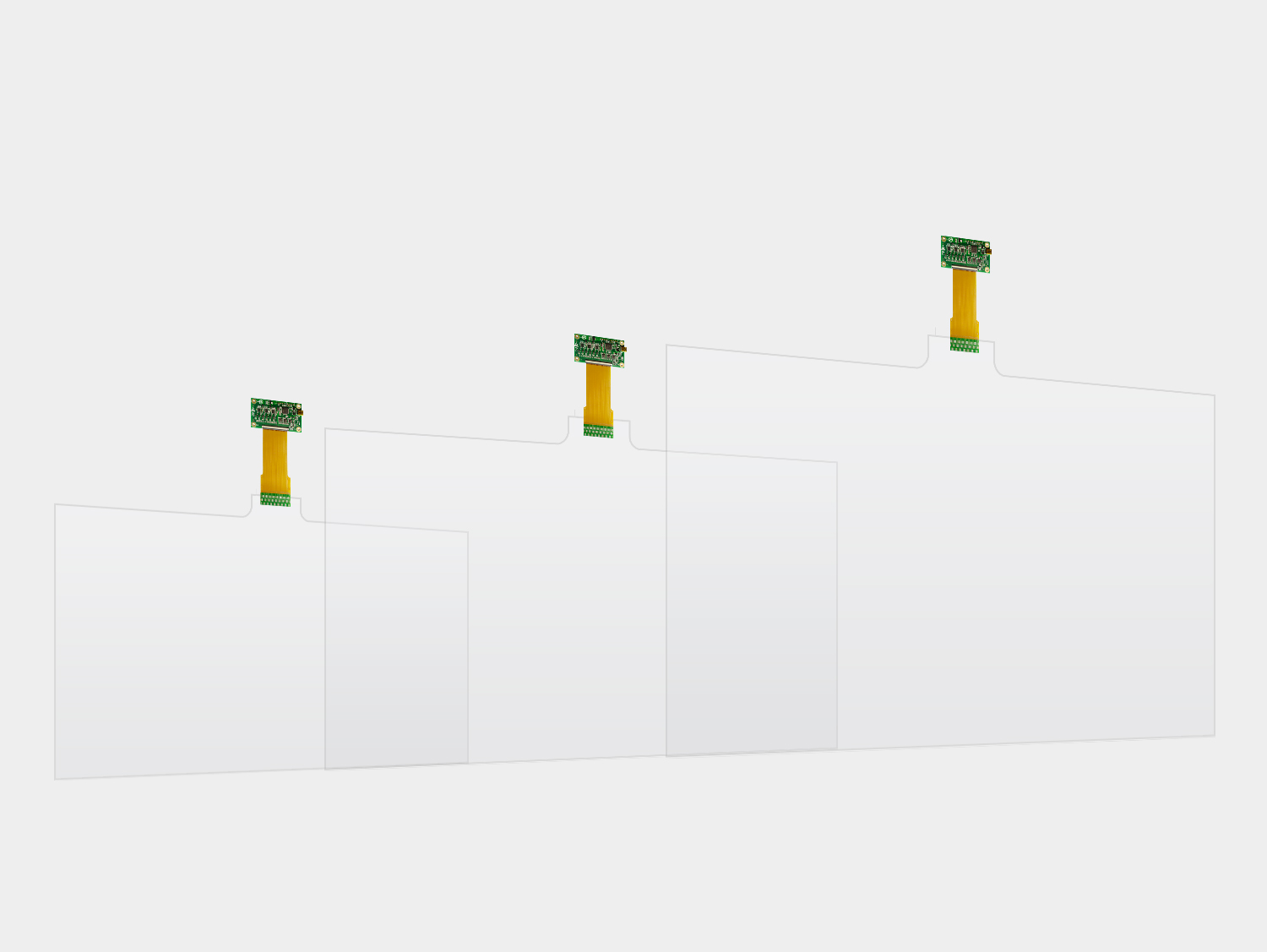

Capacitive Touch Foil Overview

GreenTouch XTM series interactive capacitive touch foils, with their highly adaptable, transparent and durable characteristics, provide a cost-effective "touchscreen transformation" solution for devices that require standard or special forms, turning ordinary surfaces into touchscreens.A comprehensive size range from 10.1” to 32” ensures compatibility with:Information kiosks, vending machines, interactive display windows, advertising machines, digital signage, smart conference tables, game tables.

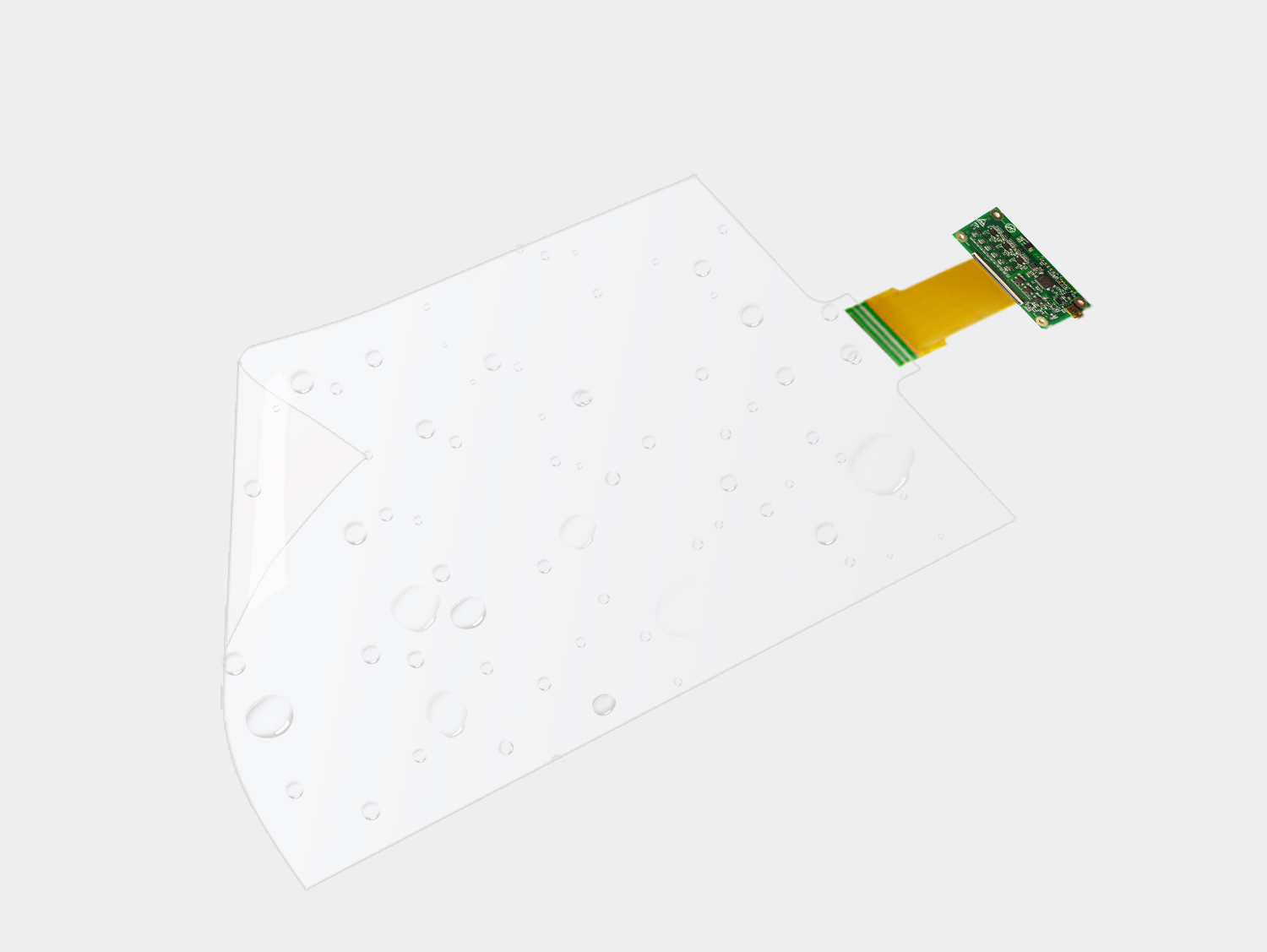

Function And Structure

Our capacitive touch foil composed of two transparent thin films,with a grid matrix layer consisting of a layer of metal wires crisscrossed by X and Y axes.It can achieve full transparency, whether flat or curved, and is waterproof, stain-proof, and free from light interference. It also features a borderless design for touch control.FPC has good flexibility and high flexibility,use high stable IC and circuit control board.
Connections and Systems

Connecting the PCAP touch foil is simple, using a USB 2.0 full-speed interface, adopt aluminum alloy plug,no driver required, just calibration.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch touch foil excel in system compatibility,compatibility with Windows,Android,Linux

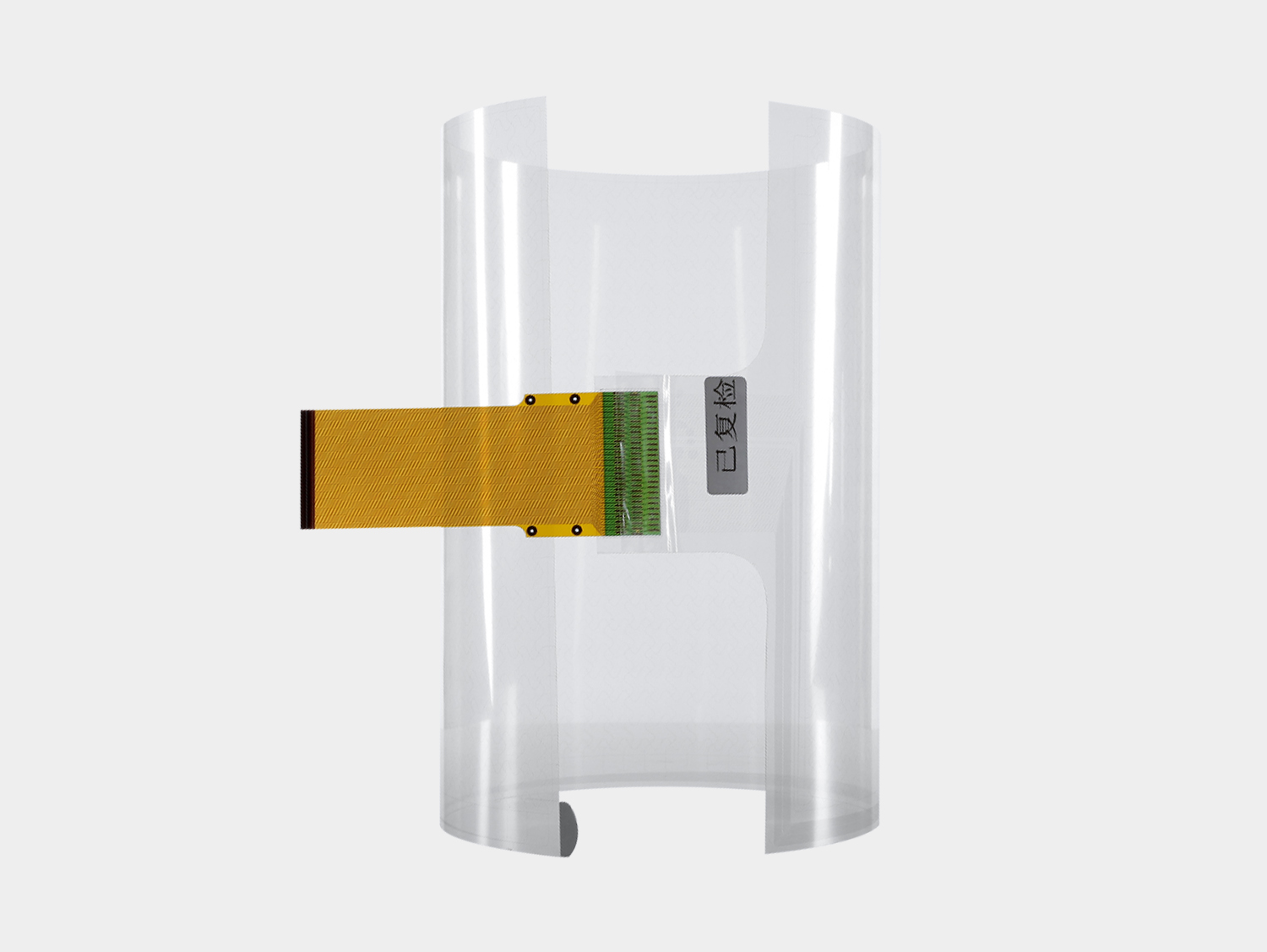

Multiple sizes available

(Ratio 16:9)Size:10.1”,10.4”,12”,12.1”,15.6”,18.5”,19”,21.5”,22”,23.6”,24”,27”,32”
(Ratio 4:3)Size:17”,19”
(Ratio 16:10)Size:19”
Highly Customized:Size,Logo,Pasting Services, AG,AF,AR

Mounting Steps

1. Surface Preparation: Ensure the mounting surface (e.g., the back of glass or acrylic sheet) is clean, flat, and dry.
2. Alignment and Adhesion: Peel off the protective layer of the touch film. Align the sensing side (the side with the circuit pattern) with the back of the medium, carefully adhere it, and use a scraper to remove air bubbles to ensure a smooth, wrinkle-free finish.
3. Connecting the Controller: Connect the flexible printed circuit (FPC) end of the touch film to the matching touch control board via the connector.
4. Electrical Connection: Connect the control board to a computer or main control device using a USB data cable.
5. Driver Installation and Calibration: Install the driver on the computer and complete the calibration in the operating system's "Touchscreen Settings".

Specifications

General Manufacturer:GreenTouch Product Name: Capacitive Touch Foil(XTM series) Regular Sizes:10.1”,10.4”,12”,12.1”,15.6”,17”,18.5”, 19”,21.5”,22”,23.6”,24”,27”,32” Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Film+Film Diagonal Size:10.1 to 32 inches Aspect Ratio:16:9,4:3,16:10 Touch Gesture:Click,Drag,Zoom,Rotate Deviation:≤0.5mm Transmittance:≥93% Scanning speed:8ms/frame Sensor:TX24 RX48 Touch Technology:Capacitive 12 touch points Packing List:Touch Foil*1,Controller*1,USB Line*1 Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max. Non-Stop 24/7 Temperature Operating:–20°C to 70°C Temperature Storage:-20°C to 70°C Humidity: 90% relative humidity, no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS

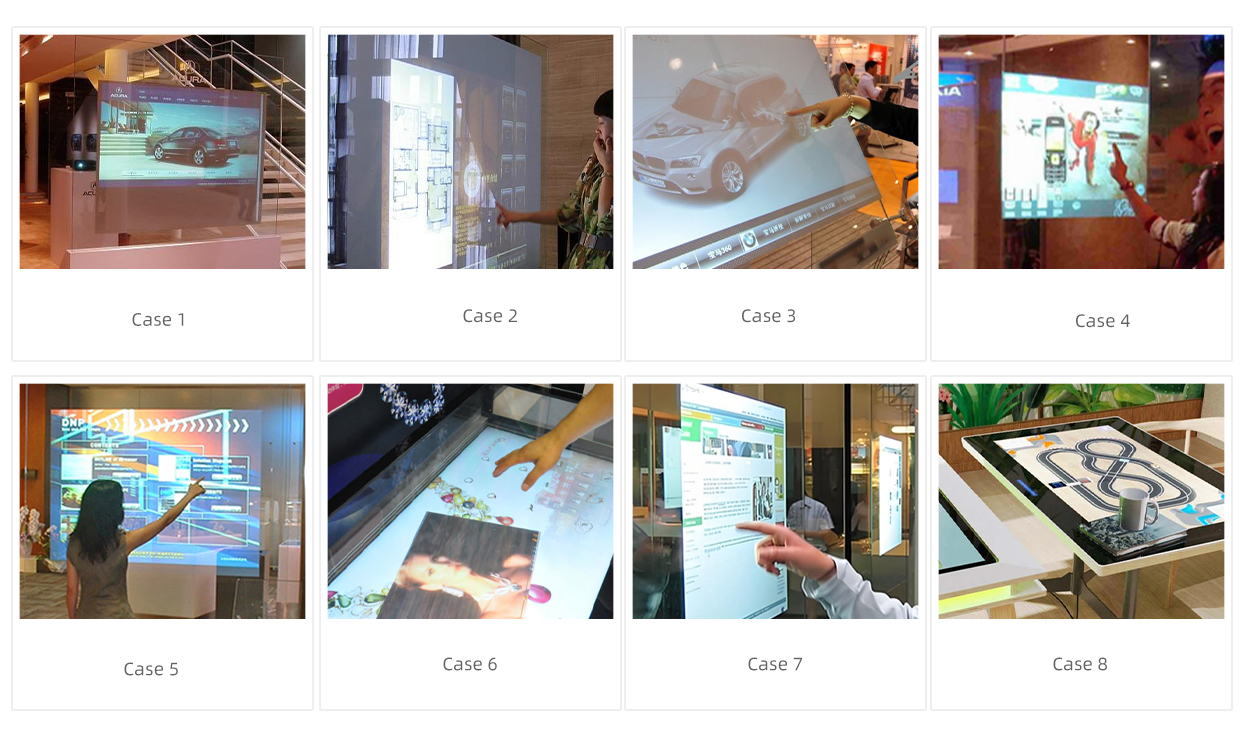

Application Field

Specification and download

Size	Model	Dimensions	View Area	Ratio	Interface	Drawing Download
10.1"	GT-XTM10.1L-1	242*147.4mm	223.5*125.7mm	16:9	USB	GT-XTM10.1L-1
10.1"	GT-XTM10.1W-1	247.3*146.8mm	223.5*125.7mm	16:9	USB	GT-XTM10.1W-1
10.4"	GT-XTM10.4L-1	248.6*151.1mm	230.2*129.5mm	16:9	USB	GT-XTM10.4L-1
10.4"	GT-XTM10.4W-1	253.9*150.5mm	230.2*129.5mm	16:9	USB	GT-XTM10.4W-1
12.1"	GT-XTM12.1L-1	286.3*172.3mm	267.8*150.6mm	16:9	USB	GT-XTM12.1L-1
12"	GT-XTM12L-1	284.1*171mm	265.6*149.4mm	16:9	USB	GT-XTM12L-1
12"	GT-XTM12L-2	262.2*204.5mm	243.8*182.8mm	16:9	USB	GT-XTM12L-2
12"	GT-XTM12W-1	289.2*170.4mm	265.6*149.4mm	16:9	USB	GT-XTM12W-1
12"	GT-XTM12W-2	267.4*203.9mm	243.8*182.8mm	16:9	USB	GT-XTM12W-2
15.6"	GT-XTM15.6L-1	368*215mm	345*194mm	16:9	USB	GT-XTM15.6L-1
15.6"	GT-XTM15.6W-1	368*215mm	345*194mm	16:9	USB	GT-XTM15.6W-1
17"	GT-XTM17L-1	364*281mm	345*259mm	4:3	USB	GT-XTM17L-1
17"	GT-XTM17W-1	369*280mm	378*212mm	4:3	USB	GT-XTM17W-1
18.5"	GT-XTM18.5L-1	428*251mm	409*230mm	16:9	USB	GT-XTM18.5L-1
18.5"	GT-XTM18.5W-1	433*251mm	409*230mm	16:9	USB	GT-XTM18.5W-1
19"	GT-XTM19L-1	439*258mm	420*236mm	16:9	USB	GT-XTM19L-1
19"	GT-XTM19L-2	404*311mm	386*289mm	4:3	USB	GT-XTM19L-2
19"	GT-XTM19L-3	427*277mm	409*255mm	16:10	USB	GT-XTM19L-3
19"	GT-XTM19W-1	444*258mm	420*236mm	16:9	USB	GT-XTM19W-1
19"	GT-XTM19W-2	409*310mm	386*289mm	4:3	USB	GT-XTM19W
19"	GT-XTM19W-3	433*277mm	409*255mm	16:10	USB	GT-XTM19W-3
21.5"	GT-XTM21.5L-1	494*289mm	475*267mm	16:9	USB	GT-XTM21.5L-1
21.5"	GT-XTM21.5W-1	499*288mm	475*267mm	16:9	USB	GT-XTM21.5W-1
22"	GT-XTM22L-1	492*318mm	473*296mm	16:9	USB	GT-XTM22.0L-1
22"	GT-XTM22W-1	497*318mm	473*296mm	16:9	USB	GT-XTM22.0W-1
23.6"	GT-XTM23.6L-1	540*315mm	522*293mm	16:9	USB	GT-XTM23.6L-1
23.6"	GT-XTM23.6W-1	545*314mm	522*293mm	16:9	USB	GT-XTM23.6W-1
24"	GT-XTM24L-1	549*320mm	531*298mm	16:9	USB	GT-XTM24L-1
24"	GT-XTM24W-1	554*319mm	531*298mm	16:9	USB	GT-XTM24W-1
27"	GT-XTM27L-1	616*357mm	597*336mm	16:9	USB	GT-XTM27L-1
27"	GT-XTM27W-1	621*357mm	597*336mm	16:9	USB	GT-XTM27W-1
32"	GT-XTM32L-1	726*419mm	708*398mm	16:9	USB	GT-XTM32L-1
32"	GT-XTM32W-1	731*419mm	708*398mm	16:9	USB	GT-XTM32W-1
