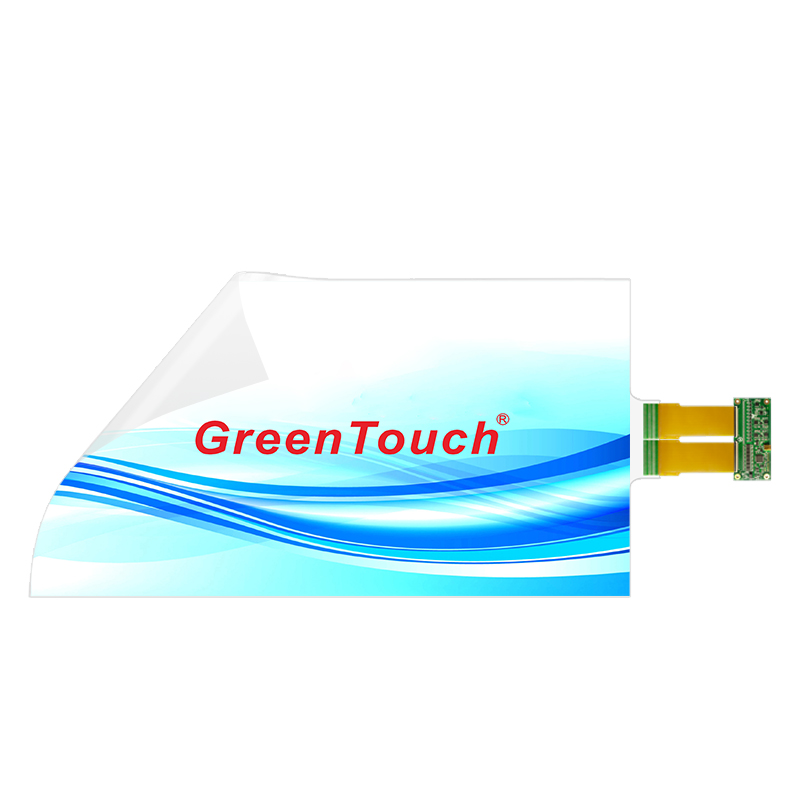

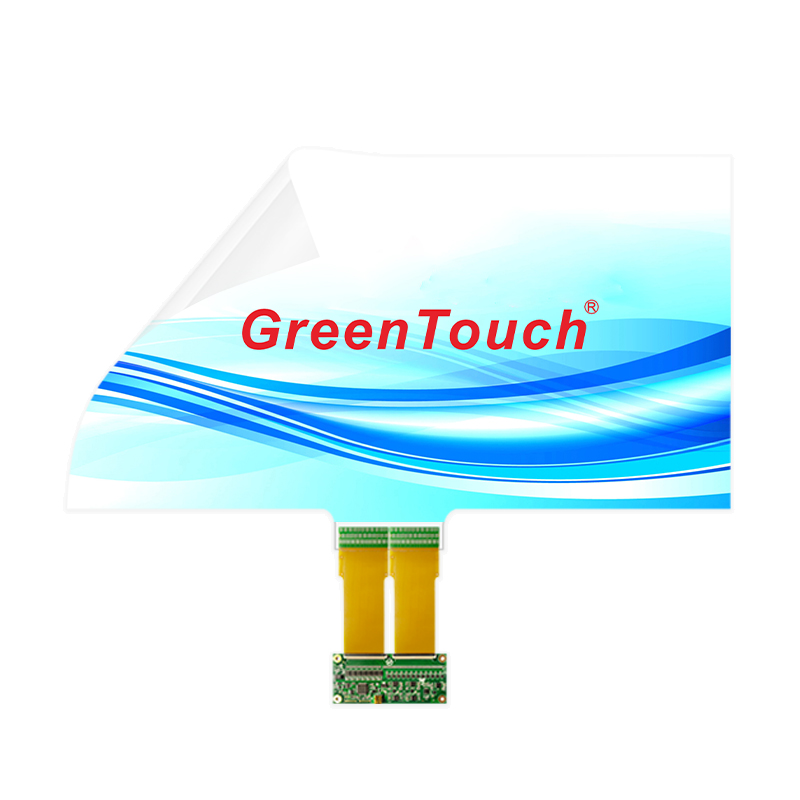

Interactive Touch Foil 32 to 65 Inches(XTA Series)

Interactive Touch Foil 32 to 65 Inches(XTA Series)

Product Information

Touch Type: Interactive PCAP,20 Points Touch

Material: Ultra-thin 0.2mm transparent PET film

Applicable to: glass, acrylic, Polycarbonate

Customizable: Size,Logo,Pasting Services, AG,AF,AR

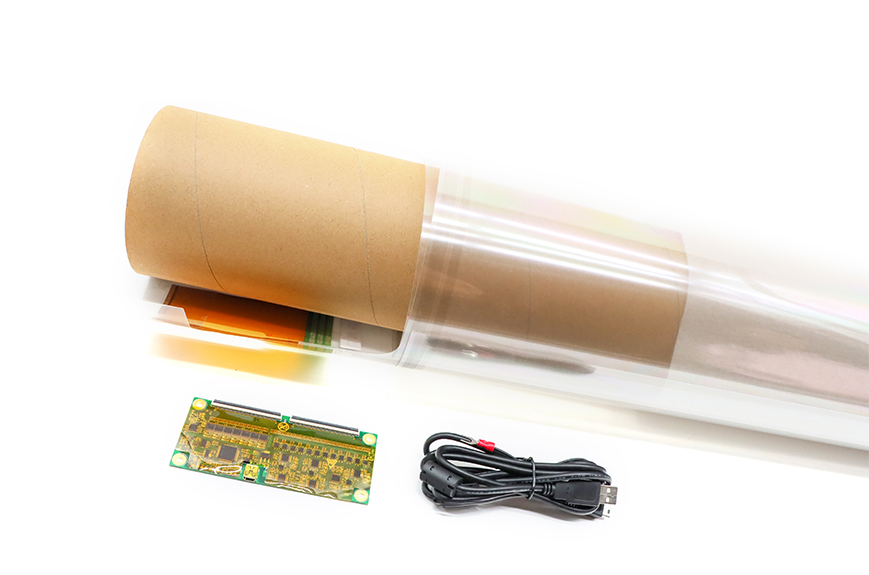

Packing List:Touch Foil*1,Controller*1,USB Line*1

Features

● Waterproof IP67,vandal proof and anti-pollution

● Fast response time, less than 8ms

● Transmittance≥93%,strong penetration,full-angle anti-glare

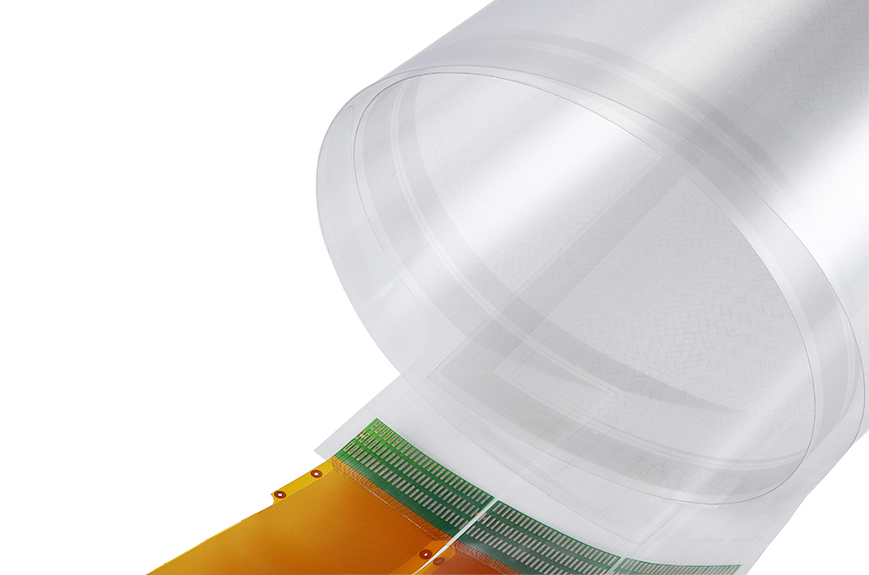

● Can be straight or curved,integrated no frame

● Accurate positioning and touch,strong penetration ability

Get a quote

Online Consultation

Product Description
Mounting Steps
Specifications
Application Field
Specification and download

Product Description

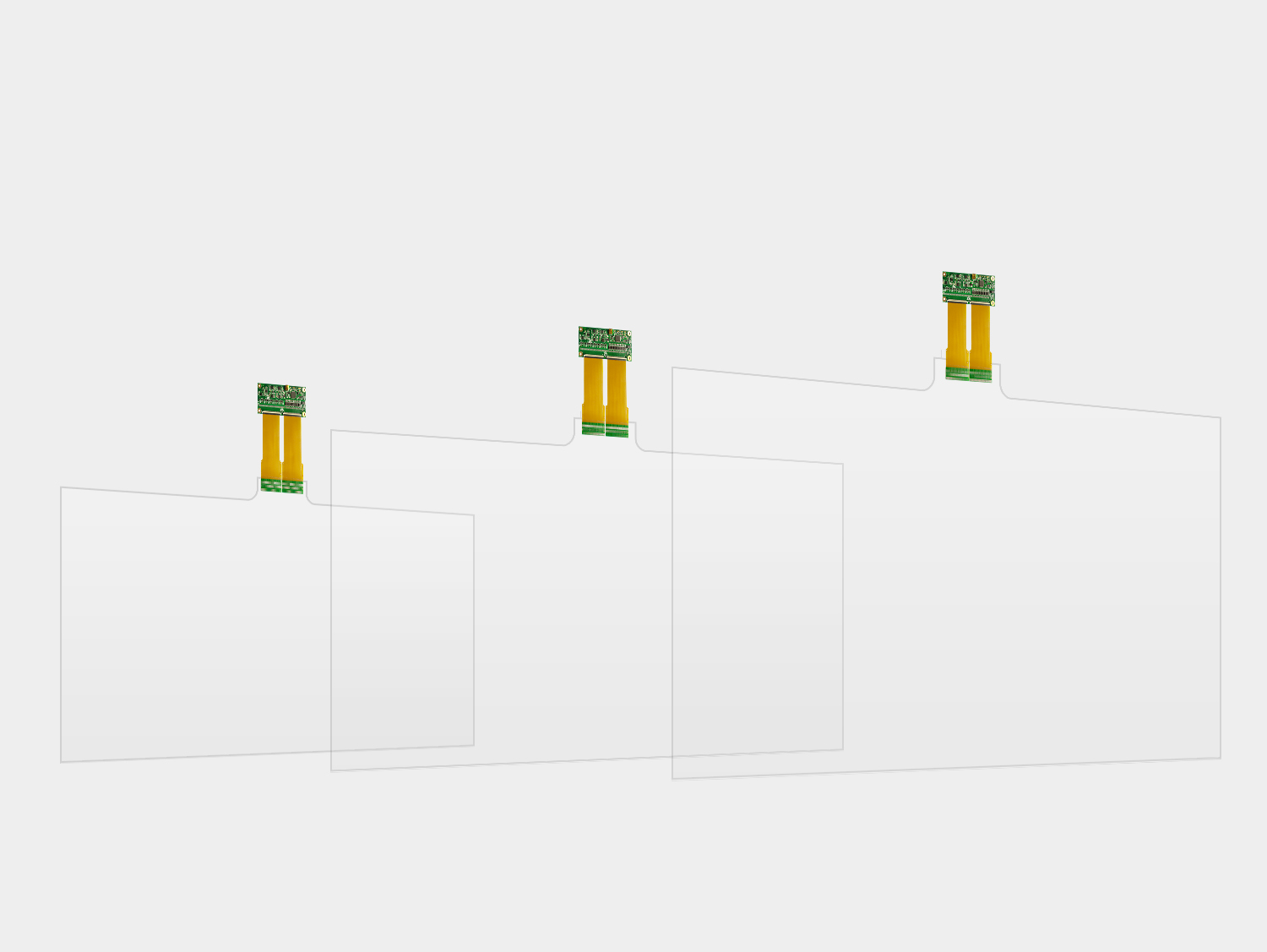

Capacitive Touch Foil Overview

GreenTouch's XTA series of capacitive interactive touch foils, with their large size, transparency, durability, and adaptability, provide touch solutions for commercial and professional fields that demand a high level of spatial awareness and visual impact.A comprehensive size range from 32” to 65” ensures compatibility with:Commercial display and retail: such as interactive windows, digital signage, interactive advertising machines; education and conference collaboration: such as smart whiteboards, electronic blackboards; public service terminals, financial and self-service equipment.

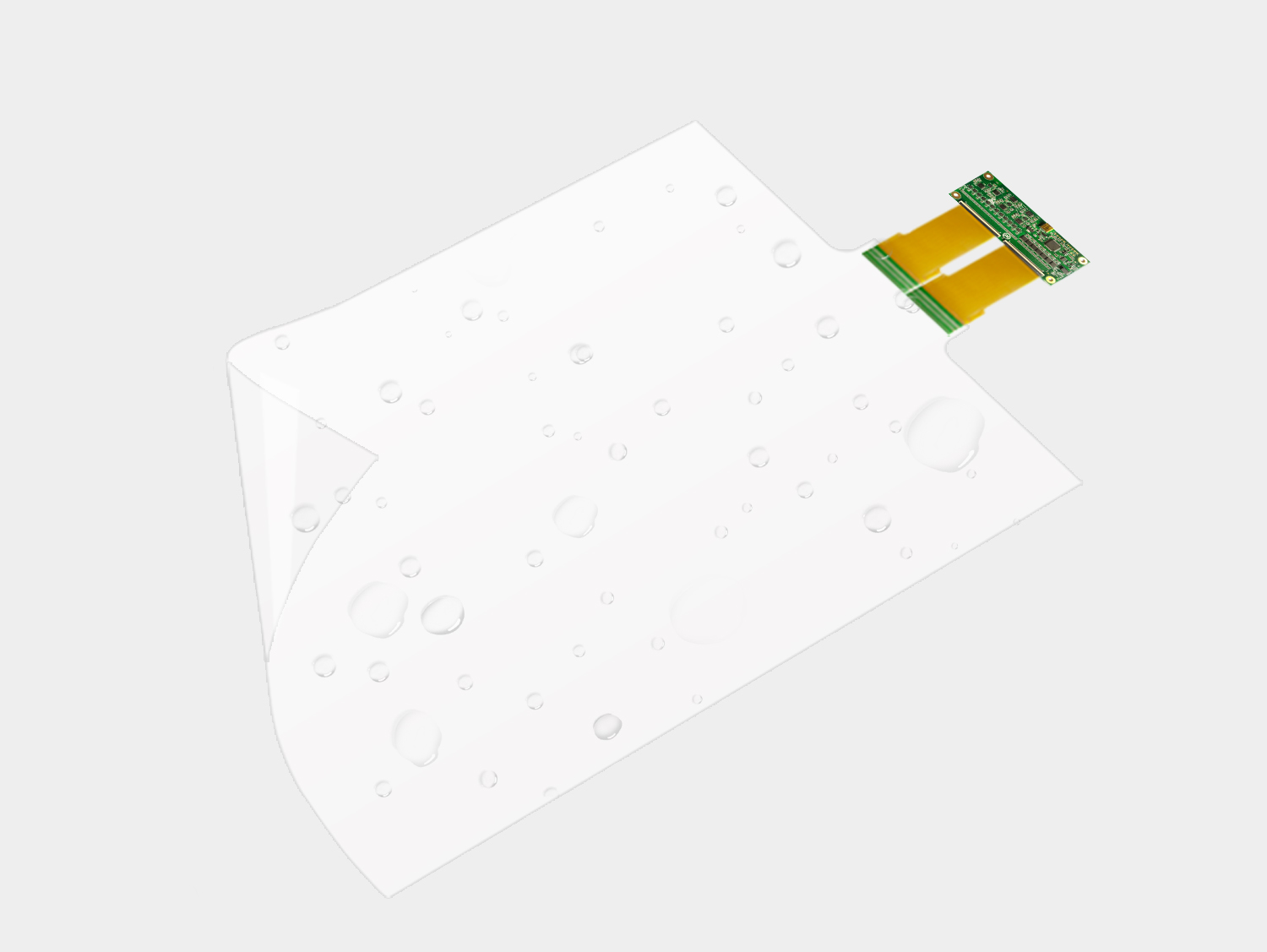

Function And Structure

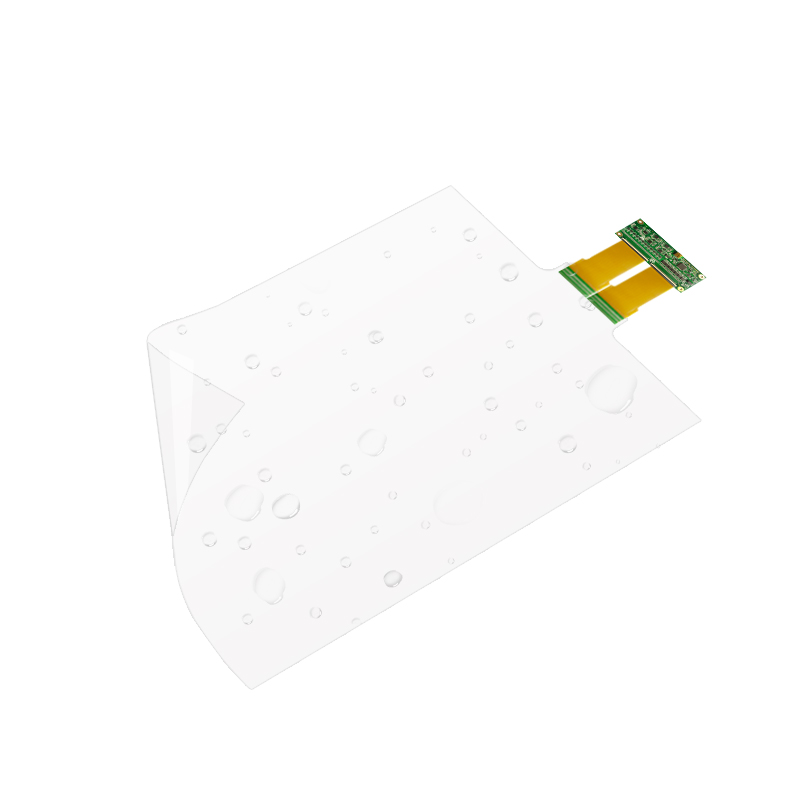

Our capacitive touch foil composed of two transparent thin films,with a grid matrix layer consisting of a layer of metal wires crisscrossed by X and Y axes.It can achieve full transparency, whether flat or curved, and is waterproof, stain-proof, and free from light interference. It also features a borderless design for touch control.FPC has good flexibility and high flexibility,use high stable IC and circuit control board
Connections and Systems

Connecting the PCAP touch foil is simple, using a USB 2.0 full-speed interface, adopt aluminum alloy plug,no driver required, just calibration.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch touch foil excel in system compatibility,compatibility with Windows,Android,Linux

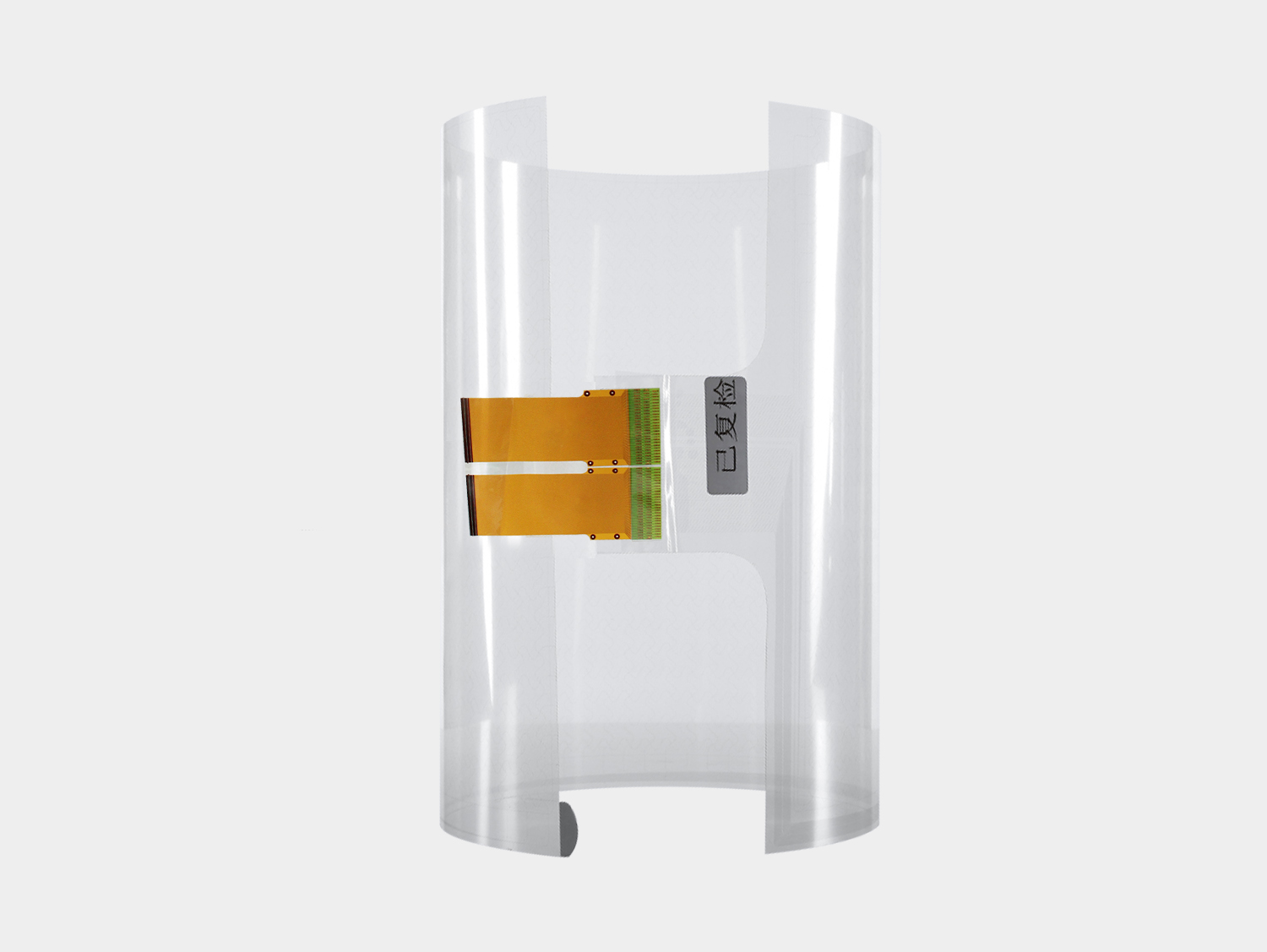

Multiple sizes available

(Ratio 16:9)
Size:32”,40”,42”,43”,46”,47”,49”,55”,65”
Highly Customized
Size,Logo,Pasting Services, AG,AF,AR

Mounting Steps

1. Surface Preparation: Ensure the mounting surface (e.g., the back of glass or acrylic sheet) is clean, flat, and dry.
2. Alignment and Adhesion: Peel off the protective layer of the touch film. Align the sensing side (the side with the circuit pattern) with the back of the medium, carefully adhere it, and use a scraper to remove air bubbles to ensure a smooth, wrinkle-free finish.
3. Connecting the Controller: Connect the flexible printed circuit (FPC) end of the touch film to the matching touch control board via the connector.
4. Electrical Connection: Connect the control board to a computer or main control device using a USB data cable.
5. Driver Installation and Calibration: Install the driver on the computer and complete the calibration in the operating system's "Touchscreen Settings".

Specifications

General Manufacturer:GreenTouch Product Name: Capacitive Touch Foil(XTA series) Regular Sizes:32”,40”,42”,43”,46”,47”,49”,55”,65” Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Film+Film Diagonal Size:32 to 65 inches Aspect Ratio:16:9 Touch Gesture:Click,Drag,Zoom,Rotate Deviation:≤0.5mm Transmittance:≥93% Scanning speed:8ms/frame Sensor:TX56 RX96 Touch Technology:Capacitive 20 touch points Packing List:Touch Foil*1,Controller*1,USB Line*1 Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max. Non-Stop 24/7 Temperature Operating:–20°C to 70°C Temperature Storage:-20°C to 70°C Humidity: 90% relative humidity,no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS

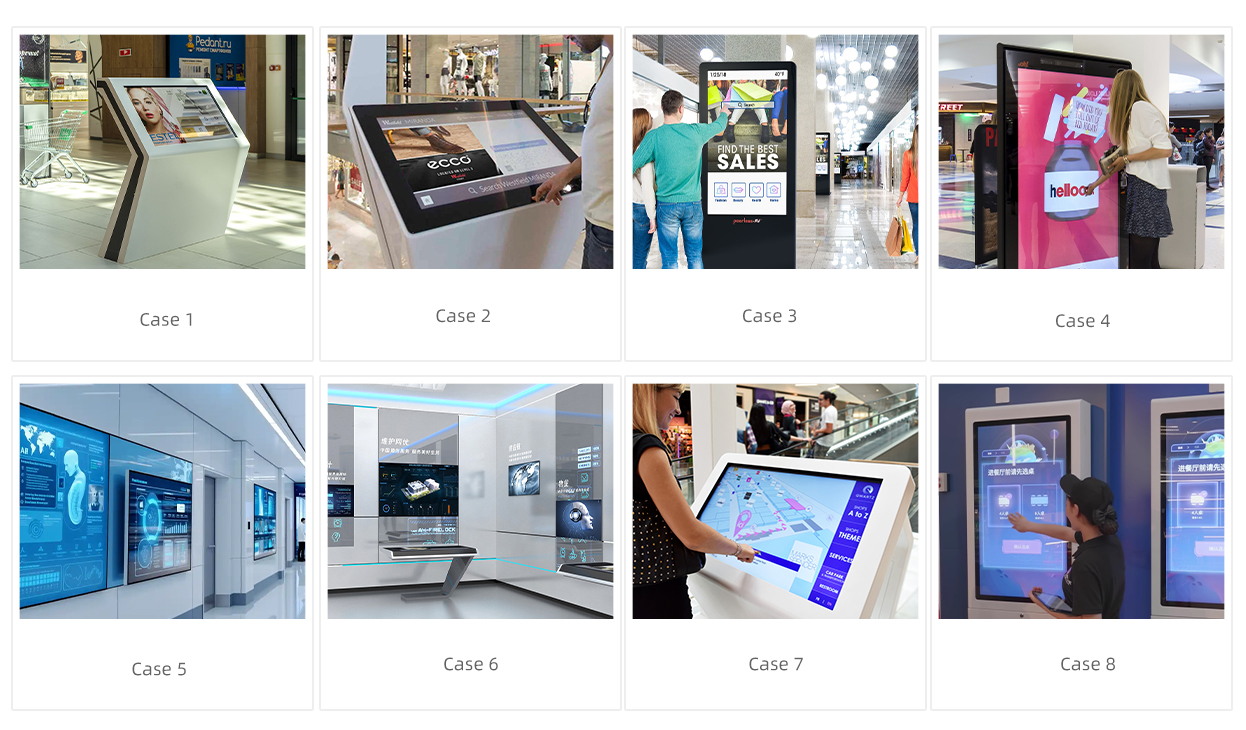

Application Field

Specification and download

Size	Model	Dimensions	View Area	Interface	Ratio	Drawing Download
32"	GT-XTA32L-1	731*429mm	708*398mm	16:9	USB	GT-XTA32L-1
32"	GT-XTA32W-1	742*426mm	708*398mm	16:9	USB	GT-XTA32W-1
40"	GT-XTA40L-1	908.7*529.3mm	885.5*498.1mm	16:9	USB	GT-XTA40L-1
40"	GT-XTA40W-1	919.8*526.3mm	885.5*498.1mm	16:9	USB	GT-XTA40W-1
42"	GT-XTA42L-1	953*554.2mm	929.8*523mm	16:9	USB	GT-XTA42L-1
42"	GT-XTA42W-1	964.1*551.2mm	929.8*523mm	16:9	USB	GT-XTA42W-1
43"	GT-XTA43L-1	975*566mm	951*535mm	16:9	USB	GT-XTA43L-1
43"	GT-XTA43W-1	986*563mm	951*535mm	16:9	USB	GT-XTA43W-1
46"	GT-XTA46L-1	1041.6*603.8mm	1018.3*572.8mm	16:9	USB	GT-XTA46L-1
46"	GT-XTA46W-1	1052.7*601mm	1018.3*572.8mm	16:9	USB	GT-XTA46W-1
47"	GT-XTA47L-1	1063*616mm	1040*585mm	16:9	USB	GT-XTA47L-1
47"	GT-XTA47W-1	1074*613mm	1040*585mm	16:9	USB	GT-XTA47W-1
49"	GT-XTA49L-1	1108*641.2mm	1084.7*610.1mm	16:9	USB	GT-XTA49L-1
49"	GT-XTA49W-1	1118.9*638.4mm	1084.7*610.1mm	16:9	USB	GT-XTA49W-1
55"	GT-XTA55L-1	1240*715mm	1217*684mm	16:9	USB	GT-XTA55L-1
55"	GT-XTA55W-1	1251*713mm	1217*684mm	16:9	USB	GT-XTA55W-1
65"	GT-XTA65L-1	1462*840mm	1438*809mm	16:9	USB	GT-XTA65L-1
65"	GT-XTA65W-1	1473*837mm	1438*809mm	16:9	USB	GT-XTA65W-1
