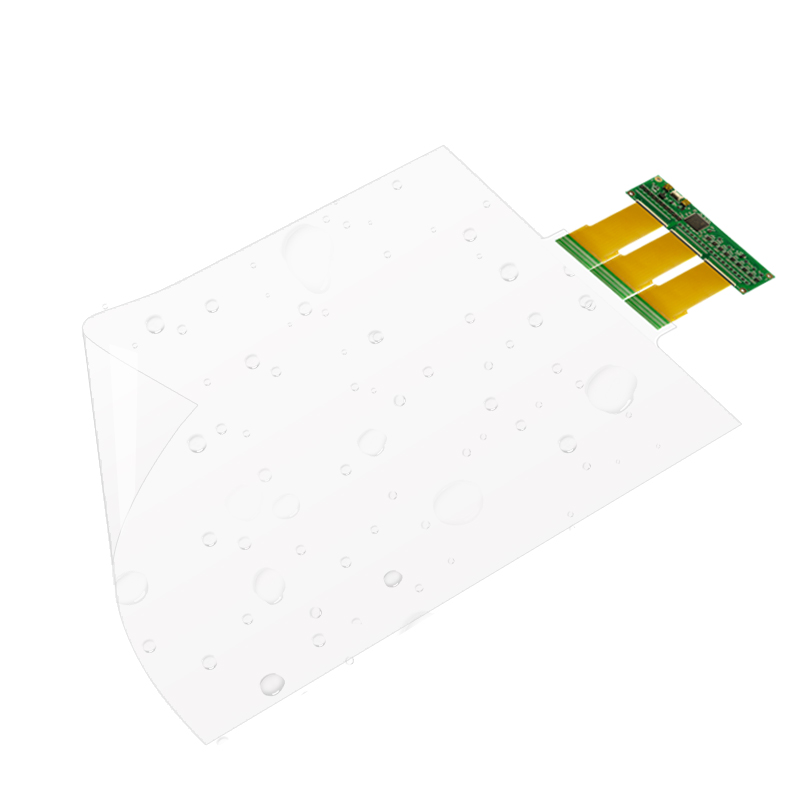

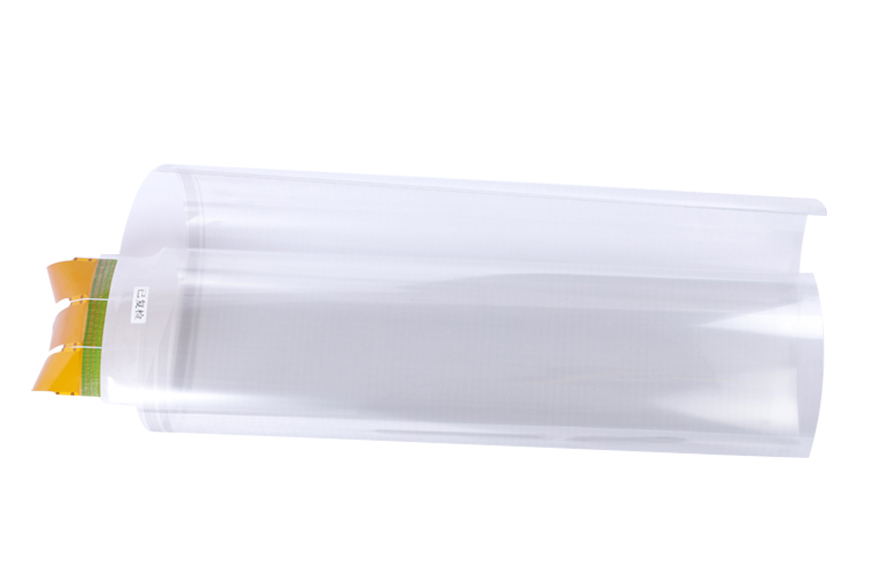

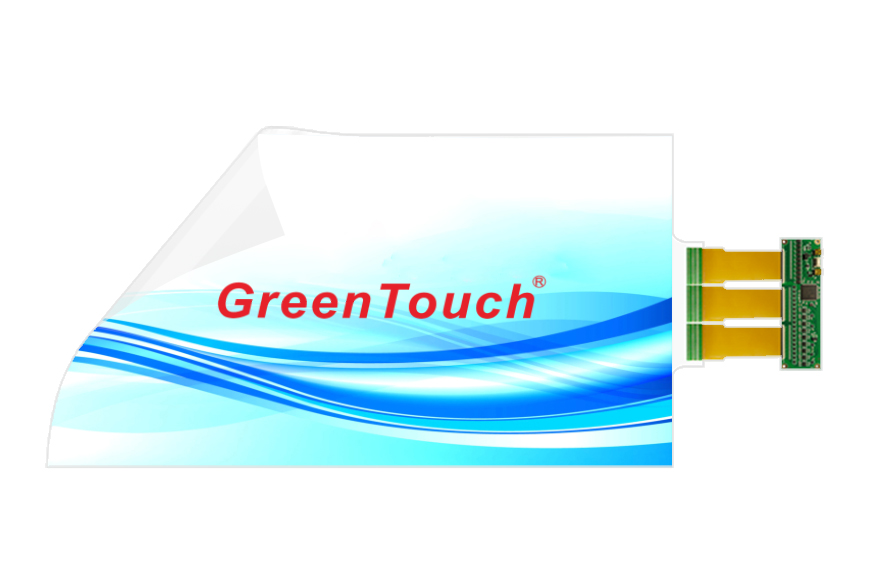

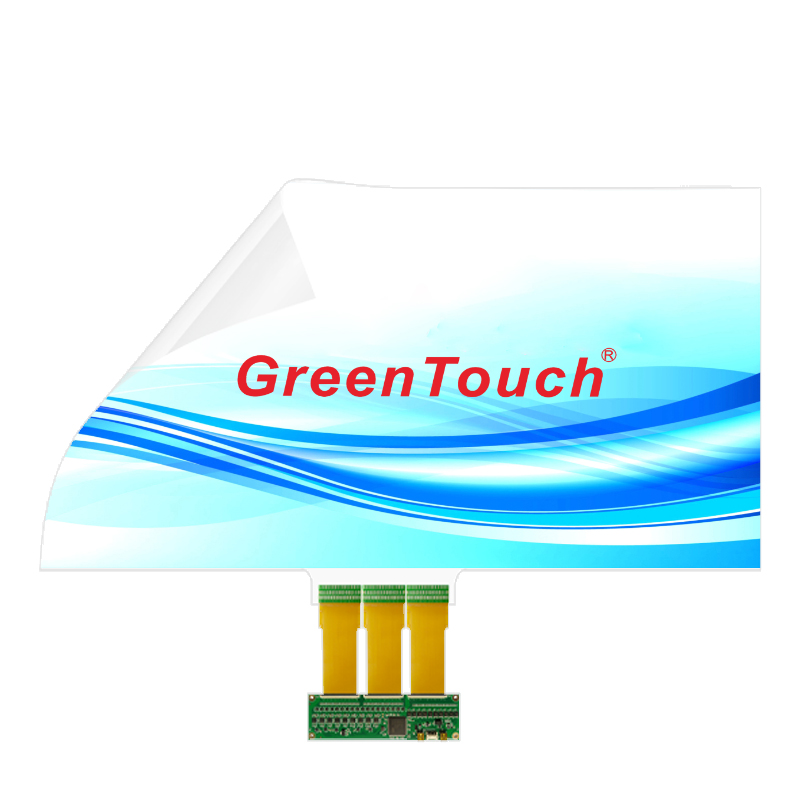

Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Product Information

Touch Type: Interactive PCAP,40 Points Touch

Material: Ultra-thin 0.2mm transparent PET film

Applicable to: glass, acrylic, Polycarbonate

Customizable: Size,Logo,Pasting Services, AG,AF,AR

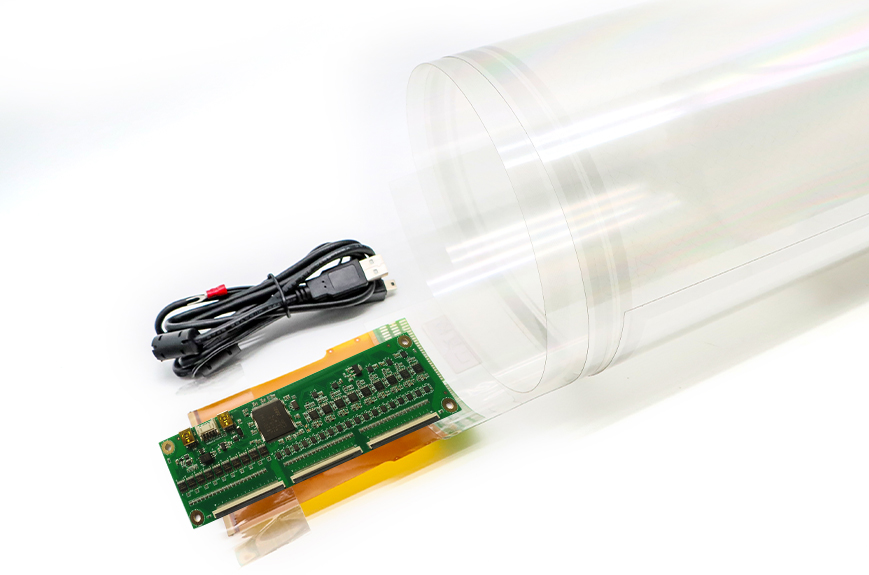

Packing List:Touch Foil*1,Controller*1,USB Line*1

Features

● Waterproof IP67,vandal proof and anti-pollution

● Crystal-clear optical performance,Durable and scratch-resistant surface

● Transmittance≥93%,strong penetration,full-angle anti-glare

● Can be straight or curved,integrated no frame

● Accurate positioning and touch,strong penetration ability

Product Description

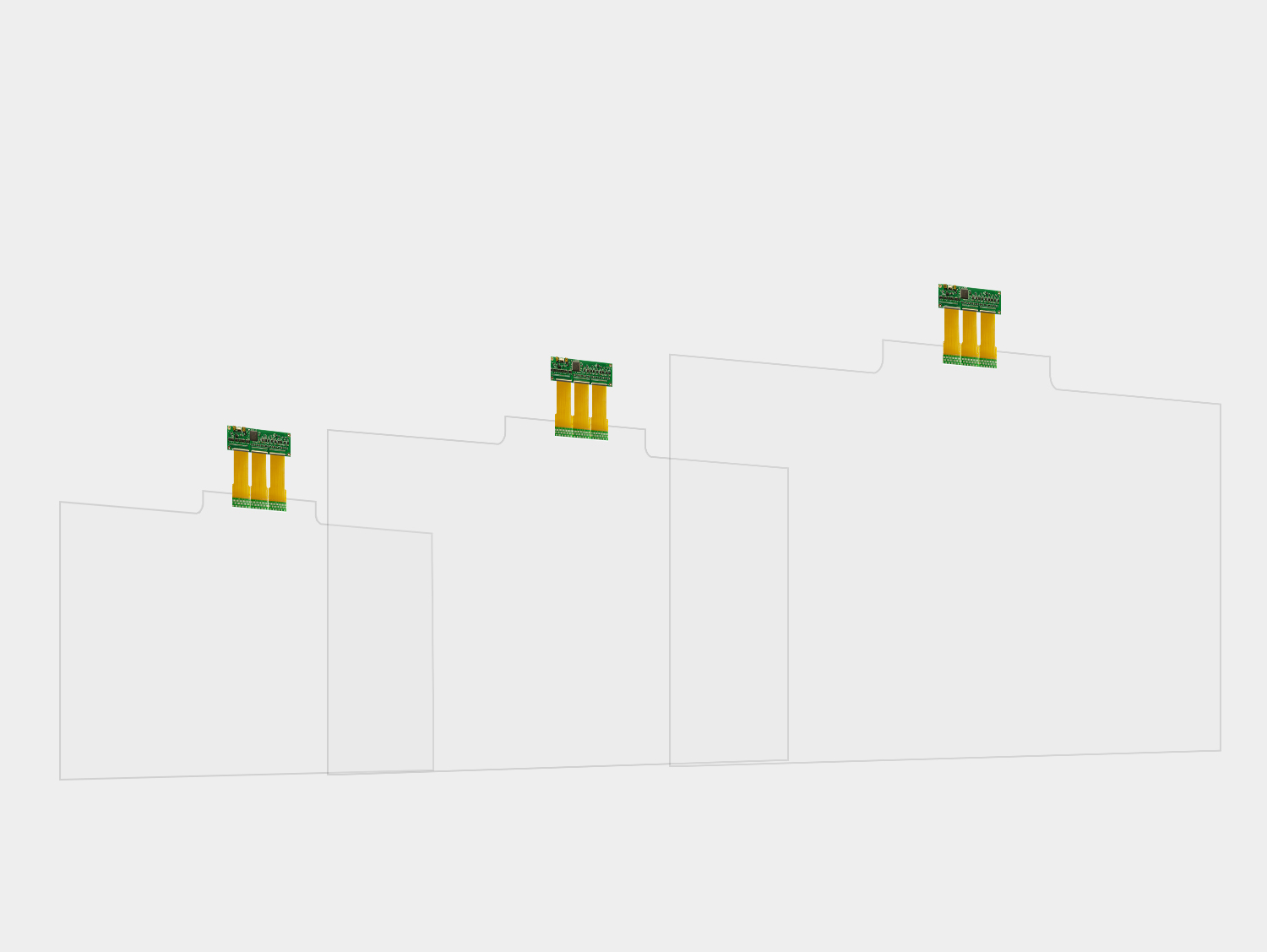

  • apacitive Touch Foil Overview
    apacitive Touch Foil Overview

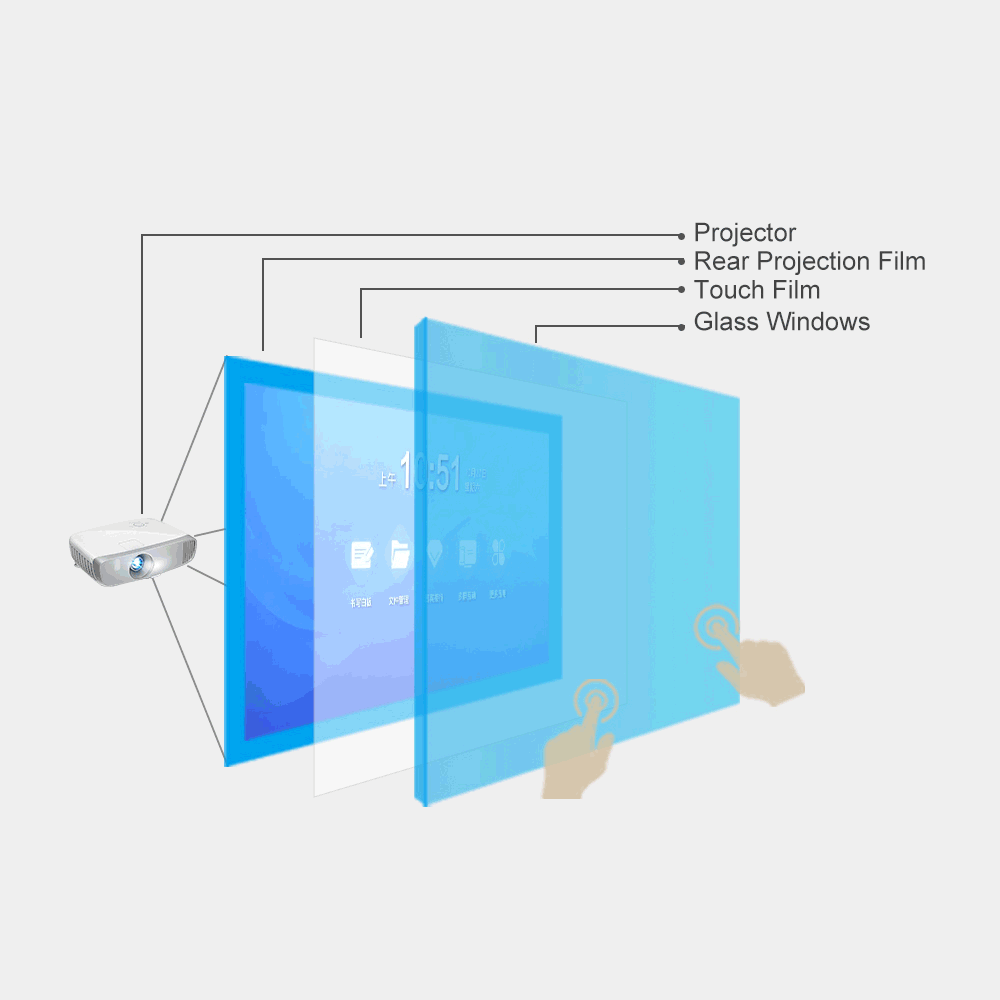

    GreenTouch's 42-110 inch XTB series capacitive touch foils are the ideal choice for solving interactive needs in ultra-large sizes, non-standard forms, and demanding environments. Essentially, they empower a large "glass" or "screen," making it intelligent and interactive. Their core value lies in their ability to transform a flat surface into a highly interactive touch interface with exceptional flexibility. This series primarily serves commercial displays, public spaces, and professional fields, emphasizing immersive experiences and multi-user interaction.
  • Function And Structure

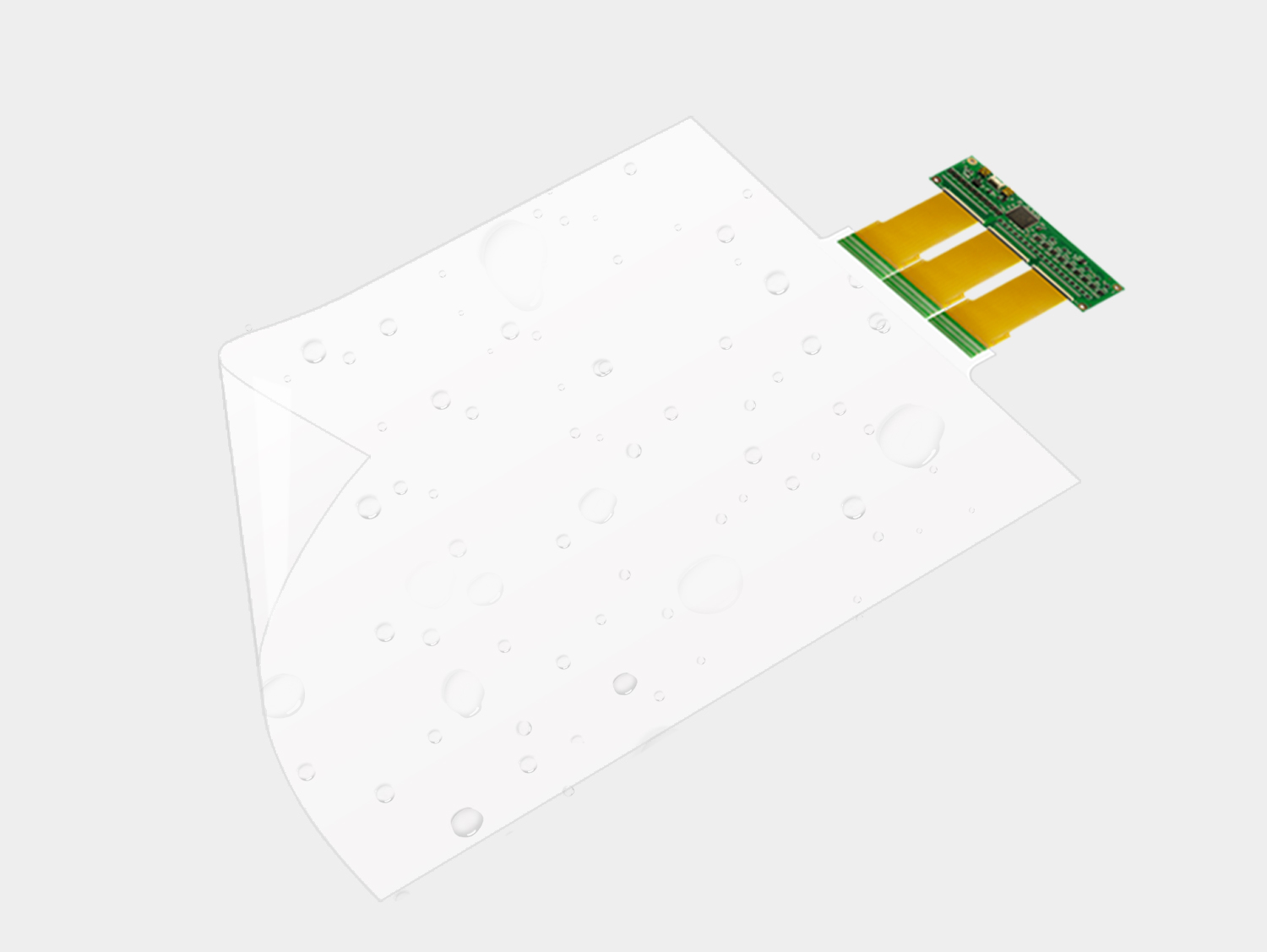

    Function And Structure
    Our capacitive touch foil composed of two transparent thin films,with a grid matrix layer consisting of a layer of metal wires crisscrossed by X and Y axes.It can achieve full transparency, whether flat or curved, and is waterproof, stain-proof, and free from light interference. It also features a borderless design for touch control.FPC has good flexibility and high flexibility,use high stable IC and circuit control board

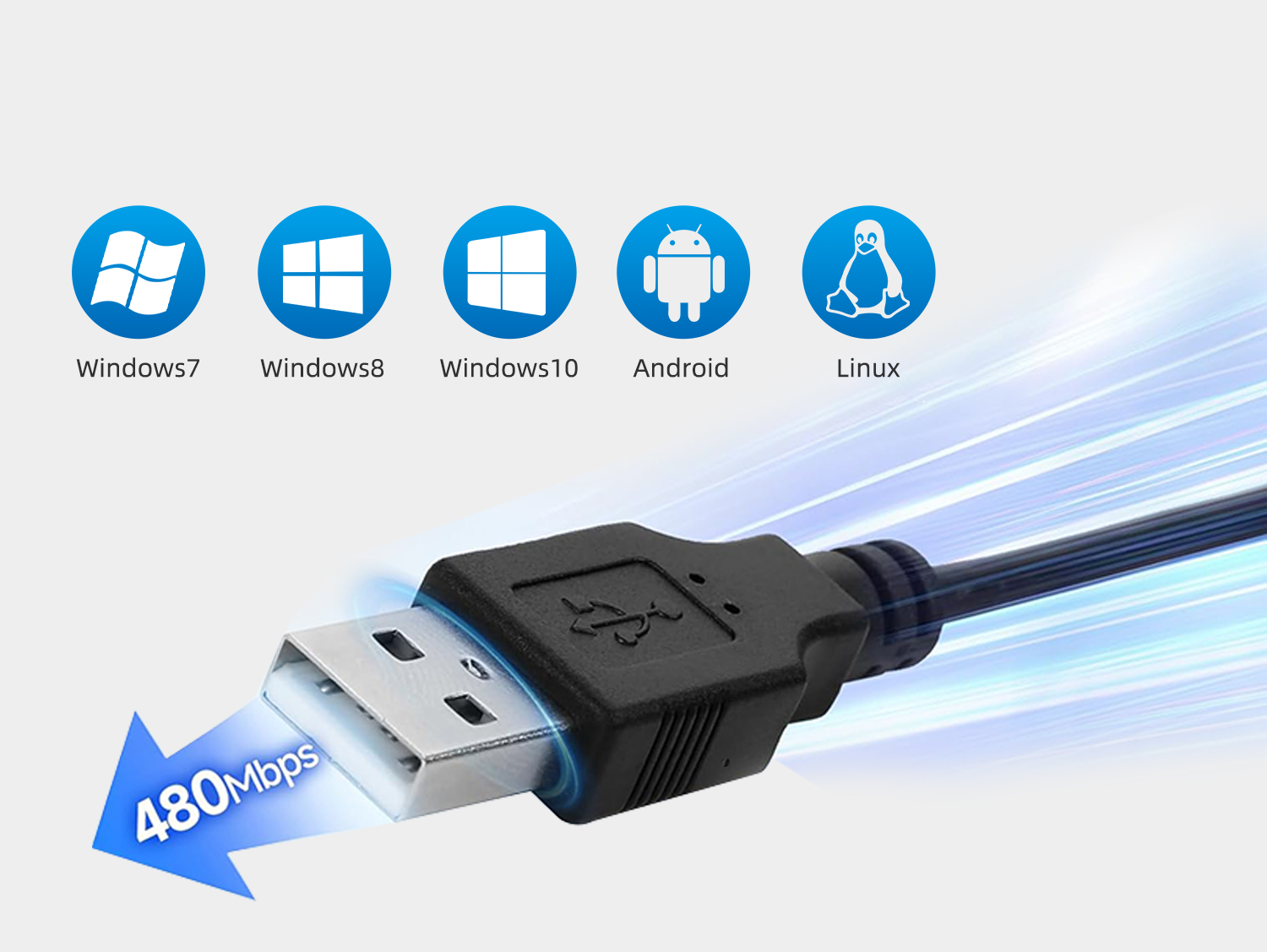

  • Connections and Systems
    Connections and Systems
    Connecting the PCAP touch foil is simple, using a USB 2.0 full-speed interface, adopt aluminum alloy plug,no driver required, just calibration.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch touch foil excel in system compatibility,compatibility with Windows,Android,Linux

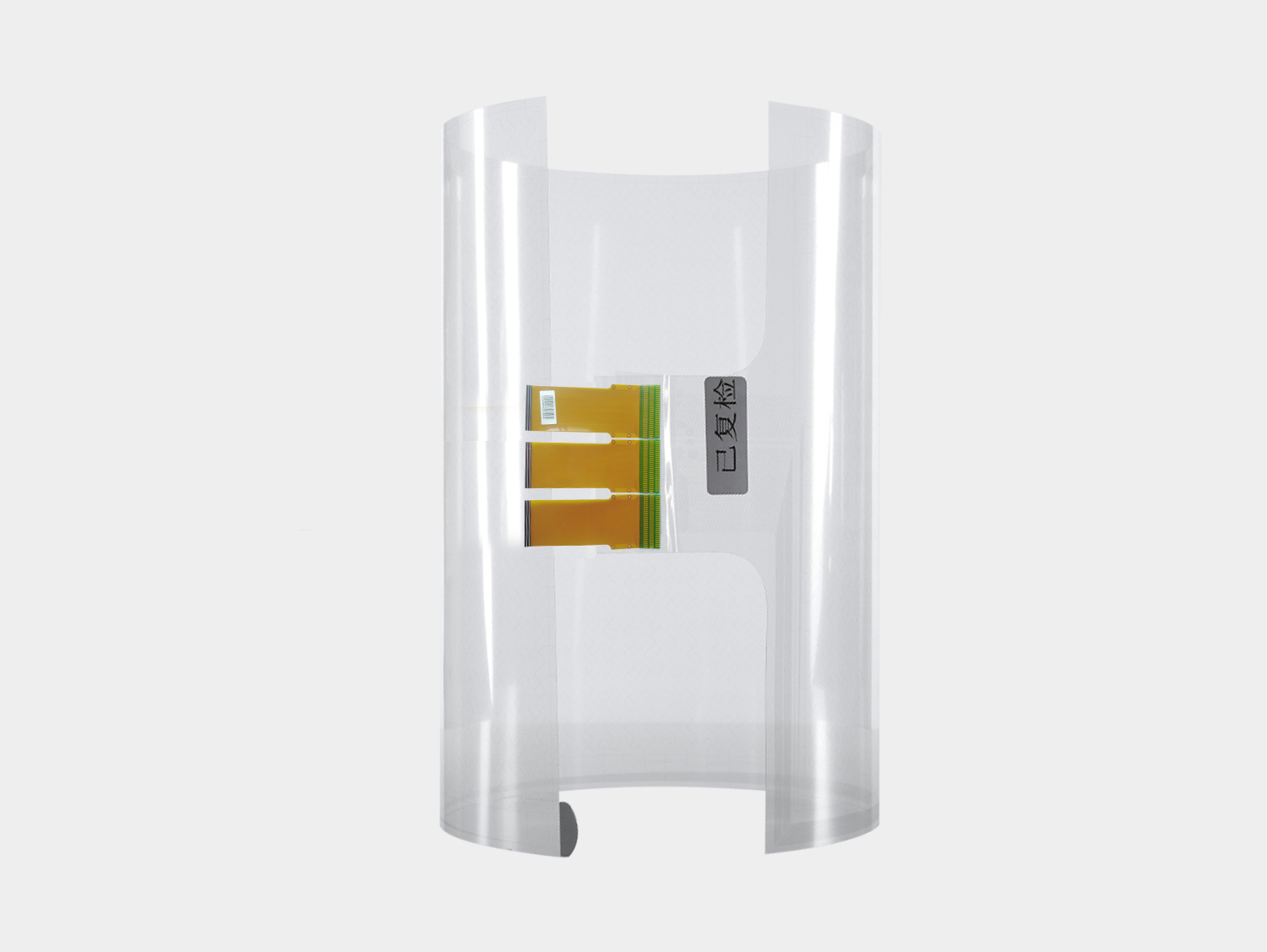

  • Multiple sizes available
    Multiple sizes available
    (Ratio 16:9)
    Size:42”,43”,48”,49”,50”,55”,60”,65”,70”,75”,84”,86”,98”,100”,110”,153”
    Highly Customized
    Size,Logo,Pasting Services, AG,AF,AR
Mounting Steps
1. Surface Preparation: Ensure the mounting surface (e.g., the back of glass or acrylic sheet) is clean, flat, and dry.
2. Alignment and Adhesion: Peel off the protective layer of the touch film. Align the sensing side (the side with the circuit pattern) with the back of the medium, carefully adhere it, and use a scraper to remove air bubbles to ensure a smooth, wrinkle-free finish.
3. Connecting the Controller: Connect the flexible printed circuit (FPC) end of the touch film to the matching touch control board via the connector.
4. Electrical Connection: Connect the control board to a computer or main control device using a USB data cable.
5. Driver Installation and Calibration: Install the driver on the computer and complete the calibration in the operating system's "Touchscreen Settings".
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Specifications
General

Manufacturer:GreenTouch

Product Name: Capacitive Touch Foil(XTB series)

Regular Sizes:42”,43”,48”,49”,50”,55”,60”,65”,70”, 75”,84”,86”,98”,100”,110”,153”

Warranty:1-3 Year

Certificates:CE,FCC,RoHS

Panel

Panel Type:Film+Film

Diagonal Size:42 to 153 inches

Aspect Ratio:16:9

Touch Gesture:Click,Drag,Zoom,Rotate

Deviation:≤0.5mm

Transmittance:≥93%

Scanning speed:8ms/frame

Sensor:TX80 RX142

Touch Technology:Capacitive 40 touch points

Packing List: Touch Foil*1,Controller*1,USB Line*1

Touch Support System:Windows,Android,Linux

Environmental

Operating Time:Max. Non-Stop 24/7

Temperature Operating:–20°C to 70°C

Temperature Storage:-20°C to 70°C

Humidity: 90% relative humidity, no condensation

Connectivity

Interface:USB

Compliance

Certifications: CE,FCC,RoHS

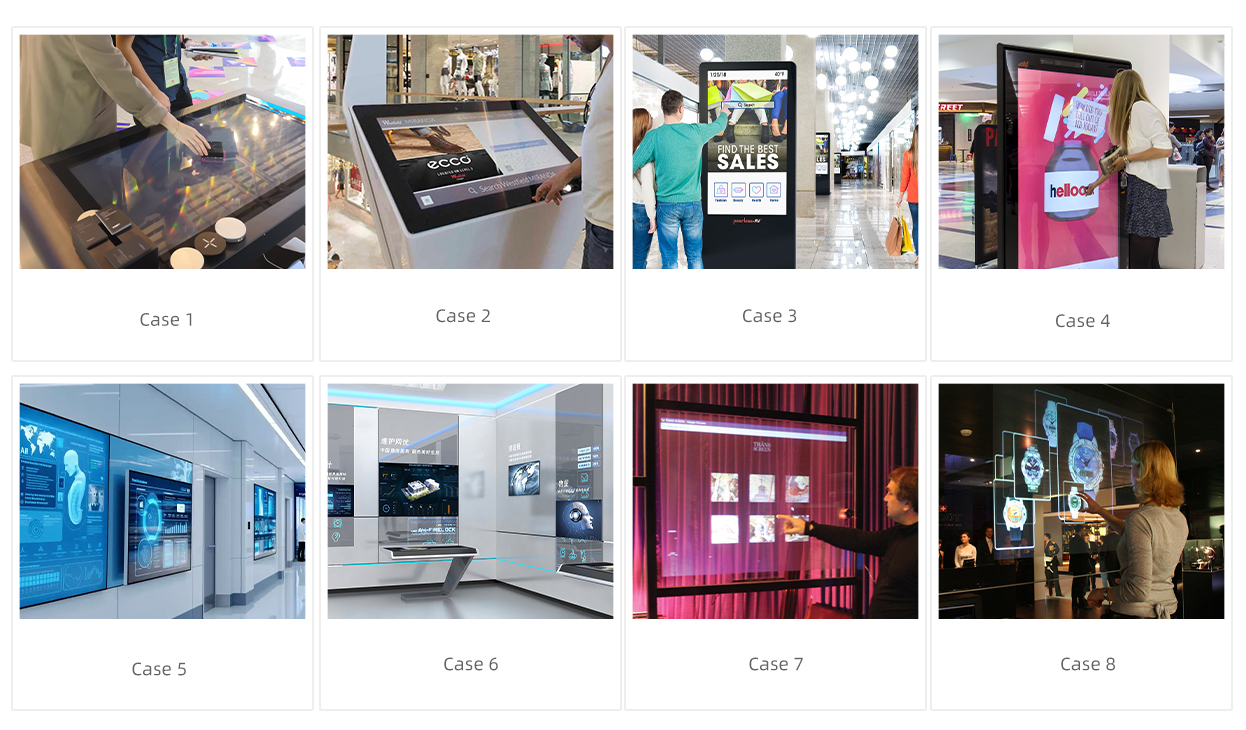

Application Field
Interactive Touch Foil 42 to 153 Inches(XTB Series)
Specification and download
SizeModelDimensionsView AreaInterfaceRatioDrawing Download
42"GT-XTB42L-1956.6*561.4mm929.8*523mm16:9USB

GT-XTB42L-1

43"GT-XTB43L-1978.7*573.8mm951.9*535.4mm16:9USB

GT-XTB43L-1

43"GT-XTB43W-1995.5*570.6mm951.9*535.4mm16:9USB

GT-XTB43W-1

48"GT-XTB48W-11106.1*632.8mm1062.6*597.7mm16:9USB

GT-XTB48W-1

49"GT-XTB49L-11111.6*648.5mm1084.7*610.1mm16:9USB

GT-XTB49L-1

49"GT-XTB49W-11128.2*645.3mm1084.7*610.1mm16:9USB

GT-XTB49W-1

50"GT-XTB50L-11133.7*661mm1106.9*622.6mm16:9USB

GT-XTB50L-1

50"GT-XTB50W-11150.4*657.7mm1106.9*622.6mm16:9USB

GT-XTB50W-1

55"GT-XTB55L-11244*723mm1217*684mm16:9USB

GT-XTB55L-1

55"GT-XTB55W1261*720mm1217*684mm16:9USB

GT-XTB55W-1

60"GT-XTB60L-11355*785mm1328*747mm16:9USB

GT-XTB60L-1

60"GT-XTB60W-11371*782mm1328*747mm16:9USB

GT-XTB60W-1

65"GT-XTB65L-11465*847mm1438*809mm16:9USB

GT-XTB65L-1

65"GT-XTB65W-11482*844mm1438*809mm16:9USB

GT-XTB65W-1

70"GT-XTB70L-11576*909mm1549*871mm16:9USB

GT-XTB70L-1

70"GT-XTB70W-11592*906mm1549*871mm16:9USB

GT-XTB70W-1

75"GT-XTB75L-11687*972mm1660*933mm16:9USB

GT-XTB75L-1

75"GT-XTB75W-11703*969mm1660*933mm16:9USB

GT-XTB75W-1

84"GT-XTB84L-11886.4*1084.1mm1859.5*1046mm16:9USB

GT-XTB84L-1

84"GT-XTB84W-11902.6*1081.1mm1859.6*1046mm16:9USB

GT-XTB84W-1

86"GT-XTB86L-11930*1109mm1903*1070mm16:9USB

GT-XTB86L-1

86"GT-XTB86W-11946*1106mm1903*1070mm16:9USB

GT-XTB86W-1

98"GT-XTB98L-12196*1258mm2169*1220mm16:9USB

GT-XTB98L-1

98"GT-XTB98W-12212*1255mm2169*1220mm16:9USB

GT-XTB98W-1

100"GT-XTB100L-12240.6*1283.3mm2213.8*1245.2mm16:9USB

GT-XTB100L-1

100"GT-XTB100W-12256.8*1280.4mm2213.8*1245.2mm16:9USB

GT-XTB100W-1

110"GT-TXB110L-12462*1407.7mm2435.1*1369.7mm16:9USB

GT-XTB110L-1

110"GT-XTB110W-12478*1404.9mm2435.1*1369.7mm16:9USB

GT-XTB110W-1

153"GT-XTB153L-13666.8*1437.9mm3640*1400mm16:9USB

GT-XTB153L-1
