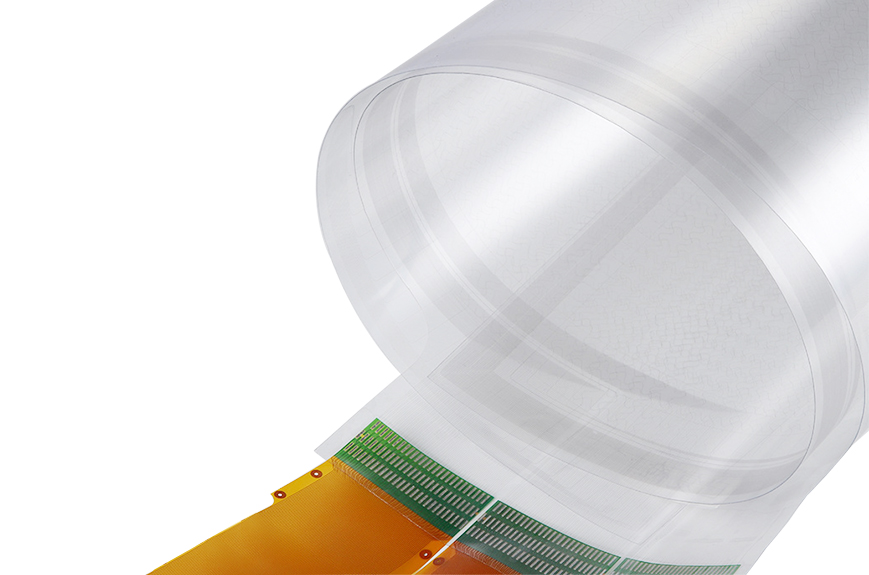

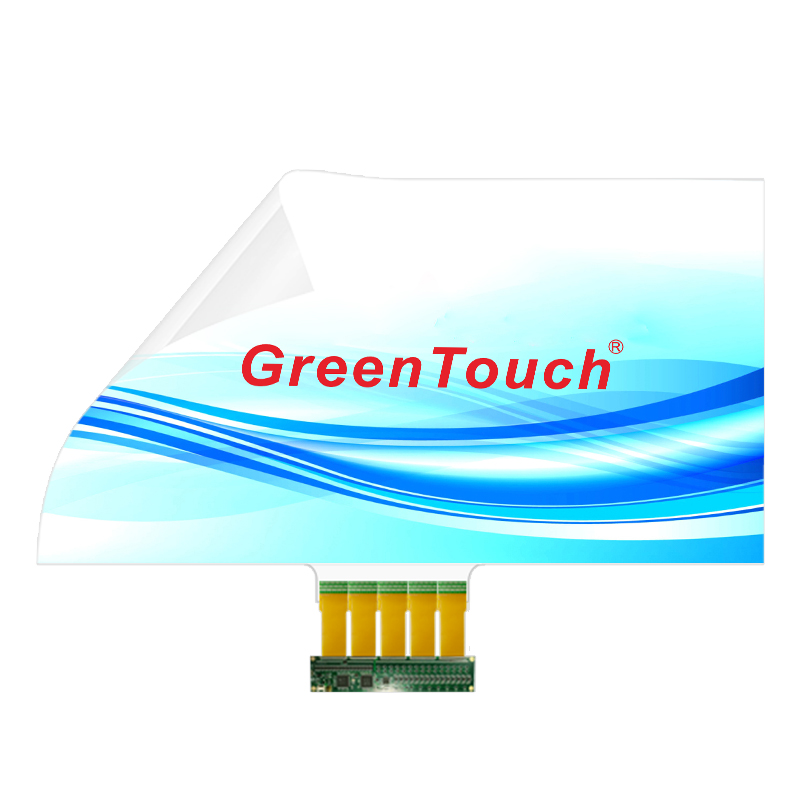

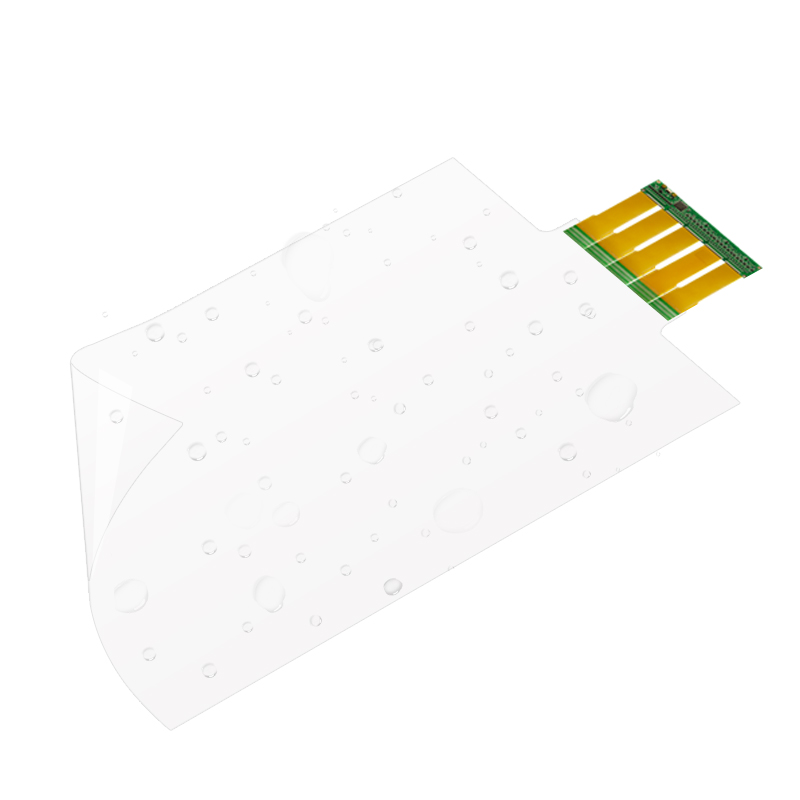

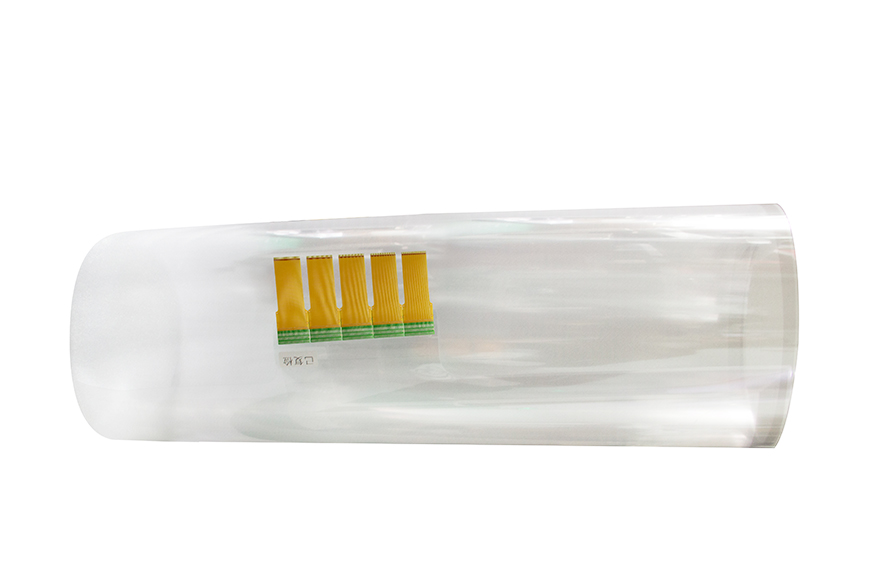

Interactive Touch Foil 43 to 180 Inches(XTC Series)

Interactive Touch Foil 43 to 180 Inches(XTC Series)

Product Information

Touch Type: Interactive PCAP,40 Points Touch

Material: Ultra-thin 0.2mm transparent PET film

Applicable to: glass, acrylic, Polycarbonate

Customizable: Size,Logo,Pasting Services, AG,AF,AR

Packing List:Touch Foil*1,Controller*1,USB Line*1

Features

● Waterproof IP67,vandal proof and anti-pollution

● Simple integration process,Cost-effective interactive solution

● Transmittance≥93%,strong penetration,full-angle anti-glare

● Can be straight or curved,integrated no frame

● Accurate positioning and touch,strong penetration ability

Get a quote

Online Consultation

Product Description
Mounting Steps
Specifications
Application Field
Specification and download

Product Description

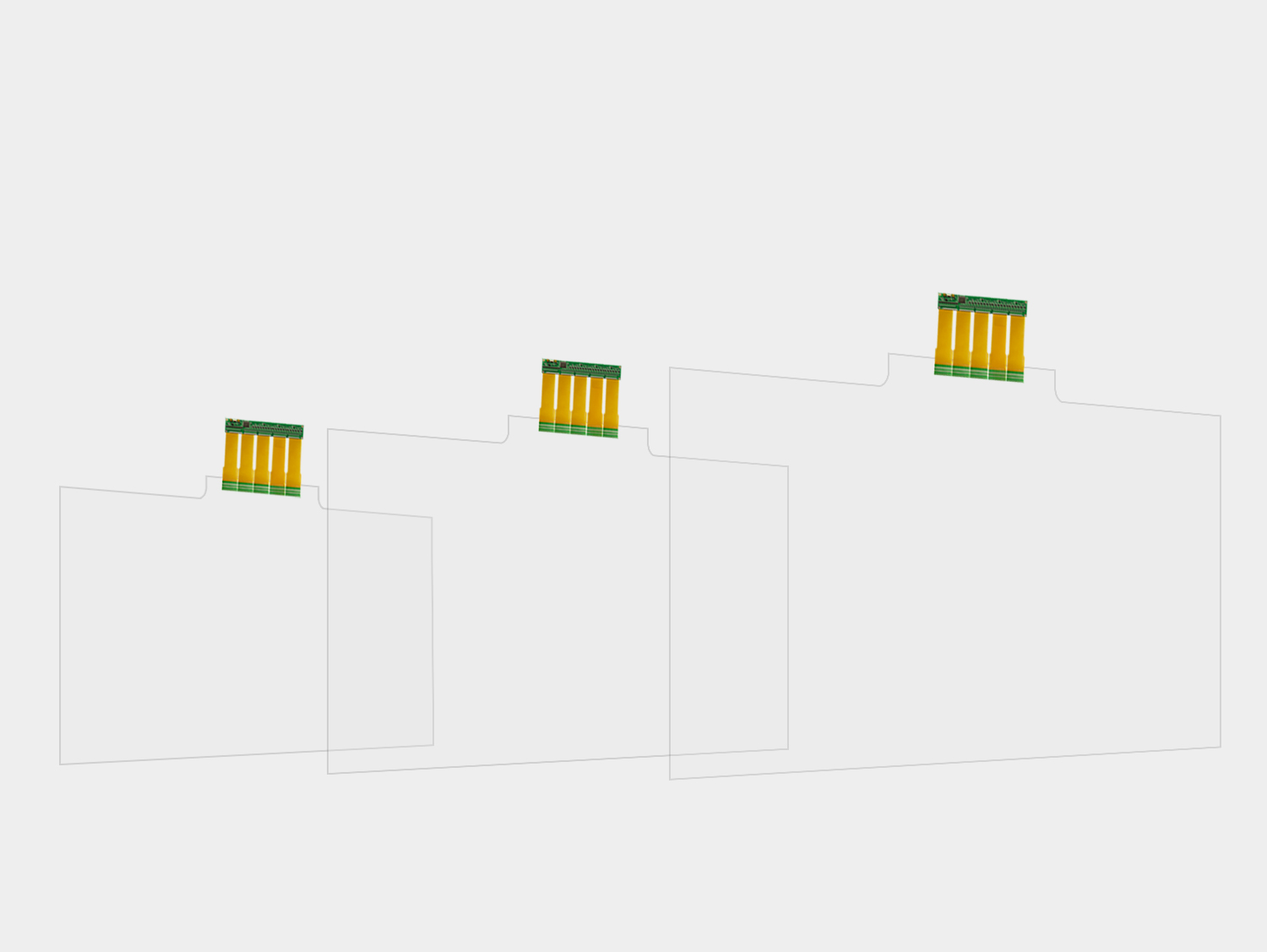

Capacitive Touch Foil Overview

GreenTouch's XTC series of interactive capacitive touch foilss, ranging from 43 to 180 inches, offers innovative interactive solutions for professional scenarios requiring ultra-large sizes, high customization, and adaptability to complex environments. These solutions primarily cover three major areas: commercial displays and public interaction, enterprise collaboration and professional control, and special environments and customized applications.

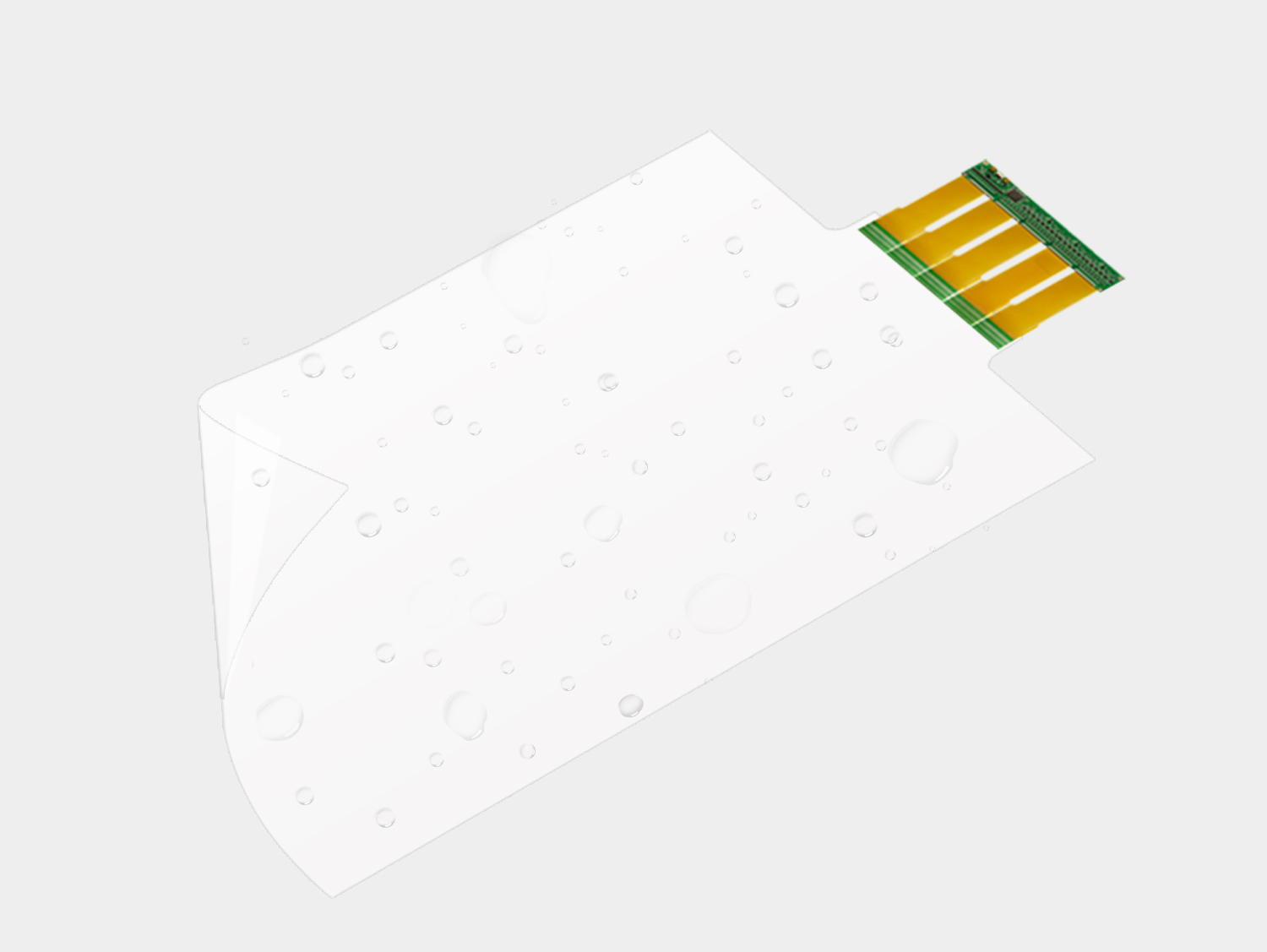

Function And Structure

Our capacitive touch foil composed of two transparent thin films,with a grid matrix layer consisting of a layer of metal wires crisscrossed by X and Y axes.It can achieve full transparency, whether flat or curved, and is waterproof, stain-proof, and free from light interference. It also features a borderless design for touch control.FPC has good flexibility and high flexibility,use high stable IC and circuit control board
Connections and Systems

Connecting the PCAP touch foil is simple, using a USB 2.0 full-speed interface, adopt aluminum alloy plug,no driver required, just calibration.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch touch foil excel in system compatibility,compatibility with Windows,Android,Linux

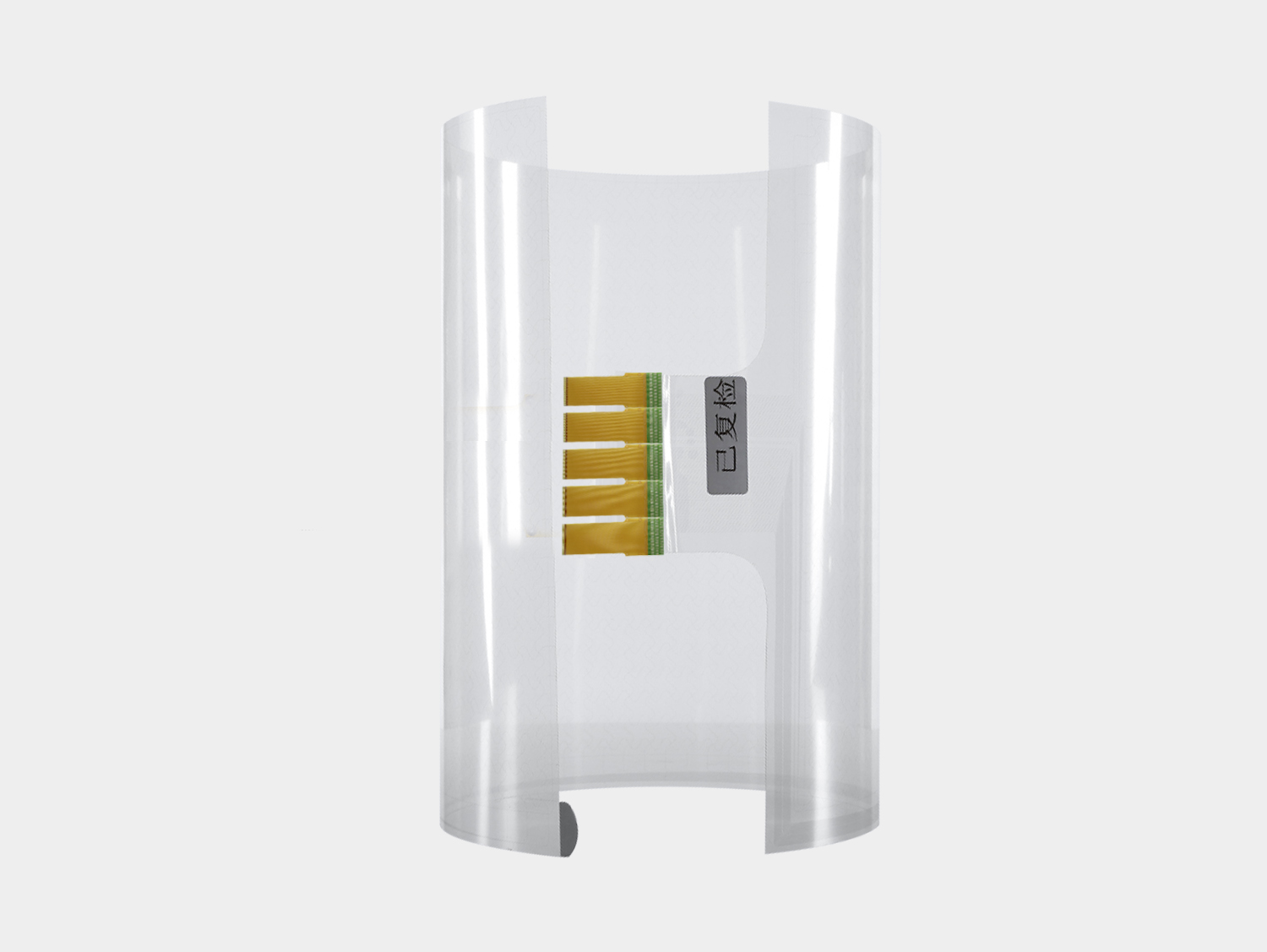

Multiple sizes available

(Ratio 16:9)
Size:43”,55”,65”,70”, 75”,86”,98”,120”,150”,180”
Highly Customized
Size,Logo,Pasting Services, AG,AF,AR

Mounting Steps

1. Surface Preparation: Ensure the mounting surface (e.g., the back of glass or acrylic sheet) is clean, flat, and dry.
2. Alignment and Adhesion: Peel off the protective layer of the touch film. Align the sensing side (the side with the circuit pattern) with the back of the medium, carefully adhere it, and use a scraper to remove air bubbles to ensure a smooth, wrinkle-free finish.
3. Connecting the Controller: Connect the flexible printed circuit (FPC) end of the touch film to the matching touch control board via the connector.
4. Electrical Connection: Connect the control board to a computer or main control device using a USB data cable.
5. Driver Installation and Calibration: Install the driver on the computer and complete the calibration in the operating system's "Touchscreen Settings".

Specifications

General Manufacturer:GreenTouch Product Name: Capacitive Touch Foil(XTC series) Regular Sizes:43”,55”,65”,70”, 75”, 86”,98”,120”,150”,180” Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Film+Film Diagonal Size:43 to 180 inches Aspect Ratio:16:9 Touch Gesture:Click,Drag,Zoom,Rotate Deviation:≤0.5mm Transmittance:≥93% Scanning speed:8ms/frame Sensor:TX80 RX142 Touch Technology:Capacitive 40 touch points Packing List: Touch Foil*1,Controller*1,USB Line*1 Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max. Non-Stop 24/7 Temperature Operating:–10°C to 50°C Temperature Storage:-20°C to 60°C Humidity: 90% relative humidity, no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS

Application Field

Specification and download

Size	Model	Dimensions	View Area	Interface	Ratio	Drawing Download
43"	GT-XTC43.0L-1	980*577mm	951*535mm	16:10	USB	GT-XTC43.0L-1
43"	GT-XTC43.0W-1	1000*573mm	951*535mm	16:9	USB	GT-XTC43.0W-1
55"	GT-XTC55.0L-1	1246*726mm	1217*684mm	16:9	USB	GT-XTC55.0L-1
55"	GT-XTC55.0W-1	1265*722mm	1217*684mm	16:9	USB	GT-XTC55.0W-1
65"	GT-XTC65.0L-1	1467*85mm	1439*809mm	16:9	USB	GT-XTC65L-1
65"	GT-XTC65.0W-1	1486*847mm	1438*809mm	16:9	USB	GT-XTC65.0W-1
70"	GT-XTC70.0L-1	1578*912mm	1549*871mm	16:9	USB	GT-XTC70.0L-1
70"	GT-XTC70.0W-1	1596*909mm	1549*871mm	16:9	USB	GT-XTC70.0W-1
75"	GT-XTC75.0L-1	1688*975mm	1660*933mm	16:9	USB	GT-XTC75.0L-1
75"	GT-XTC75.0W-1	1707*971mm	1660*933mm	16:9	USB	GT-XTC75.0W-1
86"	GT-XTC86.0L-1	1932*1112mm	1903*1070mm	16:9	USB	GT-XTC86.0L-1
86"	GT-XTC86.0W-1	1950*1108mm	1903*1070mm	16:9	USB	GT-XTC86.0W-1
98"	GT-XTC98.0L-1	2198*1261mm	2169*1220mm	16:9	USB	GT-XTC98.0L-1
98"	GT-XTC98.0W-1	2216*1258mm	2169*1220mm	16:9	USB	GT-XTC98.0W-1
120"	GT-XTC120L-1	2685*1535mm	2656*1494mm	16:9	USB	GT-XTC120L-1
120"	GT-XTC120W-1	2703*1532mm	2656*1494mm	16:9	USB	GT-XTC120W-1
150"	GT-XTC150L-1	3349*1908mm	3320*1867mm	16:9	USB	GT-XTC150L-1
150"	GT-XTC150W-1	3367*1905mm	3320*1867mm	16:9	USB	GT-XTC150W-1
180"	GT-XTC180L-1	4013*2282mm	3984*2241mm	16:9	USB	GT-XTC180L-1
180"	GT-XTC180W-1	4031*2279mm	3984*2241mm	16:9	USB	GT-XTC180W-1
