Product Information

Touch Points:UP to 20 Points

Touch lifespan:Unlimited Times

Cover: Glass+ITO Glass+SCA+FPC

Customizable: Size,Logo,Color,Casing,Packaging

FPC outlet locatio,Glass thickness,AG, AF,AR

Features

● 2-3mm temper protective glass,IK08,IK10+maximum

● Compatible with WEIDA,ILITEK,EETI USB&RS232 controller

● High optical penetration,transparency>85%,

● Own class 1,000 clean room,full inspection,fast delivery

● Complete solution including touch screen, controller, firmware,and software

Product Description
  • Capacitive Touch Screen Overview

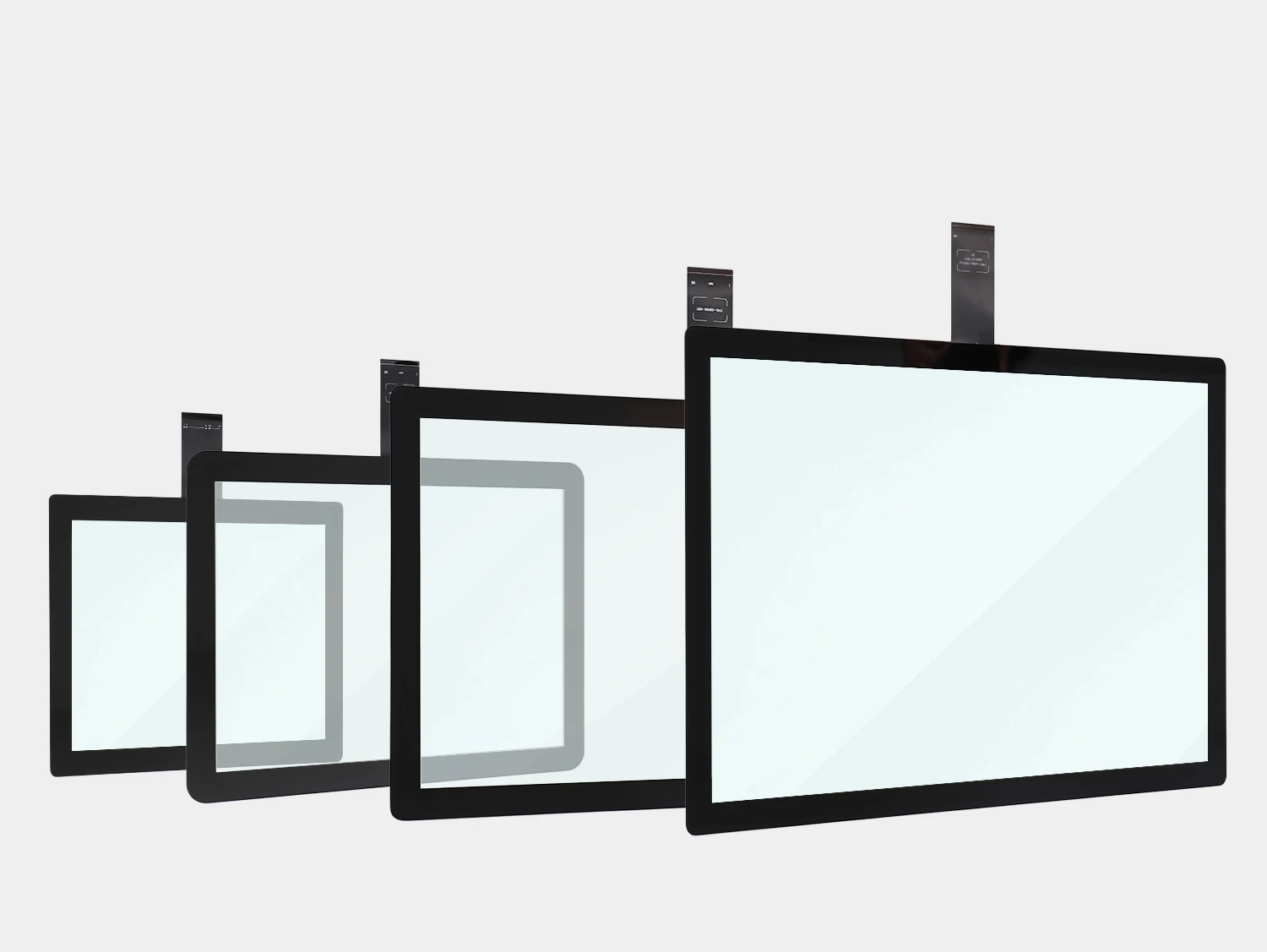

    Capacitive Touch Screen Overview
    GreenTouch’s newly upgraded H-series capacitive touchscreens feature industrial-grade, touch-specific chips while retaining the exact same projected capacitive (PCAP) sensor architecture and driver IC solutions as the original models. With optimized capacitive touch algorithms, they maintain consistent performance across key metrics such as multi-touch capabilities, response latency, and touch accuracy. Leveraging mature mass-production processes and standardized quality control systems, these screens combine stable touch performance, reliable structural quality, and broad compatibility—delivering a more competitive price point without compromising on quality.
  • Function And Structure

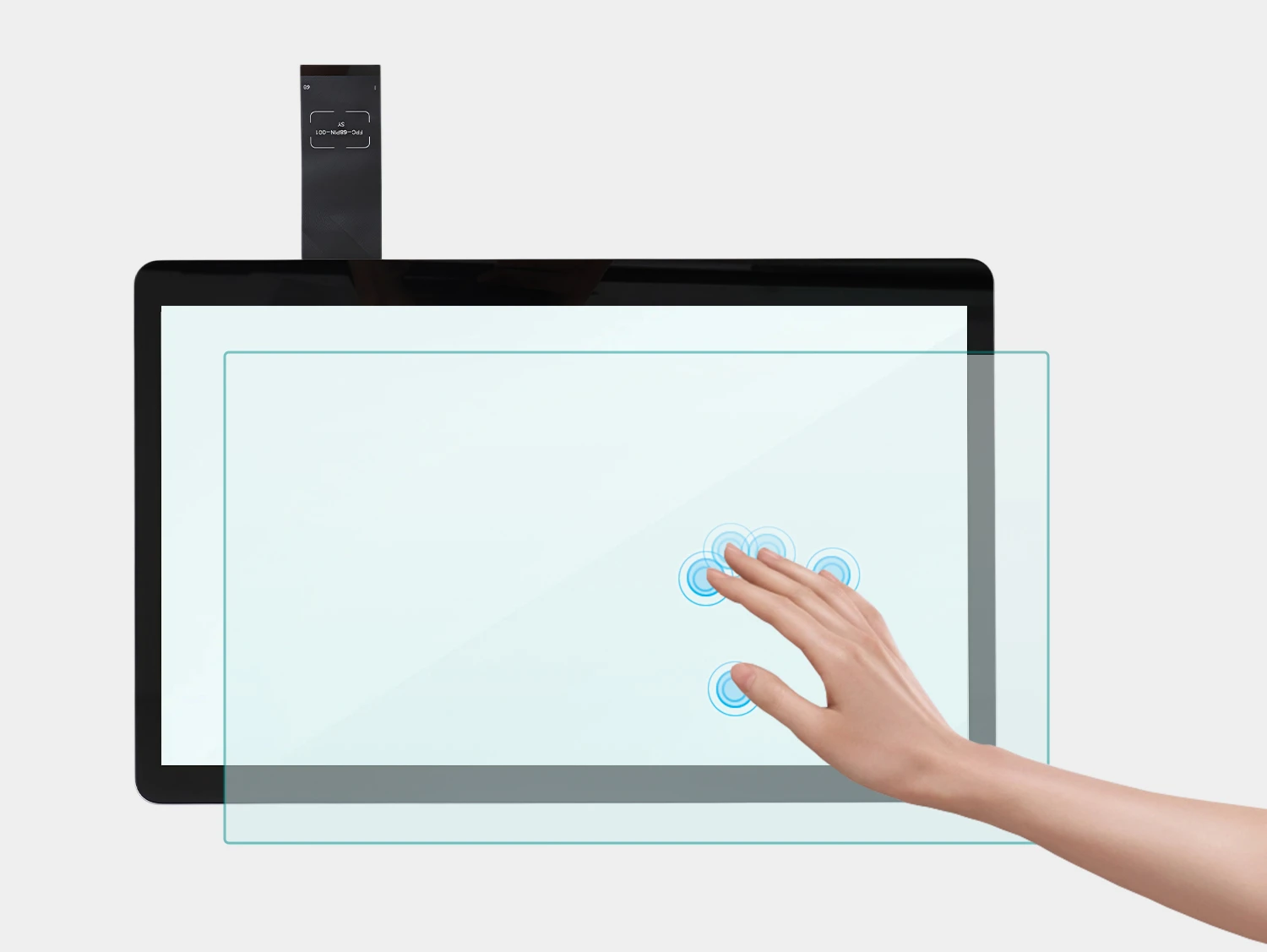

    Function And Structure
    Our capacitive touch panel with pure plane structure,excellent craftsmanship,slim and smooth design.And use stable IC and bonding equipment to maintain high yield and quality.They accurate touch ,10 to 20 touch points,high sensitivity,smooth writing,no disconnection,no drift.And the glass cover each IP level,mpact resistance,prevent damage and scratch.
  • Connections and Systems

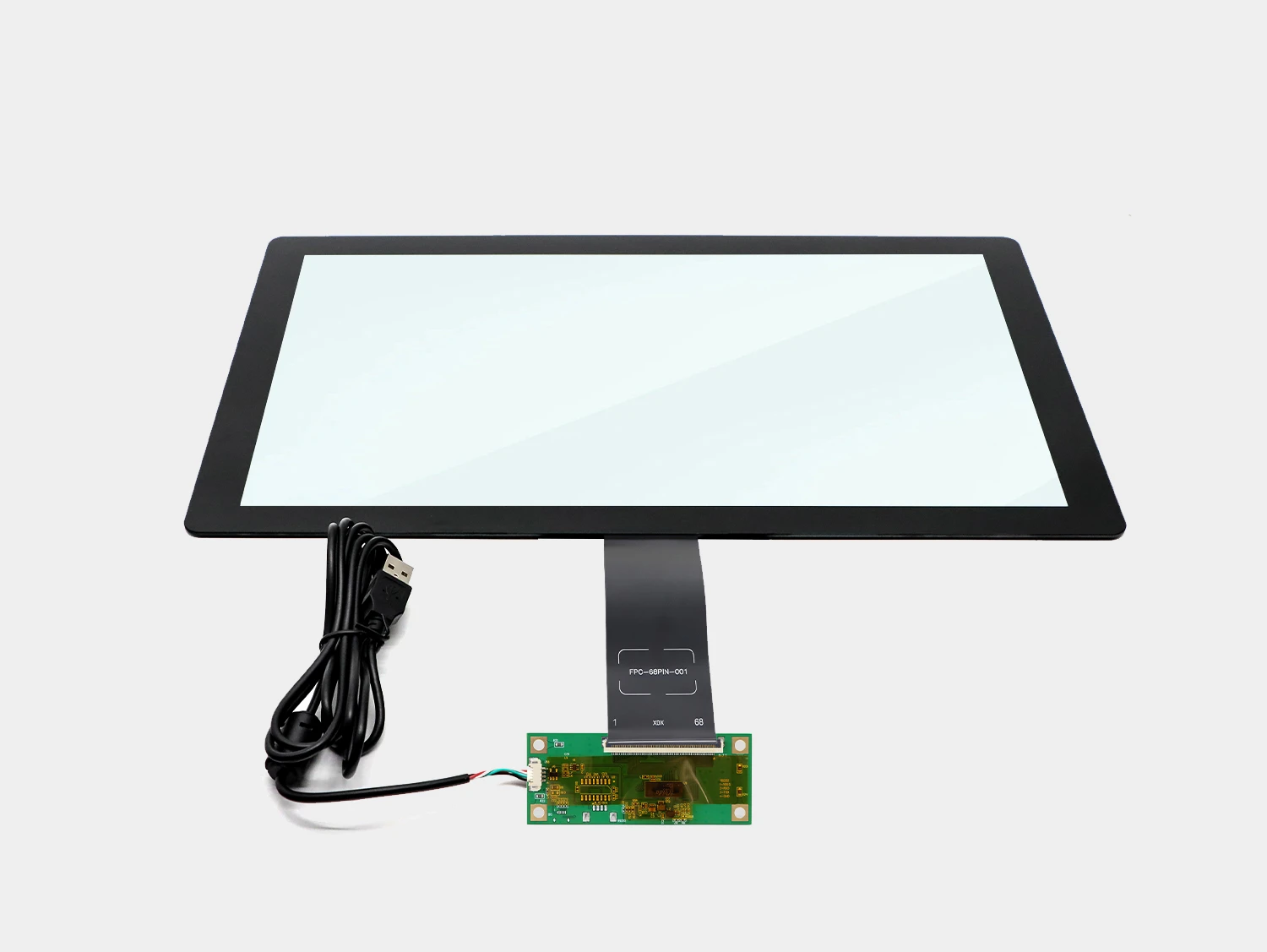

    Connections and Systems
    The steps to connect the capacitive touchscreen as follows: 1. Align and connect the touchscreen FPC and driver board pins,2.Connect the USB cable,3. Insert the FPC into the motherboard or control card, 4. Connect the capacitive touchscreen's USB to the host, 5. Configure and calibrate the software, 6. Test and installation complete.GreenTouch pcap touchscreens have broad operating system compatibility, supporting the following mainstream systems: Windows, Android, and Linux
  • Multiple sizes available

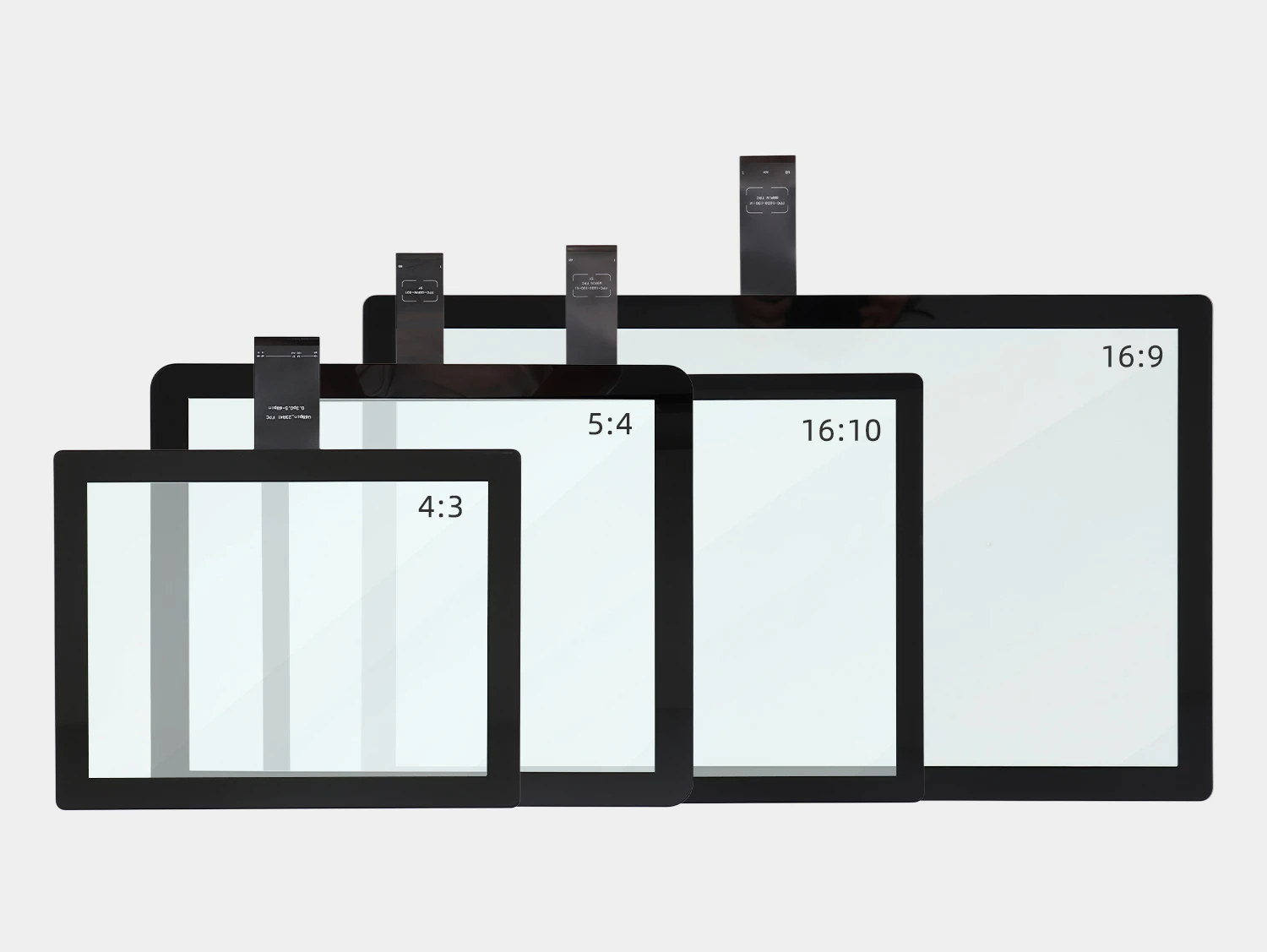

    Multiple sizes available
    (Ratio 16:10)
    Size:10.1”,17.3”
    (Ratio 4:3)
    Size:10.4”,12.1”,15”
    (Ratio 16:9)
    Size:11.6”,13.3”,14”,15.6”,18.5”,21.5”
    (Ratio 5:4)
    Size:17”,19”

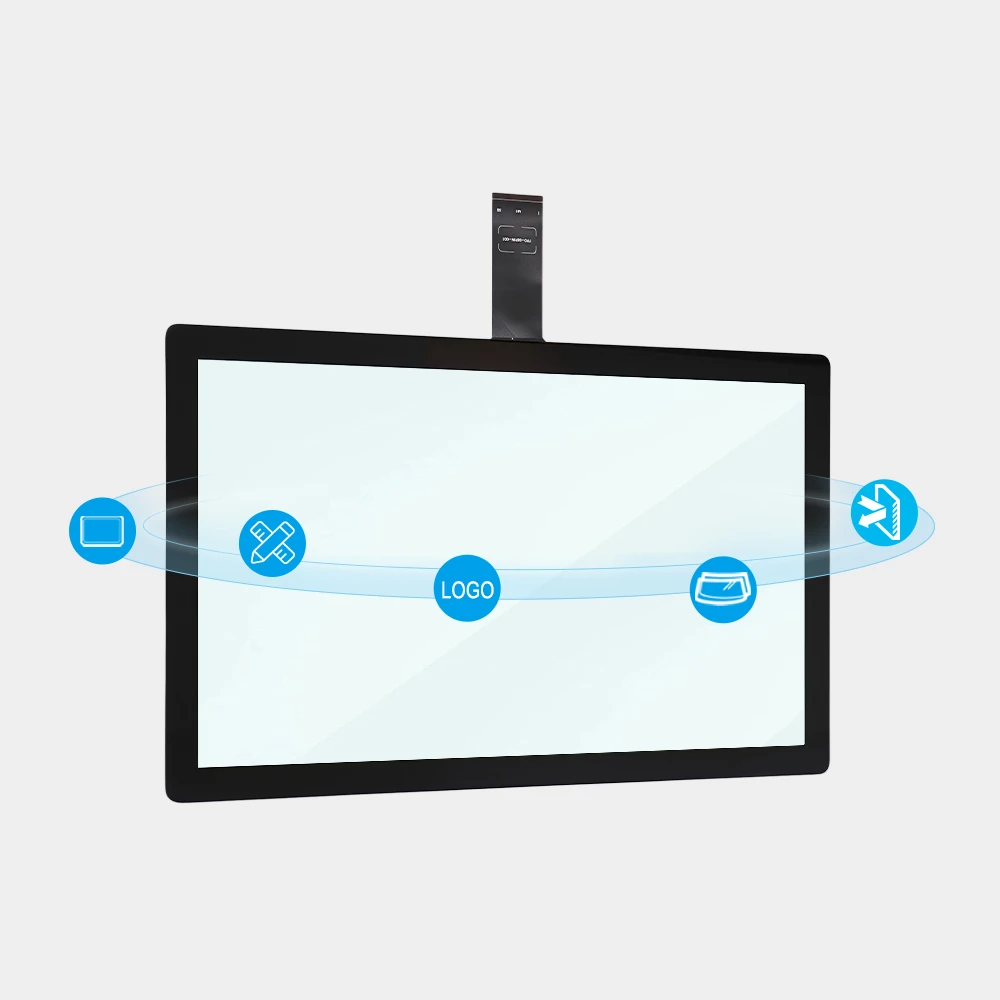

Customization Options
GreenTouch capacitive touch screens can be customized in terms of appearance, electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet location,packaging,ITO glass thickness, controllers and Interfaces,surface treatment: AG, AR, AF, antibacterial and bacteriostatic etc.
Capacitive Touch Screen 10.1 to 21.5 Inches(H Series)
Specifications
General

Manufacturer:GreenTouch

Product Name:Capacitive Touch Screen

Regular Sizes:10.4",12.1",13.3",15",15.6", 17",18.5",19",21.5",22",23"

Warranty:1-3 Year

Certificates:CE,FCC,RoHS

Panel

Panel Type:Glass+ITO Glass+SCA+FPC

Surface Hardness:≥6H

Diagonal Size:10.4 to 23 inches

Aspect Ratio:16:9,4:3,16:10

Resolution:4096 x 4096

Response Speed: <10ms

Touch Technology:Capacitive 10 to 20 touch points

Control Interface:USB or RS232,I2C

Touch Support System:Windows,Android,Linux

Environmental

Operating Time:Max. Non-Stop 24/7

Temperature Operating:–10°C to 50°C

Temperature Storage:-20°C to 60°C

Humidity: 90% relative humidity, no condensation

Connectivity

Interface:USB

Compliance

Certifications: CE,FCC,RoHS

Application Field
Capacitive Touch Screen 10.1 to 21.5 Inches(H Series)
Specification and download
Size

Model

DimensionsView AreaRatioSupport SystemsResolutionDrawing Download

10.1"

GT-CTP-H10.4A-1

256.5*174.5mm

218.5*136.5mm

16:10

Windows,Android,Linux4096x4096

GT-CTP-H10.1A-1.pdf

10.4"

GT-CTP-H10.4A-1

245.1*192.5mm

210.1*157.5mm

4:3

Windows,Android,Linux4096x4096

GT-CTP-H10.4A-1.pd

11.6"

GT-CTP-H11.6A-1

285*179.3mm

256.6*145.1mm

16:9

Windows,Android,Linux4096x4096

12.1"

GT-CTP-H12.1A-1

281.8*220.8mm

246.8*185.3mm

4:3

Windows,Android,Linux4096x4096

13.3"

GT-CTP-H13.3A-1

327.7*209.7mm

293.8*165.3mm

16:9

Windows,Android,Linux4096x4096
14"GT-CTP-H14.0A-1333.3*213.2mm310.3*174.7mm16:9Windows,Android,Linux4096x4096
15"

GT-CTP-H15.0A-1

347.8*275.4mm303*227.5mm4:3Windows,Android,Linux4096x4096

15.6"

GT-CTP-H15.6A-1

367.6*233mm

344*193.8mm

16:9

Windows,Android,Linux4096x4096
17"

GT-CTP-H17.0A-1

393.1*320.8mm336.9*270mm5:4Windows,Android,Linux4096x4096

17.3"

GT-CTP-H17.3A-1

421.3*253.5mm

383.4*215.6mm

16:10

Windows,Android,Linux4096x4096

18.5"

GT-CTP-H18.5A-1

449.8*270.4mm

410.3*230.9mm

16:9

Windows,Android,Linux4096x4096
19"

GT-CTP-H19.0A-1

445.1*291.3mm

408.2*255.1mm

5:4

Windows,Android,Linux4096x4096

21.5"

GT-CTP-H21.5A-1

518.6*310.1mm

476.6*268.1mm

16:9

Windows,Android,Linux4096x4096
