15.6 Inch Closed Frame Touch Monitor for Industrial and Commercial Applications: GreenTouch 3A Series

The GreenTouch 15.6 inch Closed Frame Touch Monitor (3A Series) combines a durable aluminum alloy enclosure, industrial-grade LCD panel, and 10-point projected capacitive (PCAP) touch technology. Designed for OEM equipment manufacturers and system integrators, this industrial touch monitor provides reliable interaction, flexible mounting, and versatile connectivity for industrial and commercial terminals.

Industrial LCD Display and Touch Performance

The 15.6-inch monitor features a 16:9 widescreen LCD with 1366 × 768 resolution, 400-nit brightness, and LED backlighting. Its active display area measures 344.2 × 193.6 mm, supporting clear visualization of equipment controls, operational data, and interactive interfaces.

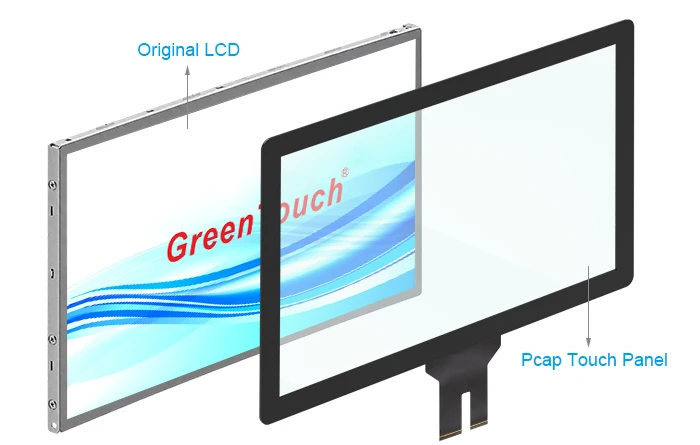

Optical bonding integrates the touch panel with the LCD, reducing internal reflections and improving visual clarity. The PCAP touchscreen supports 10 simultaneous touch points, enabling responsive gestures and precise operation.

Durable Closed Frame Structure

Unlike open-frame monitors that require additional enclosure integration, the 3A Series features a complete aluminum alloy housing with a smooth, tablet-style appearance.

Its overall dimensions are 398.9 × 248.2 × 42 mm. The series specifies IP65 front-panel protection against dust and water, along with IK06 impact resistance, making it suitable for demanding indoor installations.

Flexible Mounting for OEM Integration

The GreenTouch 15.6 inch Closed Frame Touch Monitor supports three installation methods:

Embedded Mounting: Integration into equipment cabinets using a metal adapter bracket.

Wall Mounting: VESA 75 × 75 mm or 100 × 100 mm mounting for wall brackets and monitor arms.

Desktop Mounting: Installation on compatible stands for operator workstations and service counters.

These options help equipment manufacturers adapt the monitor to different mechanical designs.

Connectivity and System Compatibility

The 3A Series offers VGA, DVI, HDMI, and DisplayPort connectivity, with USB touch communication. Downward-facing rear connectors simplify cable routing and equipment integration.The touchscreen supports Windows, Android, and Linux platforms, making it adaptable to industrial PCs, embedded controllers, and commercial computing systems.

Industrial Reliability and Customization

Designed for continuous 24/7 operation, the 3A Series specifies an operating temperature range of -20°C to 70°C.

GreenTouch also supports OEM/ODM customization, including enclosure color, logo, camera integration, packaging, and other project-specific requirements.

Typical Applications

The 15.6-inch industrial touch monitor is suitable for factory HMI terminals, industrial automation equipment, self-service kiosks, retail POS systems, ticketing machines, transportation terminals, and medical equipment interfaces.

Its closed-frame construction makes it particularly useful where equipment designers require a complete, ready-to-mount touchscreen display.

FAQ About the 15.6 Inch Closed Frame Touch Monitor

Does the monitor support multi-touch?

Yes. It features 10-point projected capacitive touch technology.

Can it be embedded into industrial equipment?

Yes. Embedded installation is supported using a compatible metal adapter bracket.

Is OEM customization available?

Yes. GreenTouch offers customization options for enclosure design, branding, cameras, and integration requirements.

Source Your Industrial Touch Monitor from GreenTouch

GreenTouch supplies industrial touchscreen solutions for OEM manufacturers, automation integrators, and commercial equipment developers. Contact GreenTouch at https://www.greentouch.com.cn/ to discuss technical specifications, mounting requirements, and customized 15.6-inch touch monitor projects.
