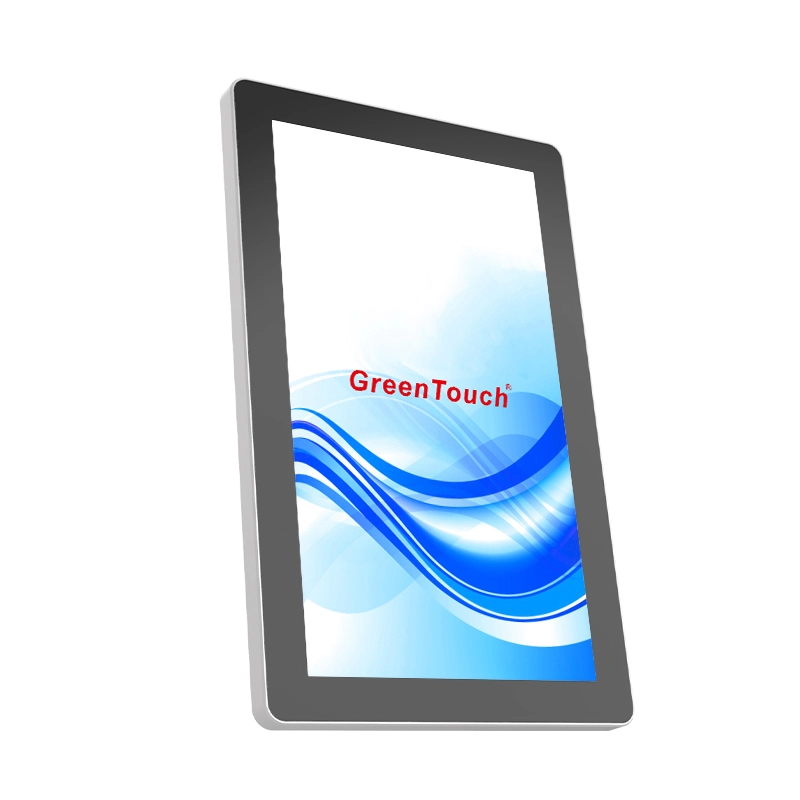

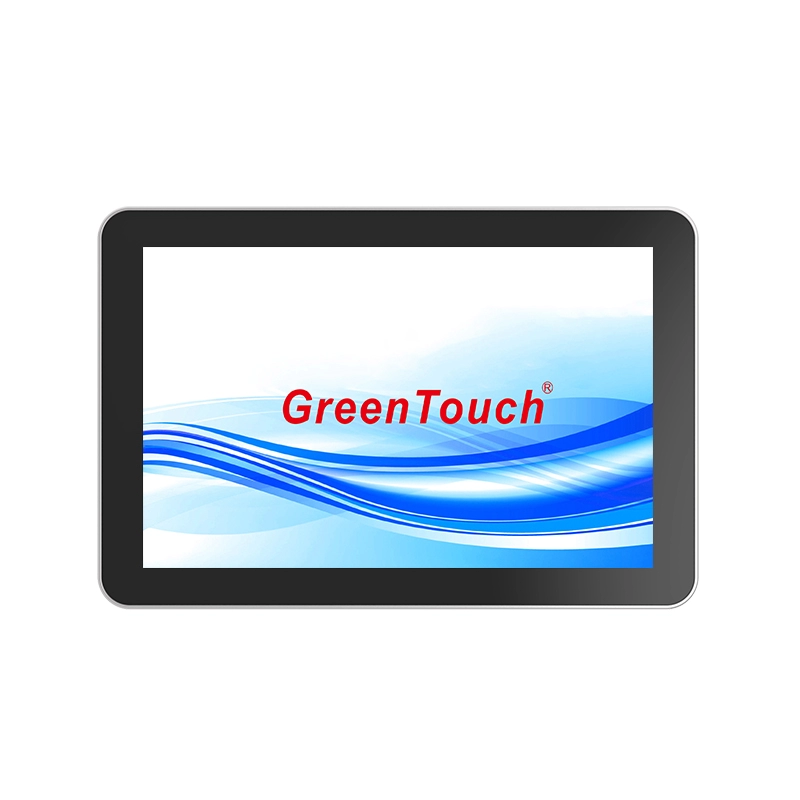

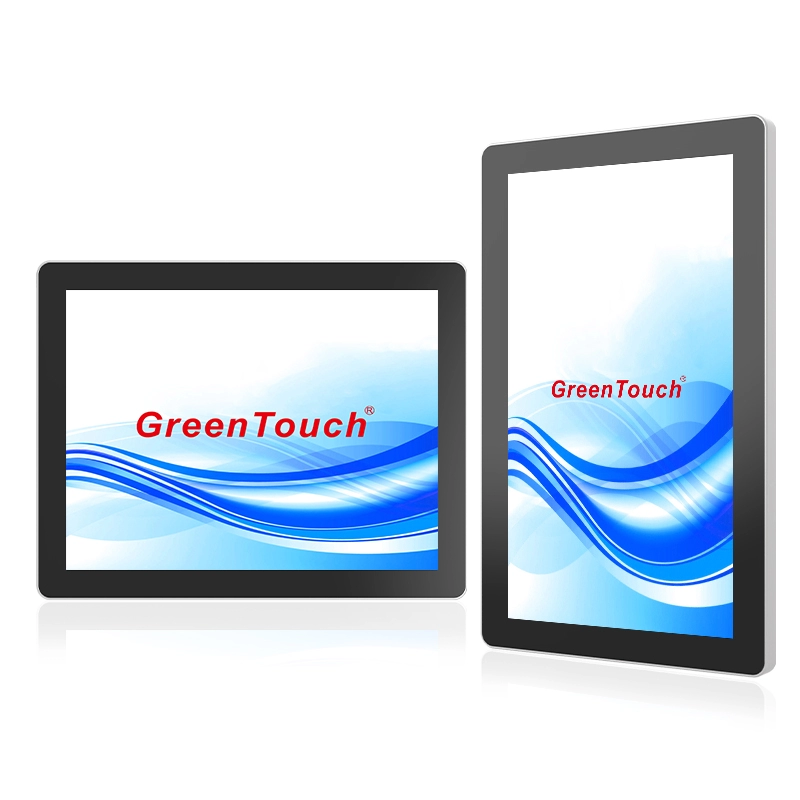

Small Size Digital Signage 7-27 Inches(3A Series)

Small Size Digital Signage 7-27 Inches(3A Series)

Product Information

Resolution:UHD 4K,Full HD 1920x1080

Processor: The RK3568S chip,quad-core ARM Cortex-A55

Systems:Android 9,10,11,12,13,14

RAM:2-8GB,SSD:32-64G,Support TF Card

Mounting:Wall-mounted,Desktop,Embedded

Features

● Tablet Design,smooth lines,available in silver and black

● Supports single-core,dual-core or quad-core solutions

● High-speed gigabit Ethernet port, built-in wireless WIFI

● The visual effect is better under the sun

● Comprehensive IP65 protection

● Long lifecycle 1-3 years guarantee (24/7 usage)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

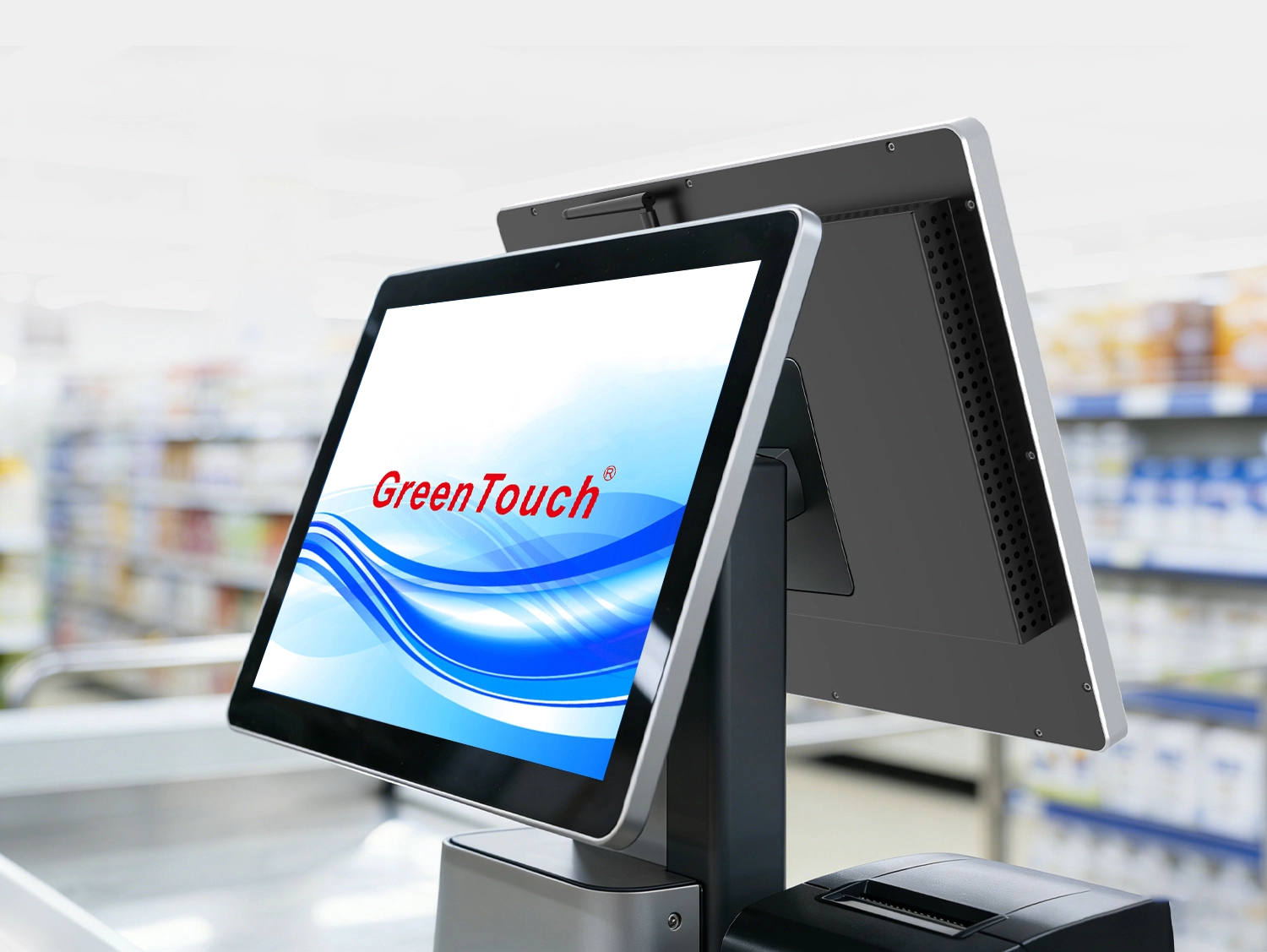

3A Digital Signage Overview

The GreenTouch 3A series 7-27 inch advertising digital signage advertising offer a choice of smaller sizes for cash registers, shelves, and service windows for product promotion and price displays, or medium to large sizes for restaurant electronic menus, shopping mall wayfinding, company announcements, community promotions, and government information dissemination. Balancing commercial advertising and public information dissemination, these machines meet the core needs of dynamic display, efficient reach, and cost reduction in offline scenarios.

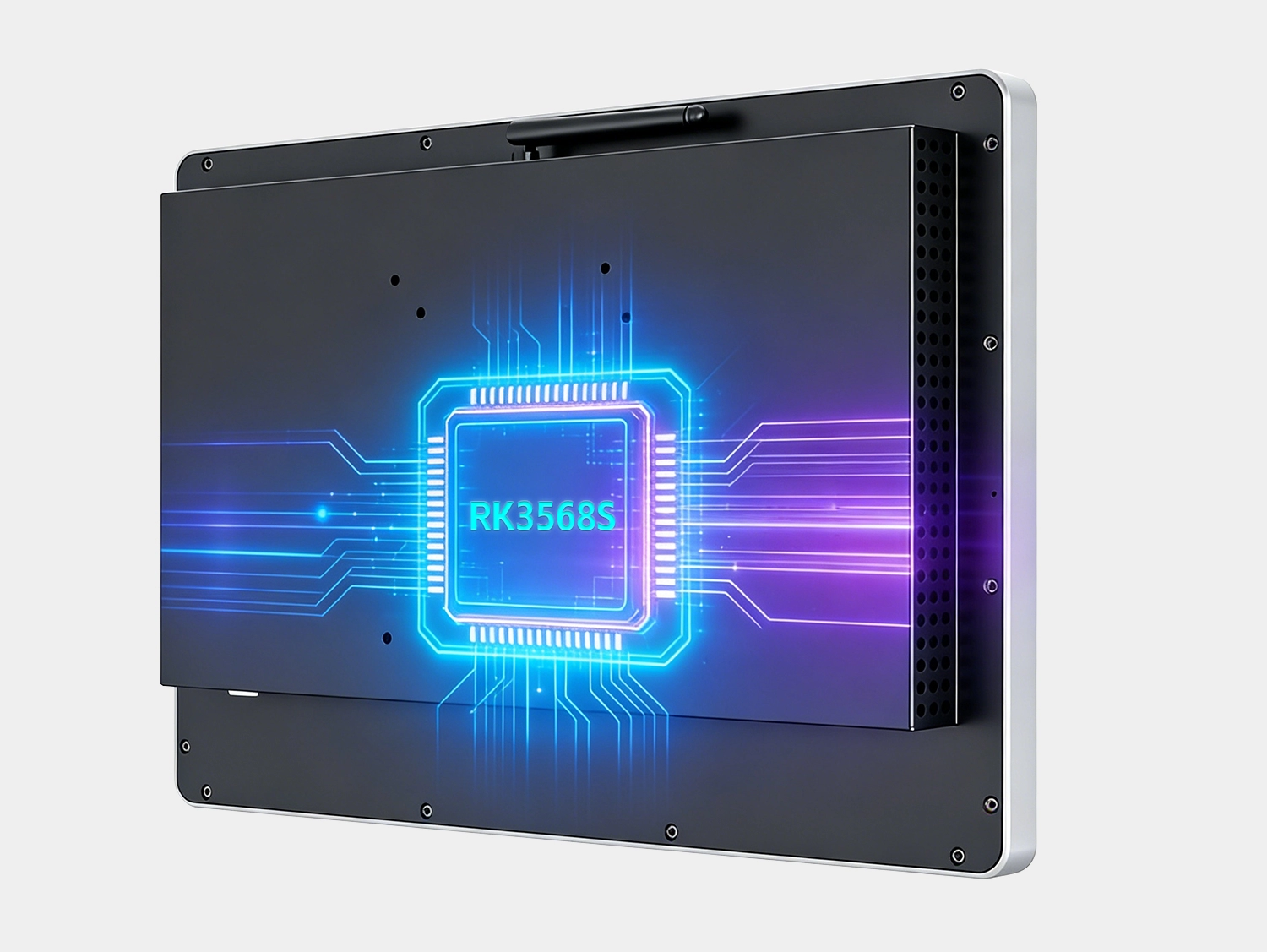

Configuration and Connectivity

The GreenTouch digital signage 3A series includes HDMI ，OTG,TF，POWER，AUDIO,RJ45 and USB ports. These connections are all positioned on the back of the display and face downward, allowing for easy installation in any scenario. The 3A uses RK3568S chip features a quad-core ARM Cortex-A55 architecture, with a maximum clock speed of up to 2.0GHz,supports RJ45 R/A 100Mbps Ethernet and Ethernet; Supports 2.4GHz Wi Fi and Wi Fi 802.11b/g/n protocol; Supports Bluetooth 4.2 and Bluetooth file transfer.

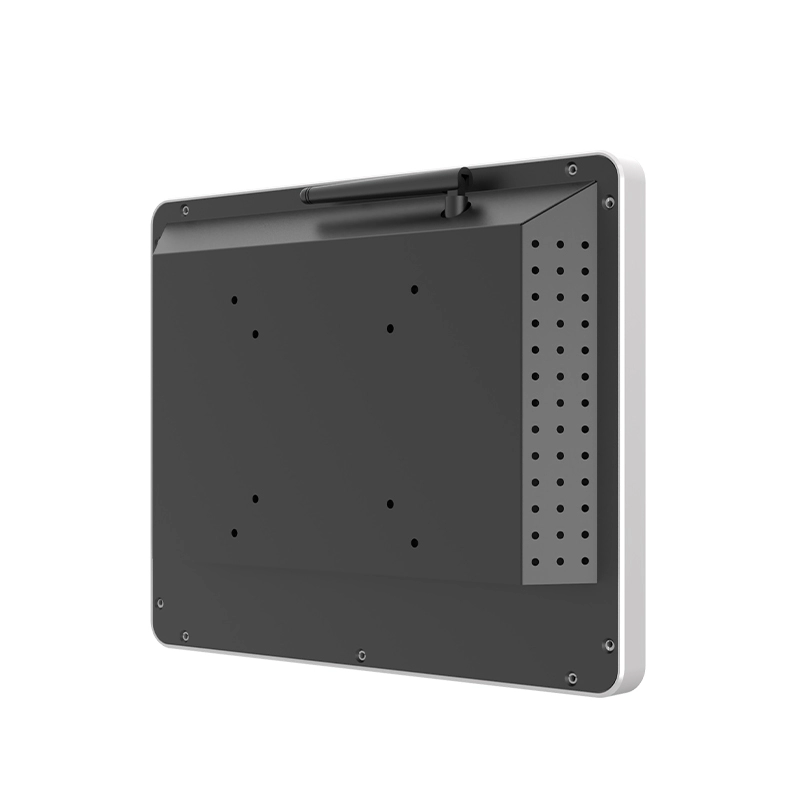

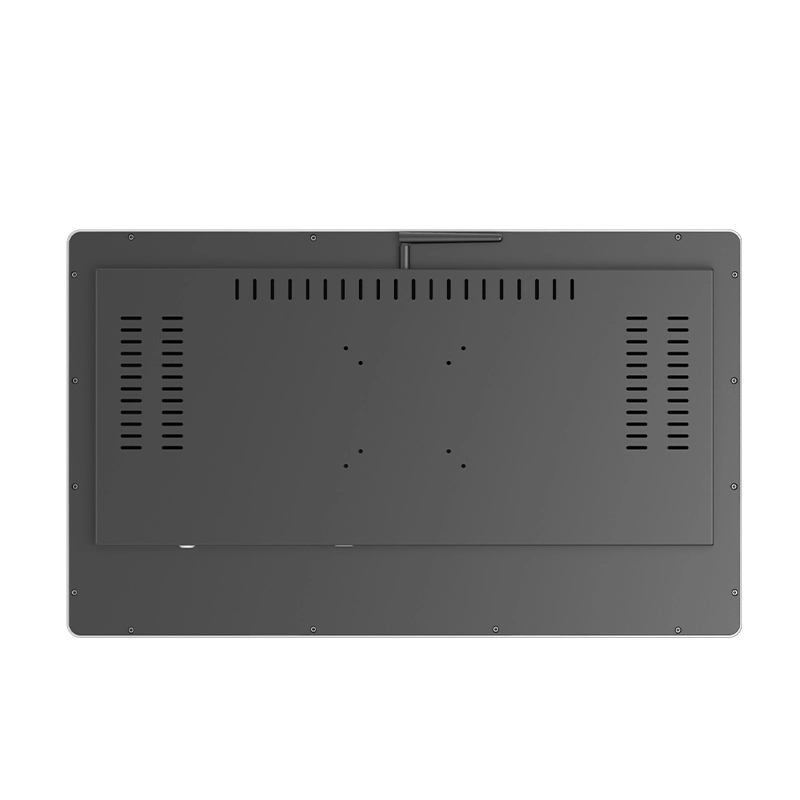

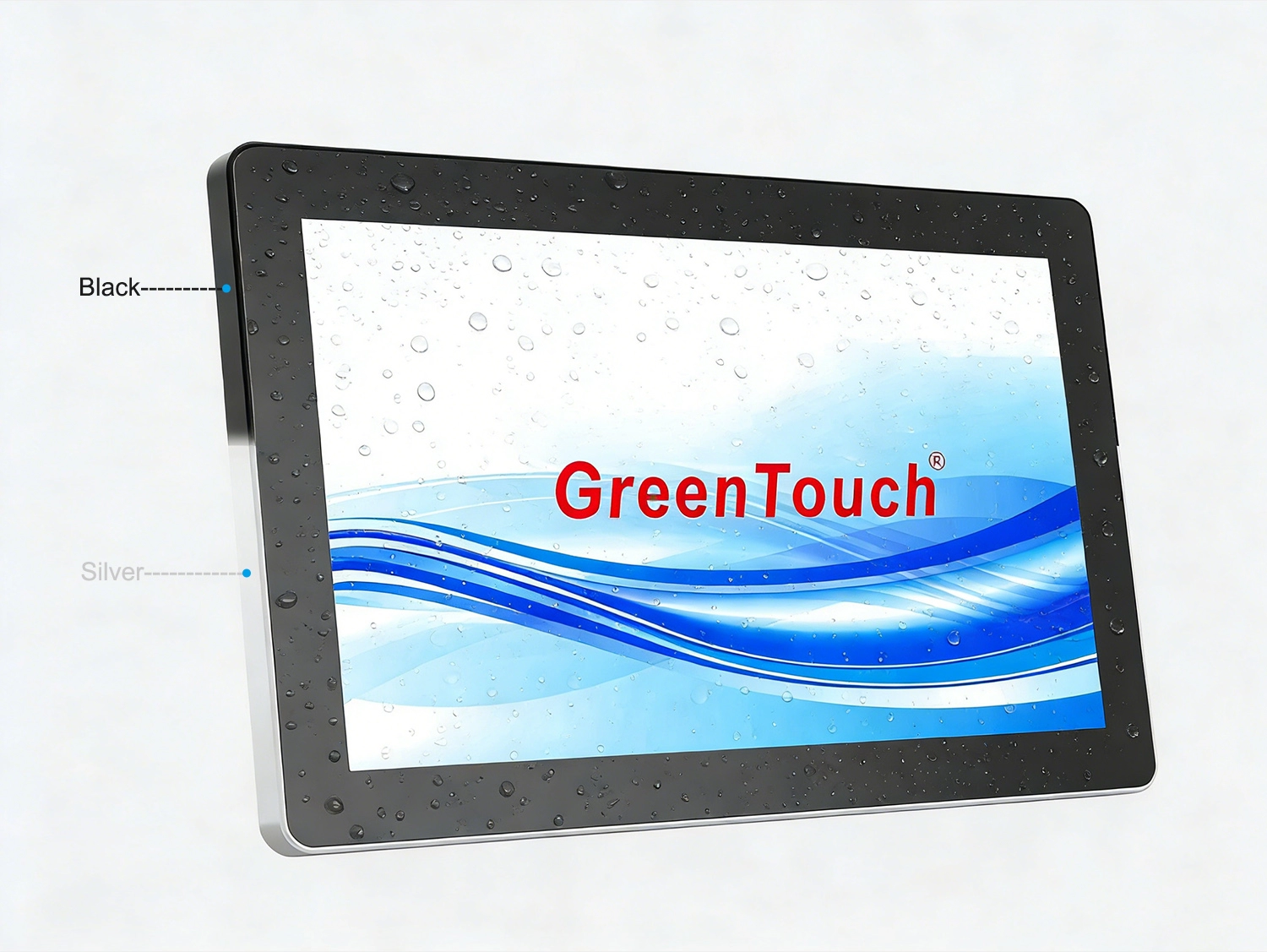

Appearance and Structure

Our 3A digital signage adoptl features an industrial aesthetic design, with an aluminum alloy frame and an aluminum alloy painted back cover, combining functionality, technology, and materials, available with black or silver trim.The front panel has an IP65 protection rating and can be equipped with AG anti-glare function.
Function Support

1. Playback of multiple formats including images, videos, audio, scrolling text, and PDFs.
2. Split-screen display, capable of simultaneously playing advertisements, announcements, time, weather, and other content.
3. Local playback via USB flash drive/SD card, simple operation.
4. Remote publishing and updating of content via LAN/cloud, no on-site operation required.
5. Scheduled playback by time period or schedule, achieving automatic rotation.
6. Remote power on/off, timed power on/off, and volume adjustment.
7. Supports single-unit/group batch management, suitable for unified deployment across multiple locations.

Mounting Options

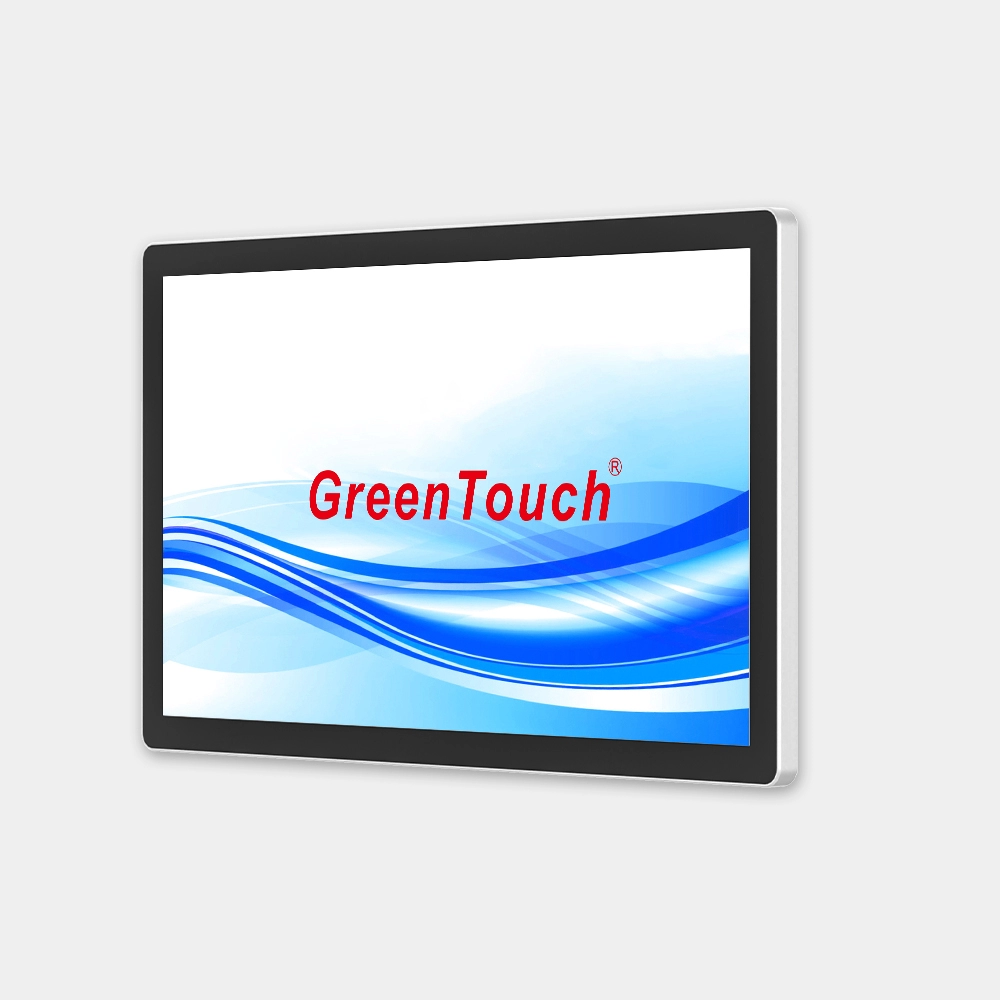

Wall-mounted

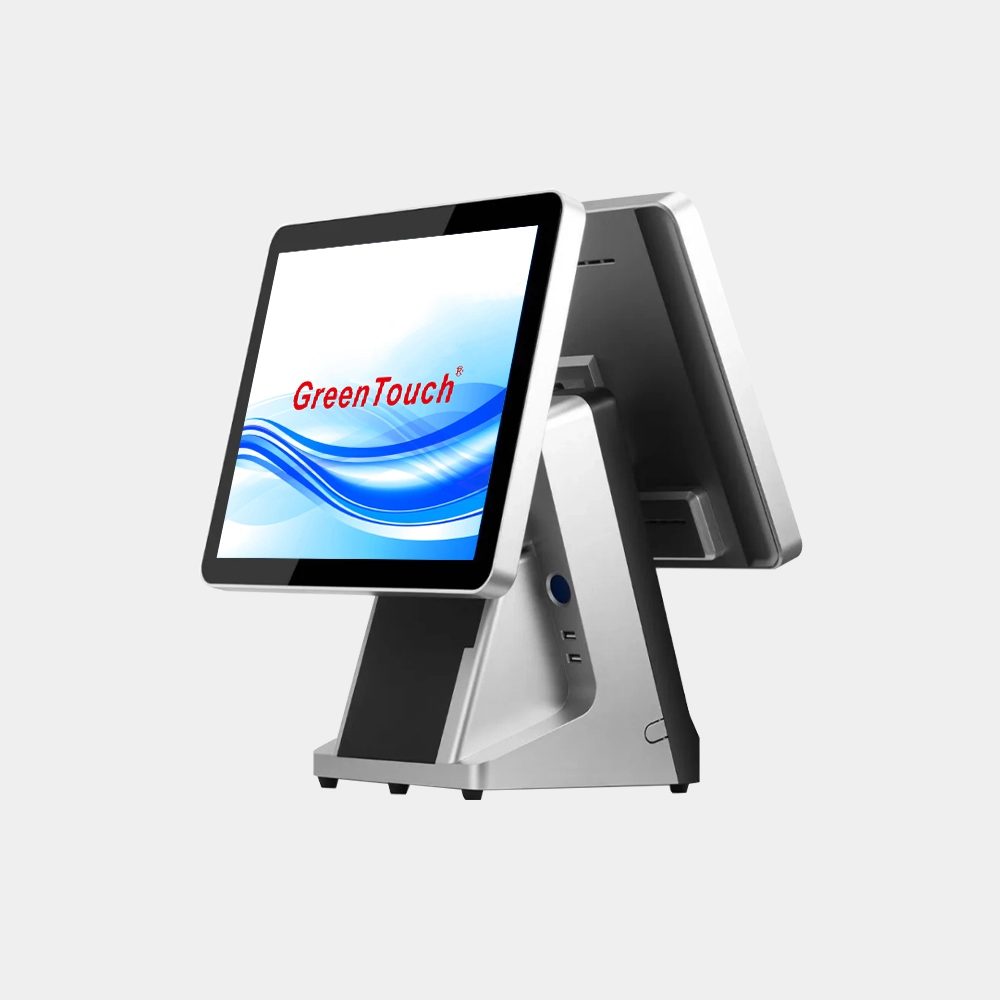

Desktop

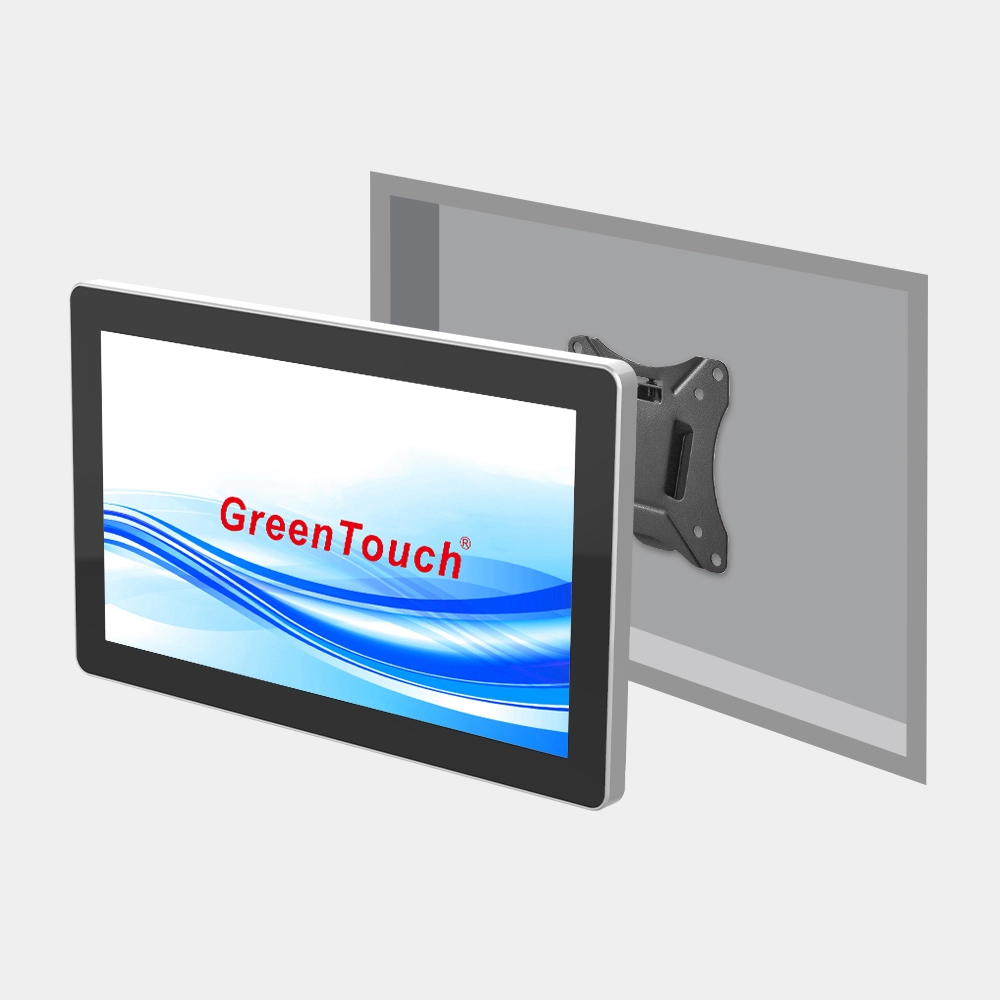

Embedded

Specifications

General Manufacturer:GreenTouch Product Name:Small Size Digital Signage(3A Series) Regular Sizes:7",8",9.7",10.1",10.4",12.1",13.3",14",15", 15.6",17",18.5",19",21.5",22",23.6",23.8",27" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

OS-Android CPU: RK3568S chip,quad-core ARM Cortex-A55 RAM:2GB,4GB,8GB Optional SSD:32G,64G Optional,Support TF Card Network support:3G,4G,5G,Ethernet, WiFi / Bluetooth 4.0 Wifi:802.11b/g/n,default single WiFi module

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:7 to 27 inches Resolution:1920x1080,1680x1050,1280x800, 1366x768,1024x768,800x600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,OTG,TF,POWER,AUDIO,RJ45,USB

Mounting Embedded:Metal plate adapter bracket Wall Mount:VESA 75x75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK06 impact resistance

About Display Ports

Android:HDMI

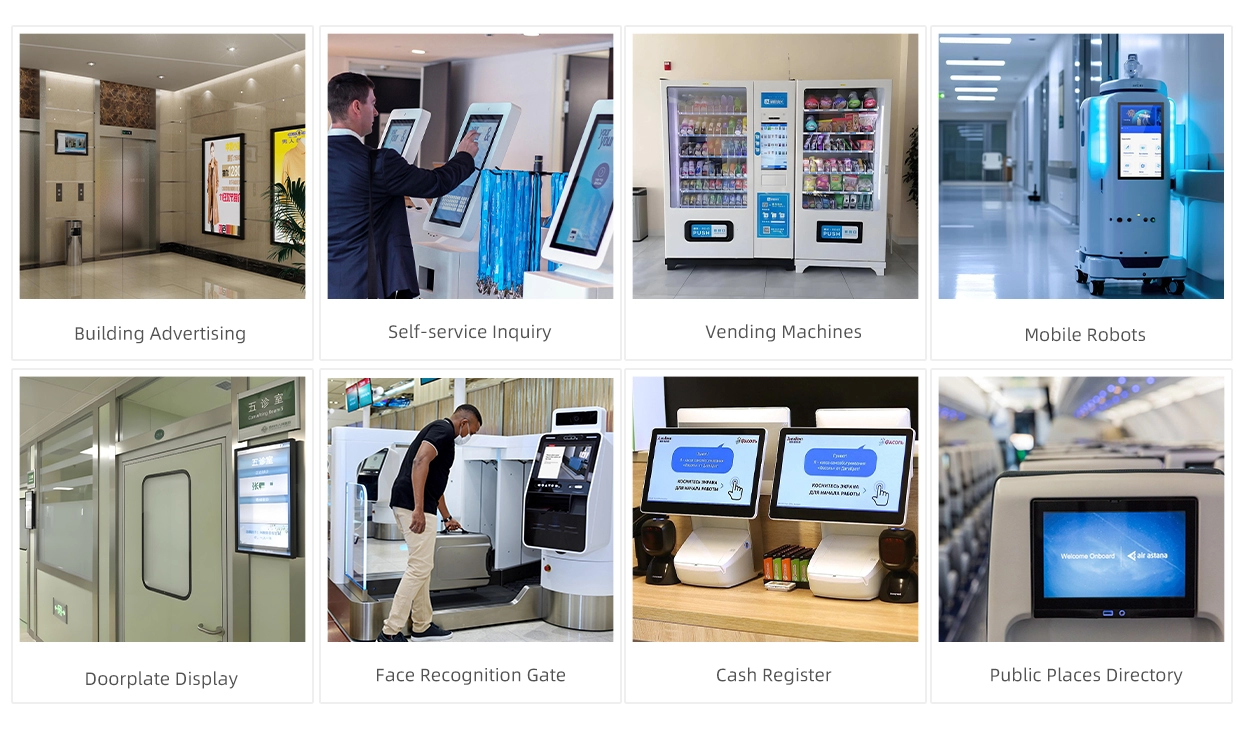

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits)	Resolution @60Hz	Data Download
7"	GT-TC3A-070-RK	VGA,HDMI	16:9	188.5x123.5x42.8mm	154.2x85.9mm	400	1024 x 600	GT-TC3A-070-RK
8"	GT-TC3A-080-RK	VGA,HDMI	16:9	218.1 x140.9x42.8mm	176.6x99.4mm	400	1024 x 600	GT-TC3A-080-RK
9.7"	GT-TC3A-097-RK	VGA,HDMI	4:3	242.1x192.9x42.8mm	196.6x147.5mm	350	1024 x 768	GT-TC3A-097-RK
10.1"	GT-TC3A-101-RK	VGA,HDMI	16:10	259.5x174.1x43.8mm	216.9x135.6mm	330	1280 x 800	GT-TC3A-101-RK
10.4"	GT-TC3A-104-RK	VGA,HDMI	4:3	261.6x208.8x43mm	211.2x158.4mm	300	800 x 600	GT-TC3A-104-RK
12.1"	GT-TC3A-121-RK	VGA,HDMI	4:3	294.5x233x44mm	245.8x184.3mm	500	1024 x 768	GT-TC3A-121-RK
13.3"	GT-TC3A-133-RK	VGA,HDMI	16:9	346.9x218.5x44mm	293.8x165.2mm	300	1920 x 1080	GT-TC3A-133-RK
15"	GT-TC3A-150-RK	VGA,HDMI	4:3	355.4 x279.4x42.8mm	304.1x228.1mm	300	1024 x 768	GT-TC3A-150-RK
15.6"	GT-TC3A-156-RK	VGA,HDMI	16:9	398.9x248.2x42mm	344.2x193.6mm	400	1366 x 768	GT-TC3A-156-RK
17"	GT-TC3A-170-RK	VGA,HDMI	4:3	389.3x321.7x42.8mm	337.9x270.3mm	250	1280 x 1024	GT-TC3A-170-RK
18.5"	GT-TC3A-185-RK	VGA,HDMI	16:9	456.9x277.4x42mm	409.8x230.4mm	250	1366 x 768	GT-TC3A-185-RK
19"	GT-TC3A-190-RK	VGA,HDMI	4:3	428.7x353.5x42.8mm	376.3x301.1mm	250	1280 x 1024	GT-TC3A-190-RK
21.5"	GT-TC3A-215-RK	VGA,HDMI	16:9	526 x317.3x42mm	476.6x268.1mm	250	1920 x 1080	GT-TC3A-215-RK
22"	GT-TC3A-220-RK	VGA,HDMI	16:10	524.1x346.5x42mm	473.8x296.1mm	250	1680 x 1050	GT-TC3A-220-RK
23.6"	GT-TC3A-236-RK	VGA,HDMI	16:9	574.5x346.8x42mm	521.3x293.2mm	300	1920 x 1080	GT-TC3A-236-RK
23.8"	GT-TC3A-238-RK	VGA,HDMI	16:9	574.5x346.8x42mm	521.3x293.2mm	300	1920 x 1080	GT-TC3A-238-RK
27"	GT-TC3A-270-RK	VGA,HDMI	16:9	656x394.6x42mm	597.9x336.3mm	300	1920 x 1080	GT-TC3A-270-RK
