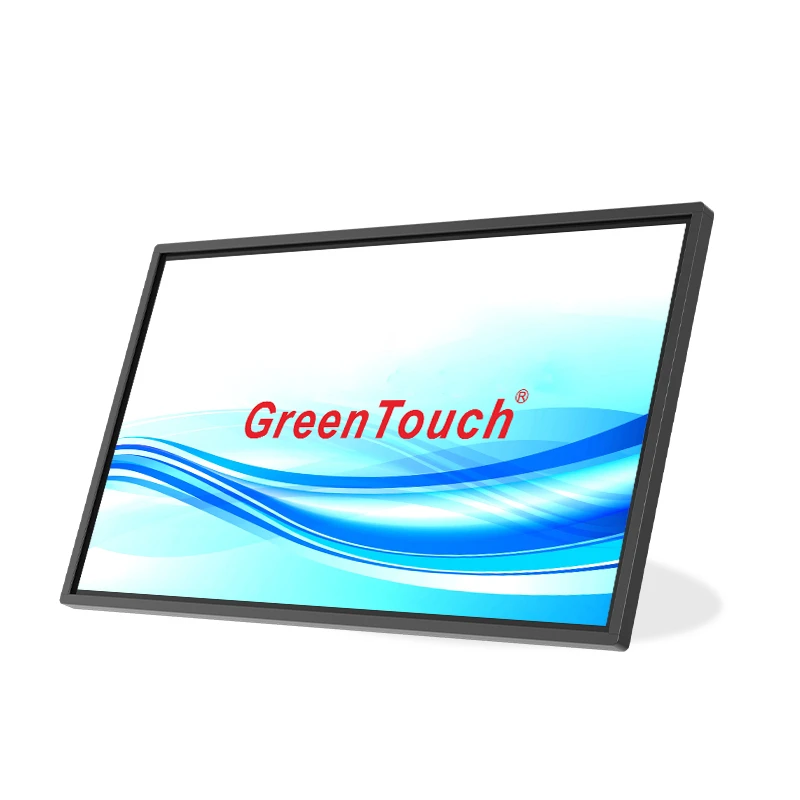

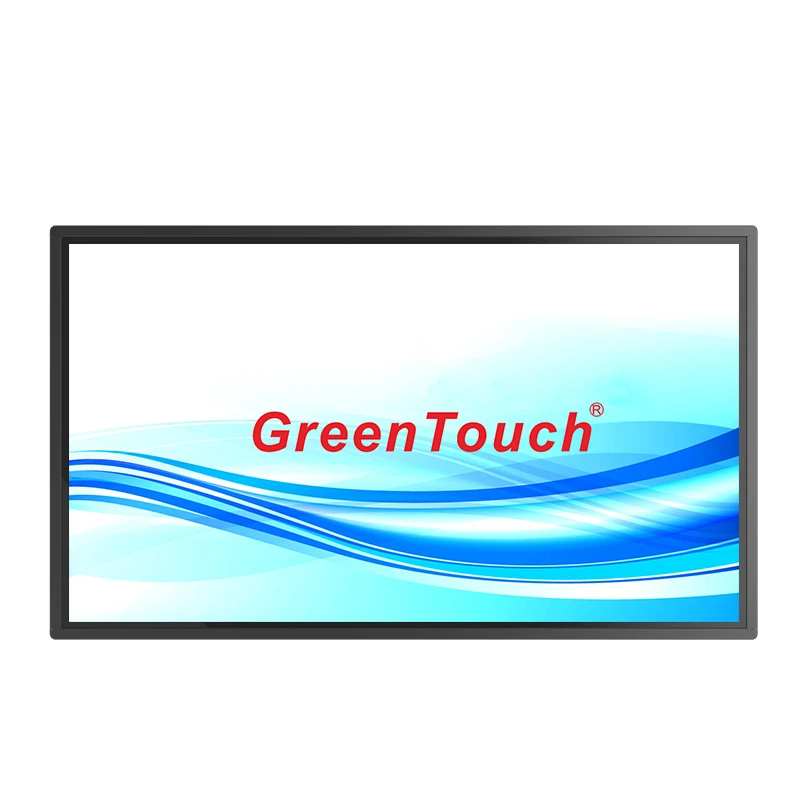

Wall Mount IR Touch Monitor 32-65 Inches(6C-IR Series)

Wall Mount IR Touch Monitor 32-65 Inches(6C-IR Series)

Product Information

Resolution:UHD 4K,Full HD 1920x1080

Display Colors:16.7M- 1.07B,90%NTSC

Contrast ratio:4500:1,deep and clear

Touch Technology:Infrared 40-Points Touch

Features

● Thin bezel,178 ultra-wide viewing angle

● 99% sRGB,95% DCI-P3

● HDR,with distinct image layers

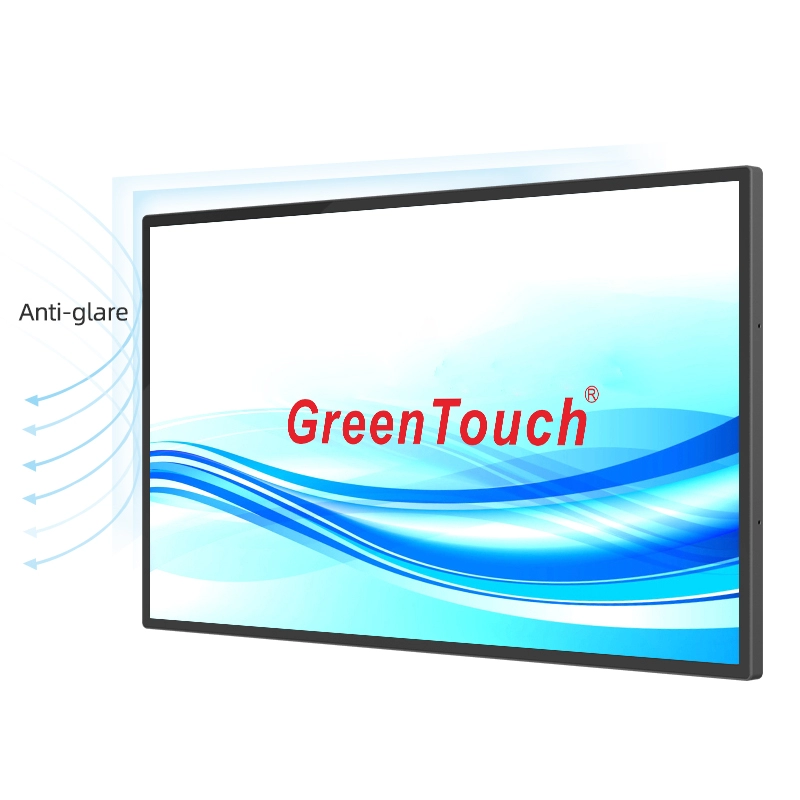

● Surface treatment support Anti-Glare

● Long lifecycle,1-3 years guarantee (24/7 usage)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

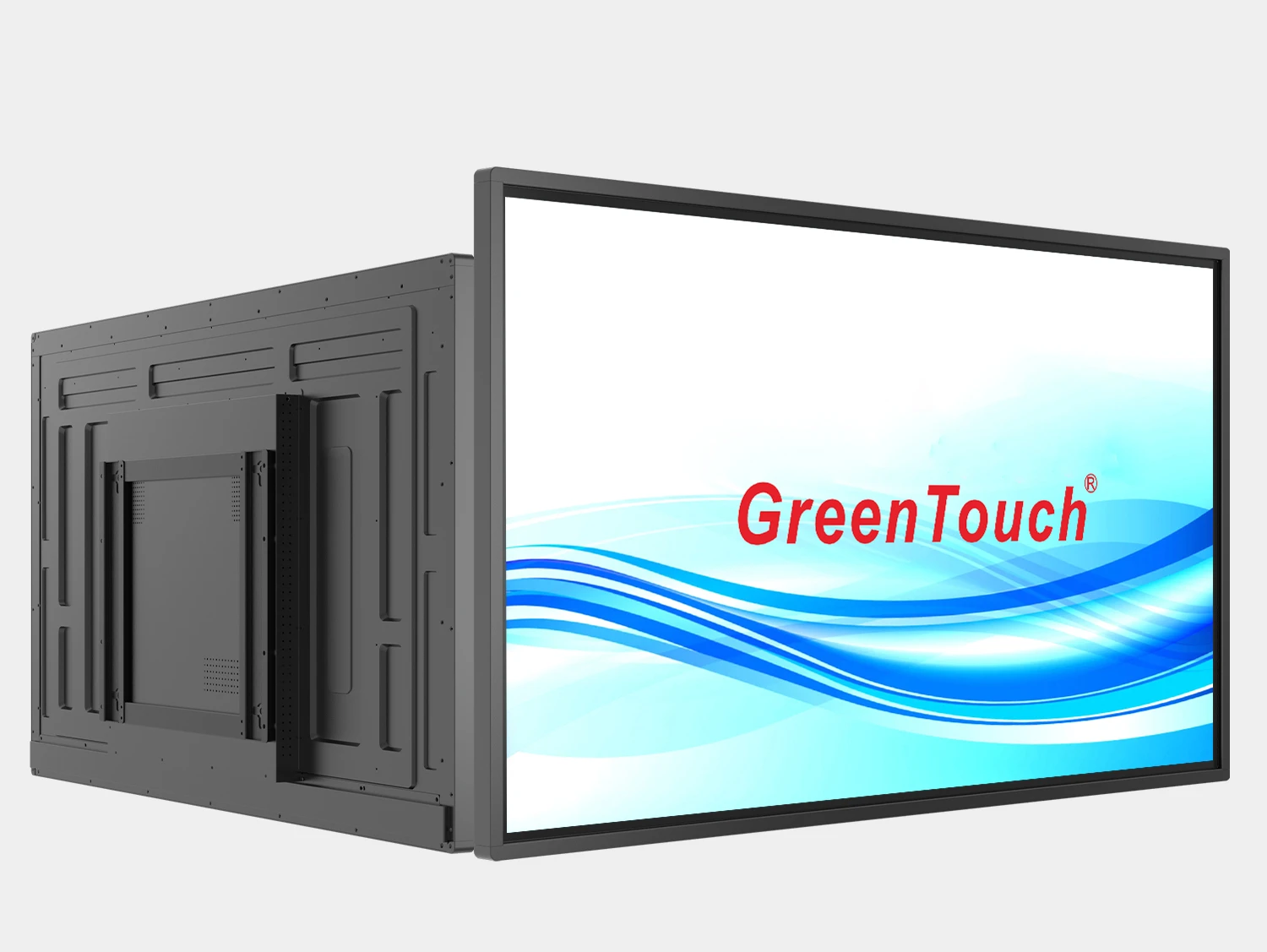

6C-IR Touch Monitor Overview

Green Touch's wall-mounted 6C-IR infrared large-size touch monitors (32-65 inches) have a wide range of applications. With their stable industrial-grade performance and diverse interactive functions, they primarily serve the following core industries and specific scenarios: industrial and intelligent manufacturing, smart commerce and new retail, healthcare, and smart transportation.

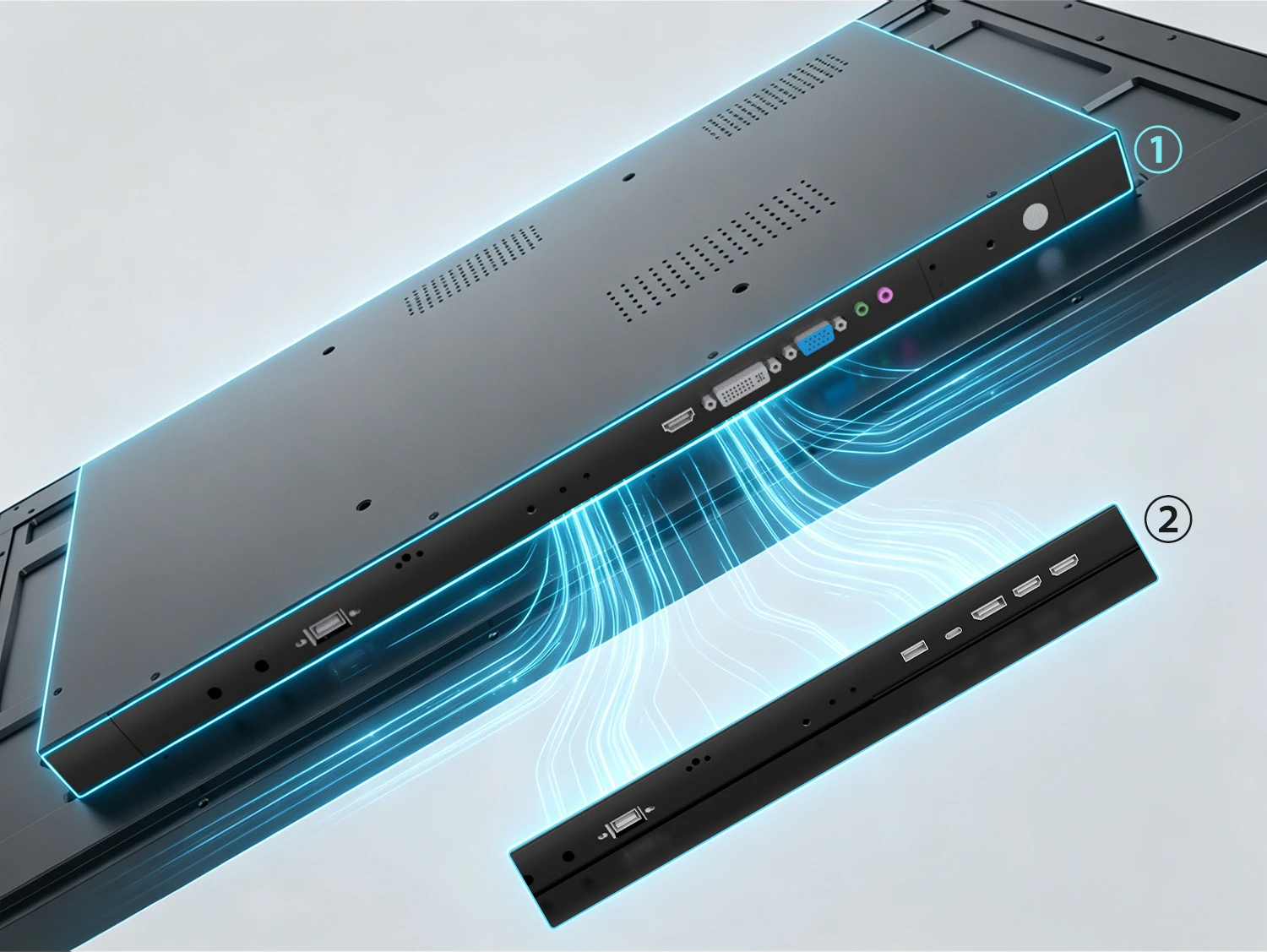

Versatile Connectivity

6C-IR infrared touchscreen monitor includes ① HDMI, VGA, DP, DVI ,MIC, AUDIO and ② HDMI2.0 x1,HDMI1.4x1,DP1.2x1,USB,TYPE-C ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

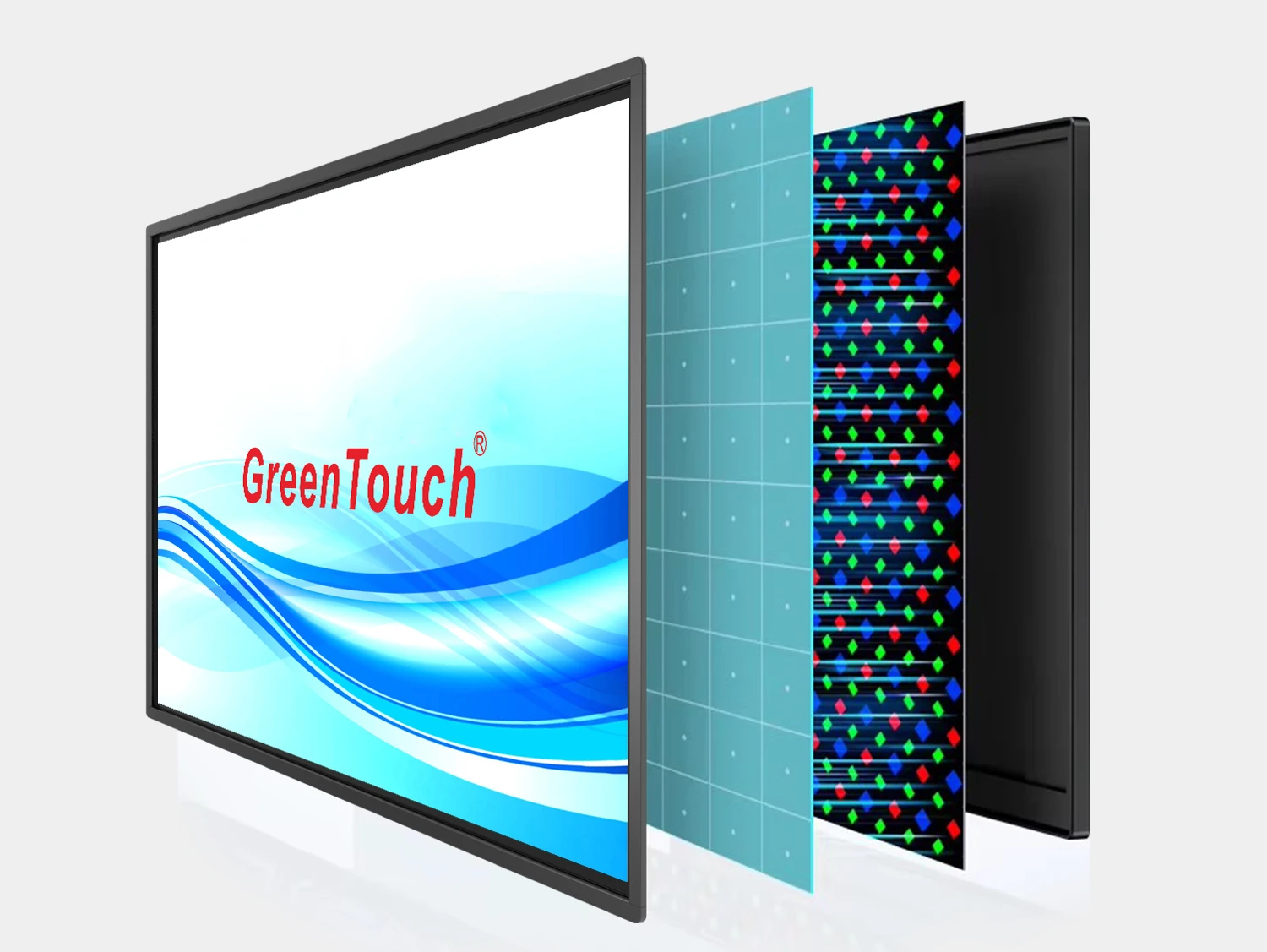

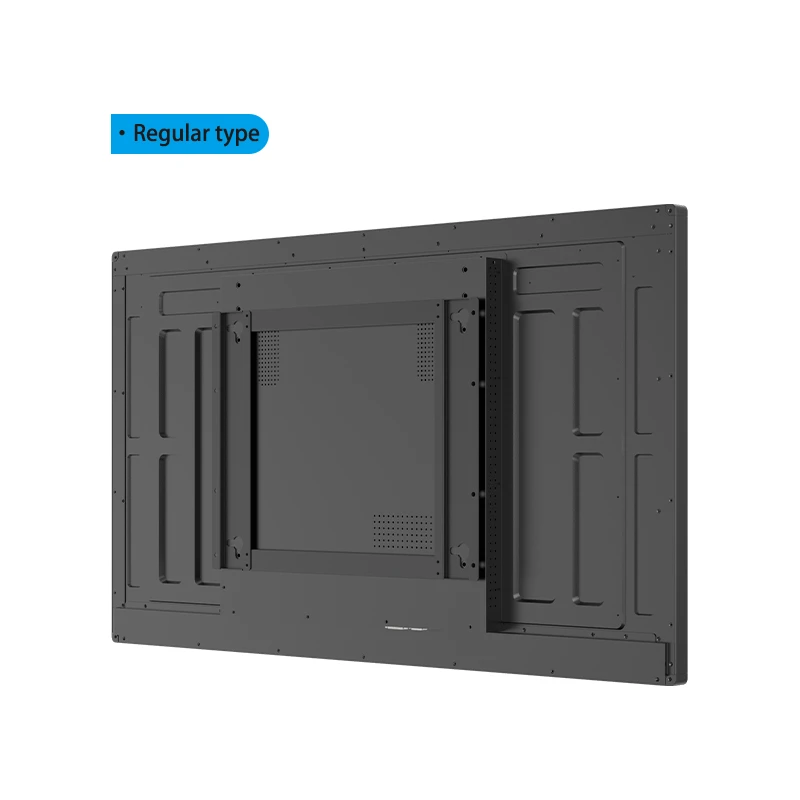

Appearance and Structure

6C-IR touch monitor adopt thin bezel design,optically bonded touch panel to LCD panel,support infrared 40-points touch,sensitive sensing,accurate fixed point. TFT LCD LED backlight, the display color is 16.7 M or 1.07B 90%NTSC, and the video image is very clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruption
Industrial Monitors Offering High Resolution

Boasting incredibly detailed visuals and vibrant, accurate colors, it seamlessly integrates with the most intuitive touch interaction. It offers pixel density four times finer than 1080P. With a wide color gamut of 99% sRGB and 95% DCI-P3, and high color depth, it eliminates color banding. Precise color accuracy is measured using the Delta E (ΔE) value.

Mounting Options

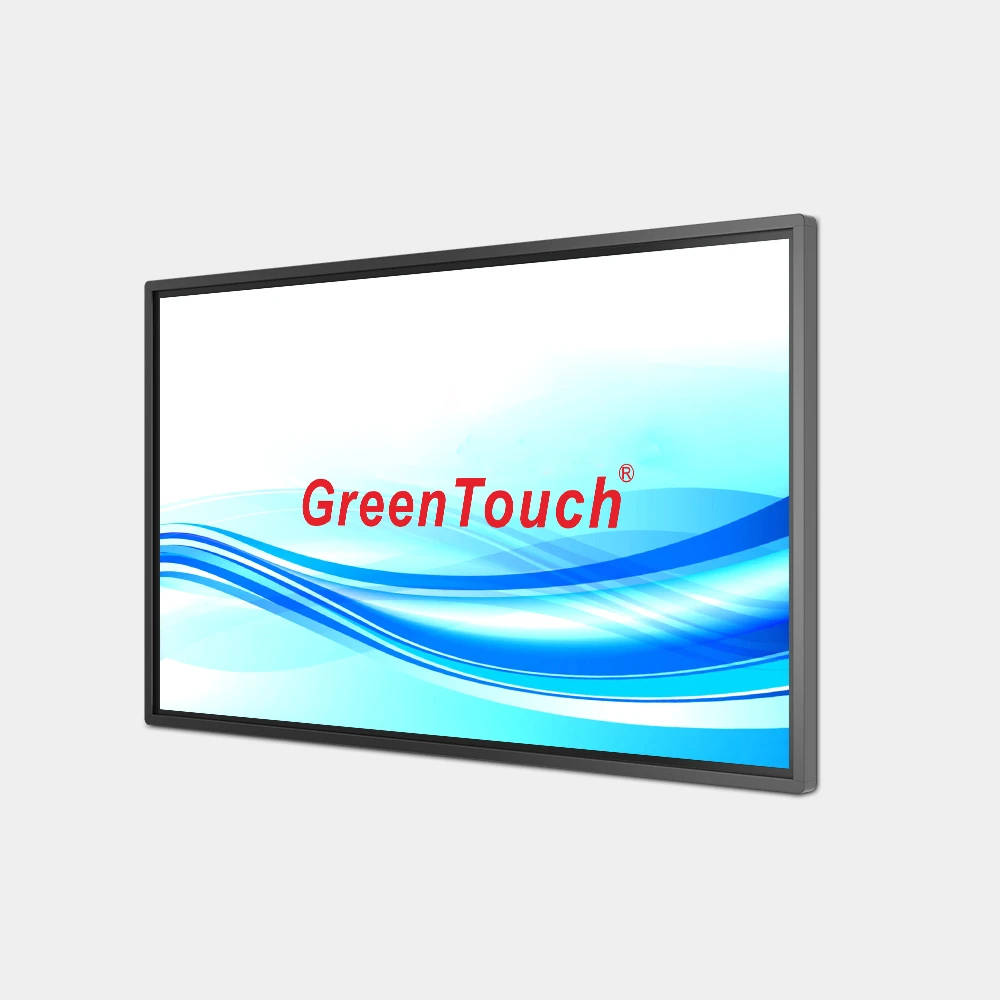

Wall-mounted

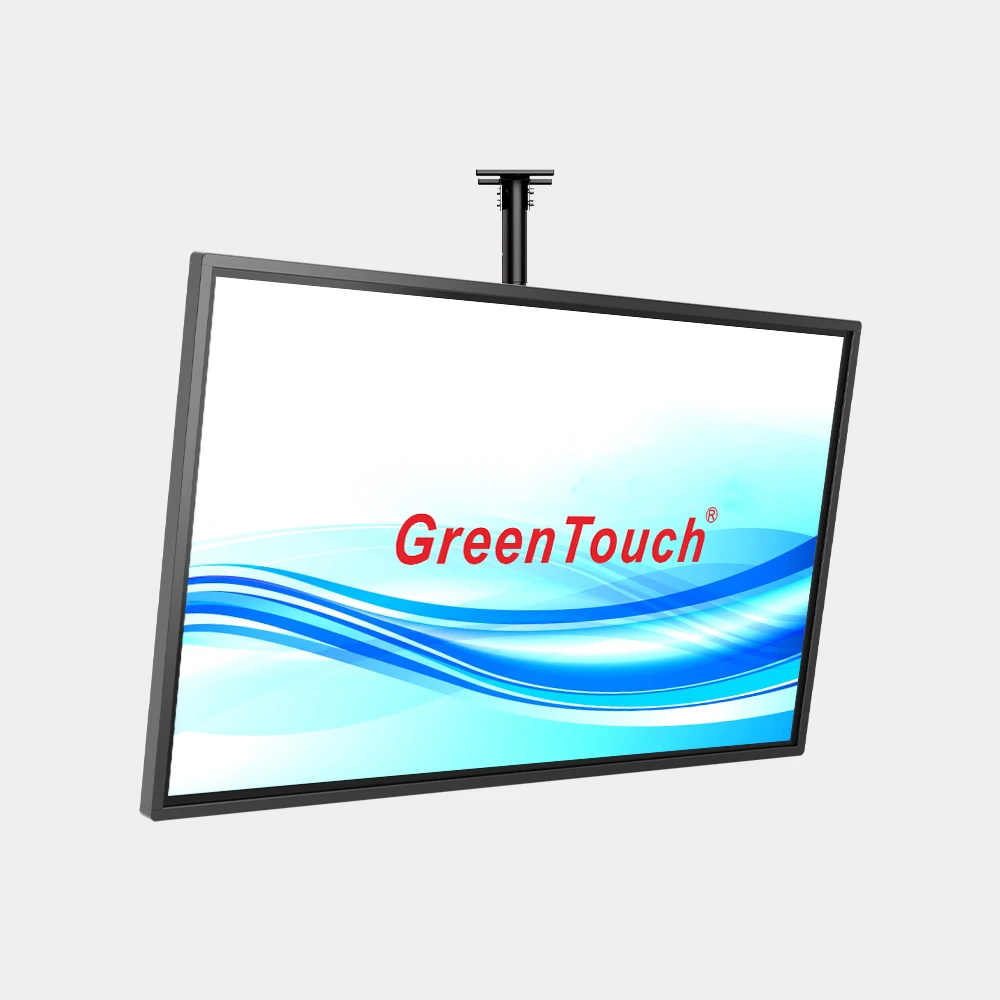

Hanging

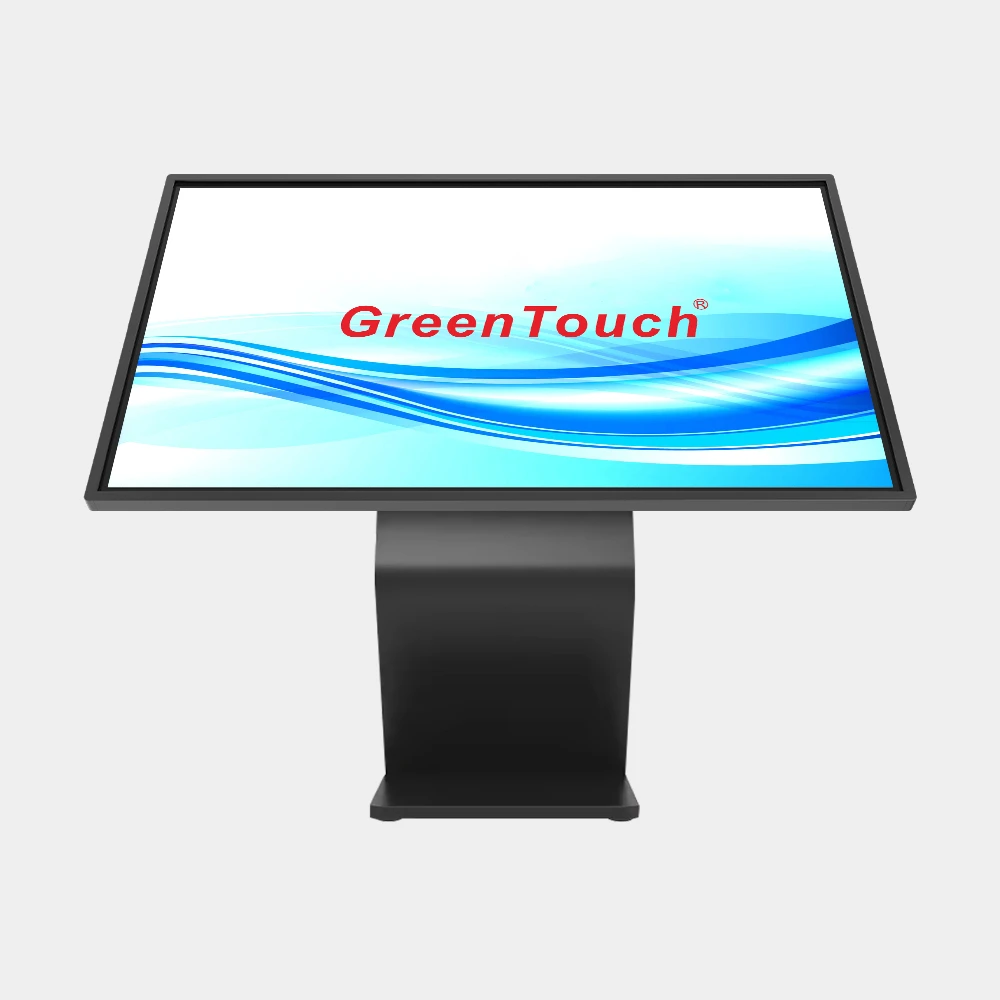

Horizontal

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(6C-IR Series) Regular Sizes:32",43",50",55",65" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Aspect Ratio:16:9 Resolution:3840x2160 @ 60Hz,1920x1080@ 60Hz Brightness:450 nits Contrast ratio (standard):4500:1 Touch Technology:Infrared 40 Points Touch Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:0°C to 50°C Temperature Storage:-20°C to 60°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports 1:HDMI,VGA,DP,DVI,MIC,AUDIO Display Ports 2:HDMI2.0x1,HDMI1.4x1,DP1.2x1,USB, TYPE-C

Mounting Wall Mount:Standard bracket Hanging:VESA 200x200/400x300mm Horizontal:VESA 200x200/400x300mm

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC

About Display Ports

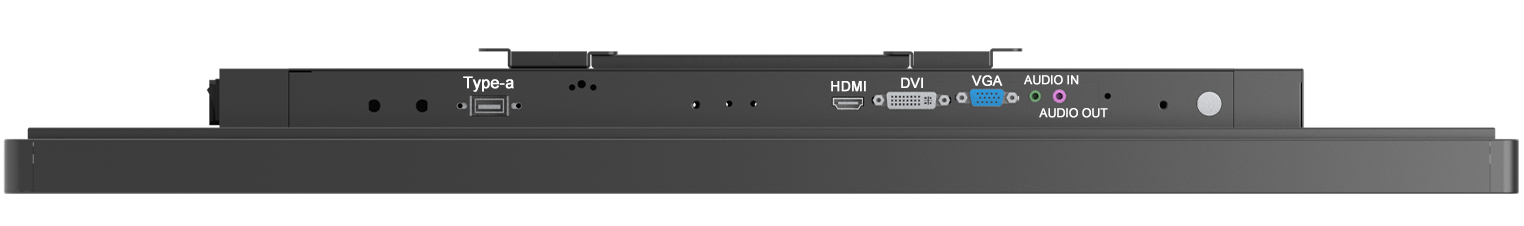

1.VGA+HDMI+DVI/DP

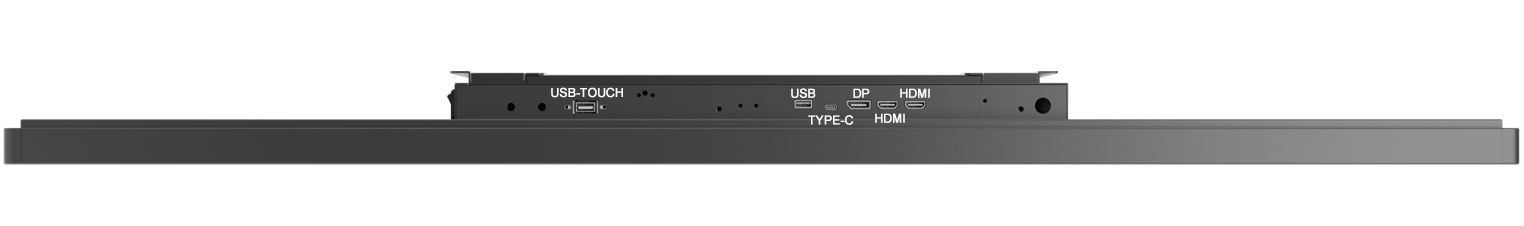

2.HDMI2.0+HDMI1.4+DP1.2

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
32"	GT-TM3206C-IR	VGA,DVI,HDMI,DP	16:9	752.4x444.9x62.2mm	698.4x392.9mm	450	1920 x 1080	GT-TM3206C-IR
32"	GT-TM3206C-IR-OPS-D	HDMI,DP	16:9	752.4x444.9x62.2mm	698.4x392.9mm	450	1920 x 1080	GT-TM3206C-IR-OPS
43"	GT-TM4306C-IR	VGA,DVI,HDMI,DP	16:9	995x582.1x62.1mm	941.2x529.4mm	450	1920 x 1080	GT-TM4306C-IR
43"	GT-TM4306C-IR-OPS-D	HDMI,DP	16:9	995x582.1x62.1mm	941.2x529.4mm	450	1920 x 1080	GT-TM4306C-IR-OPS
50"	GT-TM5006C-IR	HDMI2.0,HDMI1.4,DP	16:9	1149.4x670.1x62.1mm	1096x616mm	450	3840 x 2160	GT-TM5006C-IR
50"	GT-TM5006C-IR-OPS-D	HDMI,DP	16:9	1149.4x670.1x62.1mm	1096x616mm	450	3840 x 2160	GT-TM5006C-IR-OPS
55"	GT-TM5506C-IR	HDMI2.0,HDMI1.4,DP	16:9	1264.2x735.5x62.1mm	1209.6x680.4mm	450	3840 x 2160	GT-TM5506C-IR
55"	GT-TM5506C-IR-OPS-D	HDMI,DP	16:9	1264.2x735.5x62.1mm	1209.6x680.4mm	450	3840 x 2160	GT-TM5506C-IR-OPS
65"	GT-TM6506C-IR	HDMI2.0,HDMI1.4,DP	16:9	1484.4x859.4x64.1mm	1429.5x804.5mm	450	3840 x 2160	GT-TM6506C-IR
65"	GT-TM6506C-IR-OPS-D	HDMI,DP	16:9	1484.4x859.4x64.1mm	1429.5x804.5mm	450	3840 x 2160	GT-TM6506C-IR-OPS
