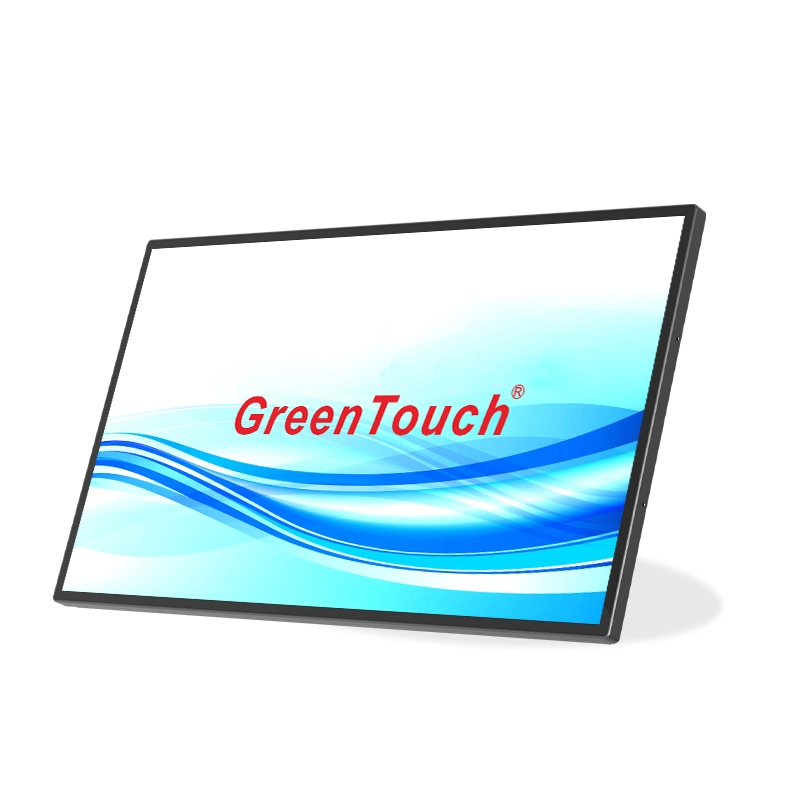

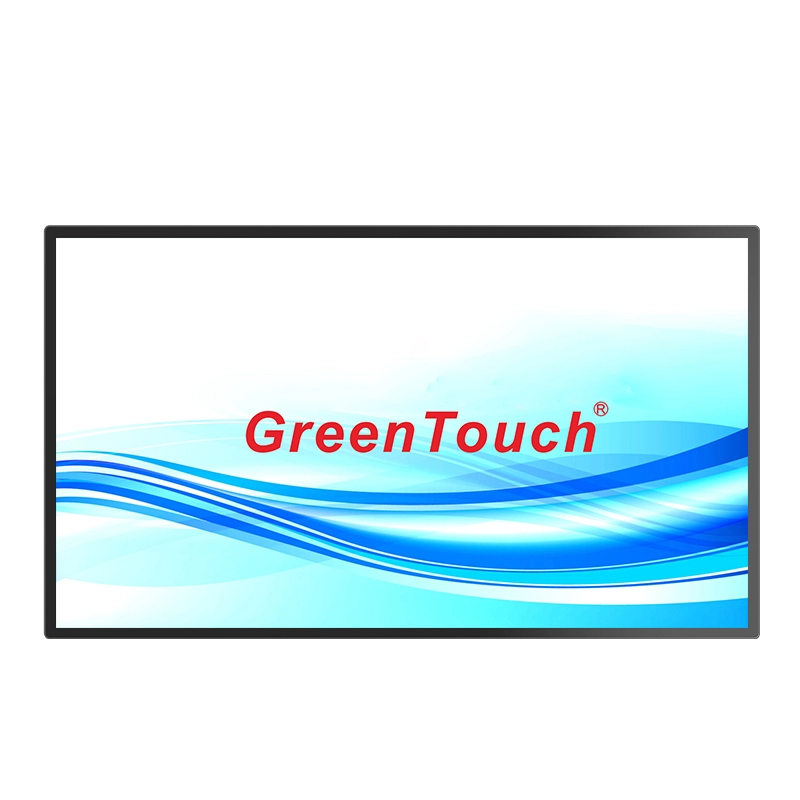

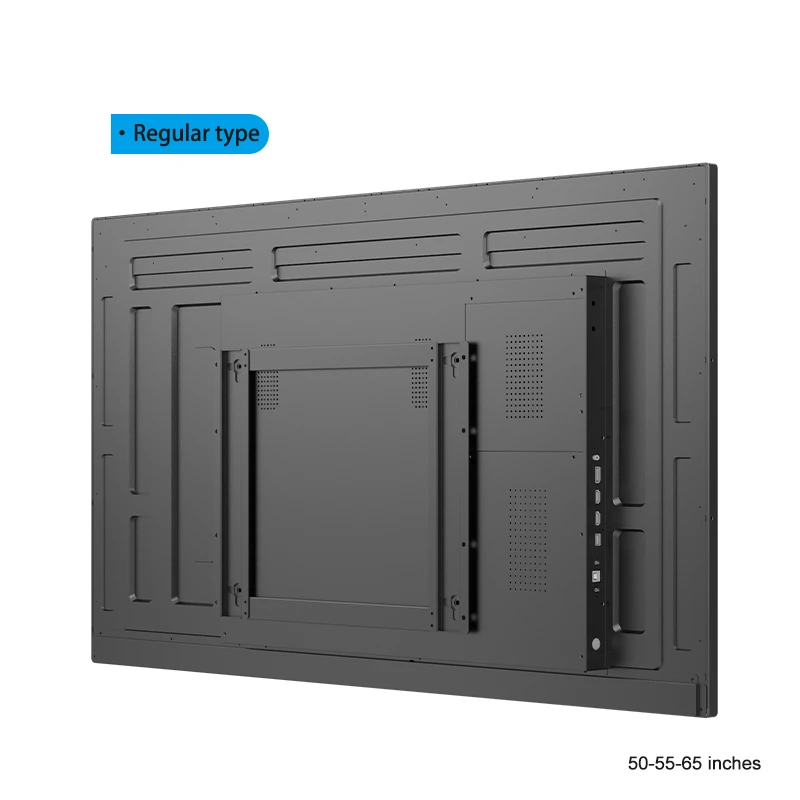

Wall Mount PCAP Touch Monitor 32-65 Inches(6C-C Series)

Wall Mount PCAP Touch Monitor 32-65 Inches(6C-C Series)

Product Information

Resolution: UHD 4K,Full HD 1920x1080

Display Colors: 16.7M- 1.07B,90%NTSC

Contrast ratio: 4500:1,deep and clear

Touch Technology: Capacitive 10-Points Touch

Features

● Thin bezel,178 ultra-wide viewing angle

● 99% sRGB,95% DCI-P3

● HDR,with distinct image layers

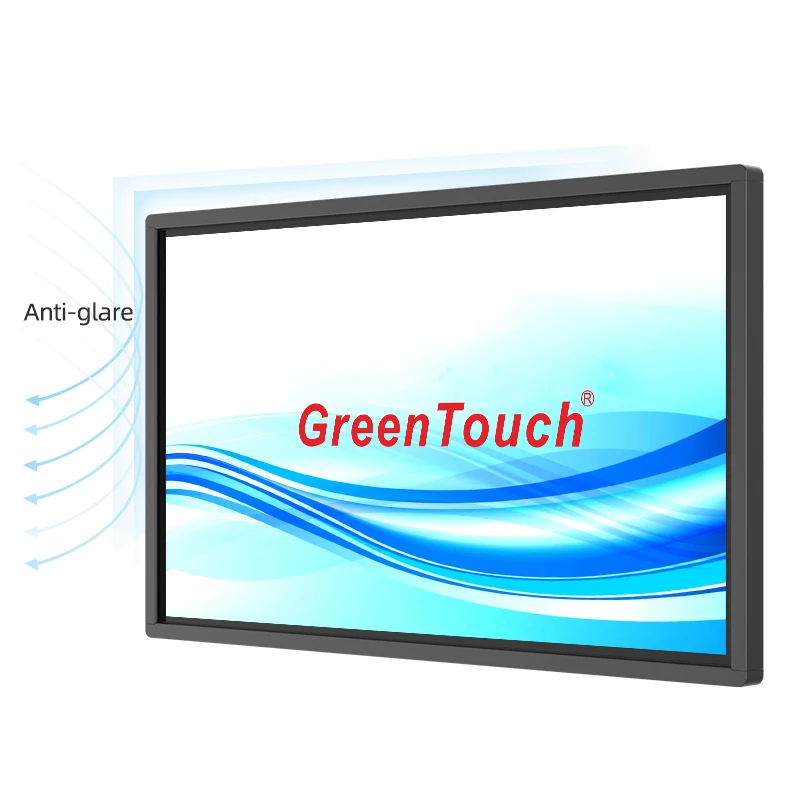

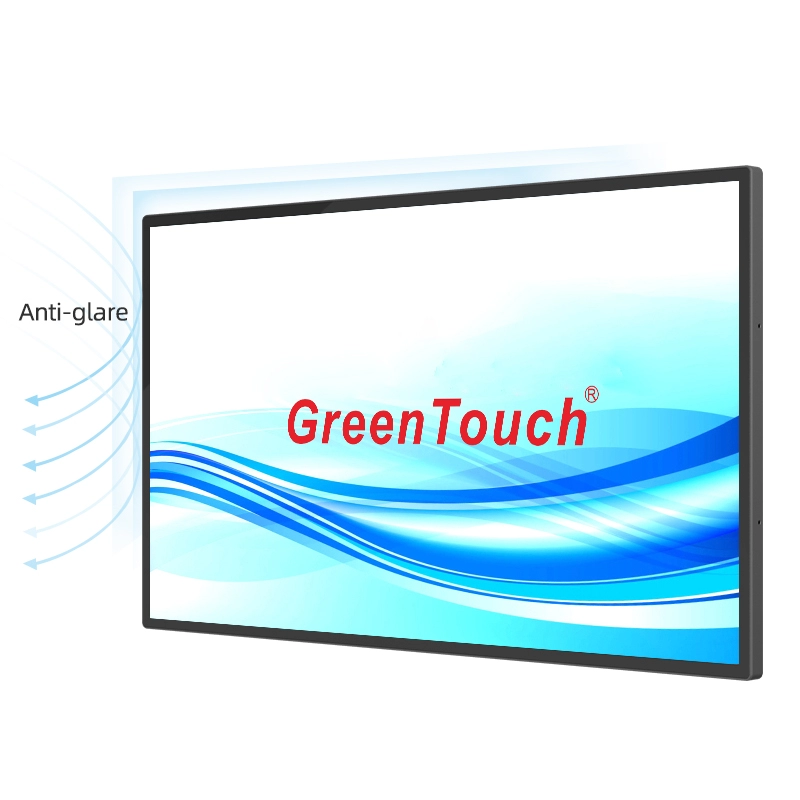

● Surface treatment support Anti-Glare

● Long lifecycle,1-3 years guarantee (24/7 usage)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

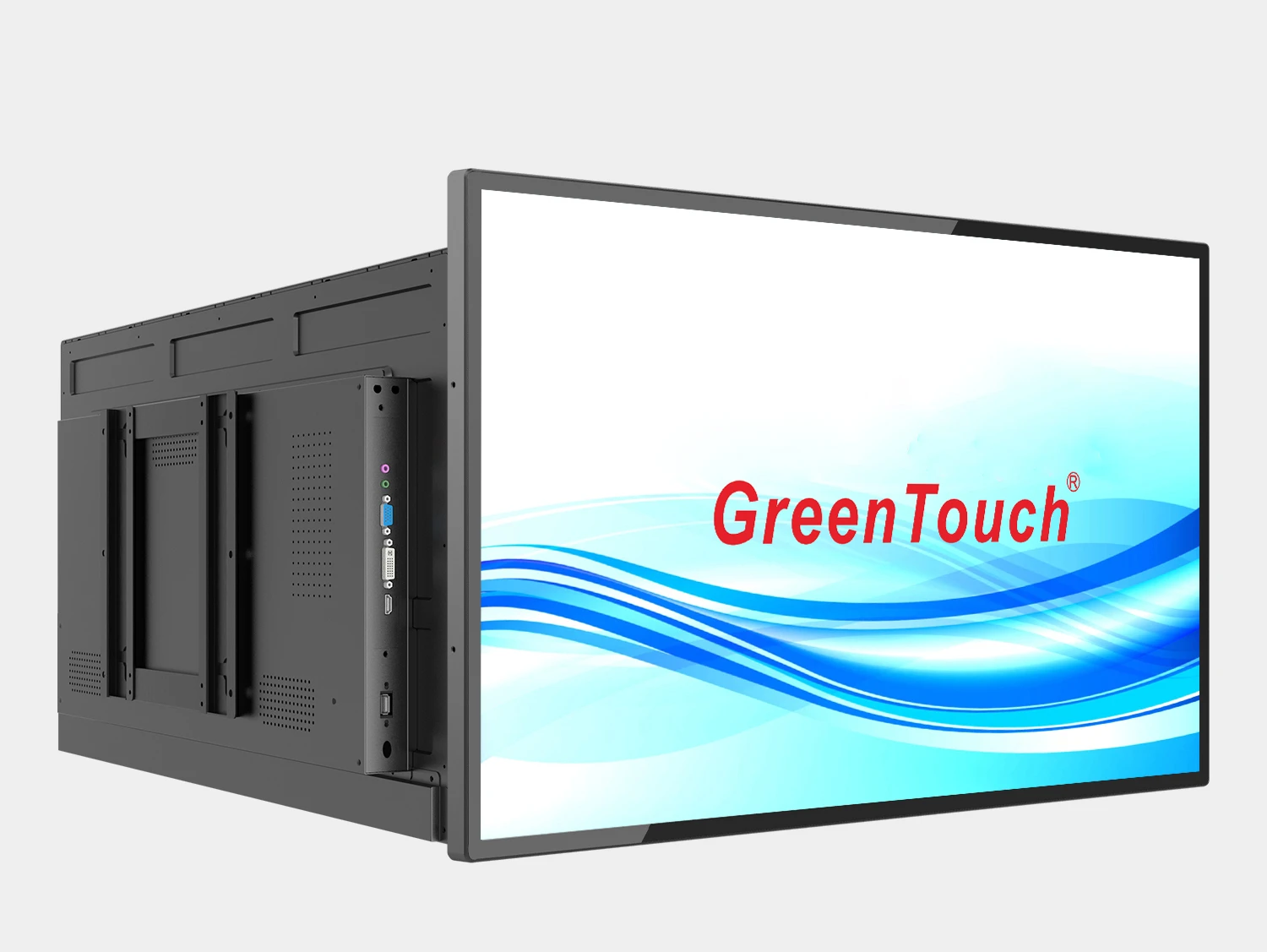

6C-C Touch Monitor Overview

Green Touch's wall-mounted 6C-C capacitive large-size touch displays (32-65 inches) have a wide range of applications. With their stable industrial-grade performance and diverse interactive functions, they primarily serve the following core industries and specific scenarios: industrial and intelligent manufacturing, smart commerce and new retail, healthcare, and smart transportation.

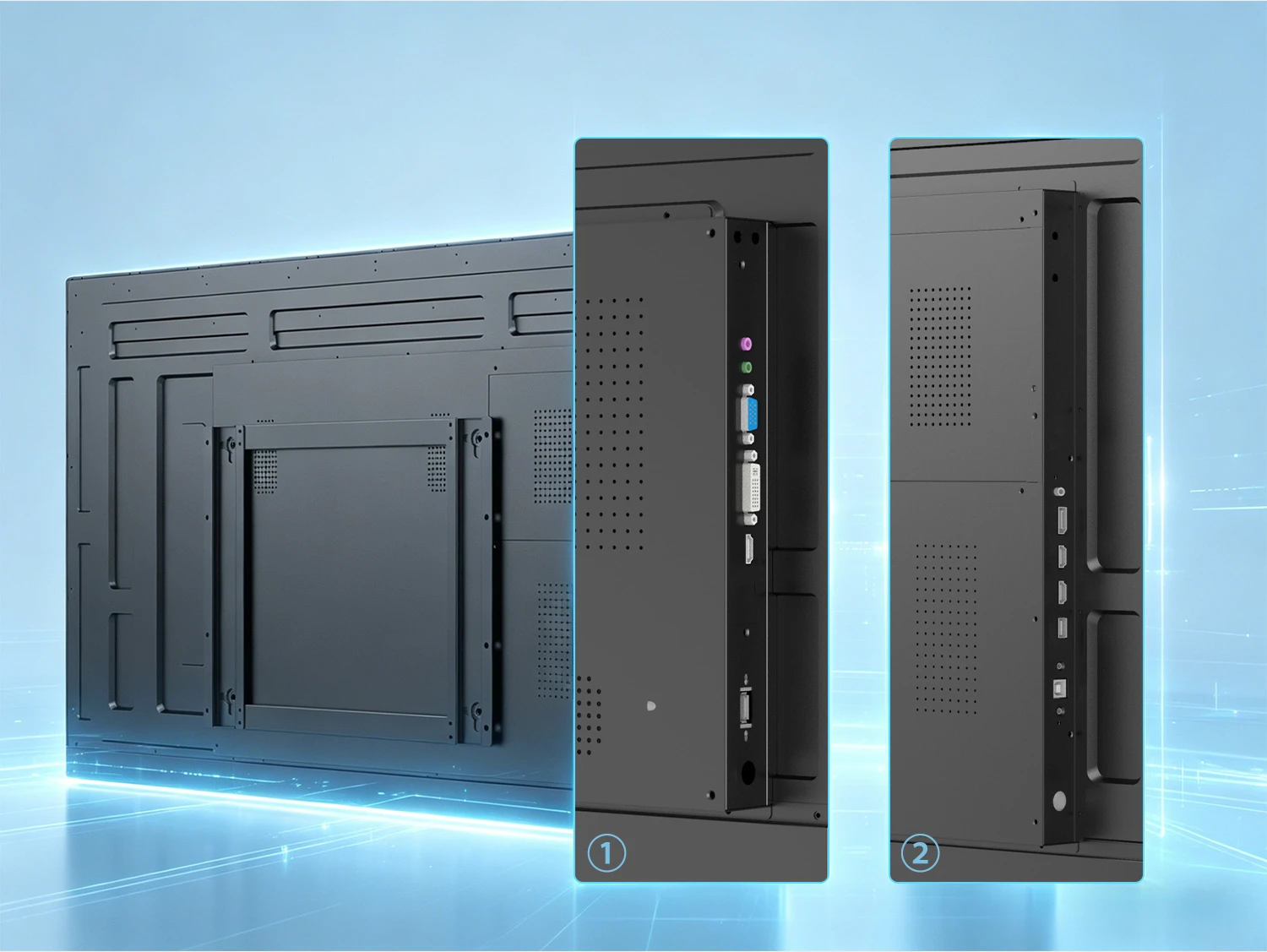

Versatile Connectivity

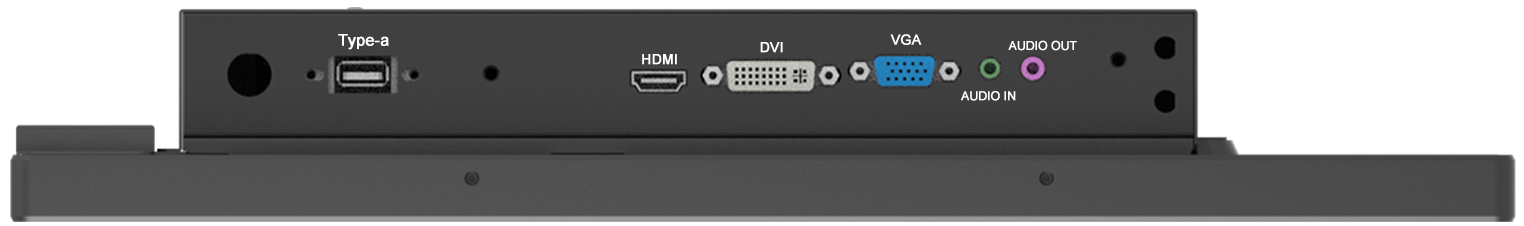

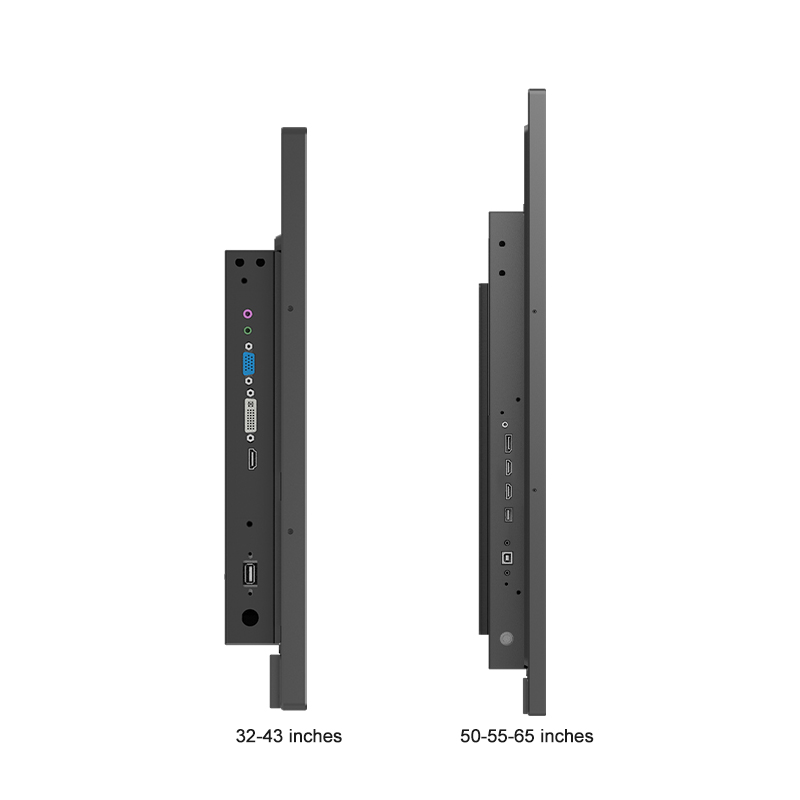

6C-C capacitive touchscreen monitor includes ① HDMI, VGA, DP, DVI ,MIC, AUDIO and ② HDMI2.0 x1,HDMI1.4x1,DP1.2x1,USB,AUDIO ports. These connections are all positioned on the back of the monitor and face right, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

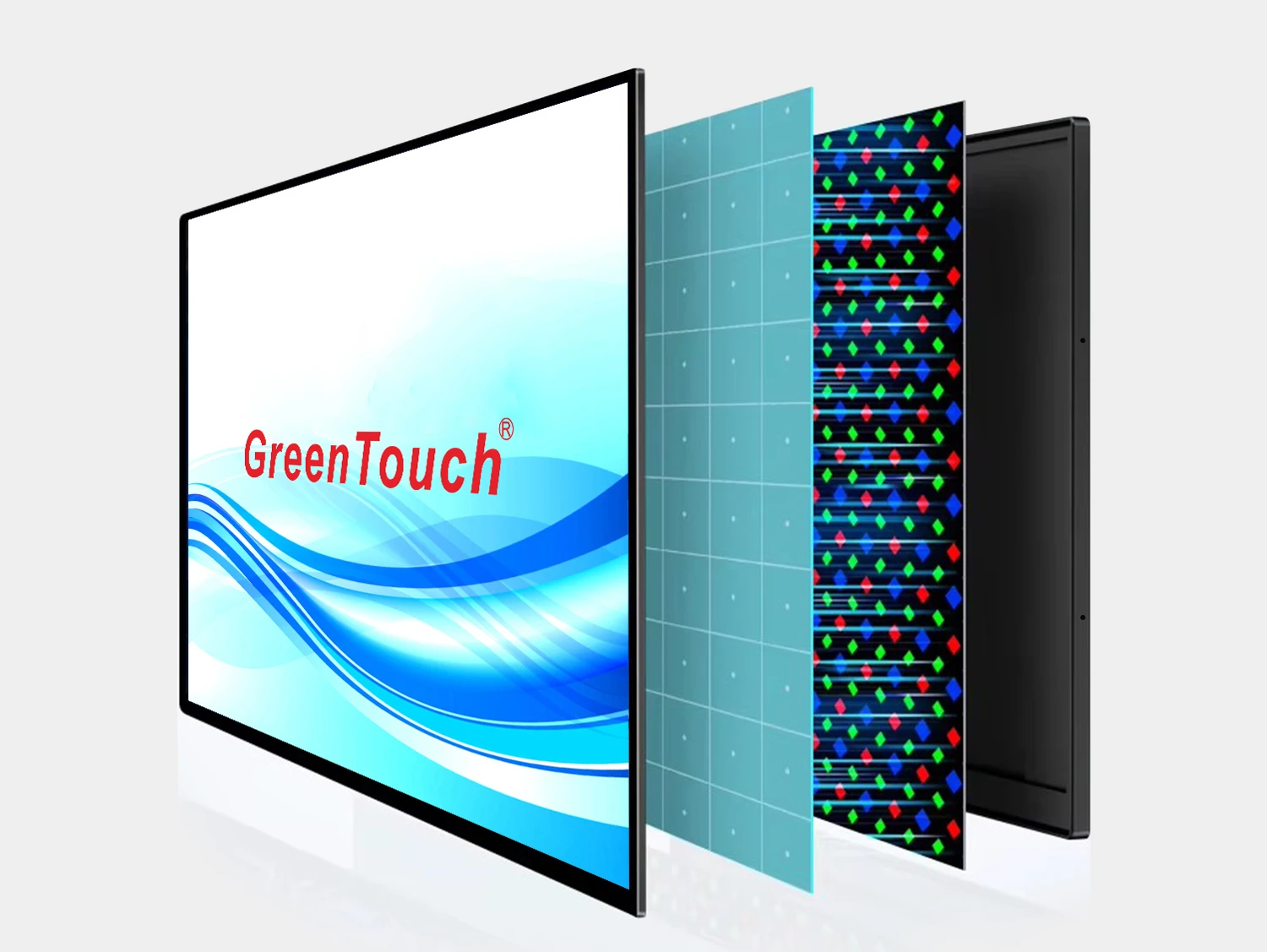

Appearance and Structure

6C-C touch monitor adopt thin bezel design,optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. TFT LCD LED backlight, the display color is 16.7 M or 1.07B 90%NTSC, and the video image is very clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruption.
Industrial Monitors Offering High Resolution

Boasting incredibly detailed visuals and vibrant, accurate colors, it seamlessly integrates with the most intuitive touch interaction. It offers pixel density four times finer than 1080P. With a wide color gamut of 99% sRGB and 95% DCI-P3, and high color depth, it eliminates color banding. Precise color accuracy is measured using the Delta E (ΔE) value.

Mounting Options

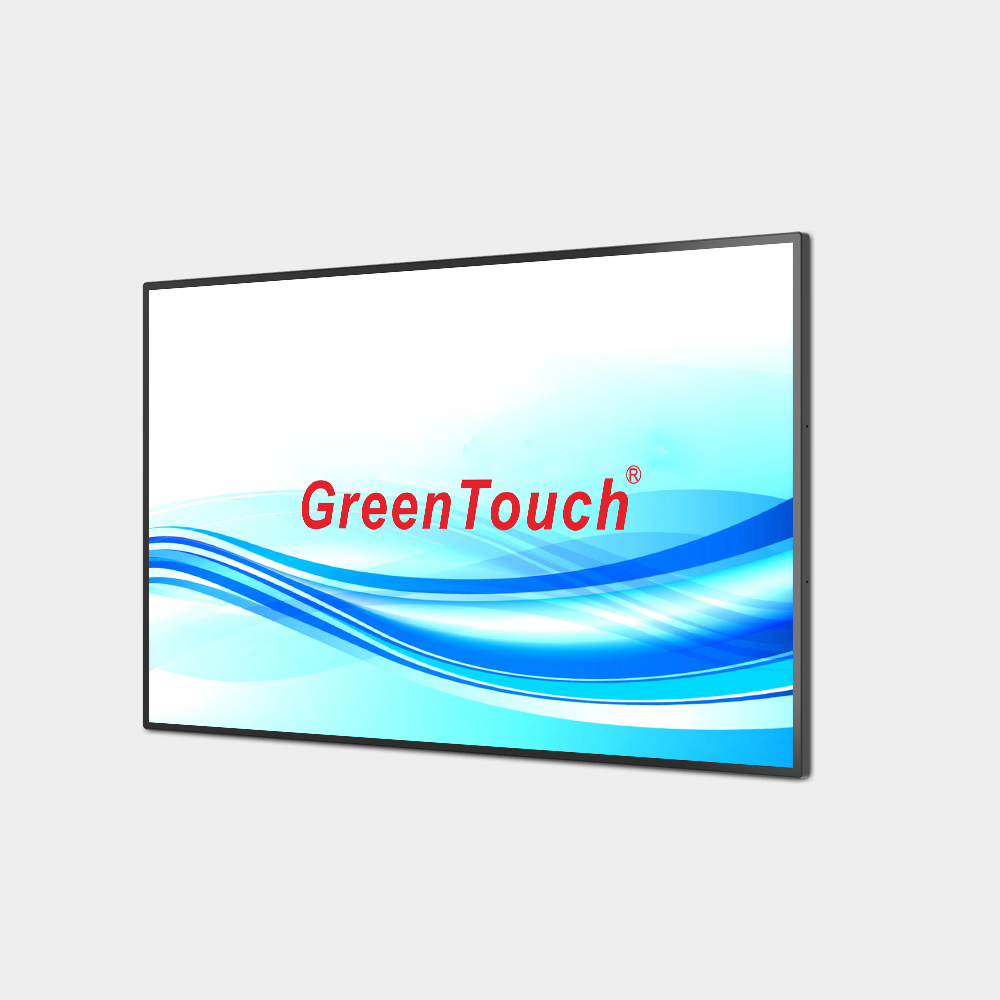

Wall-mounted

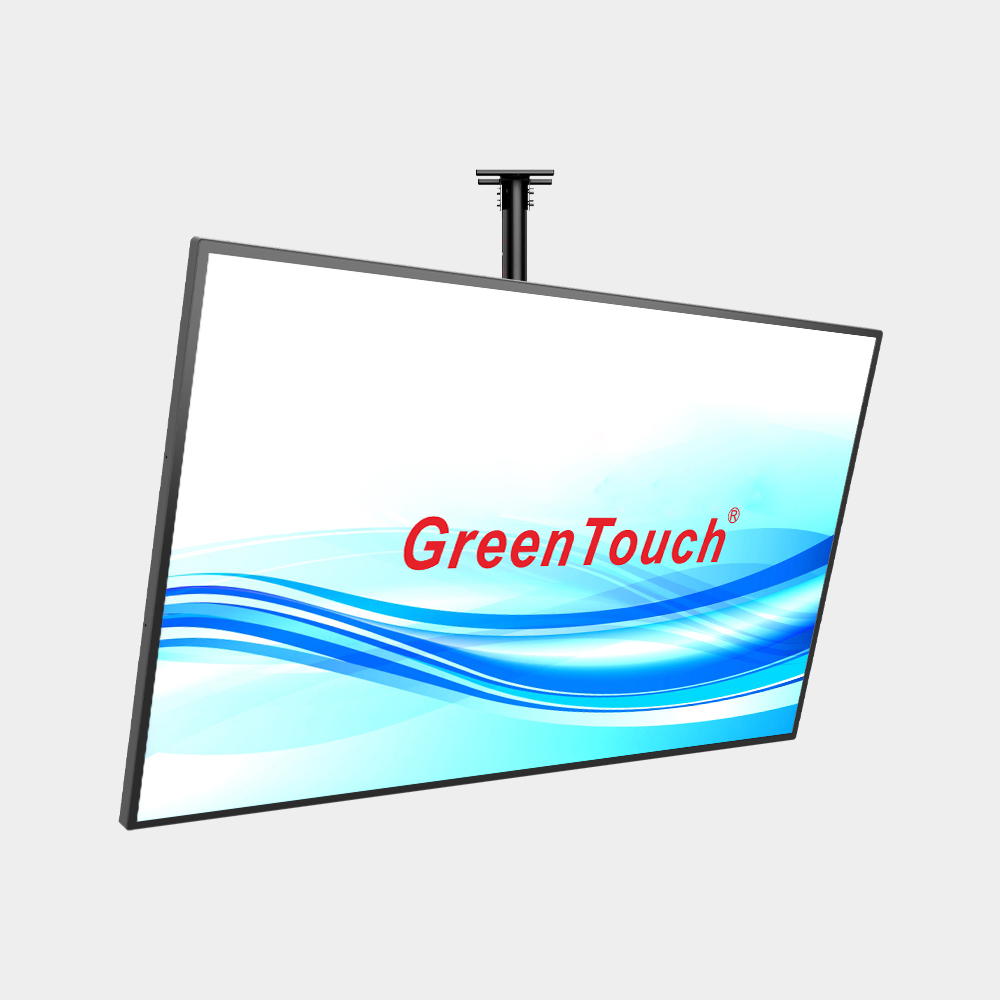

Hanging

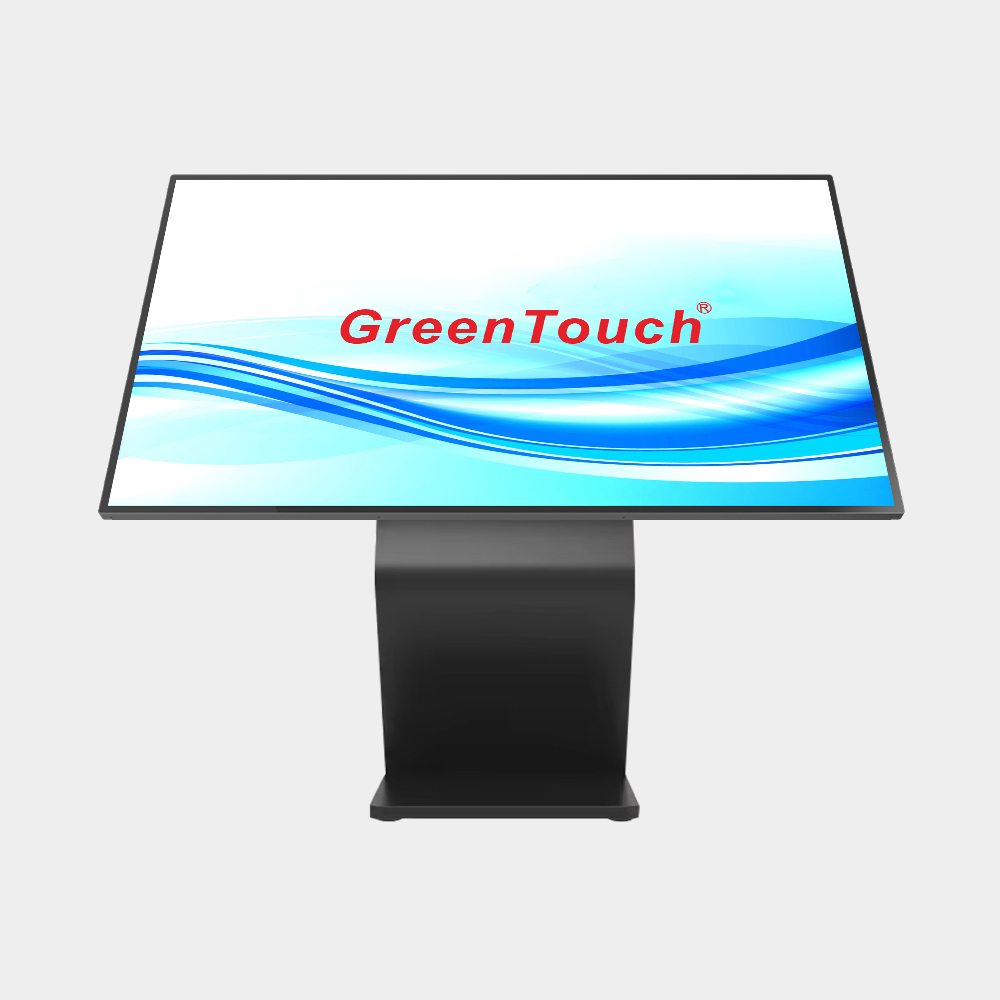

Horizontal

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(6C-C Series) Regular Sizes:32",43",50",55",65" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Aspect Ratio:16:9 Resolution:3840x2160 @ 60Hz,1920x1080@ 60Hz Brightness:450 nits Contrast ratio (standard):4500:1 Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:0°C to 50°C Temperature Storage:-20°C to 60°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports 1:HDMI,VGA,DP,DVI,MIC,AUDIO Display Ports 2:HDMI2.0x1,HDMI1.4x1,DP1.2x1,USB,AUDIO

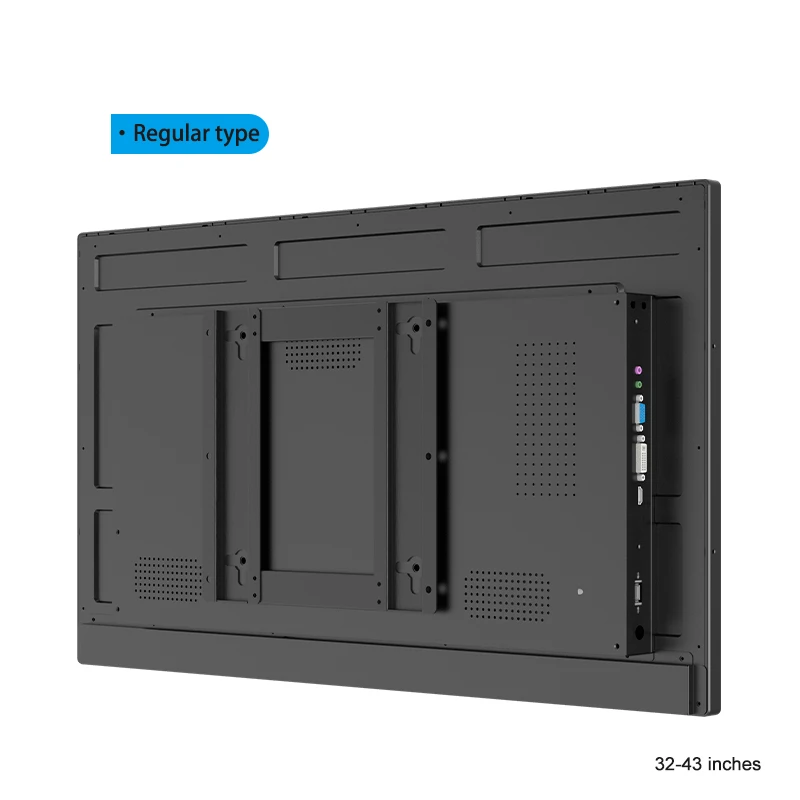

Mounting Wall Mount:Standard bracket Hanging:VESA 200x200/400x300mm Horizontal:VESA 200x200/400x300mm

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC

About Display Ports

1.VGA+HDMI+DVI/DP

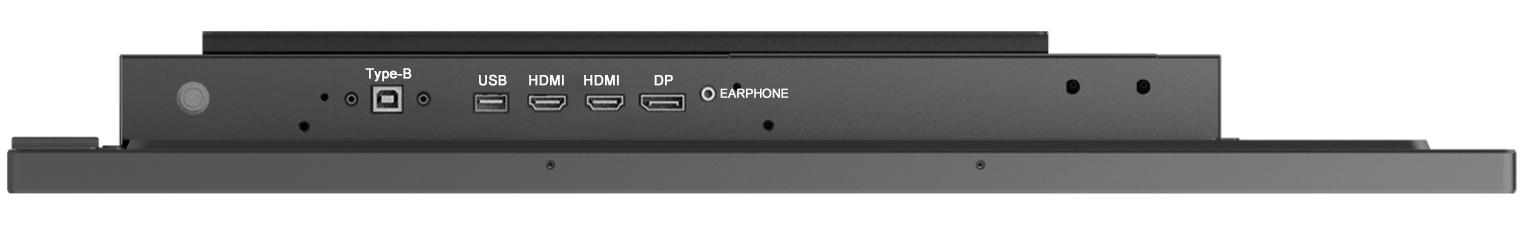

2.HDMI2.0+HDMI1.4+DP1.2

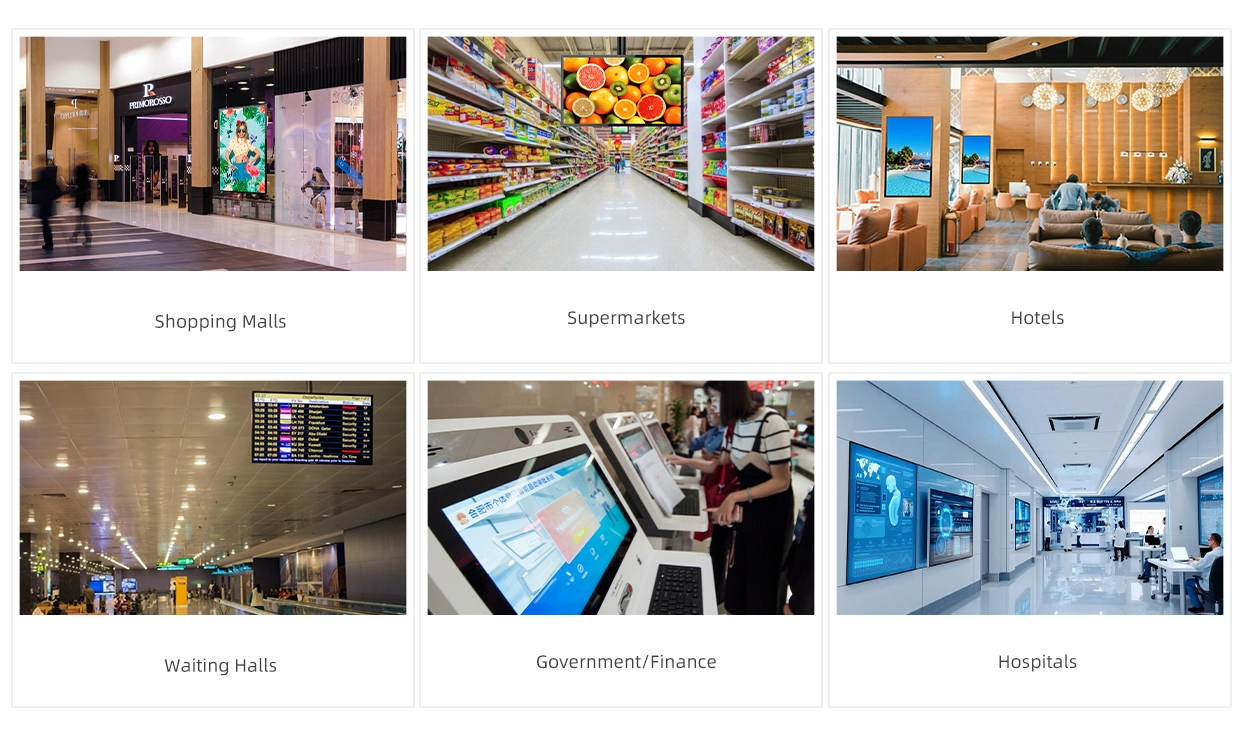

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
32"	GT-TM3206C-C	VGA,DVI,HDMI,DP	16:9	724.6x419x59mm	698.4x392.9mm	450	1920 x 1080	GT-TM3206C-C

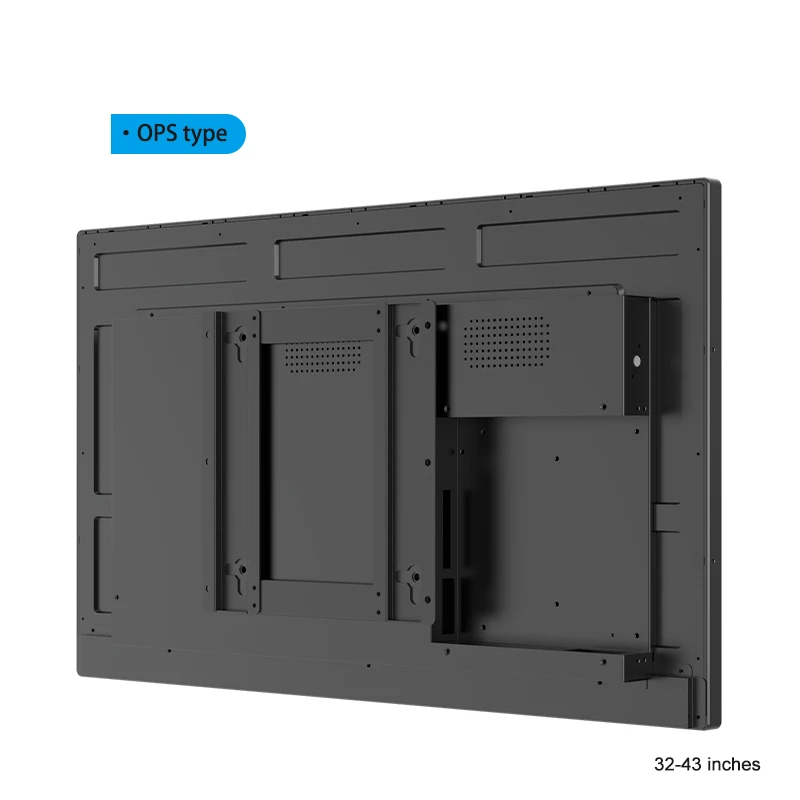

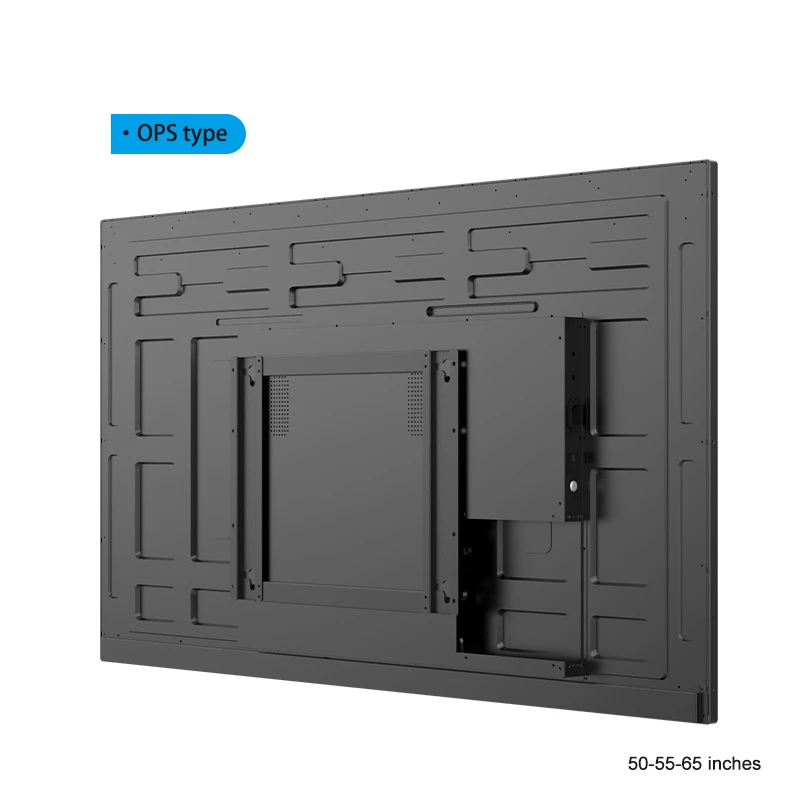

32"	GT-TM3206C-C-OPS-D-CY10U	HDMI,DP	16:9	724.6x419x59mm	698.4x392.9mm	450	1920 x 1080	GT-TM3206C-C-OPS
43"	GT-TM4306C-C	VGA,DVI,HDMI,DP	16:9	967.6x555.8x59mm	940.9x529.3mm	450	1920 x 1080	GT-TM4306C-C
43"	GT-TM4306C-C-OPS-D-CY10U	HDMI,DP	16:9	967.6x555.8x59mm	940.9x529.3mm	450	1920 x 1080	GT-TM4306C-C-OPS
50"	GT-TM5006C-C	VGA,DVI,HDMI,DP	16:9	1122x642.3x59mm	1095.8x616.4mm	450	3840 x 2160	GT-TM5006C-C
50"	GT-TM5006C-C-OPS-D-CY10U	HDMI,DP	16:9	1122x642.3x59mm	1095.8x616.4mm	450	3840 x 2160	GT-TM5006C-C-OPS
55"	GT-TM5506C-C	VGA,DVI,HDMI,DP	16:9	1236.7x707.8x57.6mm	1209.6x680.4mm	450	3840 x 2160	GT-TM5506C-C
55"	GT-TM5506C-C-OPS-D-CY10U	HDMI,DP	16:9	1236.7x707.8x57.6mm	1209.6x680.4mm	450	3840 x 2160	GT-TM5506C-C-OPS
65"	GT-TM6506C-C	VGA,DVI,HDMI,DP	16:9	1456.9x831.7x59.8mm	1428.5x803.5mm	450	3840 x 2160	GT-TM6506C-C
65"	GT-TM6506C-C-OPS-D-CY10U	HDMI,DP	16:9	1456.9x831.7x59.8mm	1428.5x803.5mm	450	3840 x 2160	GT-TM6506C-C-OPS
