Smart LCD Display-ShenZhen GreenTouch Technology Co.,Ltd

Mobile Smart LCD Display 23.8-32 Inches(HY Series)

Mobile Smart LCD Display 23.8-32 Inches(HY Series)

Product Information

Resolution:Full HD,UHD

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Mounting: Embedded,Wall-mounted,Desktop

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Features

● Industrial-grade LCD panels for long operating life

● IP65 and front protection to resist water and dust

● Dense ventilation holes for reliable 24/7 operation

● Surface treatment: AG,AR,AF,Antibacterial（Optional）

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

2C Touch Monitor Overview

GreenTouch's open frame touch monitor 2C series provide cost-effective solutions for customers who need industrial touch.A comprehensive size range from 7 ”to 55” ensures compatibility with:Industrial control,terminal accessories,human-machine interaction,smart healthcare,smart Livelihood.
Versatile Connectivity

The GreenTouch capacitive touch monitors 2C series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

2C adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,durable and reliable .
Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 5:4) Size:8”,9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:7”,8”,13.3”,14”,15.6”,18.5”,21.5”,23.6”,23.8”,27”,32”,43”,50”,55”

Mounting Options

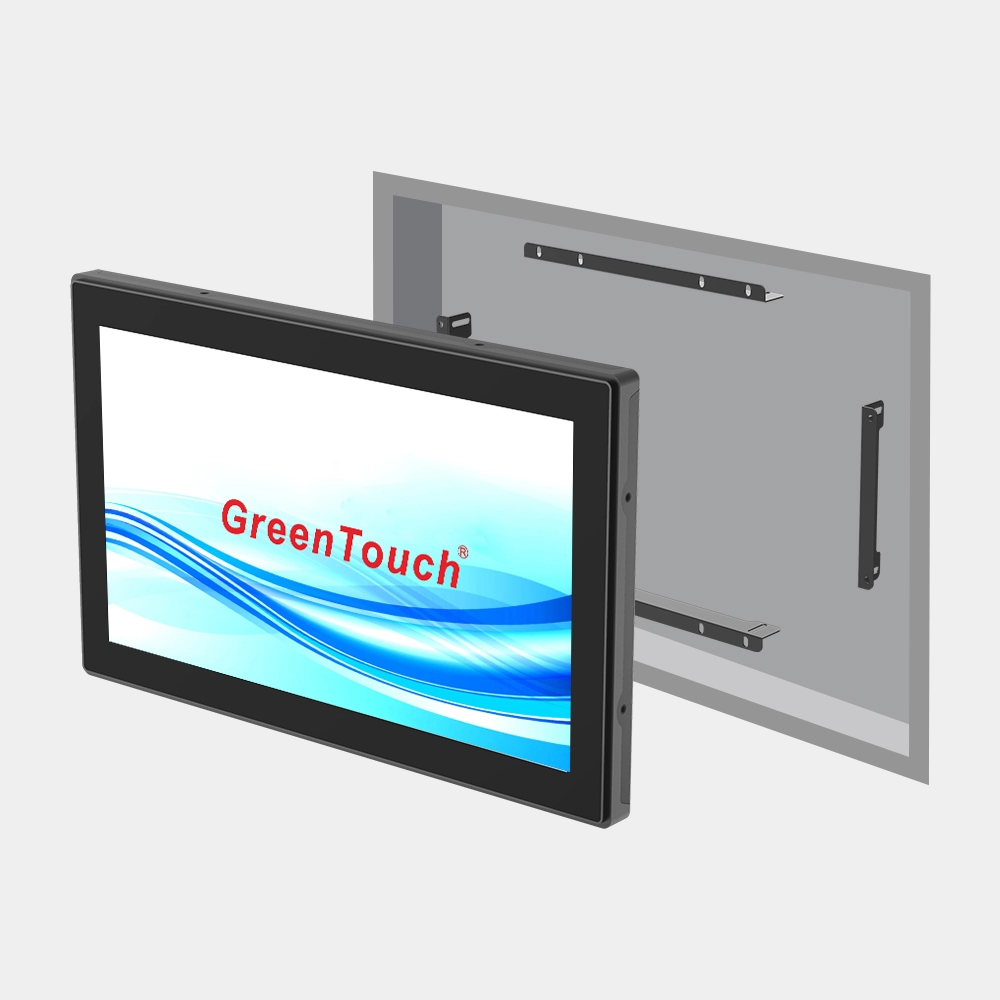

Embedded

Each monitor comes standard with a external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

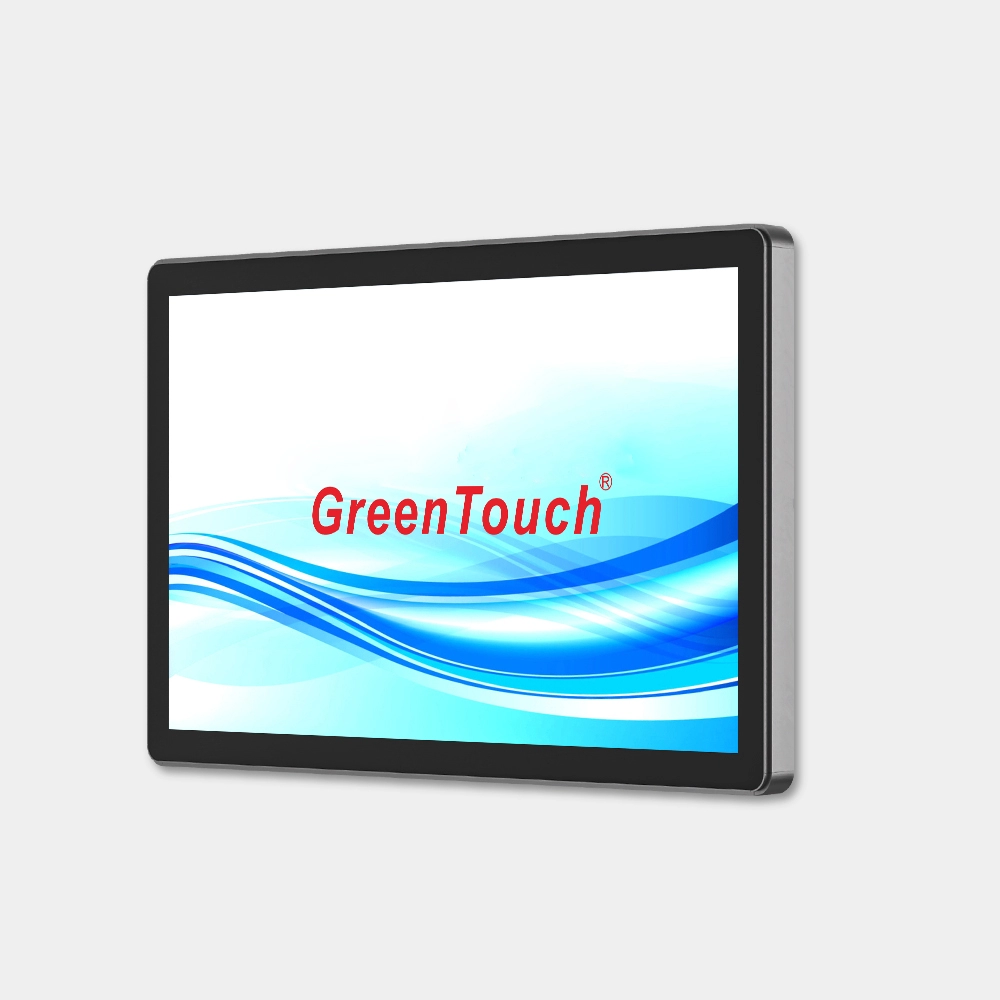

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.
Desktop

2C is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

Each monitor comes standard with a external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2C is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK08

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100/200x100/400x400mm Desktop:VESA Mounting Bracket

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:7 to 55 inches Resolution:1920x1080,1680x1050,1280x800, 1366x768,1024x768,800x600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

General Manufacturer:GreenTouch Product Name:Touch Monitor(2C Series) Regular Sizes: 7",8",9.7",10.1",10.4",12.1",13.3",14",15", 15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",50",55" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

About Display Ports

1.Windows:VGA+HDMI

2.Android:HDMI

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
23.8"	GT-GM238HY	HDMI,TYPE-C	16:9	545x325x60mm	527x295mm	300	1920 x 1080	GT-GM238HY
27"	GT-GM270HY	HDMI,TYPE-C	16:9	614x363x60mm	598x5336mm	250	1920 x 1080	GT-GM270HY
32"	GT-GM320HY	HDMI,TYPE-C	16:9	715x425x60mm	698x393mm	300	3840 x 2160	GT-GM320HY
