55 Inch 4K UHD Touch Screen Monitor

Product Information

Resolution: 3840 x 2160 UHD

Display Colors:1.07B,90%NTSC

Touch Technology:Capacitive 10-Points Touch

Intereface:HDMI2.0x1,HDMI1.4x1,DP1.2x1,USB,AUDIO

Features

● Thin bezel,178 ultra-wide viewing angle

● 99% sRGB,95% DCI-P3

● HDR, with distinct image layers

● Long lifecycle,1-3 years guarantee (24/7 usage)

● Surface treatment:AG(AR,AF,Antibacterial Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

4K 55” Touch Monitor Overview

The GreenTouch 55-inch 4K touch screen monitor, with its 4K 3840 x 2160 ultra-high-definition resolution,sensitive touch interaction, and perfectly proportioned screen size, has become a key tool connecting professional precision with intuitive operation. It's more than just a "display"; it's the core of professional solutions tailored for various industries.
Versatile Connectivity

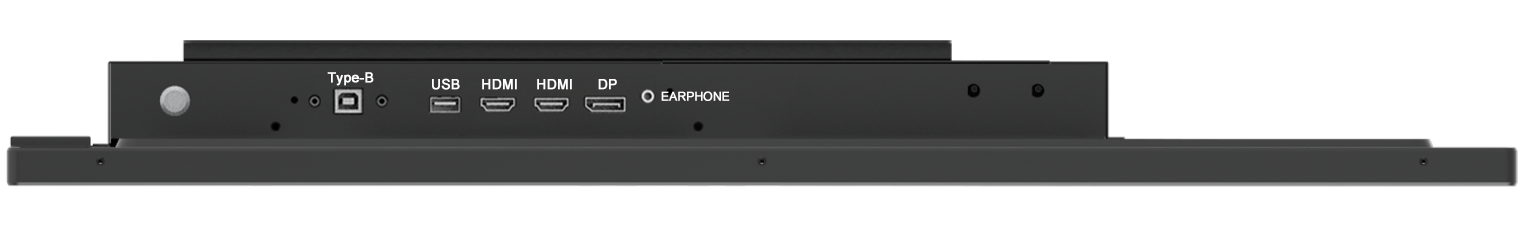

The GreenTouch 4k capacitive touchscreen monitor includes HDMI2.0x1,HDMI1.4x1,DP1.2x1,USB，AUDIO ports. These connections are all positioned on the back of the monitor and face right, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.If you require it to be used as a touch panel PC, we offer OPS type for you to choose from to meet your higher needs.
Appearance and Structure

55” UHD touch monitor adopt thin bezel design,optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. TFT LCD LED backlight, the display color is 1.07B 90%NTSC, and the video image is very clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruption.
Industrial Monitors Offering High Resolution

Boasting incredibly detailed visuals and vibrant, accurate colors, it seamlessly integrates with the most intuitive touch interaction. It offers pixel density four times finer than 1080P. With a wide color gamut of 99% sRGB and 95% DCI-P3, and high color depth (Display Colors: 1.07B), it eliminates color banding. Precise color accuracy is measured using the Delta E (ΔE) value.

Mounting Options

Wall Mount

Hanging

Horizontal

Specifications

General Manufacturer:GreenTouch Product Name:4K Touch Monitor Regular Sizes:55" Warranty:One Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Panel Panel Type:Active Matrix TFT LCD, LED Backligh Aspect Ratio:16:9 Resolution:3840 x 2160 @ 60Hz Brightness:450 nits Contrast ratio (standard):4500:1 Touch Technology: Projected Capacitive 10 Points Touch Touch Support System:Windows,Android,linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:0°C to 50°C Temperature Storage:-20°C to 60°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports: HDMI2.0x1,HDMI1.4x1,DP1.2x1,USB,AUDIO

Mounting Wall Mount:Standard bracket Hanging:VESA 400x300mm Horizontal:VESA 400x300mm

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC

About Display Ports

HDMI2.0+HDMI1.4+DP1.2

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
55"	GT-TM5506C-C	HDMI2.0,HDMI1.4,DP1.2	16:9	1236.7x6707.8x57.6mm	1209.6x680.4mm	450	3840 x 2160	GT-TM5506C-C
55"	GT-TM5506C-C-OPS	HDMI,DP	16:9	1236.7x6707.8x58.2mm	1096x616mm	450	3840 x 2160	GT-TM5506C-C-OPS
More	GT-TMXX06C-C	HDMI2.0,HDMI1.4,DP1.2	16:9					Customizable
