GreenTouch TE Series Infrared Touch screen: Real-World Applications Across Industries

Touch screens deployed in outdoor self-service terminals,industrial smart equipment,and public display systems often face challenges such as intense light interference,exposure to rain and dust, extreme temperature fluctuations,and wear and tear from frequent use.Standard touch devices are prone to malfunctions,cursor drift, lag, and physical damage.To address these industry pain points, GreenTouch independently developed the TE series of waterproof infrared touchscreens. Combining exceptional environmental adaptability,precise and stable touch performance, and cost-effective customization,the series has been successfully implemented in projects across various sectors nationwide,establishing itself as the preferred solution for touch interaction in demanding outdoor and industrial environments.

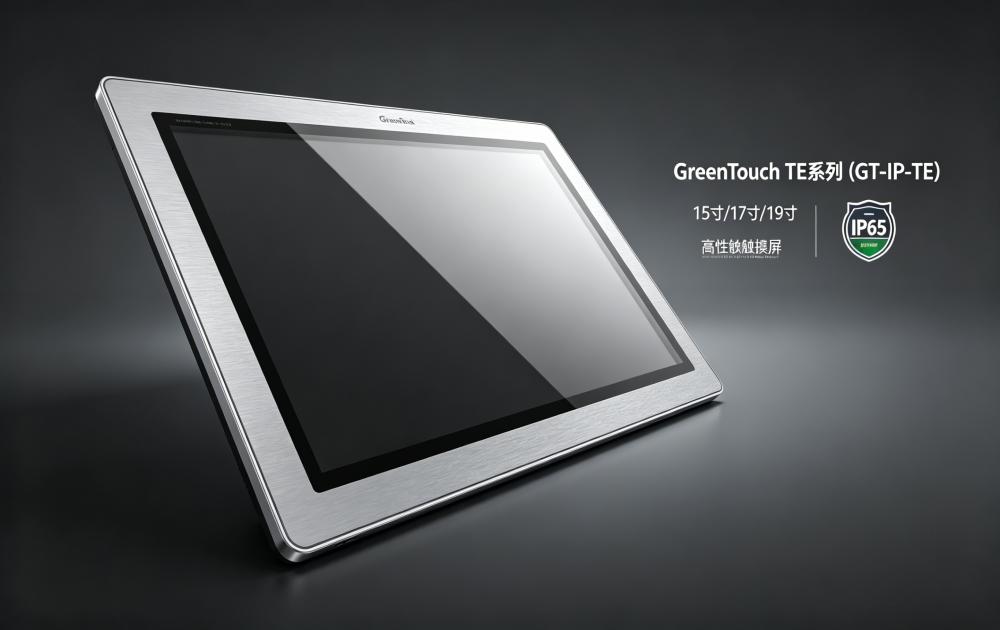

The GreenTouch TE series (GT-IR-TE) is a high-performance touchscreen product engineered for harsh operating conditions.It meets rigorous industry standards,featuring comprehensive upgrades ranging from hardware craftsmanship to functional adaptability.Standard sizes range from 10.4 to 21.5 inches,with custom options available from 7 to 32 inches.The design features an ultra-narrow 8mm bezel and a sleek, versatile aesthetic, allowing for seamless integration into both new builds and retrofits of all-in-one units and self-service terminals.

In terms of core performance,the series utilizes proprietary algorithms and premium LED infrared emitter-receiver pairs. It supports precise 10-point touch with a response time of ≤10ms and ultra-high resolution (32768 x 32768). The touch experience is characterized by zero drift, no erratic cursor jumping, and no signal dropouts, ensuring smooth and accurate curve tracing. Even if individual LED components fail, overall functionality remains unaffected, guaranteeing maximum touch stability. Furthermore, the device requires no physical pressure; operations can be accurately triggered by fingers, gloved hands, passive styluses, or other opaque objects, meeting the convenient interaction needs of diverse scenarios.

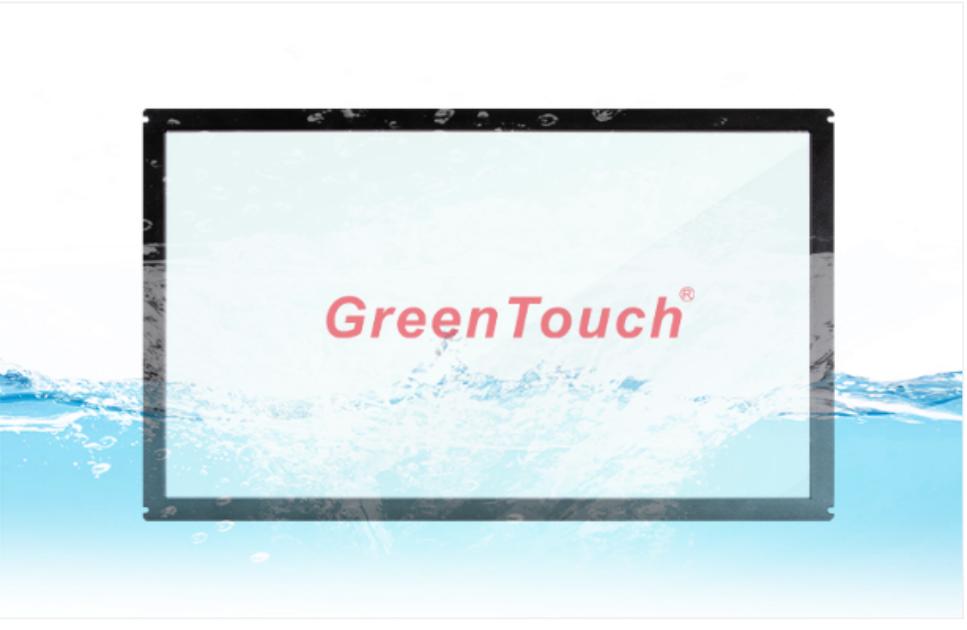

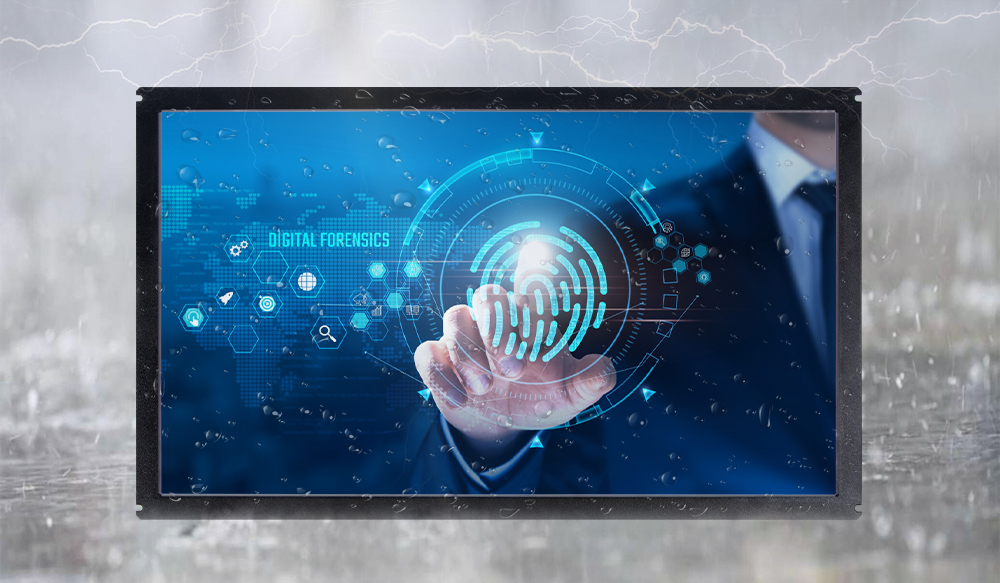

Environmental adaptability is a key strength of the TE series. Certified to IP65 standards for water and dust resistance, the product features an integrated injection-molded light-transmitting frame, waterproof adhesive sealing, and a mechanized glass-bonding process. This robust sealing ensures long-term resistance to sunlight, rain, and dust, making it perfectly suited for outdoor, open-air operating environments. It features 8,000-lux all-angle resistance to strong light, ensuring responsive and stable touch performance even under direct midday sunlight—effectively resolving the common issue of touch failure in outdoor displays.

Furthermore, the product has passed Level 3 electrostatic discharge (ESD) testing (EN 6100-4-2:2008 standard) and holds multiple international certifications, including CE, FCC, and RoHS, guaranteeing safety and compliance. It operates reliably within a temperature range of -10°C to 50°C (storage: -20°C to 60°C) and in humidity levels of 10%–90% RH (non-condensing), withstanding temperature extremes, moisture, and static interference. The panel utilizes fully tempered glass that is explosion-proof, impact-resistant, and durable against rough handling; with a virtually unlimited touch lifespan, it significantly reduces long-term maintenance costs.

Regarding interfaces and system compatibility, the TE series is equipped with dual USB 2.0 and UART interfaces featuring plug-and-play alloy connectors—eliminating the need for driver installation. USB recognition speed is tripled, and 480 Mbps high-speed transmission ensures smooth interaction. The series offers broad compatibility with major operating systems—including Windows, Android, Linux, and Mac—and supports the vast majority of smart device systems on the market. Additionally, it offers personalized customization services, such as custom logos, bezel color and material modifications, and AG (anti-glare), AR (anti-reflective), and AF (anti-fingerprint) coatings, meeting the diverse project requirements of various clients.

Leveraging these comprehensive product advantages, the Green Touch TE series infrared touchscreens have successfully served clients across four key sectors—outdoor smart municipal infrastructure, self-service retail, smart logistics, and commercial displays—powering numerous benchmark projects.

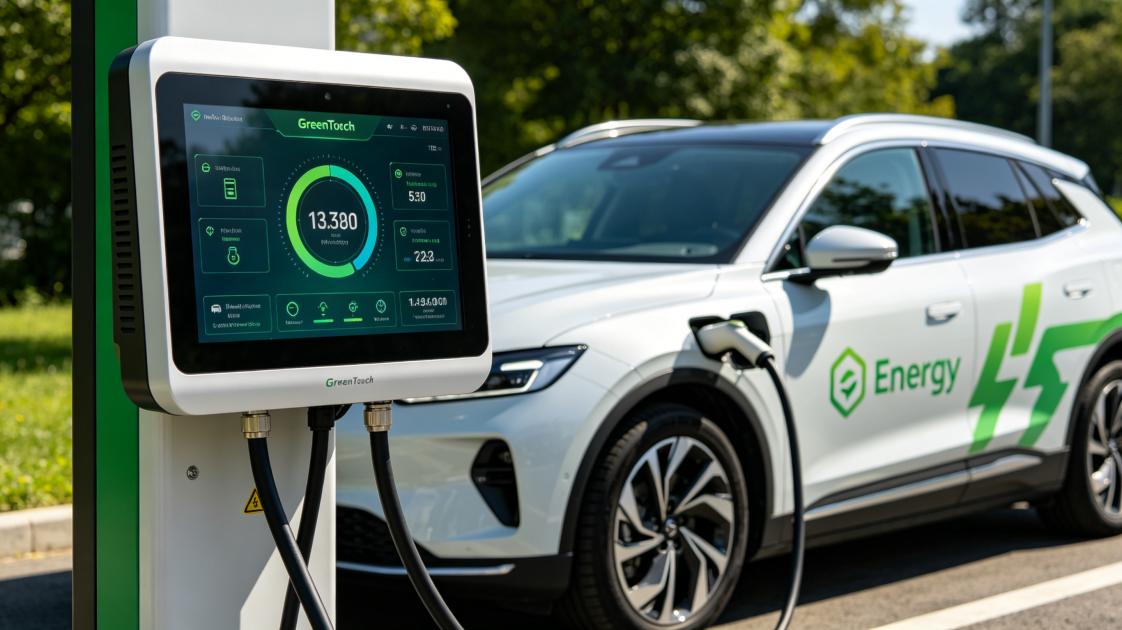

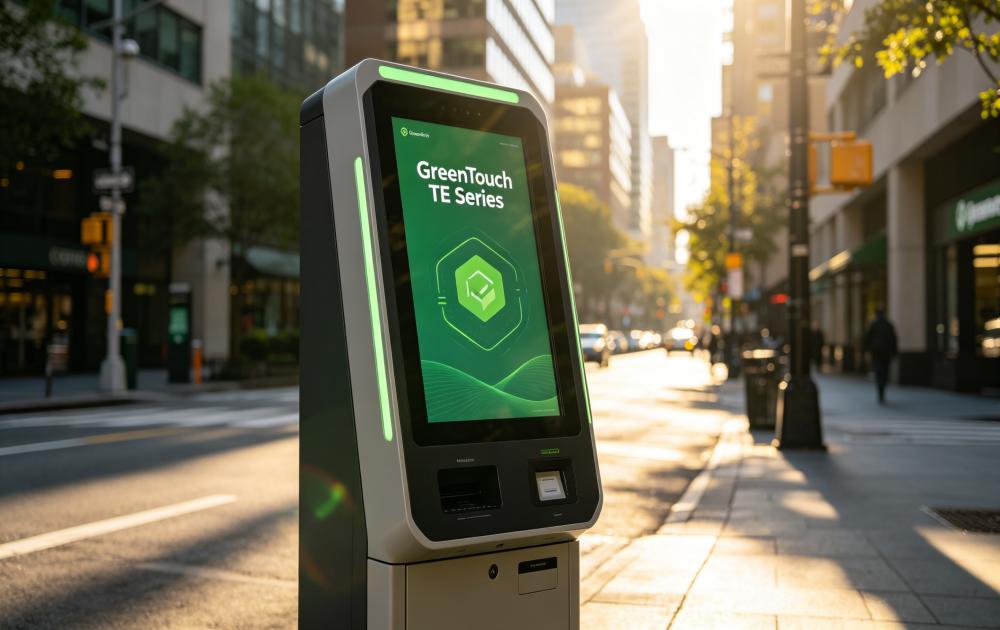

In outdoor smart charging station projects, new energy technology companies across various regions have purchased the 15-inch and 17-inch TE series infrared touchscreens in bulk for use as interactive interfaces. Despite long-term exposure to the elements—including wind, rain, intense sun, and significant diurnal temperature fluctuations—the screens ensure stable, year-round operation with zero touch failures. This reliability guarantees smooth and efficient user operations, such as QR code scanning, charging start/stop, and payment processing. In the sectors of self-service vending machines and public service terminals, numerous "new retail" equipment manufacturers have selected TE series customized touch screens (ranging from 10.4 to 21.5 inches) for use in outdoor beverage vending machines, community self-service kiosks, and government service terminals. Even under conditions of frequent use, these screens maintain precise touch responsiveness without lag or failure. Their ultra-high light transmission (>92%) ensures both clear display quality and a superior touch experience, while their ultra-slim profile supports lightweight equipment designs—features that have earned high praise from customers.

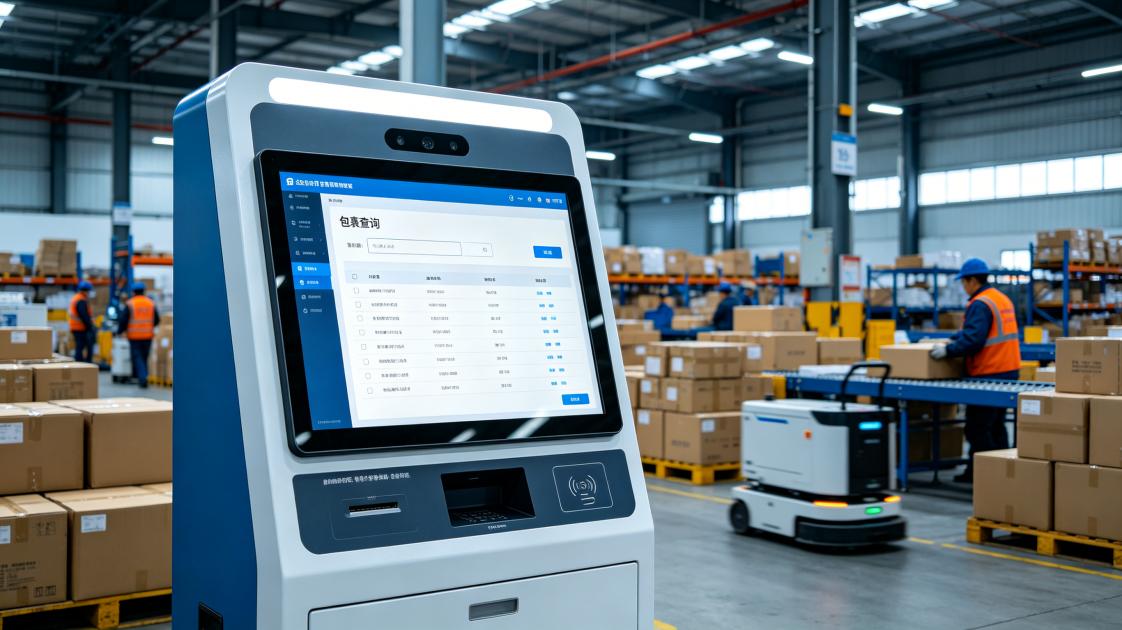

In the smart logistics sector, TE series touch screens have been deployed in self-service parcel lockers and intelligent sorting/inquiry terminals. Designed to withstand challenging operational environments—characterized by high dust levels, frequent user interaction, and 24/7 standby requirements—these products offer dust-proof, explosion-proof, wear-resistant, and anti-interference capabilities. They ensure long-term stable operation, effectively reducing equipment failure rates and the burden of after-sales maintenance, thereby facilitating the efficient, intelligent operation of logistics terminals.

Additionally, the TE series infrared touch screens have garnered widespread acclaim across various industries for their stability, high compatibility, and cost-effectiveness in applications such as outdoor advertising kiosks and compact industrial touch devices, resulting in a steadily rising repeat purchase rate

With years of deep expertise in the touch technology industry, Green Touch consistently prioritizes application-specific needs to refine its high-quality touch hardware products. Moving forward, Green Touch will continue to optimize the manufacturing processes and performance of the TE series infrared touch screens and further develop touch solutions for complex operating environments. The company remains committed to providing stable, durable, highly compatible, and customizable infrared touch products to clients across diverse sectors, supporting the efficient and reliable deployment of intelligent terminal equipment.
