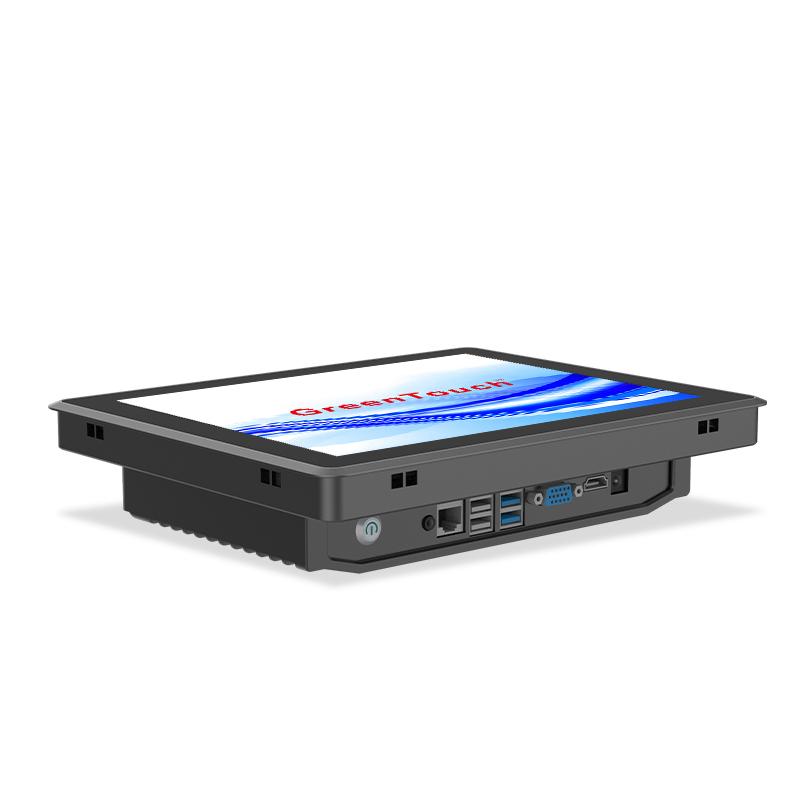

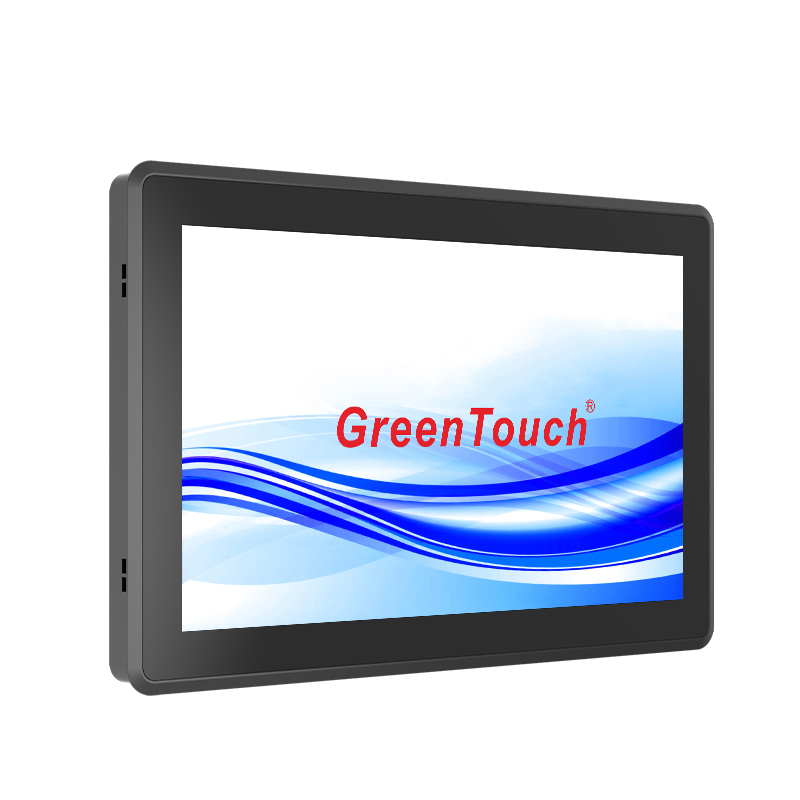

Panel Mount Touch Panel PC 10.1-23.8 Inches(3D Series)

Panel Mount Touch Panel PC 10.1-23.8 Inches(3D Series)

Product Information

Processor: Intel® Core™ i3/i5/i7 Options

RAM:2-8GB,SSD:32-256G,HDD:500G-1T

Wide temperature range:-20℃-70℃

Design:Seamless aluminum unibody,built for industrial rigors

Mounting: Embedded,Wall-mounted,Desktop

Features

● Fully sealed housing,durable construction

● Long lifecycle,industrial strength with tailored integration

● IP65 and front protection to resist water and dust

● EMC anti-interference and explosion-proof IK06

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

● High-speed gigabit Ethernet port, built-in wireless WIFI

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

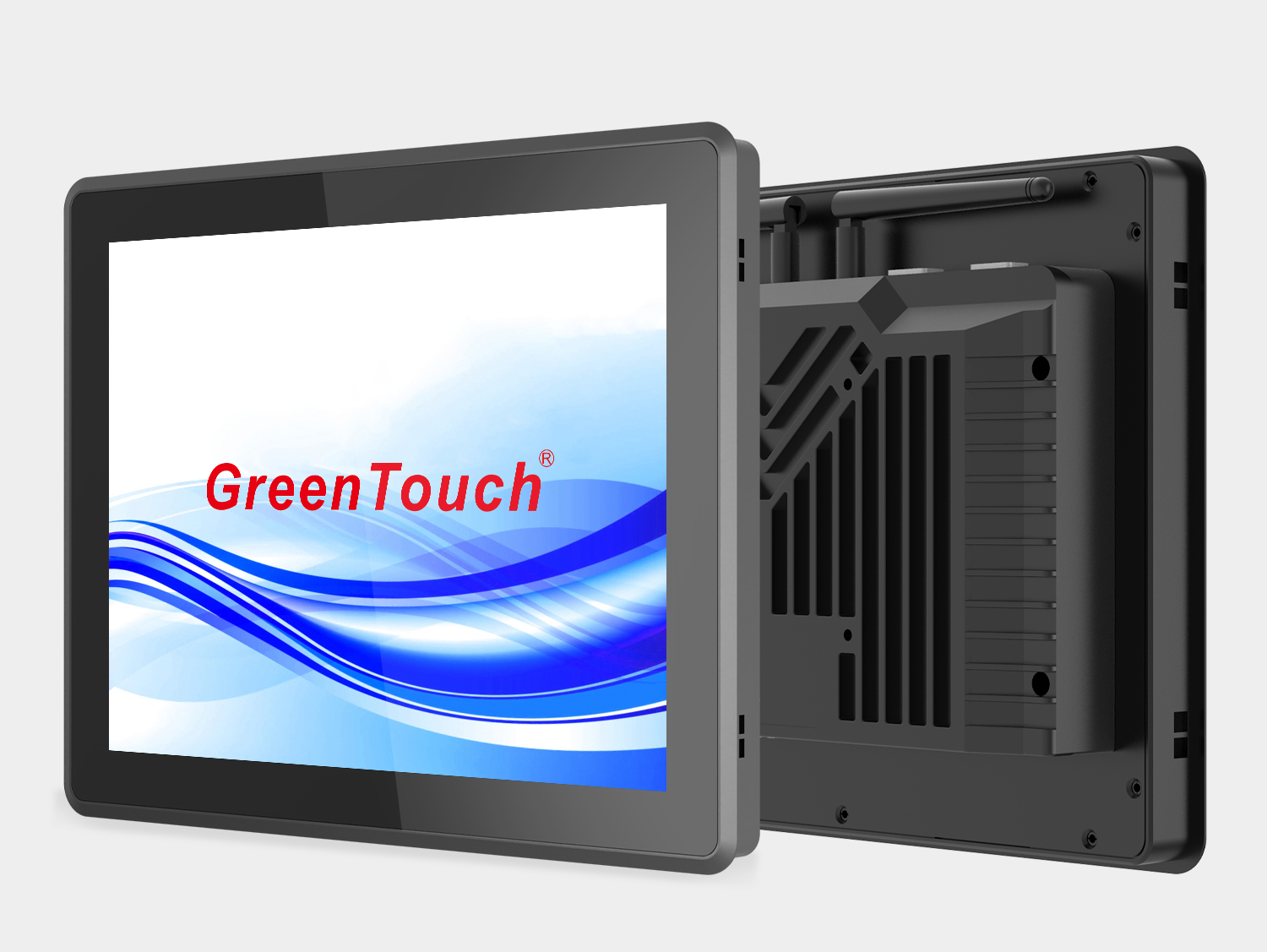

3D Touch Panel PC Overview

GreenTouch touch panel PC 3D series with Intel® Core™ i3/i5/i7 processor options, support for Windows, Linux and Full HD / UHD multi-touch displays from 10.1″ to 23.8″ provides a versatile and future-ready solution for industrial computing. They are suitable for human-machine interfaces for CNC machine tools and special mechanical equipment，intelligent automated production lines，smart healthcare and self-service ticket retrieval/query machines, intelligent retail self-service checkout/ordering machines,digital signage query terminals.

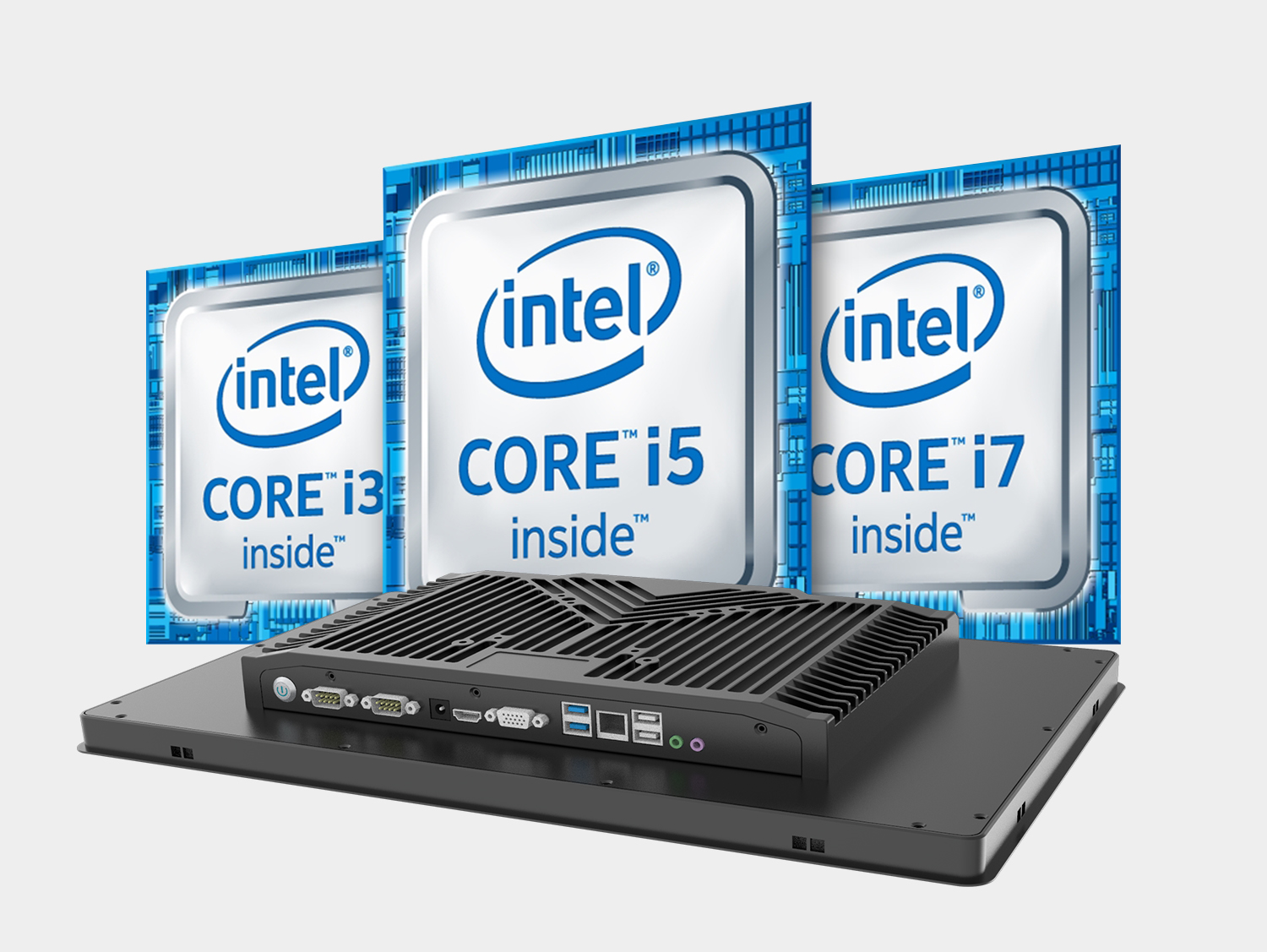

Configuration and Connectivity

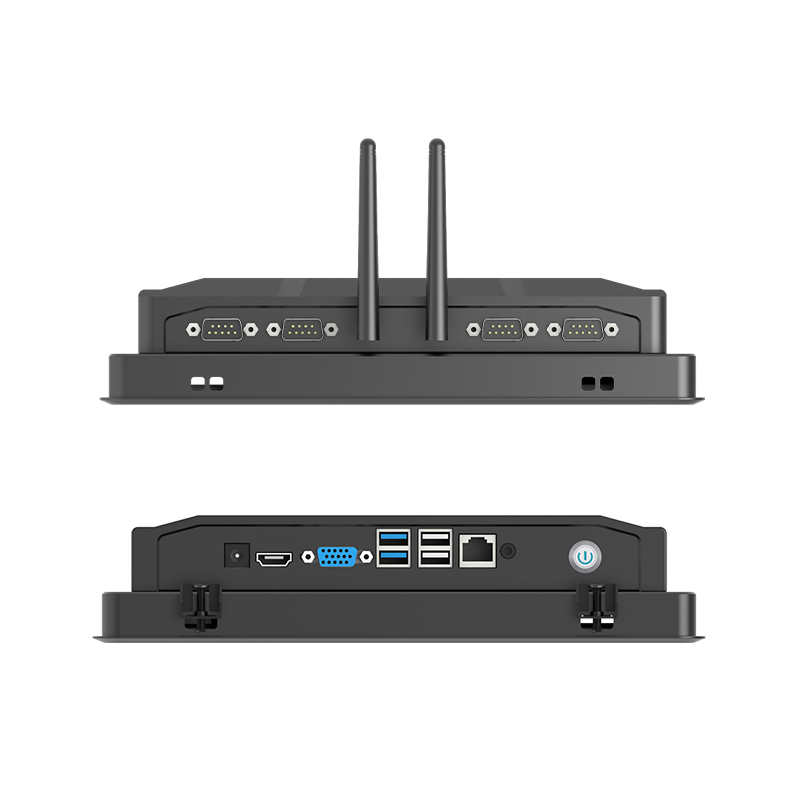

The GreenTouch capacitive touch all-in-one 3D series includes HDMI,VGA, COM,MIC,LAN,USB,DCIN and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The 3D uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.

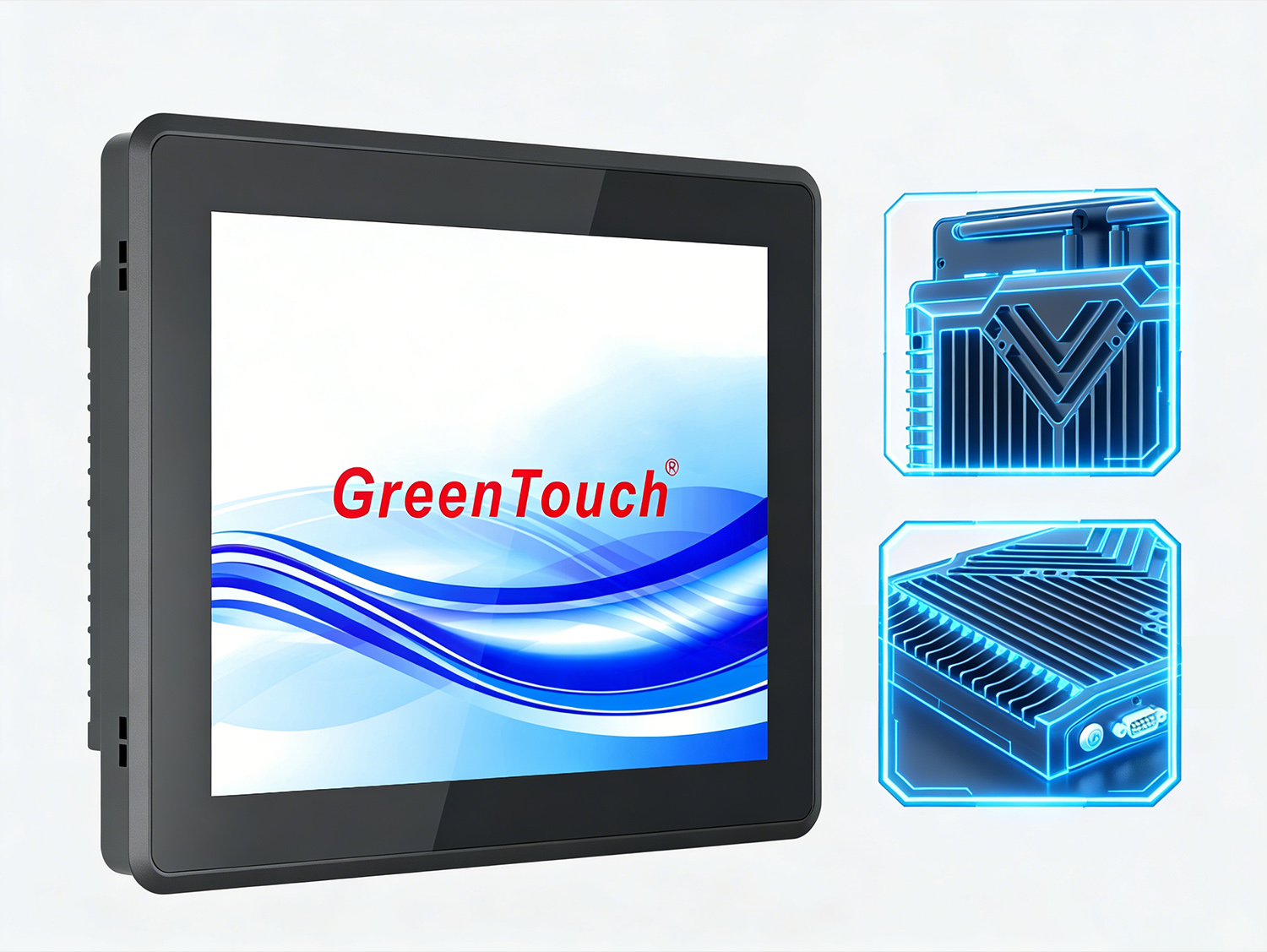

Function And Structure

3D adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. Its bezel and back cover are made using a modern,high-quality aluminum alloy custom mold,die-cast in one piece,and the fully enclosed structure is suitable for harsh outdoor environments,preventing water, dust,and dirt from entering the monitor.The back cover uses a finned heat dissipation design, with no fan and zero noise, providing better heat dissipation and corrosion resistance.
Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 5:4) Size:10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.6”,23.8”

Mounting Options

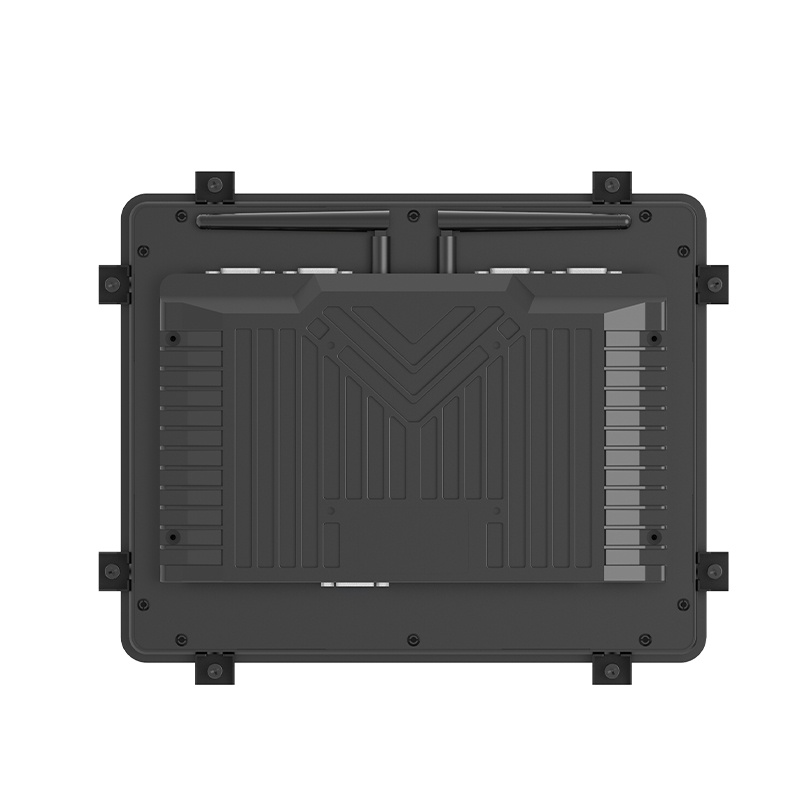

Embedded

3D adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. Its bezel and back cover are made using a modern,high-quality aluminum alloy custom mold,die-cast in one piece,and the fully enclosed structure is suitable for harsh outdoor environments,preventing water, dust,and dirt from entering the monitor.The back cover uses a finned heat dissipation design, with no fan and zero noise, providing better heat dissipation and corrosion resistance.
Wall Mount

The touch panel PC includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.
Desktop

3D is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

3D adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. Its bezel and back cover are made using a modern,high-quality aluminum alloy custom mold,die-cast in one piece,and the fully enclosed structure is suitable for harsh outdoor environments,preventing water, dust,and dirt from entering the monitor.The back cover uses a finned heat dissipation design, with no fan and zero noise, providing better heat dissipation and corrosion resistance.

Wall Mount

The touch panel PC includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3D is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Panel PC(3D Series) Regular Sizes:10.1",10.4",12.1",13.3",15", 15.6",17",18.5",19",21.5",23.6",23.8" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

OS-Windows or Linux CPU:Intel® Core™ i3/i5/i7 Graphics:Onboard Intel HD graphics Sound Card:Onboard Realtek ALC662HD audio decoding RAM:2GB,4GB,8GB Optional SSD:32G,64G,128G,256G,512G Optional HDD:Optional addition of 500G,1T HDD Wifi:Built-in 802.11b / g / n wireless

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:9.7 to 27 inches Resolution:1920x1080,1280x800, 1366x768,1024x768 @60Hz Aspect Ratio:16:9,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

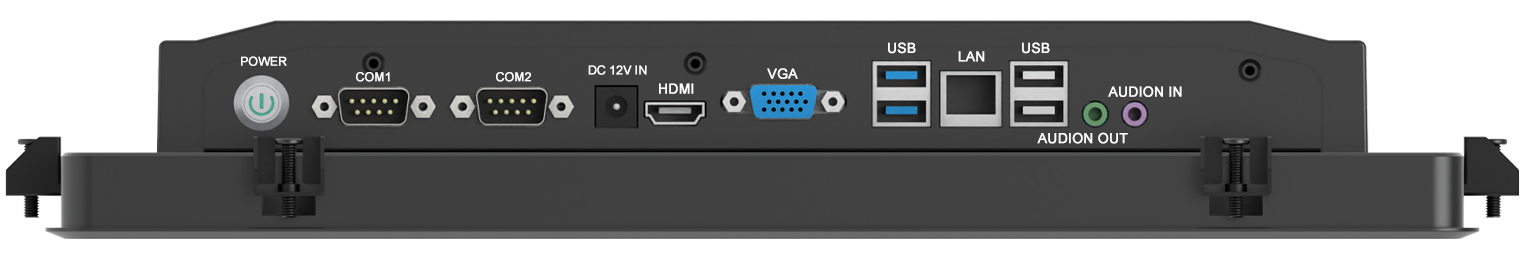

Connectivity Display Ports:HDMI,VGA,COM,MIC,LAN,USB,DCIN,AUDIO

Mounting Embedded:Metal plate adapter bracket Wall Mount:VESA 75x75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK06

About Display Ports

Windows:VGA+HDMI

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
10.1"	GT-TC1013D	VGA,HDMI	16:10	263x182x55mm	217x136mm	500	1280 x 800	GT-TC1013D
10.4"	GT-TC1043D	VGA,HDMI	4:3	266x213x55mm	210x158mm	400	1024 x 768	GT-TC1043D
12.1"	GT-TC1213D	VGA,HDMI	4:3	299x237x55mm	246x184mm	500	1024 x 768	GT-TC1213D
13.3"	GT-TC1333D	VGA,HDMI	16:9	346x218x55mm	294x166mm	300	1920 x 1080	GT-TC1333D
15"	GT-TC1503D	VGA,HDMI	4:3	364x288x56mm	304x228mm	300	1024 x 768	GT-TC1503D
15.6"	GT-TC1563D	VGA,HDMI	16:9	397x246x56mm	344x194mm	250	1920 x 1080	GT-TC1563D
17"	GT-TC1703D	VGA,HDMI	5:4	395x328x56mm	338x270mm	250	1280x1024	GT-TC1703D
18.5"	GT-TC1853D	VGA,HDMI	16:9	465x286x56mm	410x230mm	250	1366x768	GT-TC1853D
19"	GT-TC1903D	VGA,HDMI	5:4	431x356x56mm	376x301mm	250	1280x1024	GT-TC1903D
21.5"	GT-TC2153D	VGA,HDMI	16:9	523x323x56mm	476x268mm	250	1920 x 1080	GT-TC2153D
23.6"	GT-TC2363D	VGA,HDMI	16:9	583x346x56mm	521x293mm	250	1920 x 1080	GT-TC2363D
23.8"	GT-TC2383D	VGA,HDMI	16:9	583x355x56mm	527x296mm	250	1920 x 1080	GT-TC2383D
