Open Frame Touch Panel PC 9.7-55 Inches(2C Series)

Open Frame Touch Panel PC 9.7-55 Inches(2C Series)

Product Information

Processor: Intel® Core™ i3/i5/i7,Intel J1900 Options

RAM:2-8GB,SSD:32-256G,HDD:500G-1T

Wide voltage range: 9-36 V

Wide temperature range: -20℃-70℃

Mounting: Embedded,Wall-mounted,Desktop

Features

● Long lifecycle,industrial strength with tailored integration

● IP65 and front protection to resist water and dust

● High-speed gigabit Ethernet port, built-in wireless WIFI

● EMC anti-interference and explosion-proof IK08

● Dense ventilation holes for reliable 24/7 operation

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

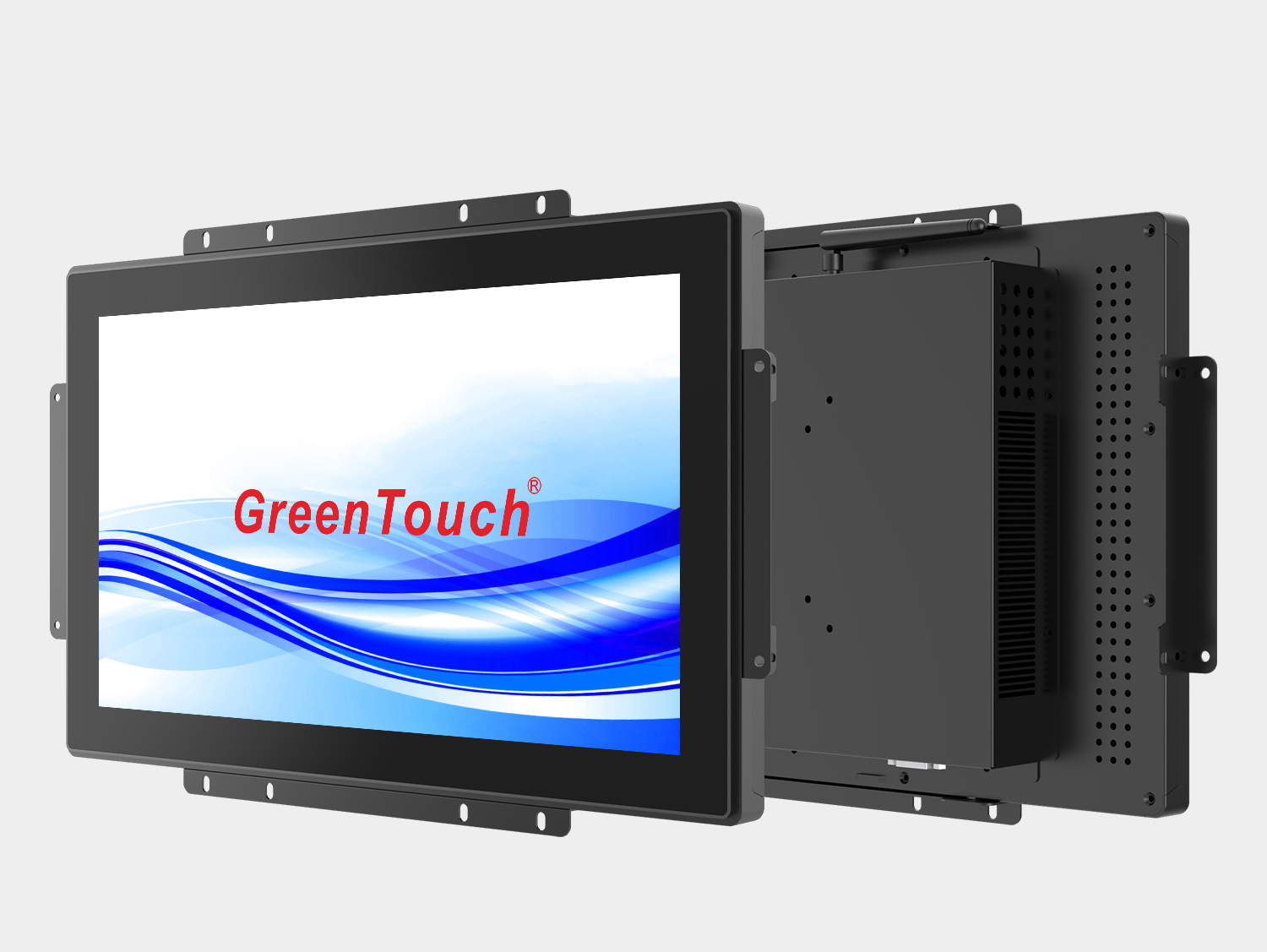

2C Touch Panel PC Overview

GreenTouch touch panel PC 2C series with Intel® Core™ i3/i5/i7/J1900 processor options, support for Windows, Linux and Full HD / UHD multi-touch displays from 7″ to 55″ provides a versatile and future-ready solution for industrial computing. They are suitable for smart manufacturing and production lines, smart retail and catering, healthcare and wellness, smart logistics, smart control and security, and digital signage and inquiry.

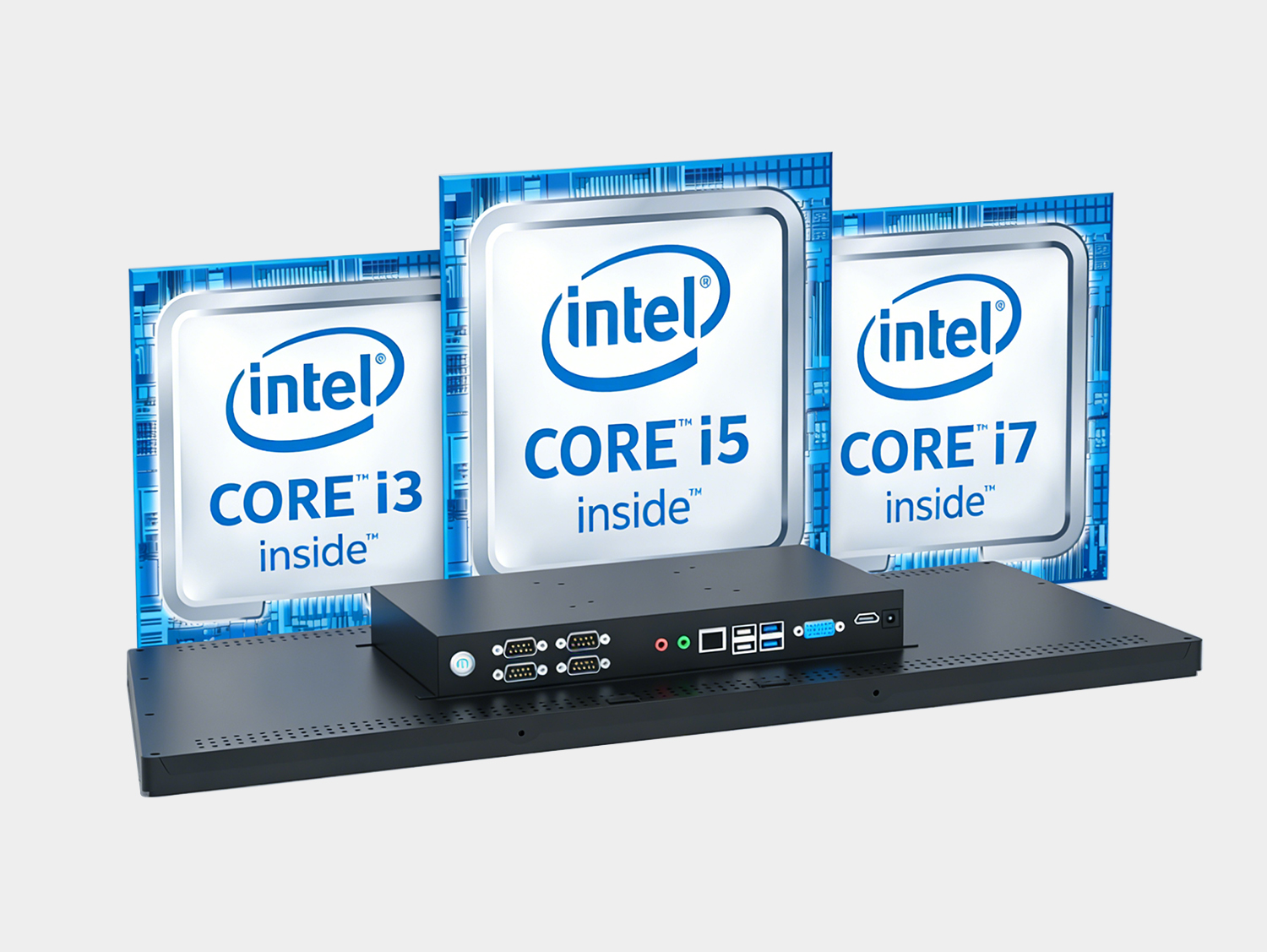

Configuration and Connectivity

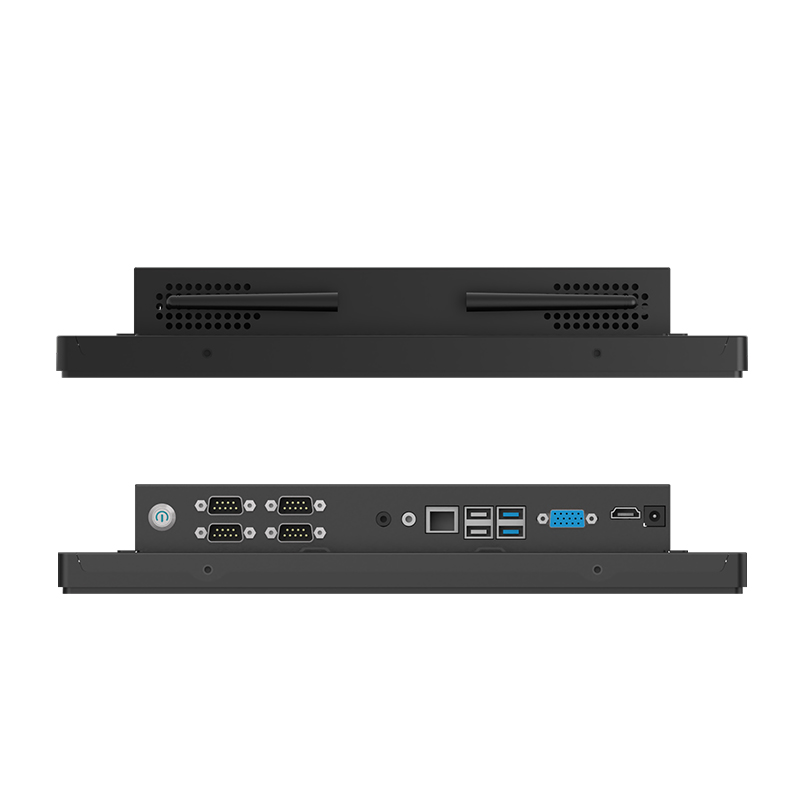

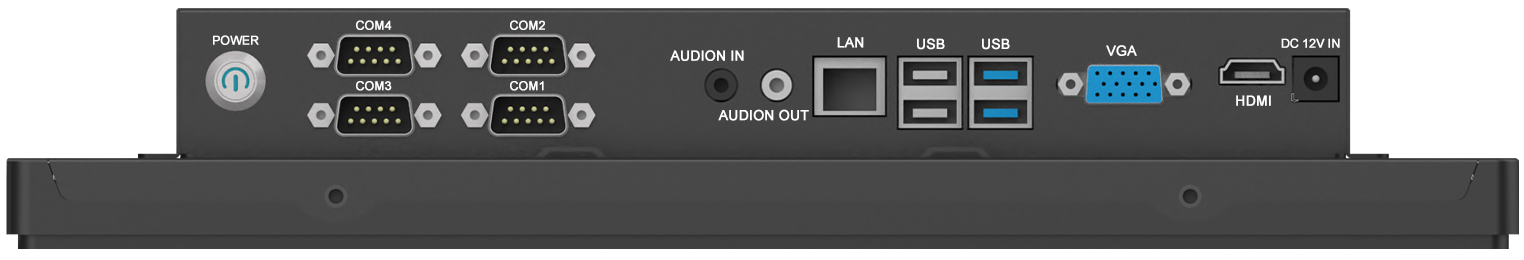

The GreenTouch capacitive touch all-in-one 2C series includes HDMI,VGA, COM,MIC,LAN,USB,DCIN and AUDIO ports. These connections are all positioned on the back of the monitor and face downward,allowing for easy installation in any scenario. The 2C uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.
Function And Structure

2C panel pc adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,Unique 3.5mm low-profile raised edge design,durable and reliable .

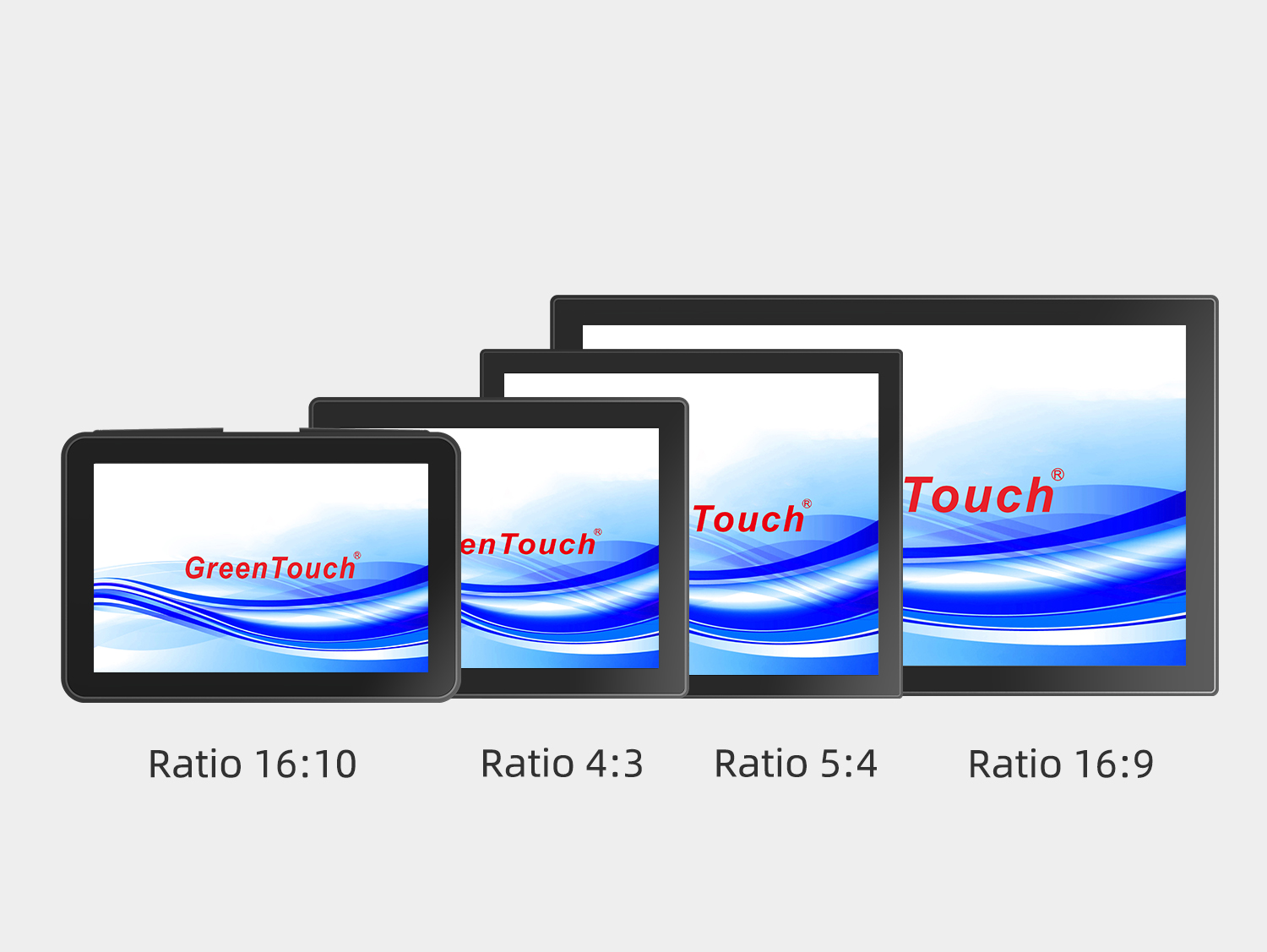

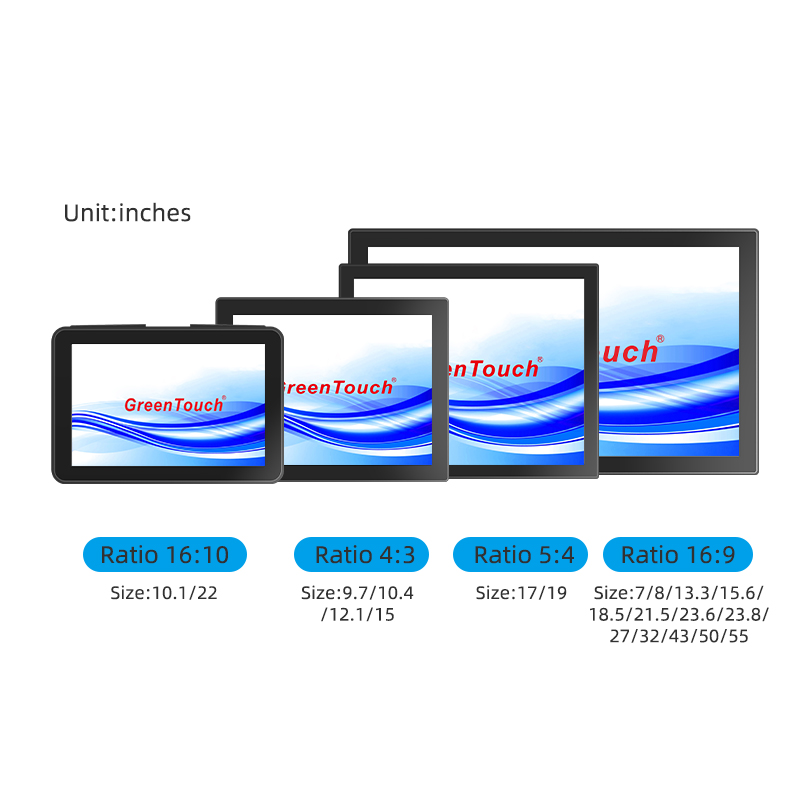

Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 5:4) Size:9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,14”,15.6”,18.5”,21.5”,23.6”,23.8”,27”,32”,43”,50”,55”

Mounting Options

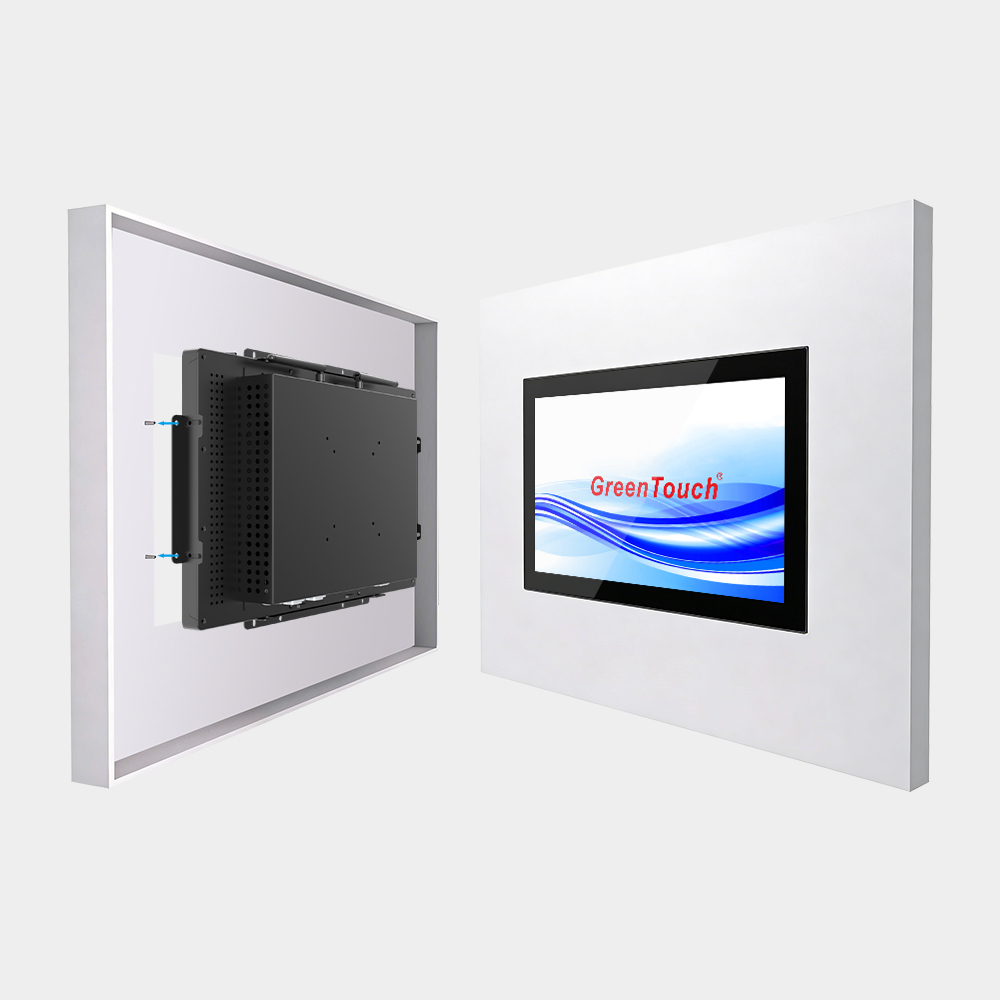

Embedded

Each panel PC comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.
Wall Mount

The touch panel includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.
Desktop

2C panel pc is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

Each panel PC comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The touch panel includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2C panel pc is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Panel PC(2C Series) Regular Sizes: 9.7",10.1",10.4",12.1",13.3",14",15", 15.6",17",18.5",19",21.5",22",23.6",23.8",27",32",43",50",55" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

OS-Windows or Linux CPU:Intel® Core™ i3/i5/i7,Intel J1900 Graphics:Onboard Intel HD graphics Sound Card:Onboard Realtek ALC662HD audio decoding RAM:2GB,4GB,8GB Optional SSD:32G,64G,128G,256G,512G Optional HDD:Optional addition of 500G,1T HDD Wifi:Built-in 802.11b / g / n wireless

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:8 to 55 inches Resolution:1920x1080,1680x1050,1280x800, 1366x768,1024x768,800x600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,VGA,COM,MIC,LAN,USB,DCIN,AUDIO

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100/200x100/400x400mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK08

About Display Ports

Windows:VGA+HDMI

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
9.7"	GT-TC2C-097-I3	DVI,HDMI	4:3	238 x 188.9 x 48.2mm	196.6 x 148.5mm	400	1024 x 768	GT-TC2C-097-I3
10.1"	GT-TC2C-101-I3	DVI,HDMI	16:10	264.9 x179.5x 43.4mm	218.9 x 137.6mm	400	1280 x 800	GT-TC2C-101-I3
10.4"	GT-TC2C-104-I3	DVI,HDMI	4:3	261.6 x208.8x 56.5mm	213.2 x 160.4mm	400	1024 x 768	GT-TC2C-104-I3
12.1"	GT-TC2C-121-I3	DVI,HDMI	4:3	294.2 x232.9x 56.5mm	246 x 184.5mm	500	1024 x 768	GT-TC2C-121-I3
13.3"	GT-TC2C-133-I3	DVI,HDMI	16:9	350.8 x 222.4 x 56.5mm	293.4 x 165mm	300	1920 x 1080	GT-TC2C-133-I3
14"	GT-TC2C-140-I3	DVI,HDMI	16:9	346.9 x 233.4 x 53.5mm	301.6 x 188.5mm	300	1920 x 1200	GT-TC1402C-I3
15"	GT-TC2C-150-I3	DVI,HDMI	4:3	355 x 279 x 56.5mm	305 x 229mm	350	1024 x 768	GT-TC2C-150-I3
15.6"	GT-TC2C-156-I3	DVI,HDMI	16:9	398 x 248 x 56.5mm	343.5 x 192.8mm	300	1920 x 1080	GT-TC2C-156-I3
17"	GT-TC2C-170-I3	DVI,HDMI	5:4	385 x 317 x 56.5mm	338.9 x 271.3mm	250	1280 x 1024	GT-TC2C-170-I3
18.5"	GT-TC2C-185-I3	DVI,HDMI	16:9	457 x 281.5 x 56.5mm	408.7 x 229mm	250	1366 x 768	GT-TC2C-185-I3
19"	GT-TC2C-190-I3	DVI,HDMI	5:4	430 x 355 x 56.5mm	379.3 x 304.1mm	250	1280 x 1024	GT-TC2C-190-I3
21.5"	GT-TC2C-215-I3	DVI,HDMI	16:9	532.2 x 319.4 x 56.5mm	479.6 x 270.9mm	250	1920 x 1080	GT-TC2C-215-I3
22"	GT-TC2C-220-I3	DVI,HDMI	16:10	525.8 x 348.8 x 54.5mm	477.7 x 300.1mm	250	1680 x 1050	GT-TC2C-220-I3
23.6"	GT-TC2C-236-I3	DVI,HDMI	16:9	580.4 x 349.5 x 54.5mm	522.1 x 294.4mm	250	1920 x 1080	GT-TC2C-236-I3
23.8"	GT-TC2C-238-I3	DVI,HDMI	16:9	586 x 356 x 56.5mm	528 x 298mm	250	1920 x 1080	GT-TC2C-238-I3
27"	GT-TC2C-270-I3	DVI,HDMI	16:9	654.3 x 394.5 x 49.5mm	597.6 x 336.2mm	300	1920 x 1080	GT-TC2C-270-I3
32"	GT-TC2C-320-I3	DVI,HDMI	16:9	748 x 451.5 x 61.7mm	704 x 396mm	400	1920 x 1080	GT-TC2C-320-I3
43"	GT-TC2C-430-I3	DVI,HDMI	16:9	1006.2 x 594.4 x 70.4mm	951 x 538.5mm	400	1920 x 1080	GT-TC2C-430-I3
50"	GT-TC2C-500-I3	DVI,HDMI	16:9	1141.9 x 672.2 x 70mm	1079.8 x 610mm	400	1920 x 1080	GT-TC5002C-I3
55"	GT-TC2C-550-I3	DVI,HDMI	16:9	1277.6 x 747.4 x 68.5mm	1211.6 x 682.4mm	500	1920 x 1080	GT-TC2C-550-I3
