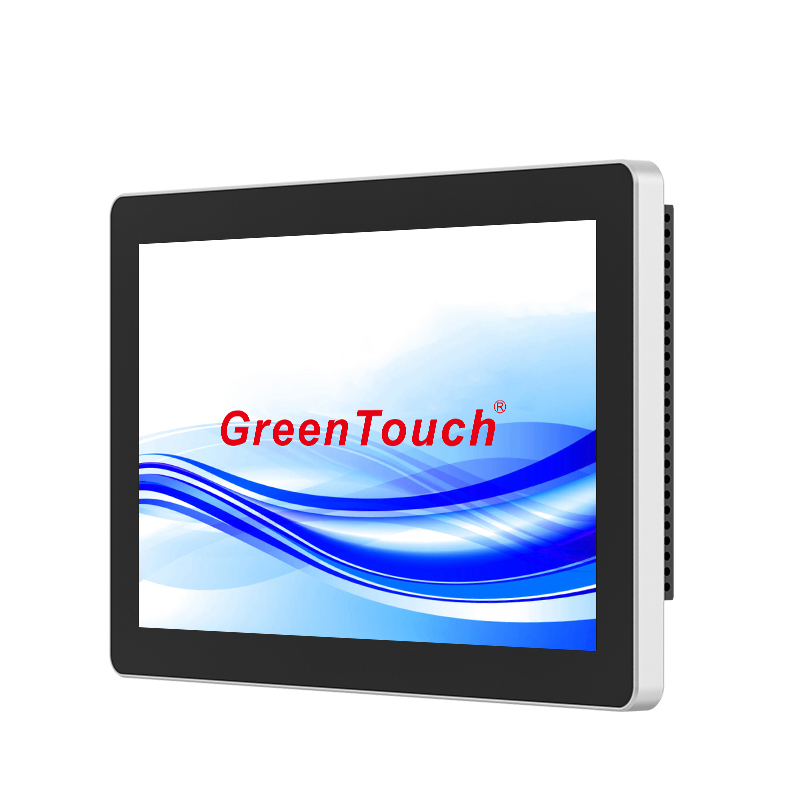

Close Frame Touch Panel PC 9.7-27 Inches(3A Series)

Close Frame Touch Panel PC 9.7-27 Inches(3A Series)

Product Information

Processor: Intel® Core™ i3/i5/i7 Options

RAM:2-8GB,SSD:32-256G,HDD:500G-1T

Wide temperature range:-20℃-70℃

Mounting: Wall-mounted,Desktop,Embedded

Customizable:Camera,Type-C,Size,Logo,Color,Casing,Packaging

Features

● Tablet Design,smooth lines,available in silver and black

● High-speed gigabit Ethernet port, built-in wireless WIFI

● Industrial-grade LCD panels for long operating life

● IP65 and front protection to resist water and dust

● The visual effect is better under the sun

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

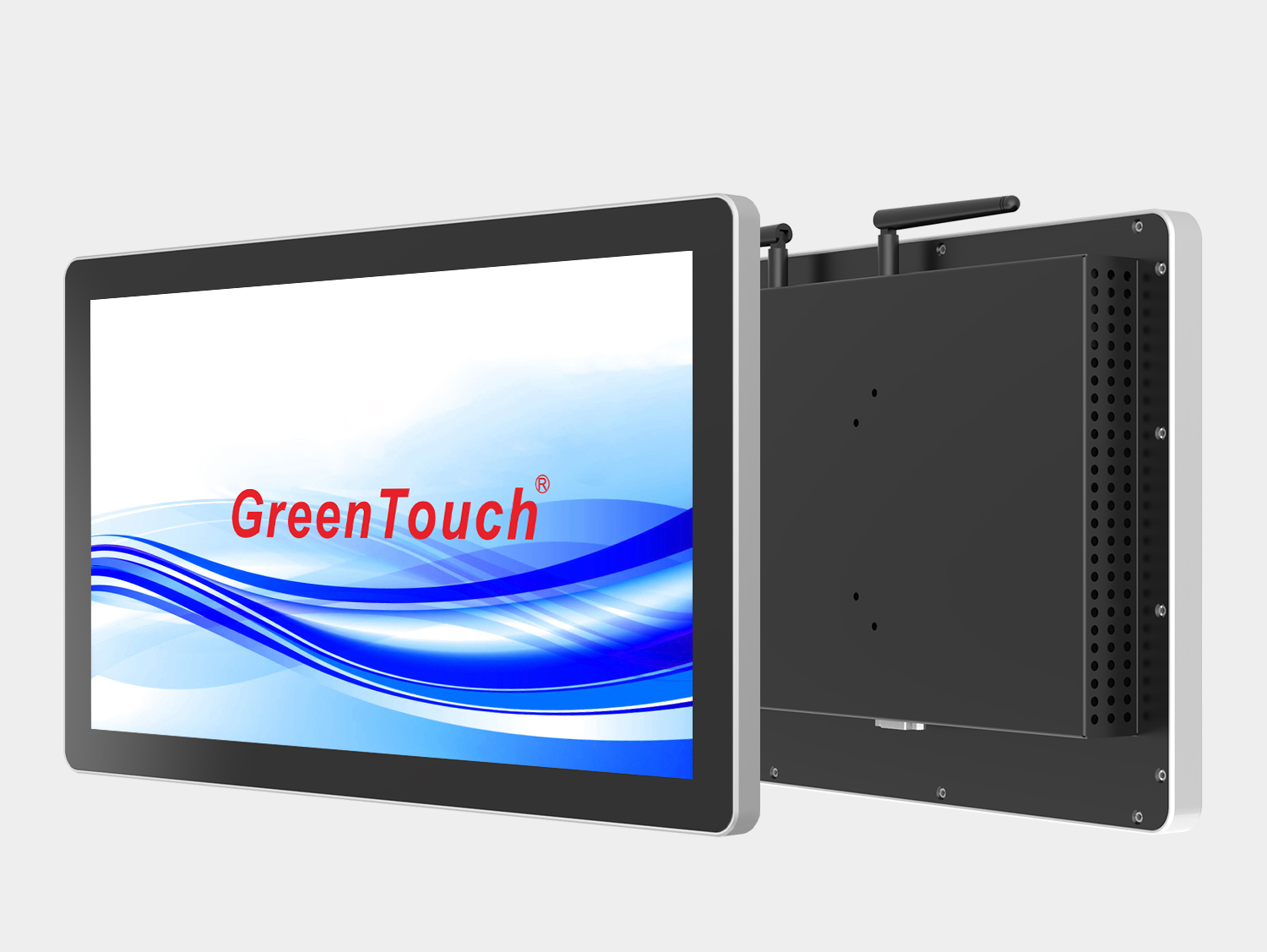

3A Touch Panel PC Overview

GreenTouch touch panel PC 3A series with Intel® Core™ i3/i5/i7 processor options, support for Windows, Linux and Full HD / UHD multi-touch displays from 7″ to 27″ provides a versatile and future-ready solution for industrial or Commercial computing. They are suitable for self-service ordering /cashier, shopping mall guides and interactive displays,medical self-service terminals, government queuing machines, transportation ticketing machines, intelligent building access control and digital signage advertising display, production line human-machine interface, workstation display board or workstation terminal, etc.

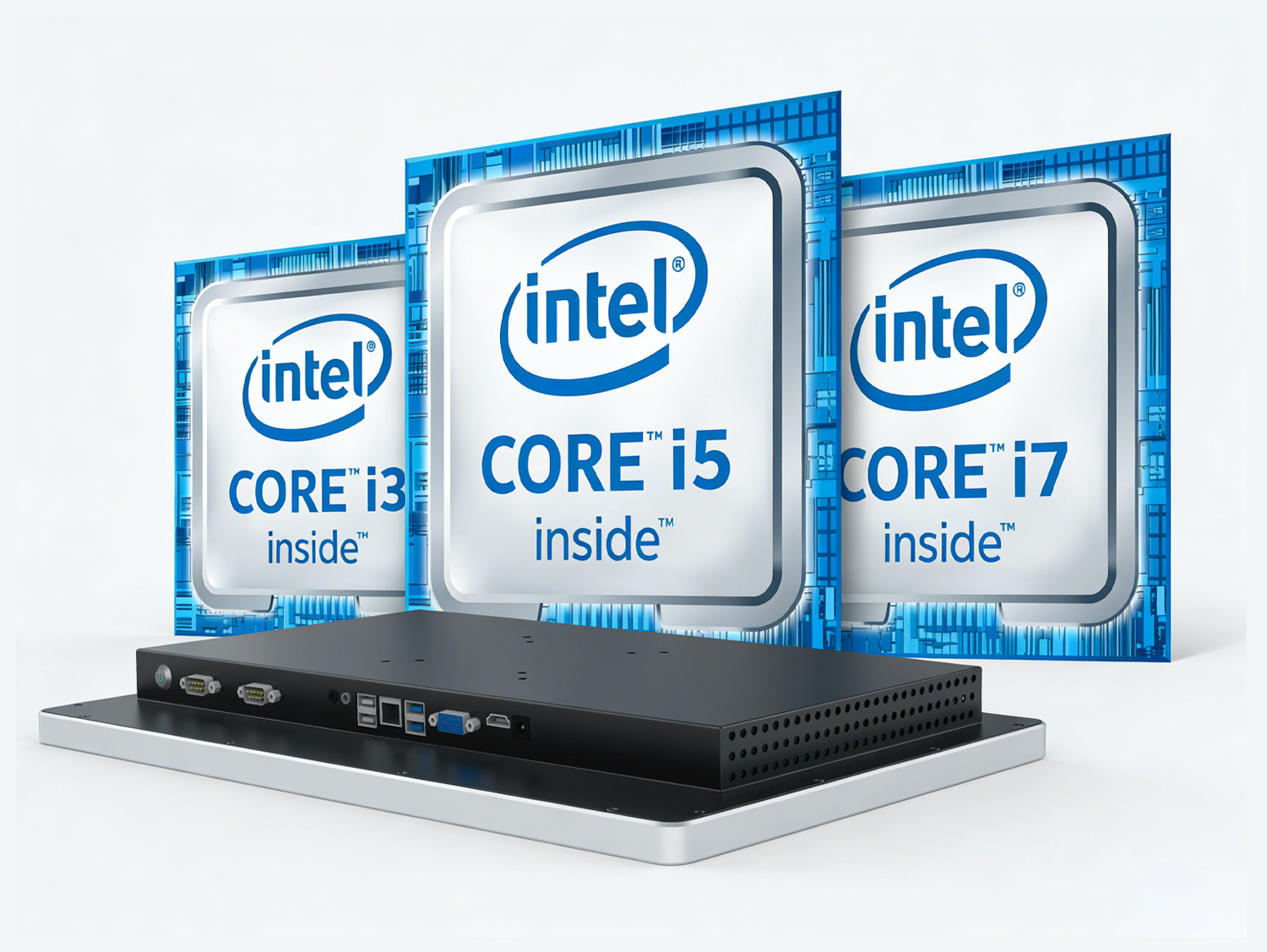

Configuration and Connectivity

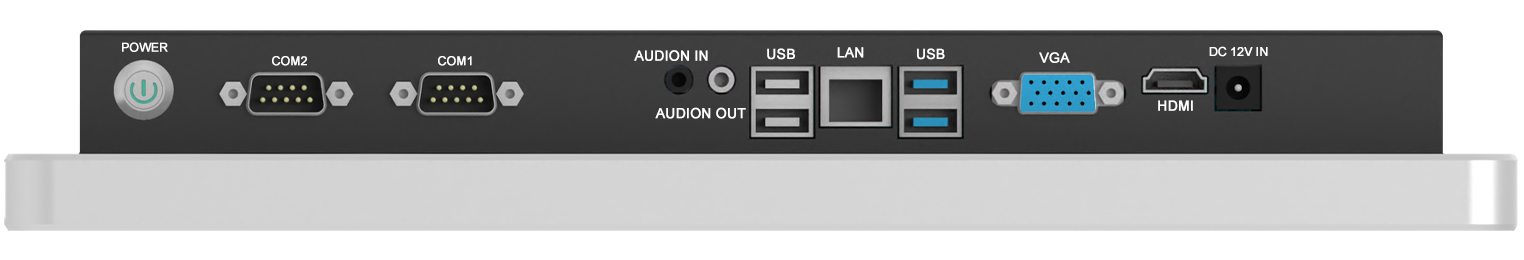

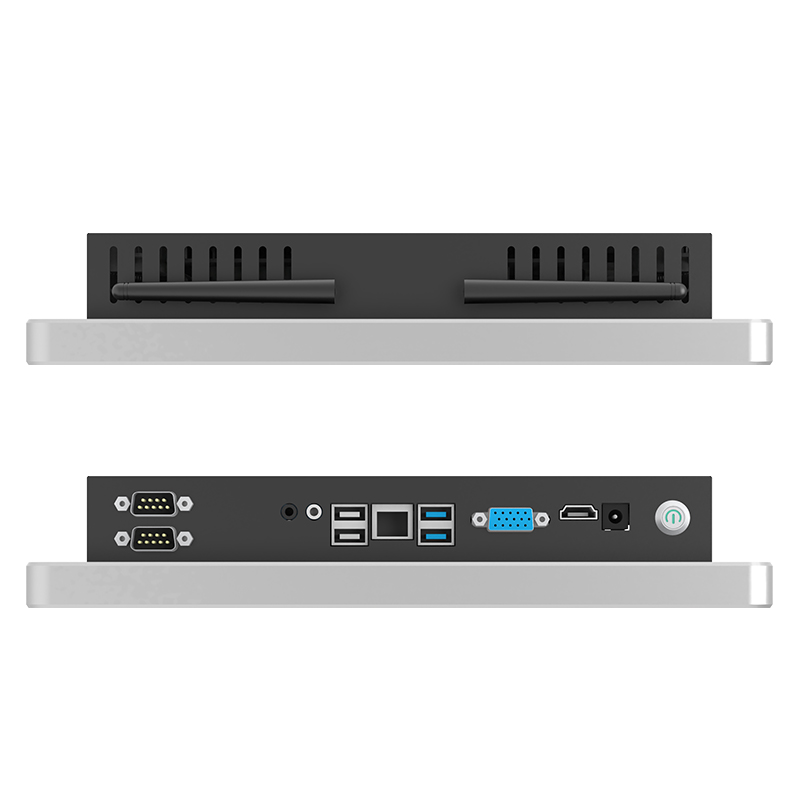

The GreenTouch capacitive touch all-in-one 3A series includes HDMI,VGA, COM,MIC,LAN,USB,DC IN and AUDIO ports. These connections are all positioned on the back of the monitor and face downward , allowing for easy installation in any scenario. The 3A uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.

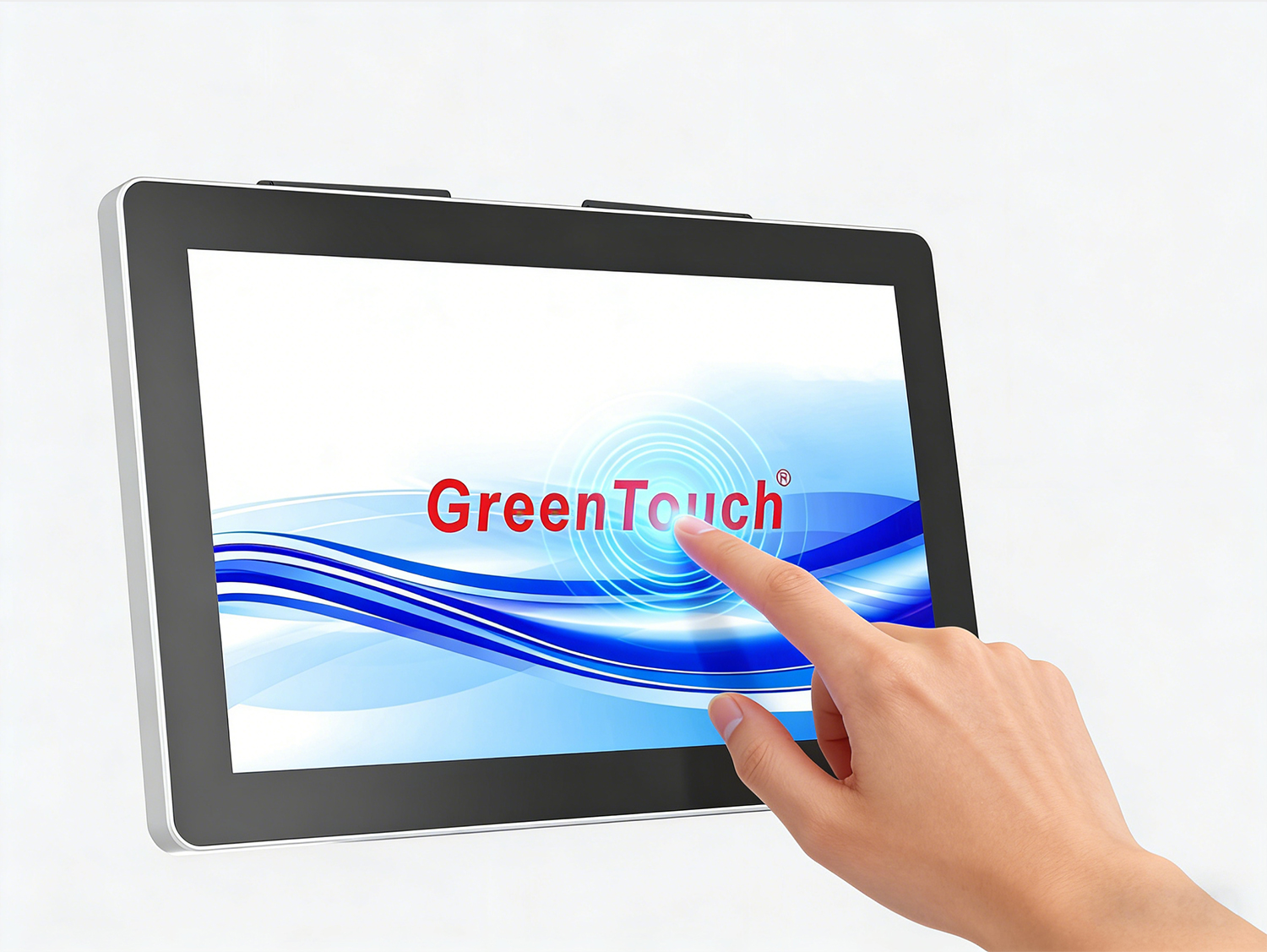

Function And Structure

3A adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch, sensitive sensing,accurate fixed point. This model features an industrial aesthetic design, with an aluminum alloy frame and an aluminum alloy painted back cover, combining functionality, technology, and materials,available with black or silver trim.

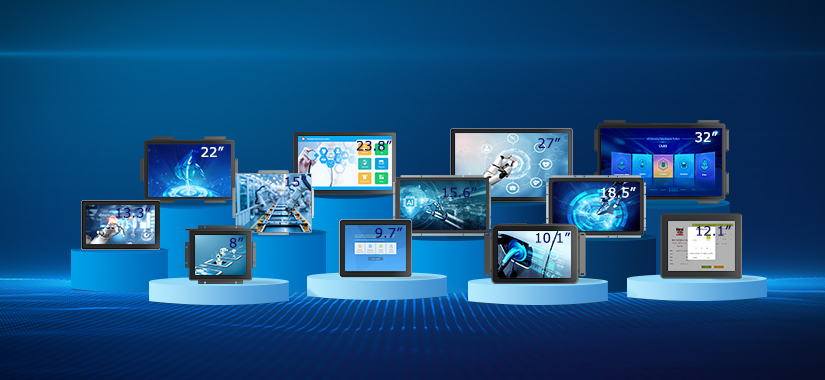

Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 5:4) Size:8”,9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,14”,15.6”,18.5”,21.5”,23.6”,23.8”,27”

Mounting Options

Embedded

3A touch panel PC is equipped with the VESA (100mm x100mm) or (75mm x 75mm) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor's VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.
Wall Mount

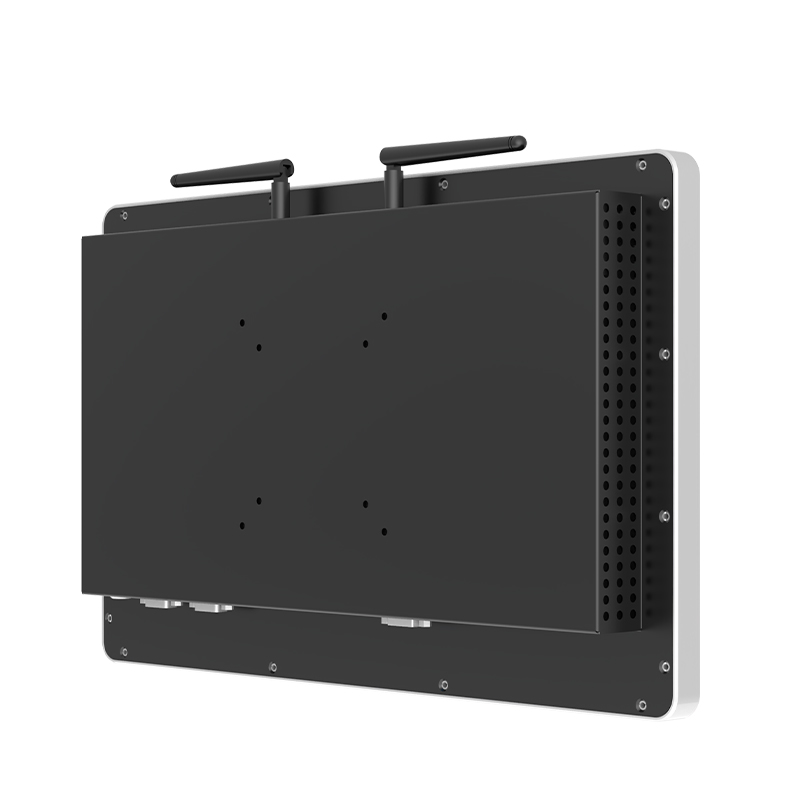

The 3A includes a universal 100/75mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.
Desktop

3A is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touch screen to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

3A touch panel PC is equipped with the VESA (100mm x100mm) or (75mm x 75mm) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor's VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.

Wall Mount

The 3A includes a universal 100/75mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as display arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3A is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touch screen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Panel PC(3A Series) Regular Sizes:9.7",10.1",10.4",12.1",13.3",14",15", 15.6",17",18.5",19",21.5",22",23.6",23.8",27" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

OS-Windows or Linux CPU:Intel® Core™ i3/i5/i7,Intel J1900 Graphics:Onboard Intel HD graphics Sound Card:Onboard Realtek ALC662HD audio decoding RAM:2GB,4GB,8GB Optional SSD:32G,64G,128G,256G,512G Optional HDD:Optional addition of 500G,1T HDD Wifi:Built-in 802.11b / g / n wireless

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:9.7 to 27 inches Resolution:1920x1080,1680x1050,1280x800, 1366x768,1024x768,800x600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,VGA,COM,MIC,LAN,USB,DCIN,AUDIO

Mounting Embedded:Metal plate adapter bracket Wall Mount:VESA 75x75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK06

About Display Ports

Windows:VGA+HDMI

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
9.7"	GT-TC3A-097-I3	VGA,HDMI	4:3	242.1x192.9x42.8mm	196.6x147.5mm	350	1024 x 768	GT-TC3A-097-I3
10.1"	GT-TC3A-101-I3	VGA,HDMI	16:10	259.5x174.1x43.8mm	216.9x135.6mm	330	1280 x 800	GT-TC3A-101-I3
10.4"	GT-TC3A-104-I3	VGA,HDMI	4:3	261.6x208.8x43mm	211.2x158.4mm	300	800 x 600	GT-TC3A-104-I3
12.1"	GT-TC3A-121-I3	VGA,HDMI	4:3	294.5x233x44mm	245.8x184.3mm	500	1024 x 768	GT-TC3A-121-I3
13.3"	GT-TC3A-133-I3	VGA,HDMI	16:9	346.9x218.5x44mm	293.8x165.2mm	300	1920 x 1080	GT-TC3A-133-I3
15"	GT-TC3A-150-I3	VGA,HDMI	4:3	355.4 x279.4x42.8mm	304.1x228.1mm	300	1024 x 768	GT-TC3A-150-I3
15.6"	GT-TC3A-156-I3	VGA,HDMI	16:9	398.9x248.2x42mm	344.2x193.6mm	400	1920 x 1080	GT-TC3A-156-I3
17"	GT-TC3A-170-I3	VGA,HDMI	4:3	389.3x321.7x42.8mm	337.9x270.3mm	250	1280 x 1024	GT-TC3A-170-I3
18.5"	GT-TC3A-185-I3	VGA,HDMI	16:9	456.9x277.4x42mm	409.8x230.4mm	250	1366 x 768	GT-TC3A-185-I3
19"	GT-TC3A-190-I3	VGA,HDMI	4:3	428.7x353.5x42.8mm	376.3x301.1mm	250	1280 x 1024	GT-TC3A-190-I3
21.5"	GT-TC3A-215-I3	VGA,HDMI	16:9	526 x317.3x42mm	476.6x268.1mm	250	1920 x 1080	GT-TC3A-215-I3
22"	GT-TC3A-220-I3	VGA,HDMI	16:10	524.1x346.5x42mm	473.8x296.1mm	250	1680 x 1050	GT-TC3A-220-I3
23.6"	GT-TC3A-236-I3	VGA,HDMI	16:9	574.5x346.8x42mm	521.3x293.2mm	300	1920 x 1080	GT-TC3A-236-I3
23.8"	GT-TC3A-238-I3	VGA,HDMI	16:9	574.5x346.8x42mm	521.3x293.2mm	300	1920 x 1080	GT-TC3A-238-I3
27"	GT-TC3A-270-I3	VGA,HDMI	16:9	656x394.6x42mm	597.9x336.3mm	300	1920 x 1080	GT-TC3A-270-I3
