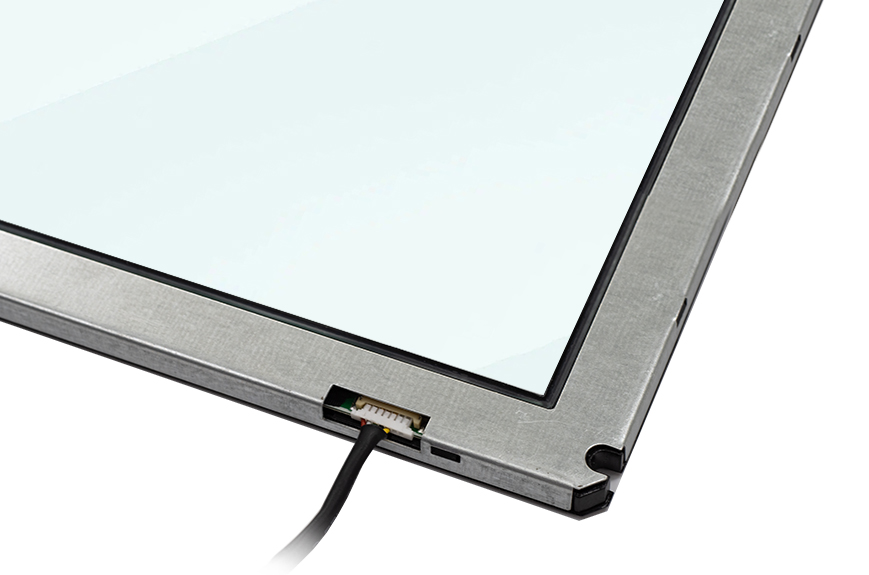

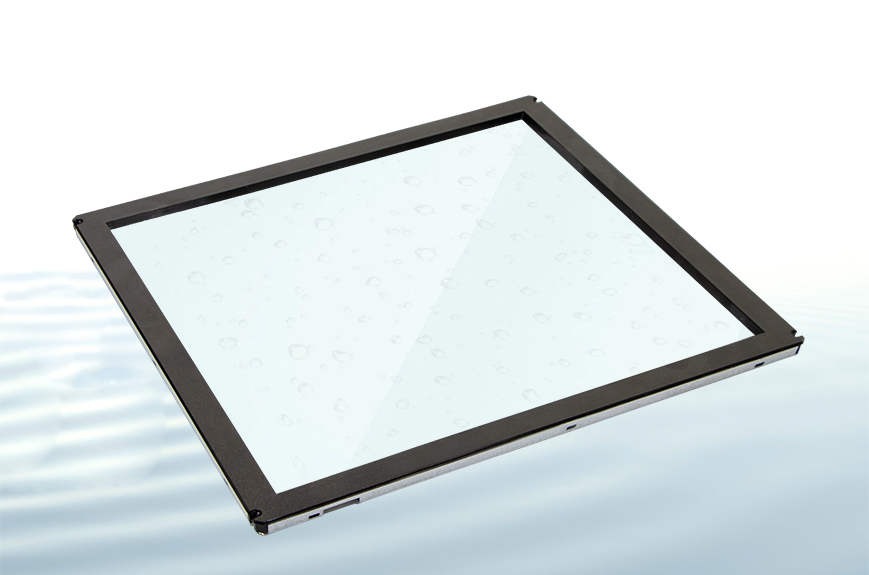

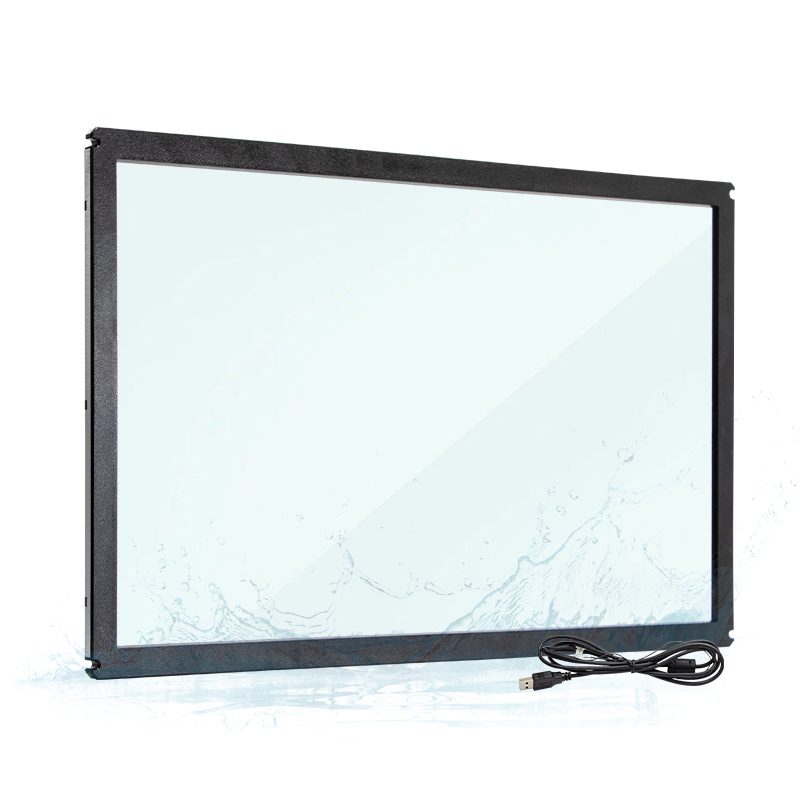

Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Product Information

Touch Technology:10-point infrared for precise touch

Material: Aluminum alloy frame + tempered glass panel

Support Systems:Windows,Android,Linux

Customization: Logo,size,border color/material,AG/AR/AF

Features

●USB interface,plug and play,free of driver

●IP65 waterproof and dustproof,Suitable for outdoor

●Full-angle light resistance,anti-light 8000Lux

●3mm tempered glass coverage,High explosion protection

●Level 3 anti-static: with EN 6100-4-2 2008

Product Description
  • TE Infrared Touch Screen Overview

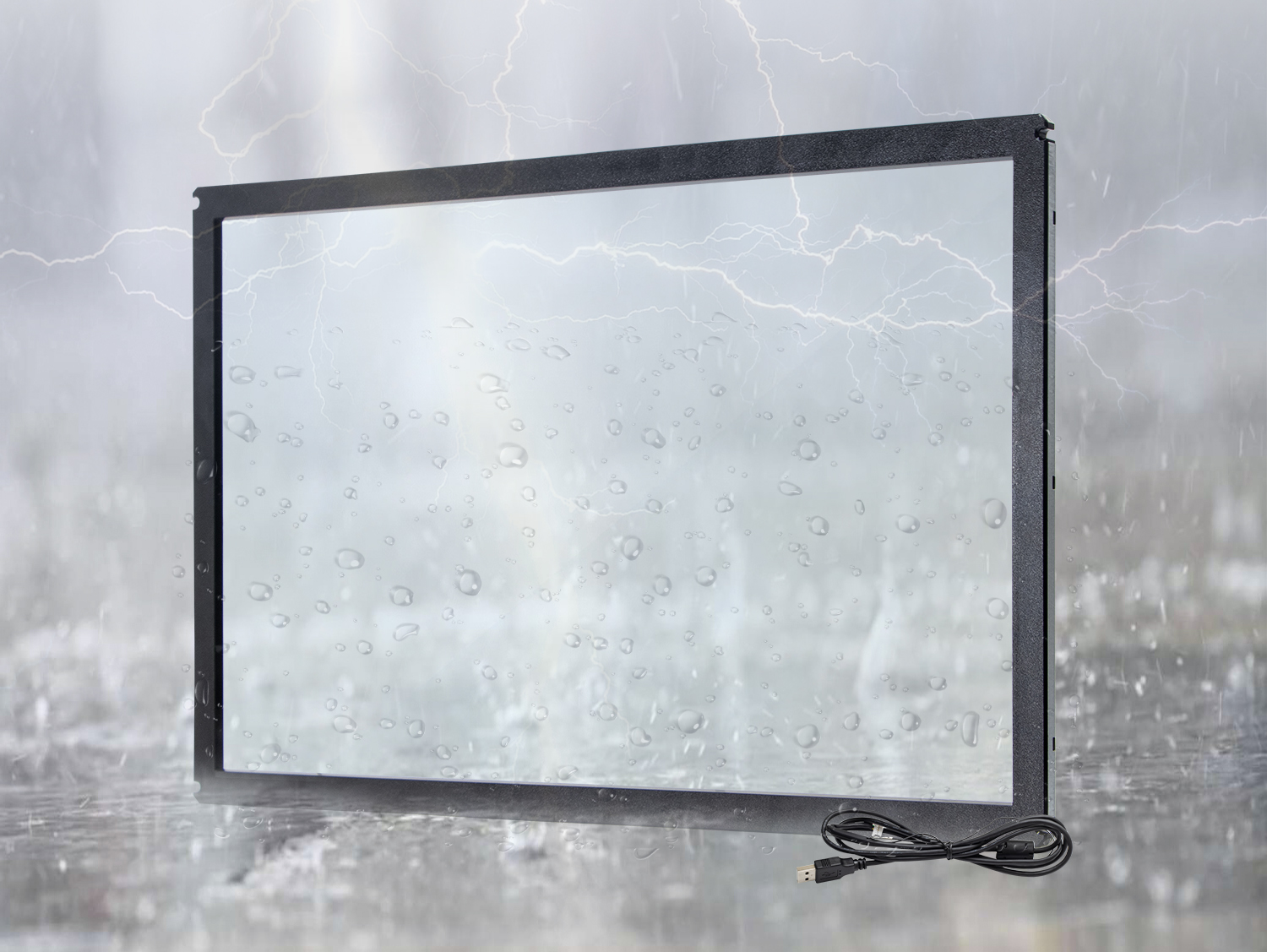

    TE Infrared Touch Screen Overview
    GreenTouch's TE series of 15-inch,17-inch,19-inch,and 21.5-inch infrared glass touchscreens offer a perfect solution for industries requiring outdoor touch control,thanks to their waterproof,dustproof,and explosion-proof features,adaptability to harsh outdoor environments,and flexible touch operation. These ir touchscreens are widely used in vending machines,outdoor smart charging stations,outdoor advertising kiosks,outdoor information kiosks,self-service parcel lockers,and other outdoor waterproof equipment.
  • Function And Structure

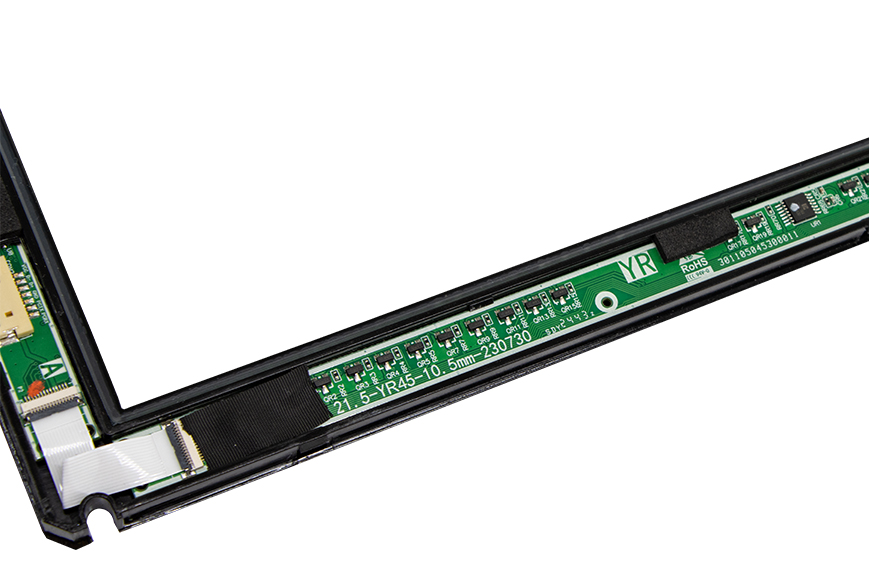

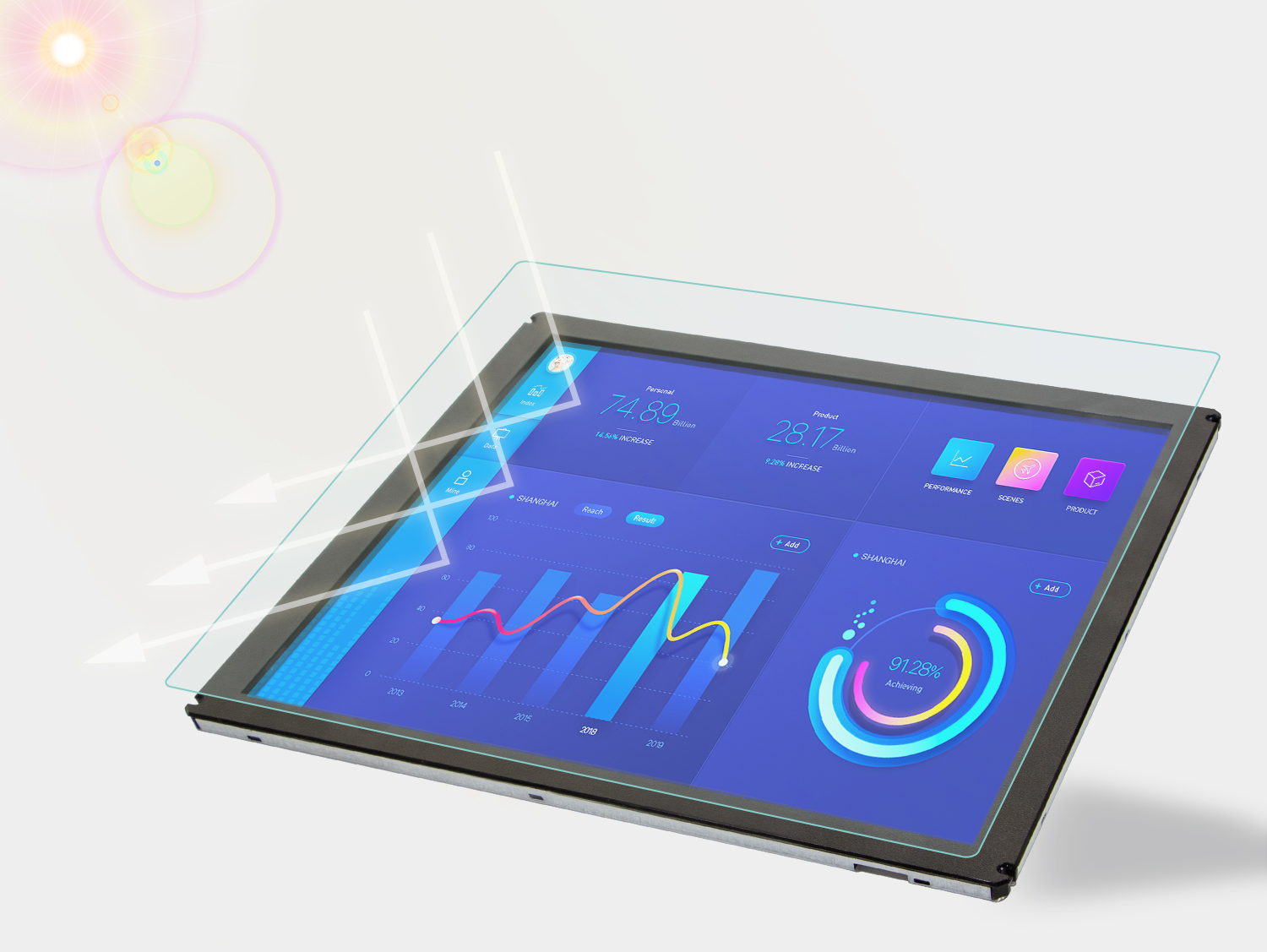

    Function And Structure
    Our TE series waterproof infrared touchscreen adopts a structure of one-piece injection-molded light-transmitting frame + waterproof adhesive + mechanized glass bonding process, with an ultra-narrow bezel thickness of only 8mm.It achieves IP65 waterproof and dustproof rating, can withstand prolonged exposure to sun and rain, and is resistant to light from all angles, allowing normal operation of the touch function even under strong light.
  • Connections and Systems
    Connections and Systems
    Connecting the infrared screen is very simple, using a USB 2.0 full-speed interface, it's plug and play.They adopt aluminum alloy plug,free of driver.The USB recognition time is 3 times that of a regular USB plug, and the transmission speed reaches 480Mbps.GreenTouch IR touch frame excel in system compatibility, with their core advantage lying in "driver layer adaptation," enabling compatibility with almost all mainstream consumer and commercial operating systems, such as Windows,Android,Linux
  • Multiple sizes available

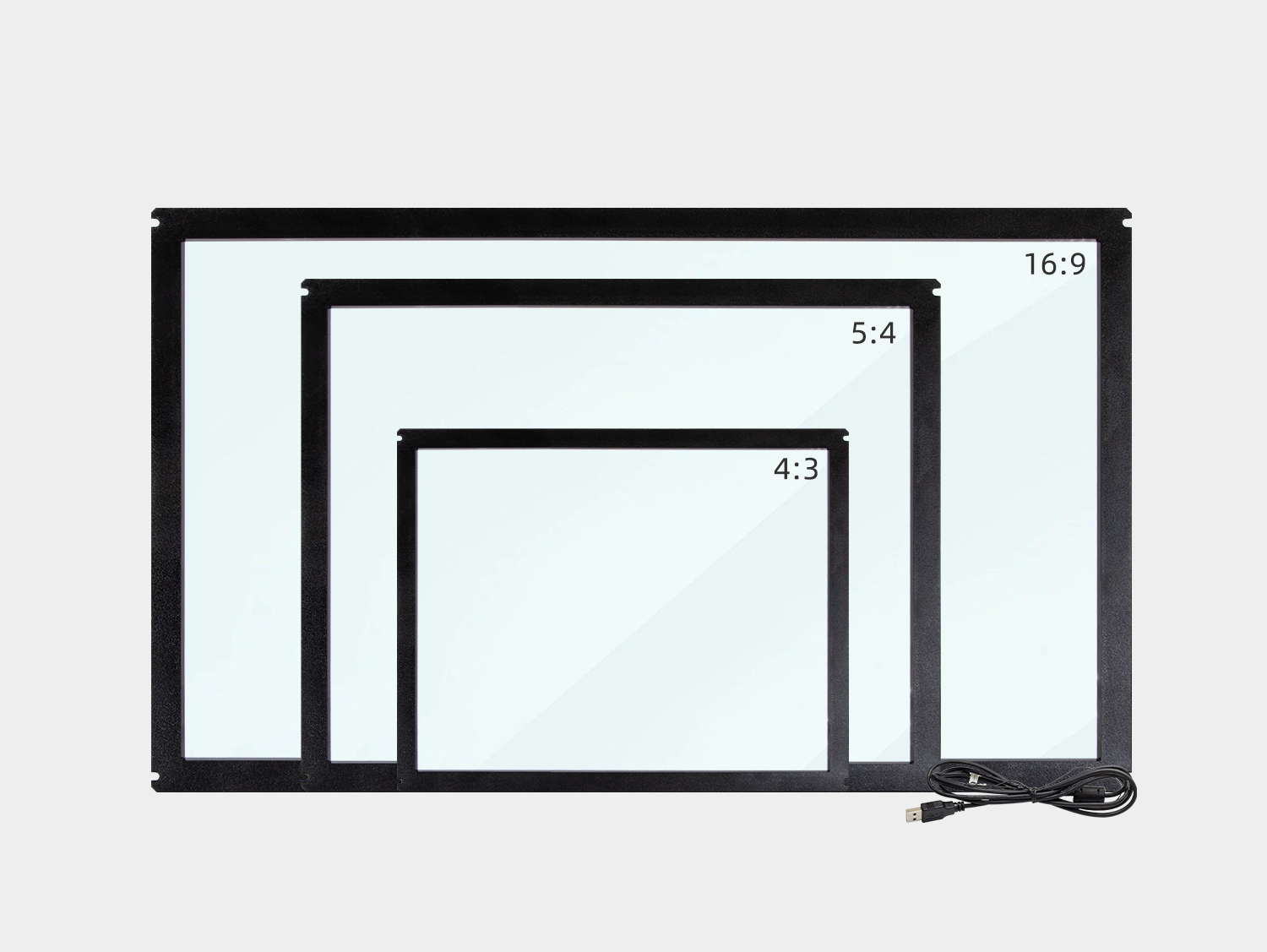

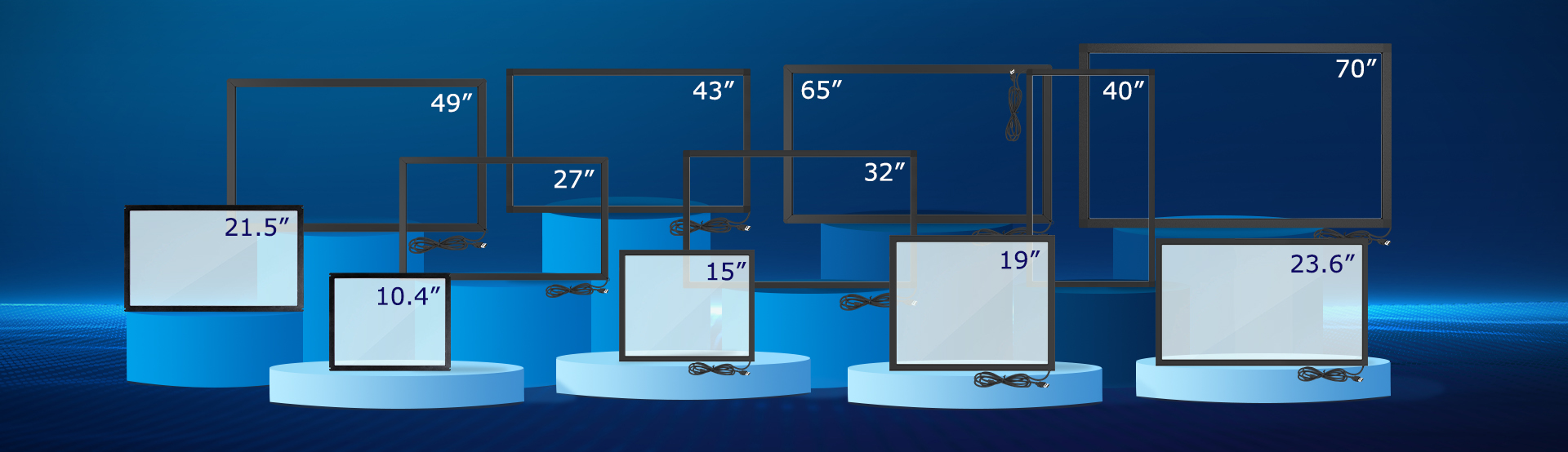

    Multiple sizes available

    (Ratio 4:3)Size:10.4”,12.1”,15”

    (Ratio5:4)Size:17”,19”

    (Ratio16:19)Size:21.5”

Mounting Options

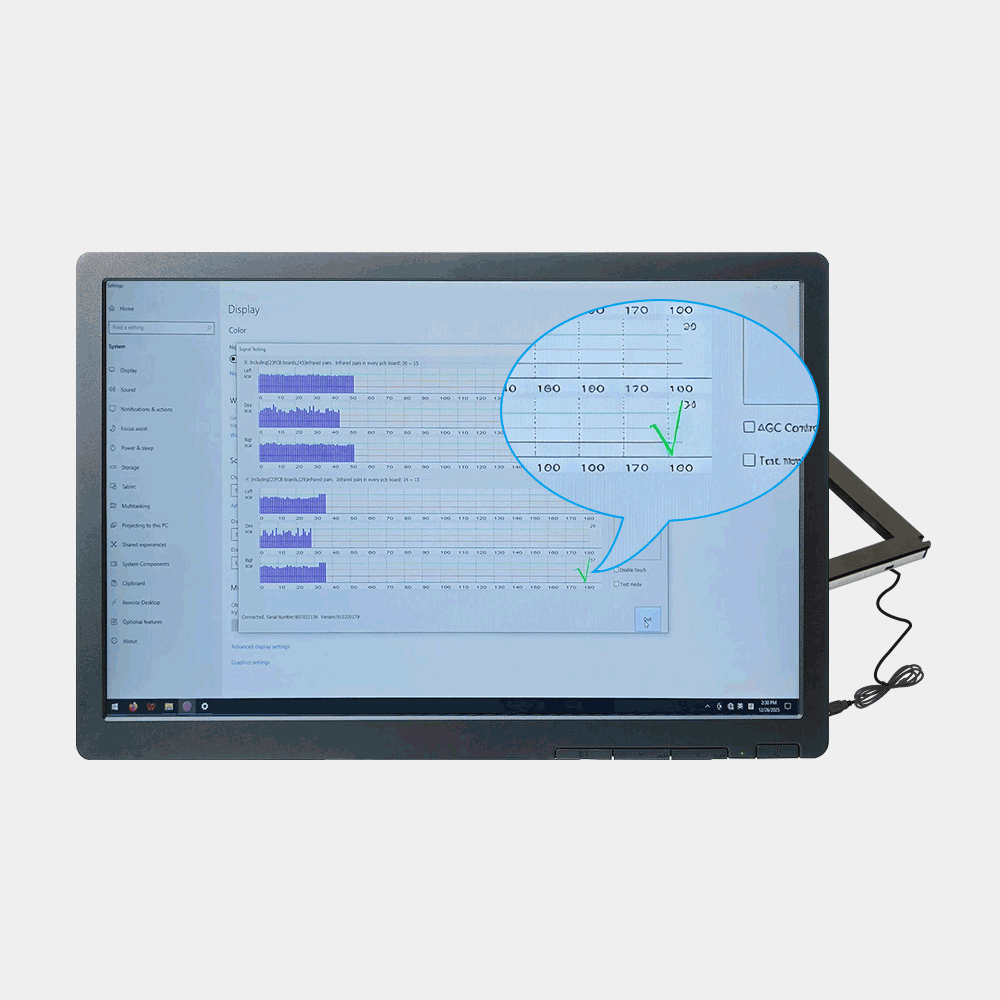

Install the TE infrared touch screen as follows:
1. Open the packaging and remove the infrared screen.
2. Connect the USB to the main unit and check if the signal graph is marked with a checkmark.
3. Attach the double-sided tape to the back.
4. Align the screen with the viewing window and attach the tape.
5. Installation complete.
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Specifications
General

Manufacturer:GreenTouch

Product Name:Infrared Touch Screen (TE Series)

Regular Sizes:10.4",12.1",15",17",19",21.5"

Warranty:1-3 Year

Certificates:CE,FCC,RoHS

Panel

Panel Type:Black Frame(With glass)

Material:Black Aluminium Frame+Glass

Diagonal Size:10.4 to 21.5 inches

Aspect Ratio:4:3,5:4,16:9

Resolution:32768 x 32768

Response Speed:<10ms

Touch Technology:IR Touch 10 Points

Touch Object:>7mm In Diameter

Touch Support System:Windows,Android,linux

Environmental

Operating Time:Max. Non-Stop 24/7

Temperature Operating:–10°C to 50°C

Temperature Storage:-20°C to 60°C

Humidity: 90% relative humidity,no condensation

Connectivity

Interface:USB,plug an play

Compliance

Certifications: CE,FCC,RoHS

Performance:No interference,anti-ligh

Application Field
Waterproof IR Touch Screen 10.4 to 21.5 Inches(TE Series)
Specification and download
SizesModelDimensionsView AreaRatioInterfaceDrawing Download
10.4"GT-IR-TE10.4-1244*191mm213*160mm4:3USB2.0

GT-IR-TE10.4-1

12.1"GT-IR-TE12.1-1282*221mm247*186mm4:3USB2.0

GT-IR-TE12.1-1

15"GT-IR-TE15.0-1342*266mm306*230mm4:3USB2.0

GT-IR-TE15.0-1

17"GT-IR-TE17.0-1376*308mm340*272mm5:4USB2.0

GT-IR-TE17.0-1

19"GT-IR-TE19.0-1413*338mm378*303mm5:4USB2.0

GT-IR-TE19.0-1

21.5"GT-IR-TE21.5-1515*306mm479*270mm16:9USB2.0

GT-IR-TE21.5-1
