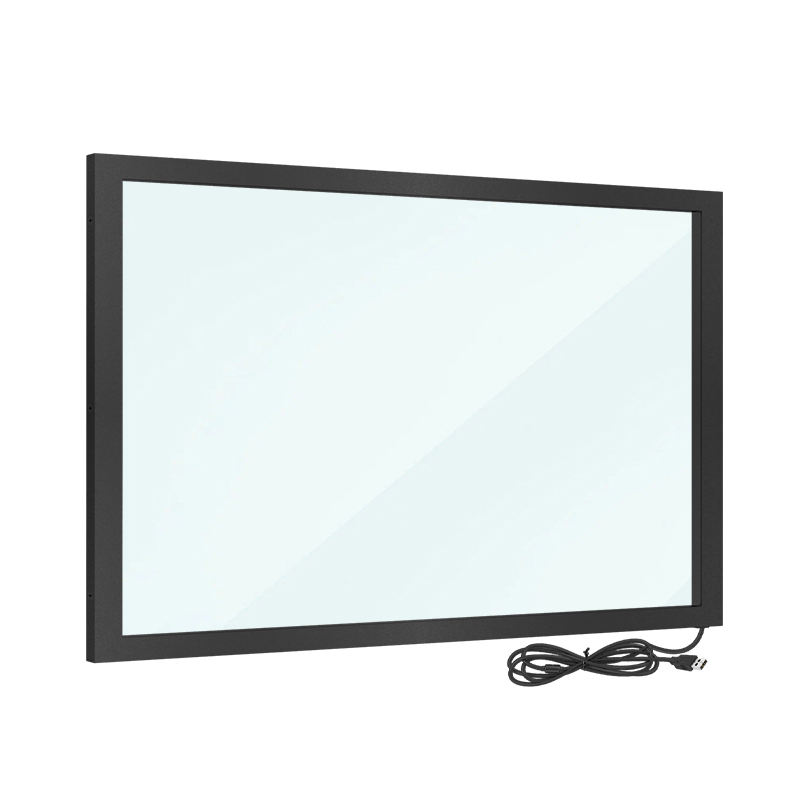

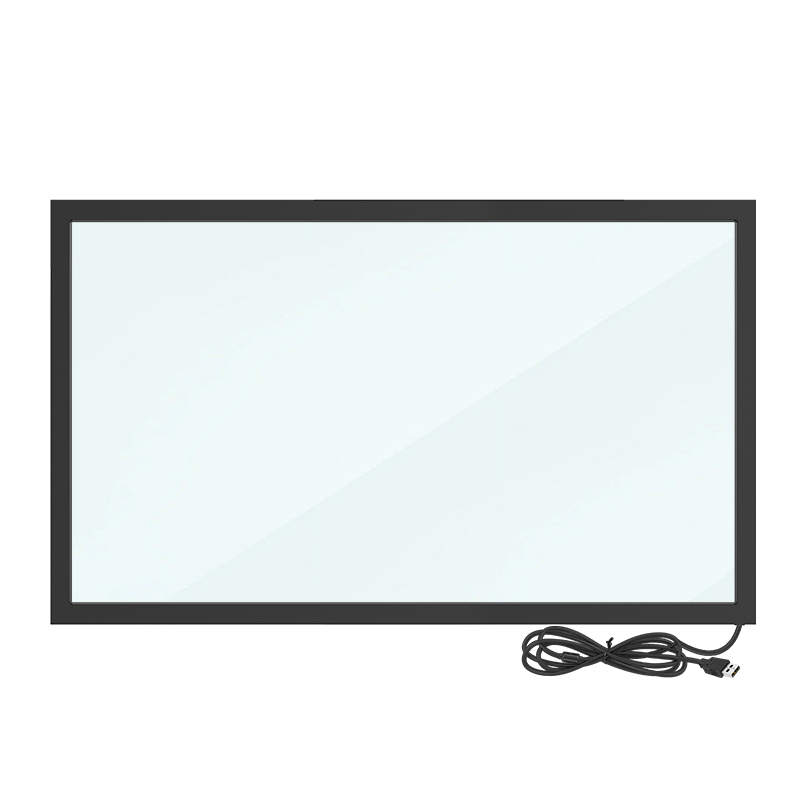

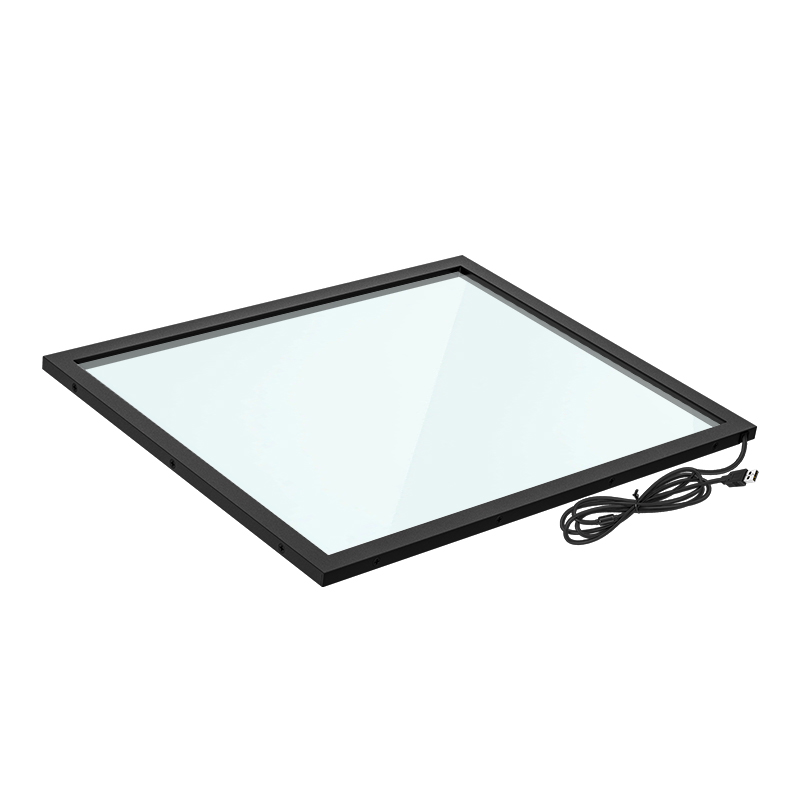

Infrared Touch Screen 15 to 23.6 Inches(TK Series)

Infrared Touch Screen 15 to 23.6 Inches(TK Series)

Product Information

Support Resolution:32768x32768

Touch Points:Multi Touch 10 Points

Material: Aluminium Frame+Tempered Glass

Support Systems:Windows,Android,Linux

Features

●USB interface,plug and play,free of driver

●3mm tempered glass coverage

●With a light resistance of 80,000 Lux

●LED tube core,stable performance,long life time

●Versatile touch object,integrated controller

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
Application Field
Specification and download

Product Description

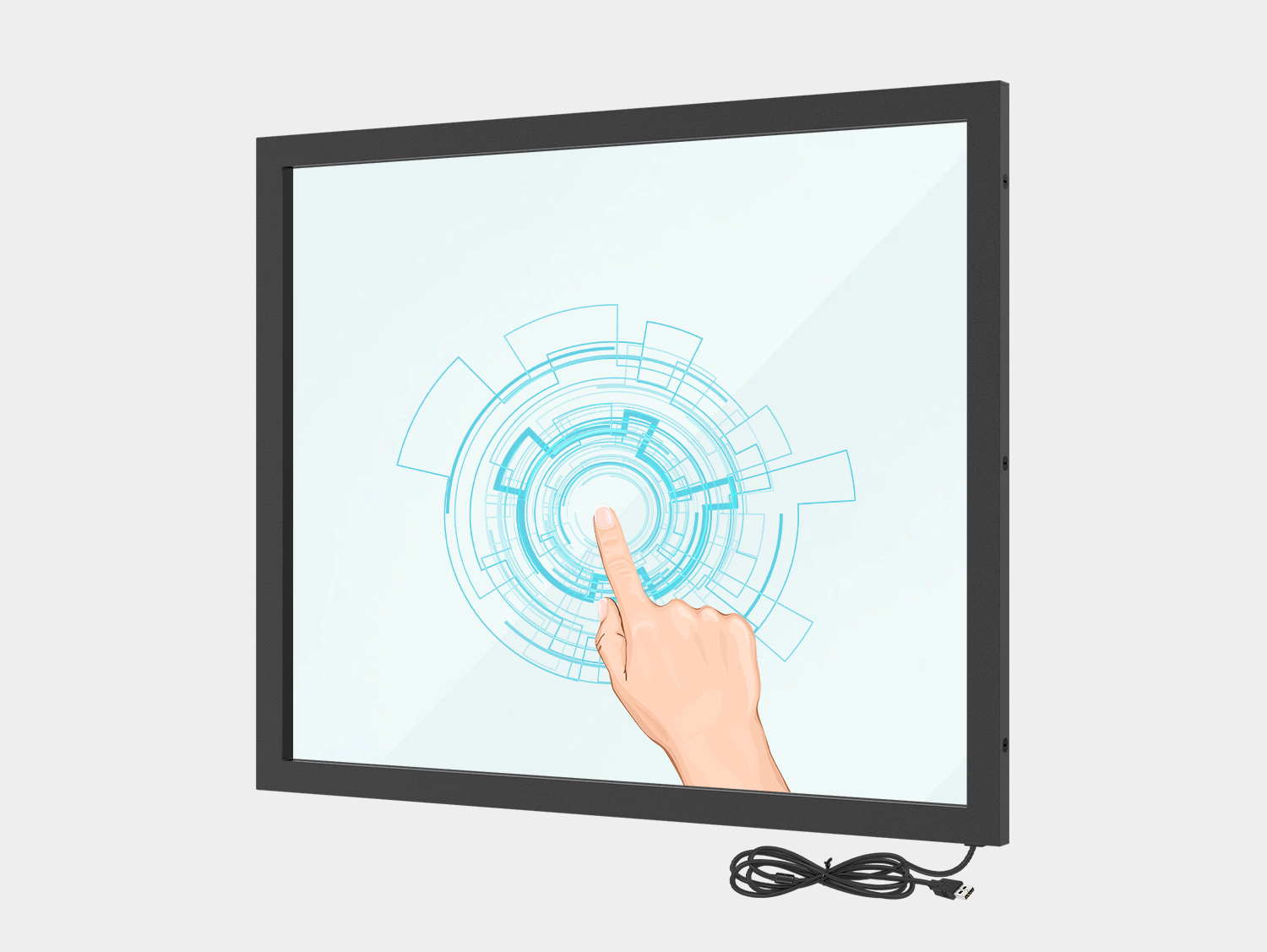

TK Infrared Touch Screen Overview

GreenTouch's Tk series of 15 to 23.6 inches infrared touch screens with glass offer efficient solutions for industries requiring reliable touch control due to their ruggedness,adaptability,and support for multiple touch modes.Industrial control and automation, commercial self-service and public services, healthcare, transportation and other fields.

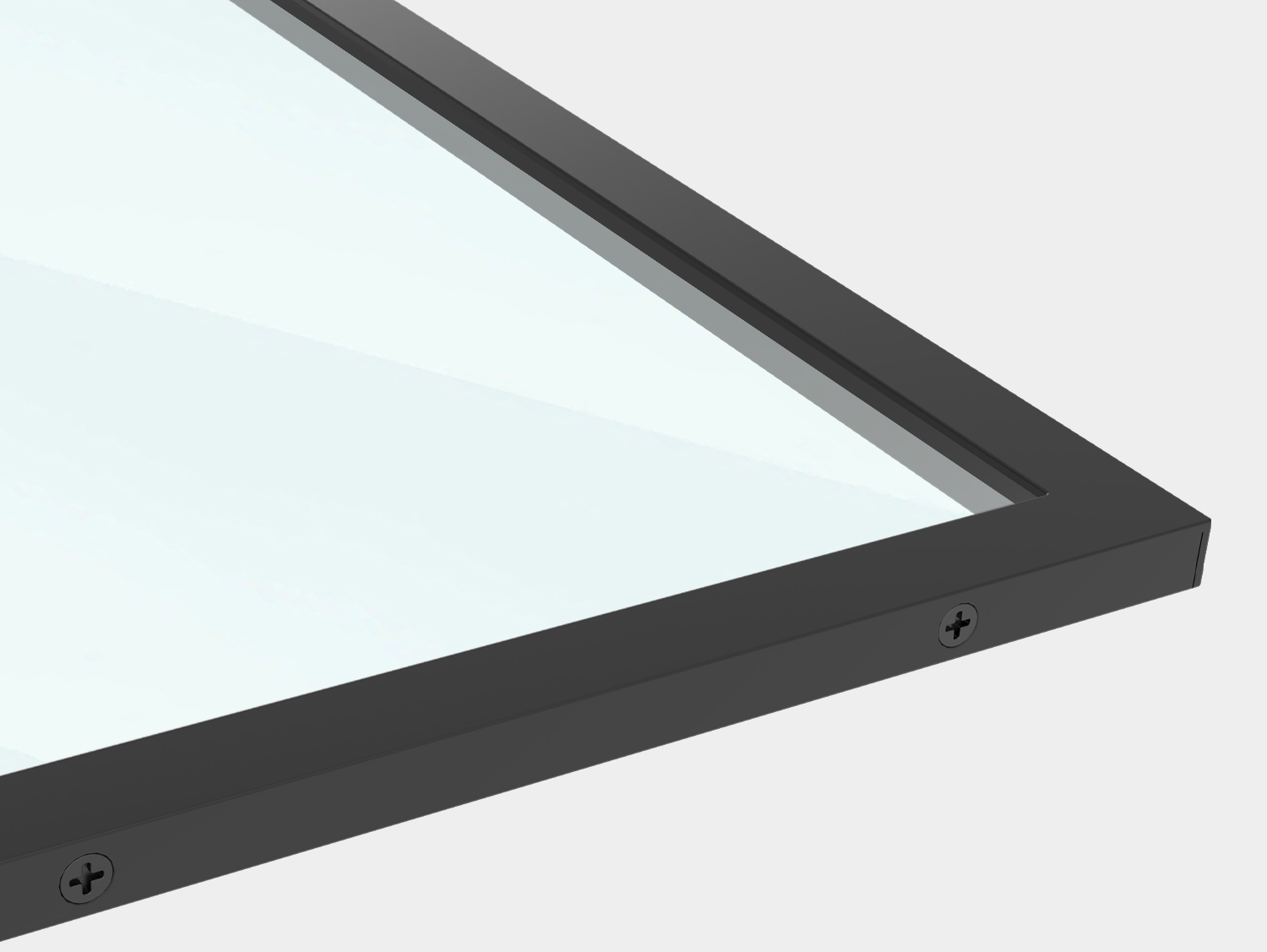

Function And Structure

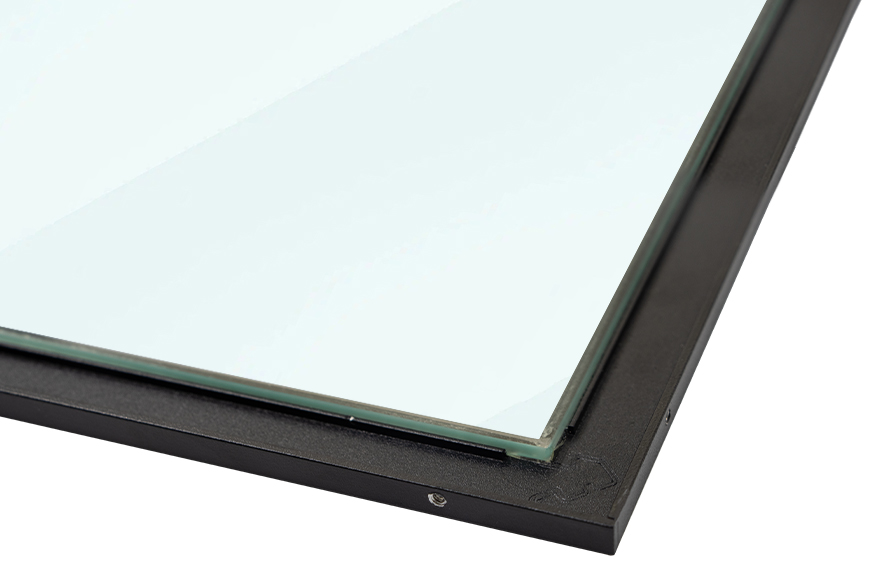

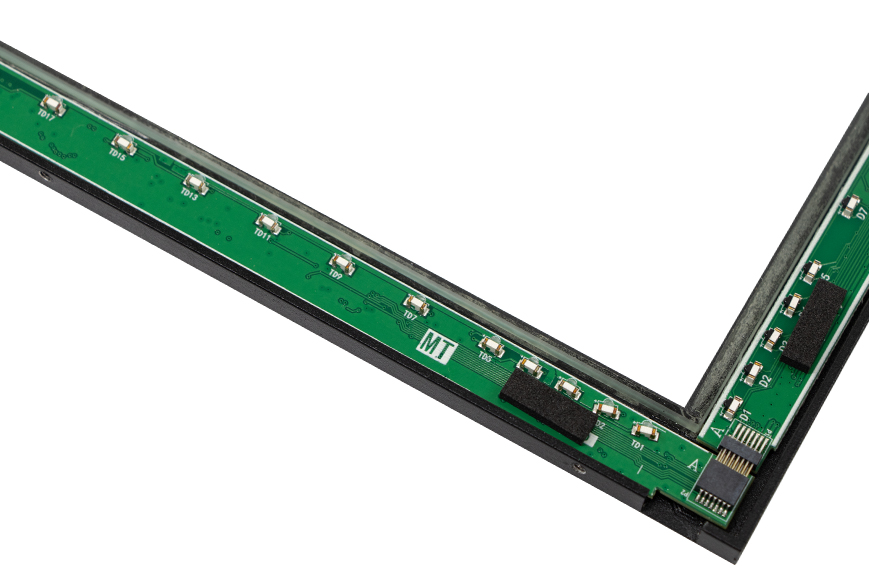

Our TK IR touch screen bezel boasts a streamlined design and superior craftsmanship, with a shell thickness of only 8mm. Aluminum alloy shell,strong,durable,not rusty,industrial aluminum alloy stretch forming and surface is made of high temperature black metal powder spraying process,not easy to fall off and lose color.TK use advanced chip,LED infrared receiving tube life time 60000 hours and stable performance.

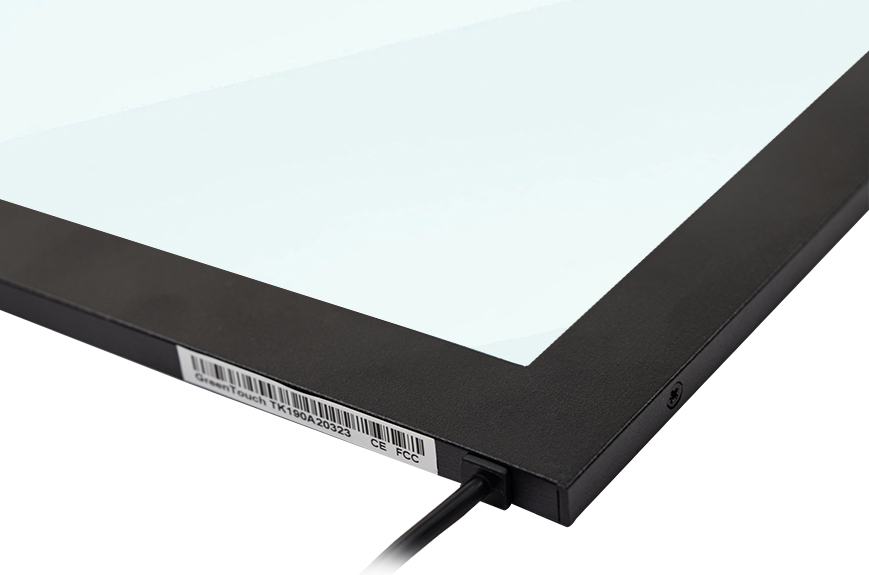

Connections and Systems

Connecting the infrared screen is very simple,using a USB 2.0 full-speed interface, it's plug and play.They adopt aluminum alloy plug,free of driver.The USB recognition time is 3 times that of a regular USB plug,and the transmission speed reaches 480Mbps.GreenTouch IR touch frame excel in system compatibility,with their core advantage lying in "driver layer adaptation,"enabling compatibility with almost all mainstream consumer and commercial operating systems,such as Windows,Android,Linux

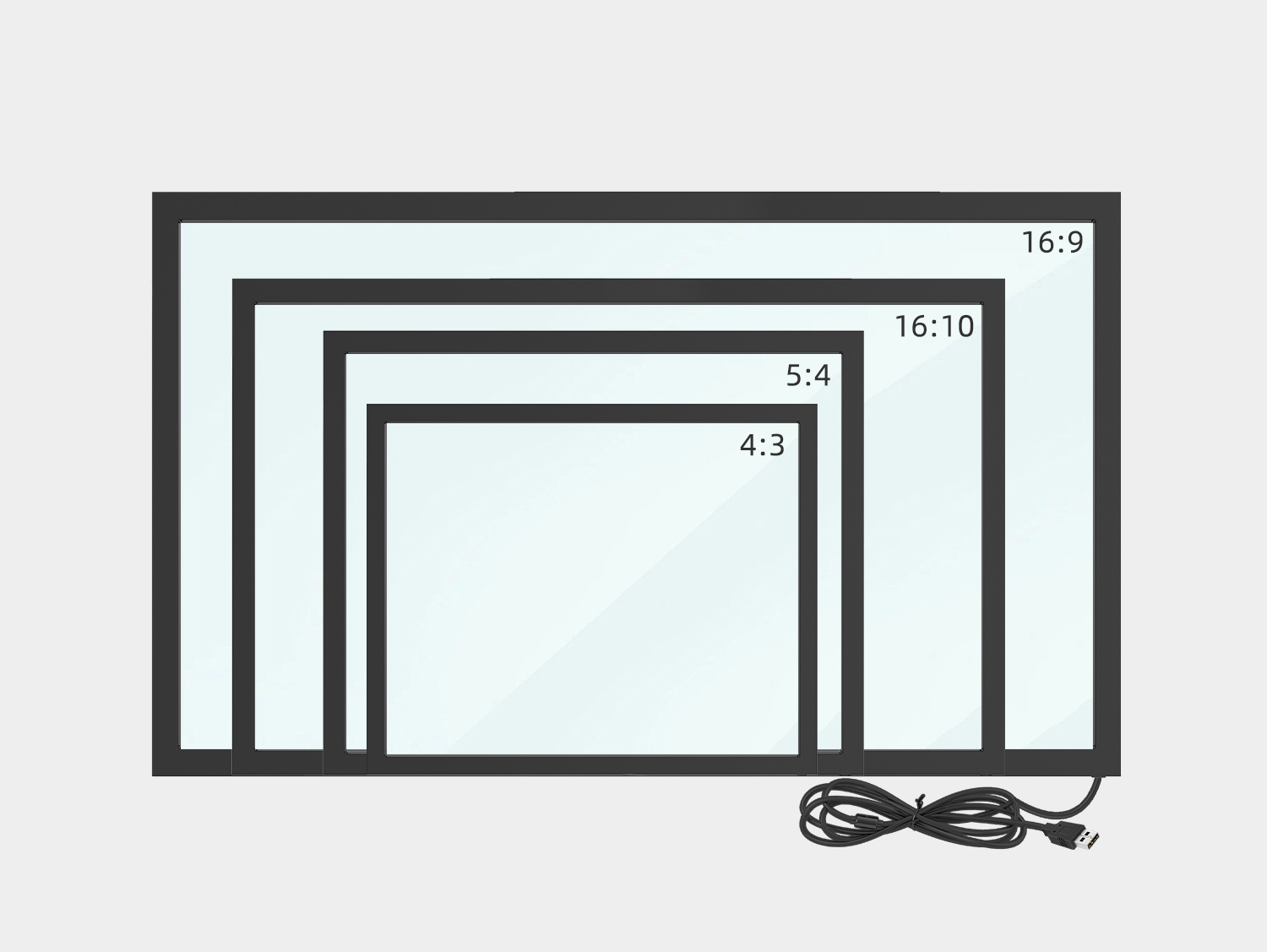

Multiple sizes available

(Ratio 4:3)Size:15”

(Ratio 16:9)Size:15.6”,18.5”,19”,21.5”,23.6”

(Ratio5:4)Size:17”,19”

(Ratio16:10)Size:22”

Mounting Options

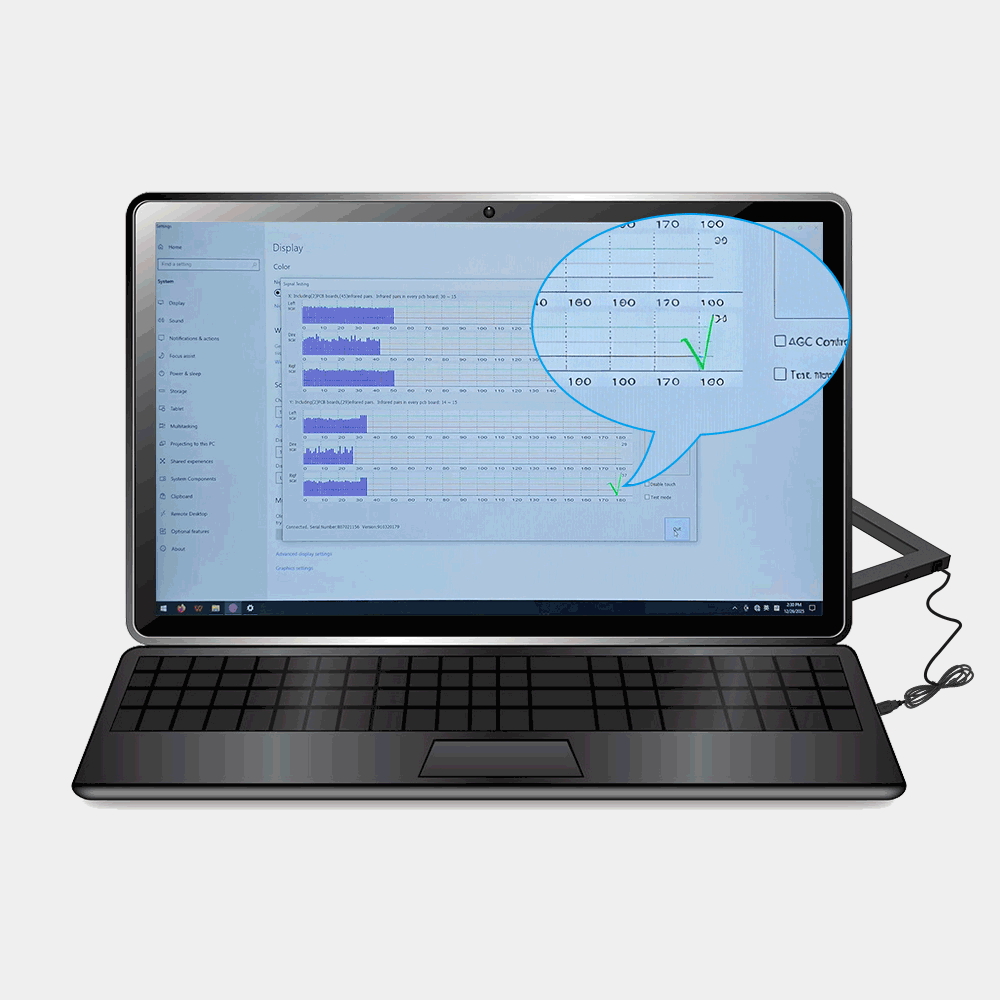

Install the TK infrared touch screen as follows:

1. Open the packaging and remove the infrared screen.
2. Connect the USB to the main unit and check if the signal graph is marked with a checkmark.
3. Attach the double-sided tape to the back.
4. Align the screen with the viewing window and attach the tape.
5. Installation complete.

Specifications

General Manufacturer:GreenTouch Product Name:Infrared Touch Screen(TK Series) Regular Sizes:15",15.6",17",18.5",19",21.5",22",23.6" Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Black Frame(With glass) Material:Black Aluminium Frame+Glass Diagonal Size:15 to 23.6 inches Aspect Ratio:4:3,16:9,5:4,16:10 Resolution:32768 x 32768 Response Speed:<10ms Touch Technology:IR Touch 10 Points Touch Object:>7mm In Diameter Touch Support System:Windows,Android,linux

Environmental Operating Time:Max. Non-Stop 24/7 Temperature Operating:–10°C to 50°C Temperature Storage:-20°C to 60°C Humidity: 90% relative humidity,no condensation

Connectivity Interface:USB,plug an play

Compliance Certifications: CE,FCC,RoHS Performance:No interference,anti-ligh

Application Field

Specification and download

Sizes	Model	Dimensions	View Area	Ratio	Interface	Drawing Download
15"	GT-IR-TK15.0-1	347*272mm	305*230mm	4:3	USB	GT-IR-TK15.0-1
15.6"	GT-IR-TK15.6-1	388*237mm	346*195mm	16:9	USB	GT-IR-TK15.6-1
17"	GT-IR-TK17.0-1	382*314mm	340*272mm	4:3	USB	GT-IR-TK17.0-1
18.5"	GT-IR-TK18.5-1	454*275mm	412*233mm	16:9	USB	GT-IR-TK18.5-1
19"	GT-IR-TK19.0-1	420*345mm	378*303mm	4:3	USB	GT-IR-TK19.0-1
19"	GT-IR-TK19.0-2	454*300mm	412*258mm	16:10	USB	GT-IR-TK19.0-2
21.5"	GT-IR-TK21.5-1	520*311mm	478*269mm	16:9	USB	GT-IR-TK21.5-1
22"	GT-IR-TK22.0-1	518*340mm	476*298mm	16:10	USB	GT-IR-TK22.0-1
23.6"	GT-IR-TK23.6-1	565*337mm	523*295mm	16:9	USB	GT-IR-TK23.6-1
