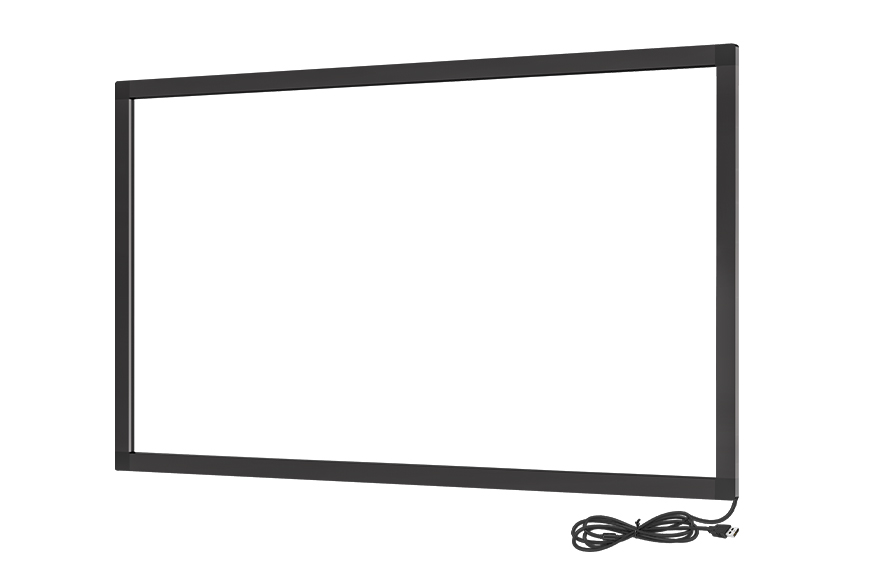

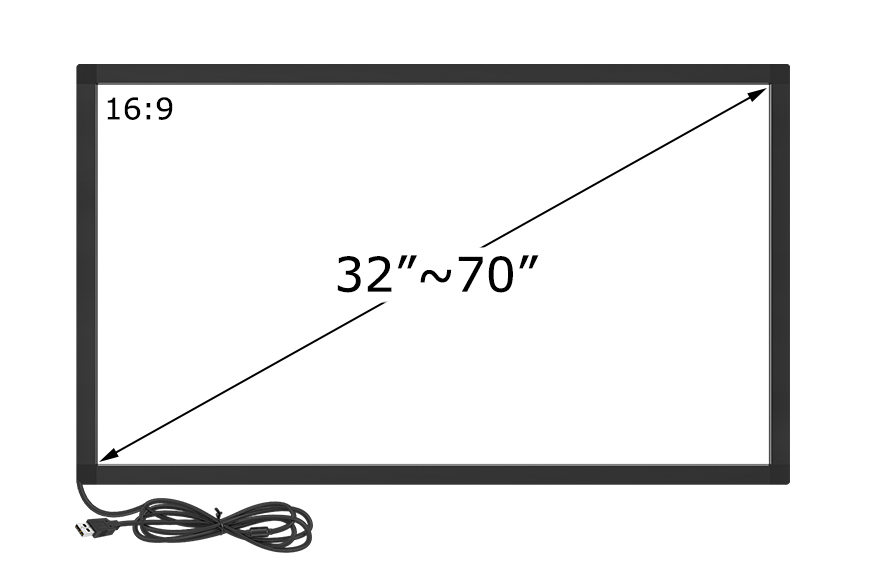

Infrared Touch Frame 32 to 70 Inches(TF Series)

Infrared Touch Frame 32 to 70 Inches(TF Series)

Product Information

Resolution:32768x32768

Touch Points:Multi Touch 20-40 Points

Support Systems:Windows,Android,Linux

Certificates:CE,FCC,RoHS

Features

● USB interface,plug and play,free of driver

● Sunlight-resistant,operable indoor and outdoor

● Sensitive tpouch,no disconnection,no ghosting or drift

● LED tube core,stable performance,long life time

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
Application Field
Specification and download

Product Description

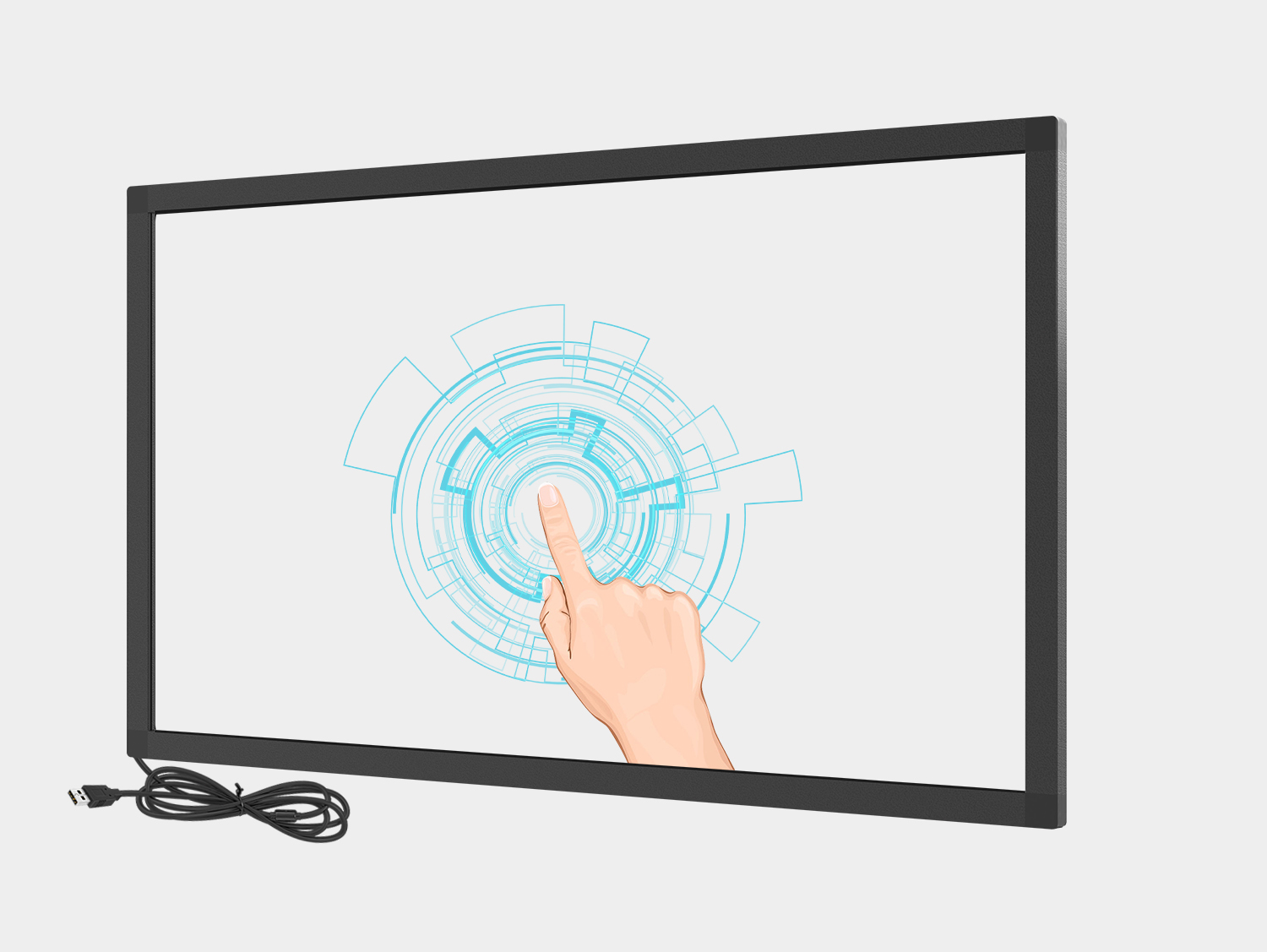

TF Infrared Touch Frame Overview

GreenTouch's IR touch frame TF series provide cost-effective solutions for customers who need industrial touch.A comprehensive size range from 32 ”to 500” ensures compatibility with:education and training,commercial presentations and advertising,public information access and services, industrial control and automation,entertainment and games

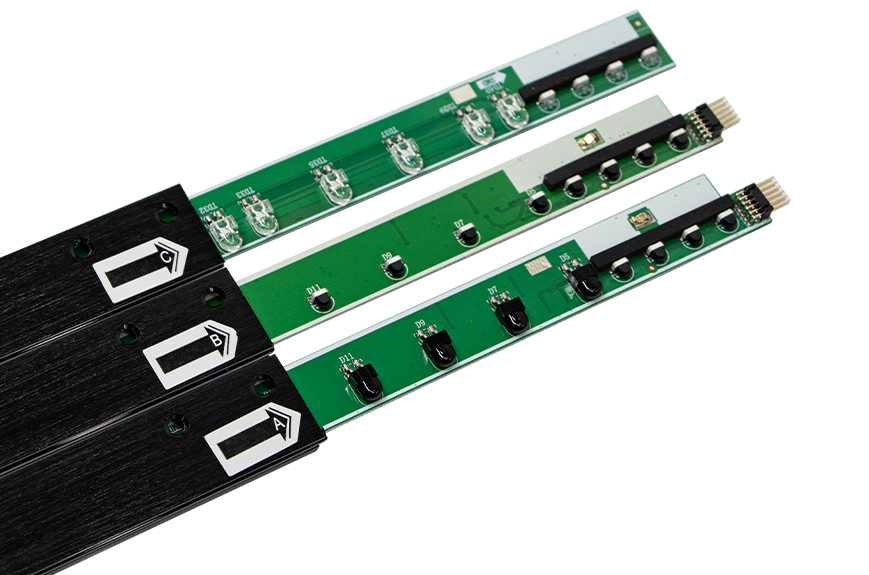

Function And Structure

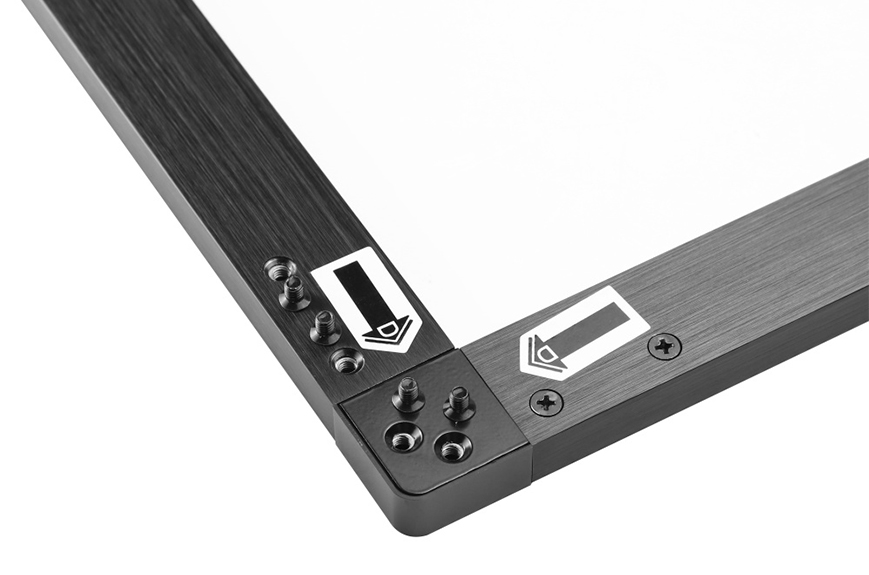

Our TF IR touch frame bezel boasts a streamlined design and superior craftsmanship, with a shell thickness of only 9.5mm. They adopt Aluminum alloy shell,strong,durable,not rusty.The surface is made adopts black brushed sandblasting process,which is not easy to fall off and lose color.TF use advanced chip,LED infrared receiving tube life time 60000 hours and stable performance.

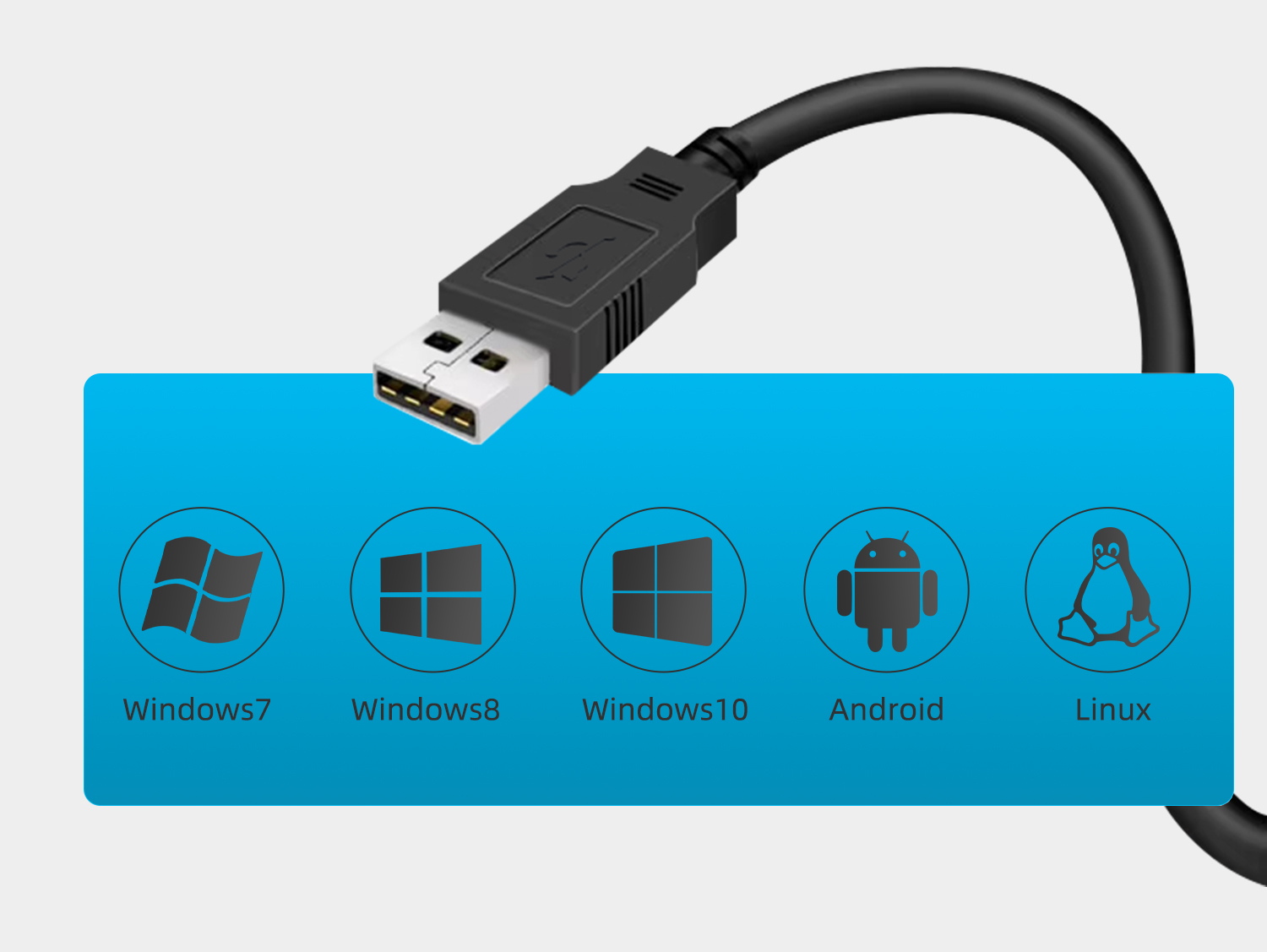

Connections and Systems

Connecting the infrared frame is very simple,using a USB 2.0 full-speed interface,it's plug and play.They adopt aluminum alloy plug,free of driver.The USB recognition time is 3 times that of a regular USB plug,and the transmission speed reaches 480Mbps.GreenTouch IR touch frame excel in system compatibility,with their core advantage lying in "driver layer adaptation," enabling compatibility with almost all mainstream consumer and commercial operating systems,such as Windows,Android,Linux

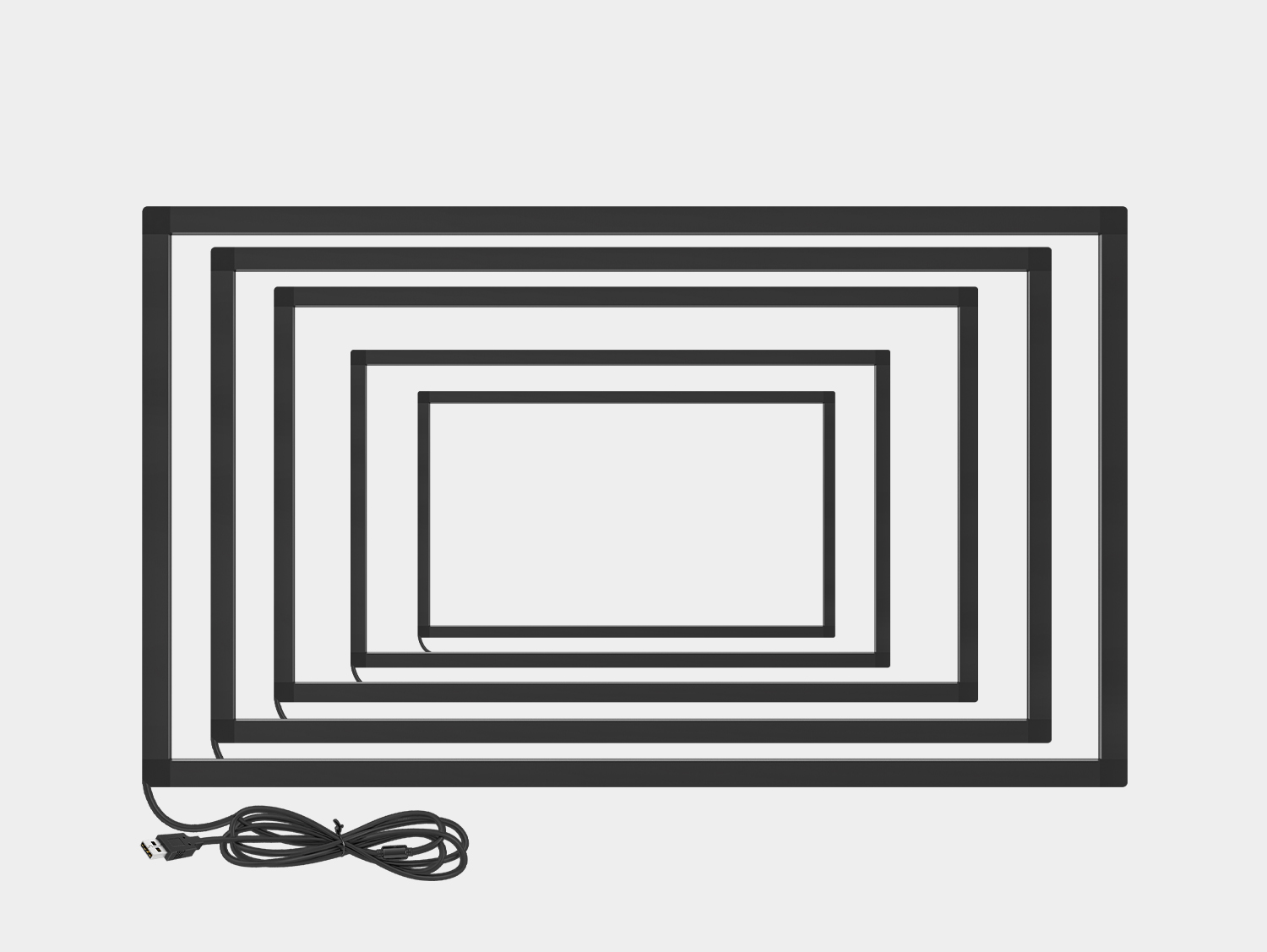

Multiple Sizes Available

Standard sizes
32”,40”,43”,49”,50”,55”,60”,65”,70”
Custom sizes
75 to 500 inches

Mounting Options

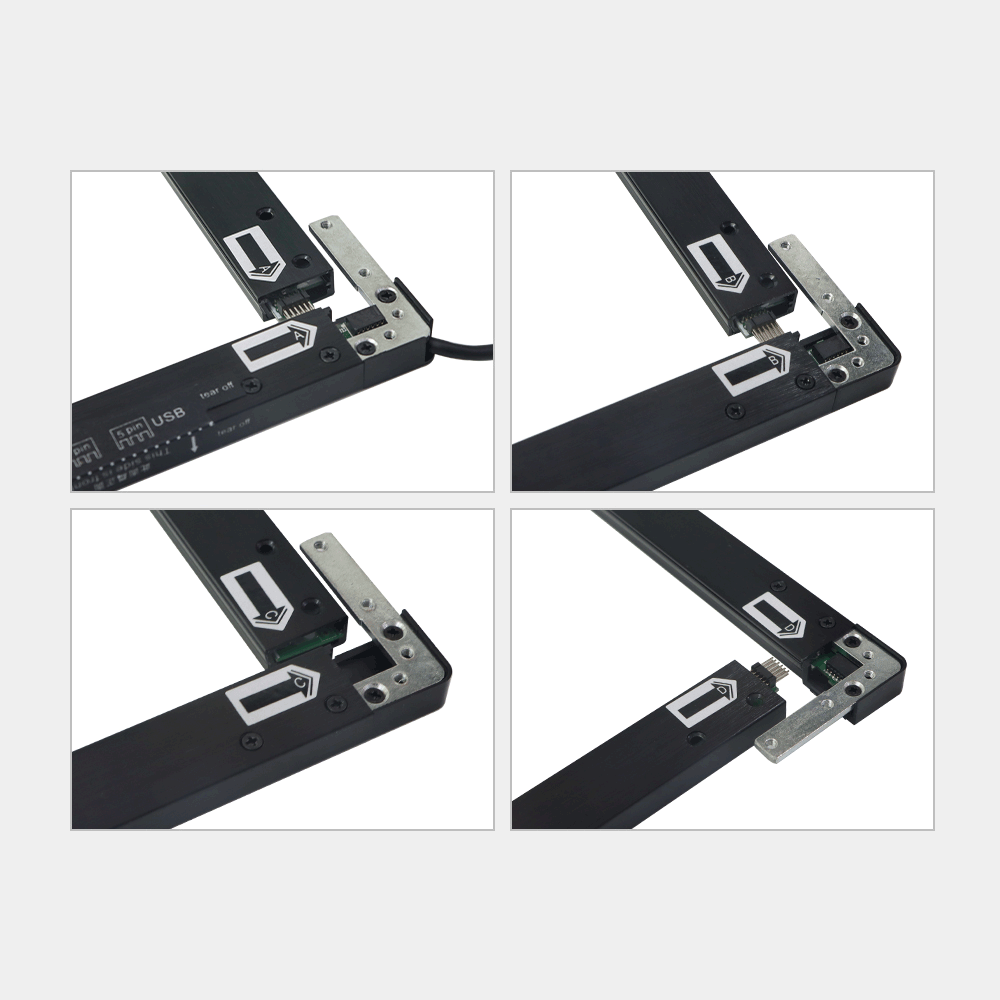

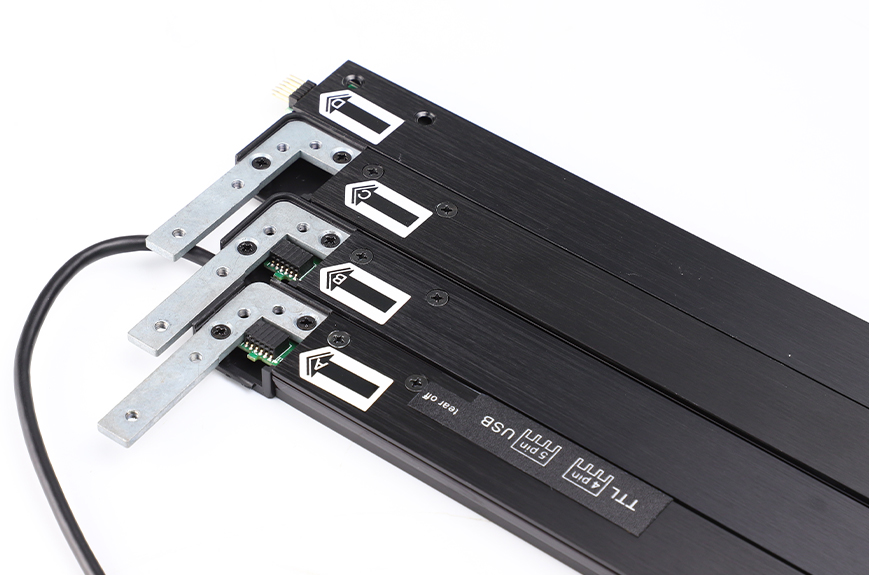

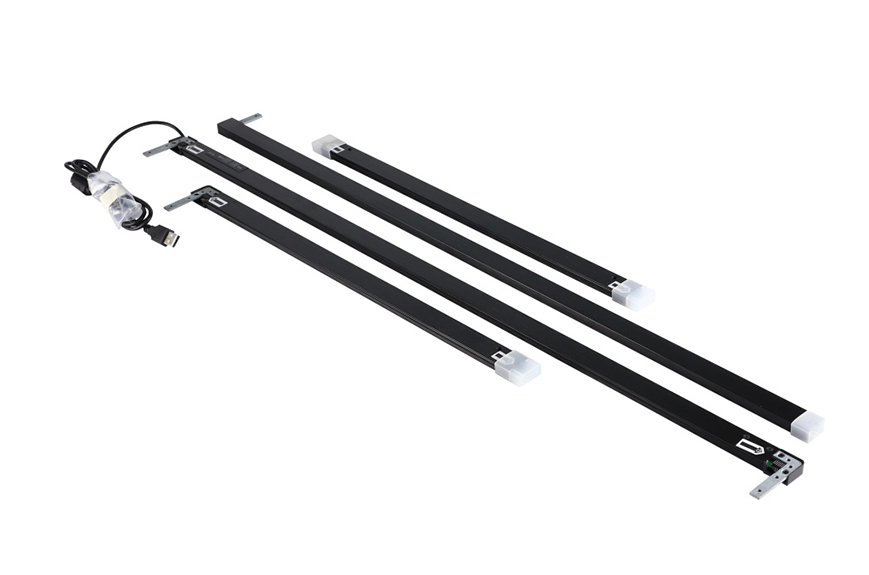

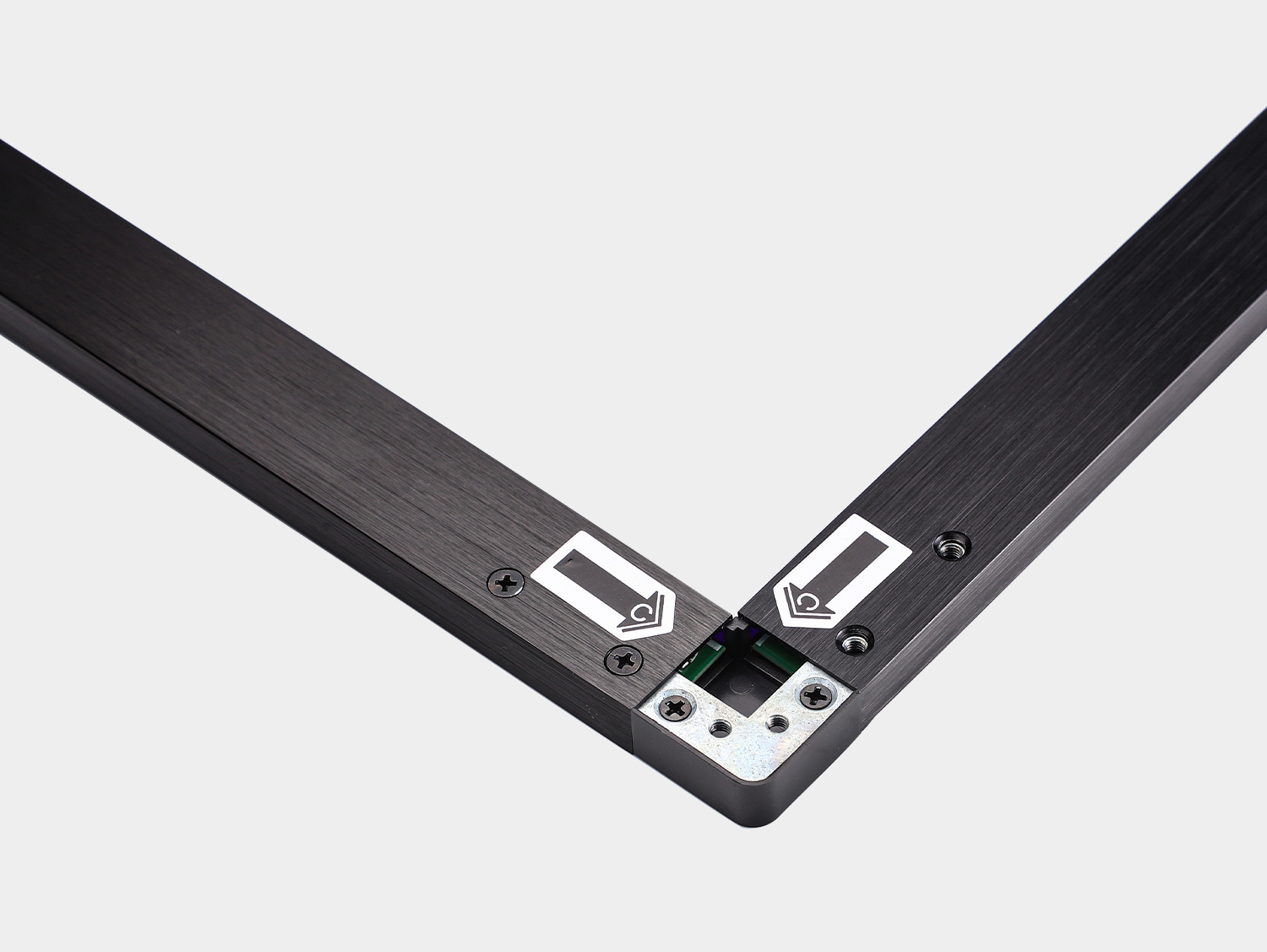

TF series infrared touch frames are easy to install,uses a pin-type connection.It is composed of four infrared touch frame strips. When youreceive the product, you need to correctly connect the AA, BB, CC, DD corresponding sidestrips according to the instructions,You need to ensure that the pins are aligned with the holes to maintain good conductivity, and then tighten the screws.After the installation is complete, plug in the USB, please wait for 10 seconds for thetouch test (during testing, pay attention to laying flat)

Specifications

General Manufacturer:GreenTouch Product Name:Infrared Touch Frame(TF Series) Regular Sizes:32",40",43",49",50",55",60",65",70" Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:Black Frame(No glass) Material:Black Aluminium Frame Diagonal Size:32 to 70 inches Aspect Ratio:16:9 Resolution:32768 x 32768 Response Speed:<10ms Touch Technology:IR Touch 10 to 40 Points Touch Object:>7mm In Diameter Touch Support System:Windows,Android,linux

Environmental Operating Time:Max. Non-Stop 24/7 Temperature Operating:–10°C to 50°C Temperature Storage:-20°C to 60°C Humidity: 90% relative humidity,no condensation

Connectivity Interface:USB,plug an play

Compliance Certifications: CE,FCC,RoHS Performance:No interference,anti-ligh

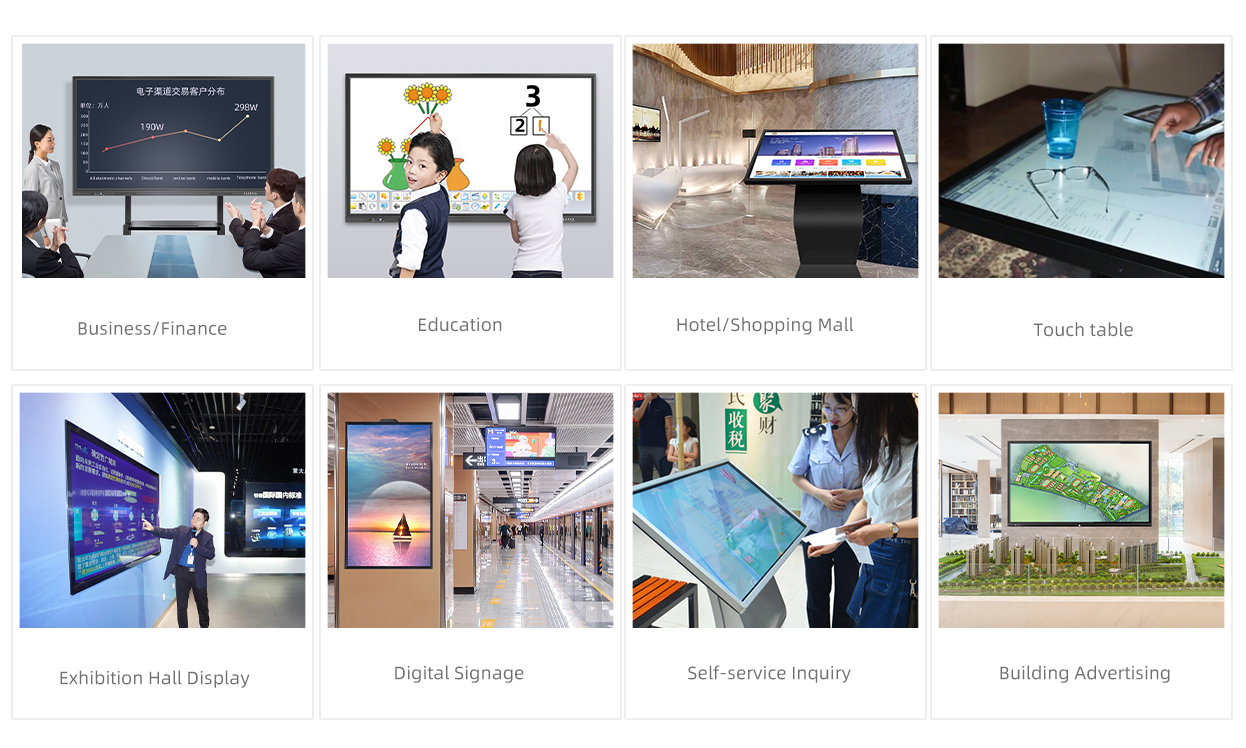

Application Field

Specification and download

Sizes	Model	Dimensions	View Area	Ratio	Interface	Drawing Download
32"	GT-IR-TF32A-1	743.4*438.1mm	701.7*396.3mm	16:9	USB	GT-IR-TF32A-1
40"	GT-IR-TF40A-1	935.6*548.1mm	885.6*498.2mm	16:9	USB	GT-IR-TF40A-1
43"	GT-IR-TF43A-1	985.9*574.1mm	944.2*532.4mm	16:9	USB	GT-IR-TF43A-1
49"	GT-IR-TF49A-1	1118.5*648.7mm	1076.8*607mm	16:9	USB	GT-IR-TF49A-1
50"	GT-IR-TF50A-1	1144*665mm	1098*619mm	16:9	USB	GT-IR-TF50A-1
55"	GT-IR-TF55A-1	1255.5*726.1mm	1213.8*684.4mm	16:9	USB	GT-IR-TF55A-1
60"	GT-IR-TF60A-1	1379*797mm	1329*747mm	16:9	USB	GT-IR-TF60A-1
65"	GT-IR-TF65A-1	1475.7*850.7mm	1434*809mm	16:9	USB	GT-IR-TF65A-1
70"	GT-IR-TF70A-1	1599*921mm	1553*75mm	16:9	USB	GT-IR-TF70A-1
