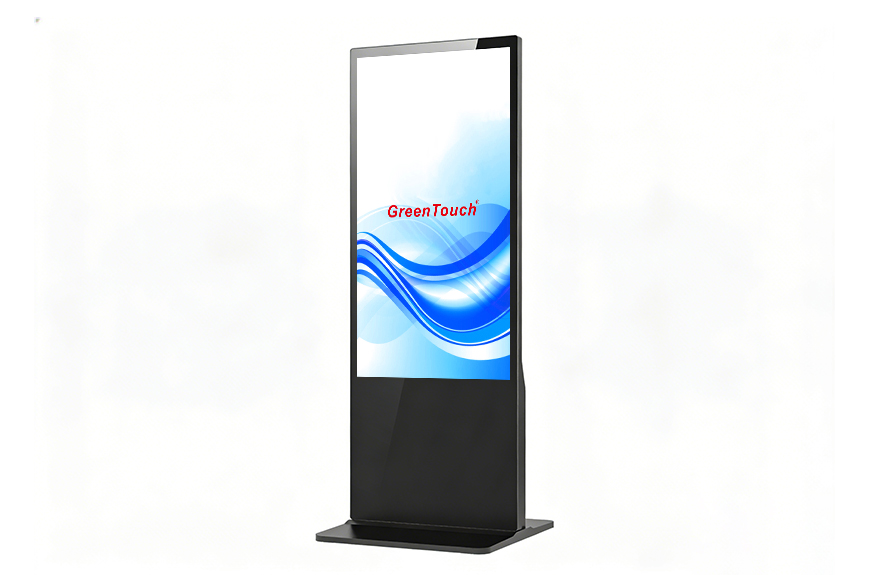

Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Product Information

Resolution:UHD 4K,Full HD 1920x1080

Processor: The RK3568S chip,quad-core ARM Cortex-A55

RAM:2-8GB,SSD:32-64G,Support TF Card

Structure: Tempered glass panel+metal shell/black

Systems:Android 11,12,13,14

Features

● High color depth:1.07B,90%NTSC

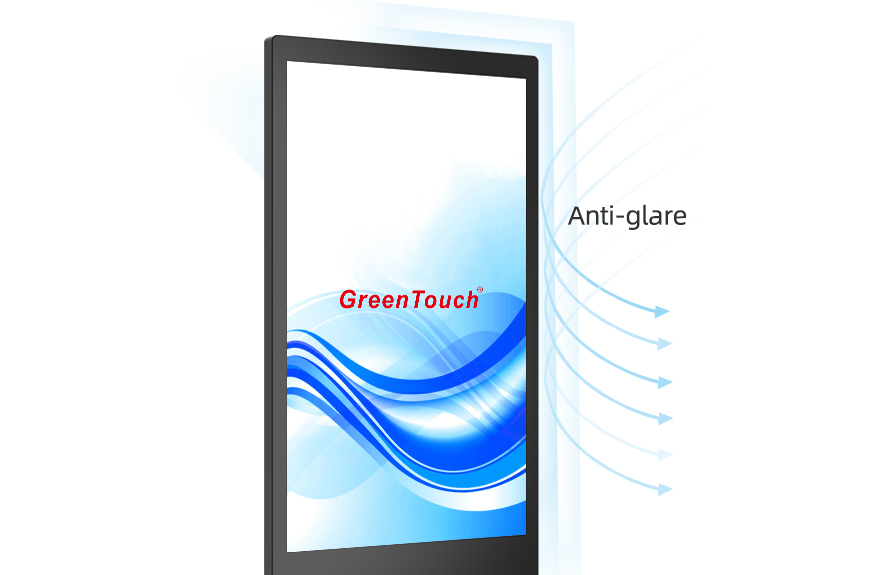

● Surface Treatment AG (AF/AR/mirror face optional)

● Supports single-core,dual-core or quad-core solutions

● Industrial power supply,Safe and reliable

● Long lifecycle,1-3 years guarantee (24/7 usage)

Product Description

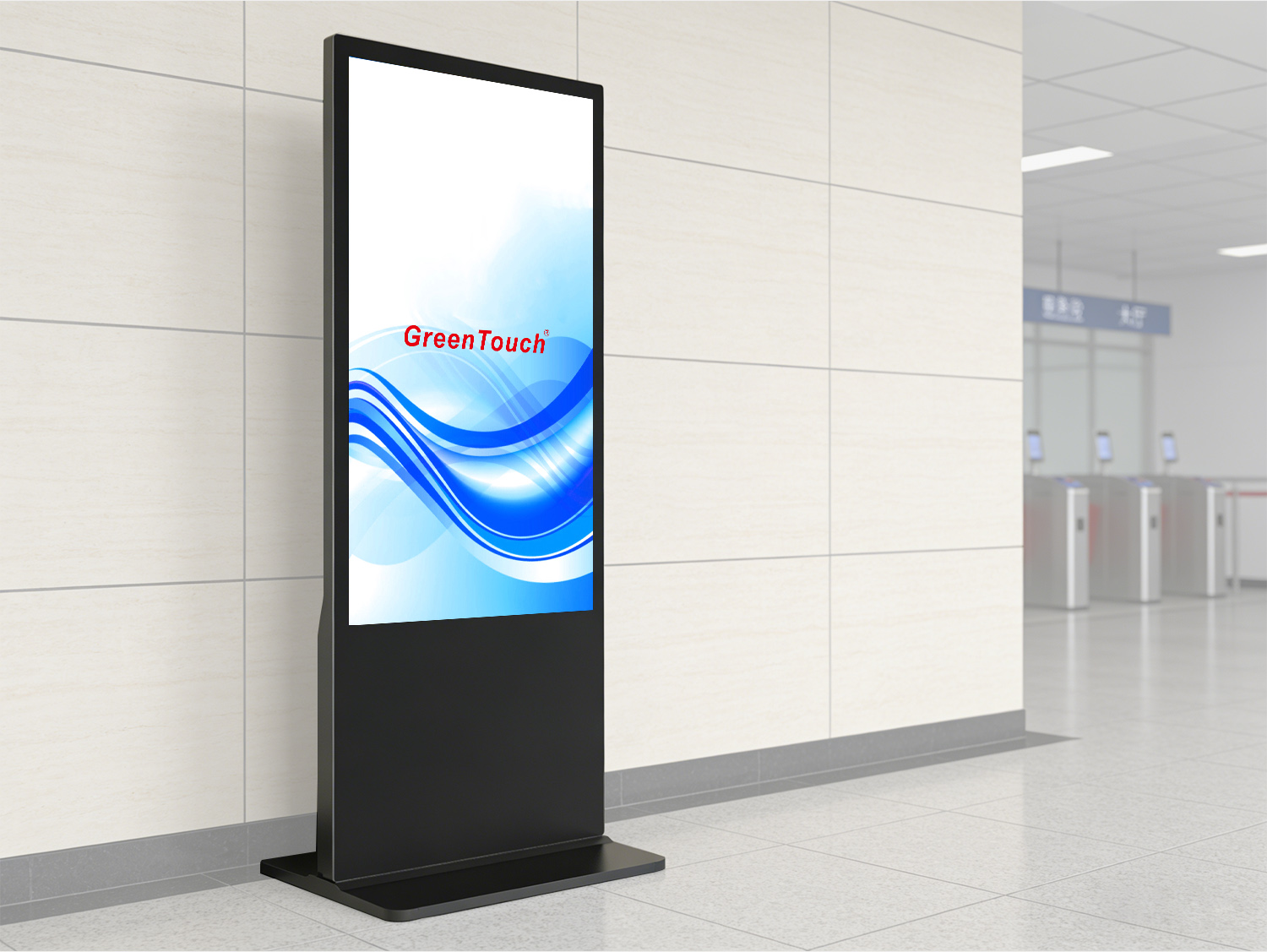

  • 6C Digital Signage Overview
    6C Digital Signage Overview
    The GreenTouch 6C(32”,43”,50”,55”,65”) floor standing digital signage covers all information display needs and can be flexibly deployed in shopping malls, chain stores, government service halls, transportation hubs, hotels, exhibition halls, office buildings, medical institutions and other places. It can be used for brand promotion, event promotion, new product launch, as well as realize functions such as wayfinding guidance, information announcement, queuing inquiry, cultural display, and interactive experience, making information transmission more efficient and visual presentation more professional.

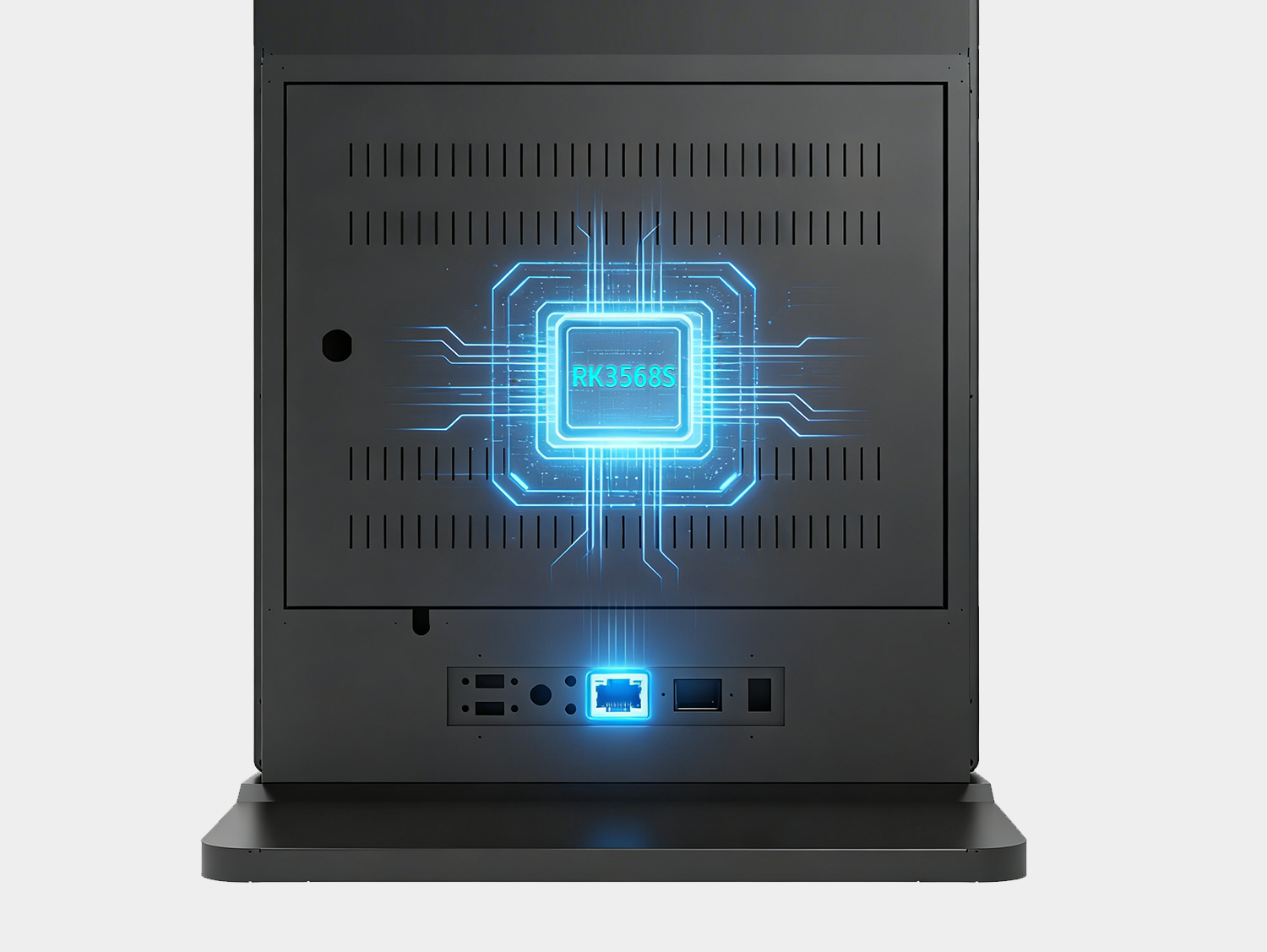

  • Configuration and Connectivity
    Configuration and Connectivity
    The GreenTouch digital signage 6C series includes HDMI ,OTG,TF,POWER,AUDIO,RJ45 and USB ports. These connections are all positioned on the back of the display and face downward, allowing for easy installation in any scenario. The 6C uses RK3568S chip features a quad-core ARM Cortex-A55 architecture, with a maximum clock speed of up to 2.0GHz,supports RJ45 R/A 100Mbps Ethernet and Ethernet; Supports 2.4GHz Wi Fi and Wi Fi 802.11b/g/n protocol; Supports Bluetooth 4.2 and Bluetooth file transfer.

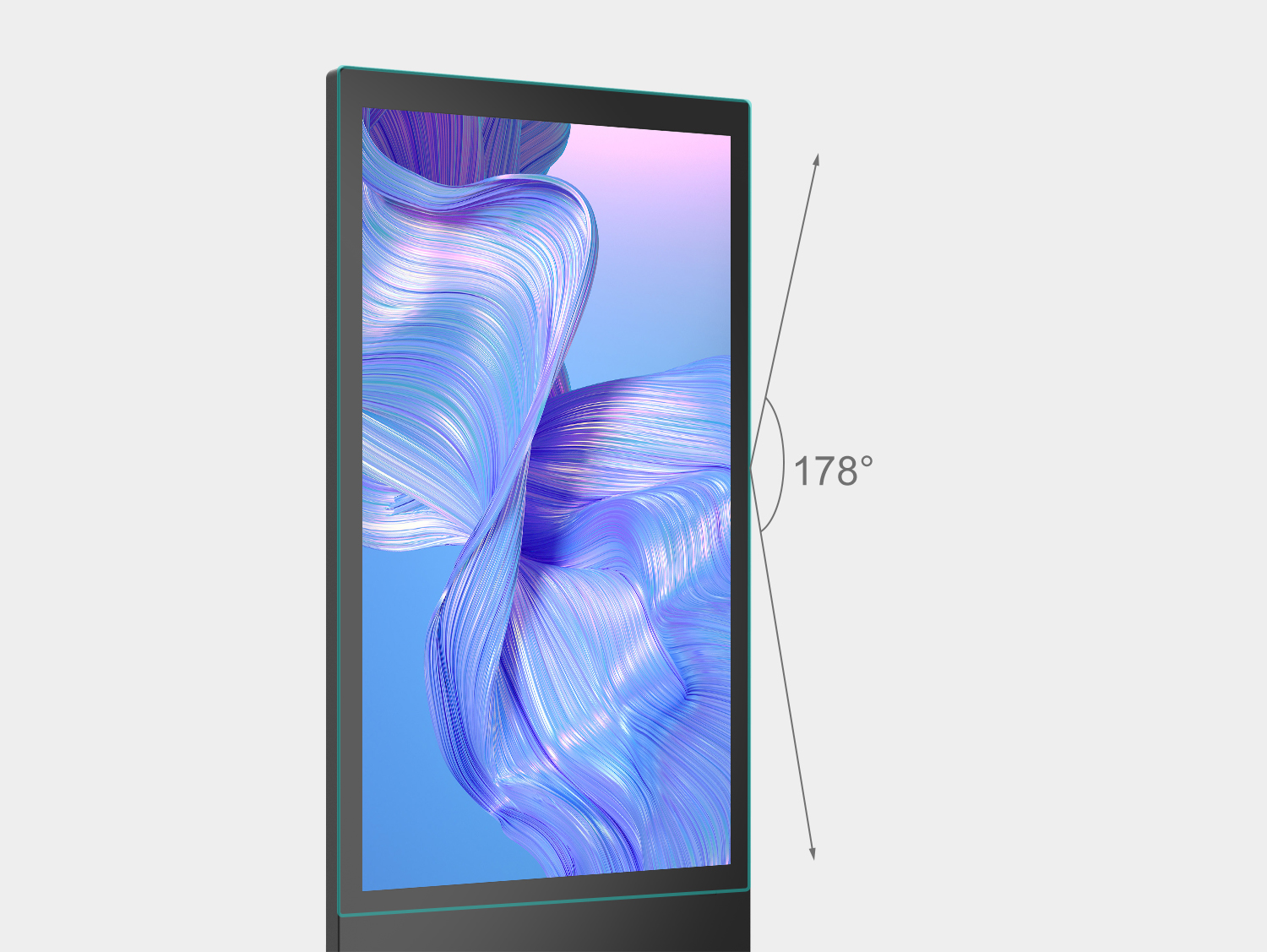

  • Appearance and Structure
    Appearance and Structure
    Our 6C digital signage adopt tempered glass panel+metal shell/black design ,optically bonded glass panel to LCD panel,beautiful, seamless, safe.They support wide angle and use TFT LCD LED backlight technology, with a color depth of 1.07B and 90% NTSC high-precision color correction, resulting in more accurate and realistic color reproduction. Color banding is seamless, enhancing detail in both dark and bright areas, making it exceptionally pleasing to the eye from a distance and on large screens and can work 7*24 hours without interruption.
  • Function Support
    Function Support
    1. Supports custom images, videos, audio, or documents.
    2. Come with an information publishing system, easily enabling remote management across regions.
    3. Support remote program publishing, free split-screen playback, and multi-format combination playback.
    4. Support multiple playback methods including computer connection, USB flash drive playback, and software system.

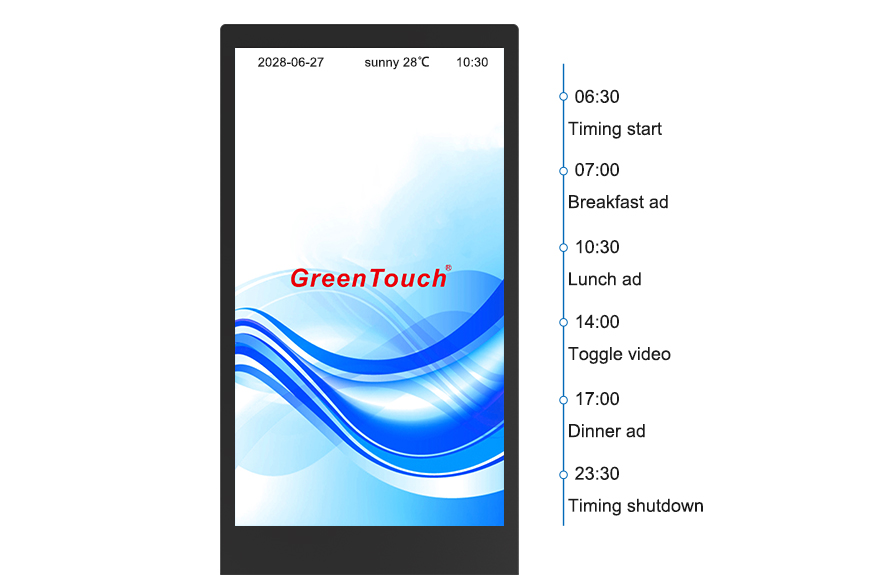

    5. Allows setting time-segmented playback and timed power on/off.
Application Cases

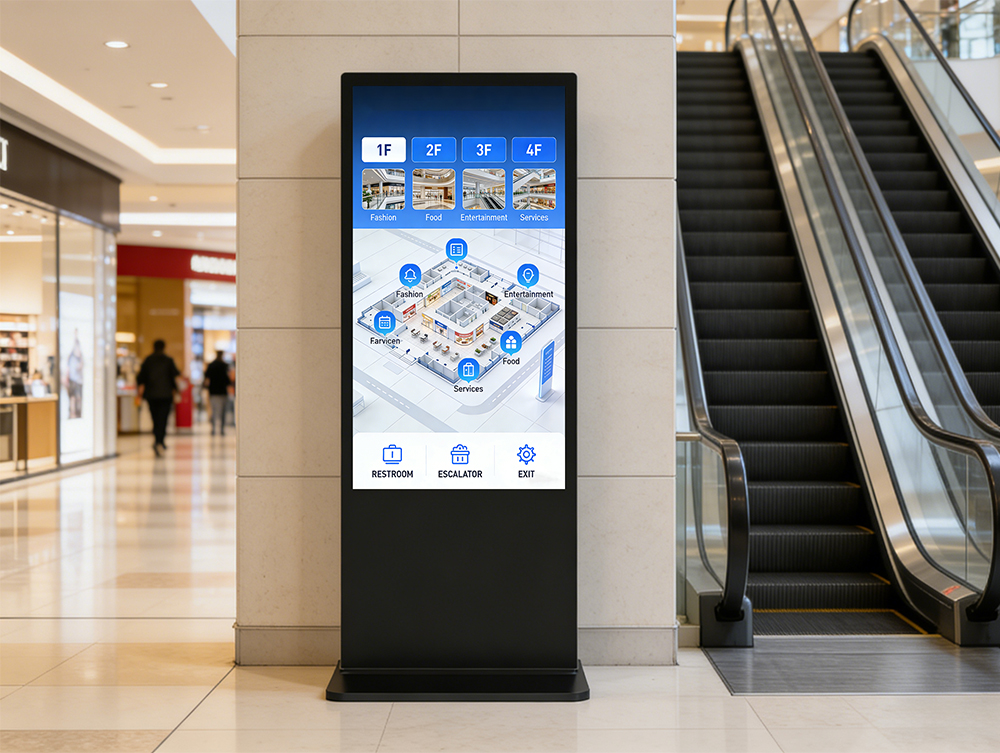

Shopping Mall
Hotel

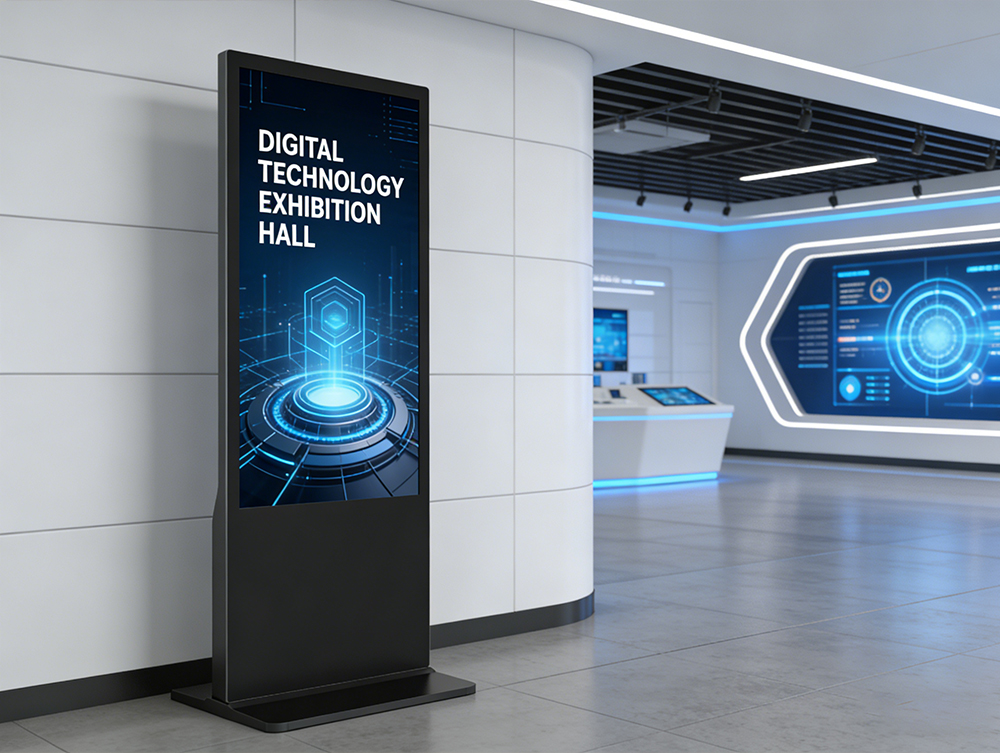

Exhibition Hall
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Floor Standing Digital Signage 32-65 Inches(6C Series)
Specifications
General

Manufacturer:GreenTouch

Product Name:Floor standing digital signage(6C Series)

Regular Sizes: 32",43",50",55",65"

Warranty:1-3 Years

Certificates:CE,FCC,RoHS,CB,HDMI,CCC

OS-Android

CPU:RK3568S Quad core 2.0G

RAM:2GB,4GB Optional

Storage:16G,32G,64G Optional

Ports:Support TF card

Sound Card:Built-in two-channel speaker

Wifi:Built-in 802.11b/g/n wireless

Panel

Panel Type:Active Matrix TFT LCD, LED Backlight

Diagonal Size:32 to 65 inches

Resolution:1920x1080,4k @60Hz

Aspect Ratio:9:16

Brightness:450,1000 nits

Environmental

Operating Time:Max.Non-Stop 24/7

Temperature Operating:0°C to 50°C

Temperature Storage:-20°C to 60°C

Humidity Operating:20% to 80% (No Condensation)

Humidity Storage:10% to 90% (Non-condensing)

Connectivity

Display Ports:HDMI,OTG,TF,POWER,AUDIO,RJ45,USB

Compliance

Certifications:CE,FCC,RoHS,CB,HDMI,CCC



Specification and download
Size

Model

Display portsRatio

Display Size

(W*H*T)

Active Area

Dimensions(H*V)

Brightness

(nits)

Resolution

@60Hz

Data Download
32"

GT-OC3206CLS-Android

HDMI,USB9:16440.4 x 1552.3 x 79mm392.9 x 698.4mm4501920 x 1080

GT-OC3206CLS-Android

43"

GT-OC4306CLS-Android

HDMI,USB

9:16

576.4 x 1732.6 x 79mm529.3 x 940.9mm4501920 x 1080

GT-OC4306CLS-Android

50"

GT-OC5006CLS-Android

HDMI,USB

9:16

663.4 x 1802.3 x 79mm616.4 x 1906mm450 3840 x 2160

GT-OC5006CLS-Android

55"

GT-OC5506CLS-Android

HDMI,USB

9:16

728.4 x 1852.3 x 79mm680.4 x 1209.6mm450 3840 x 2160

GT-OC5506CLS-Android

65"

GT-OC6506CLS-Android

HDMI,USB

9:16

850.4 x 1952.3 x 79.5mm803.5 x 1428.3mm450 3840 x 2160

GT-OC6506CLS-Android
