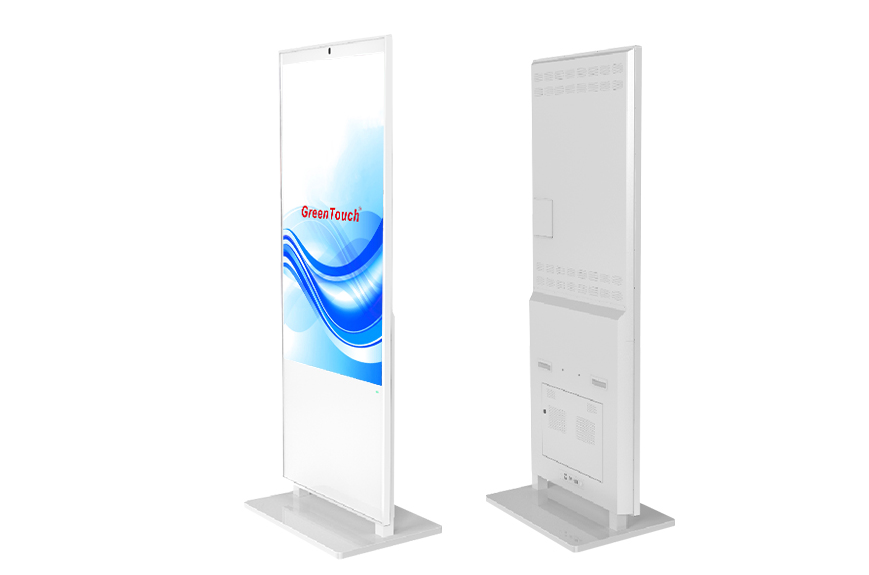

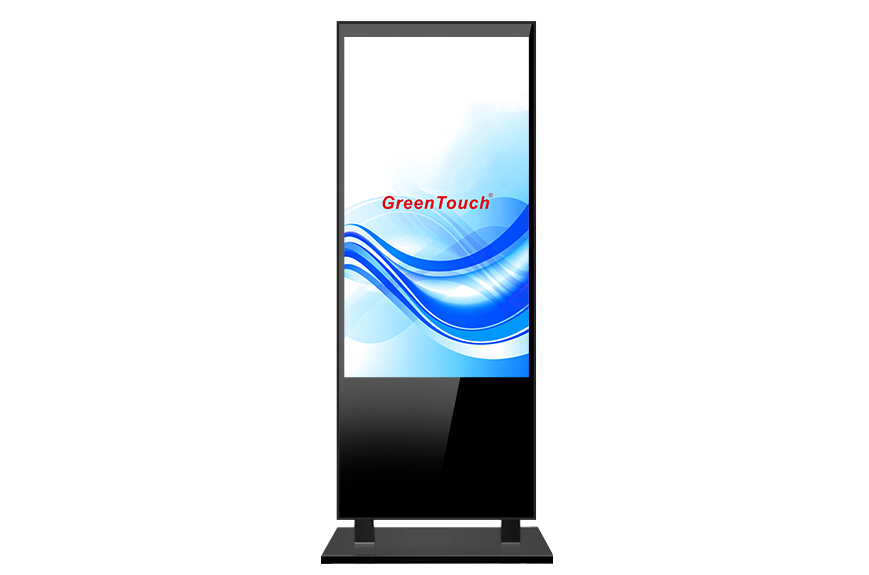

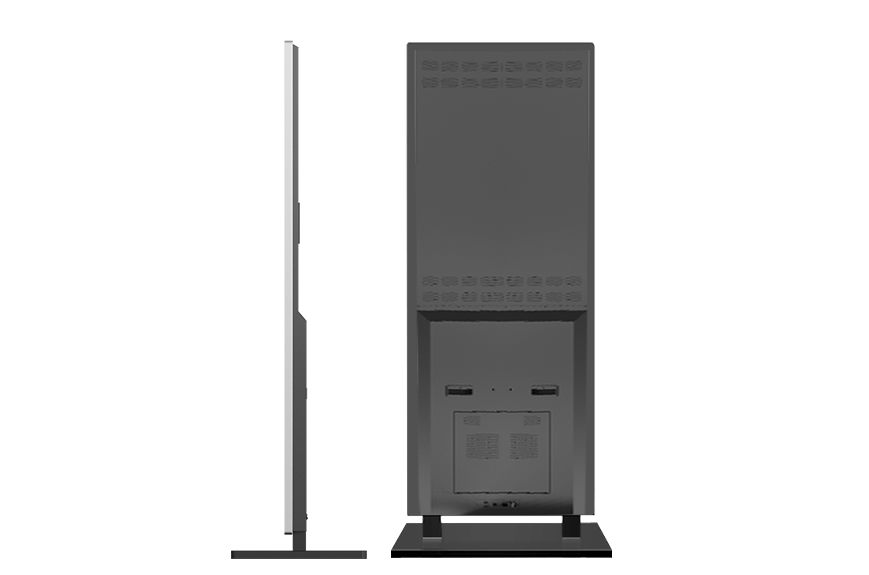

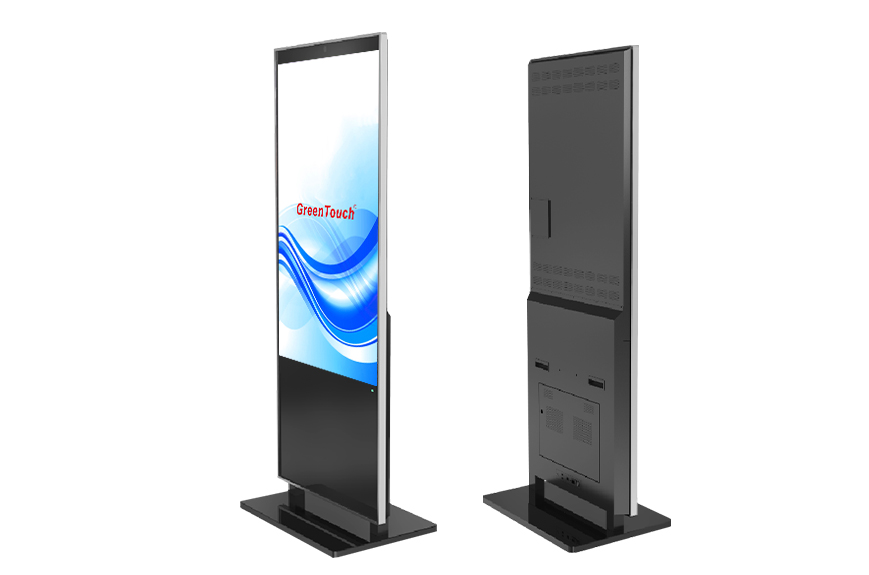

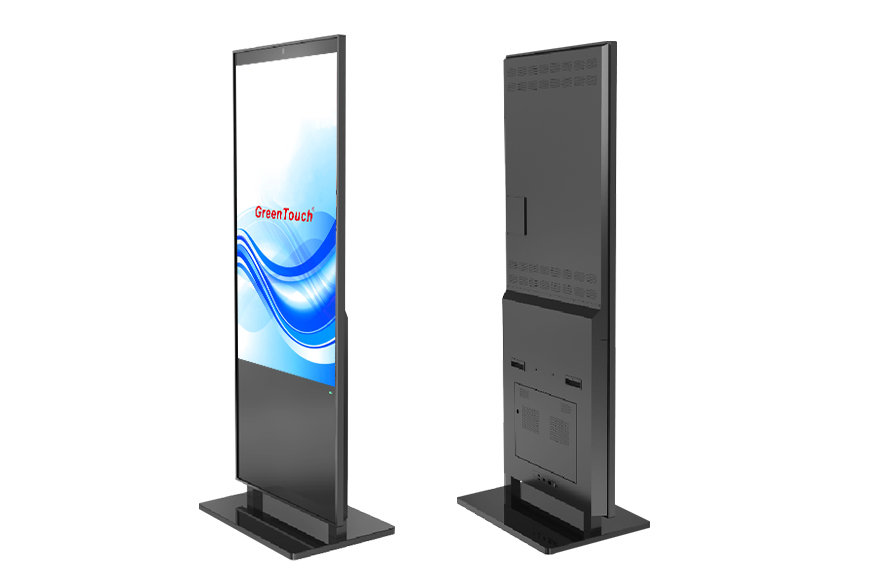

Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Product Information

Resolution:Full HD 1920x1080 or UHD 4K

Processor 1: RK3288/RK3399 Quad core1.8G

Processor 2: J1900,Core i3/ i5/ i7

Structure:29.3MM Aluminum frame, one-piece sheet metal

Design: Ultra-narrow bezel,only 10mm wide and 5.5mm deep

Features

● Constructed of metal, sturdy and integrated, anti-theft and vandal-resistant

● The base features a floating design and uses tempered glass

● Aviation-grade aluminum heat dissipation ensures low surface temperature

● ELED backplate mold, ultra-thin body

● Uses high-transparency tempered glass

● Quality-assured LED light strip with a lifespan of 60,000 hours

Product Description
  • Infrared Digital Signage Overview

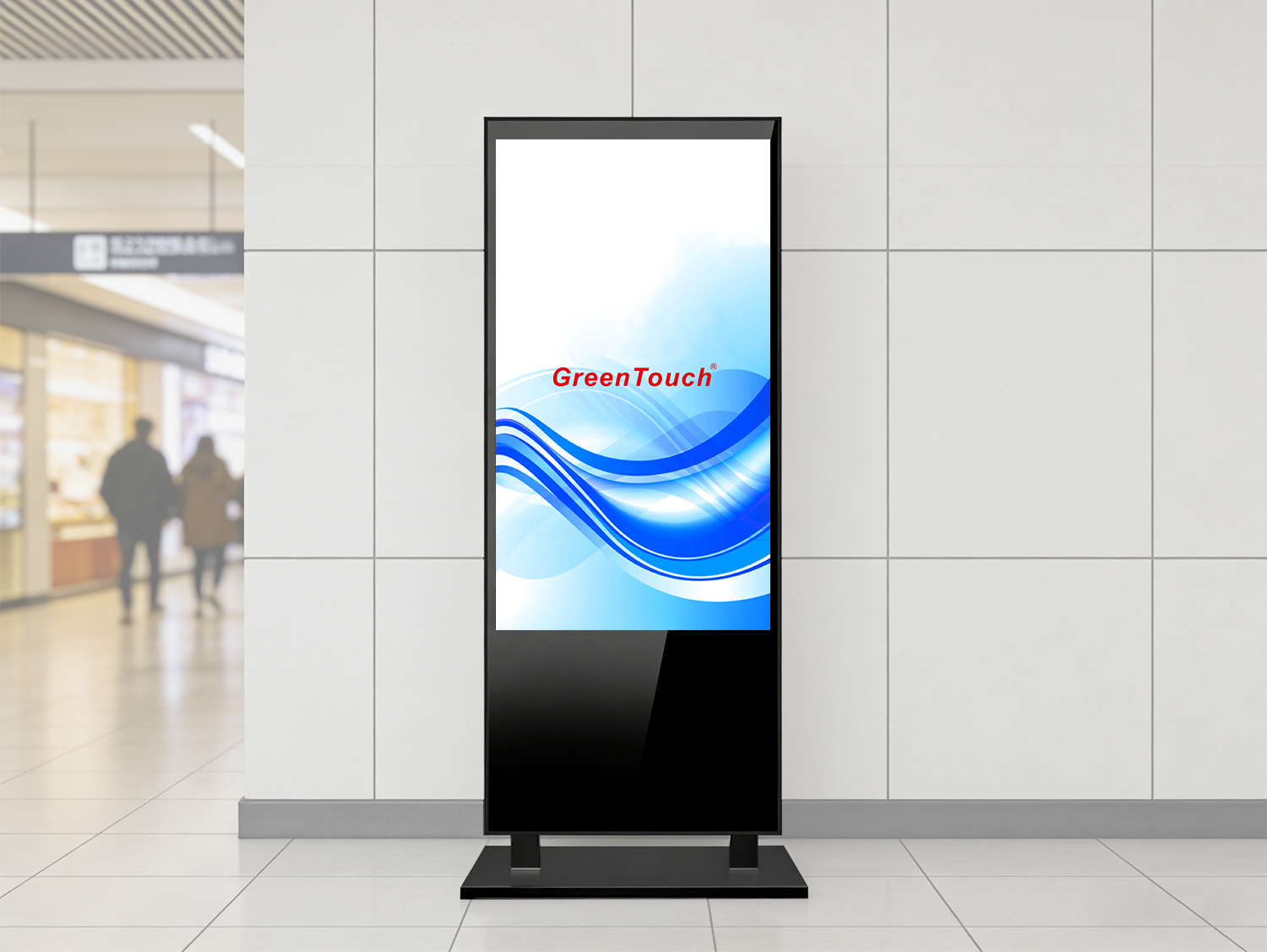

    Infrared Digital Signage Overview
    The GreenTouch Infrared(43”,50”,55”) floor standing digital signage enable the digital transformation of multiple industries such as commercial, public, cultural tourism, office, and services with full-scenario adaptability. The high-definition large screen presents high-quality visual effects, and the infrared touch response is sensitive, durable and damage-resistant. It can be flexibly deployed in various indoor public spaces and commercial places, and undertakes multiple functions such as brand promotion, information release, interactive services, and traffic conversion. It has comprehensive size coverage and is easy to install. It is a universal solution for offline digital communication and intelligent interaction in various industries.

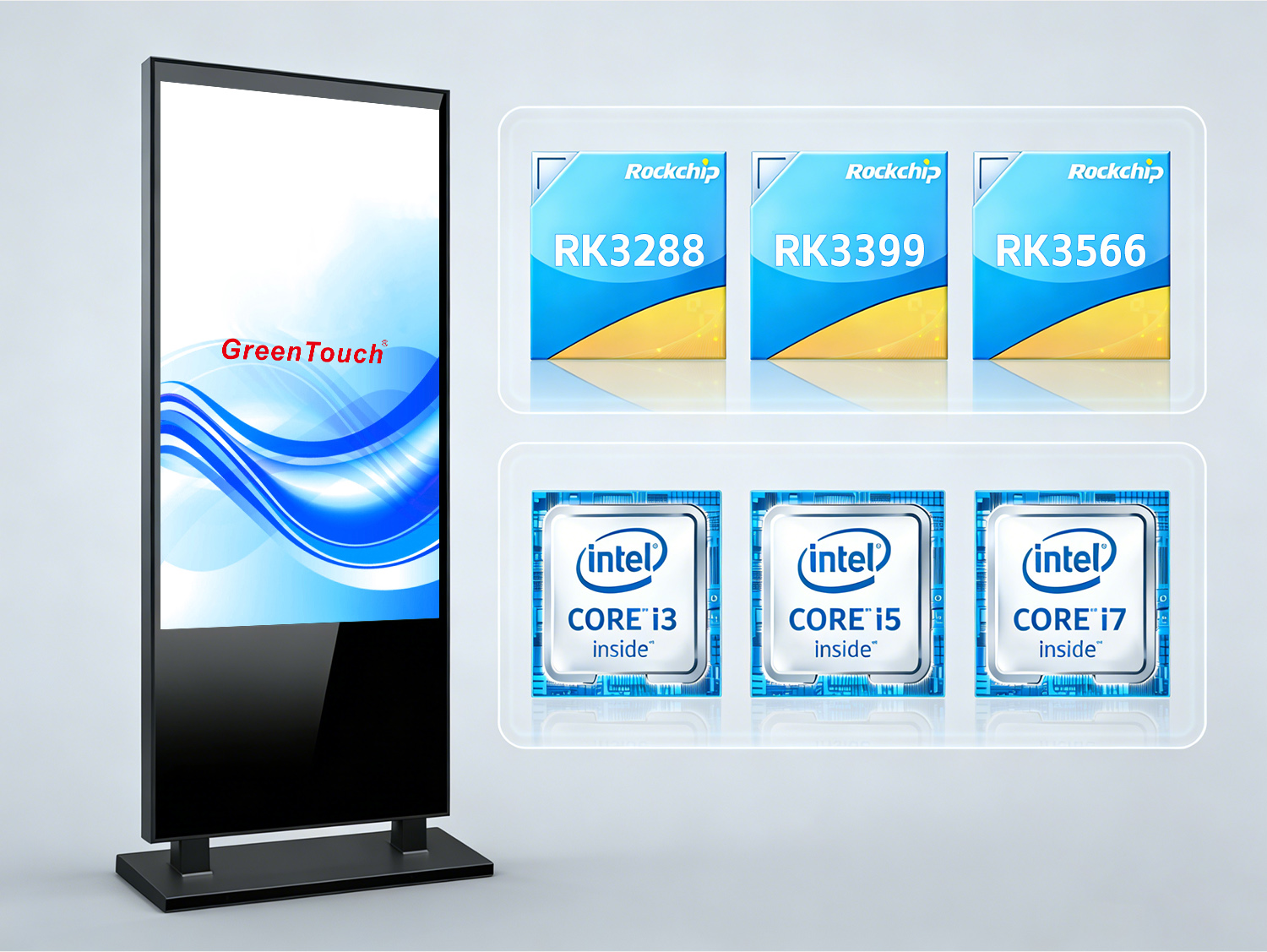

  • Configuration and Connectivity
    Configuration and Connectivity
    The GreenTouch digital signage SWLB series Optional Android or Windows configuration, Android interface is as follows: Lan, USB, HDMI, SD CARD, Audio Socket, Windows interface is as follows: HDMI, VGA, USB, Lan, Audio Socket,these connections are all positioned on the back . They uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz or high-performance low-power quad-core Rockchip RK3288/3399 processor with a main frequency of 1.8 GHz, features a gigabit Ethernet port for more efficient data transmission,built-in 802.11b/g/n wireless WIFI.

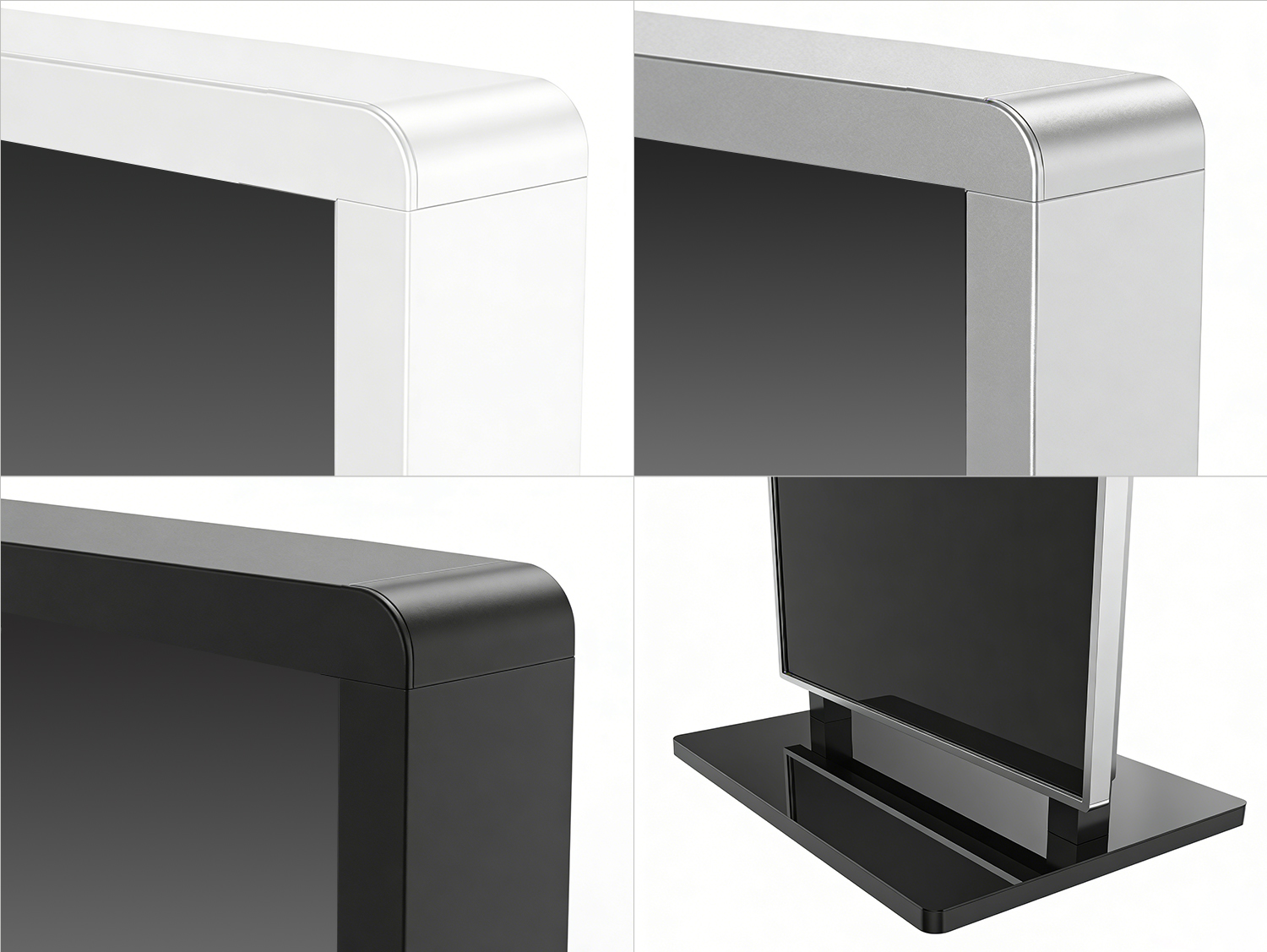

  • Appearance and Structure
    Appearance and Structure
    Our SWLB digital signage uses infrared touch technology,and the whole machine adopts integrated ELED backlighting, which is perfectly matched with the profile frame; the front frame is made of aerospace-grade aluminum and sandblasted; its rear metal back panel can be stamped with hundreds of tons to ensure the sturdiness of the body and show off the curved curves; the base adopts a floating design and uses tempered glass, which is high-end and elegant; each unit is equipped with internal wiring, AC socket and rocker switch.Reliable design and quality ensure 24/7 uninterrupted work.
  • Function Support
    Function Support
    1.Support custom dragging, stretching, zooming in, zooming out, and flipping pictures or videos.
    2. Come with an information publishing system, easily enabling remote management across regions.
    3. Support remote program publishing, free split-screen playback, and multi-format combination playback.
    4. Support multiple playback methods including computer connection,USB flash drive playback, and software system.
    5. Allow setting time-segmented playback and timed power on/off.
Application Cases
Shopping Mall
Hotel

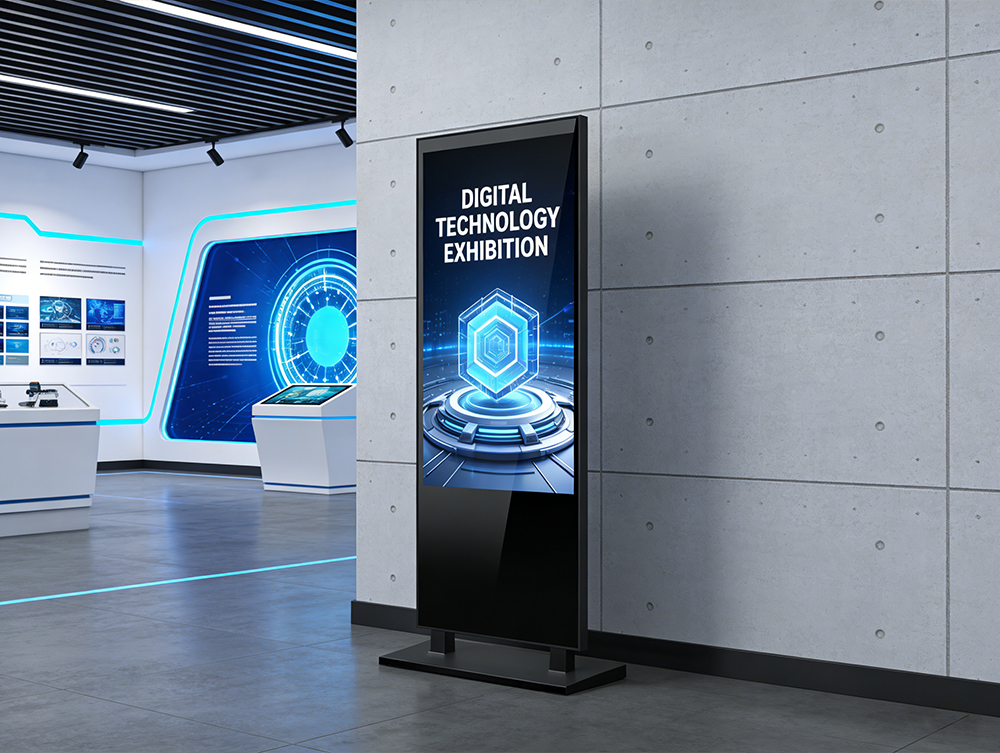

Exhibition Hall
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Floor Standing Digital Signage 43-55 Inches(SWLB Series)
Specifications
General

Manufacturer:GreenTouch

Product Name:Floor standing digital signage(SWLB)

Regular Sizes: 43",50",55"

Warranty:1-3 Years

Certificates:CE,FCC,RoHS,CB,HDMI,CCC

OS-Windows

CPU:Intel® Core™ i3/i5/i7,Intel J1900

Graphics:Intel HD graphics

RAM:4GB,8GB Optional

Storage:32G,64G,128G,256G Optional;HDD:500G

Sound Card:Built-in two-channel speaker

Wifi:Built-in 802.11b/g/n wireless


OS-Android

CPU:RK3288/RK3299 Quad core1.8G

RAM:2GB,4GB Optional

Storage:16G,32G,64G Optional

Ports:Support SD card

Sound Card:Built-in two-channel speaker

Wifi:Built-in 802.11b/g/n wireless

Panel

Panel Type:Active Matrix TFT LCD, ELED Backlight

Diagonal Size:43 to 55 inches

Resolution:1920x1080@60Hz

Aspect Ratio:9:16

Brightness:300 nits

Environmental

Operating Time:Max.Non-Stop 24/7

Temperature Operating:0°C to 40°C

Temperature Storage:-20°C to 60°C

Humidity Operating:20% to 80% (No Condensation)

Humidity Storage:5% to 95% (Non-condensing)

Connectivity

Display Ports 1:LAN,USB,HDMI,SD CARD

Display Ports 2:HDMI,VGA,USB3.0,USB2.0,LAN

Compliance

Certifications:CE,FCC,RoHS,CB,HDMI,CCC



Specification and download
Size

Model

Display portsRatio

Display Size

(W*H*T)

Active Area

Dimensions(H*V)

Brightness

(nits)

Resolution

@60Hz

Data Download

43"

GT-TC430SWLB

HDMI,USB

9:16

580.8 x 1800 x 35.3mm941.8 x 530.6mm3001920 x 1080

TC-430SWLB

50"

GT-TC500SWLB

HDMI,USB

9:16

655.4 x 1850 x 50.3mm1074.7 x 605.2mm300 1920 x 1080

TC-500SWLB

55"

GT-TC550SWLB

HDMI,USB

9:16

731.8 x 1900 x 51.3mm1210.8 x 682.4mm300 1920 x 1080

TC-550SWLB
