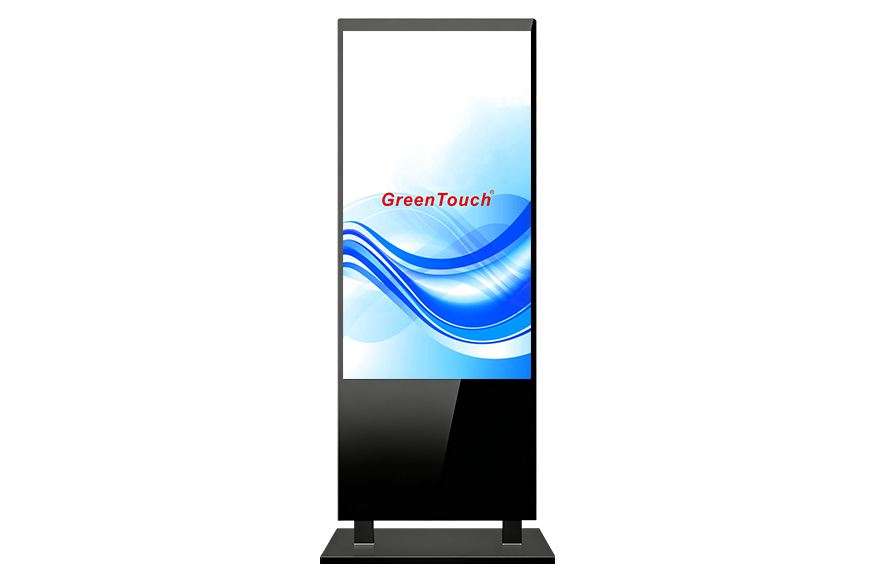

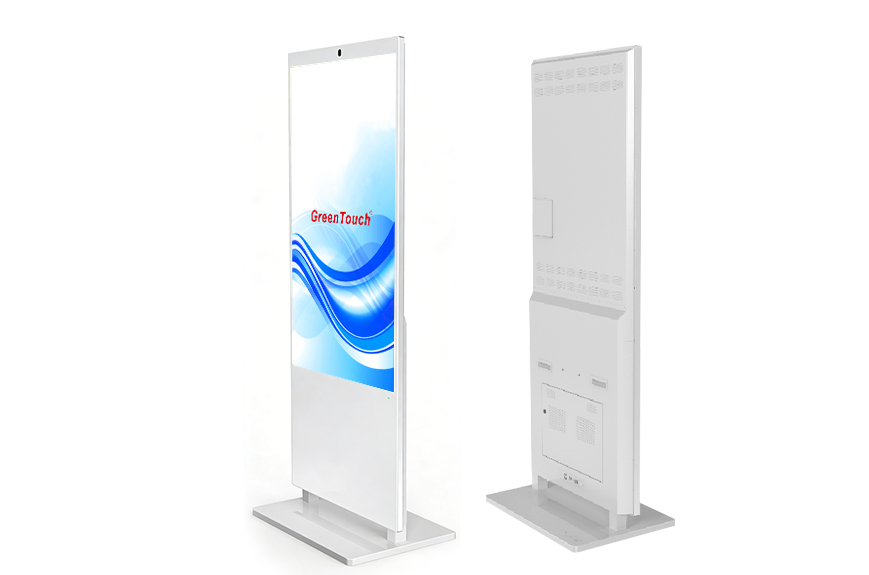

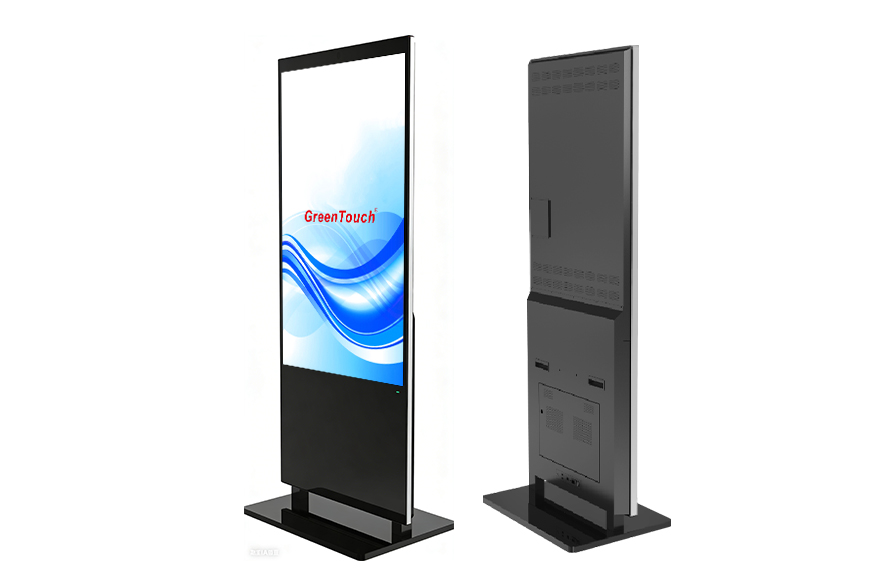

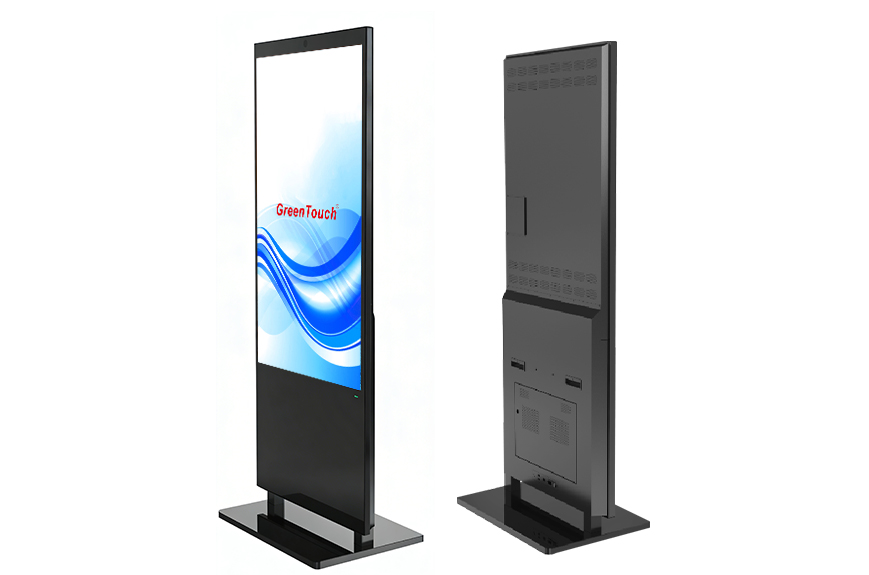

Floor Standing Digital signage 43-55 Inches(SWLD Series)

Floor Standing Digital signage 43-55 Inches(SWLD Series)

Product Information

Resolution:Full HD 1920x1080 or UHD 4K

Processor 1: RK3288/RK3399 Quad core1.8G

Processor 2: J1900,Core i3/ i5/ i7

Structure:22.1MM Aluminum frame, one-piece sheet metal

Design: front glass panel adopts "diamond cutting technology”

Features

● Constructed of metal, sturdy and integrated, anti-theft and vandal-resistant

● The base features a floating design and uses tempered glass

● Aviation-grade aluminum heat dissipation ensures low surface temperature

● ELED backplate mold, ultra-thin body

● Uses high-transparency tempered glass

● Quality-assured LED light strip with a lifespan of 60,000 hours

Get a quote

Online Consultation

Product Description
Application Cases
Specifications
Specification and download

Product Description

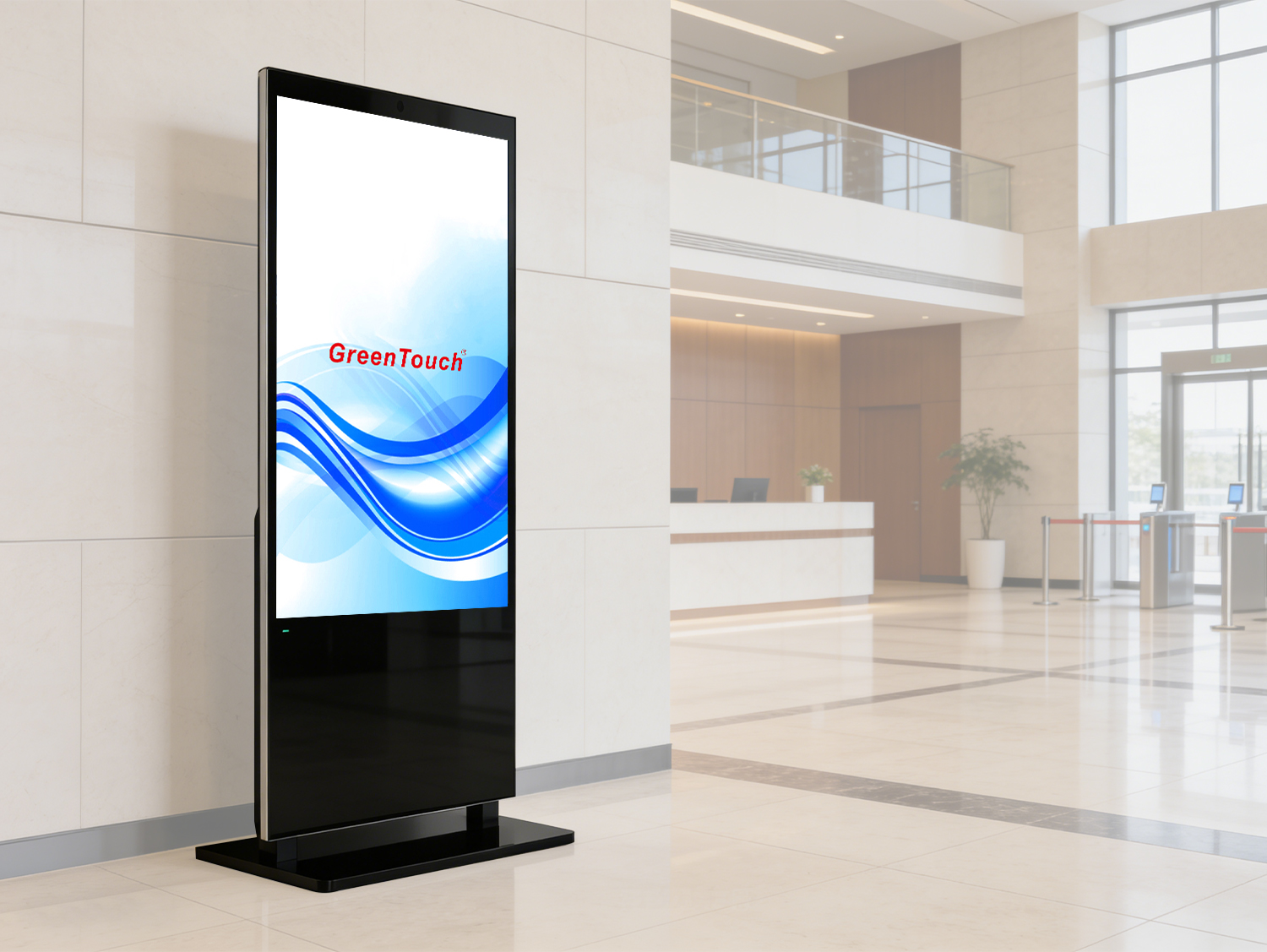

Infrared Digital Signage Overview

The GreenTouch Capaccitive（43”,50”,55”) floor standing digital signage with high-definition display and precise multi-touch as the core, covers diverse scenarios such as commercial retail, public services, cultural and tourism exhibition halls, transportation hubs, and corporate offices. It can realize functions such as brand promotion, event release, product shopping guide, floor navigation, information inquiry, queue call, policy announcement, interactive experience and other functions. With intelligent interaction and unified management, it can create an efficient and immersive offline information release and service experience for you.

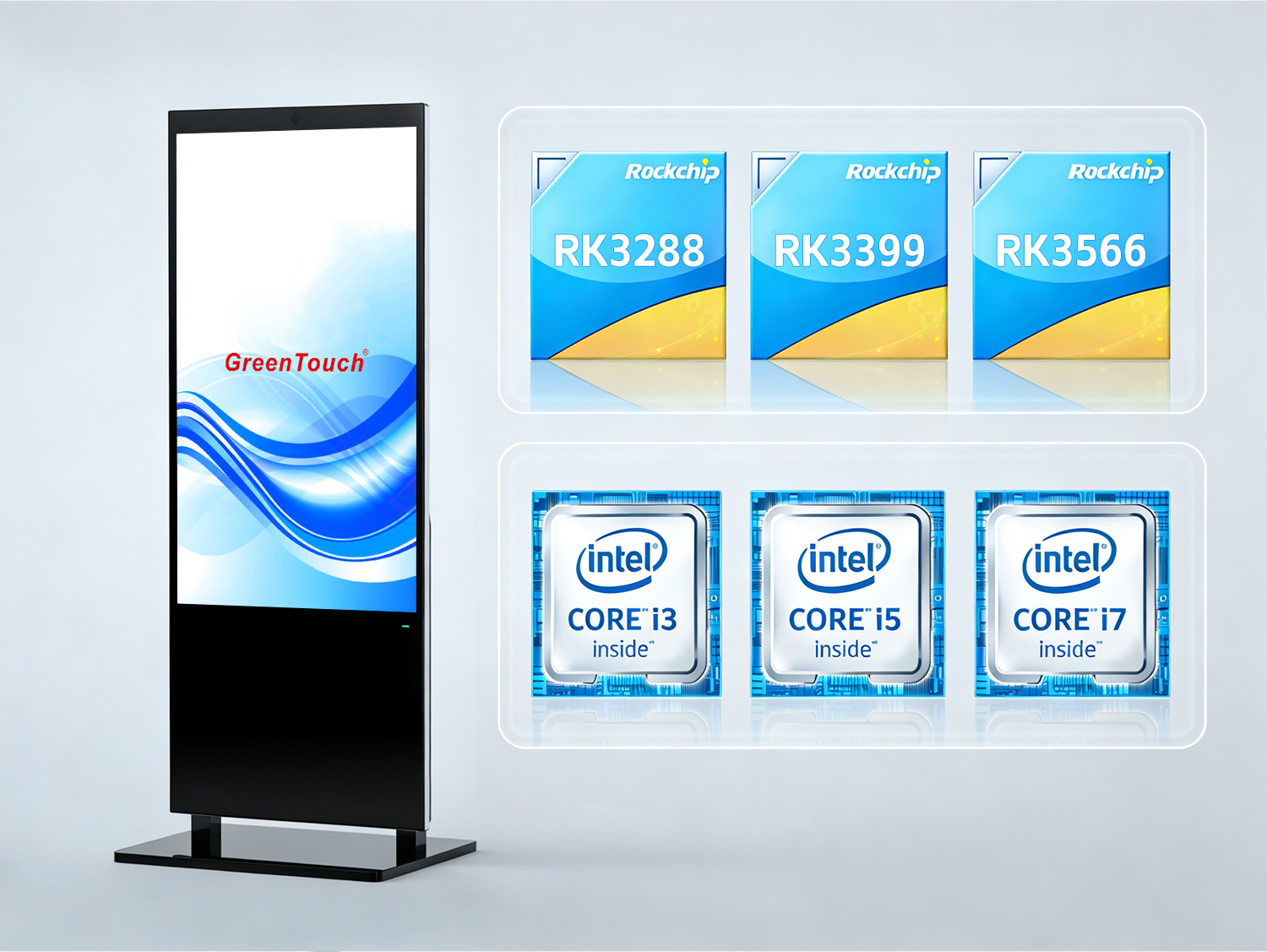

Configuration and Connectivity

The GreenTouch digital signage SWLD series Optional Android or Windows configuration, Android interface is as follows: Lan, USB, HDMI, SD CARD, Audio Socket, Windows interface is as follows: HDMI, VGA, USB, Lan, Audio Socket,these connections are all positioned on the back . They uses the high-performance industrial quad-core Intel® Core™ i3/i5/i7 processor with a main frequency of 2.0GHz or high-performance low-power quad-core Rockchip RK3288/3399 processor with a main frequency of 1.8 GHz, features a gigabit Ethernet port for more efficient data transmission,built-in 802.11b/g/n wireless WIFI.

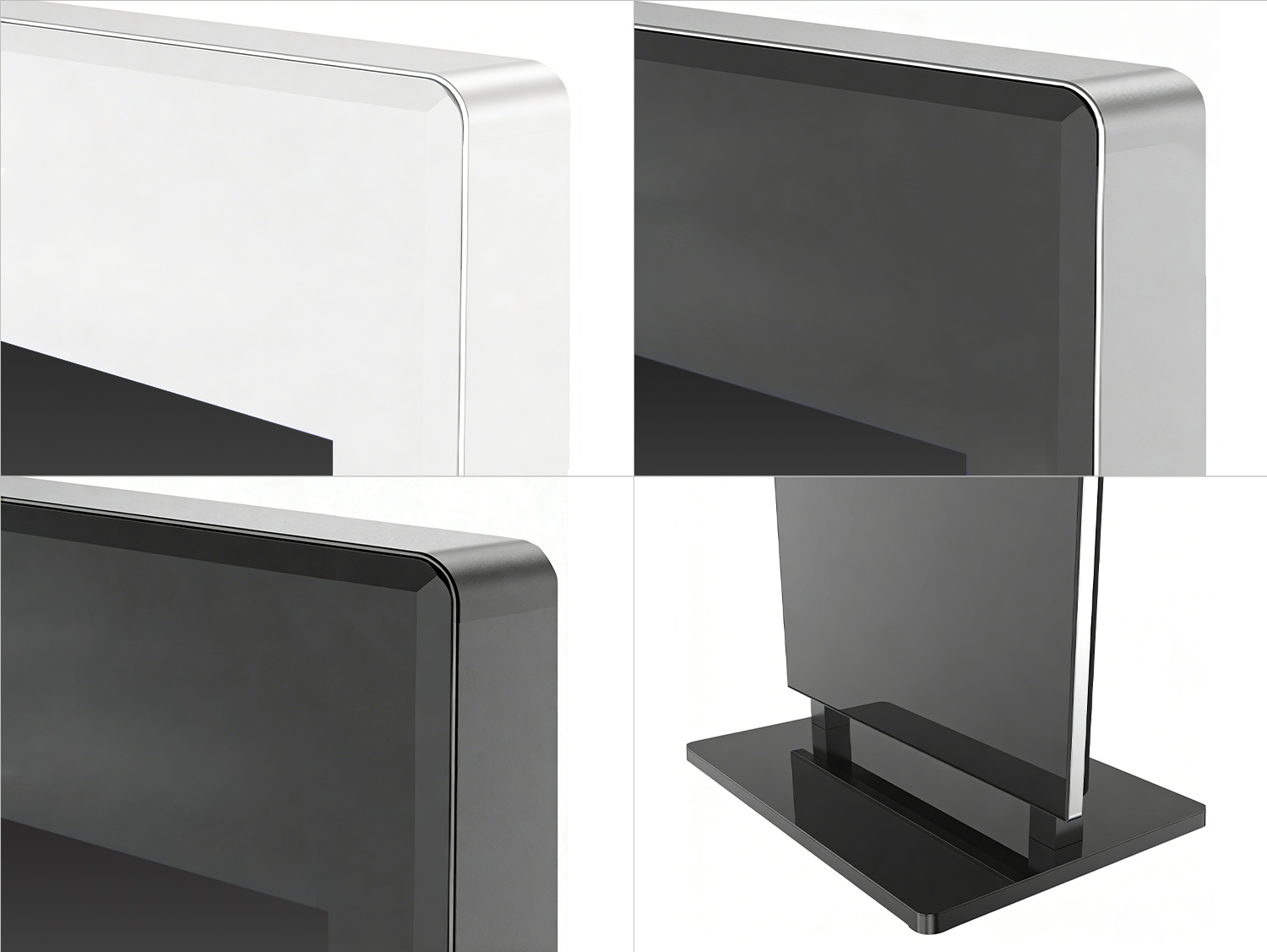

Appearance and Structure

Our SWLD digital signage uses capacitive touch technology,and the whole machine adopts integrated ELED backlighting, which is perfectly matched with the profile frame; the front frame is made of aerospace-grade aluminum and sandblasted; its rear metal back panel can be stamped with hundreds of tons to ensure the sturdiness of the body and show off the curved curves; the base adopts a floating design and uses tempered glass, which is high-end and elegant; each unit is equipped with internal wiring, AC socket and rocker switch.Reliable design and quality ensure 24/7 uninterrupted work.
Function Support

1.Support custom dragging, stretching, zooming in, zooming out, and flipping pictures or videos.
2. Come with an information publishing system, easily enabling remote management across regions.
3. Support remote program publishing, free split-screen playback, and multi-format combination playback.
4. Support multiple playback methods including computer connection,USB flash drive playback, and software system.
5. Allow setting time-segmented playback and timed power on/off.

Application Cases

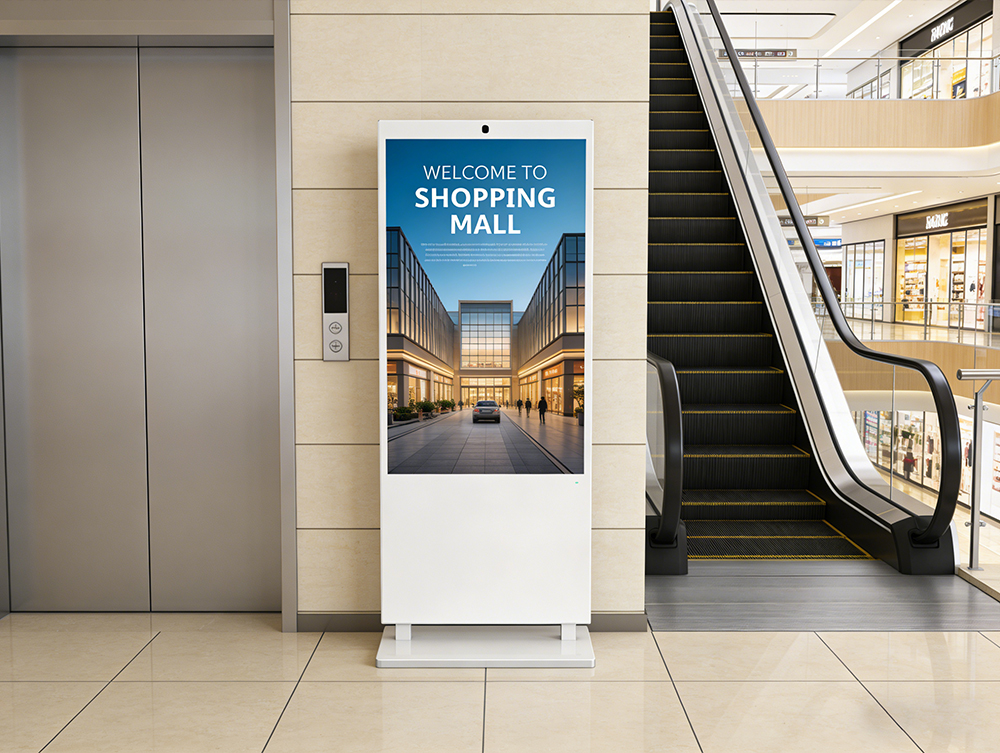

Shopping Mall

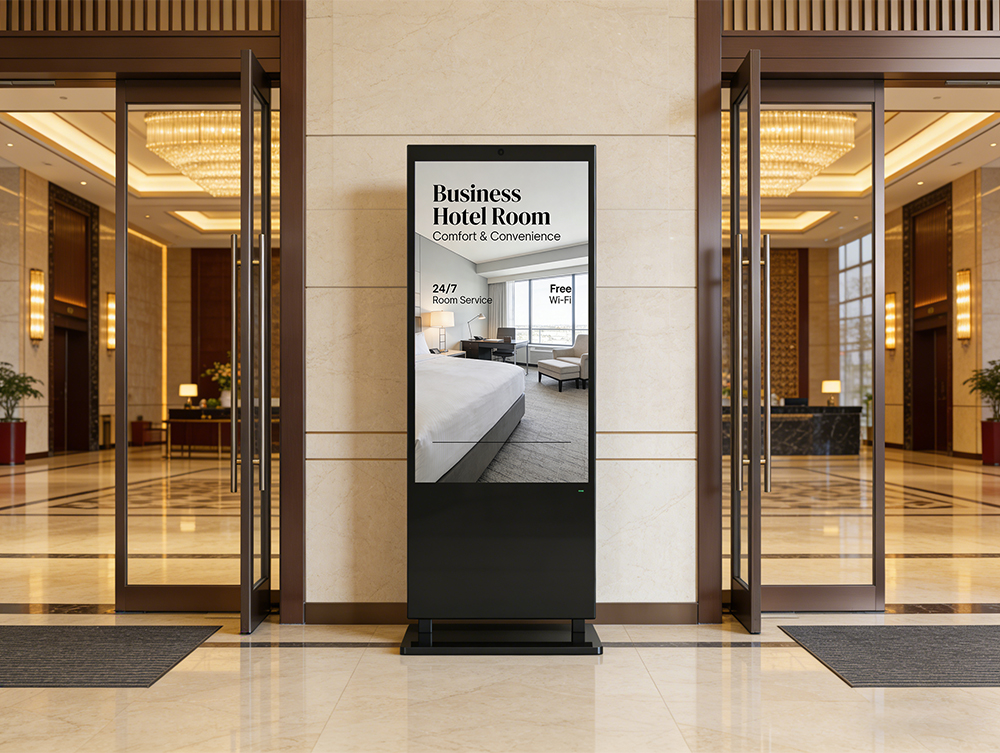

Hotel

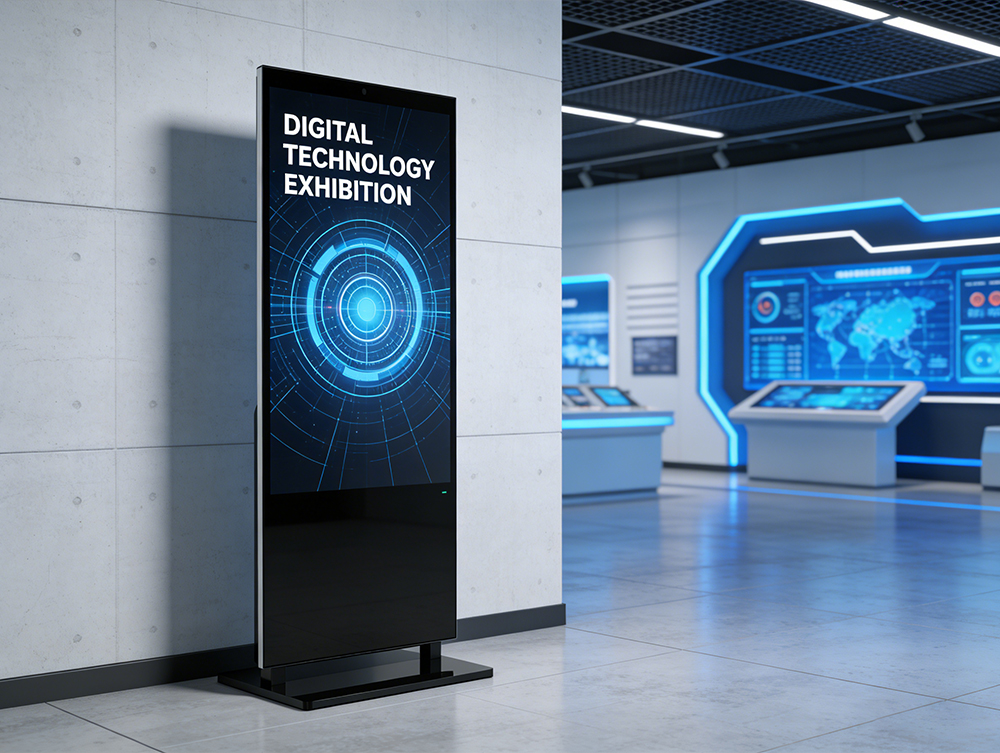

Exhibition Hall

Specifications

General Manufacturer:GreenTouch Product Name:Floor standing digital signage(SWLB) Regular Sizes: 43",50",55" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,HDMI,CCC

OS-Windows CPU:Intel® Core™ i3/i5/i7,Intel J1900 Graphics:Intel HD graphics RAM:4GB,8GB Optional Storage:32G,64G,128G,256G Optional;HDD:500G Sound Card:Built-in two-channel speaker Wifi:Built-in 802.11b/g/n wireless

OS-Android CPU:RK3288/RK3299 Quad core1.8G RAM:2GB,4GB Optional Storage:16G,32G,64G Optional Ports:Support SD card Sound Card:Built-in two-channel speaker Wifi:Built-in 802.11b/g/n wireless

Panel Panel Type:Active Matrix TFT LCD, ELED Backlight Diagonal Size:43 to 55 inches Resolution:1920x1080@60Hz Aspect Ratio:9:16 Brightness:300 nits

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:0°C to 40°C Temperature Storage:-20°C to 60°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:5% to 95% (Non-condensing)

Connectivity Display Ports 1:LAN,USB,HDMI,SD CARD Display Ports 2:HDMI,VGA,USB3.0,USB2.0,LAN

Compliance Certifications:CE,FCC,RoHS,CB,HDMI,CCC

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
43"	GT-TC430SWLD	HDMI,USB	9:16	580.8 x 1800 x 28.6mm	940.5 x 530.8mm	300	1920 x 1080	TC-430SWLD
50"	GT-TC500SWLD	HDMI,USB	9:16	655.4 x 1850 x 44.1mm	1074.7 x 605mm	300	1920 x 1080	TC-500SWLD
55"	GT-TC550SWLD	HDMI,USB	9:16	731.8 x 1900 x 44.1mm	1210.8 x 682.4mm	300	1920 x 1080	TC-550SWLD
