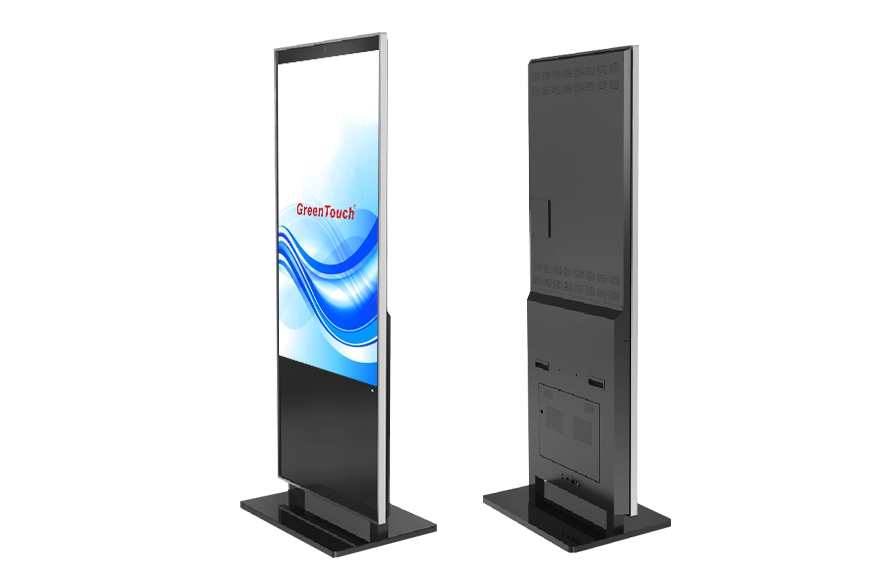

43-55 Inch Floor Standing Digital Signage: SWLB Series Design and Features

Modern floor standing displays need to do more than show advertisements. In retail stores, public facilities, offices, cultural venues, and service areas, a digital signage unit may need to display high-resolution content, support interactive functions, connect to a local network, operate continuously, and withstand frequent public use. The physical structure is equally important because the display is installed directly in an open indoor environment rather than inside a protected cabinet.

The Floor Standing Digital Signage 43-55 Inches(SWLB Series) is designed around these practical requirements. Available in 43-inch, 50-inch, and 55-inch configurations, the SWLB Series combines Full HD or UHD 4K display options, infrared touch technology, an integrated metal structure, flexible computing platforms, and remote content management functions in a floor standing format.

A Floor Standing Structure Built for Public Environments

The structure of a floor standing digital signage unit directly affects its stability, appearance, maintenance, and service life. The SWLB Series uses a 29.3 mm aluminum frame combined with a one-piece sheet metal structure. This creates an integrated enclosure rather than relying on a collection of loosely assembled external components.

The front frame uses aerospace-grade aluminum with a sandblasted surface finish. The rear metal panel is formed using high-pressure stamping equipment to increase structural strength. This is particularly useful for equipment installed in shopping areas, public spaces, offices, and other locations where the enclosure may be exposed to accidental contact.

The metal construction also provides anti-theft and vandal-resistant characteristics. For a floor standing display that remains accessible to visitors throughout the day, these structural details are more practical than simply focusing on screen specifications.

The base uses a floating design with tempered glass, giving the unit a stable footprint while maintaining a relatively clean appearance. Internal wiring, an AC socket, and a rocker switch are integrated into the unit, helping reduce exposed cables around the installation area.

Ultra-Narrow Front Design with a 10 mm Bezel

The visual appearance of a digital signage display is strongly influenced by its bezel and overall body thickness. The SWLB Series uses an ultra-narrow bezel measuring only 10 mm wide, while the specified front design depth is approximately 5.5 mm.

This narrow profile helps maximize the visual area of the display without making the entire unit look bulky. It is useful when multiple information elements need to be presented on a large screen while maintaining a clean commercial appearance.

The display also uses an integrated ELED backlight structure and an ultra-thin body design. A high-transparency tempered glass layer is used on the front, helping maintain screen visibility while adding protection to the display surface.

For installations where appearance is part of the customer experience, the combination of the aluminum frame, narrow bezel, tempered glass, and floating base creates a more integrated floor standing display rather than a conventional monitor mounted on a separate stand.

Full HD or UHD 4K Display Options

The SWLB Series Floor Standing Digital Signage supports either Full HD 1920 × 1080 resolution or UHD 4K resolution, depending on the configuration.

The choice between Full HD and 4K should be based on the content being displayed and the viewing environment. Full HD can be suitable for standard promotional graphics, announcements, menus, directional information, and video content where extreme image detail is not required.

UHD 4K becomes more useful when the display is intended for detailed product images, high-resolution promotional videos, maps, visual presentations, or content containing small text and graphic elements.

The LED light strip is specified for a service life of up to 60,000 hours. Combined with the integrated ELED backlight structure, this supports long-term operation where the signage is expected to remain active for extended periods.

Infrared Touch for Interactive Content

The SWLB Series is not limited to passive advertising. It uses infrared touch technology to allow users to interact directly with the large display.

Infrared touch technology is particularly practical for public-facing applications because the sensing components are located around the display rather than requiring a complex touch layer directly integrated into the LCD panel. The supplied product information describes the touch response as sensitive, durable, and damage-resistant.

This allows the same floor standing unit to perform different functions depending on the installed content. A retail display can present product information and allow visitors to browse additional details. An office or public facility can provide interactive information. A service area can use the display for self-guided navigation or information retrieval.

The touch function therefore works together with the software and content management system rather than being treated as an isolated hardware feature.

Android and Windows Computing Options

A major advantage of the SWLB Series is the availability of different computing configurations. Depending on the application, users can select an Android-based platform using Rockchip RK3288 or RK3399 quad-core processors with a main frequency of 1.8 GHz, or a Windows configuration based on J1900 or Intel Core i3, i5, or i7 processors.

The Android configuration provides LAN, USB, HDMI, SD card, and audio interfaces. The Windows configuration includes HDMI, VGA, USB, LAN, and audio interfaces. These connections are positioned on the rear of the unit to keep the front and side appearance clean.

The Windows option can be useful where the signage system needs to run existing PC-based software or integrate into a Windows-oriented IT environment. Android can provide a simpler platform for dedicated signage applications and content playback.

The built-in Gigabit Ethernet interface supports faster network data transmission, while 802.11b/g/n Wi-Fi provides wireless connectivity for installations where wired network access is less convenient.

Remote Content Management and Flexible Playback

For organizations managing multiple digital signage units, content management can be more important than the display hardware itself. The Floor Standing Digital Signage 43-55 Inches(SWLB Series) supports an information publishing system that enables remote management across different locations.

Operators can remotely publish programs, configure playback content, and manage different display units without physically accessing each device. This is useful for businesses operating several stores, service centers, offices, or public information points.

The system also supports free split-screen playback and multi-format content combinations. Images and videos can be dragged, stretched, zoomed, reduced, or flipped according to the content layout.

For daily operation, the display supports several playback methods, including computer connection, USB flash drive playback, and software-based content management. Time-segmented playback and scheduled power-on or power-off functions can also be configured.

For example, a retail display can show promotional content during business hours and automatically switch to another information program at a predefined time. This reduces the need for staff to manually change content every day.

Heat Dissipation for Continuous Operation

Continuous operation requires more than a powerful processor and a bright display. Heat generated inside the enclosure needs to be managed effectively to prevent unnecessary temperature increases.

The SWLB Series uses aviation-grade aluminum for heat dissipation. The aluminum structure helps transfer heat away from internal components while supporting a lower surface temperature.

This is combined with the metal rear panel and integrated enclosure design. The product is intended for reliable 24/7 operation, making thermal design particularly relevant for installations where the display remains powered throughout the day.

The design also avoids unnecessary external components that could interfere with airflow or create additional maintenance points.

Why Manufacturing Capability Matters for Digital Signage

For commercial digital signage projects, consistency between units can be as important as the specifications of an individual display. A manufacturer needs to control the touch panel, display integration, enclosure, electronics, assembly, and testing processes.

ShenZhen GreenTouch Technology Co.,Ltd. is a professional manufacturer of touch products, including capacitive touch screens, resistive touch screens, infrared touch frames, nano touch foil, touch monitors, touch all-in-one PCs, and advertising digital signage.

The company operates a fully automatic production line and a fully enclosed dust-free workshop. It has obtained ISO9001 quality management system certification and ISO14001 environmental management system certification, as well as national and Shenzhen high-tech enterprise certifications.

Its production and R&D capabilities include more than 20 technical engineers, over 50 new products annually, and more than 10 annual patents. The company also operates a 5,000 m² standard production workshop for touch monitor and touch all-in-one manufacturing, with a daily production capacity of more than 600 touch panels.

GreenTouch maintains warehouse facilities in Huizhou and Shenzhen with a combined area of approximately 2,000 m² and storage capacity for up to 20,000 standard units. These capabilities support both standard product supply and projects requiring customized touch and display configurations.

A Practical Display Platform for Long-Term Deployment

The SWLB Series combines several elements that need to work together in an actual digital signage installation: a 43-55 inch large display, Full HD or 4K resolution, infrared touch, flexible Android or Windows computing, multiple connection options, remote content management, a reinforced metal enclosure, and thermal management for continuous operation.

Its 10 mm ultra-narrow bezel, aerospace-grade aluminum frame, tempered glass floating base, and integrated ELED backlight also address the physical requirements of floor standing equipment used in open indoor environments.

For projects where digital signage needs to operate as both a display and an interactive information terminal, these features provide a practical foundation. The final configuration can then be determined according to screen size, resolution, operating system, processor, network connection, playback requirements, and installation conditions.

For retail, public information, commercial services, offices, cultural venues, and other indoor environments, the Floor Standing Digital Signage 43-55 Inches(SWLB Series) provides a configurable platform for combining large-screen communication with interactive digital services.
