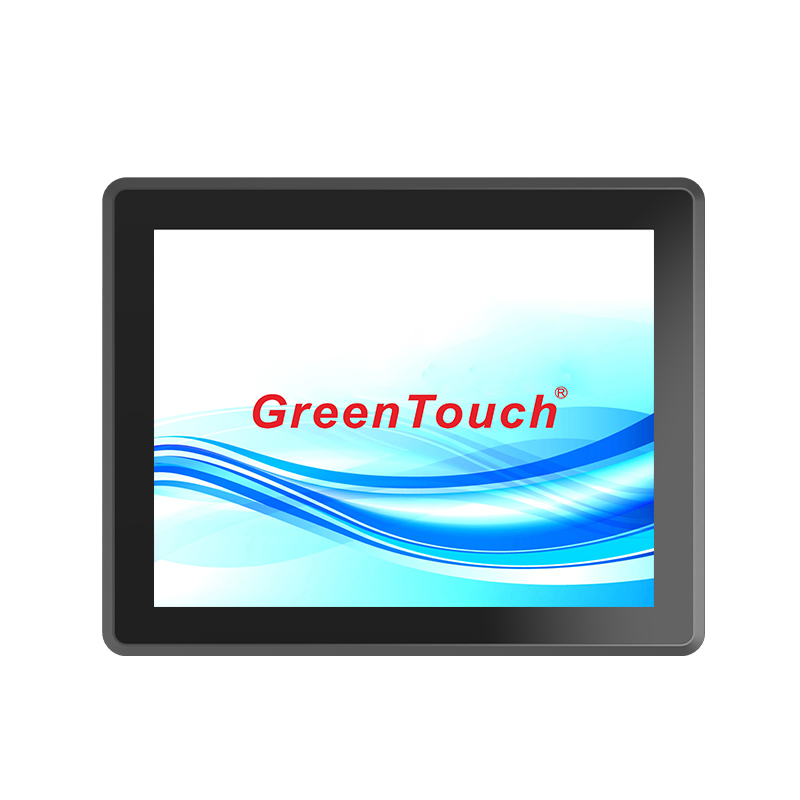

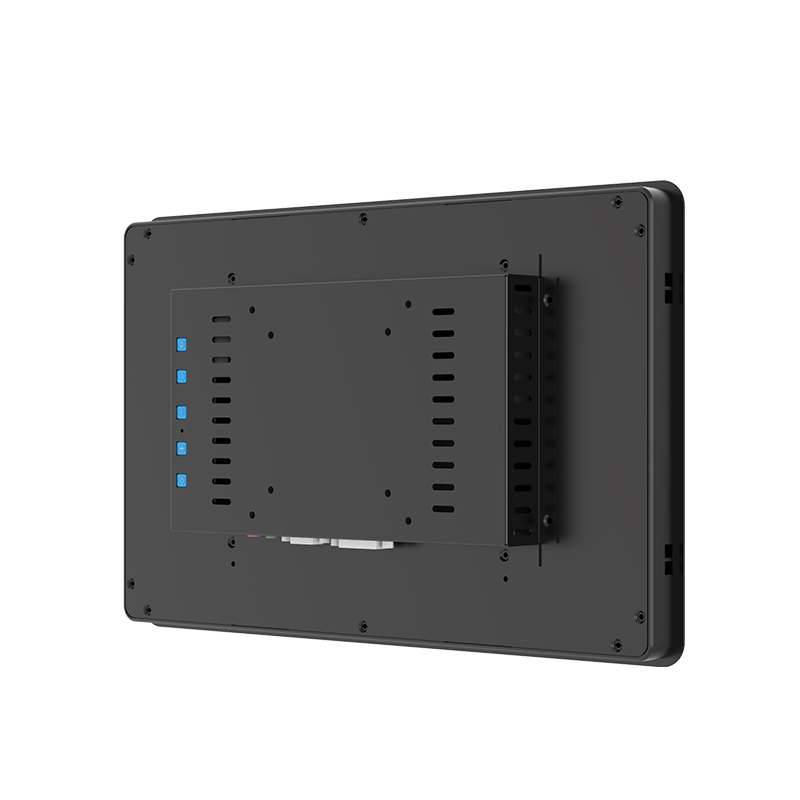

Panel Mount Touch Monitor 10.1-23.8 Inches(3E Series)

Panel Mount Touch Monitor 10.1-23.8 Inches(3E Series)

Product Information

Design:Precision compact frame, simple and easy to integrate

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Mounting: Embedded,Wall-mounted,Desktop

Customizable: Size,Logo,Color,Casing,Packaging

Features

● Smart and sensitive with up to 10 points Pcap touch

● Industrial-grade LCD panels for long operating life

● IP65 and front protection to resist water and dust

● Multiple industrial protections, stable operation 24/7

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

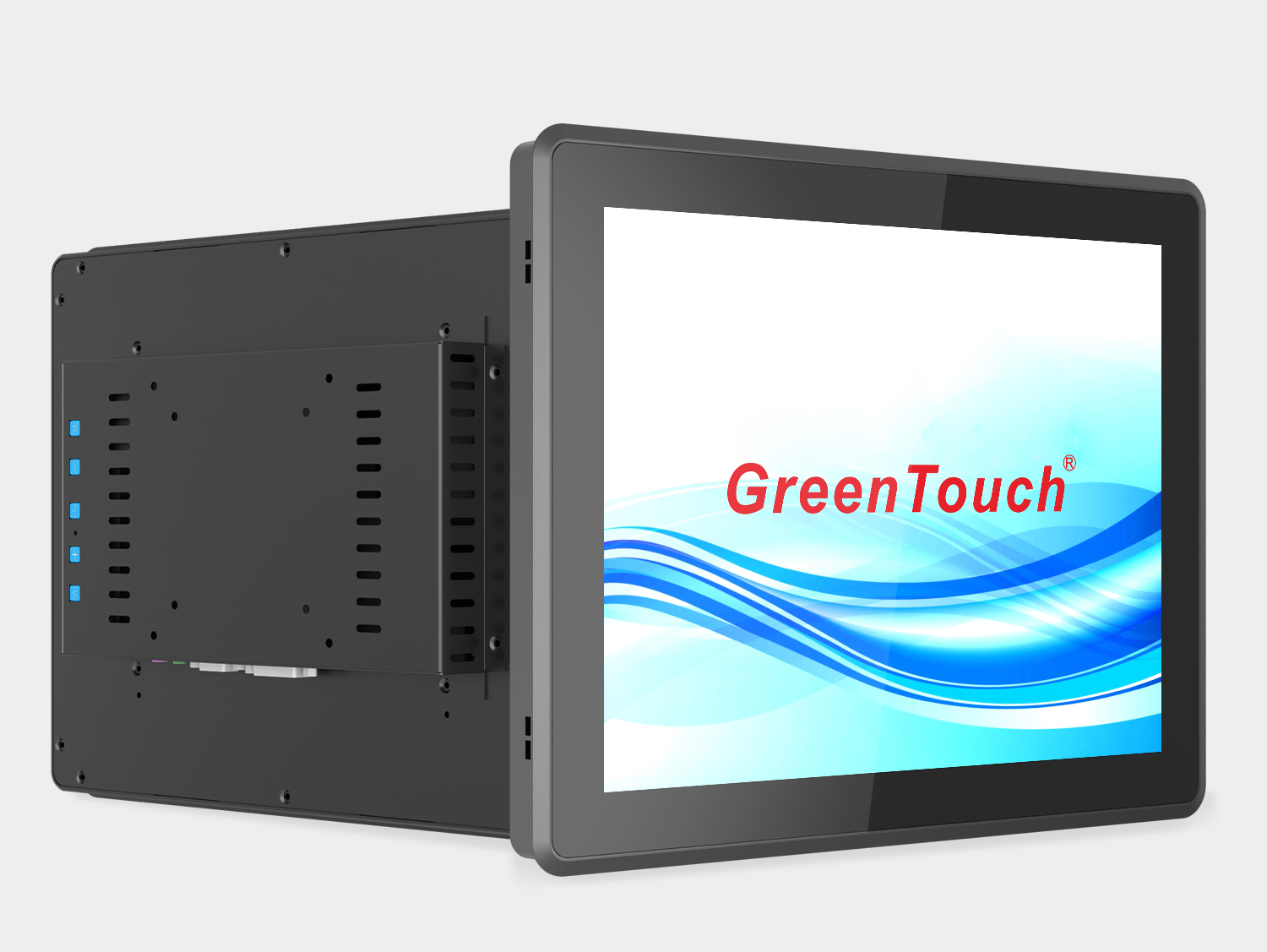

3E Touch Monitor Overview

GreenTouch's panel mount touch monitor 3E series provide cost-effective solutions for customers who need industrial touch.A comprehensive size range from 10.1 ”to 23.8” ensures compatibility with:Industrial control,terminal accessories,human-machine interaction,smart healthcare,smart Livelihood.

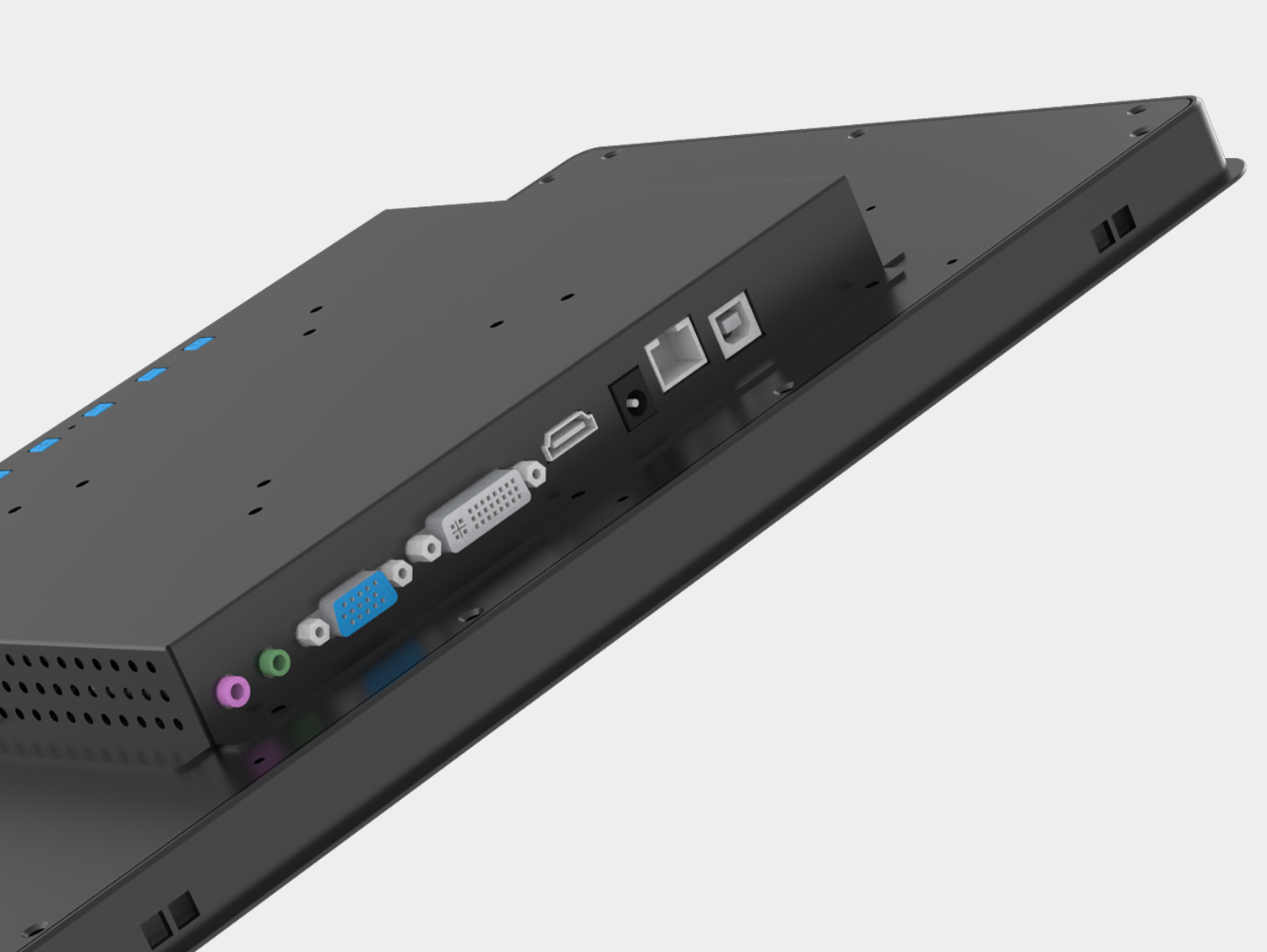

Versatile Connectivity

The GreenTouch capacitive touch monitors 3E series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

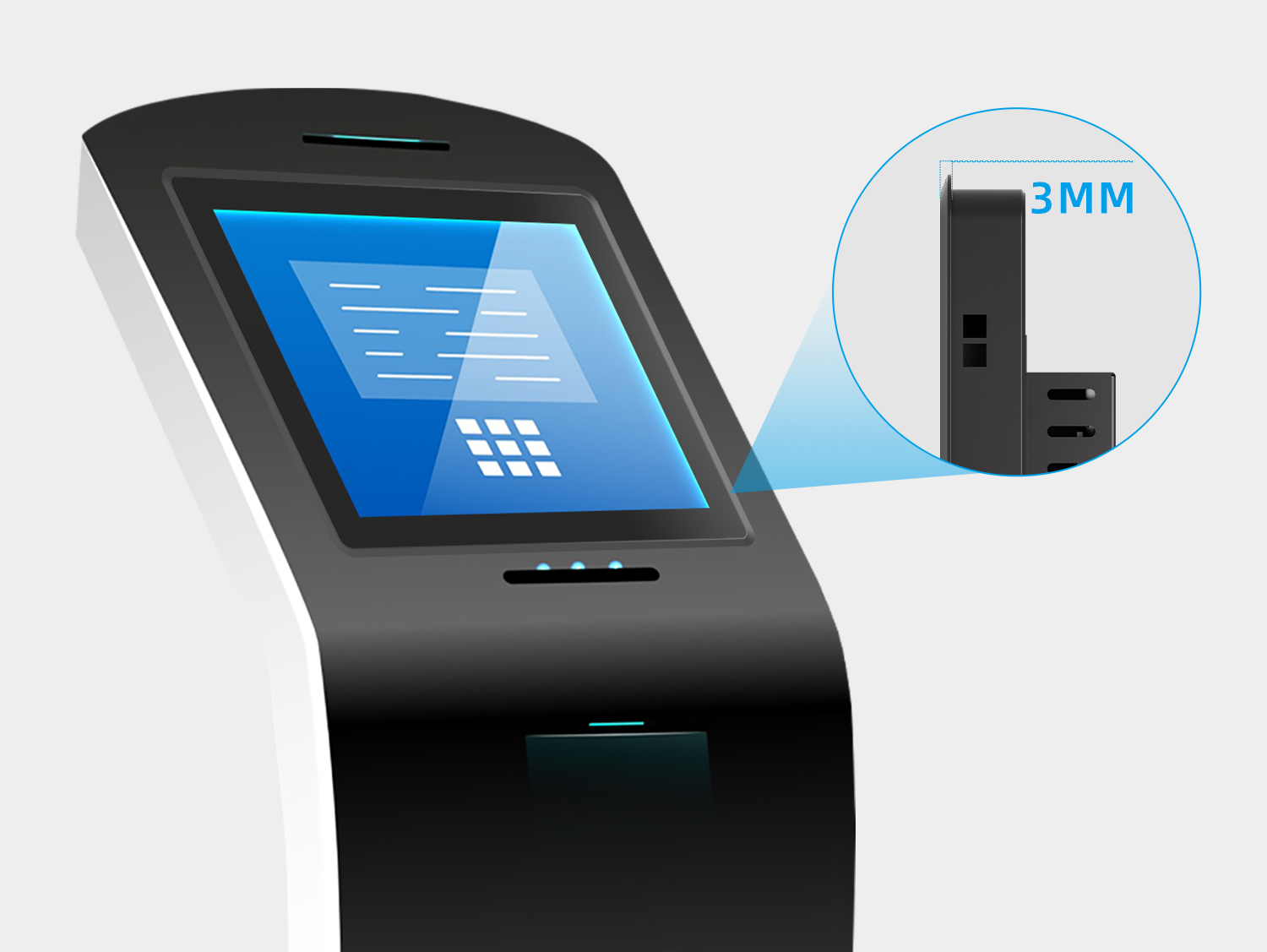

Function And Structure

3E adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 3E uses an industrial plastic front shell,industrial black metal frame,durable and reliable.

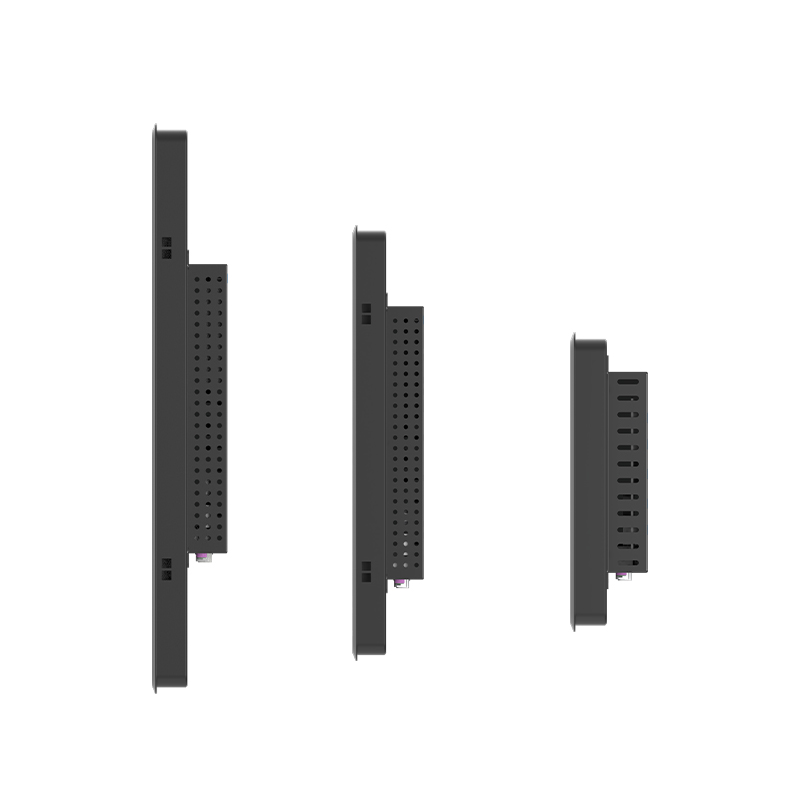

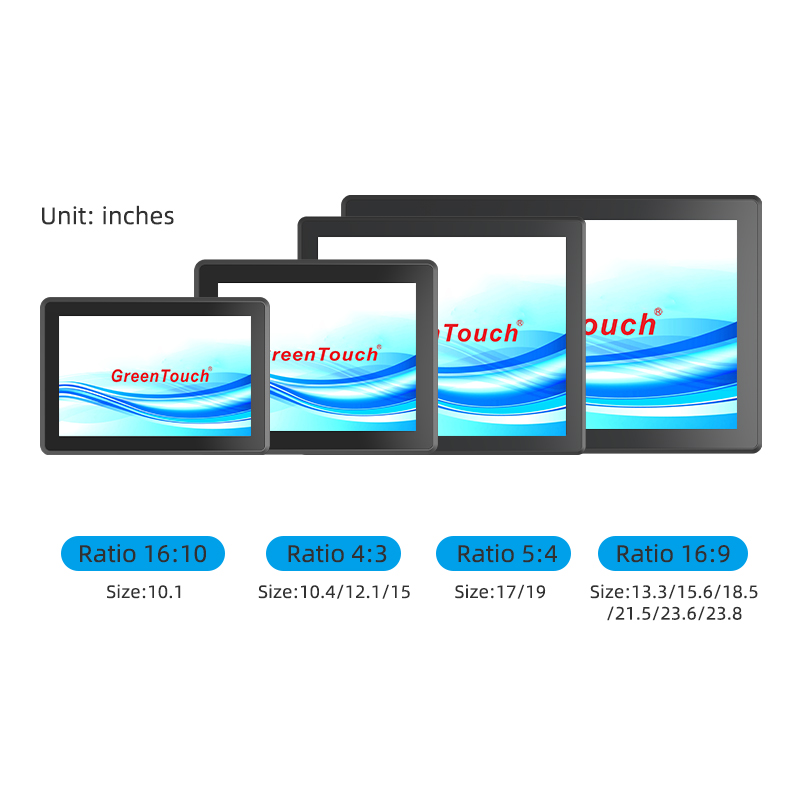

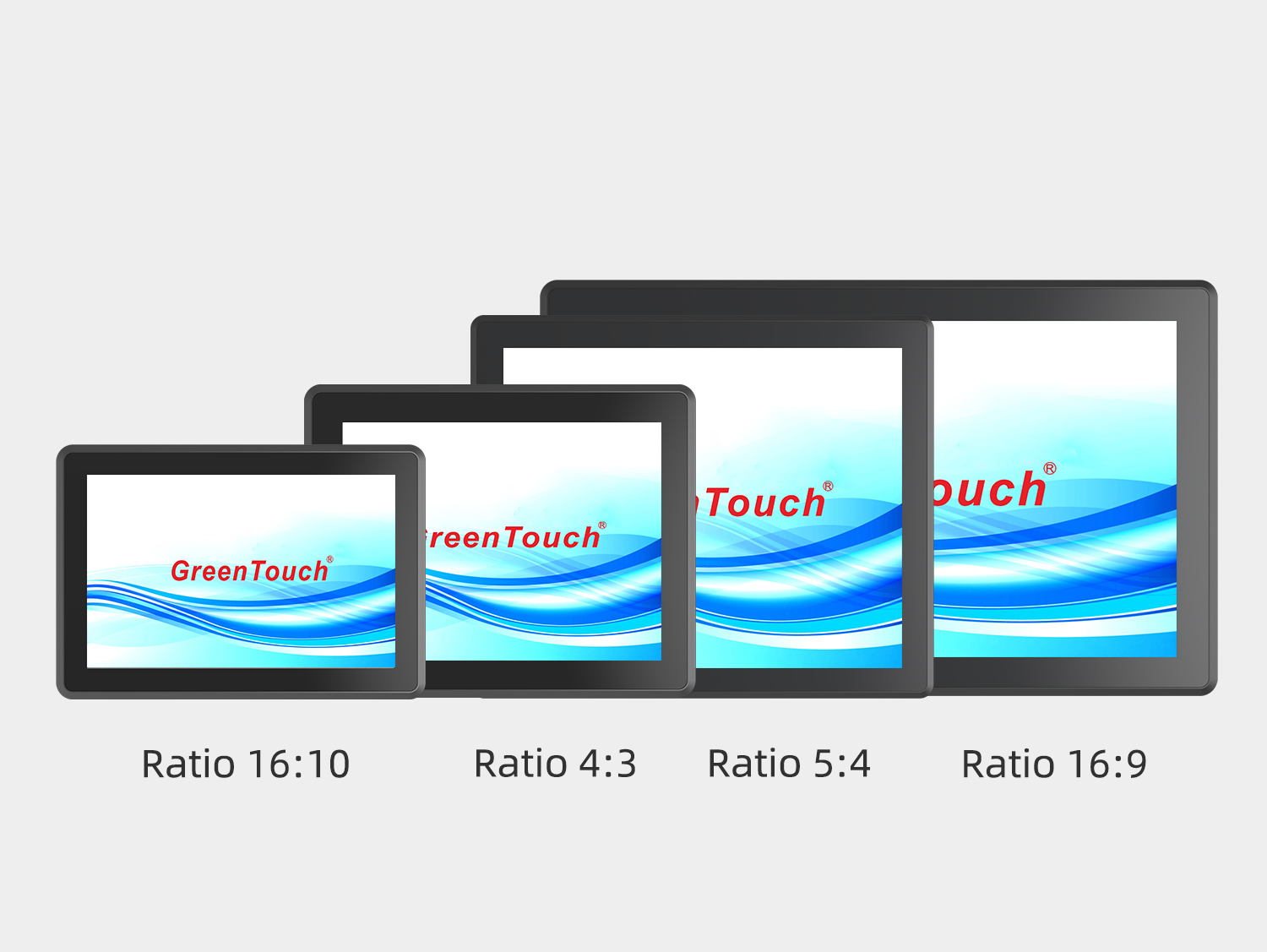

Multiple sizes available

(Ratio 16:10)Size:10.1”,22”
(Ratio 4:3)Size:10.4”,12.1”,15”
(Ratio 5:4)Size:10.4”,12.1”,15”,17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.6”,23.8”,27

Mounting Options

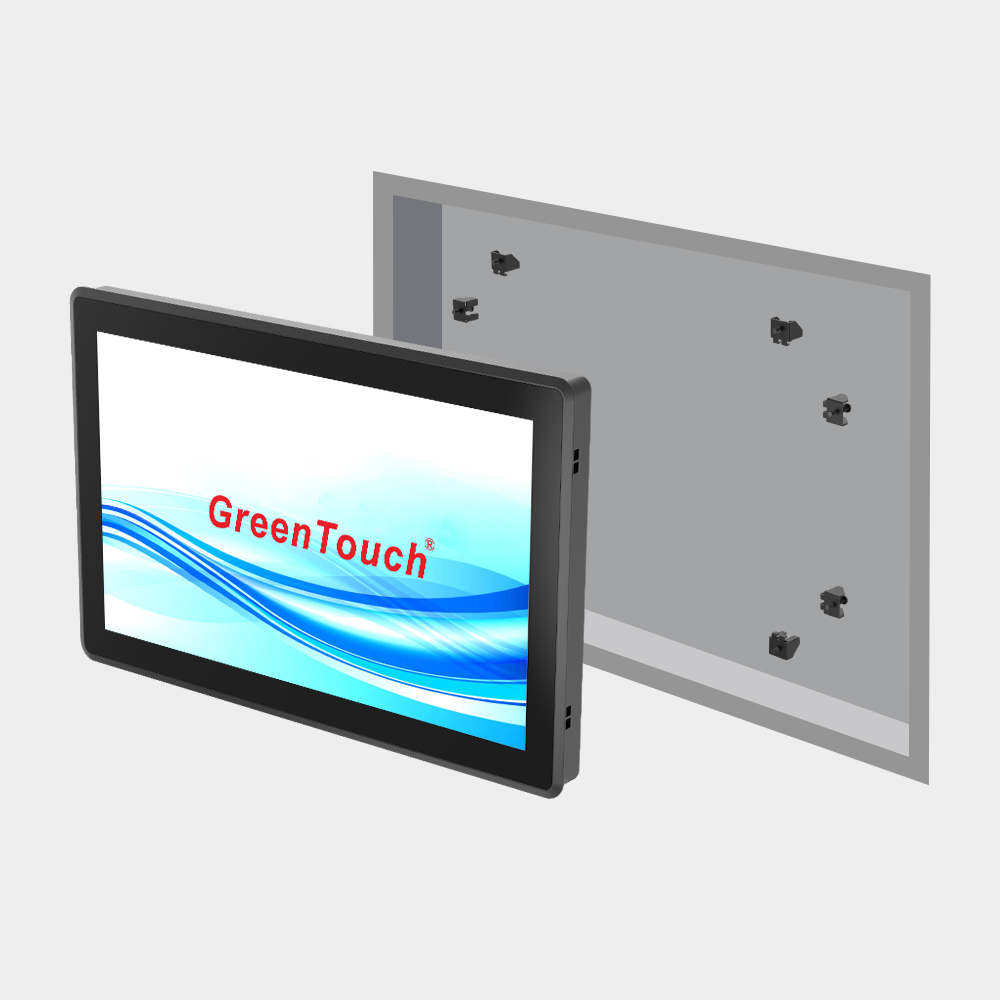

Embedded

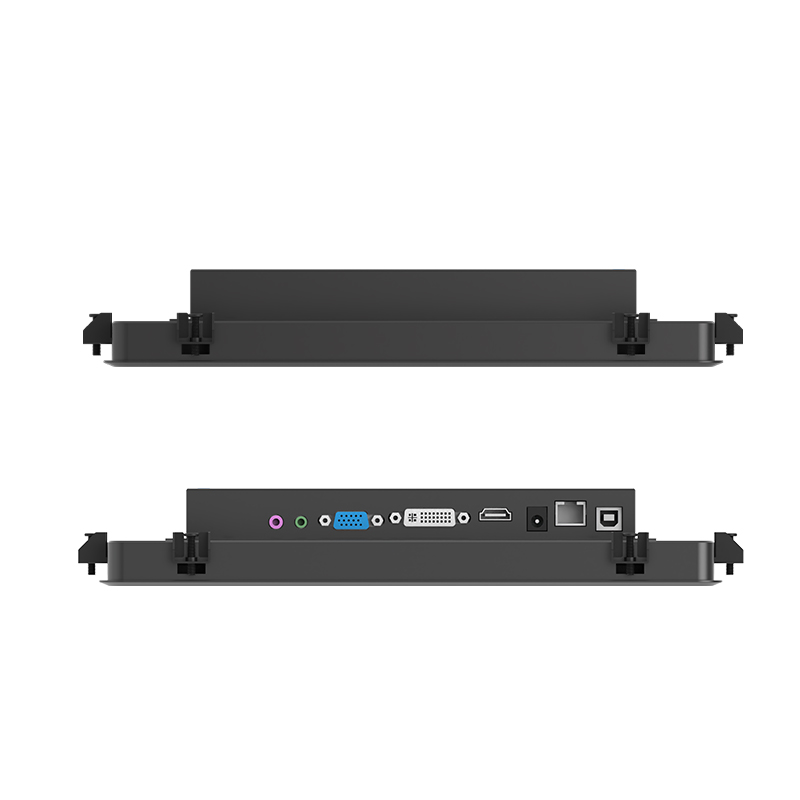

The 3E series monitors feature two locking clips on each of the four sides of the rear casing, which securely fasten the touchscreen to the front frame/panel, allowing for a perfect integration into the cabinet. Its portable design makes installation simple and flexible, achieving a balance between robust sealing and ease of maintenance.

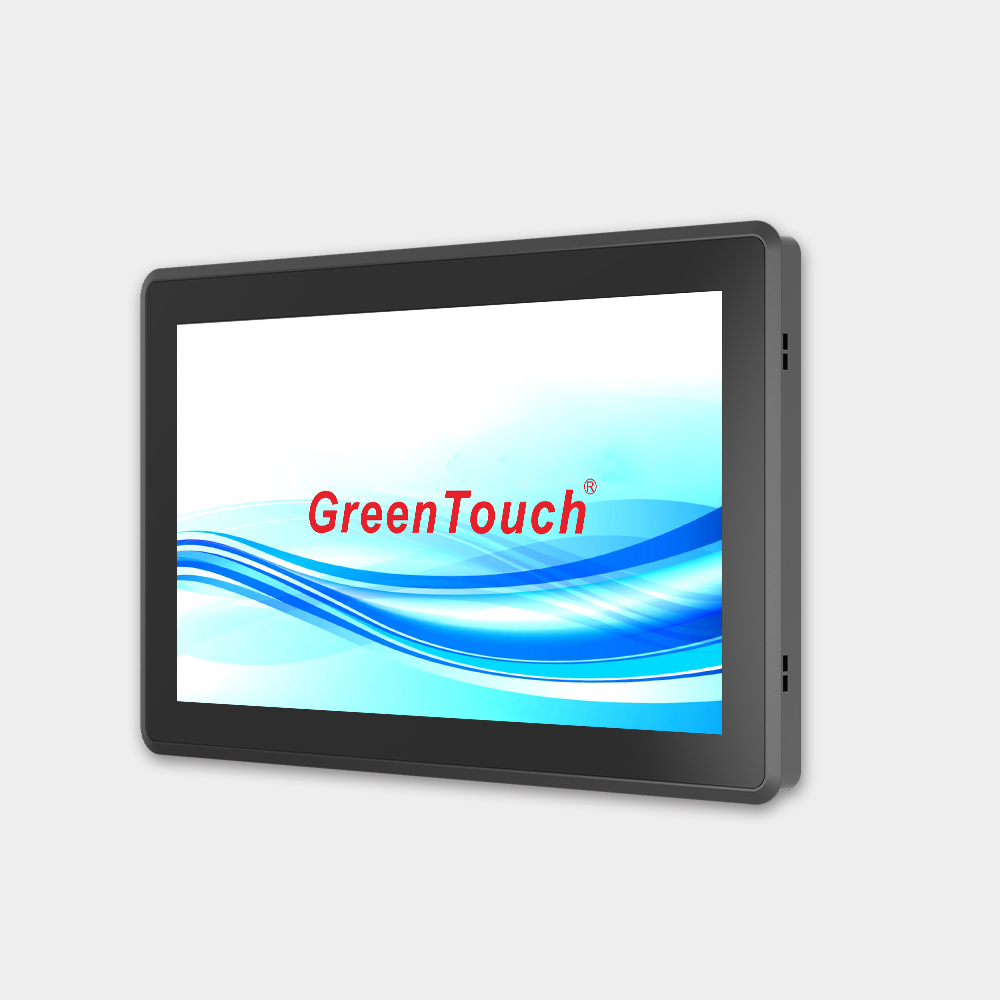

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

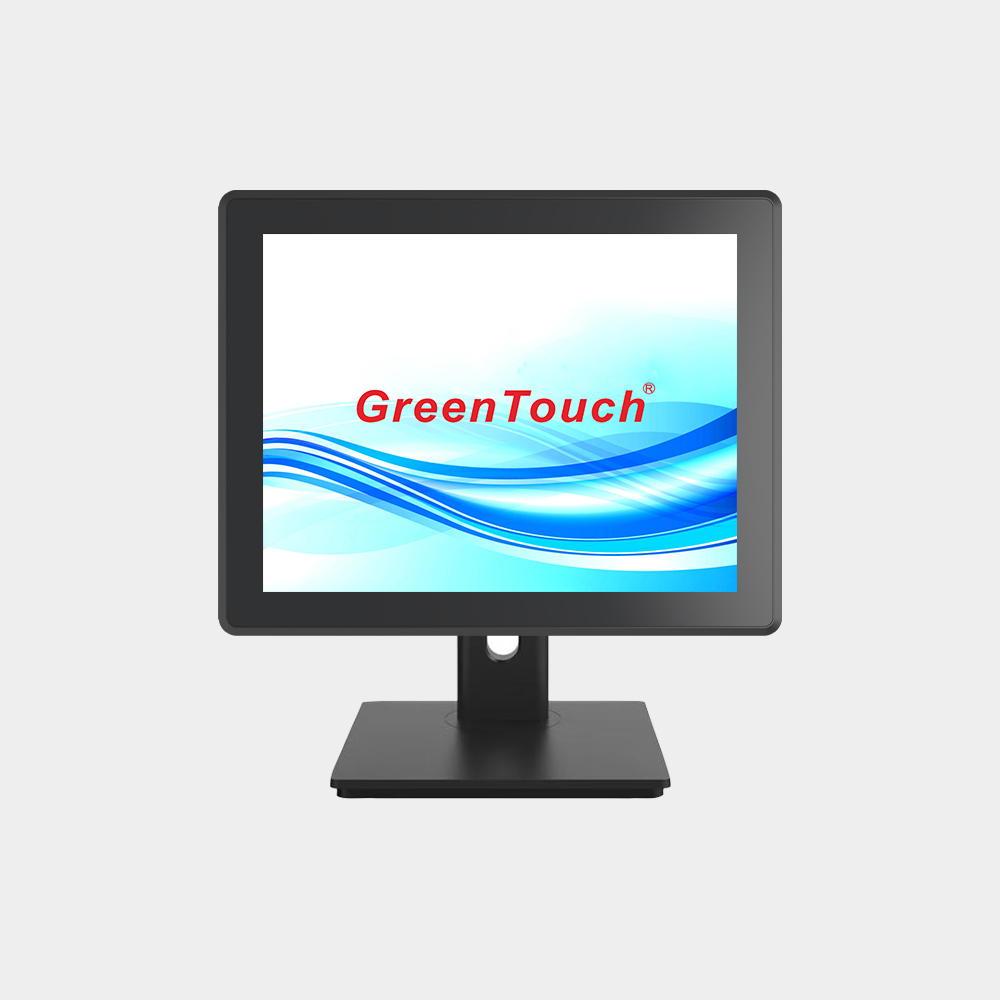

Desktop

3E is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

The 3E series monitors feature two locking clips on each of the four sides of the rear casing, which securely fasten the touchscreen to the front frame/panel, allowing for a perfect integration into the cabinet. Its portable design makes installation simple and flexible, achieving a balance between robust sealing and ease of maintenance.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3E is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3E Series) Regular Sizes:10.1",10.4",12.1",13.3",15",15.6",17", 18.5",19",21.5",22",23.6",23.8" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1280x800,1024x768,1920x1080, Aspect Ratio:16:10,4:3,16:9,5:4 1280x1024,1366x768@60Hz Brightness:250,300,400,430,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100mm Cantilever:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65,Explosion-proof IK06

About Display Ports

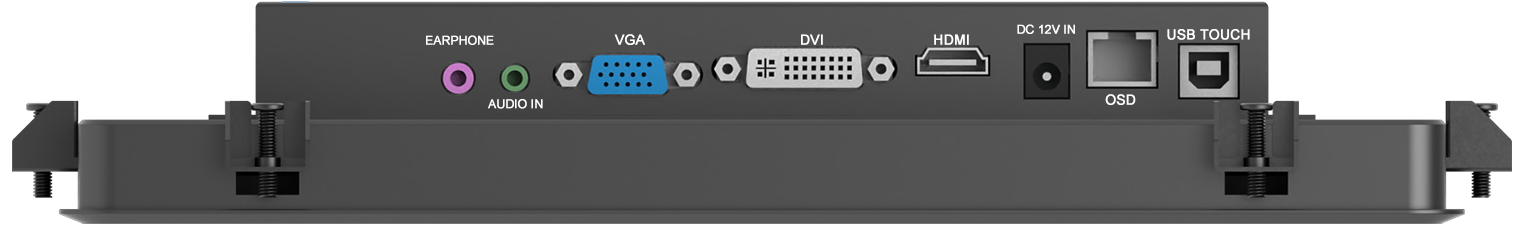

1.VGA+DVA+HDMI

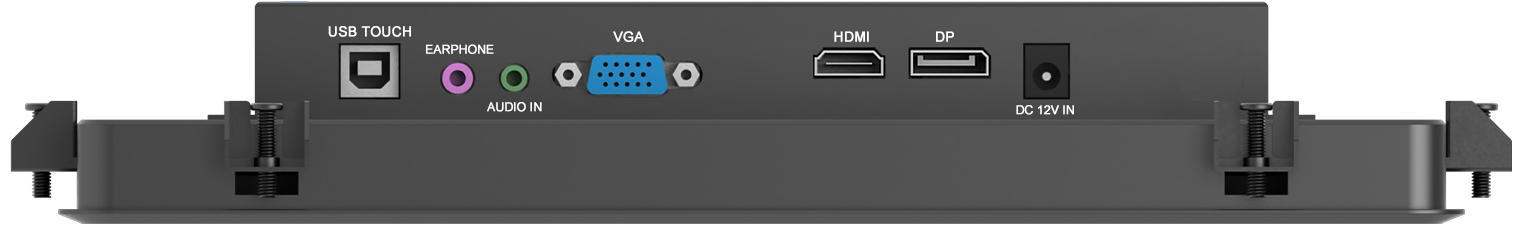

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
10.1"	GT-TM1013E	VGA,DVI,HDMI,DP	16:10	263x182x47mm	217x136mm	500	1280 x 800	GT-TM1013E
10.4"	GT-TM1043E	VGA,DVI,HDMI,DP	4:3	266x213x47mm	210x158mm	400	1024 x 768	GT-TM1043E
12.1"	GT-TM1213E	VGA,DVI,HDMI,DP	4:3	299x237x47mm	246x184mm	500	1024 x 768	GT-TM1213E
13.3"	GT-TM1333E	VGA,DVI,HDMI,DP	16:9	346x218x47mm	294x166mm	300	1920 x 1080	GT-TM1333E
15"	GT-TM1503E	VGA,DVI,HDMI,DP	4:3	364x288x47mm	304x228mm	300	1024 x 768	GT-TM1503E
15.6"	GT-TM1563E	VGA,DVI,HDMI,DP	16:9	397x246x47mm	344x194mm	250	1920 x 1080	GT-TM1563E
17"	GT-TM1703E	VGA,DVI,HDMI,DP	5:4	395x328x47mm	338x270mm	250	1280x1024	GT-TM1703E
18.5"	GT-TM1853E	VGA,DVI,HDMI,DP	16:9	465x286x47mm	410x230mm	250	1366x768	GT-TM1853E
19"	GT-TM1903E	VGA,DVI,HDMI,DP	5:4	431x356x47mm	376x301mm	250	1280x1024	GT-TM1903E
21.5"	GT-TM2153E	VGA,DVI,HDMI,DP	16:9	523x323x47mm	476x268mm	250	1920 x 1080	GT-TM2153E
23.6"	GT-TM2363E	VGA,DVI,HDMI,DP	16:9	583x346x47mm	521x293mm	250	1920 x 1080	GT-TM2363E
23.8"	GT-TM2383E	VGA,DVI,HDMI,DP	16:9	583x355x47mm	527x296mm	250	1920 x 1080	GT-TM2383E
