Panel Mount Touch Monitor 10.1-23.8 Inches(3D Series)

Panel Mount Touch Monitor 10.1-23.8 Inches(3D Series)

Product Information

Design:Seamless aluminum unibody,built for industrial rigors

Performance:Highly durable, corrosion-resistant,interference-resistant

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Features

● Fully sealed housing,durable construction

● Optically bonded Touch Panel to LCD Panel

● IP65 and front protection to resist water and dust

● Multiple industrial protections, stable operation 24/7

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

3D Touch Monitor Overview

GreenTouch's panel mount touch monitor 3D series provide stable and efficient solutions for customers who need industrial touch.A comprehensive size range from 10.1”to 23.8” ensures compatibility with:industrial automation and smart manufacturing, medical and laboratory, outdoor and public facilities, transportation, retail and food service, energy and utilities.
Versatile Connectivity

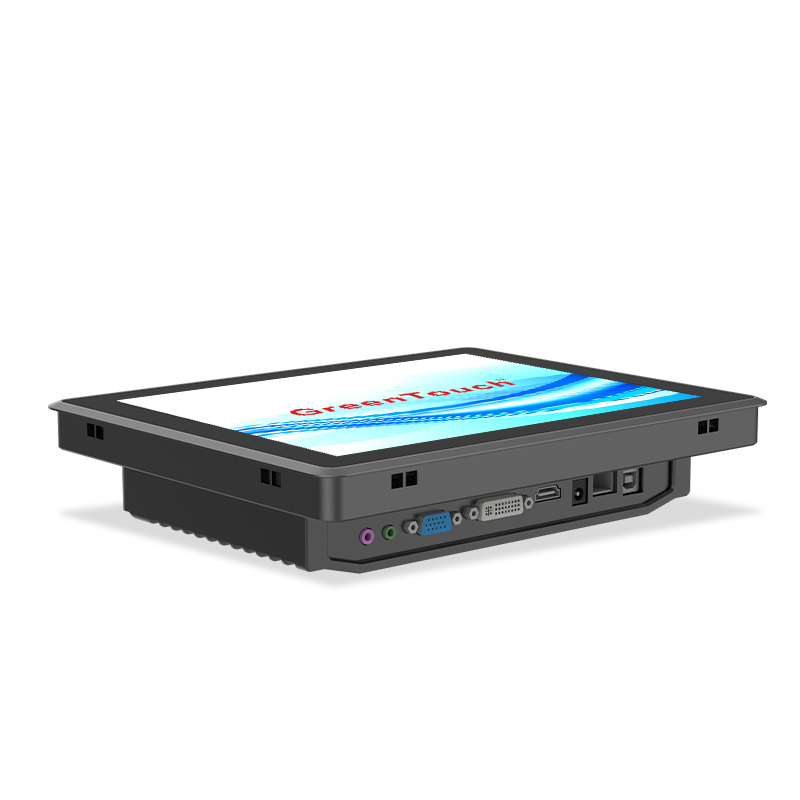

The GreenTouch capacitive touch monitors 3D series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

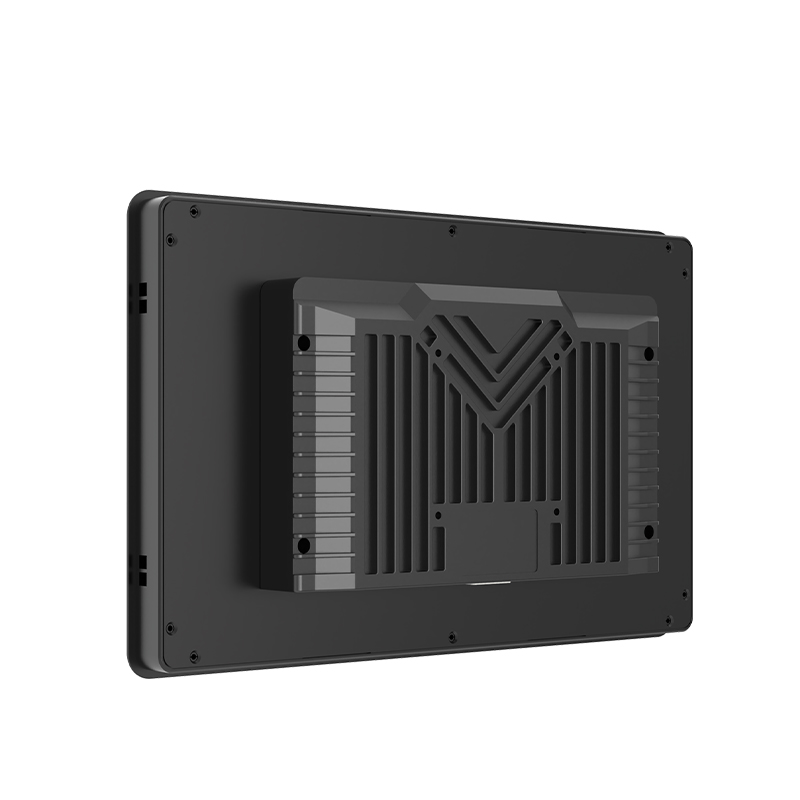

3D adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. Its bezel and back cover are made using a modern,high-quality aluminum alloy custom mold,die-cast in one piece,and the fully enclosed structure is suitable for harsh outdoor environments,preventing water, dust,and dirt from entering the monitor.The back cover uses a finned heat dissipation design, with no fan and zero noise, providing better heat dissipation and corrosion resistance.

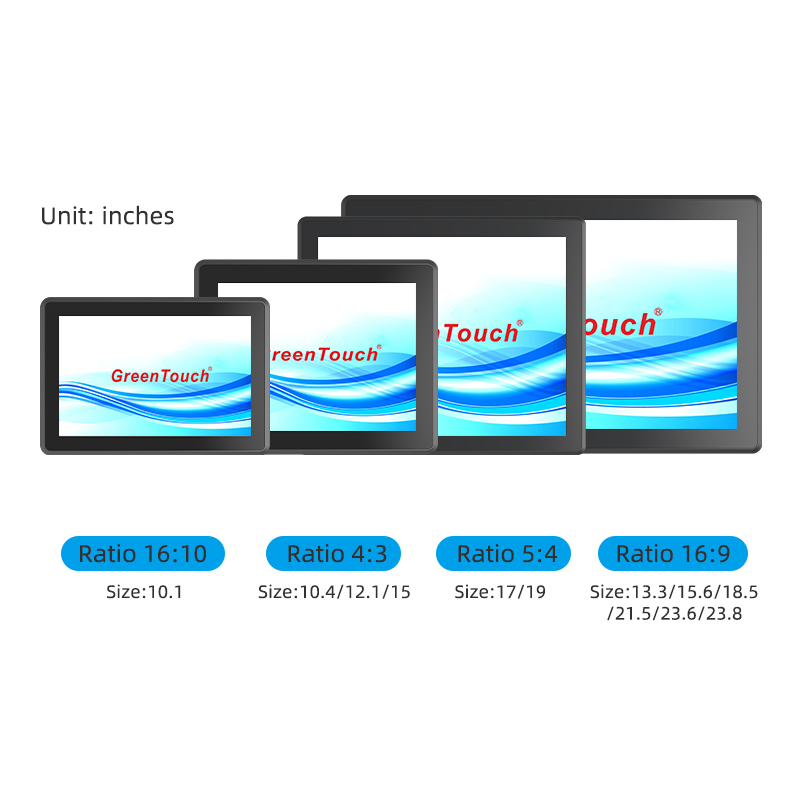

Multiple sizes available

(Ratio 16:10)Size:10.1”,22”
(Ratio 4:3)Size:10.4”,12.1”,15”
(Ratio 5:4)Size:10.4”,12.1”,15”,17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.6”,23.8”,27

Mounting Options

Embedded

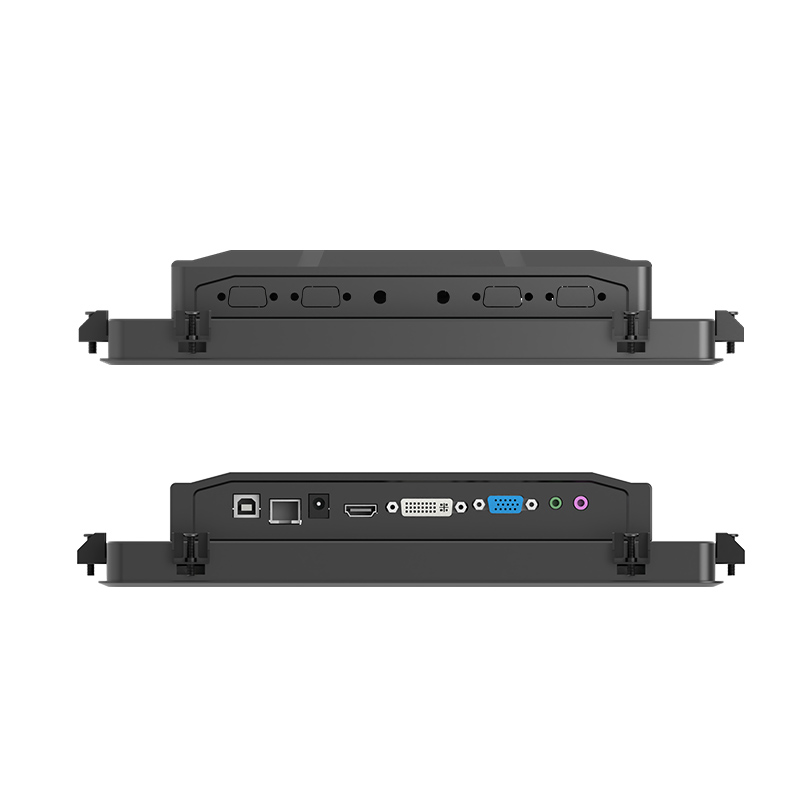

The 3D series monitors feature two locking clips on each of the four sides of the rear casing, which securely fasten the touchscreen to the front frame/panel, allowing for a perfect integration into the cabinet. Its portable design makes installation simple and flexible, achieving a balance between robust sealing and ease of maintenance.
Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.
Desktop

3D is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

The 3D series monitors feature two locking clips on each of the four sides of the rear casing, which securely fasten the touchscreen to the front frame/panel, allowing for a perfect integration into the cabinet. Its portable design makes installation simple and flexible, achieving a balance between robust sealing and ease of maintenance.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

3D is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3D Series) Regular Sizes:10.1",10.4",12.1",13.3",15",15.6",17", 18.5",19",21.5",22",23.6",23.8" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1280x800,1024x768,1920x1080, Aspect Ratio:16:10,4:3,16:9,5:4 1280x1024,1366x768@60Hz Brightness:250,300,400,430,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100mm Cantilever:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65,Explosion-proof IK06

About Display Ports

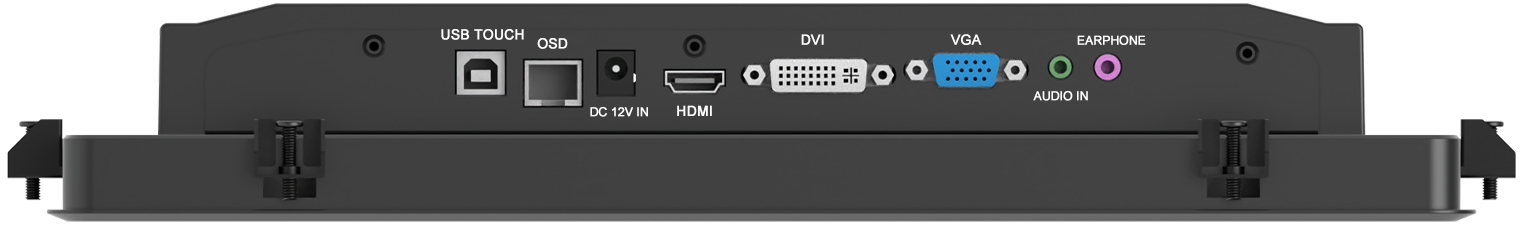

1.VGA+DVA+HDMI

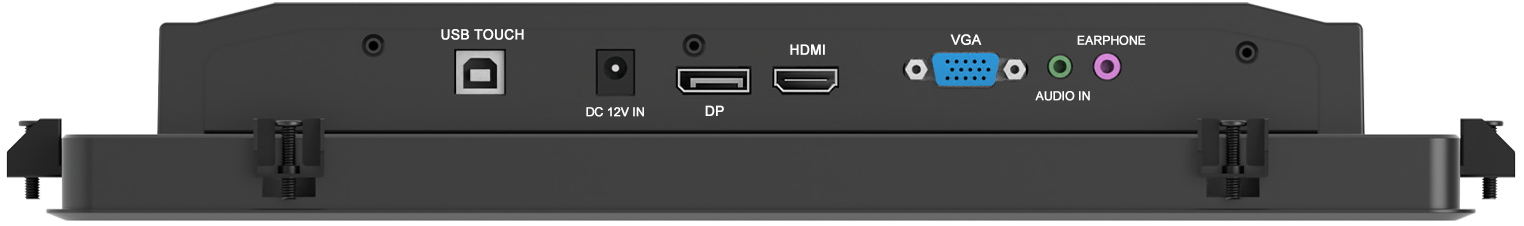

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
10.1"	GT-TM1013D	VGA,DVI,HDMI,DP	16:10	263x182x55mm	217x136mm	500	1280 x 800	GT-TM1013D
10.4"	GT-TM1043D	VGA,DVI,HDMI,DP	4:3	266x213x55mm	210x158mm	400	1024 x 768	GT-TM1043D
12.1"	GT-TM1213D	VGA,DVI,HDMI,DP	4:3	299x237x55mm	246x184mm	500	1024 x 768	GT-TM1213D
13.3"	GT-TM1333D	VGA,DVI,HDMI,DP	16:9	346x218x55mm	294x166mm	300	1920 x 1080	GT-TM1333D
15"	GT-TM1503D	VGA,DVI,HDMI,DP	4:3	364x288x56mm	304x228mm	300	1024 x 768	GT-TM1503D
15.6"	GT-TM1563D	VGA,DVI,HDMI,DP	16:9	397x246x56mm	344x194mm	250	1920 x 1080	GT-TM1563D
17"	GT-TM1703D	VGA,DVI,HDMI,DP	5:4	395x328x56mm	338x270mm	250	1280x1024	GT-TM1703D
18.5"	GT-TM1853D	VGA,DVI,HDMI,DP	16:9	465x286x56mm	410x230mm	250	1366x768	GT-TM1853D
19"	GT-TM1903D	VGA,DVI,HDMI,DP	5:4	431x356x56mm	376x301mm	250	1280x1024	GT-TM1903D
21.5"	GT-TM2153D	VGA,DVI,HDMI,DP	16:9	523x323x56mm	476x268mm	250	1920 x 1080	GT-TM2153D
23.6"	GT-TM2363D	VGA,DVI,HDMI,DP	16:9	583x346x56mm	521x293mm	250	1920 x 1080	GT-TM2363D
23.8"	GT-TM2383D	VGA,DVI,HDMI,DP	16:9	583x355x56mm	527x296mm	250	1920 x 1080	GT-TM2383D
