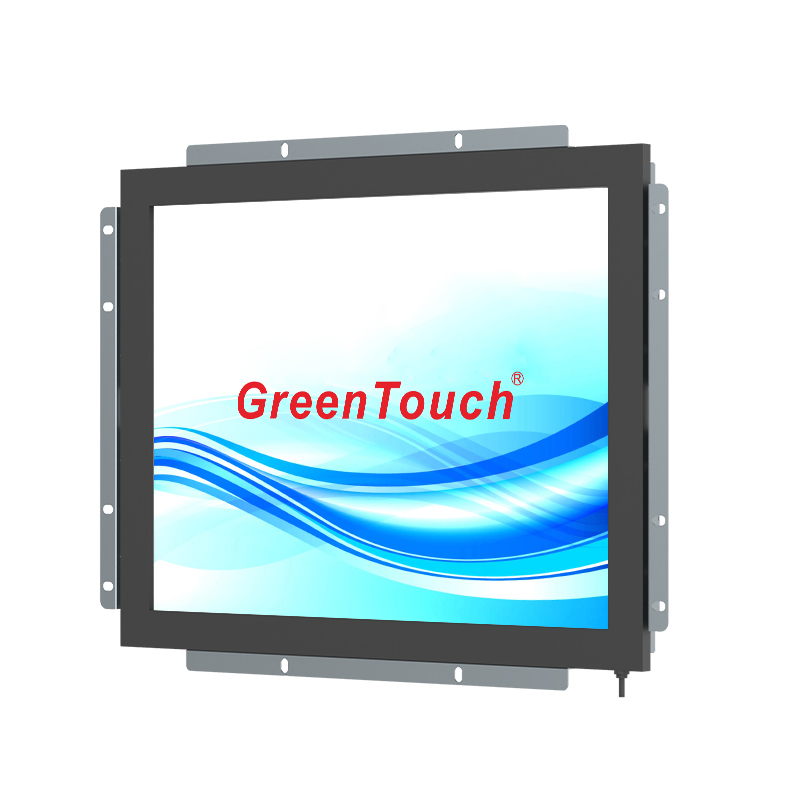

Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Product Information

Touch Type:Capacitive,IR,Resistive(Optional)

Touch Points: Capacitive 10,IR 10,Resistive 1

Mounting: Embedded,Wall-mounted,Desktop

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Features

● Good sealing performance,passed EMC anti-interference testing

● Industrial-grade LCD panels for long operating life

● Stable and sensitive,no jumping points,no break points,no blind spots

● Dense ventilation holes for reliable 24/7 operation

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote
Online Consultation
Product Description

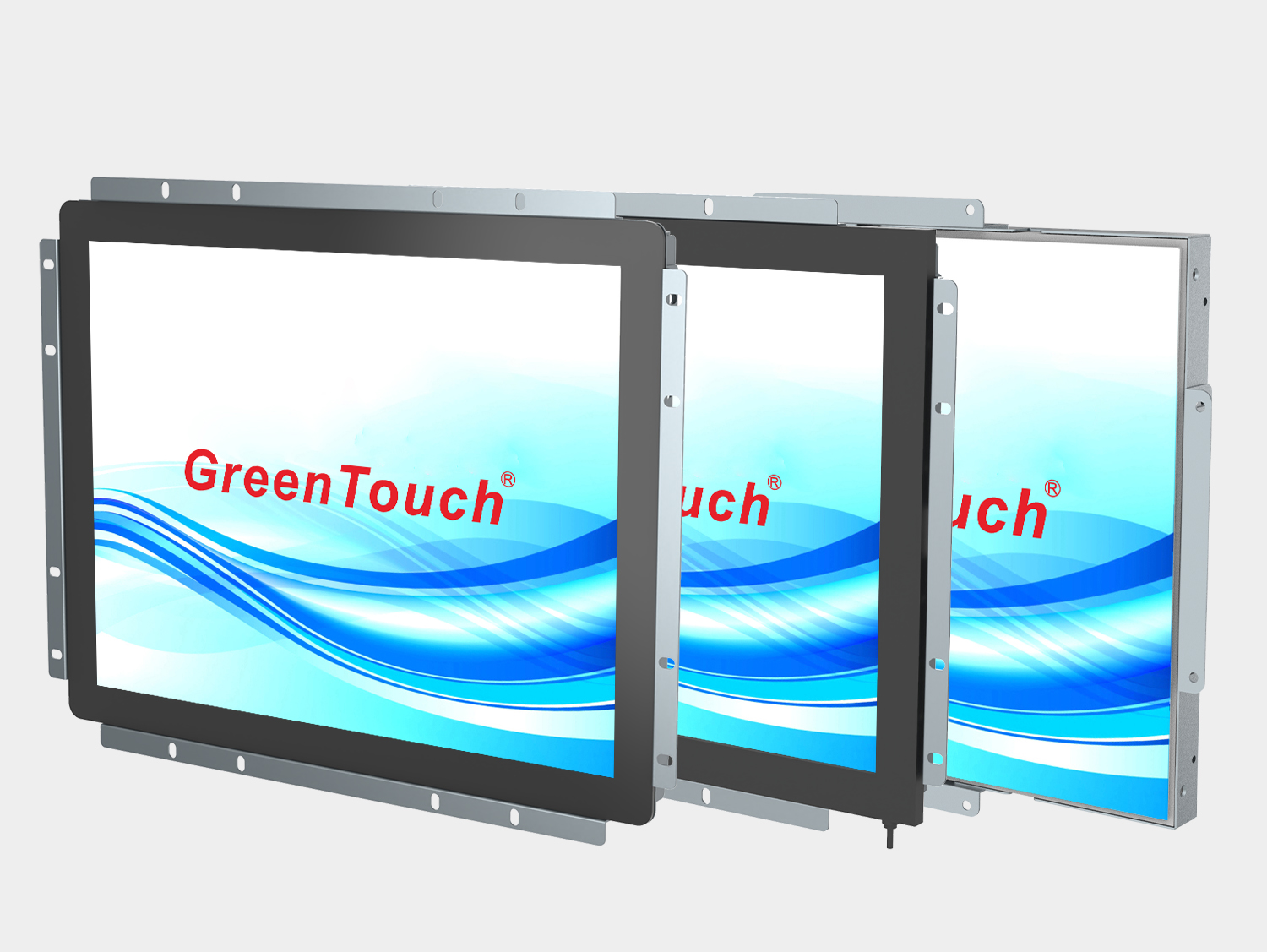

  • 5A Touch Monitor Overview
    5A Touch Monitor Overview
    GreenTouch's open frame touch monitor 5A series provide stable and efficient solutions for customers who need industrial touch.A full range of touch technologies (capacitive,infrared,resistive) ensures compatibility with the following fields: industrial control, terminal accessories,human-machine interaction,smart healthcare, and smart living

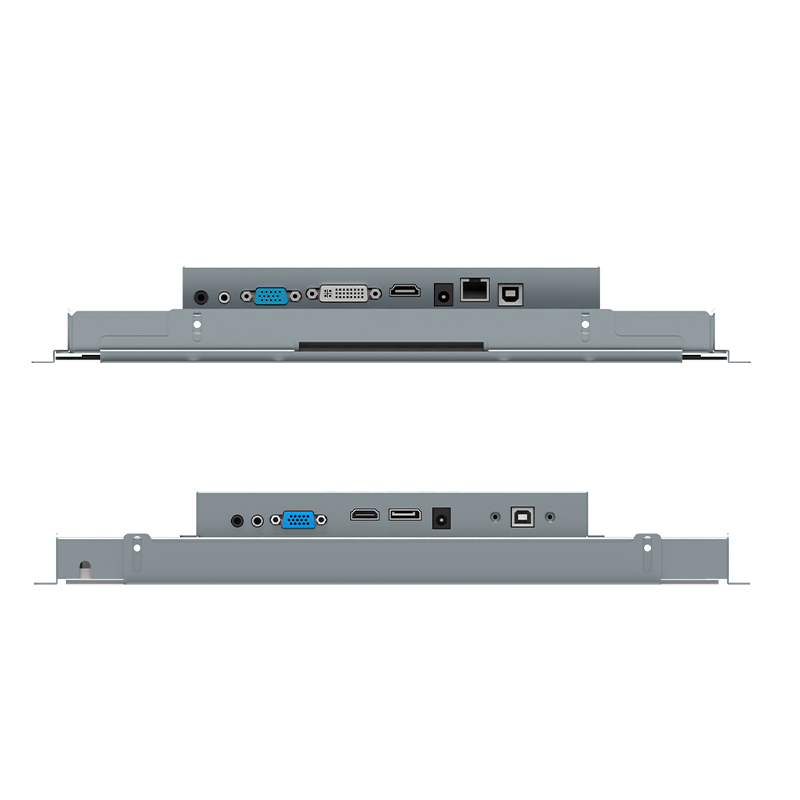

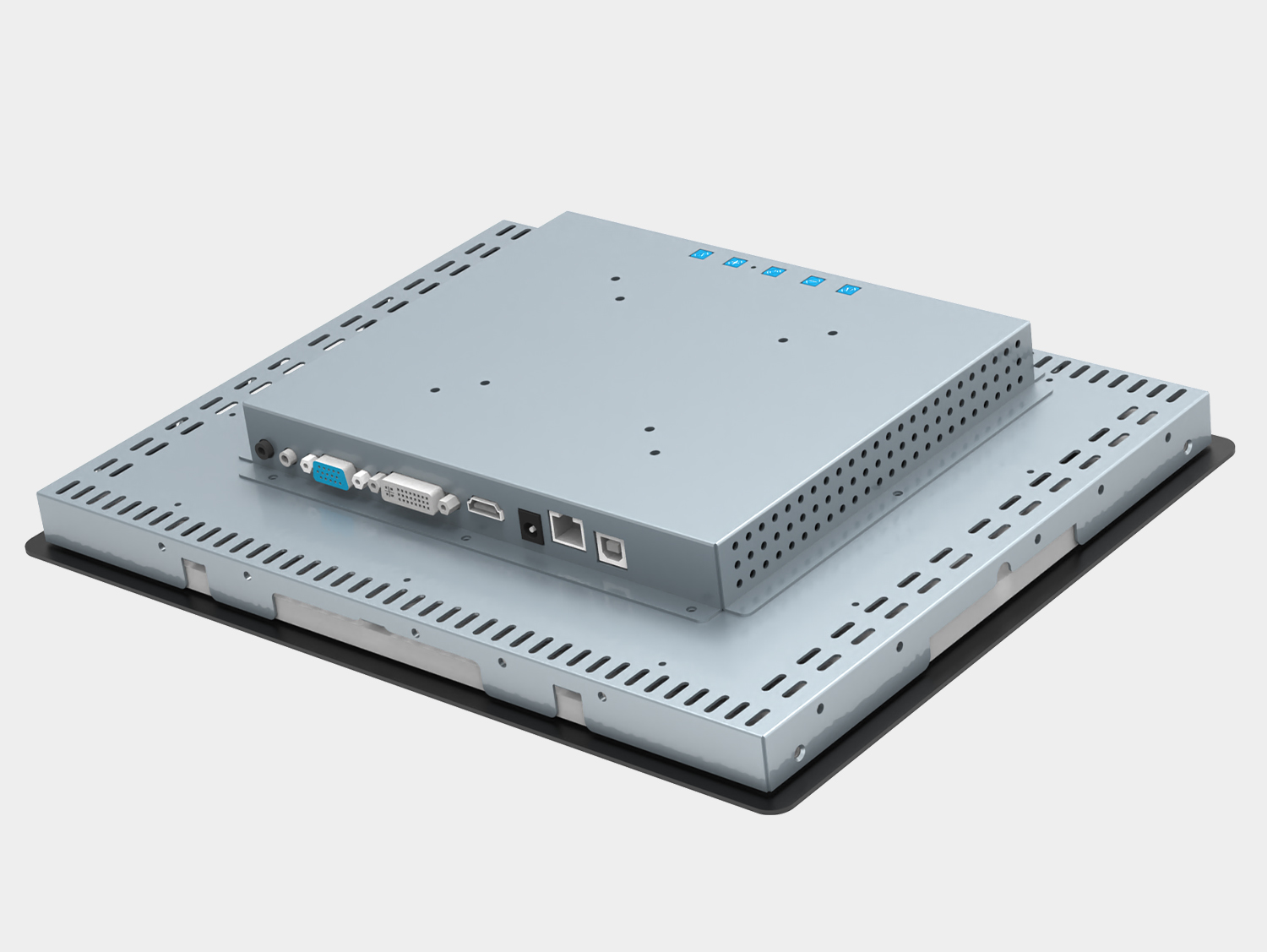

  • Versatile Connectivity
    Versatile Connectivity
    The GreenTouch touch monitors 5A series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

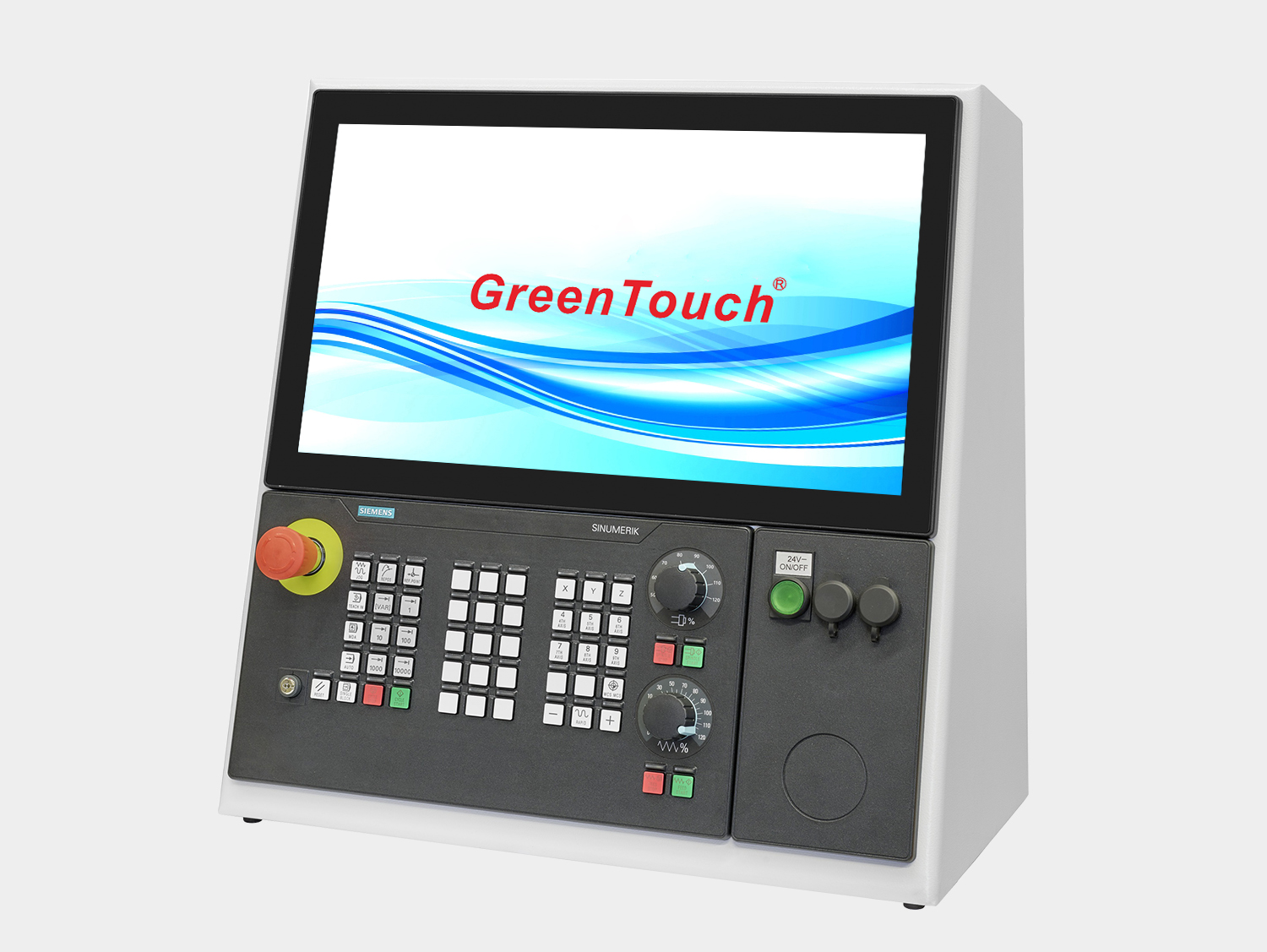

  • Function And Structure
    Function And Structure
    5A adoptIndustrial metal front shell and black or silver frame,durable and reliable,support three types of touch，projected capacitive 10 points touch, infrared 10 points touch，resistive one point touch，sensitive sensing,accurate fixed point. 5A with excellent image clarity,resolution,transparency,good accuracy and vivid images,which can instantly capture and attract attention.They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.

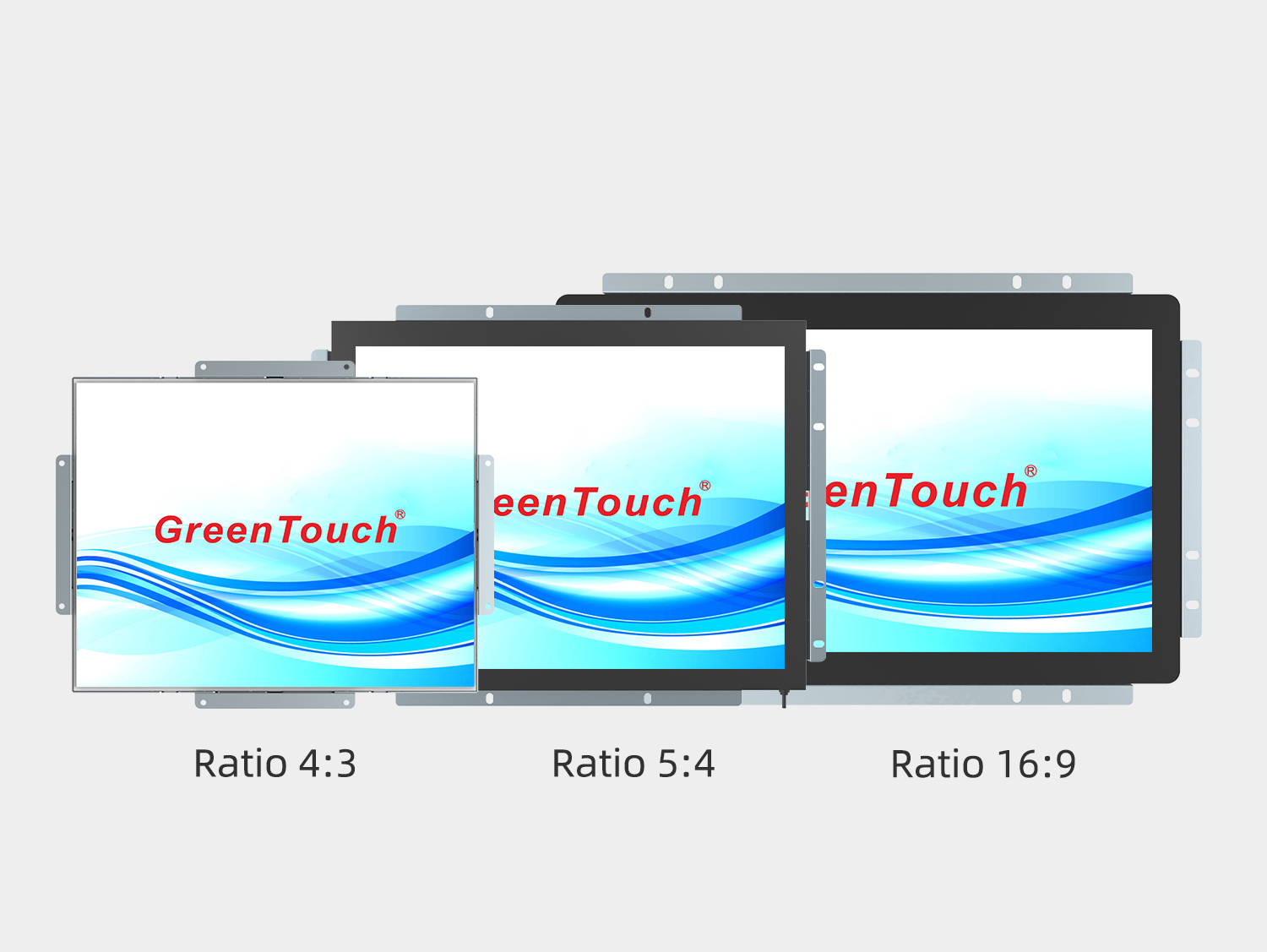

  • Multiple Sizes Available
    Multiple Sizes Available
    (Ratio 4:3) Size:15”
    (Ratio 5:4) Size:17”,19
    (Ratio 16:9) Size:15.6”,18.5”,21.5”,23.6”
Mounting Options

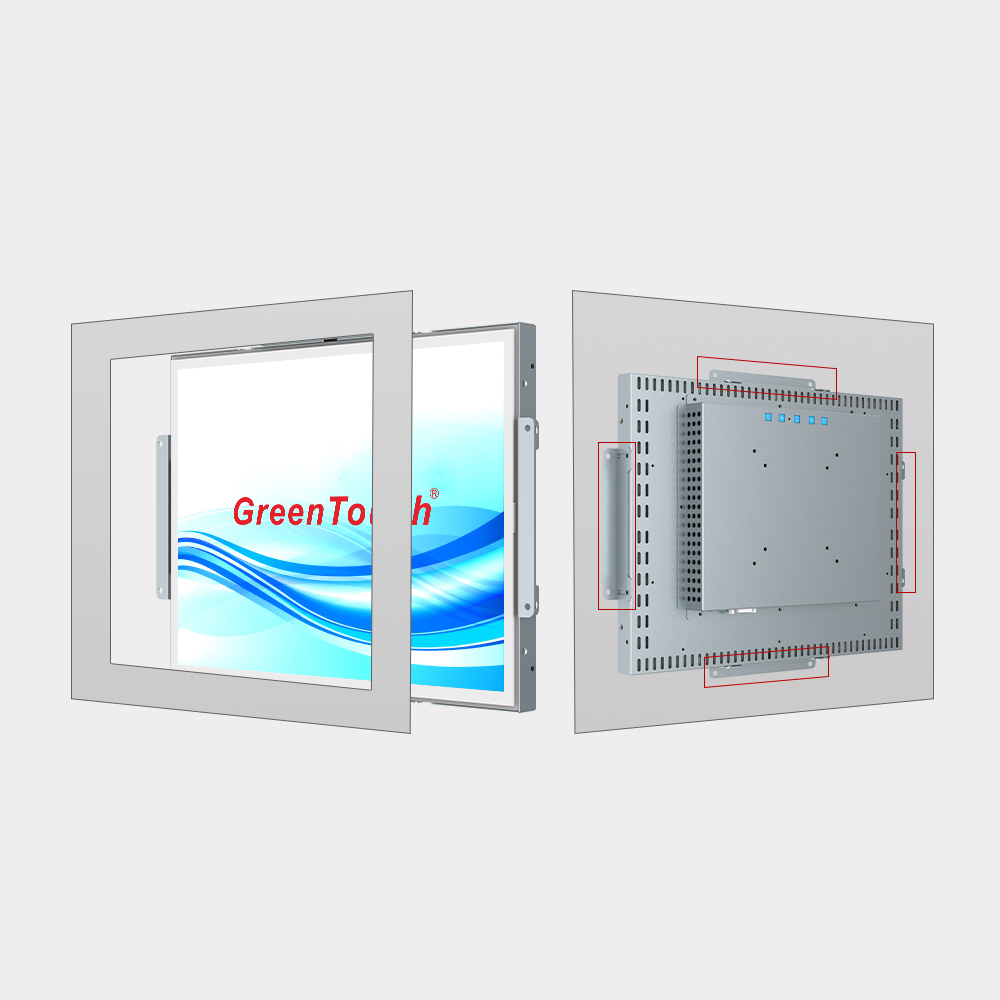

Embedded
Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

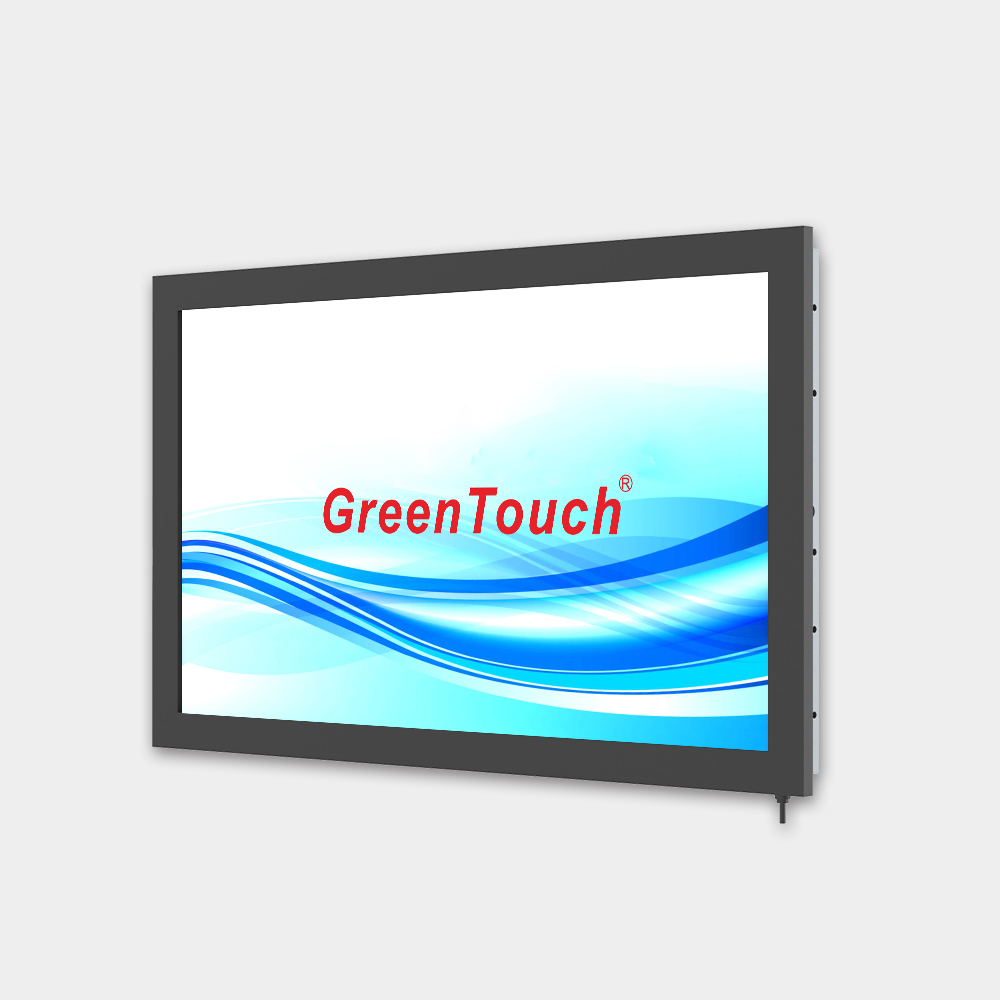

Wall Mount
The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

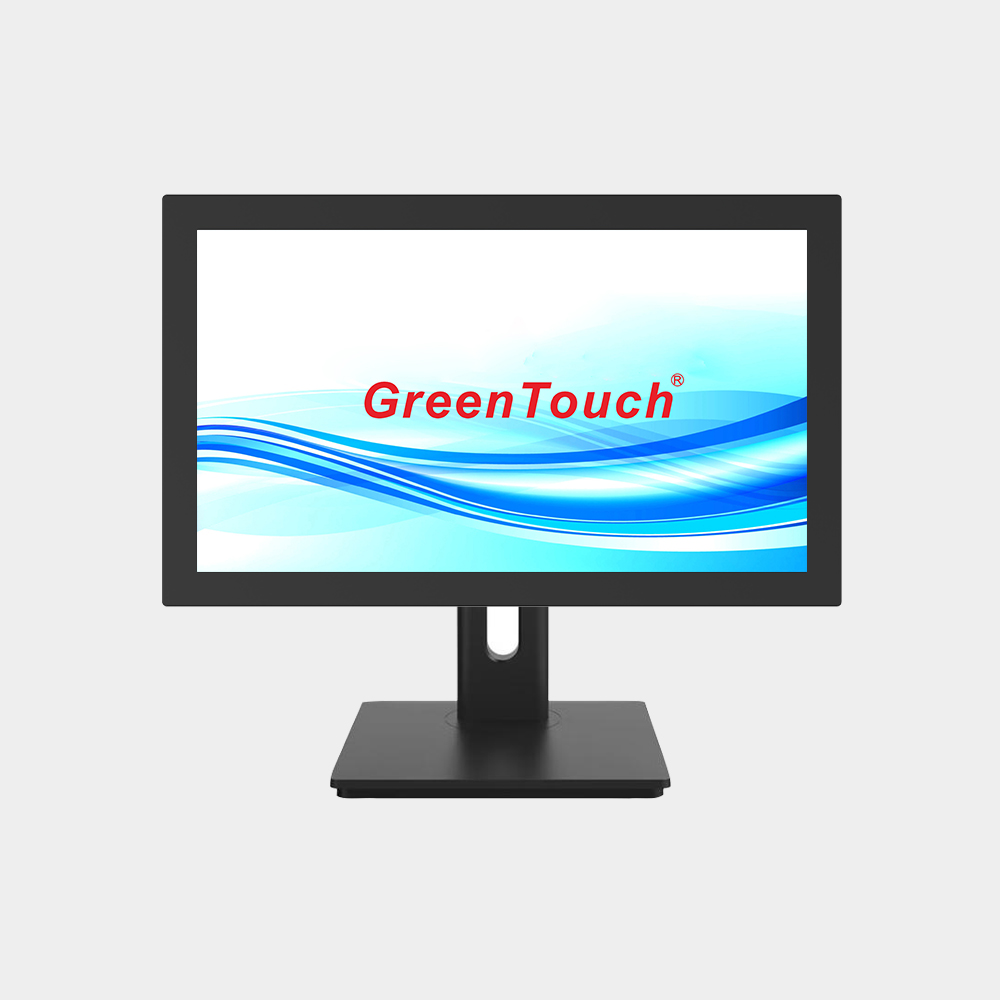

Desktop
5A is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Specifications
General

Manufacturer:GreenTouch

Product Name:Touch Monitor(5A Series)

Regular Sizes: 15", 15.6",17",18.5",19",21.5",23.6"

Warranty:1-3 Years

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Panel

Panel Type:Active Matrix TFT LCD, LED Backlight

Diagonal Size:15 to 23.6 inches

Resolution:1024x768,1920x1080,1280x1024 ,1366x768@60Hz

Aspect Ratio:4:3,16:9,5:4

Brightness:250,300,400,1000 nits

Touch Type:PCAP/IR 10 Points,Resistive One Point

Touch Support System:Windows,Android,Linux


Environmental

Operating Time:Max.Non-Stop 24/7

Temperature Operating:-20°C to 70°C

Temperature Storage:-20°C to 70°C

Humidity Operating:20% to 80% (No Condensation)

Humidity Storage:10% to 90% (Non-condensing)


Connectivity

Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB)

Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)


Mounting

Embedded:External Bracket

Wall Mount:VESA 75x75/100x100mm

Desktop:VESA Mounting Bracket


Compliance

Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC

Standards:EMC anti-interference


About Display Ports

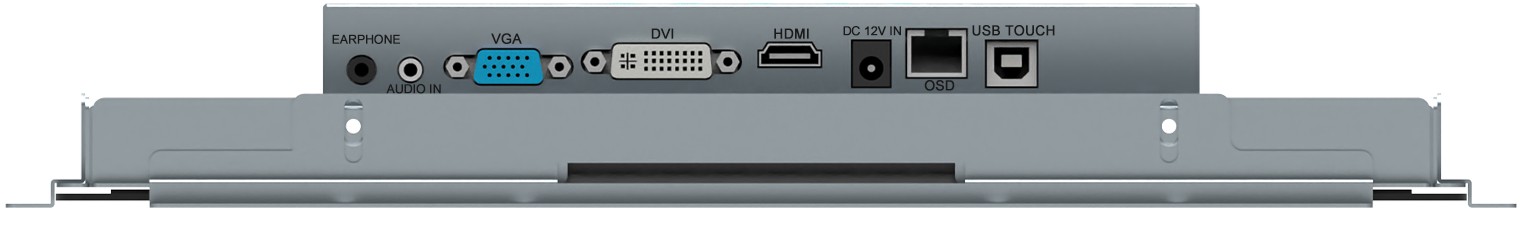

1.VGA+DVA+HDMI

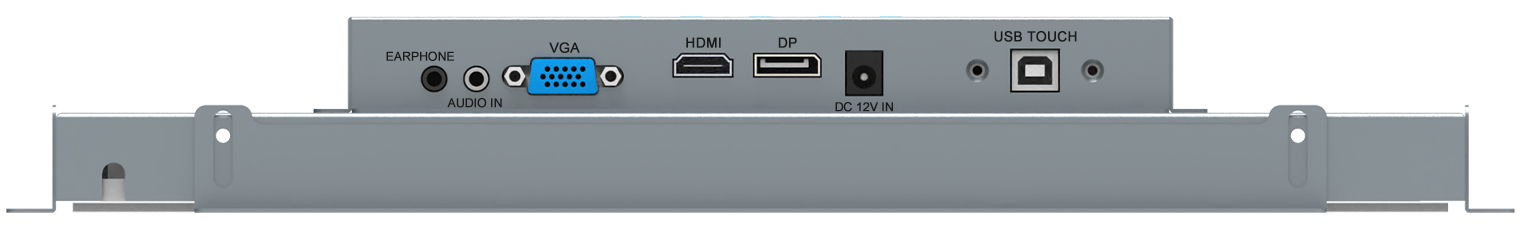

2.VGA+HDMI+DP

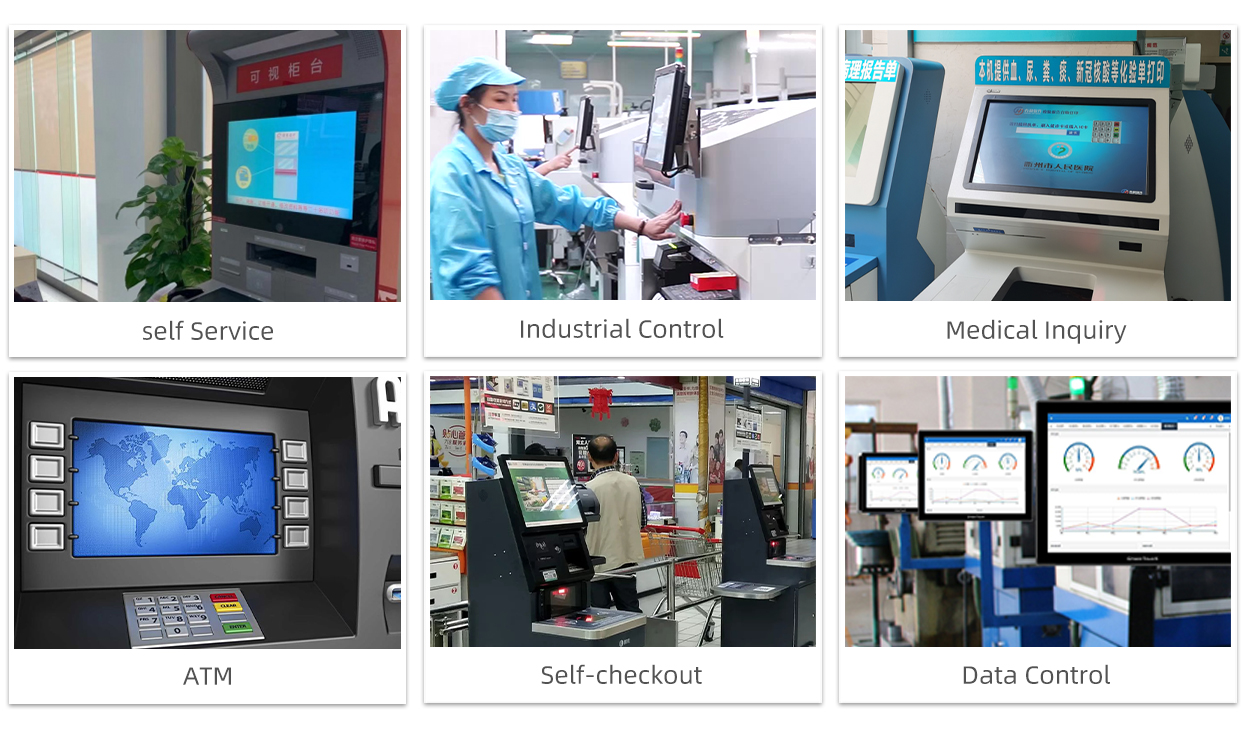

Application Field
Open Frame Touch Monitor 15-23.6 Inches(5A Series)
Specification and download
SizeModelTouch TypeDisplay portsRatio

Display Size

(W*H*T)

Active Area

Dimensions(H*V)

Brightness

(nits)

Resolution

@60Hz

Data Download
15"

GT-OM1505A

NoVGA,DVI,HDMI,DP4:3329.5x 256.5x 45mm304 x228mm300 1024 x 768

GT-OM&TM1505A

15"

GT-TM1505A-R

ResistiveVGA,DVI,HDMI,DP4:3329.5 x 256.5x 48mm304 x228mm300 1024 x 768GT-OM&TM1505A
15"

GT-TM1505A-CTW

CapacitiveVGA,DVI,HDMI,DP4:3346 x 270.5 x 48.3mm304 x228mm300 1024 x 768GT-OM&TM1505A
15"

GT-TM1505A-IR

InfraredVGA,DVI,HDMI,DP4:3347.5x 272 x 53.5mm304 x228mm300 1024 x 768GT-OM&TM1505A
15.6"

GT-OM1565A

NoVGA,DVI,HDMI,DP16:9367x 219 x 48mm344 x194mm400 1920 x 1080GT-OM&TM1565A
15.6"

GT-TM1565A-R

ResistiveVGA,DVI,HDMI,DP16:9367x 219 x 48mm344 x194mm400 1920 x 1080GT-OM&TM1565A
15.6"

GT-TM1565A-CTW

CapacitiveVGA,DVI,HDMI,DP16:9378 x 236 x 51.3mm344 x194mm400 1920 x 1080GT-OM&TM1565A
15.6"

GT-TM1565A-IR

InfraredVGA,DVI,HDMI,DP16:9388.5x 237.5x 56.5mm344 x194mm400 1920 x 1080GT-OM&TM1565A
17"

GT-OM1705A

NoVGA,DVI,HDMI,DP5:4362 x 303 x 48mm304 x228mm250 1280 x 1024GT-OM&TM1705A
17"

GT-TM1705A-R

ResistiveVGA,DVI,HDMI,DP5:4362 x 303 x 48mm304 x228mm250 1280 x 1024GT-OM&TM1705A
17"

GT-TM1705A-CTW

CapacitiveVGA,DVI,HDMI,DP5:4377 x 310 x 48mm304 x228mm250 1280 x 1024GT-OM&TM1705A
17"

GT-TM1705A-IR

InfraredVGA,DVI,HDMI,DP5:4382 x 314 x 54mm304 x228mm250 1280 x 1024GT-OM&TM1705A
18.5"

GT-OM1855A

NoVGA,DVI,HDMI,DP16:9433 x258 x 50mm409 x230mm300 1366 x 768

GT-OM&TM1855A

18.5"

GT-TM1855A-R

ResistiveVGA,DVI,HDMI,DP16:9433 x258 x 50mm409 x230mm300 1366 x 768GT-OM&TM1855A
18.5"

GT-TM1855A-CTW

CapacitiveVGA,DVI,HDMI,DP16:9457x 278 x 50mm409 x230mm300 1366 x 768GT-OM&TM1855A
18.5"

GT-TM1855A-IR

InfraredVGA,DVI,HDMI,DP16:9454 x 275x 56mm409 x230mm300 1366 x 768GT-OM&TM1855A
19"

GT-OM1905A

NoVGA,DVI,HDMI,DP5:4399 x 327x 48mm376 x301mm250 1280 x 1024

GT-OM&TM1905A

19"

GT-TM1905A-R

ResistiveVGA,DVI,HDMI,DP5:4399 x 327x 48mm376 x301mm2501280 x 1024GT-OM&TM1905A
19"

GT-TM1905A-CTW

CapacitiveVGA,DVI,HDMI,DP5:4421 x 346 x 48mm376 x301mm2501280 x 1024GT-OM&TM1905A
19"

GT-TM1905A-IR

InfraredVGA,DVI,HDMI,DP5:4420 x 345x 53mm376 x301mm2501280 x 1024GT-OM&TM1905A
21.5"

GT-OM2155A

NoVGA,DVI,HDMI,DP16:9499 x 296x 47mm477 x268mm250 1920 x 1080

GT-OM&TM2155A

21.5"

GT-TM2155A-R

ResistiveVGA,DVI,HDMI,DP16:9499 x 296x 50mm477 x268mm250 1920 x 1080GT-OM&TM2155A
21.5"

GT-TM2155A-CTW

CapacitiveVGA,DVI,HDMI,DP16:9532.5x325.5x49.8mm477 x268mm250 1920 x 1080GT-OM&TM2155A
21.5"

GT-TM2155A-IR

InfraredVGA,DVI,HDMI,DP16:9520 x 311x 55mm477 x268mm250 1920 x 1080GT-OM&TM2155A
23.6"

GT-OM2365A

NoVGA,DVI,HDMI,DP16:9548 x 323x 47mm521 x293mm250 1920 x 1080

GT-OM&TM2365A

23.6"

GT-TM2365A-CTW

CapacitiveVGA,DVI,HDMI,DP16:9573 x 342x 49.8mm521 x293mm250 1920 x 1080GT-OM&TM2365A
23.6"

GT-TM2365A-IR

InfraredVGA,DVI,HDMI,DP16:9565.5x337.5x55.5mm521 x293mm250 1920 x 1080GT-OM&TM2365A
