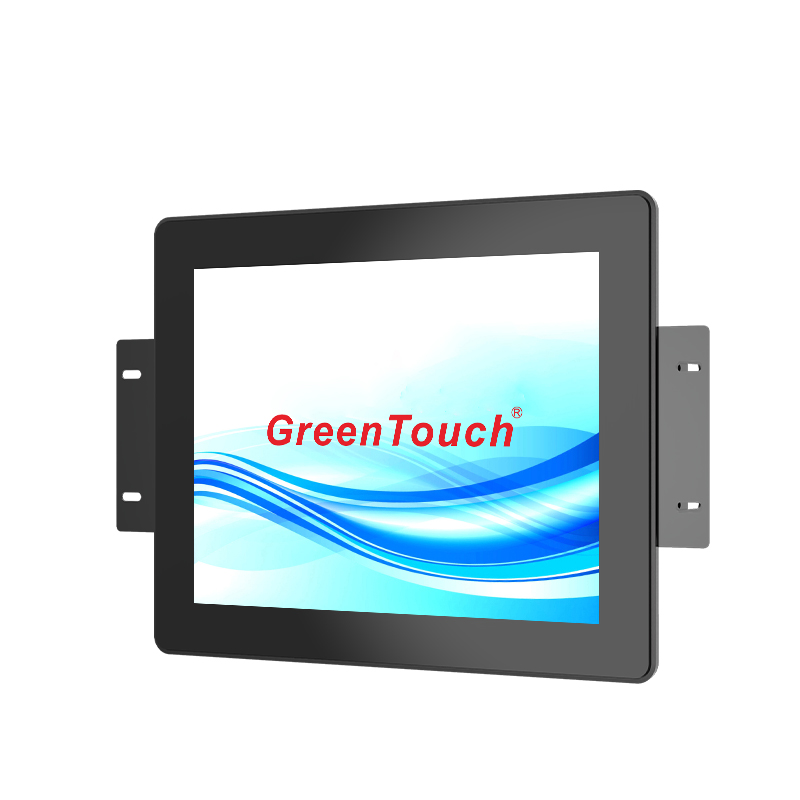

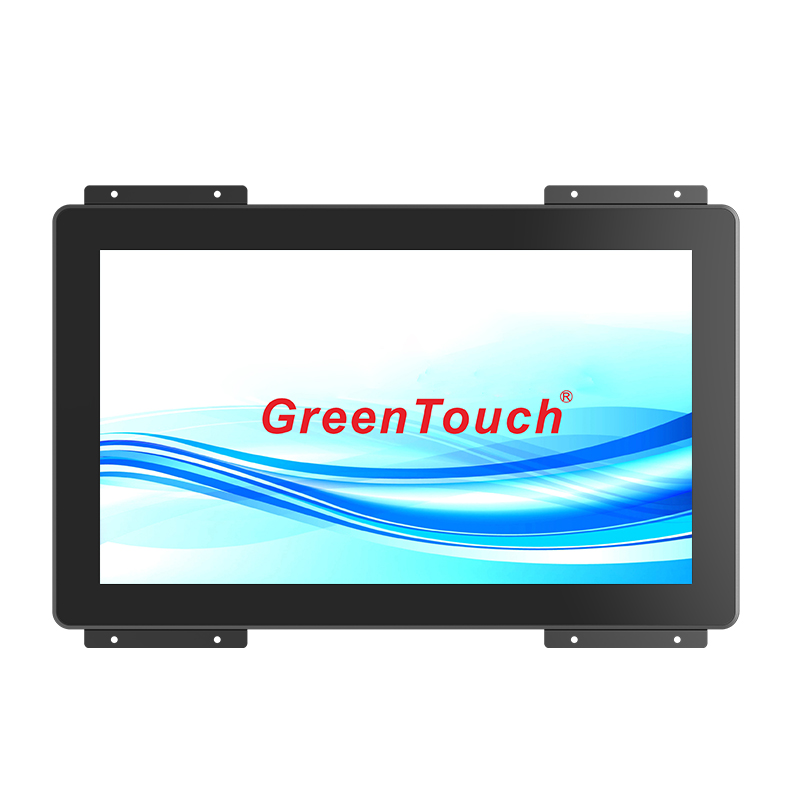

Open Frame Touch Monitor 10.1-27 Inches(3C Series)

Open Frame Touch Monitor 10.1-27 Inches(3C Series)

Product Information

Quality: High Reliability, MBTF 50,000 Hours

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Mounting: Embedded,Wall-mounted,Desktop

Customizable: Size,Logo,Color,Casing,Packaging

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Features

● A+grade original industrial TFT LCD,LED Backlight

● 2-3mm cover glass with 6H,7H surface hardness

● IP65 and front protection to resist water and dust

● Dense ventilation holes for reliable 24/7 operation

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

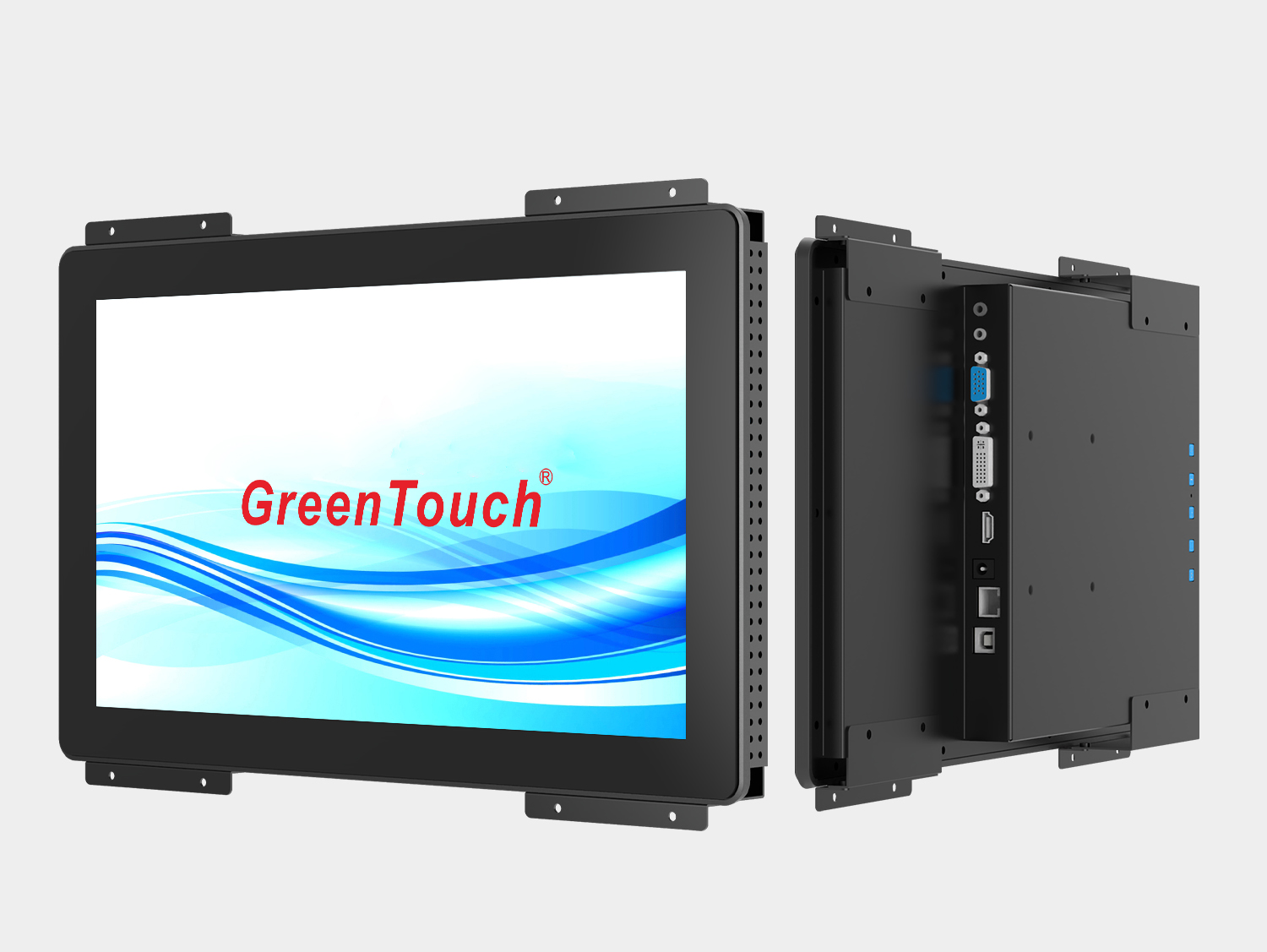

3C Touch Monitor Overview

GreenTouch's open frame touch monitor 3C series provide cost-effective solutions for customers who need industrial touch.A comprehensive size range from 7 ”to 27” ensures compatibility with:Industrial control,terminal accessories,human-machine interaction,smart healthcare,smart Livelihood.

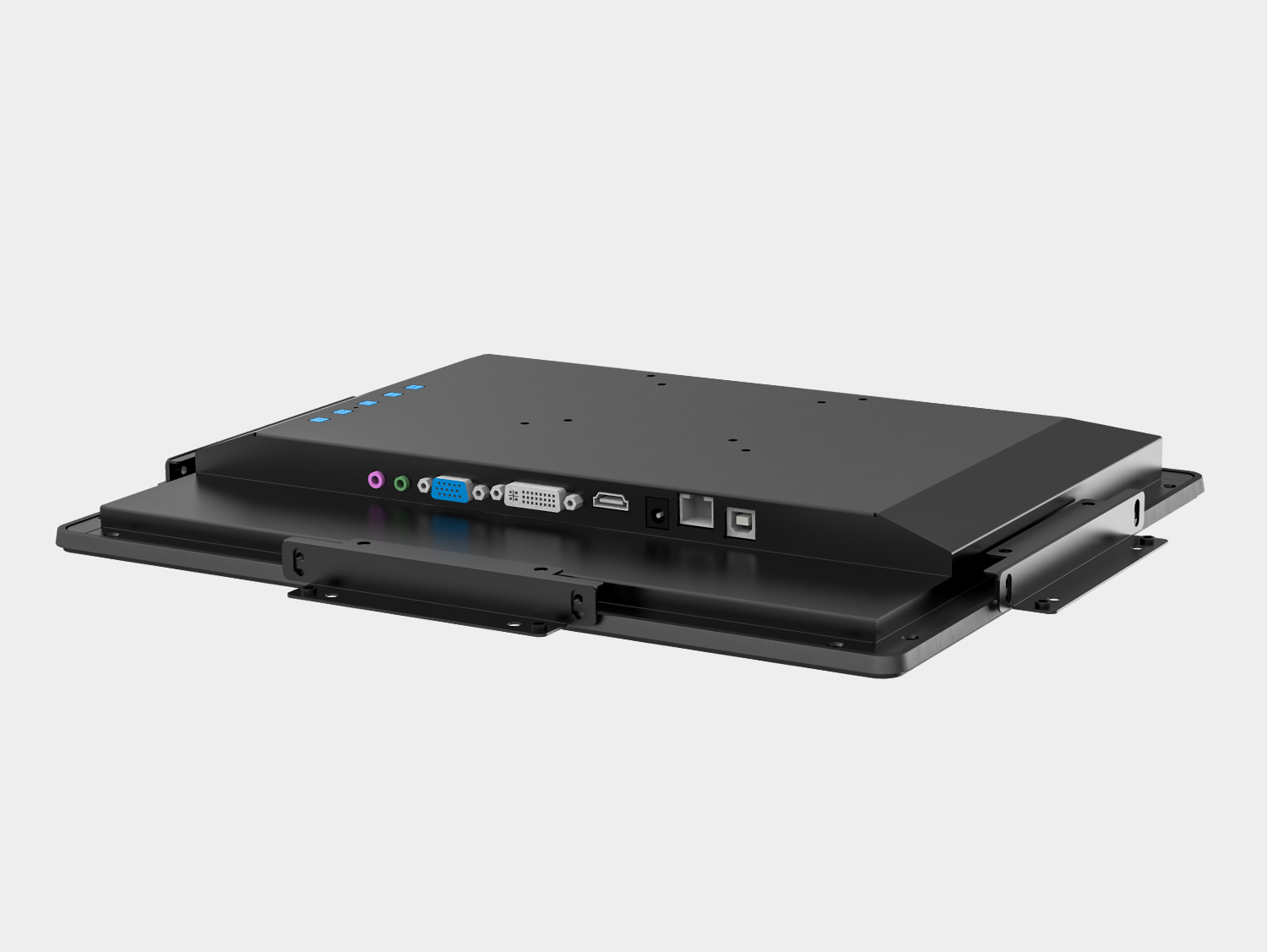

Versatile Connectivity

The GreenTouch capacitive touch monitors 3C series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

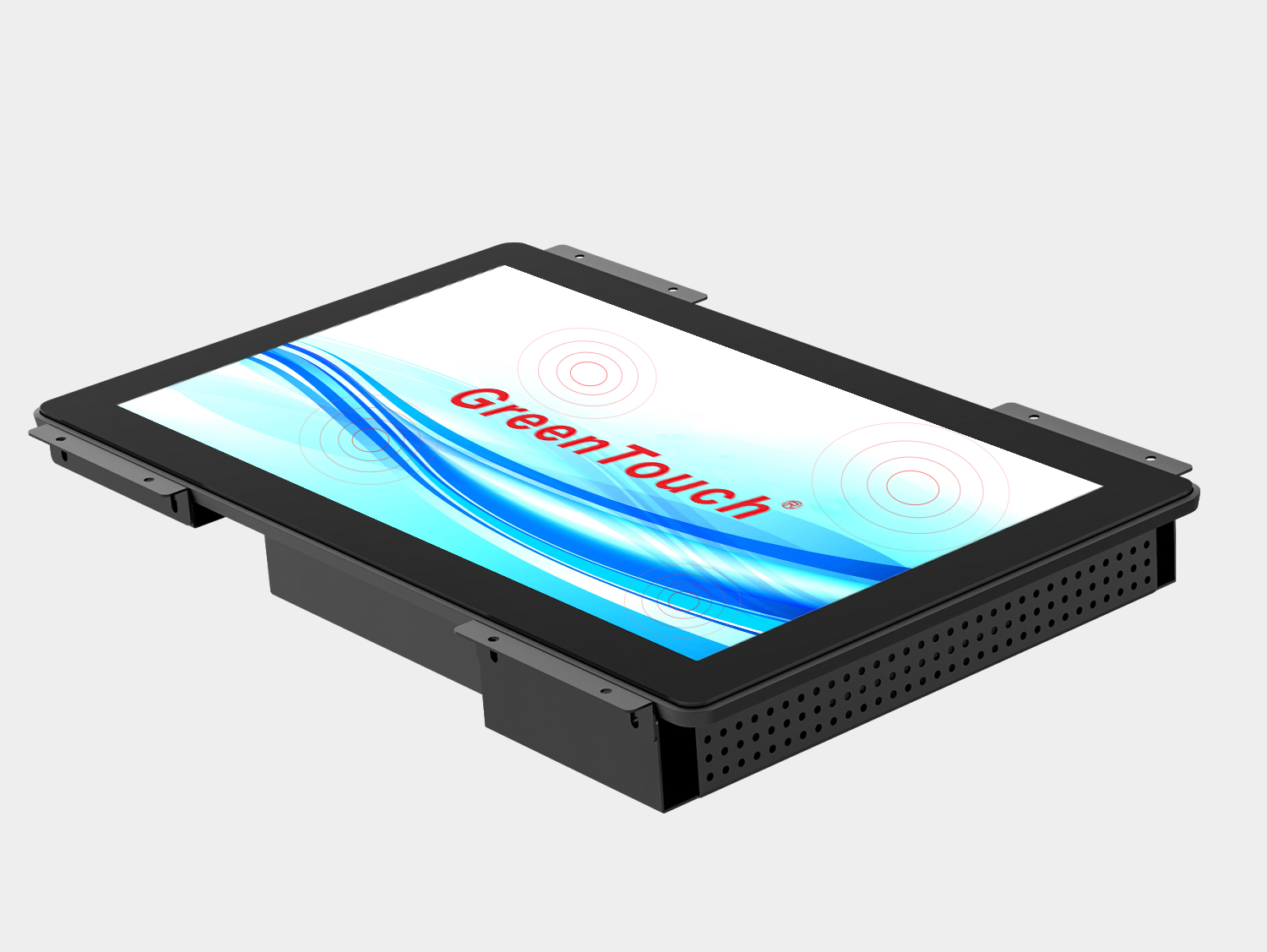

Function And Structure

3C adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 3C uses an industrial plastic front shell,industrial black metal frame,durable and reliable .

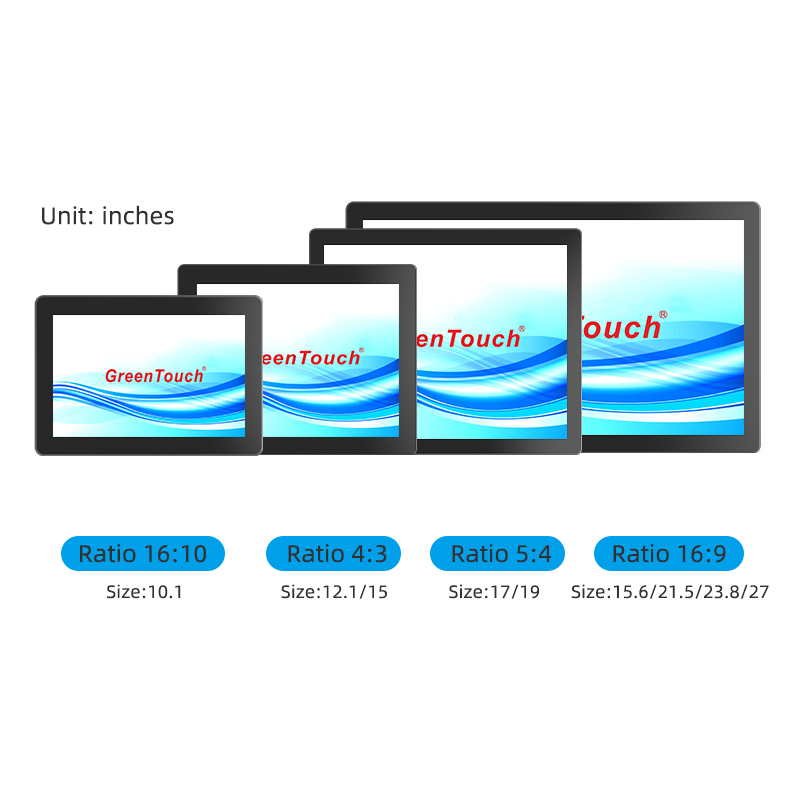

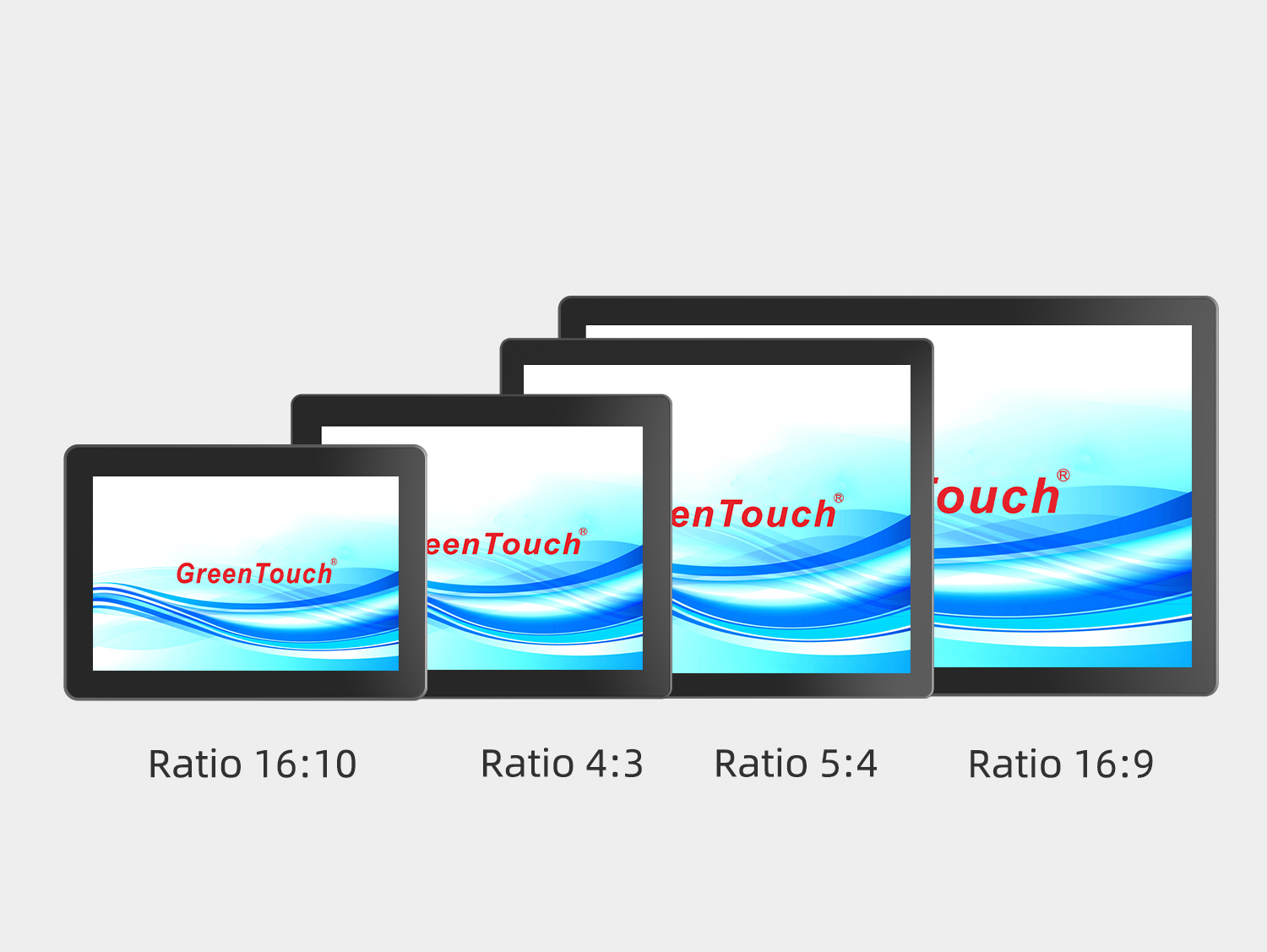

Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 4:3) Size:12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:15.6”,21.5”,23.8”,27

Mounting Options

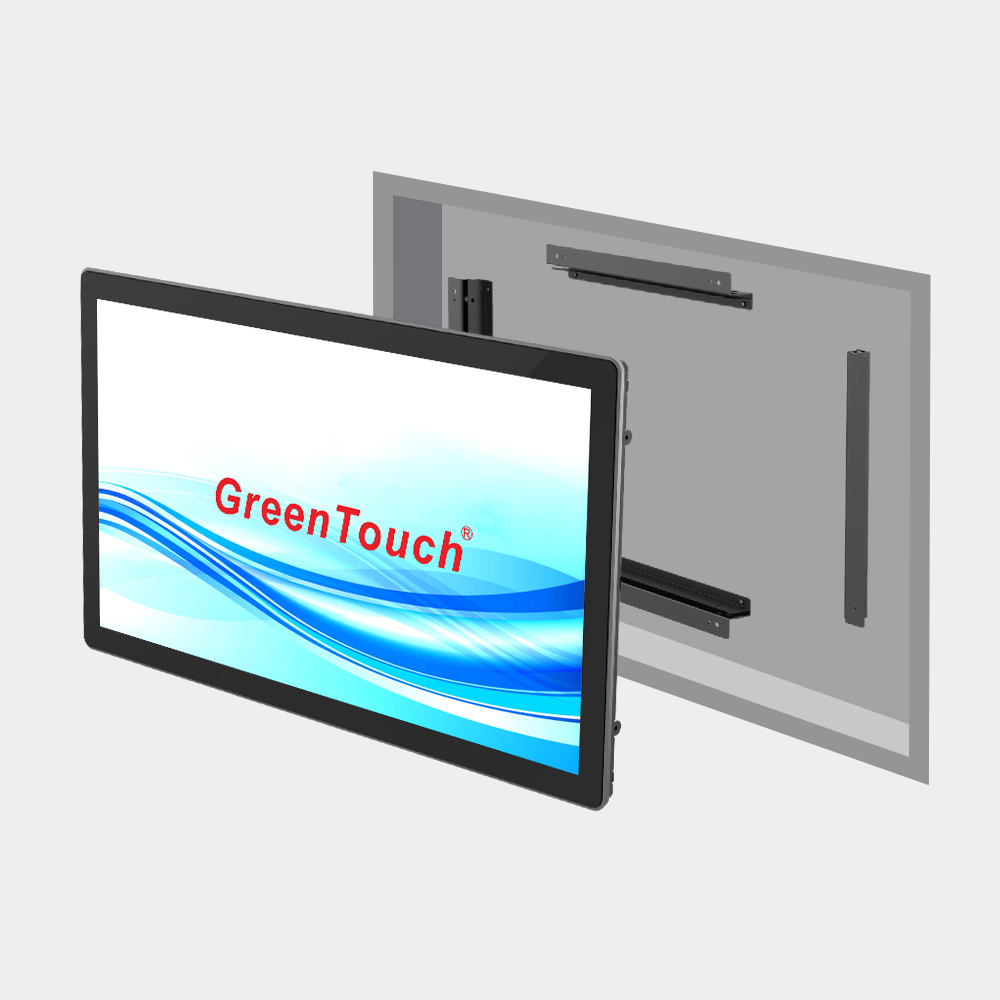

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

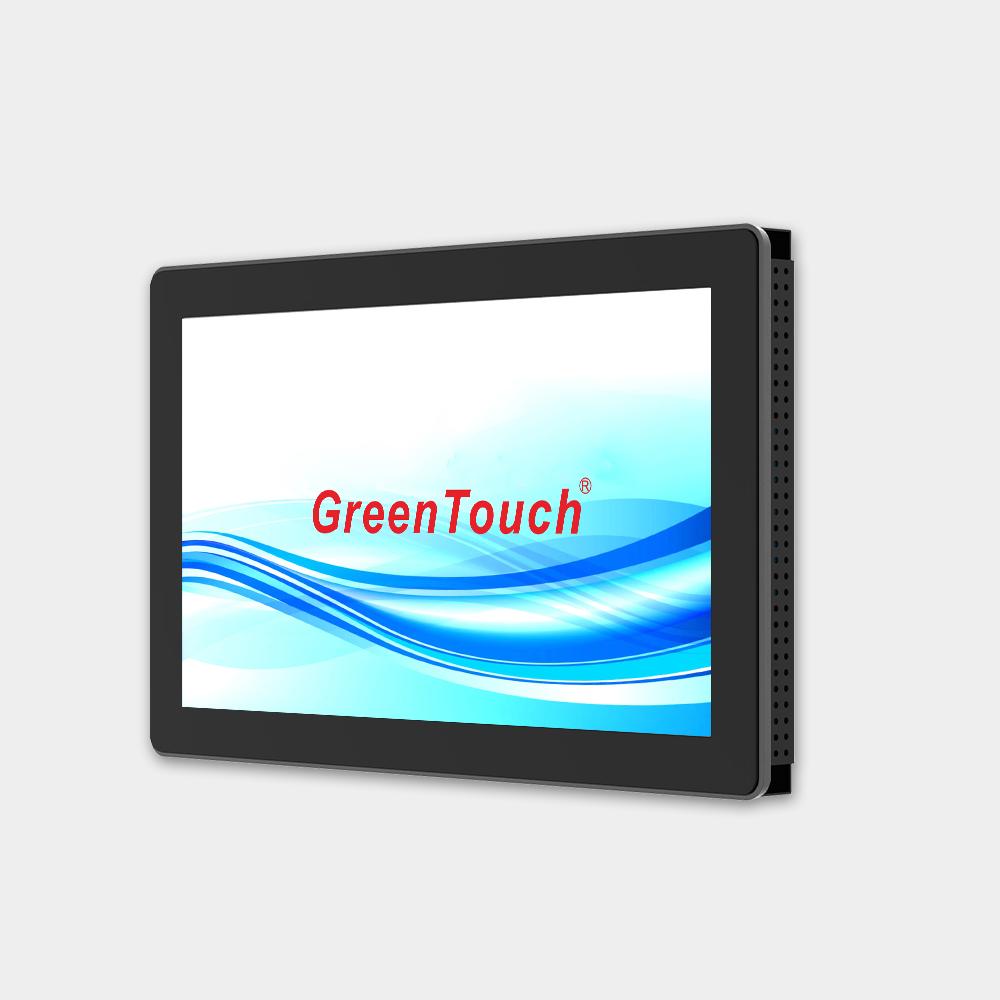

Wall Mount

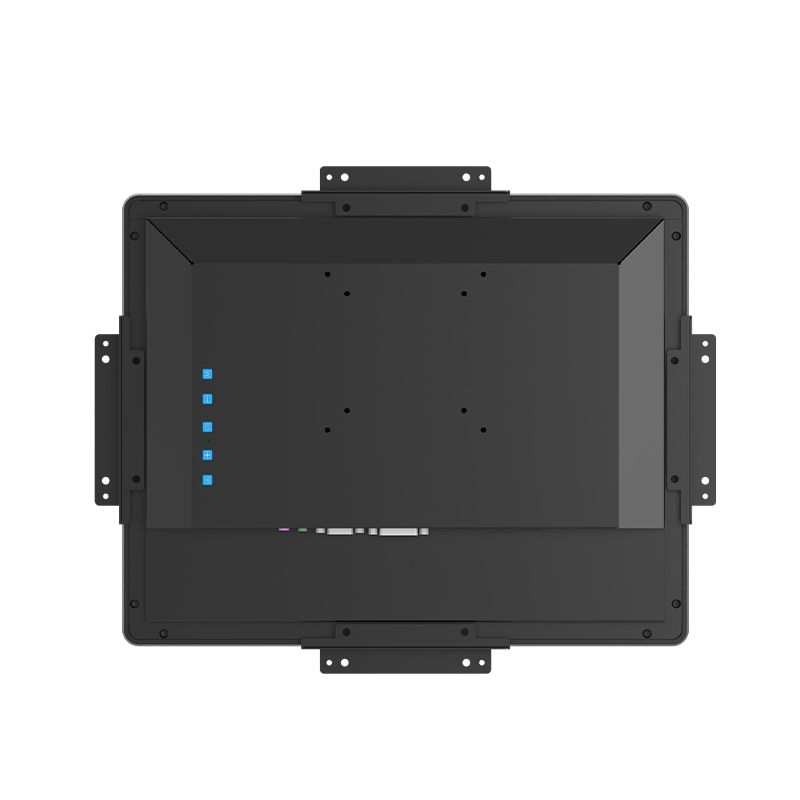

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

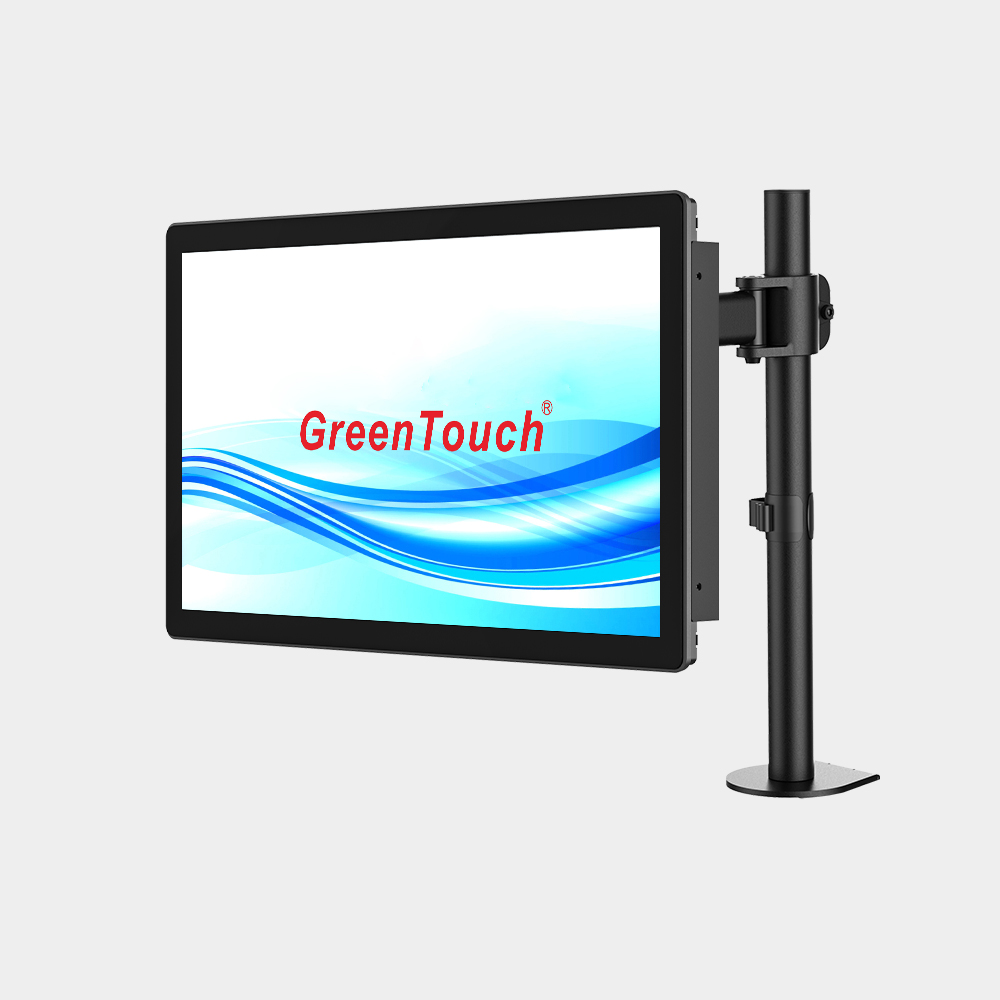

Cantilever

3C is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for cantilever installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Cantilever

3C is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for cantilever installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3C Series) Regular Sizes: 10.1",12.1",15", 15.6",17",19",21.5",23.8",27" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 27 inches Resolution:1280x800,1024x768,1920x1080, 1280x1024@60Hz Aspect Ratio:16:10,4:3,16:9,5:4 Brightness:250,300,400,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100mm Cantilever:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK06

About Display Ports

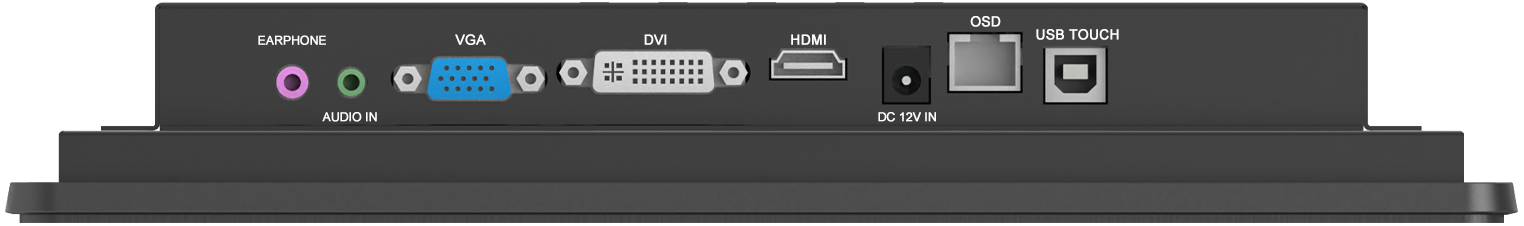

1.VGA+DVA+HDMI

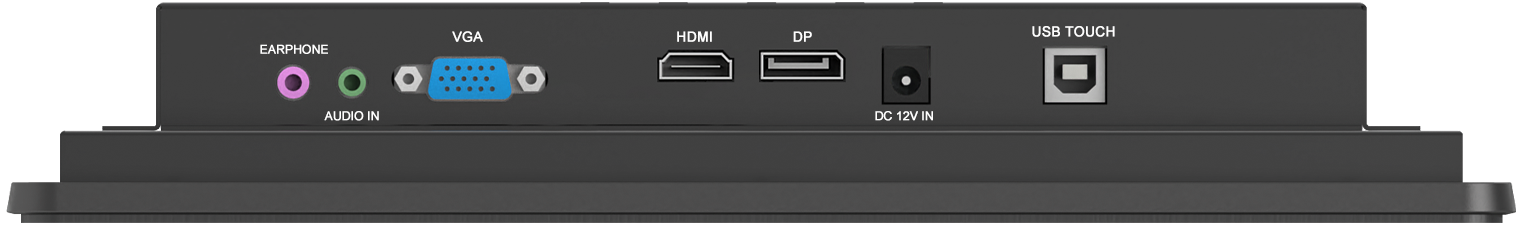

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
10.1"	GT-TM1013C	VGA,DVI,HDMI,DP	16:10	261x184x46mm	217x136mm	500	1280 x 800	GT-TM1013C
12.1"	GT-TM1213C	VGA,DVI,HDMI,DP	4:3	308x247x45mm	246x184mm	500	1024 x 768	GT-TM1213C
15"	GT-TM1503C	VGA,DVI,HDMI,DP	4:3	363x290x36mm	304x228mm	300	1024 x 768	GT-TM1503C
15.6"	GT-TM1563C	VGA,DVI,HDMI,DP	16:9	400x247x43mm	344x194mm	400	1920 x 1080	GT-TM1563C
17"	GT-TM1703C	VGA,DVI,HDMI,DP	4:3	398x333x43mm	338x270mm	250	1280 x 1024	GT-TM1703C
19"	GT-TM1903C	VGA,DVI,HDMI,DP	4:3	426x354x41mm	376x301mm	250	1280 x 1024	GT-TM1903C
21.5"	GT-TM2153C	VGA,DVI,HDMI,DP	16:9	521x316x45mm	478x269mm	250	1920 x 1080	GT-TM2153C
23.8"	GT-TM2383C	VGA,DVI,HDMI,DP	16:9	575x347x39mm	527x396mm	250	1920 x 1080	GT-TM2383C
27"	GT-TM2703C	VGA,DVI,HDMI,DP	16:9	650x394x42mm	598x336mm	300	1920 x 1080	GT-TM2703C
