Product Information

Resolution:UHD 4K,Full HD 1920x1080

Processor:The RK3568S chip,quad-core ARM Cortex-A55

Systems:Android 9,10, 11,12,13,14

RAM:2-8GB,SSD:32-64G,Support TF Card

Mounting:Wall-mounted,hanging,mobile bracket

Features

● Thin bezel,178 ultra-wide viewing angle

● Display Colors 16.7M,90%NTSC

● Supports single-core,dual-core or quad-core solutions

● Surface treatment: AG(AR,AF,MR Optional)

● Long lifecycle,1-3 years guarantee (24/7 usage)

Product Description
  • 6C Digital Signage Overview
    6C Digital Signage Overview
    GreenTouch 6C series (32”,43”,50”,55”,65”) digital signage is suitable for diverse scenarios such as retail supermarkets, restaurant chains, financial outlets, medical and government services, transportation hubs, campuses, and corporate offices. With high-definition display and intelligent information dissemination system, it realizes integrated information dissemination for brand promotion, sales guidance, information disclosure, wayfinding, queuing, and emergency notification, creating an efficient, accurate, and visual intelligent communication terminal for various industries.
  • Configuration and Connectivity
    Configuration and Connectivity

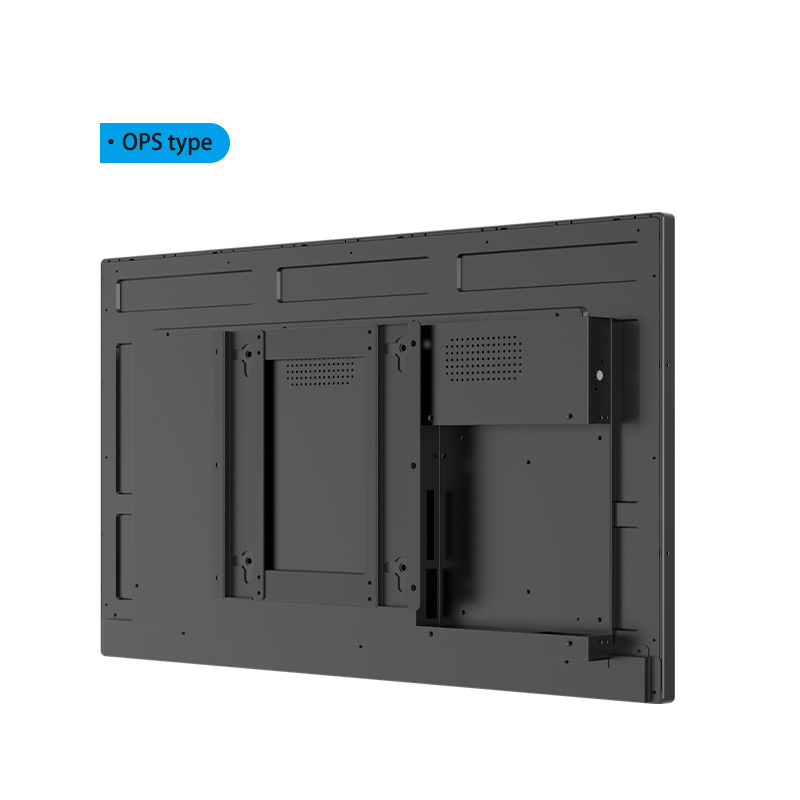

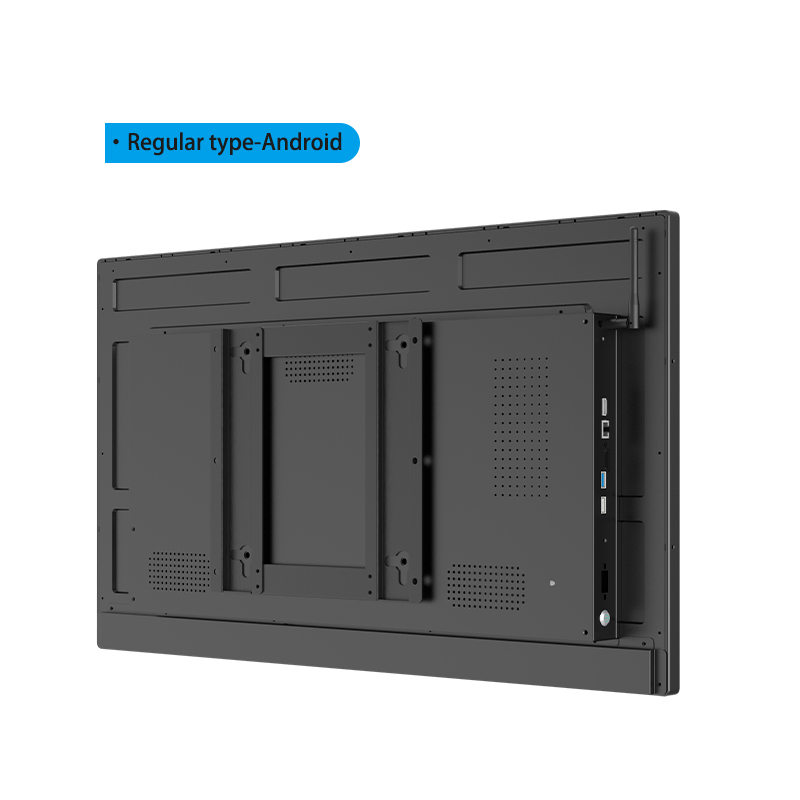

    The GreenTouch digital signage 6C series includes HDMI,OTG,TF,POWER,AUDIO,RJ45 and USB ports. These connections are all positioned on the back of the display and face downward, allowing for easy installation in any scenario. The 6C uses RK3568S chip features a quad-core ARM Cortex-A55 architecture, with a maximum clock speed of up to 2.0GHz,supports RJ45 R/A 100Mbps Ethernet and Ethernet; Supports 2.4GHz Wi Fi and Wi Fi 802.11b/g/n protocol; Supports Bluetooth 4.2 and Bluetooth file transfer.
  • Appearance and Structure
    Appearance and Structure

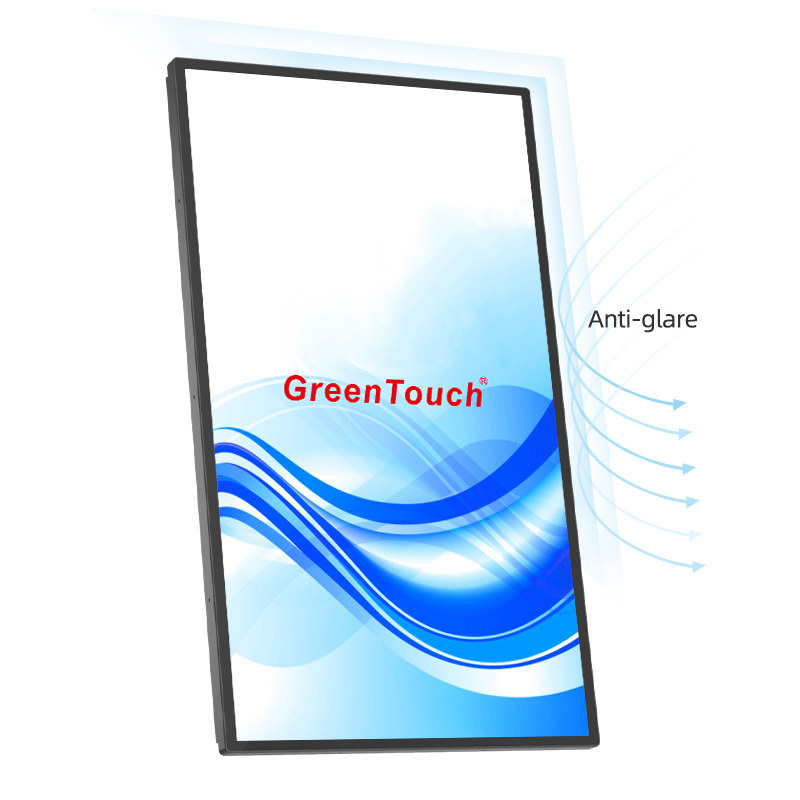

    6C digital signage adopt thin bezel design,optically bonded touch panel to LCD panel,and adopting AG anti-glare surface treatment technology. TFT LCD LED backlight, the display color is 16.7M, and the video image is clear and natural; the appearance of the body is beautiful and fashionable.In normal operation. Under the condition of use, it can reach a long service life of 50,000 hours, and can work 7*24 hours without interruption
  • Function Support
    Function Support
    Timing switch, timing playback ;
    Cloud intelligent background can be operated remotely across provinces and cities;

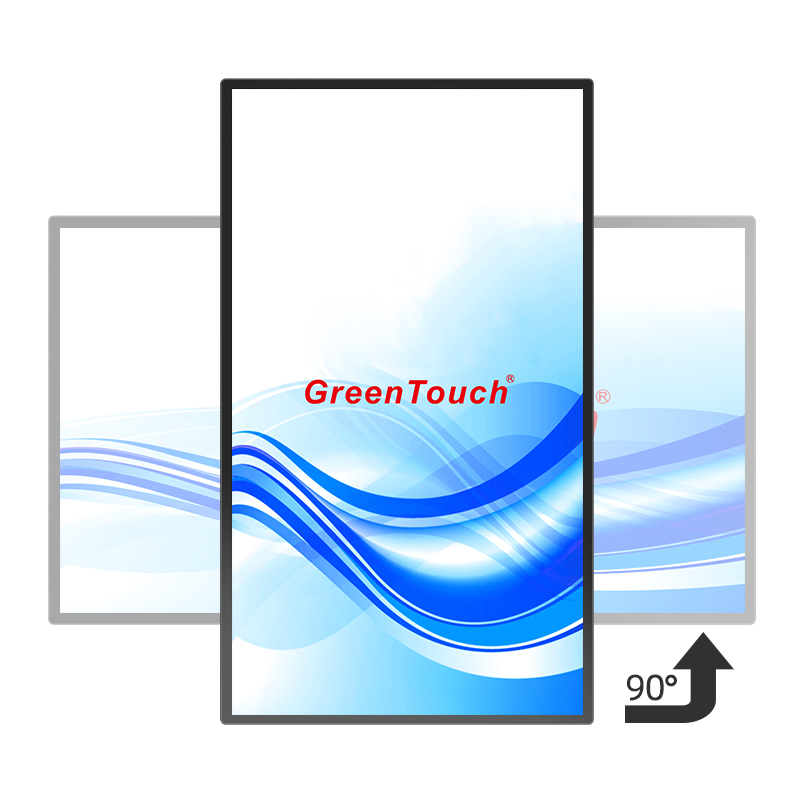

    0°/90°/180°/270° manual or automatic rotation;
    Combined split-screen playback of pictures and videos;
Mounting Options
Wall-mounted
Hanging
Mobile Brackets
Wall-mounted Digital signage 32-65 Inches(6C Series)
Wall-mounted Digital signage 32-65 Inches(6C Series)
Wall-mounted Digital signage 32-65 Inches(6C Series)
Specifications
General

Manufacturer:GreenTouch

Product Name:Wall-mounted digital signage(6C Series)

Regular Sizes: 32",43",50",55",65"

Warranty:1-3 Years

Certificates:CE,FCC,RoHS,CB,HDMI,CCC

Panel

Panel Type:Active Matrix TFT LCD, LED Backlight

Diagonal Size:32 to 65 inches

Resolution:1920x1080,4k @60Hz

Aspect Ratio:16:9

Brightness:450,1000 nits

Environmental

Operating Time:Max.Non-Stop 24/7

Temperature Operating:0°C to 50°C

Temperature Storage:-20°C to 60°C

Humidity Operating:20% to 80% (No Condensation)

Humidity Storage:10% to 90% (Non-condensing)

Connectivity

Display Ports:HDMI,OTG,TF,POWER,AUDIO,RJ45,USB

Mounting

Embedded:External Bracket

Wall Mount:VESA 200x100/400x300mm

Hanging:Hanging bracket

Compliance

Certifications:CE,FCC,RoHS,CB,HDMI,CCC



Application Field
Wall-mounted Digital signage 32-65 Inches(6C Series)
Specification and download
Size

Model

Display portsRatio

Display Size

(W*H*T)

Active Area

Dimensions(H*V)

Brightness

(nits)

Resolution

@60Hz

Data Download
32"

GT-OC3206C-G

VGA,HDMI16:9724.6 x 419 x 59.2mm698.4 x 392.9mm4501920 x 1080

GT-OC3206C-G

32"

GT-OC3206C-G-Android

HDMI16:9724.6 x 419 x 59.2mm698.4 x 392.9mm4501920 x 1080

GT-OC3206C-G-Android

43"

GT-OC4306C-G

VGA,HDMI16:9967.6 x 555.8 x 59mm940.9 x 529.3mm4501920 x 1080

GT-OC4306C-G

43"

GT-OC4306C-G-Android

HDMI

16:9

967.6 x 555.8 x 59mm940.9 x 529.3mm4501920 x 1080

GT-OC4306C-G-Android

50"

GT-OC5006C-G

VGA,HDMI16:91122 x 642.3 x 59mm1096 x 616.4mm450 3840 x 2160

GT-OC5006C-G

50"

GT-OC5006C-G-Android

HDMI

16:9

1122 x 642.3 x 59mm1096 x 616.4mm450 3840 x 2160

GT-OC5006C-G-Android

55"

GT-OC5506C-G

VGA,HDMI16:91236.7 x 707.8 x 57.6mm1209.6 x 680.4mm450 3840 x 2160

GT-OC5506C-G

55"

GT-OC5506C-G-Android

HDMI

16:9

1236.7 x 707.8 x 57.6mm1209.6 x 680.4mm450 3840 x 2160

GT-OC5506C-G-Android

65"

GT-OC6506C-G

VGA,HDMI16:91456.9 x 831.7 x 59.8mm1428.5 x 803.5mm450 3840 x 2160

GT-OC6506C-G

65"

GT-OC6506C-G-Android

HDMI

16:9

1456.9 x 831.7 x 59.8mm1428.5 x 803.5mm450 3840 x 2160

GT-OC6506C-G-Android
