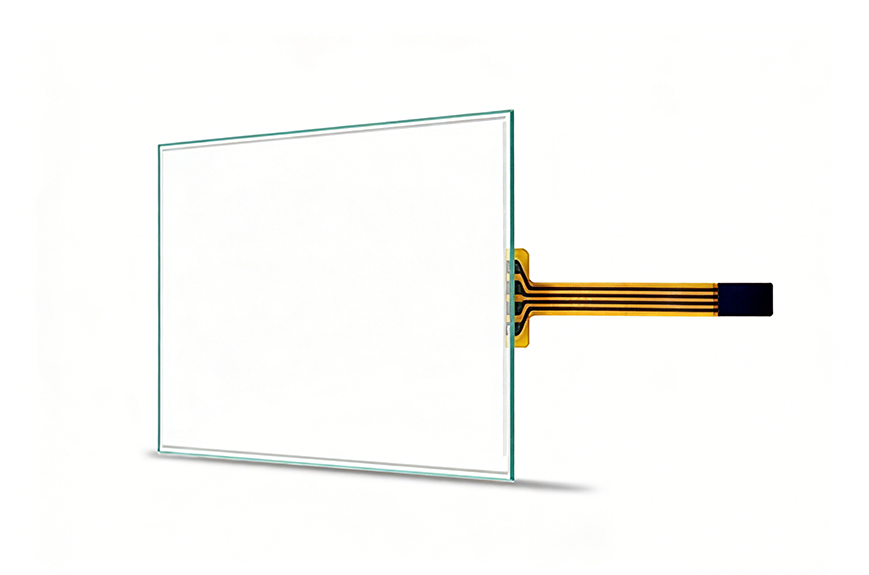

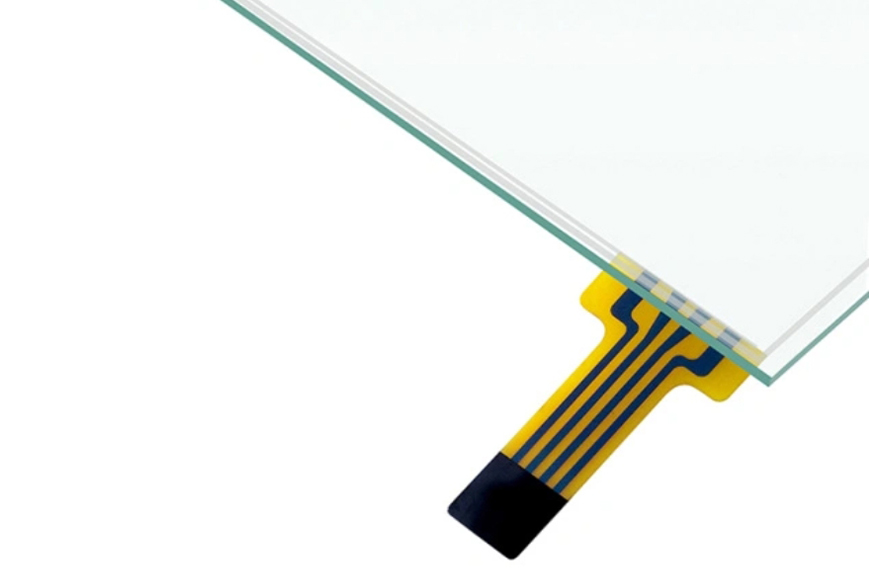

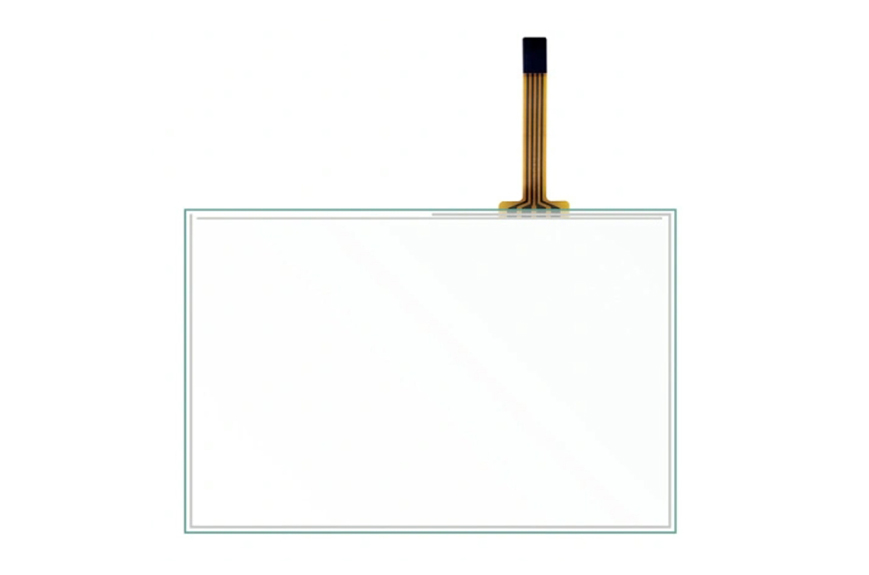

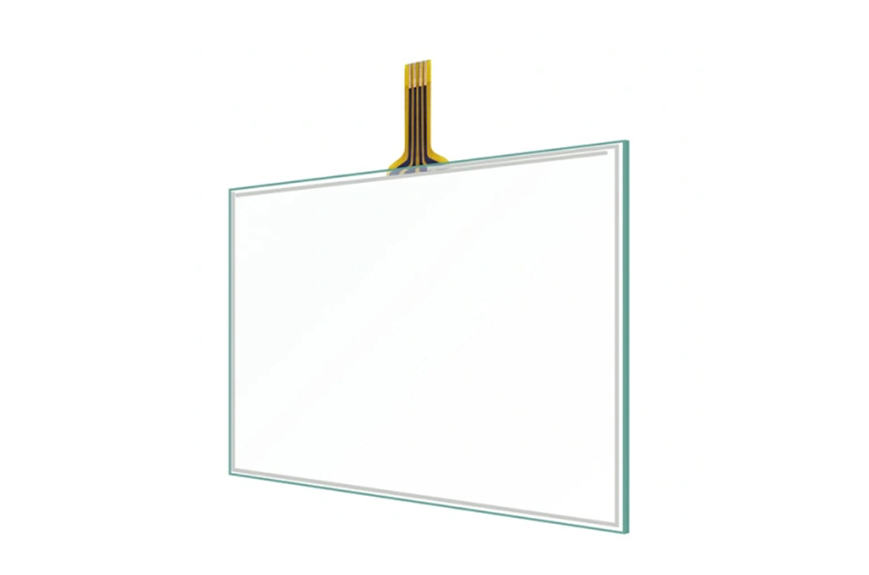

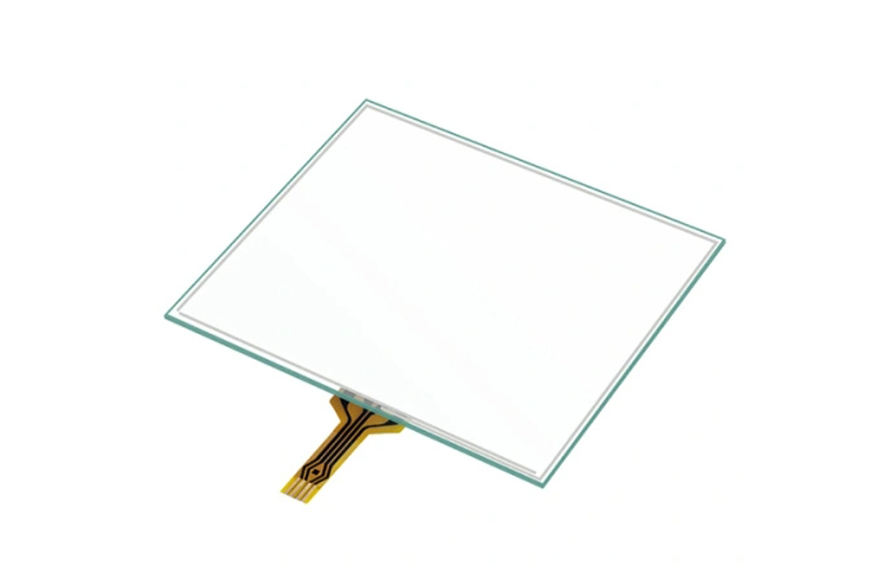

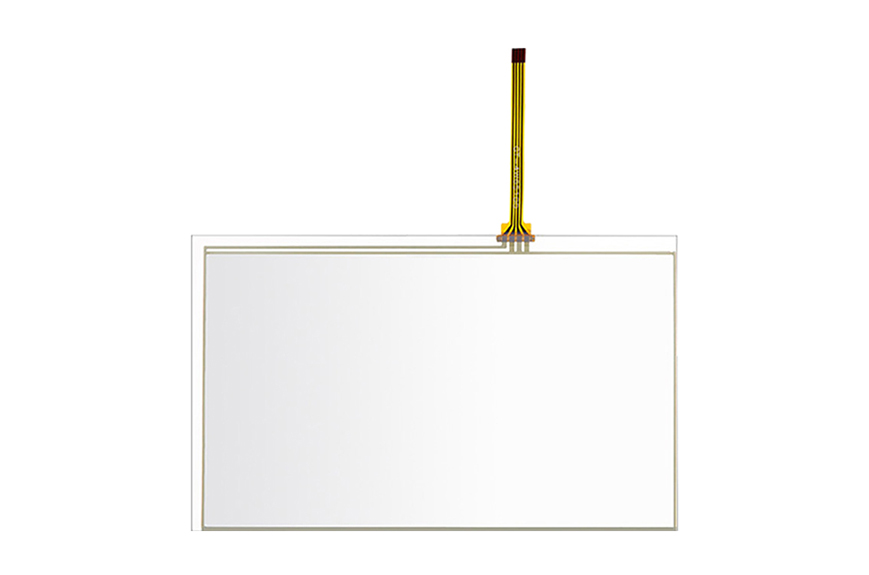

Resistive Touch Screen 2.7 to 10.1 Inches(4 Wire)

Resistive Touch Screen 2.7 to 10.1 Inches(4 Wire)

Product Information

Resolution:4096x4096

Life Time:1.000.000 times

Product Structure:ITO Film+ITO Glass

ITO Film+ITO Film

Certificates:CE,FCC,RoHS

Features

● Light touch, no drift, no calibration and high stability

● Can be sealed against contamination,support NEMA 4/4x/12.

● Can meet the pencil hardness 3H per ASTM D3363

● Use mist hard coating & anti-newton rings,prevent scratches

● Own class 1,000 clean room,full inspection,fast delivery

Get a quote

Online Consultation

Product Description
Customization Options
Specifications
Application Field
Specification and download

Product Description

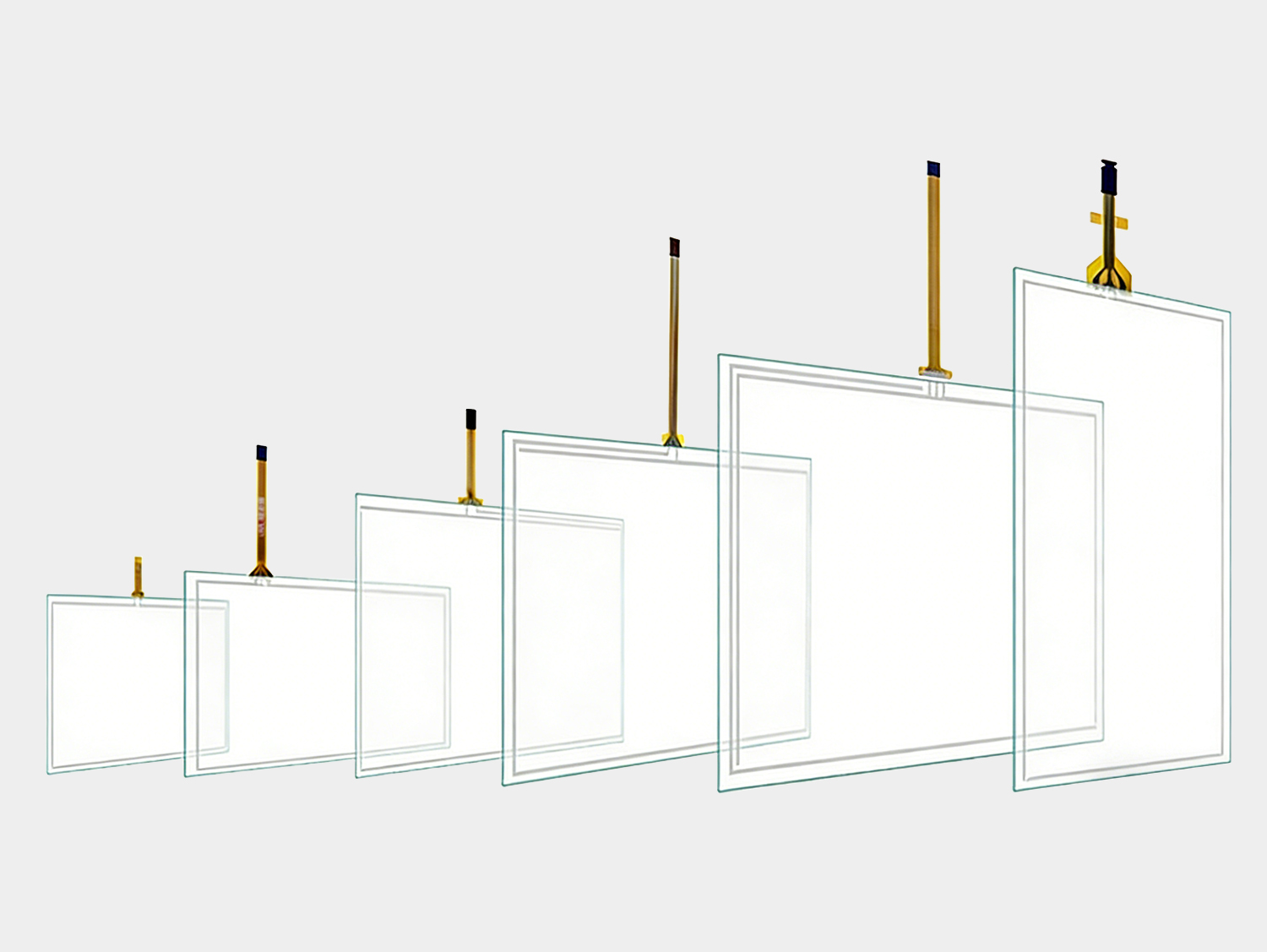

Small Size 4 Wire Touch Screen Overview

GreenTouch's small-sized (2.7 to 10.1 inches) four-wire resistive touchscreens have secured a strong position in several fields with specific requirements for reliability, cost, and environmental adaptability, thanks to their unique technological features. They are compatible with industries such as: Handheld industrial terminals, small control panels, logistics barcode scanning devices, equipment control interfaces, handheld diagnostic devices, portable monitors, vehicle-mounted information terminals, small self-service inquiry terminals, handheld ordering devices, etc.

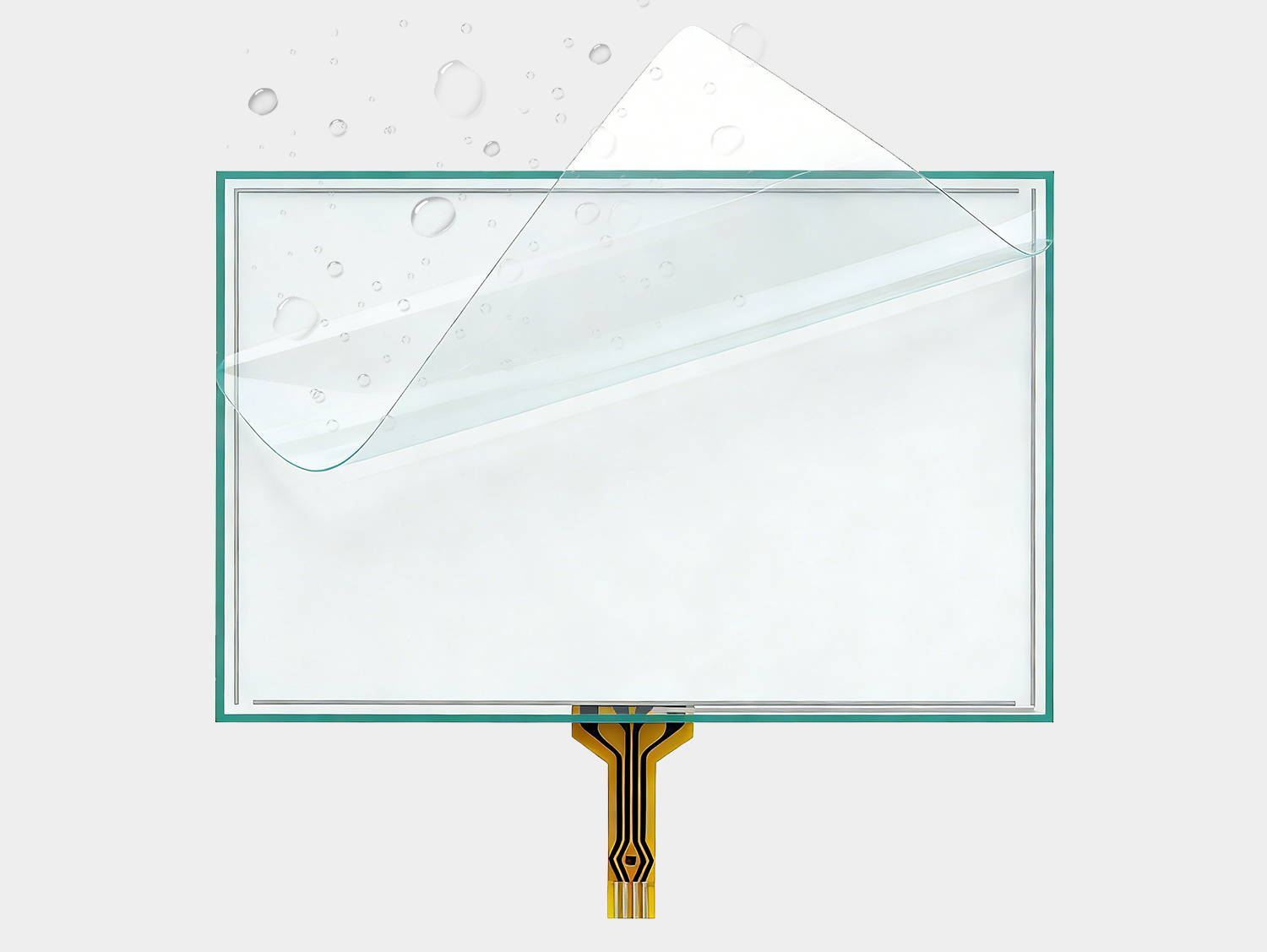

Function And Structure

Our resistive touch panel with pure plane structure,excellent craftsmanship,slim and smooth design,total thickness about 2.3mm.And use stable IC and bonding equipment to maintain high yield and quality.They are produced using mature technology, are inexpensive, and have strong anti-interference capabilities. And entirely on single-point contact with physical pressure and are unaffected by environmental pollutants such as water, oil, dust, and moisture.

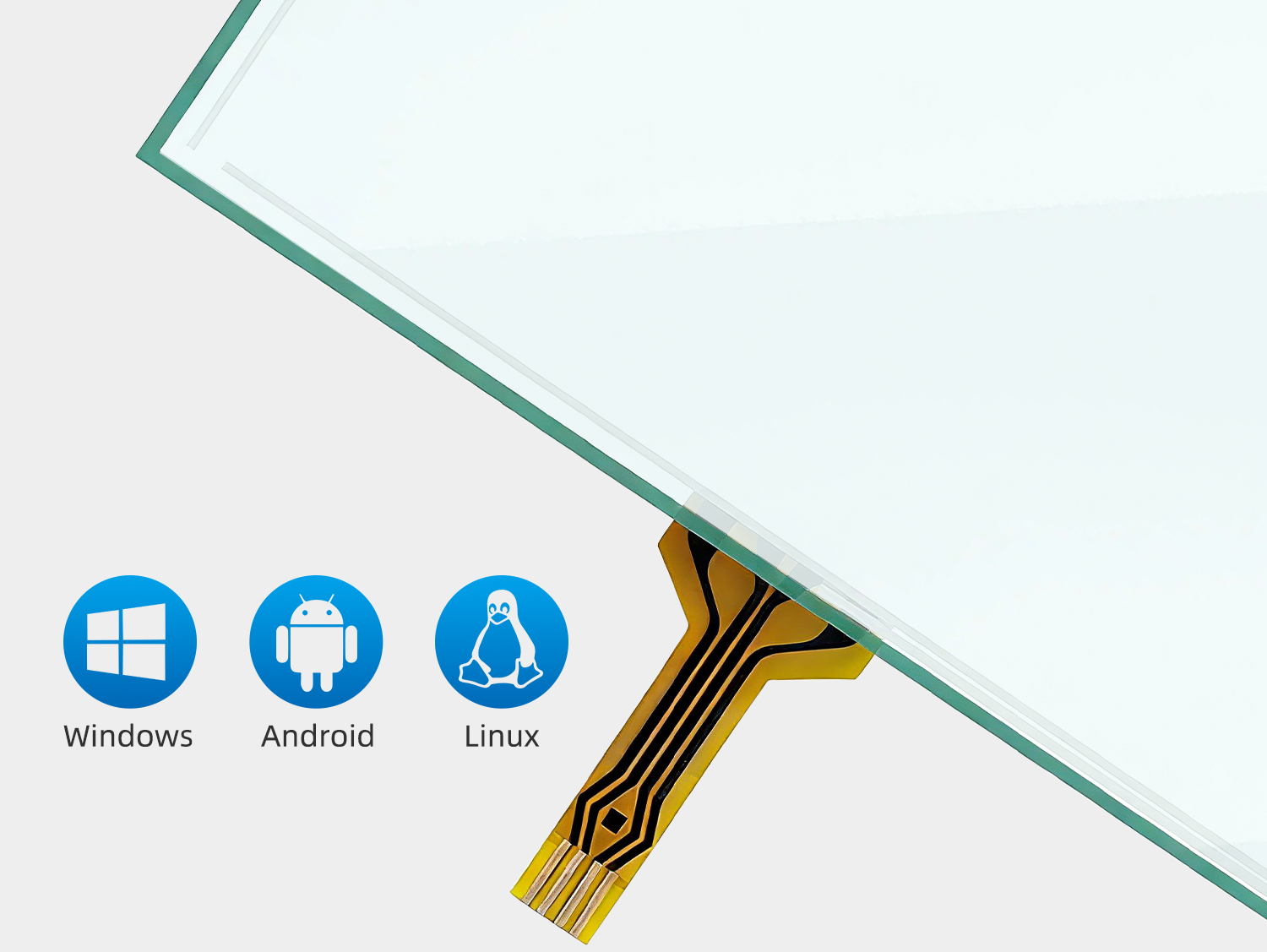

Connections and Systems

The steps to connect the resistive touchscreen as follows: 1. Connect the rainbow cable (extension cable) to the driver board,2. Connect the rainbow cable (extension cable) to the touchscreen cable,3. Connect the driver board to the USB cable.GreenTouch four-wire resistive touchscreens are compatible with Windows, Android, and the Linux system. Their "simple, stable, and low-cost" characteristics are highly compatible with the core needs of embedded systems, industrial control, and other fields.Achieve seamless compatibility.

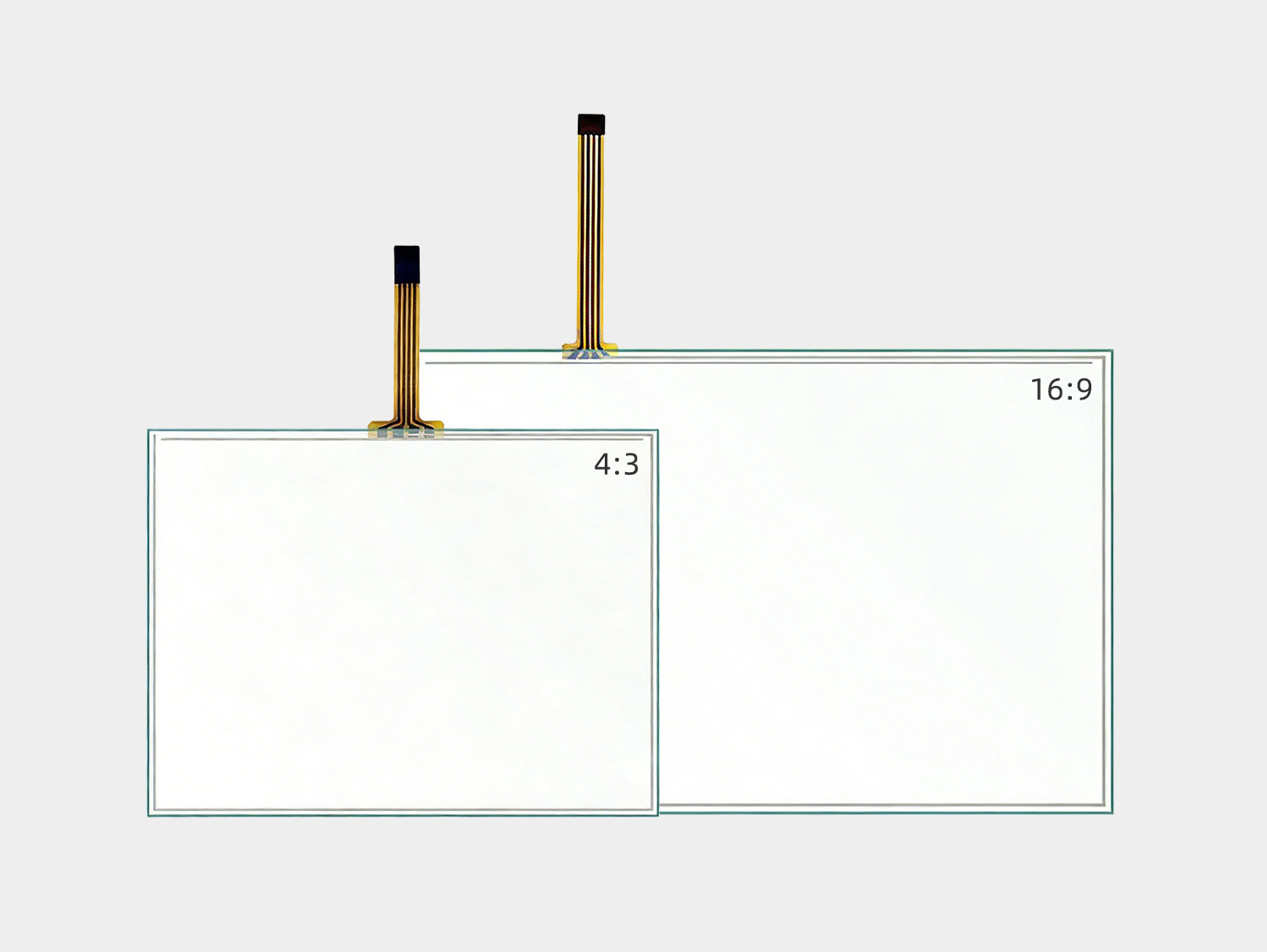

Multiple sizes available

(Ratio 16:39)
Size:2.7”,4.3”,6.2”,7”,9”,10.1”
(Ratio 4:3)
Size:5.7”,6”,6.5”,9.7”

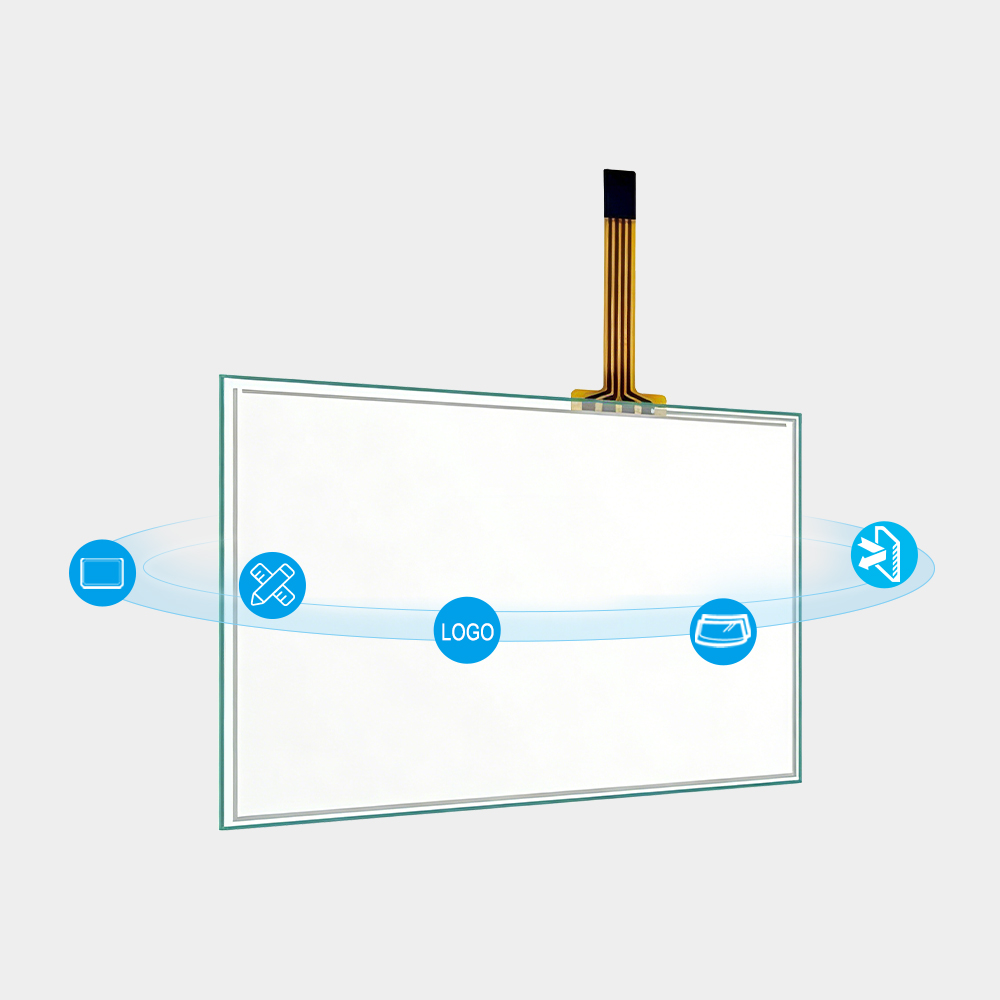

Customization Options

GreenTouch 4 wire resistive touch screens can be customized in terms of appearance, electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet location,packaging,ITO glass thickness,matte anti-newton ring,anti-glare finish,smooth finish，controllers and Interfaces,high temperature,high humidity,anti-UV etc

Specifications

General Manufacturer:GreenTouch Product Name:4 Wire Resistive Touch Screen Regular Sizes:2.7",4.3",5.7",6",6.5",7",9",9.7",10.1" Warranty:1-3 Year Certificates:CE,FCC,RoHS

Panel Panel Type:ITO Film+ITO Glass/ITO Film+ITO Film Surface Hardness:≥3H Diagonal Size:2.7 to 10.1 inches Aspect Ratio:16:9,4:3 Resolution:4096 x 4096 Response Speed: <10ms Touch Technology:Resistive Single touch Control Interface: USB or RS232,I2C Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max. Non-Stop 24/7 Temperature Operating:–10°C to 50°C Temperature Storage:-20°C to 60°C Humidity:90% relative humidity,no condensation

Connectivity Interface:USB

Compliance Certifications: CE,FCC,RoHS

Application Field

Specification and download

Size

Model

Dimensions

View Area

Ratio

Support Systems

Resolution

Drawing Download

2.7"

GT-4W-2.7A-1

63*58mm

60*35mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-2.7A-1

2.7"

GT-4W-2.7B-1

65*46mm

59*40mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-2.7B-1

4.3"

GT-4W-4.3A-1

103*66mm

99*58mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-4.3A-1

5.7"

GT-4W-5.7A-1

132*104mm

123*94mm

4:3

Windows,Android,Linux

4096x4096

GT-4W-5.7A-1

6.0"

GT-4W-6.0A-1

138*101mm

124*92mm

4:3

Windows,Android,Linux

4096x4096

GT-4W-6.0A-1

6.2"

GT-4W-6.2A-1

165*70mm

154*59mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-6.2A-1

6.5"

GT-4W-6.5A-1

152*117mm

136*102mm

4:3

Windows,Android,Linux

4096x4096

GT-4W-6.5A-1

7.0"

GT-4W-7.0B-1

165*104mm

155*94mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7.0B-1

7.0"

GT-4W-7.0B-2

165*104mm

155*94mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7.0B-2

7.0"

GT-4W-7.0C-1

164*103mm

155*94mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7.0C-1

7.0"

GT-4W-7.0C-2

164*103mm

155*94mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-07PC-2

7.0"

GT-4W-7.0D-1

165*104mm

154*93mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7.0D-1

7.0"

GT-4W-7.0K-1

164*100mm

156*89mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7.0K-1

7.0"

GT-4W-7.0E-1

161*105mm

153*96mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7.0E-1

7.0"

GT-4W-7H-1

164*103mm

155*94mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7H-1

7.0"

GT-4W-7J-1

172*115mm

154*86mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-7J-1

9.0"

GT-4W-9.0A-1

211*126mm

200*113mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-9.0A-1

9.0"

GT-4W-9.0B-1

210*126mm

201*115mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-9.0B-1

9.7"

GT-4W-9.7A-1

210*164mm

200*152mm

4:3

Windows,Android,Linux

4096x4096

GT-4W-9.7A-1

10.1"

GT-4W-10.1A-1

235*143mm

225*128mm

16:9

Windows,Android,Linux

4096x4096

GT-4W-10.1A-1
