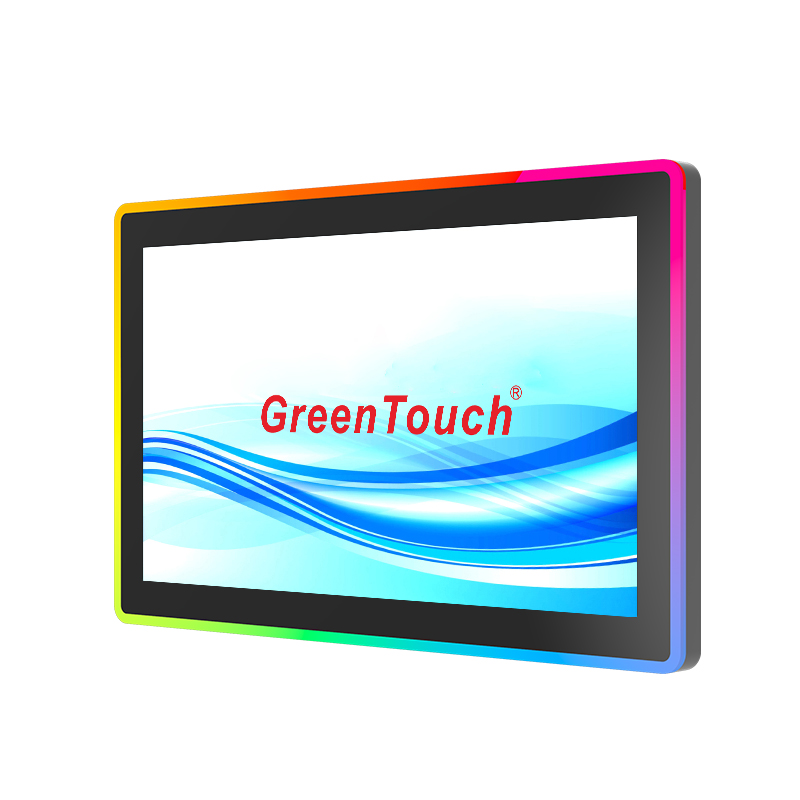

LED-frame Touch Monitor 21.5-43 Inches(PM Series)

LED-frame Touch Monitor 21.5-43 Inches(PM Series)

Product Information

Design:With trendy colorful LED marquee stirp bezel

Applications:24/7 entertainment and commercial displays

Customizable:Structure,Size,Logo,Color,Casing,Packaging

Intereface:VGA,DVI,HDMI,DP, OSD,AUDIO,RS232

Features

● Supports 358 kinds of LED dynamic lighting effects

● Customize the color,speed of change,direction of the synthesized LED

● Front panel is waterproof(IP65),dustproof(IP65) and explosion-proof(IK08)

● Dense ventilation holes for reliable 24/7 operation

● Combining dynamic visual appeal with human-computer interaction

● Compatible with Windows,Android,Linux systems and supports 3M protocol

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

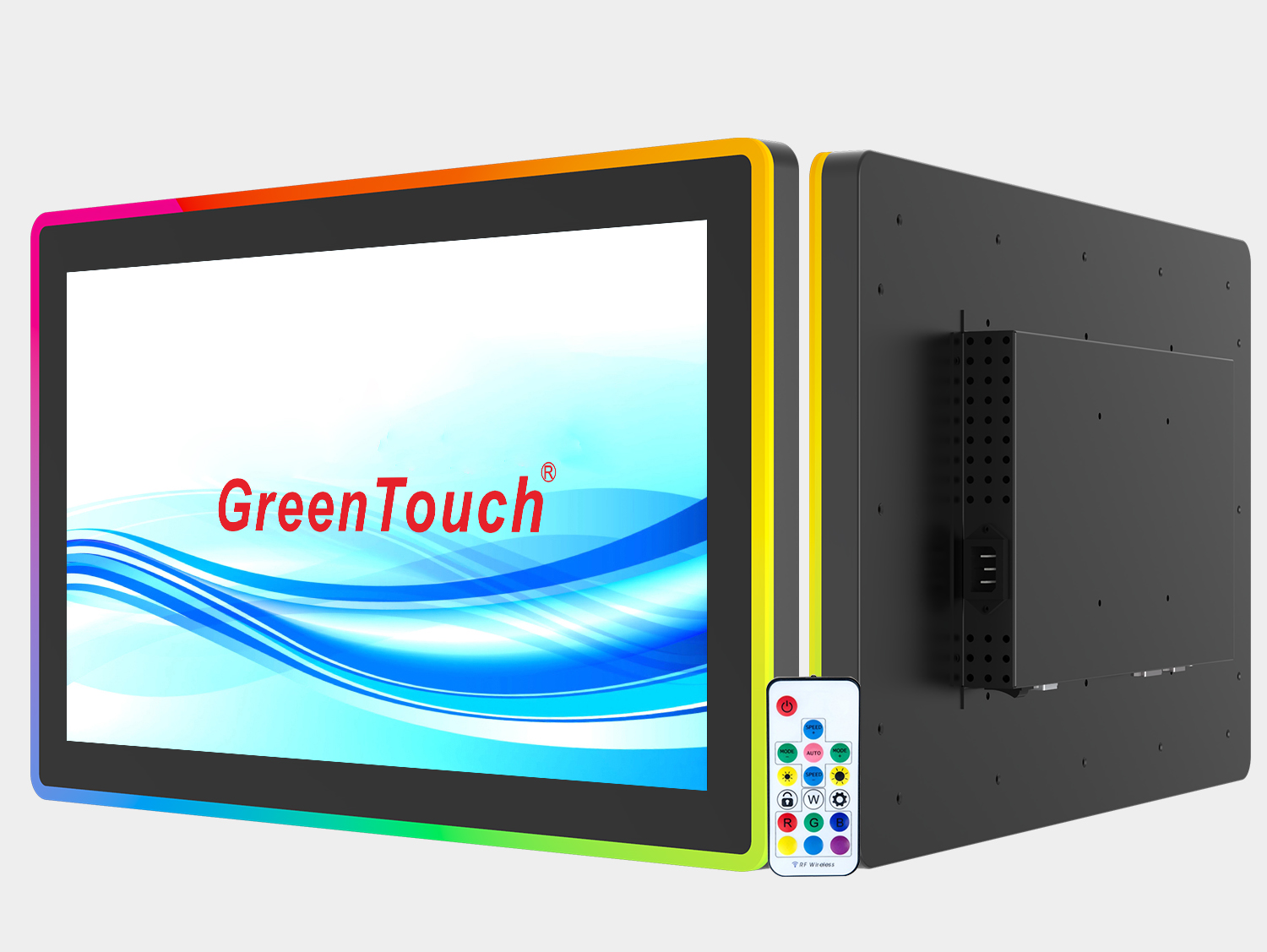

PM Touch Monitor Overview

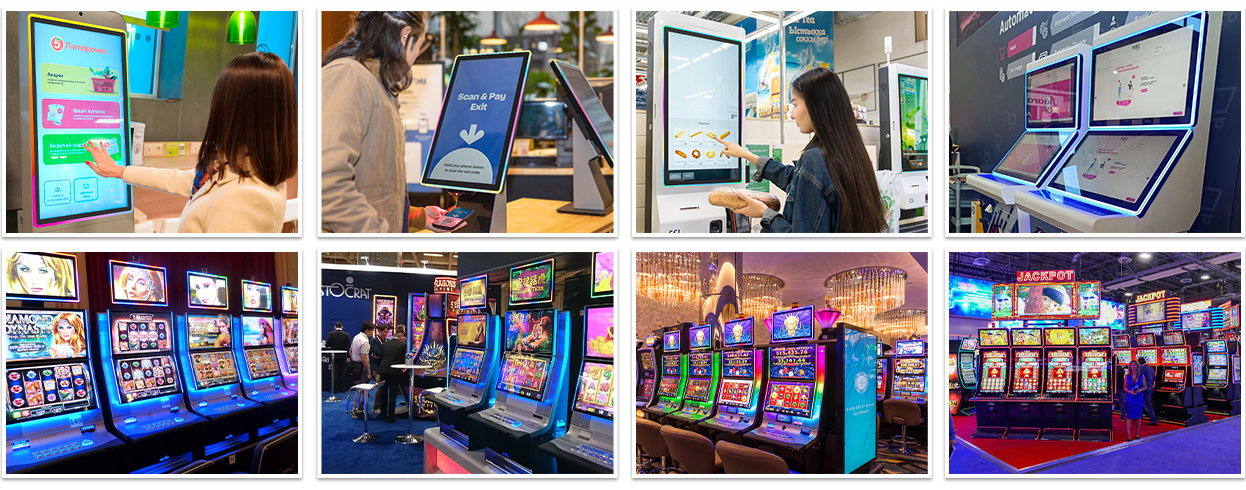

GreenTouch's capacitive LED-frame touch monitor PM series integrate display, interaction, and lighting, provide specially efficient solutions for who need a unique visual touch.A comprehensive size range from 21.5”to 43” ensures compatibility with:Gaming equipment, digital signage, karaoke bars and pubs, retail windows, restaurants and cafes, stages, exhibitions and trade shows, public transportation.

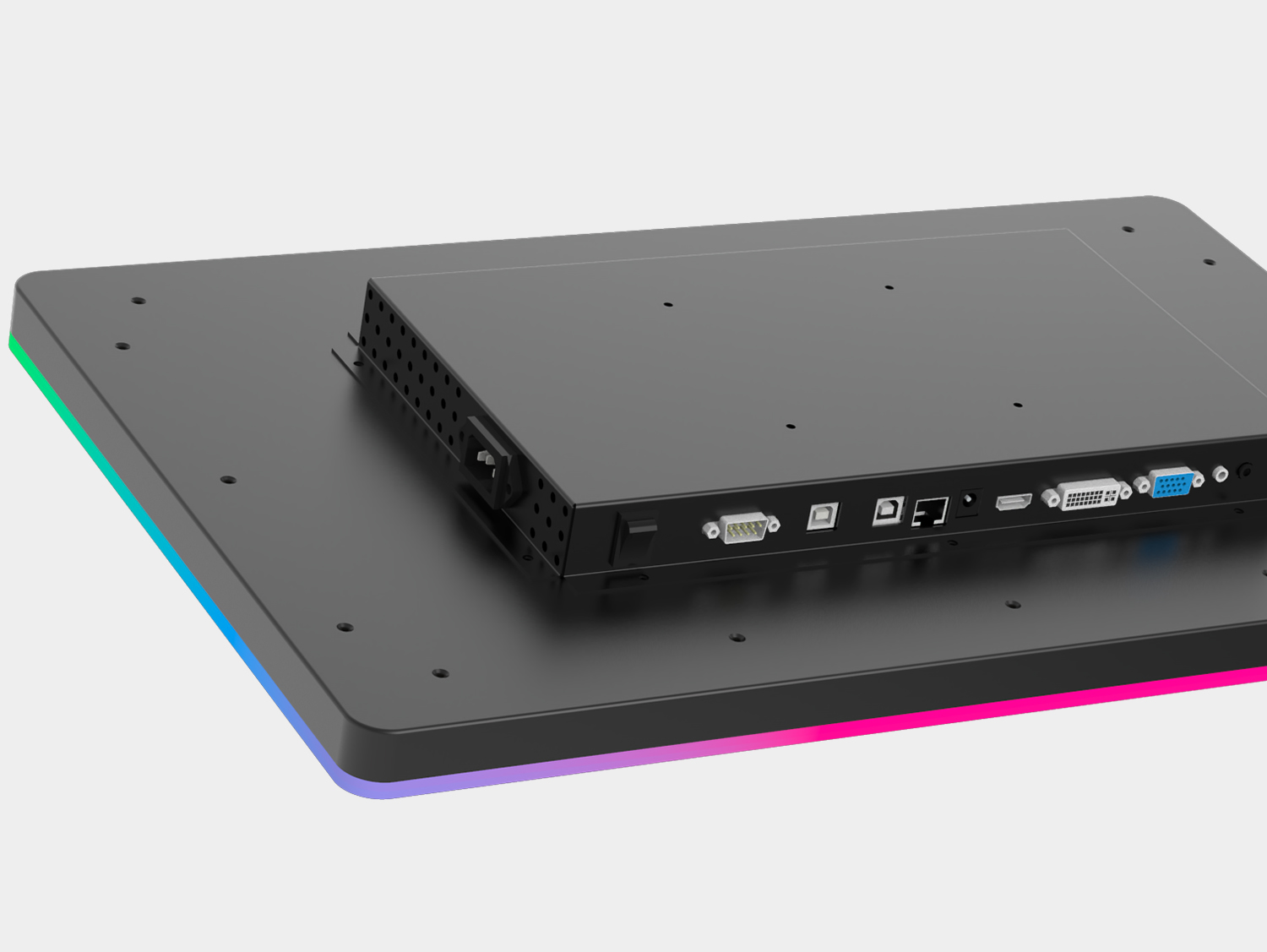

Versatile Connectivity

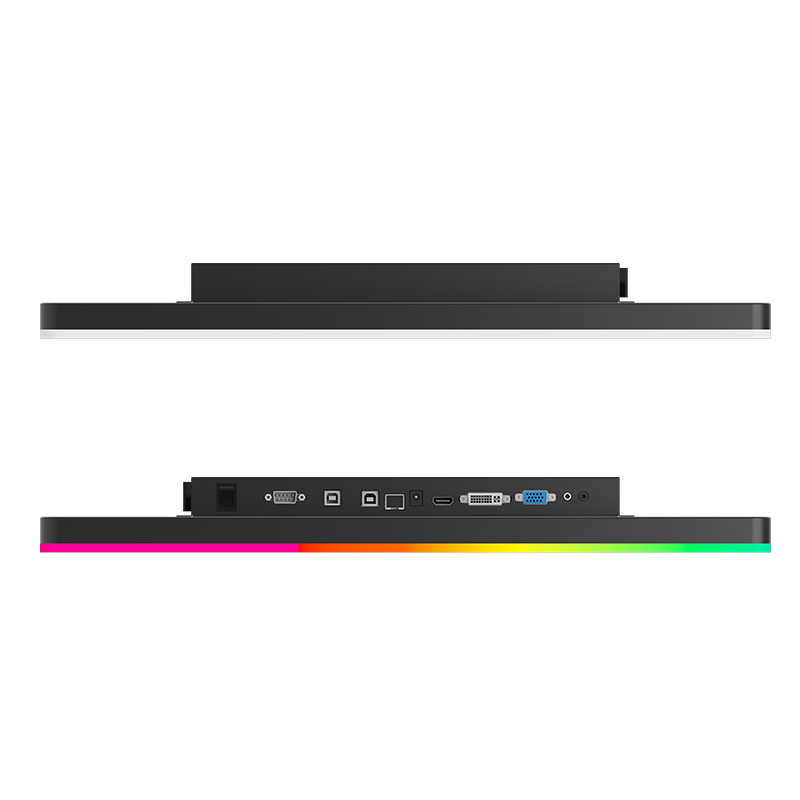

The GreenTouch LED-frame touch monitors PM series includes HDMI, VGA,DP,DVI,OSD,RS232 and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

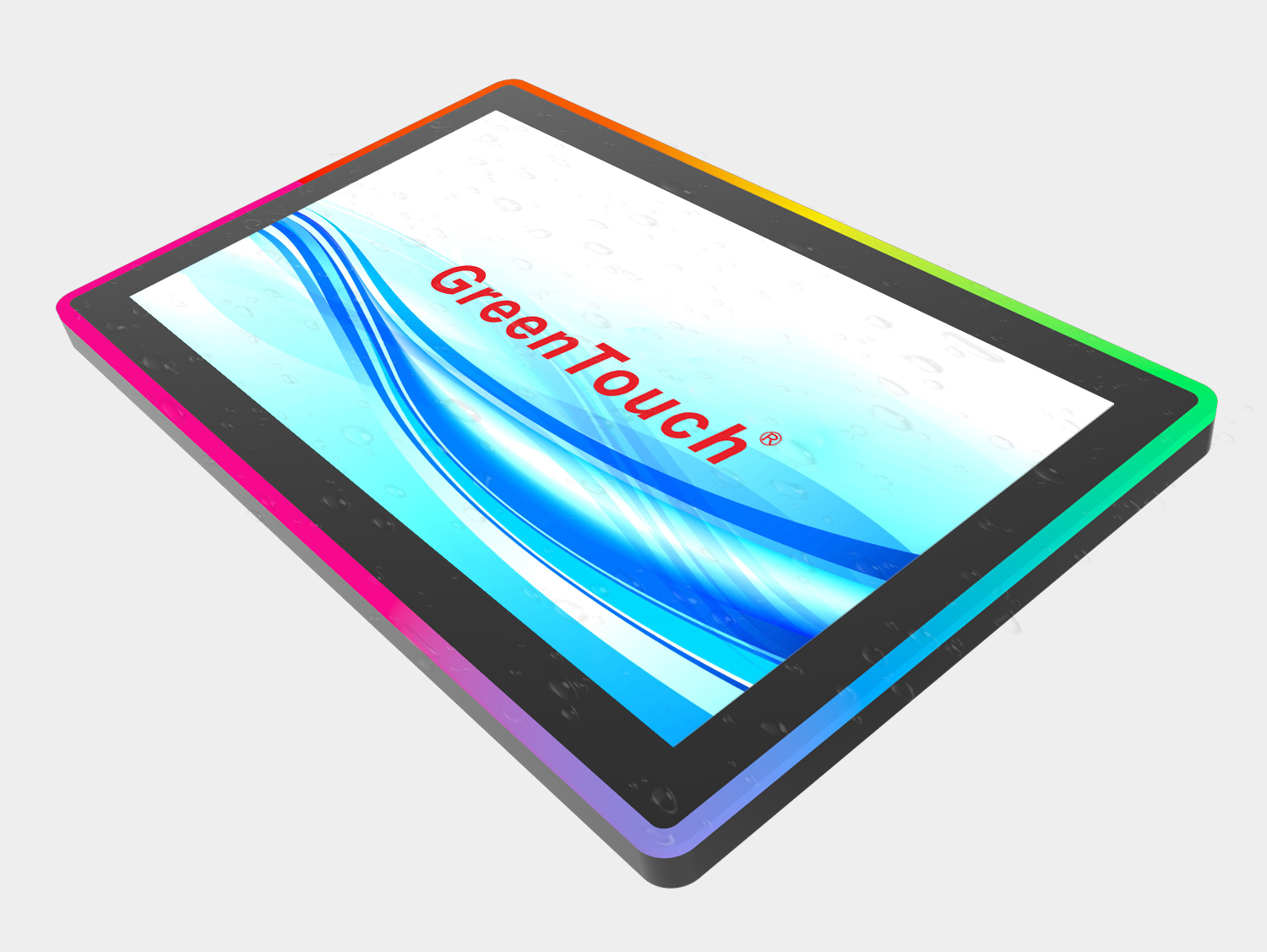

Function And Structure

The monitor adopt A+grade original screen and boasts excellent image clarity,support projected capacitive touch,sensitive sensing and light transmittance, enabling stable, drift-free touch operation and precise touch response. it is extremely robust, with IP65 dust and water resistance, and utilizes a TFT LCD flat panel with a resolution of up to 1920x1080.This product uses industrial plastic front shell and black metal frame,durable and reliable.

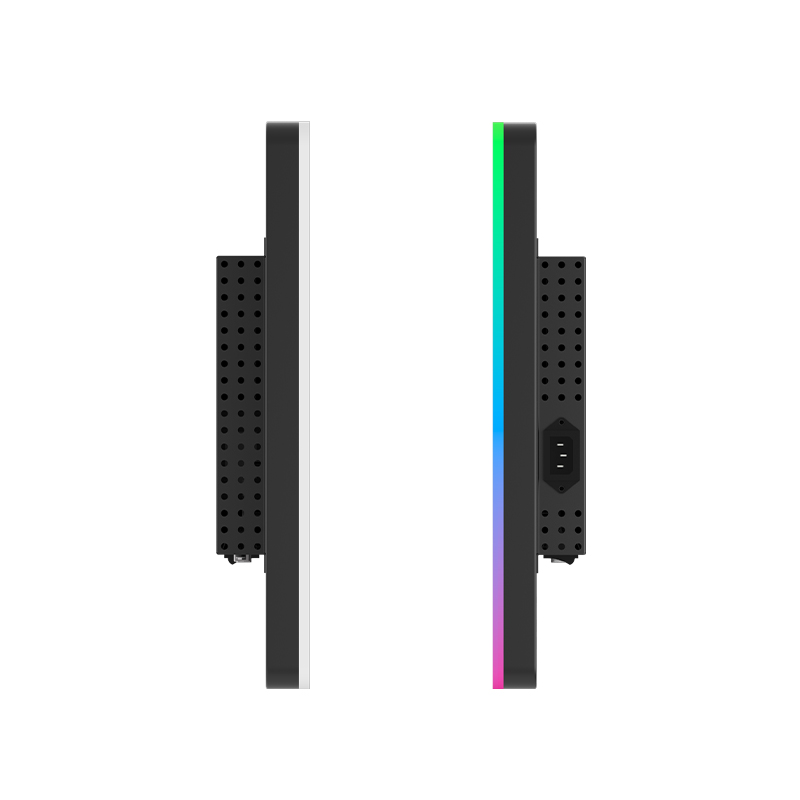

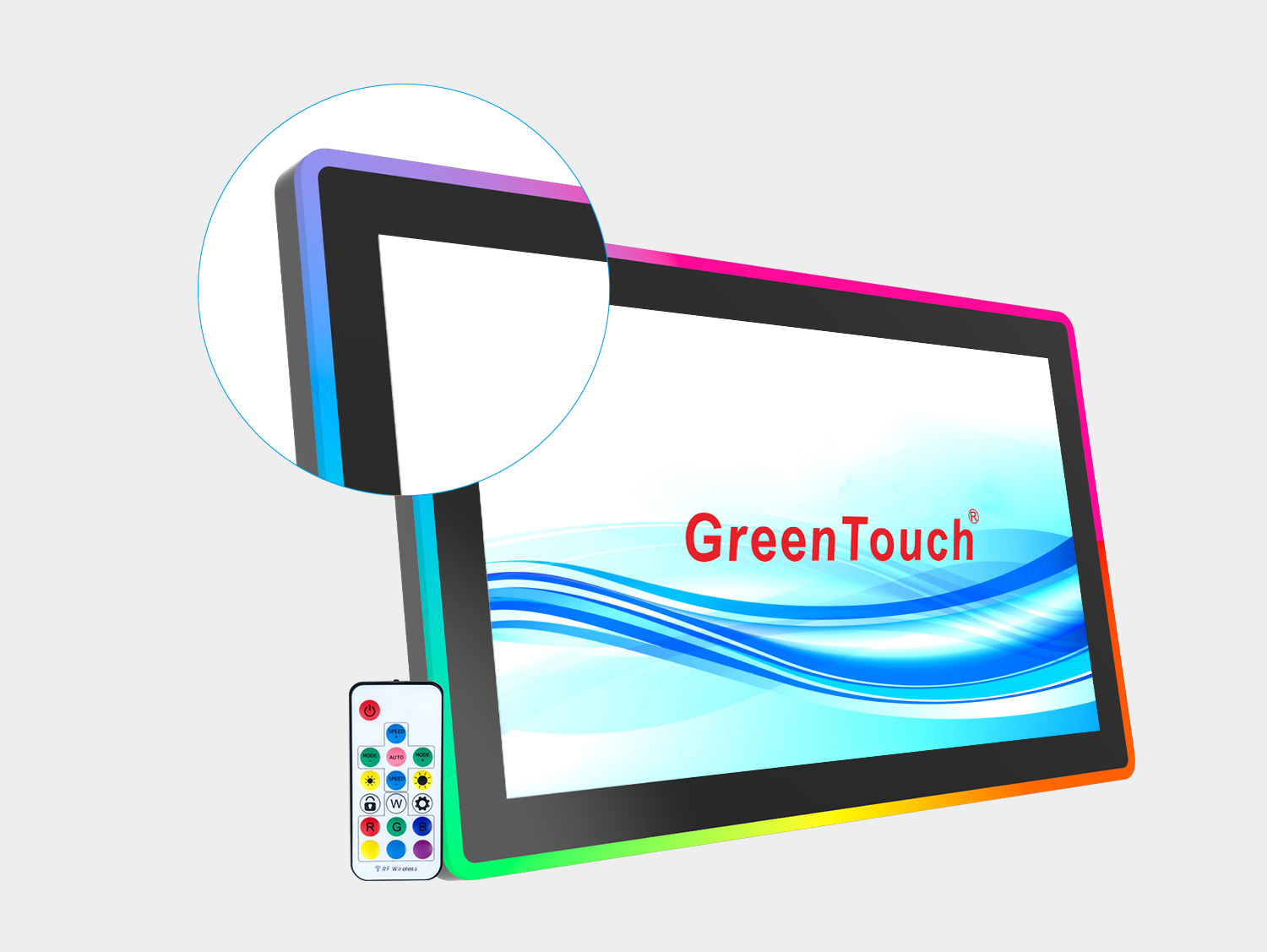

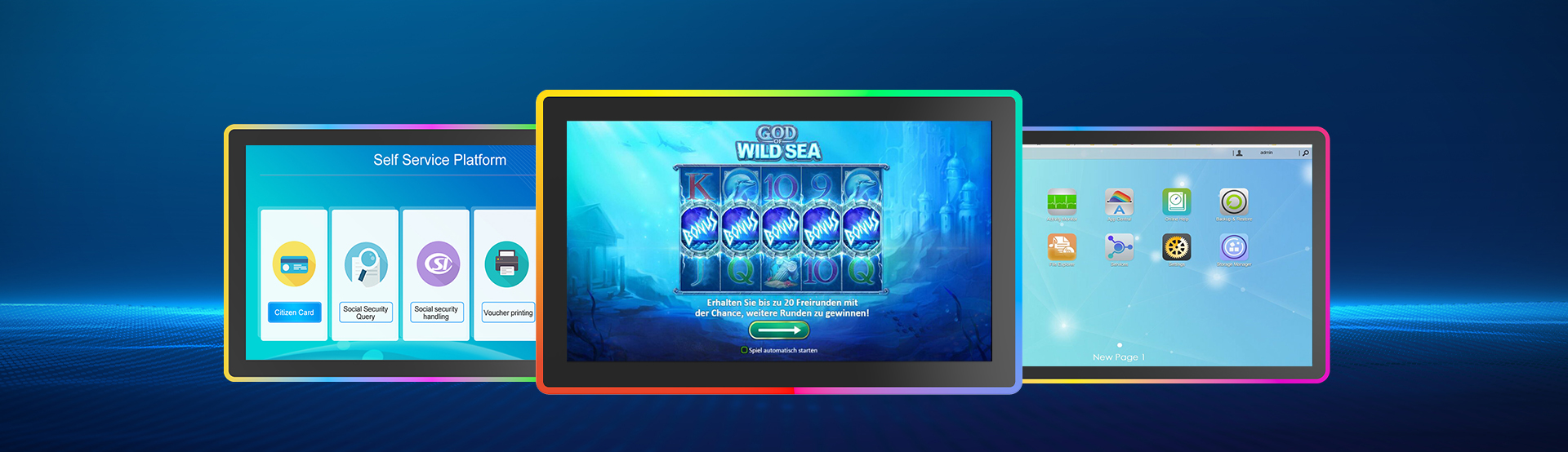

LED bar frame

The monitor(21.5",27",32",43") adopts the trendy colorful LED marquee design on the outer edge. Each monitor is equipped with an light adjustment remote control,which can select RGB colorful (red,green,blue,white,yellow,orange,purple) jump mode to set a variety of LED effects,support 358 lighting modes,customize the composite color,change speed,direction,sequence,etc.,You can use lighting to create momentum, and use touch to get things done.

Mounting Options

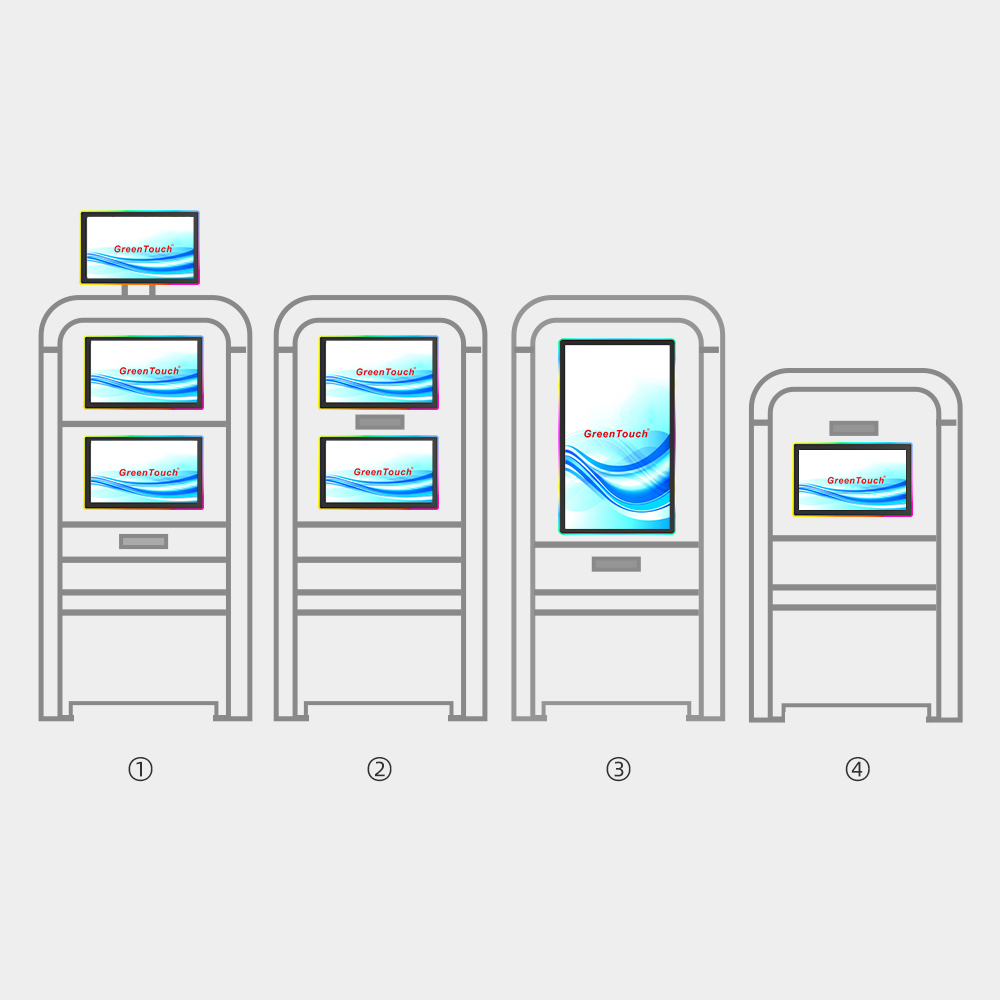

Embedded

PM touch monitor is equipped with the Vesa (75mm x100mm 21” and 27”) or (100mm x 200mm 32”) or (400mm x 400mm 43”) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor's VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.
Wall Mount

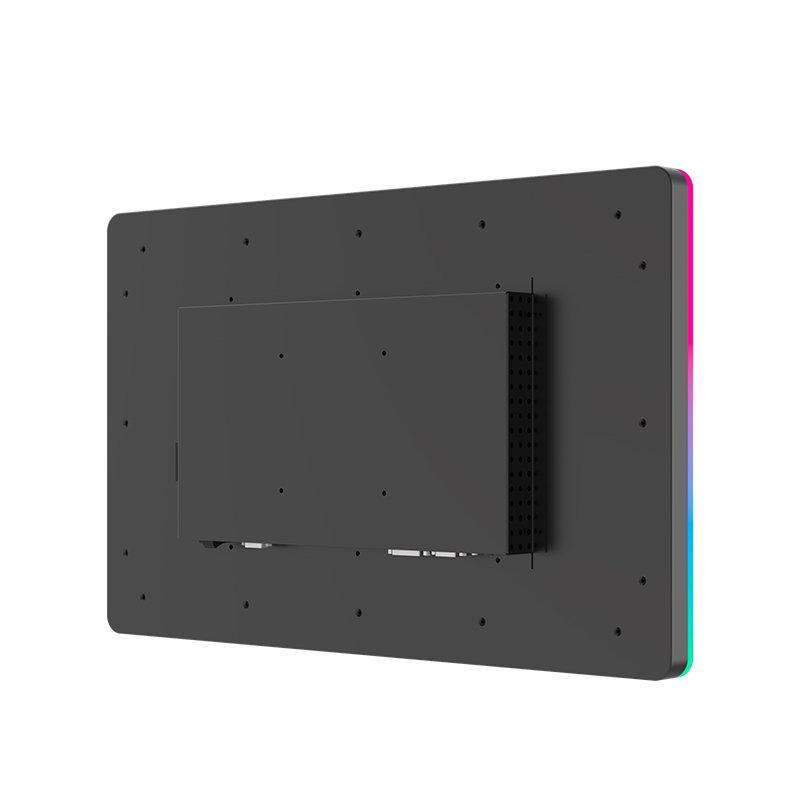

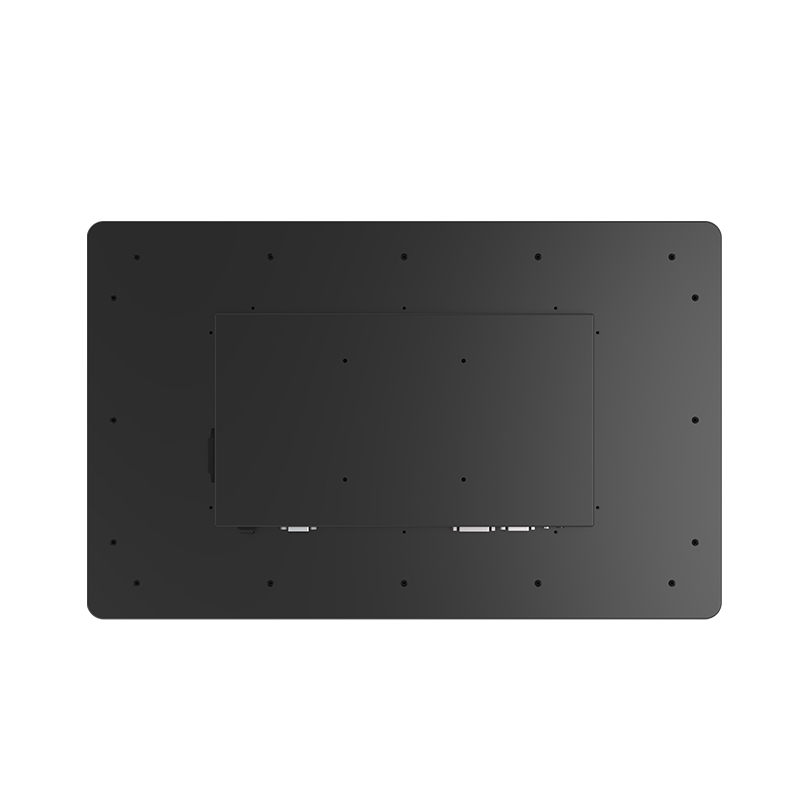

The monitor includes a universal 75/100mm,100mm x 200mm,400mm x 400mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Embedded

PM touch monitor is equipped with the Vesa (75mm x100mm 21” and 27”) or (100mm x 200mm 32”) or (400mm x 400mm 43”) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor's VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.

Wall Mount

The monitor includes a universal 75/100mm,100mm x 200mm,400mm x 400mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(PM Series) Regular Sizes:21.5",27",32",43" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:21.5 to 43 inches 1920x1080@60Hz Aspect Ratio:16:9 Brightness:250,300,400,1000 nits Touch Technology:Capacitive 1-2 Points Touch Touch Support System:Windows,Android,Linux,3M

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:0°C to 50°C Temperature Storage:-20°C to 60°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB),OTG,RS232(3M) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,TYPE-B(USB),AC100V~240V IN

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100/100x200/400x400mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK08

About Display Ports

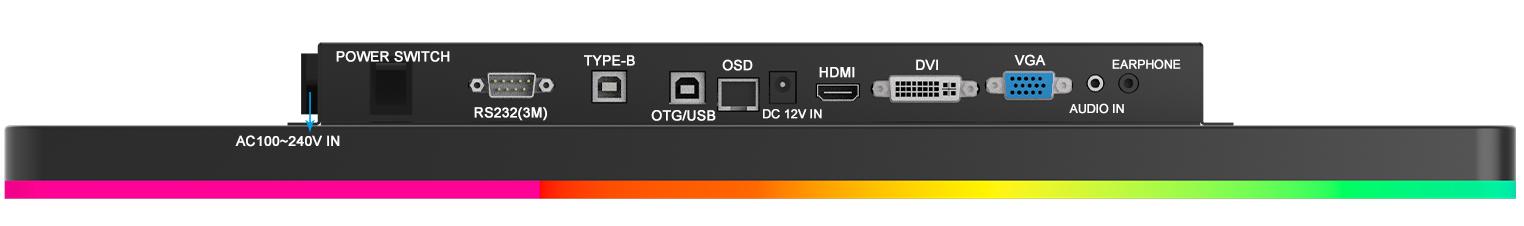

1.VGA+DVA+HDMI+RS232(3M)

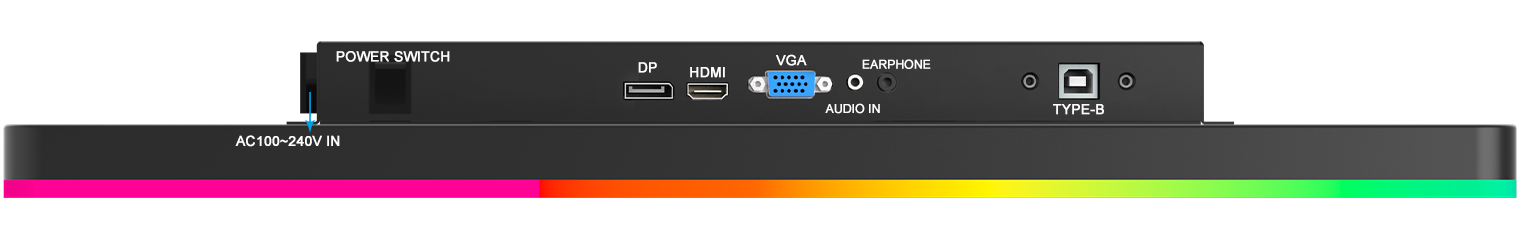

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
21.5"	GT-3M215PM	VGA,DVI,HDMI,DP	16:9	545.1 x 342 x 56.5mm	476.6 x 267.7mm	250	1920 x 1080	GT-3M215PM
27"	GT-3M270PM	VGA,DVI,HDMI,DP	16:9	668 x 406 x 66mm	597.6 x 336.1mm	300	1920 x 1080	GT-3M270PM
32"	GT-3M320PM	VGA,DVI,HDMI,DP	16:9	765.9 x 466.5 x 66mm	699.9 x 394.5mm	400	1920 x 1080	GT-3M320PM
43"	GT-3M430PM	VGA,DVI,HDMI,DP	16:9	1024 x 612.5 x 70.5mm	941.1 x 529.4mm	400	1920 x 1080	GT-3M430PM
