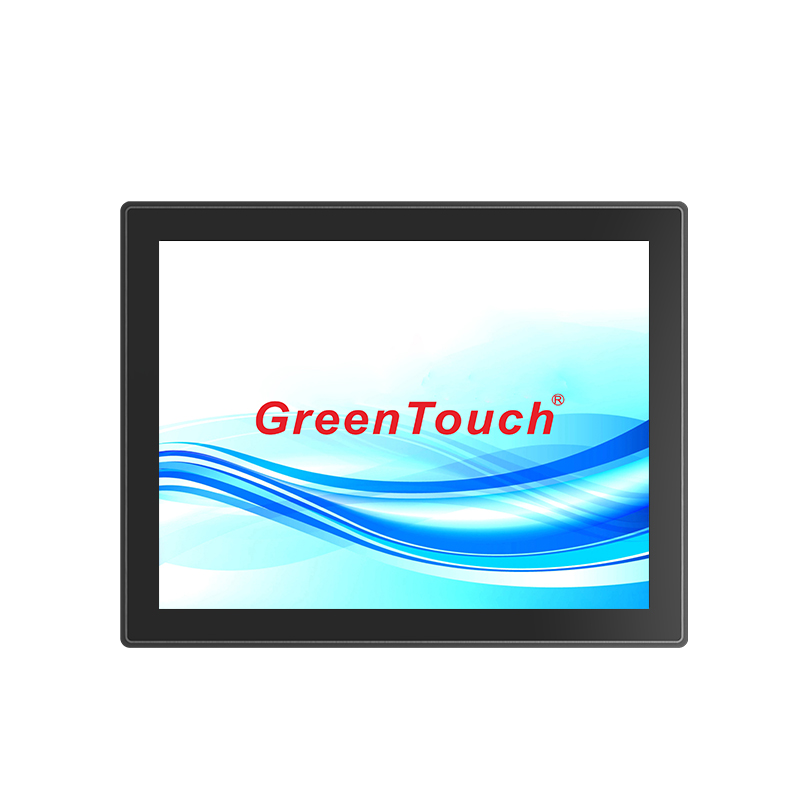

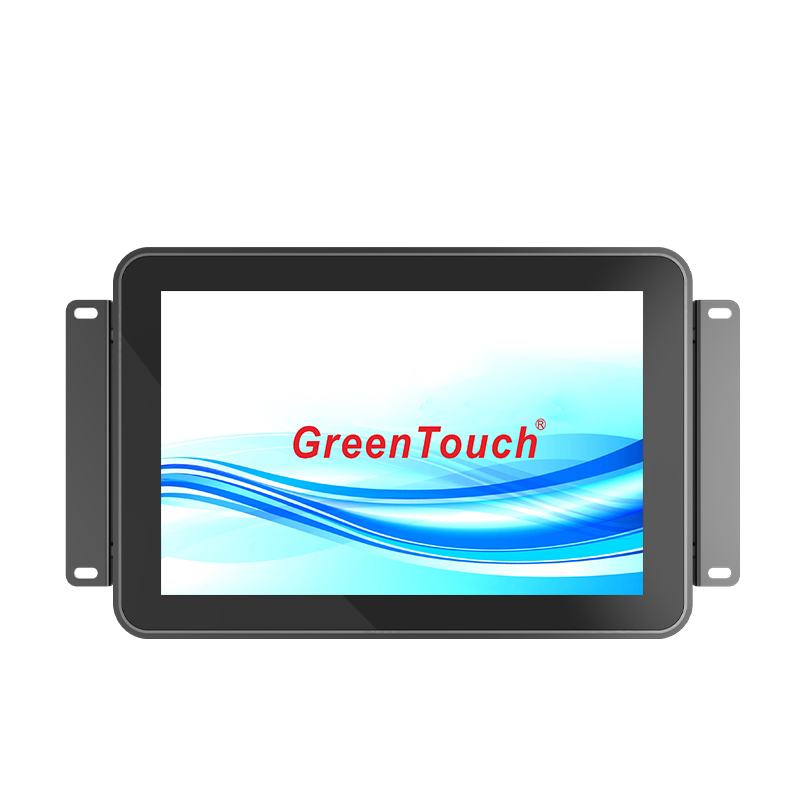

High Brightness Touch Monitor 10.1-23.8 Inches(2CGL Series)

High Brightness Touch Monitor 10.1-23.8 Inches(2CGL Series)

Product Information

High Brightness: 1000-1500 cd/m²

Wide Temperature Operating: -30°C to 70°C

Application: Outdoor/semi-outdoor/indoor

Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO

Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Features

● 1000 cd/m²brightness,visible under strong light

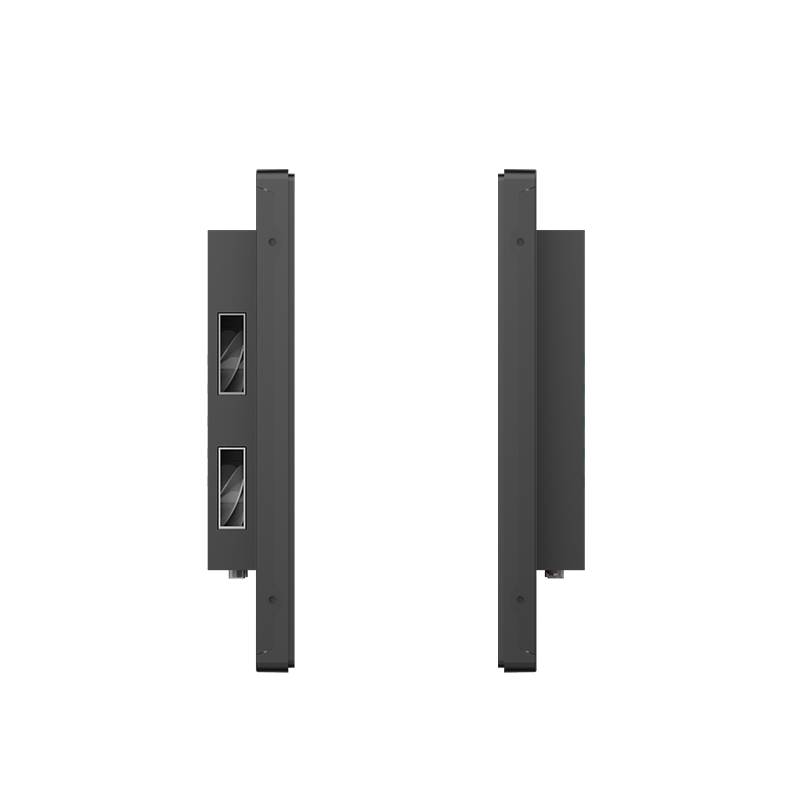

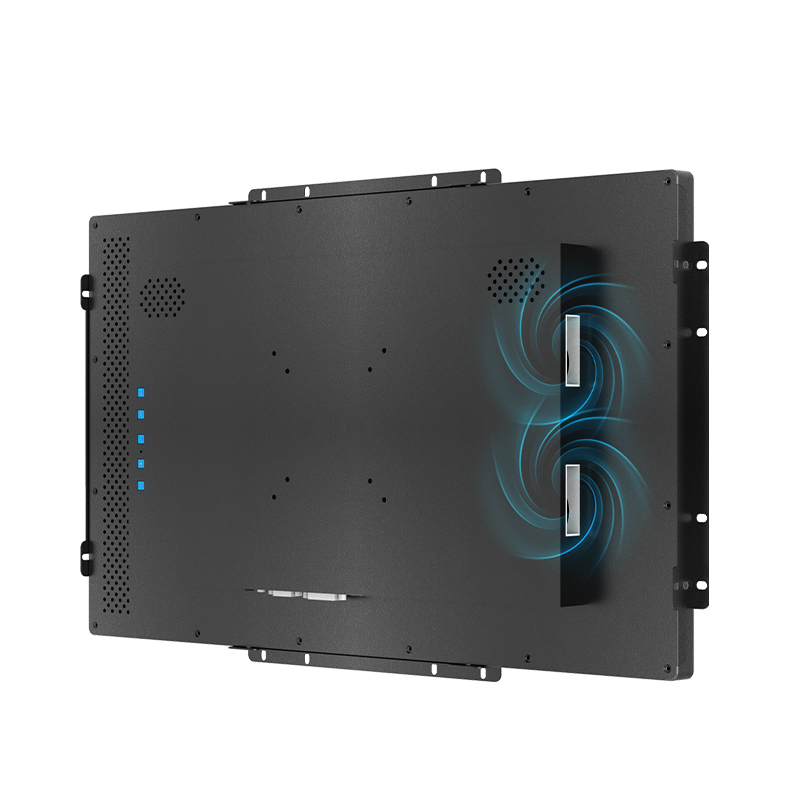

● Built-in 1-2 cooling fans, active circulation heat dissipation

● IP65 and front protection to resist water and dust

● Resistant to high and low temperatures

● Dense ventilation holes for reliable 24/7 operation

● Industrial-grade LCD panels for long operating life

● Surface treatment: AG,AR,AF,Antibacterial(Optional)

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

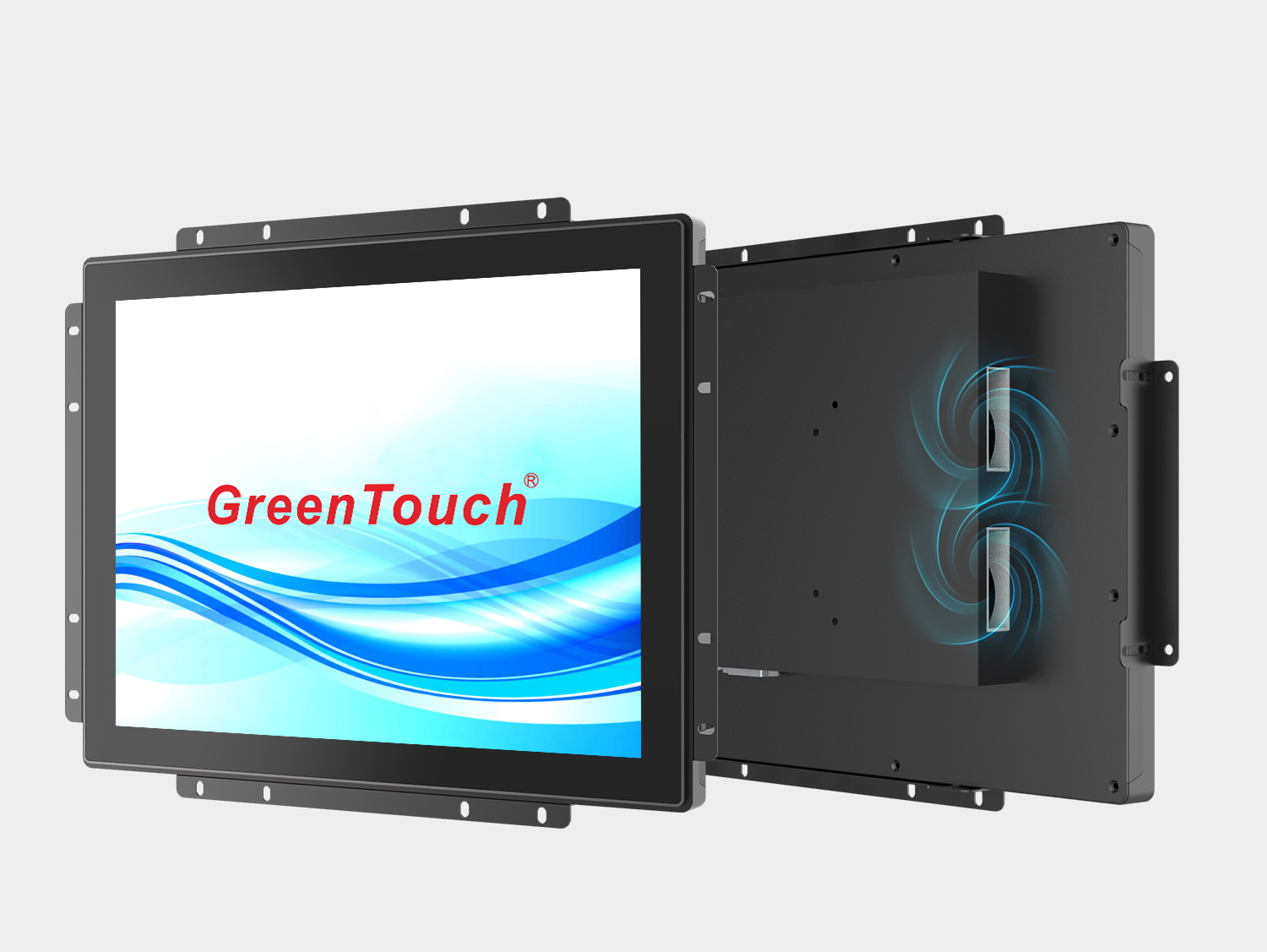

2CGL Touch Monitor Overview

GreenTouch's high brightness touch monitor 2CGL series provide stable and reliable solutions for customers who need high-brightness ambient touch and interaction.A comprehensive size range from 10.1 ”to 23.8” ensures compatibility with:Outdoor and public information, industrial automation, transportation, medical equipment, military and security, retail and food service, energy and outdoor operations.

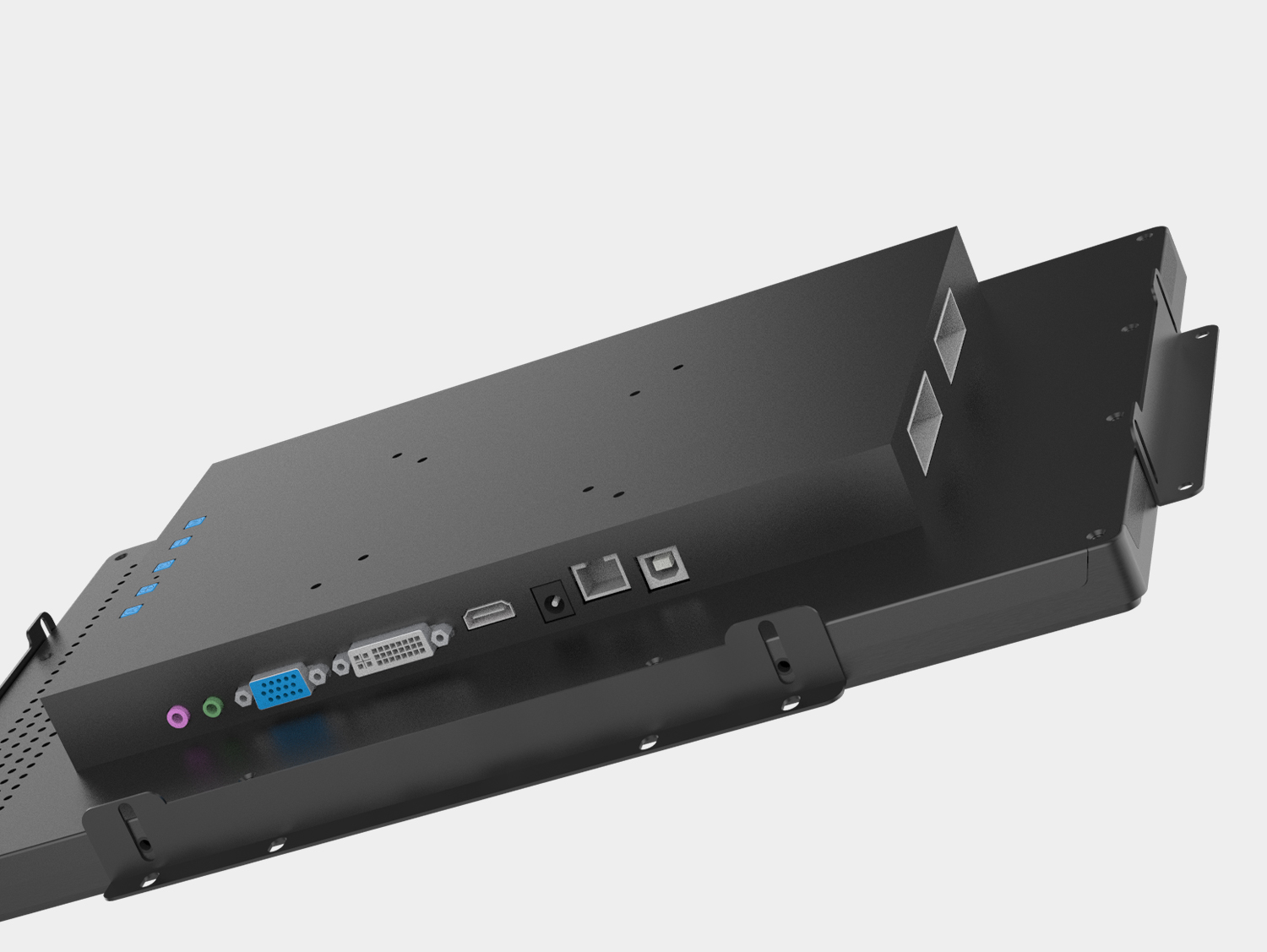

Versatile Connectivity

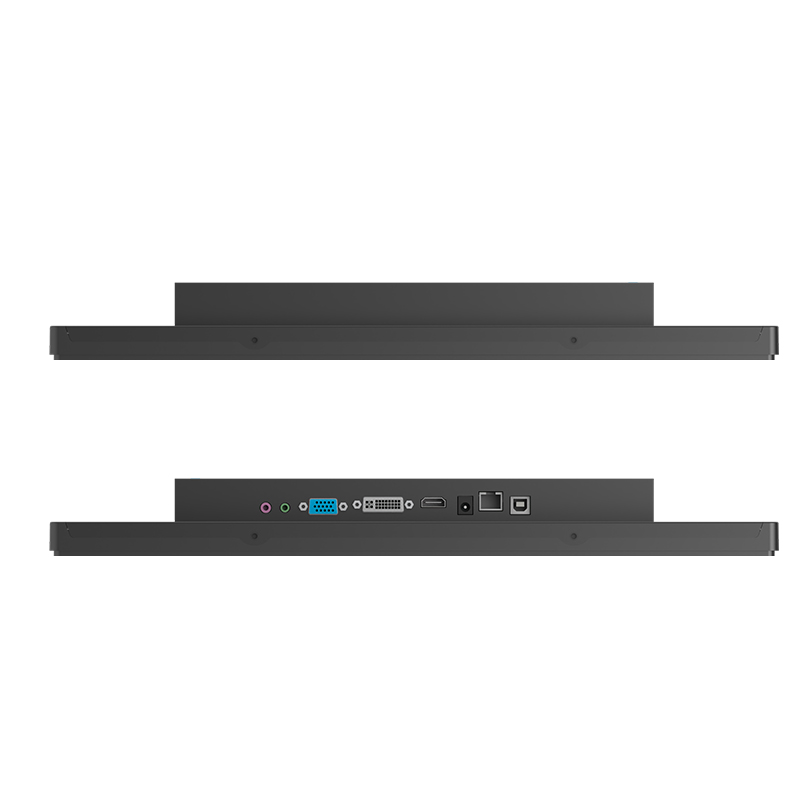

The GreenTouch capacitive touch monitors 2CGL series includes HDMI, VGA, DP, DVI ,DC IN,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

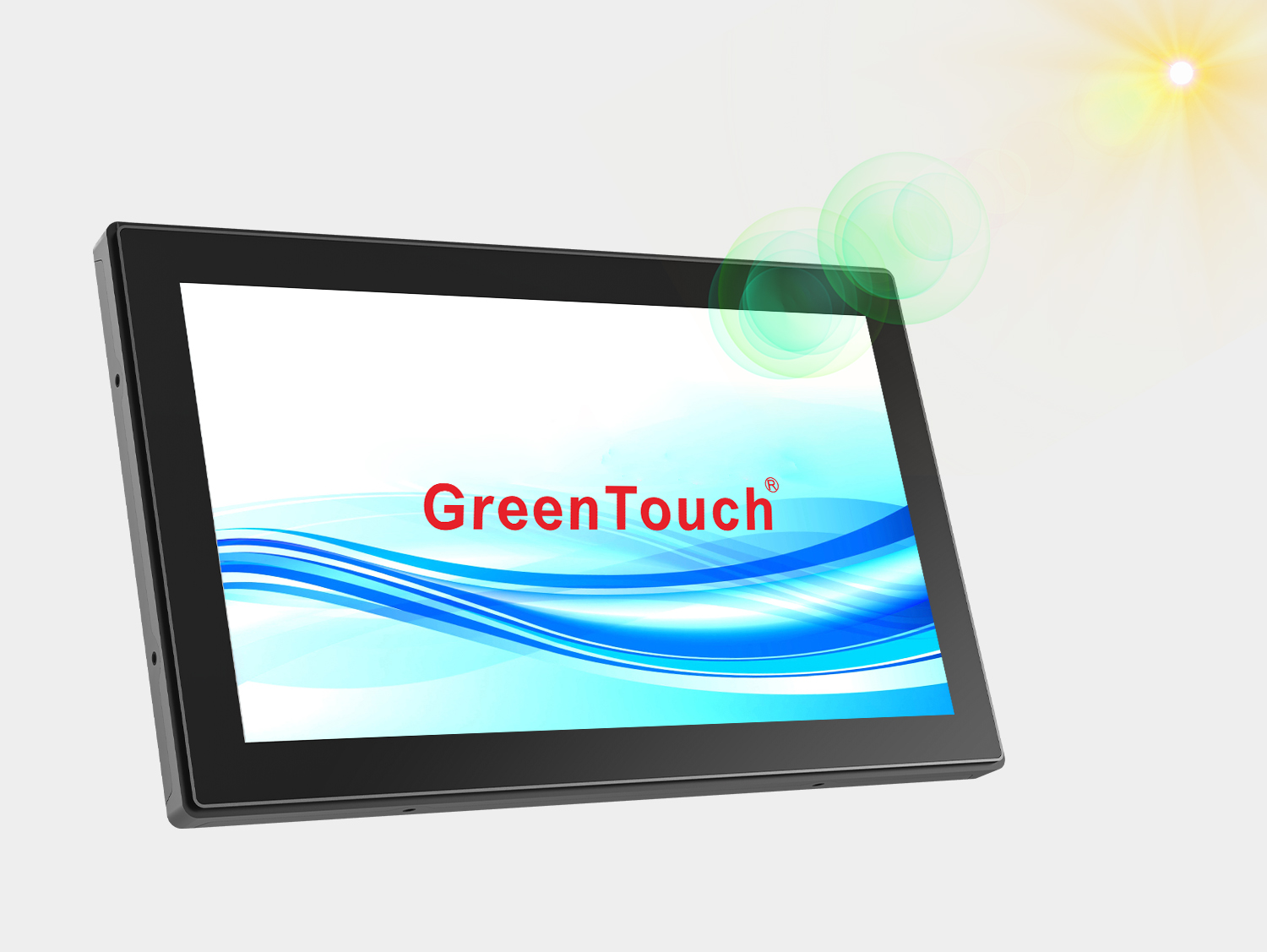

Function And Structure

Our self-developed 2CGL high-brightness touch display achieves strong light visibility, interactive all-in-one functionality, and high environmental adaptability. They adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,durable and reliable.

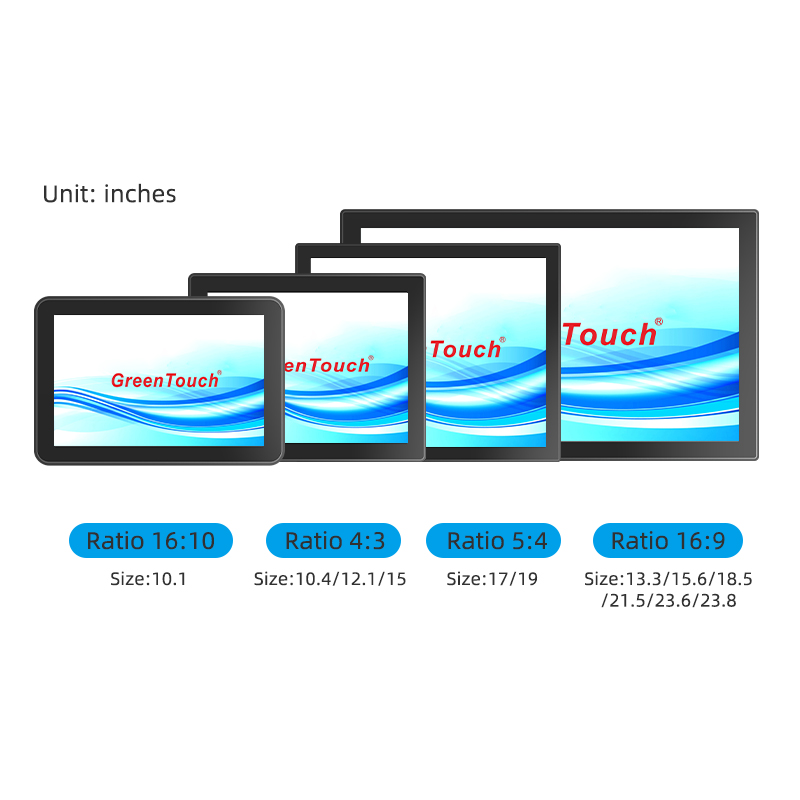

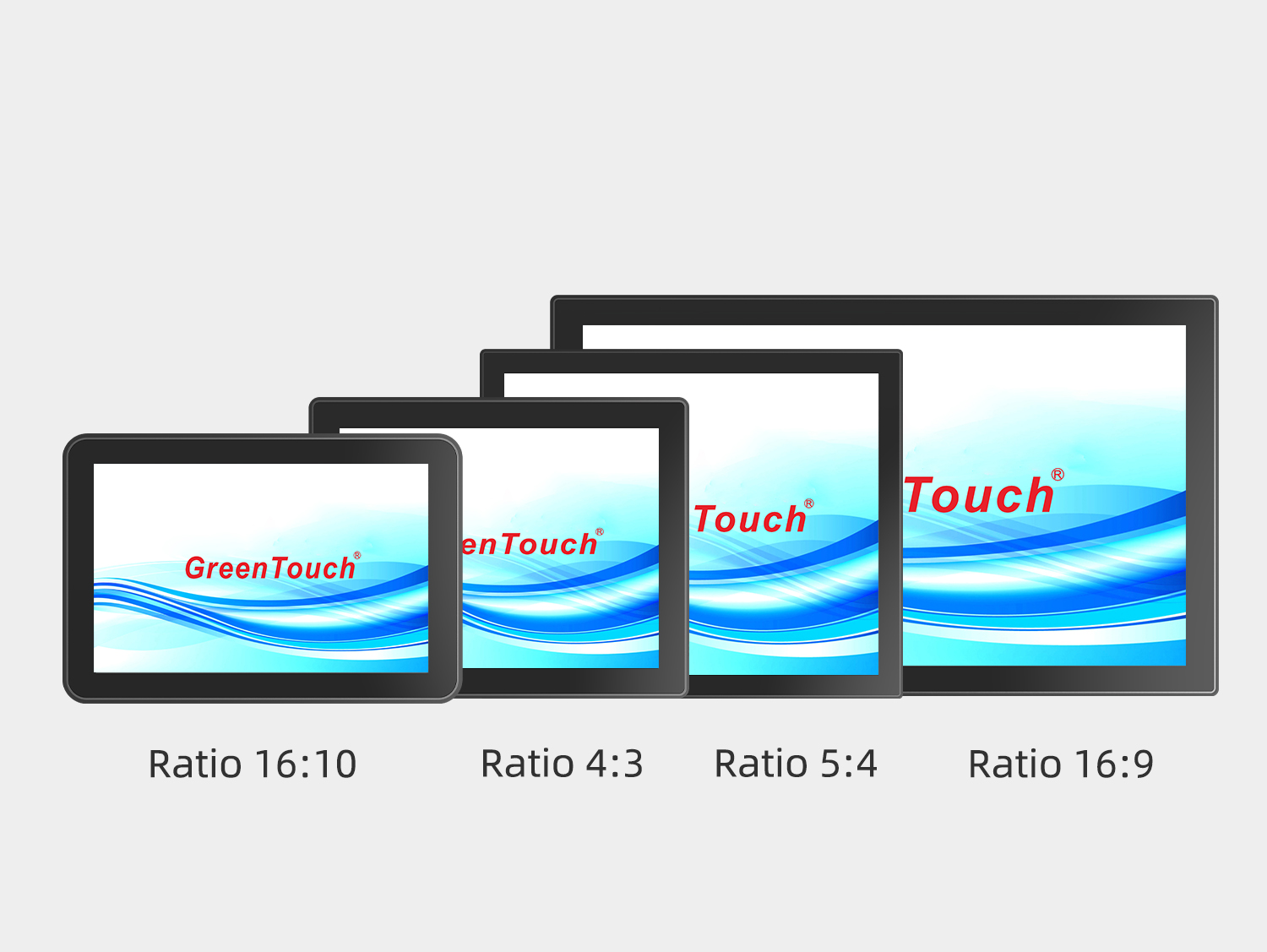

Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 4:3) Size:10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.8”

Mounting Options

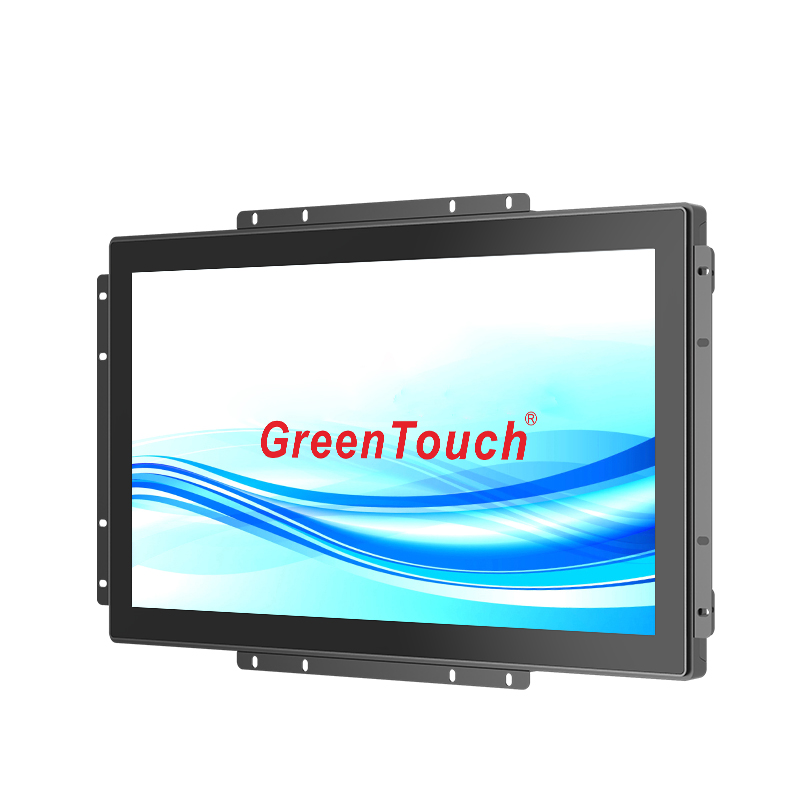

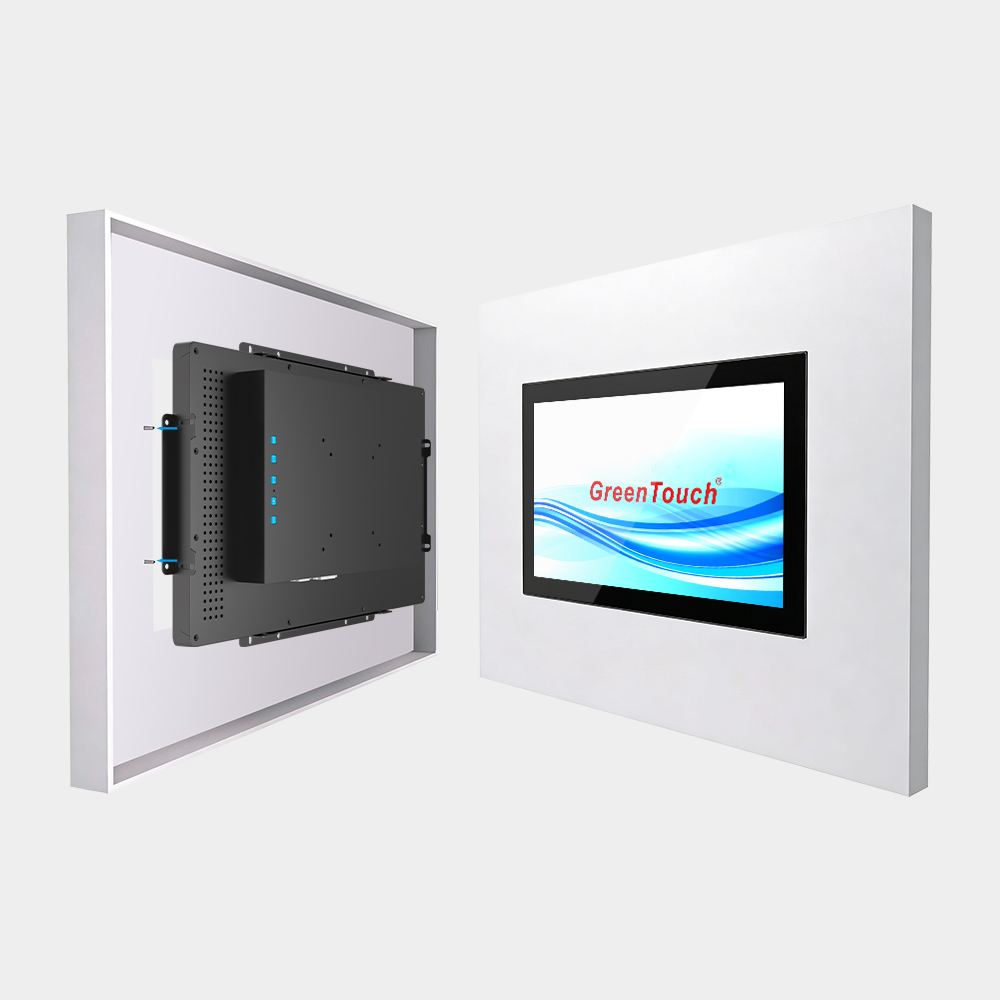

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

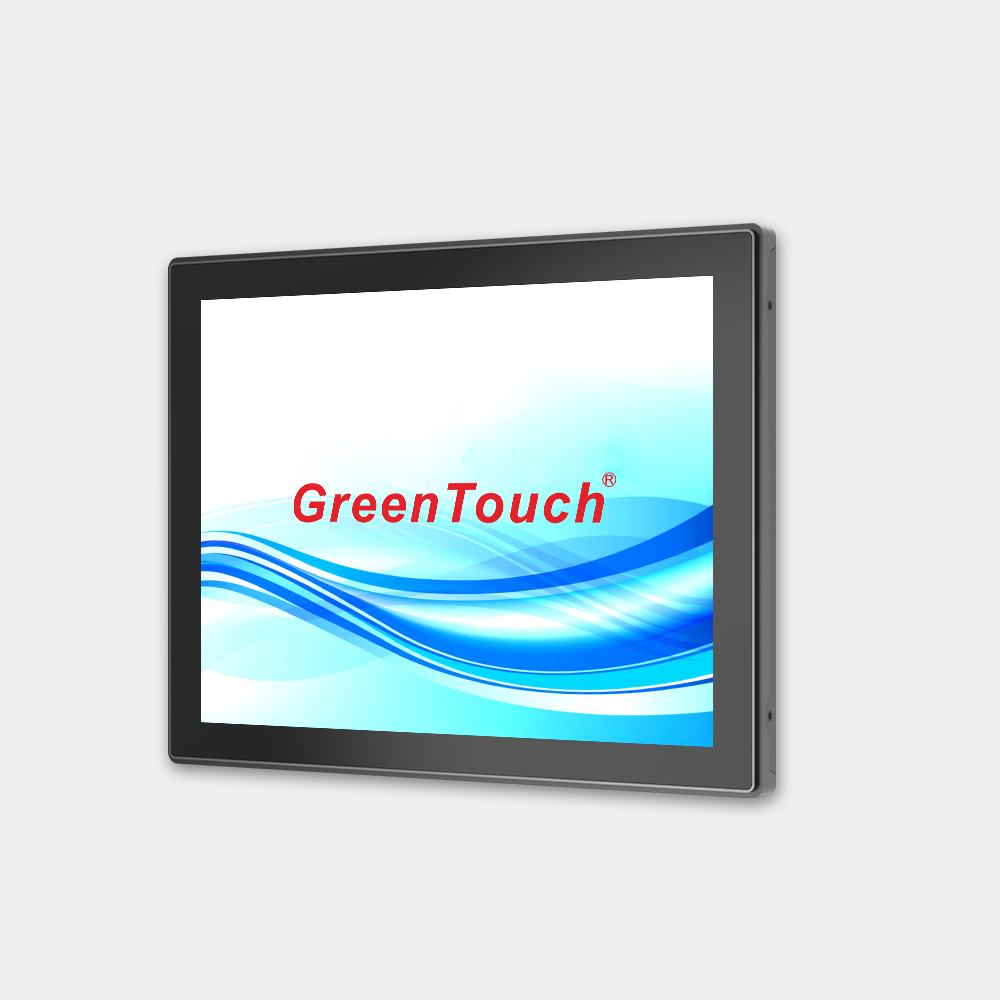

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

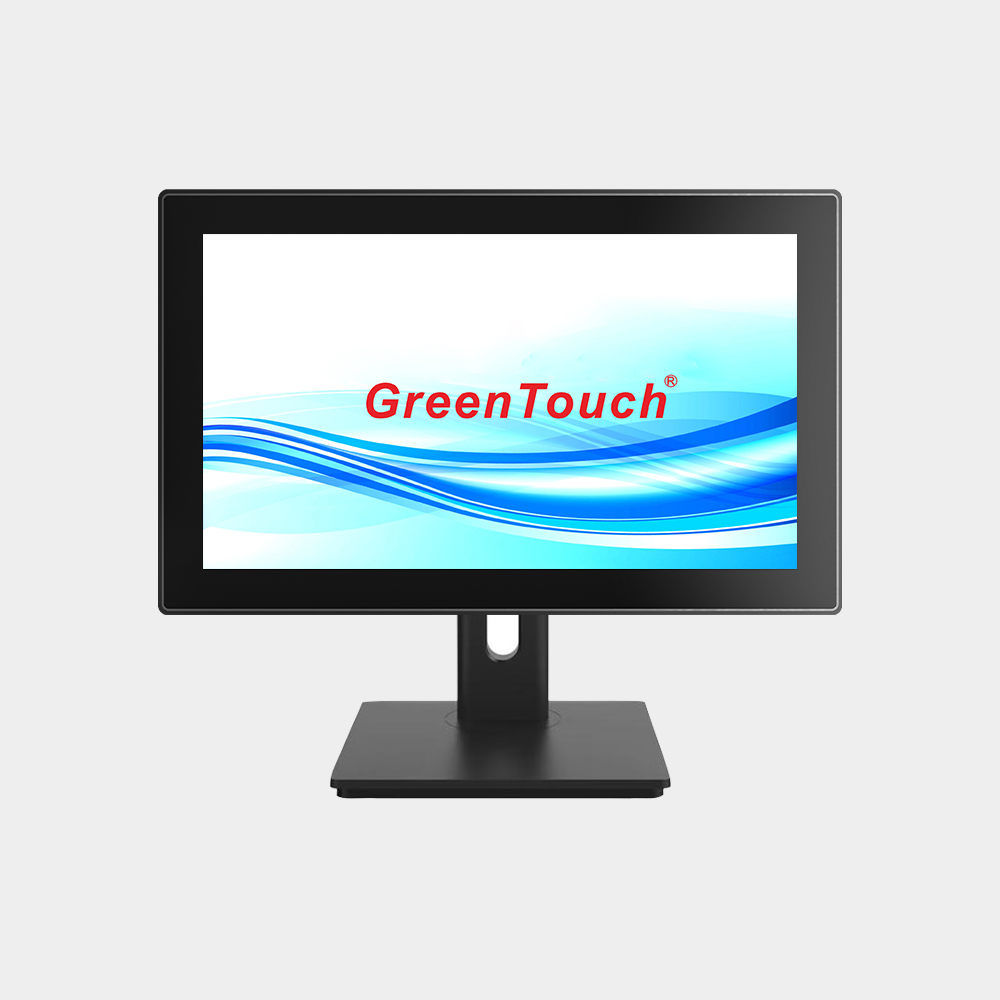

Desktop

2CGL is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

Each monitor comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The monitor includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2CGL is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen monitor to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(2CGL Series) Regular Sizes:10.1",10.4",12.1",13.3",15",15.6",17", 18.5",19",21.5",23.8" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1280x800,1024x768,1920x1080, Aspect Ratio:16:10,4:3,16:9,5:4 1280x1024@60Hz Brightness:1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65,Explosion-proof IK08

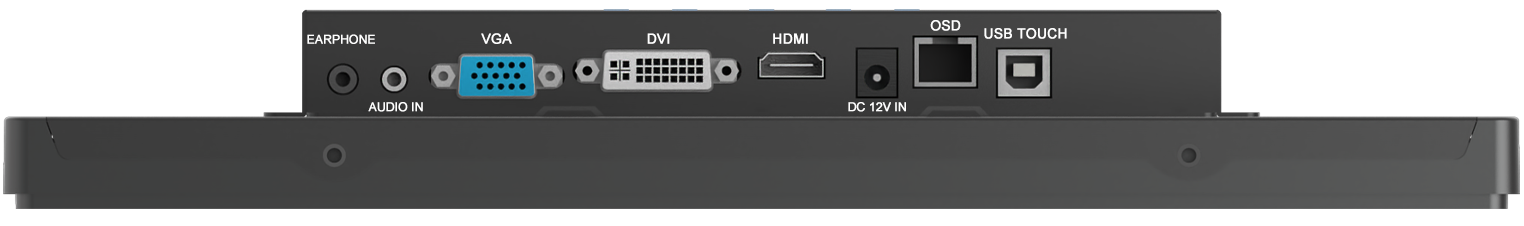

About Display Ports

VGA+DVA+HDMI

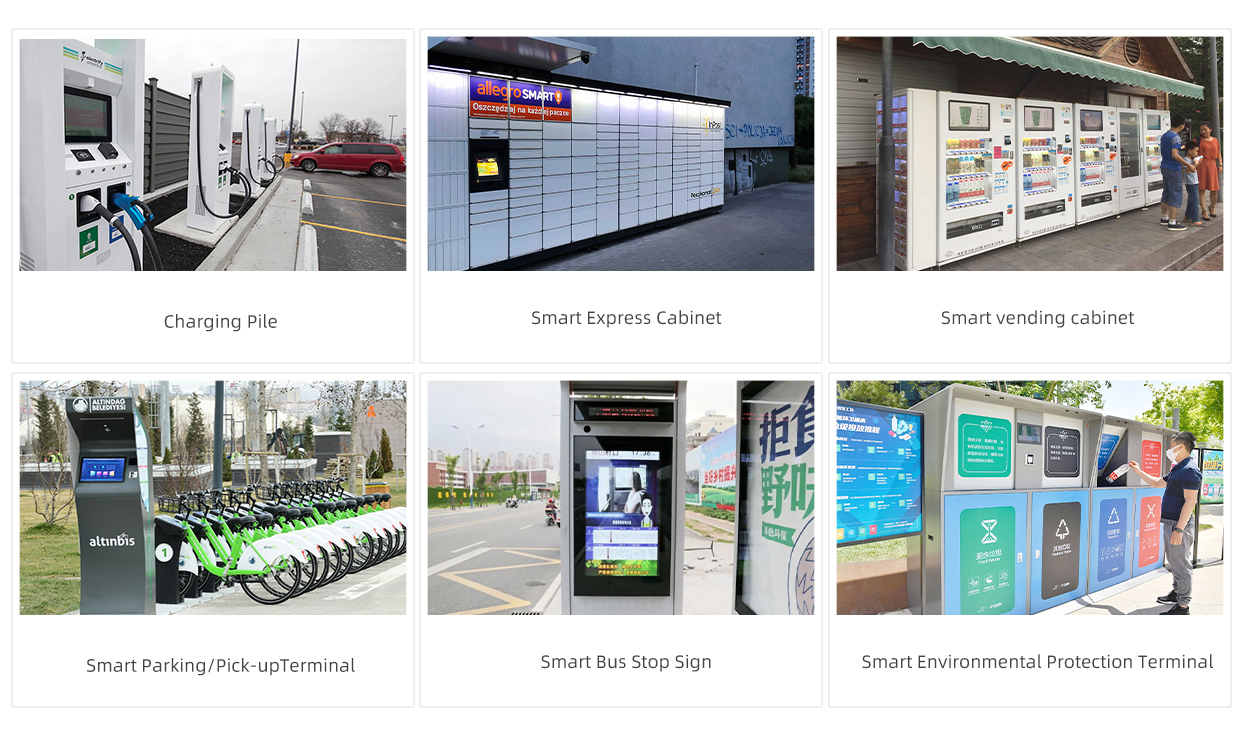

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
10.1"	GT-TM2CGL-101-F-CW10U	VGA,DVI,HDMI	16:10	265 x 180 x 43.5mm	219 x 138mm	1000	1280 x 800	GT-TM2CGL-101-F
10.4"	GT-TM2CGL-104-F-CW10U	VGA,DVI,HDMI	4:3	261.6 x 208.8 x 47.5mm	213 x 160mm	1000	1024 x 768	GT-TM2CGL-104-F
12.1"	GT-TM2CGL-121-F-CW10U	VGA,DVI,HDMI	4:3	294.4 x 233 x 47.5mm	247 x 185.5mm	1000	1024 x 768	GT-TM2CGL-121-F
13.3"	GT-TM2CGL-133-F-CW10U	VGA,DVI,HDMI	16:9	350.8 x 222 x 47.5mm	294 x 166mm	1000	1920 x 1080	GT-TM2CGL-133-F
15"	GT-TM2CGL-150-F-CW10U	VGA,DVI,HDMI	4:3	355 x 279.4 x 47.5mm	305 x 229mm	1000	1024 x 768	GT-TM2CGL-150-F
15.6"	GT-TM2CGL-156-F-CW10U	VGA,DVI,HDMI	16:9	398 x 248 x 47.5mm	343.5 x 192.8mm	1000	1920 x 1080	GT-TM2CGL-156-F
17"	GT-TM2CGL-170-F-CW10U	VGA,DVI,HDMI	5:4	385 x 317 x 47.5mm	339 x 271mm	1000	1280 x 1024	GT-TM2CGL-170-F
18.5"	GT-TM2CGL-185-F-CW10U	VGA,DVI,HDMI	16:9	457 x 281 x 47.5mm	409 x 229mm	1000	1920 x 1080	GT-TM2CGL-185-F
19"	GT-TM2CGL-190-F-CW10U	VGA,DVI,HDMI	5:4	430 x 355 x 47.5mm	379 x 304mm	1000	1280 x 1024	GT-TM2CGL-190-F
21.5"	GT-TM2CGL-215-F-CW10U	VGA,DVI,HDMI	16:9	532 x 319 x 47.5mm	479.6x 271mm	1000	1920 x 1080	GT-TM2CGL-215-F
23.8"	GT-TM2CGL-238-F-CW10U	VGA,DVI,HDMI	16:9	586 x 356 x 47.5mm	528 x 298mm	1000	1920 x 1080	GT-TM2CGL-238-F
