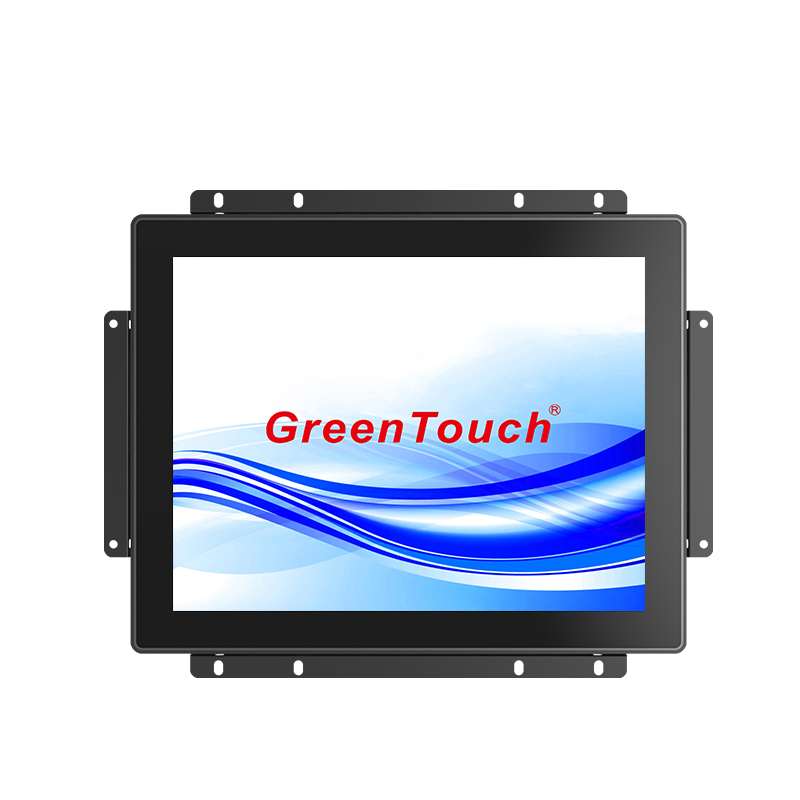

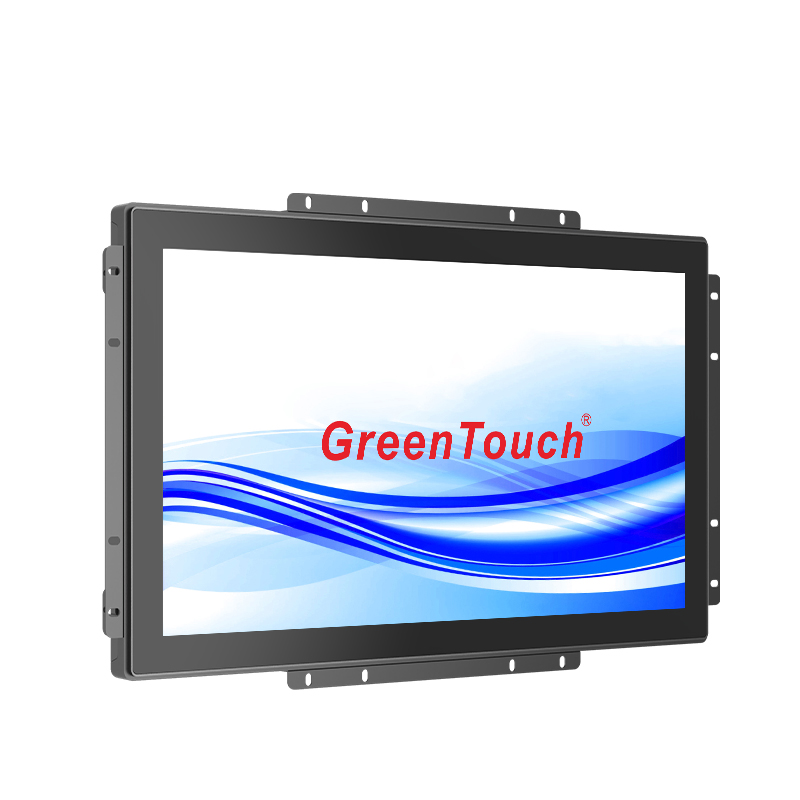

High Brightness Touch Panel PC 10.1-23.8 Inches(2CGL Series)

High Brightness Touch Panel PC 10.1-23.8 Inches(2CGL Series)

Product Information

High Brightness:1000-1500 cd/m²

Processor:Rockchip RK3566/3568/3588

RAM:2-8GB,SSD:32-64G

Wide temperature range:-30℃-70℃

Application:Outdoor/semi-outdoor/indoor

Features

● 1000 cd/m²brightness,visible under strong light

● IP65 and front protection to resist water and dust

● Resistant to high and low temperatures

● Industrial-grade LCD panels for long operating life

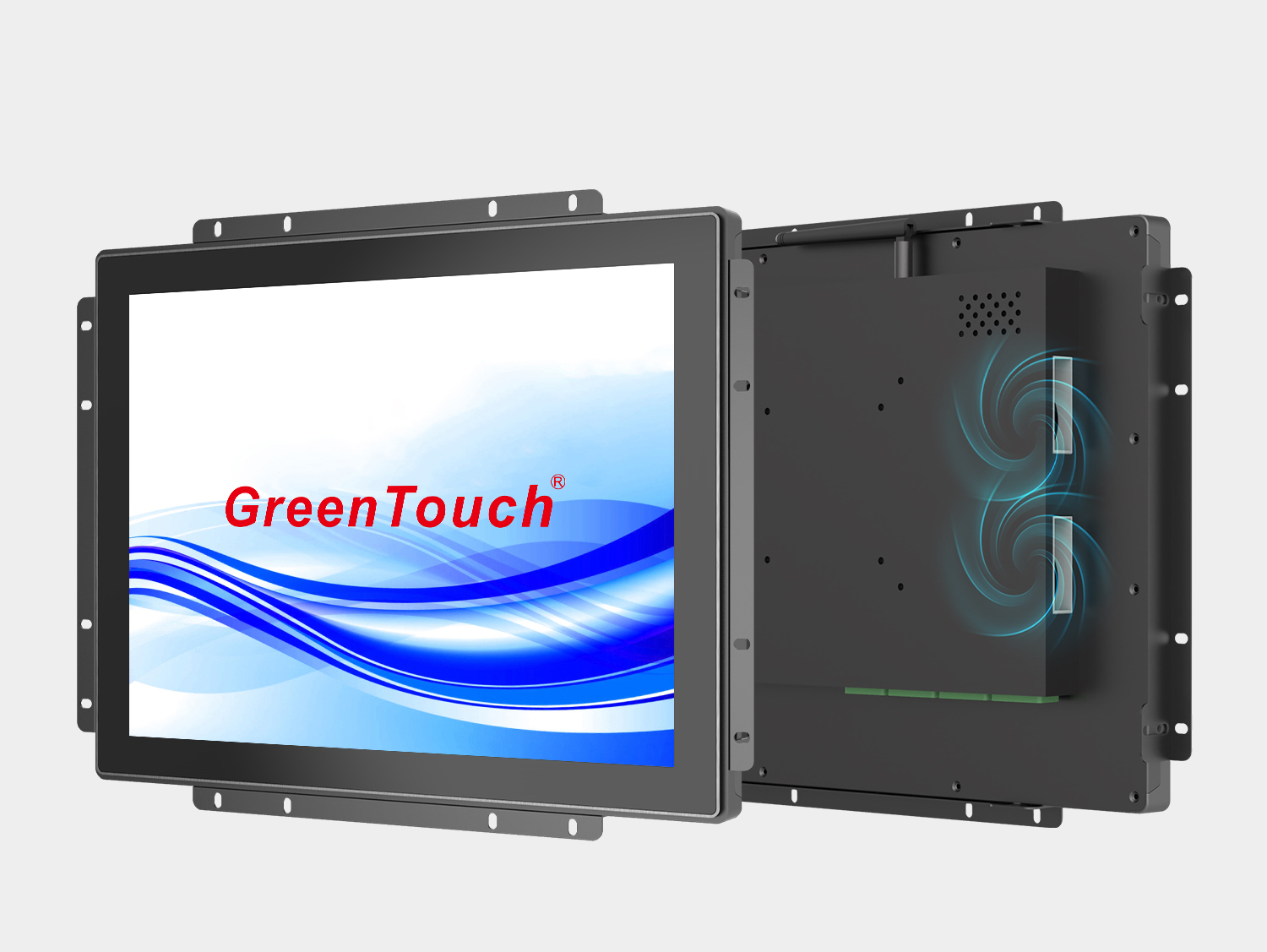

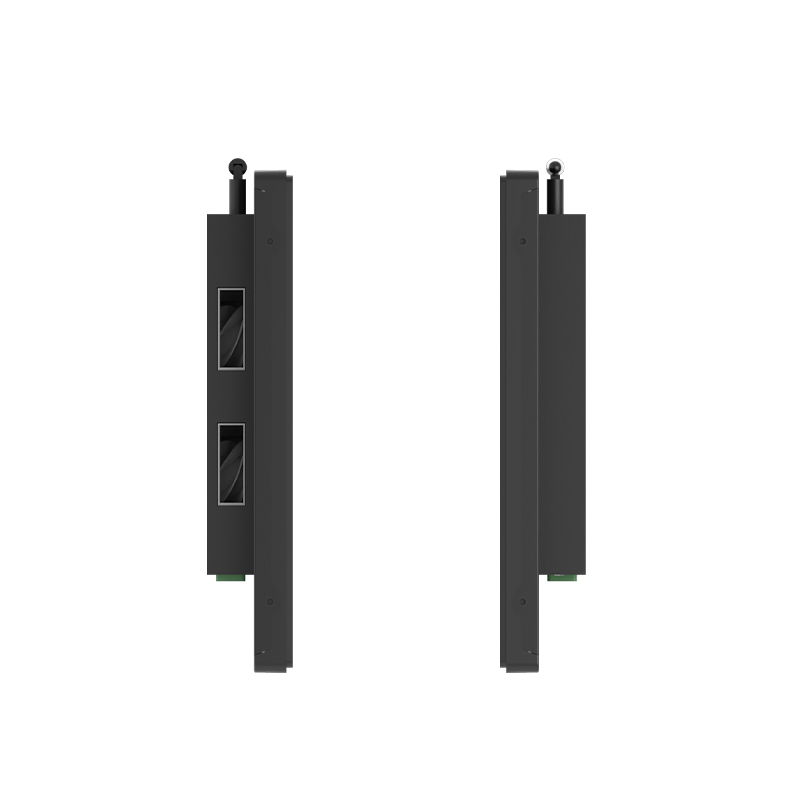

● Built-in two low-frequency turbine fans to improve heat dissipation

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

2CGL Touch Panel PC Overview

GreenTouch's high brightness touch panel PC 2CGL series provide stable and reliable solutions for customers who need high-brightness ambient touch and interaction.A comprehensive size range from 10.1 ”to 23.8” ensures compatibility with:Outdoor and public information, industrial automation, transportation, medical equipment, military and security, retail and food service, energy and outdoor operations.

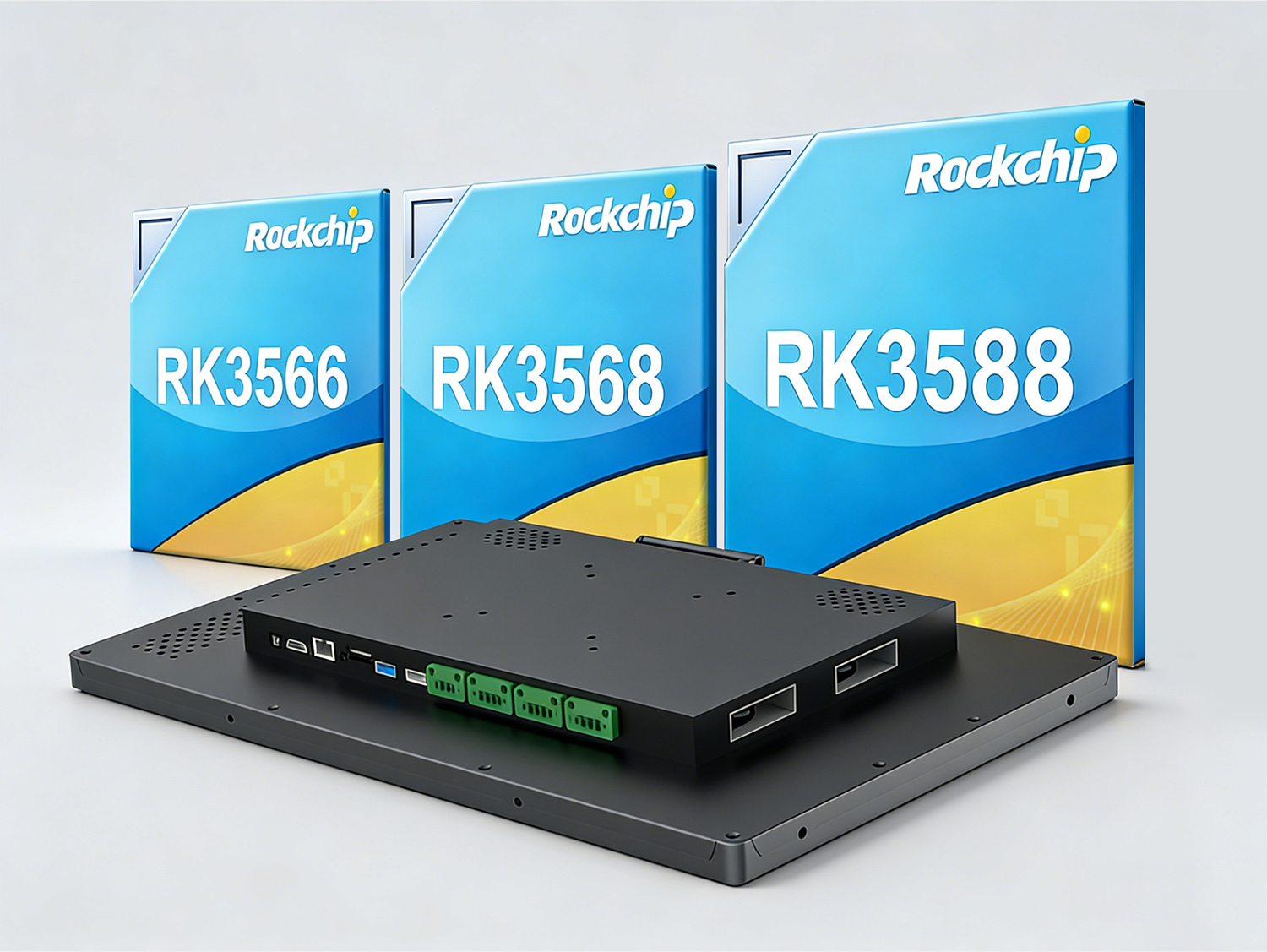

Configuration and Connectivity

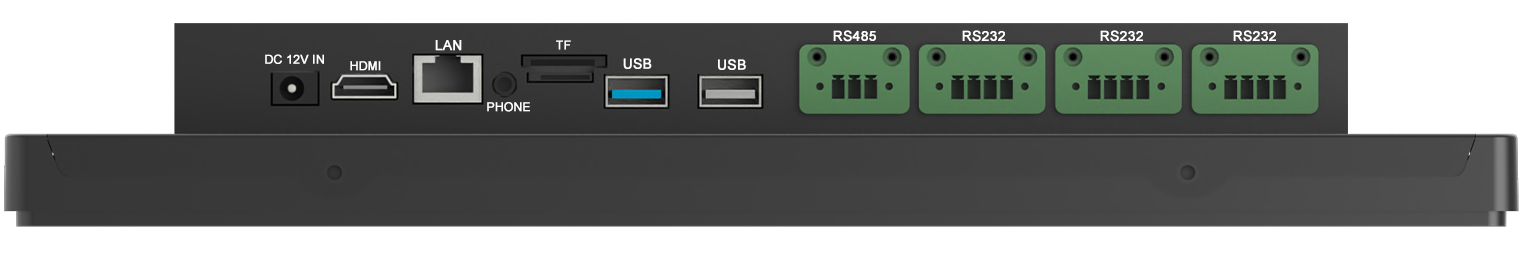

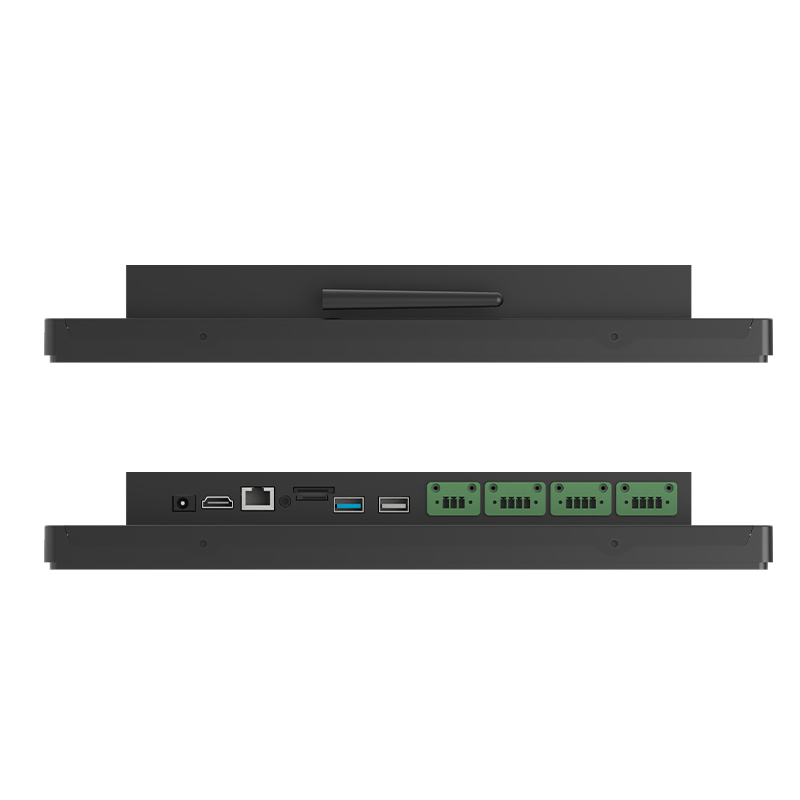

The GreenTouch capacitive touch panel PC 2CGL series includes HDMI,LAN,PHONE,TF,USB,RS485,RS232,DC12V ports. These connections are all positioned on the back of the display and face downward, allowing for easy installation in any scenario. The 2CGl uses thehigh-performance low-power quad-core Rockchip RK3566/3568/3588 processor with a main frequency of 1.8 GHz, features a gigabit Ethernet port for more efficient data transmission, and has built-in 802.11b/g/n wireless WIFI.

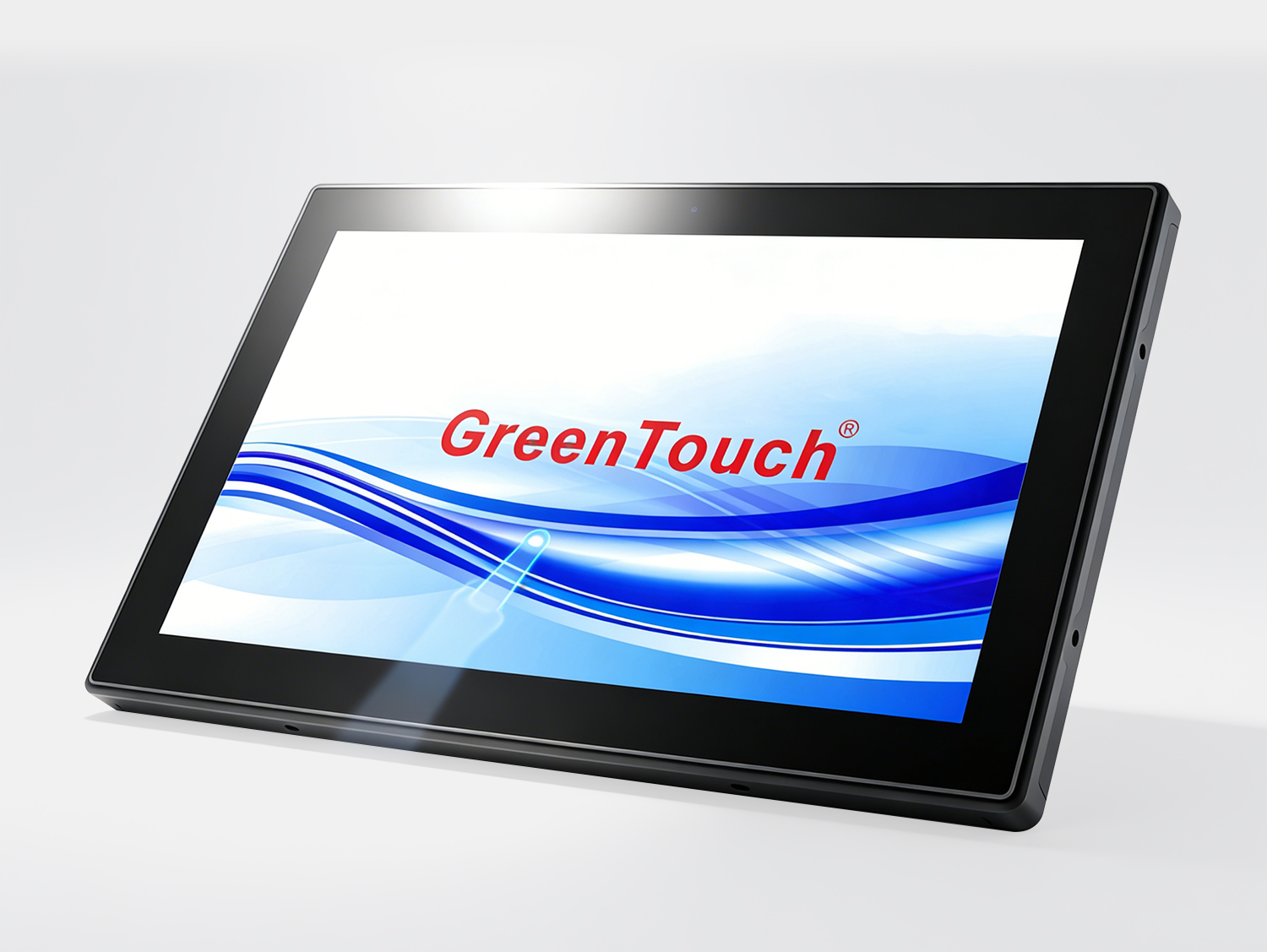

Function And Structure

Our self-developed 2CGL high-brightness touch display achieves strong light visibility, interactive all-in-one functionality, and high environmental adaptability. They adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,durable and reliable .

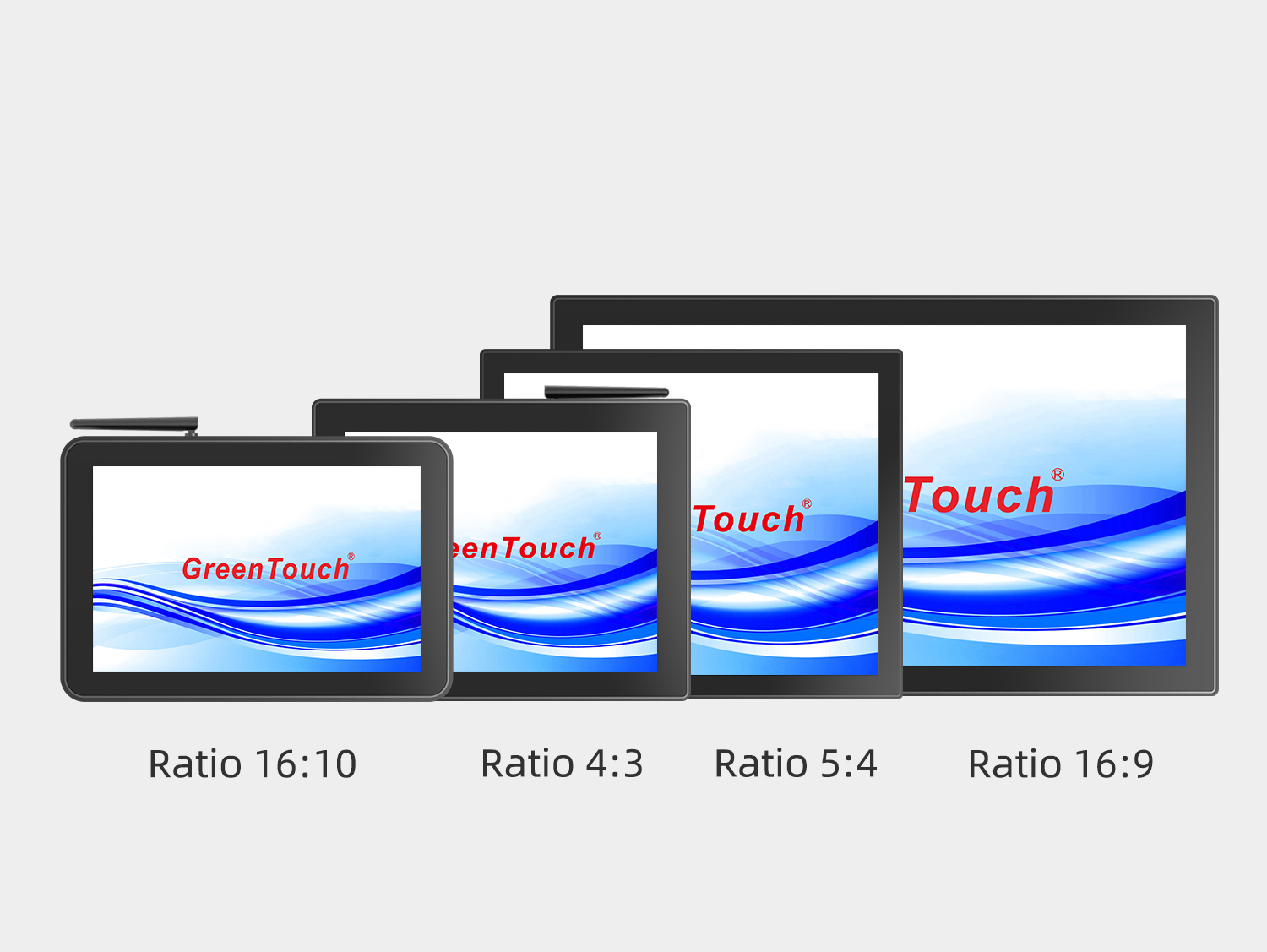

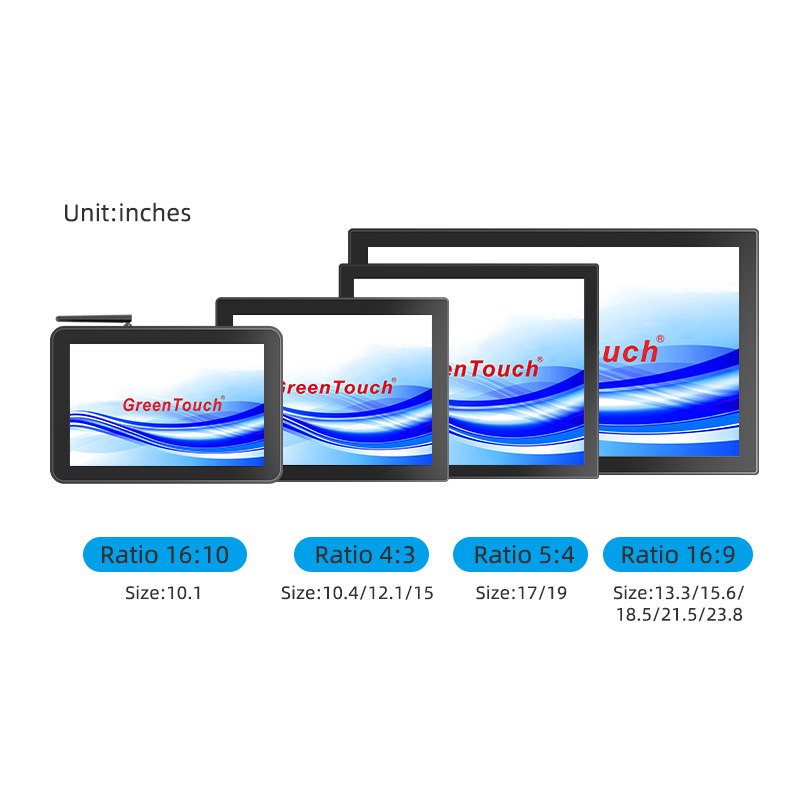

Multiple sizes available

(Ratio 16:10) Size:10.1”
(Ratio 5:4) Size:10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:13.3”,15.6”,18.5”,21.5”,23.8”

Mounting Options

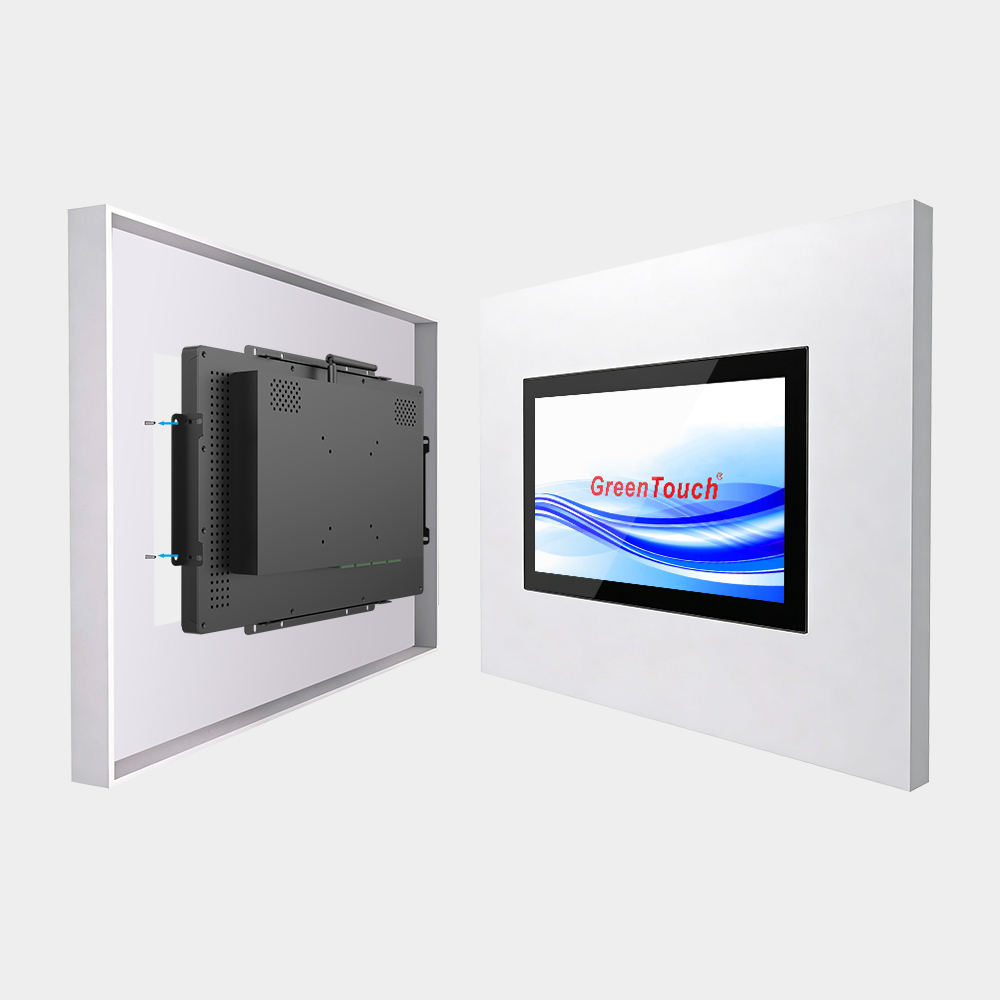

Embedded

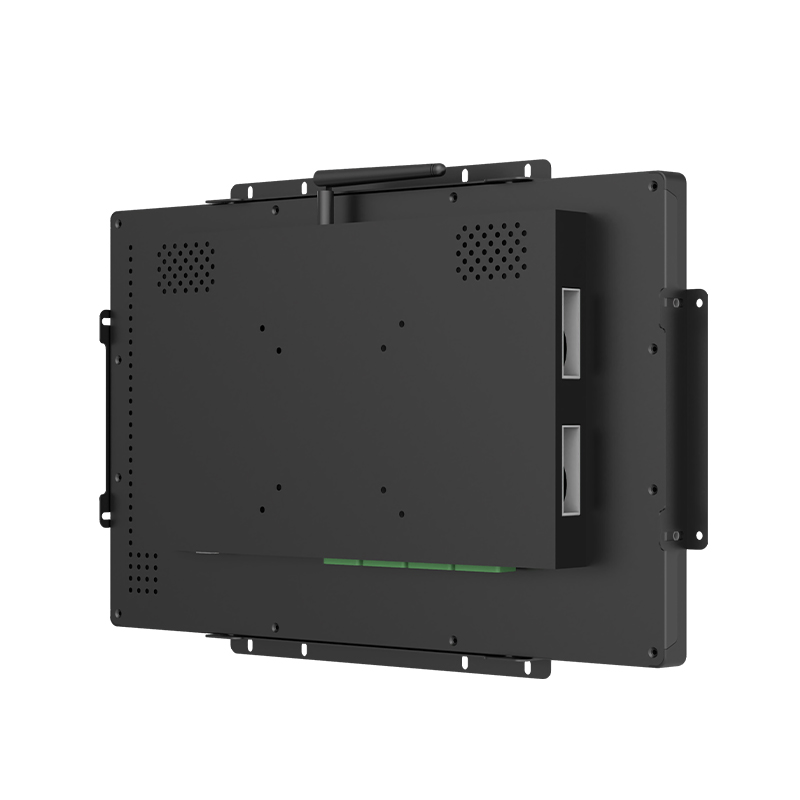

Each panel PC comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

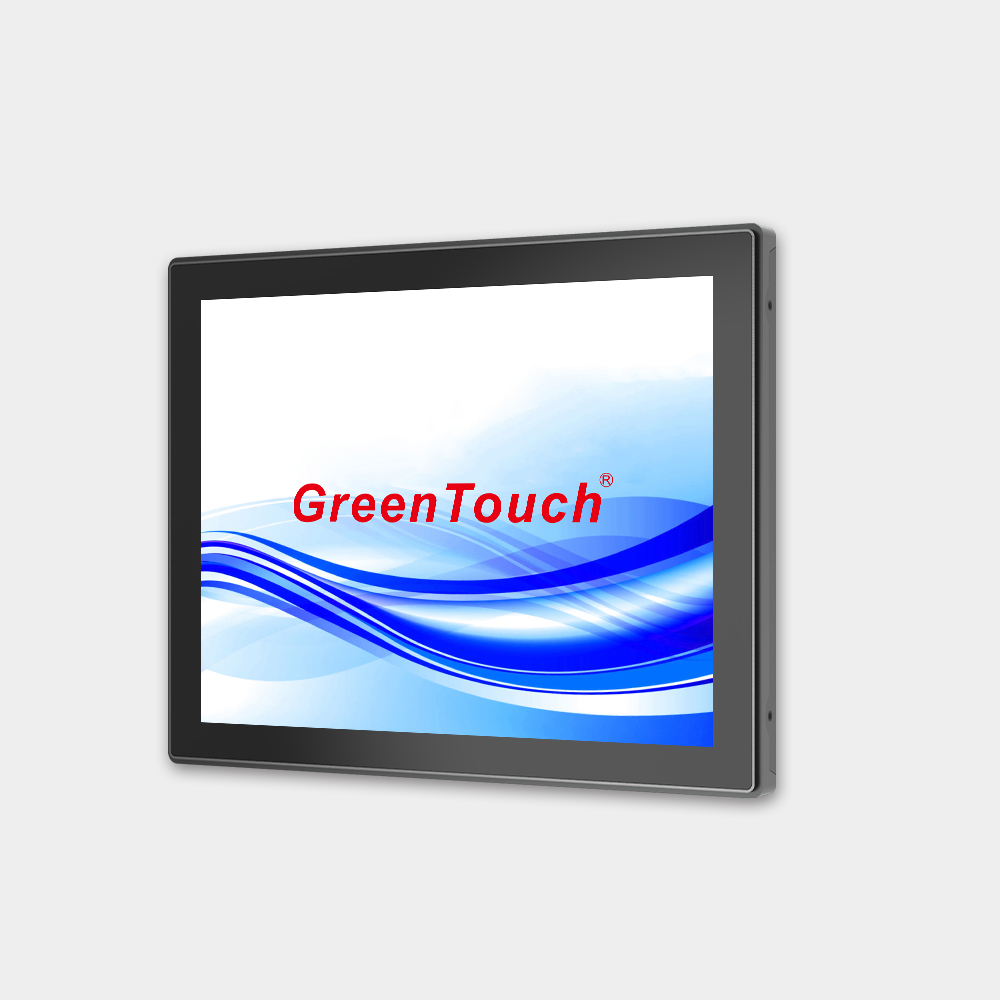

Wall Mount

The touch display includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.
Desktop

2CGL panel pc is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Embedded

Each panel PC comes standard with the external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

The touch display includes a universal 75/100mm VESA or Standard hole mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Desktop

2CGL panel pc is equipped with a standard Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for desktop installation.Installation is simple; you only need the corresponding mounting brackets. These are modular components with precisely aligned screw holes, making installation clear and intuitive. Furthermore, the brackets are easily disassembled. This allows the touchscreen to beflexible mounted horizontally or vertically on various universal stands or bases.

Specifications

General Manufacturer:GreenTouch Product Name:High Brightness Touch Display(2CGL) Regular Sizes: 10.1",10.4",12.1",13.3",15", 15.6",17",18.5",19",21.5",23.6",23.8" Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

OS-Android CPU:Rockchip RK3566/3568/3588 RAM:2GB,4GB,8GB Optional SSD:32G,64G Network support:3G,4G,5G,Ethernet,WiFi/Bluetooth 4.0 Wireless:802.11b/g/n, default single WiFi module

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:10.1 to 23.8 inches Resolution:1920x1080,1280x800,1024x768@60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:1000 nits Touch Technology:Capacitive 10 Points Touch

Environmental Operating Time:Max.Non-Stop 24/7 Temperature Operating:-20°C to 70°C Temperature Storage:-30°C to 80°C Humidity Operating:20% to 80% (No Condensation) Humidity Storage:10% to 90% (Non-condensing)

Connectivity Display Ports:HDMI,LAN,PHONE,TF,USB,RS485,RS232

Mounting Embedded:External Bracket Wall Mount:VESA 75x75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK08

About Display Ports

Android:HDMI

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
10.1"	GT-TC2CGL-101-RK	HDMI	16:10	265 x 180 x 43.5mm	219 x 138mm	1000	1280 x 800	GT-TC2CGL-101-RK
10.4"	GT-TC2CGL-104-RK	HDMI	4:3	261.6 x 208.8 x 47.5mm	213 x 160mm	1000	1024 x 768	GT-TC2CGL-104-RK
12.1"	GT-TC2CGL-121-RK	HDMI	4:3	294.4 x 233 x 47.5mm	247 x 185.5mm	1000	1024 x 768	GT-TC2CGL-121-RK
13.3"	GT-TC2CGL-133-RK	HDMI	16:9	350.8 x 222 x 47.5mm	294 x 166mm	1000	1920 x 1080	GT-TC2CGL-133-RK
15"	GT-TC2CGL-150-RK	HDMI	4:3	355 x 279.4 x 47.5mm	305 x 229mm	1000	1024 x 768	GT-TC2CGL-150-RK
15.6"	GT-TC2CGL-156-RK	HDMI	16:9	398 x 248 x 47.5mm	343.5 x 192.8mm	1000	1920 x 1080	GT-TC2CGL-156-RK
17"	GT-TC2CGL-170-RK	HDMI	5:4	385 x 317 x 47.5mm	339 x 271mm	1000	1280 x 1024	GT-TC2CGL-170-RK
18.5"	GT-TC2CGL-185-RK	HDMI	16:9	457 x 281 x 47.5mm	409 x 229mm	1000	1920 x 1080	GT-TC2CGL-185-RK3
19"	GT-TC2CGL-190-RK	HDMI	5:4	430 x 355 x 47.5mm	379 x 304mm	1000	1280 x 1024	GT-TC2CGL-190-RK
21.5"	GT-TC2CGL-215-RK	HDMI	16:9	532 x 319 x 47.5mm	479.6x 271mm	1000	1920 x 1080	GT-TC2CGL-215-RK
23.8"	GT-TC2CGL-238-RK	HDMI	16:9	586 x 356 x 47.5mm	528 x 298mm	1000	1920 x 1080	GT-TC2CGL-238-RK
