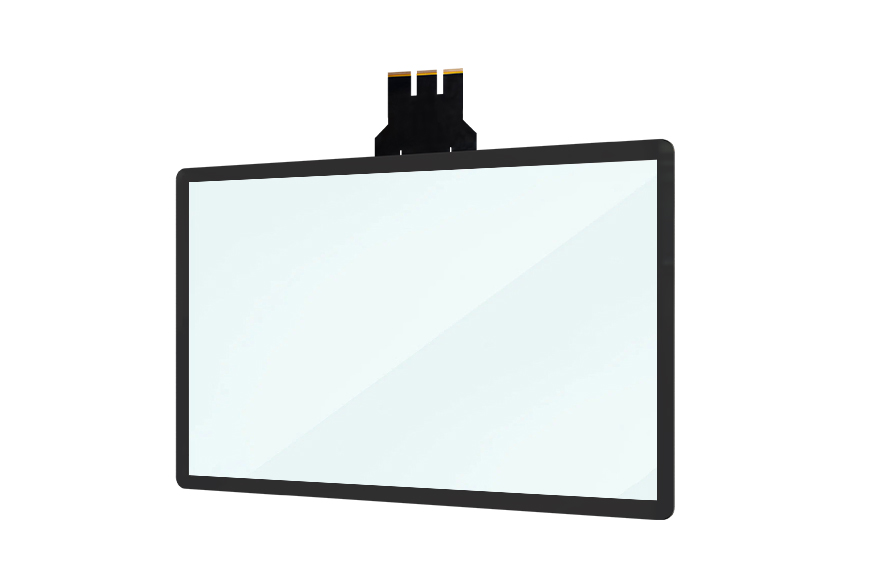

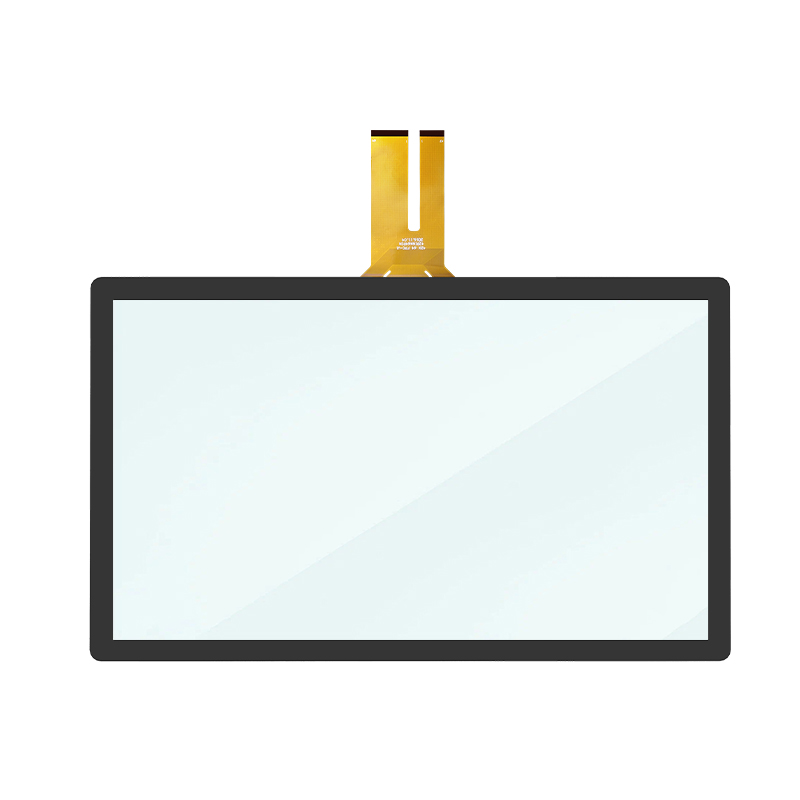

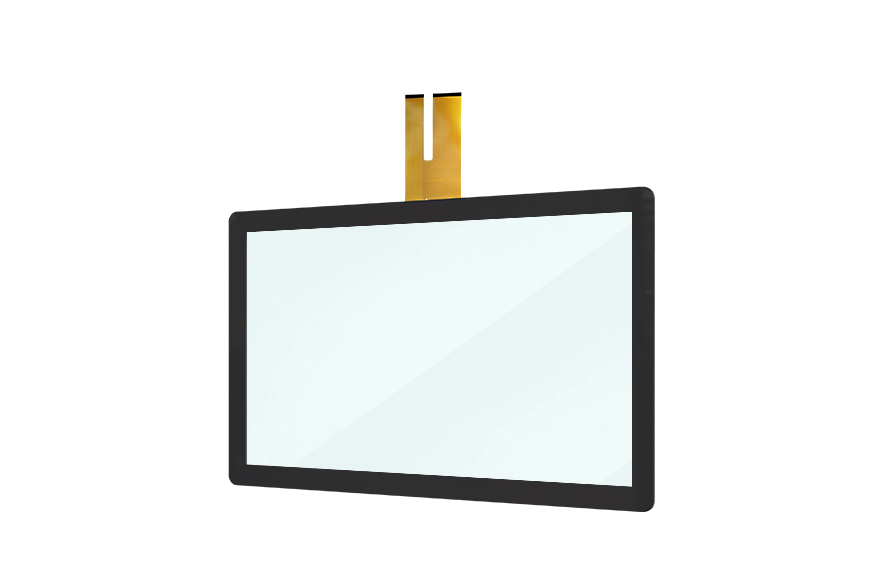

Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Capacitive Touch Screen 23.6 to 65 Inches
Product Information

Touch Points:UP to 20 Points

Touch lifespan:Unlimited Times

Cover: Glass+ITO Glass+SCA+FPC

Customizable: Size,Logo,Color,Casing,Packaging

FPC outlet locatio,Glass thickness,AG,AF,AR

Features

● 3mm temper protective glass,IK08,IK10+maximum

● Compatible with WEIDA,ILITEK,EETI USB&RS232 controller

● High optical penetration,transparency>85%,

● Own class 1,000 clean room,full inspection,fast delivery

● Complete solution including touch screen, controller, firmware,and software

Product Description

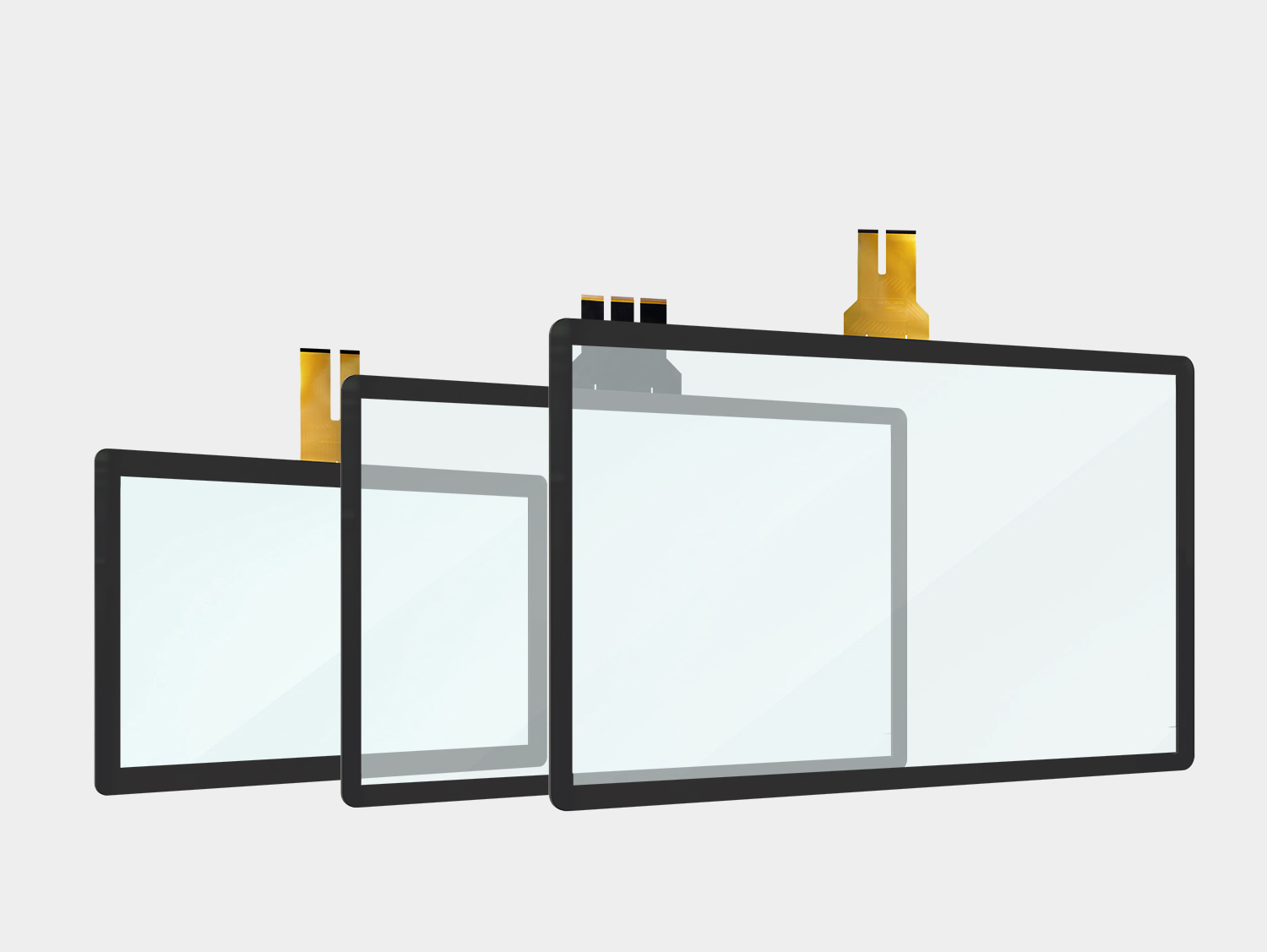

  • Capacitive Touch Screen Overview
    Capacitive Touch Screen Overview
    GreenTouch capacitive touchscreens provide efficient touch solutions for industrial touch customers who seek superior interactive experiences, product modernization, and long-term reliability.A medium size range from 23.6 ”to 65” ensures compatibility with industrial control and display, commercial display and interaction, high-end conferences and education, professional control rooms, medical display and diagnostics

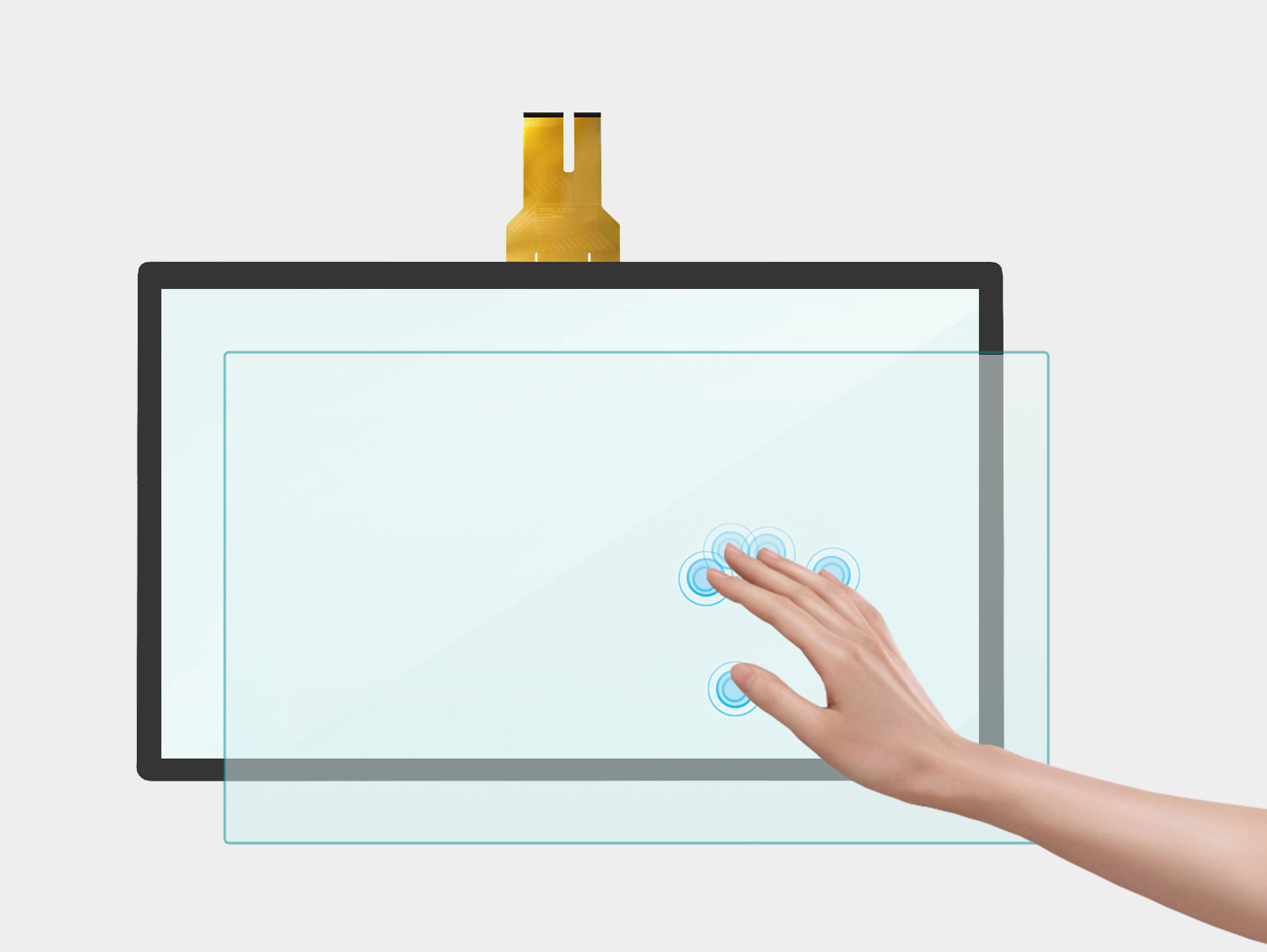

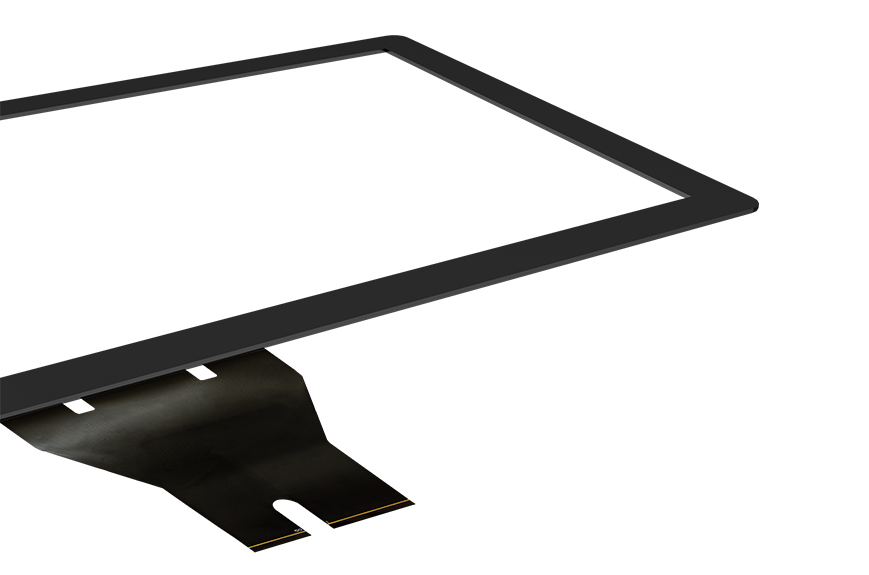

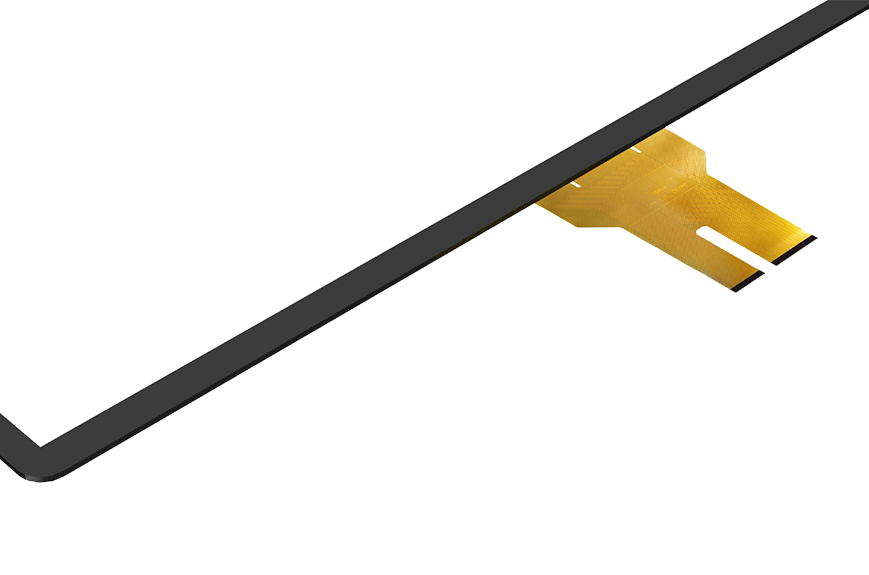

  • Function And Structure
    Function And Structure
    Our capacitive touch panel with pure plane structure,excellent craftsmanship,slim and smooth design.And use stable IC and bonding equipment to maintain high yield and quality.They accurate touch ,10 to 20 touch points,high sensitivity,smooth writing,no disconnection,no drift.And the glass cover each IP level,mpact resistance,prevent damage and scratch.

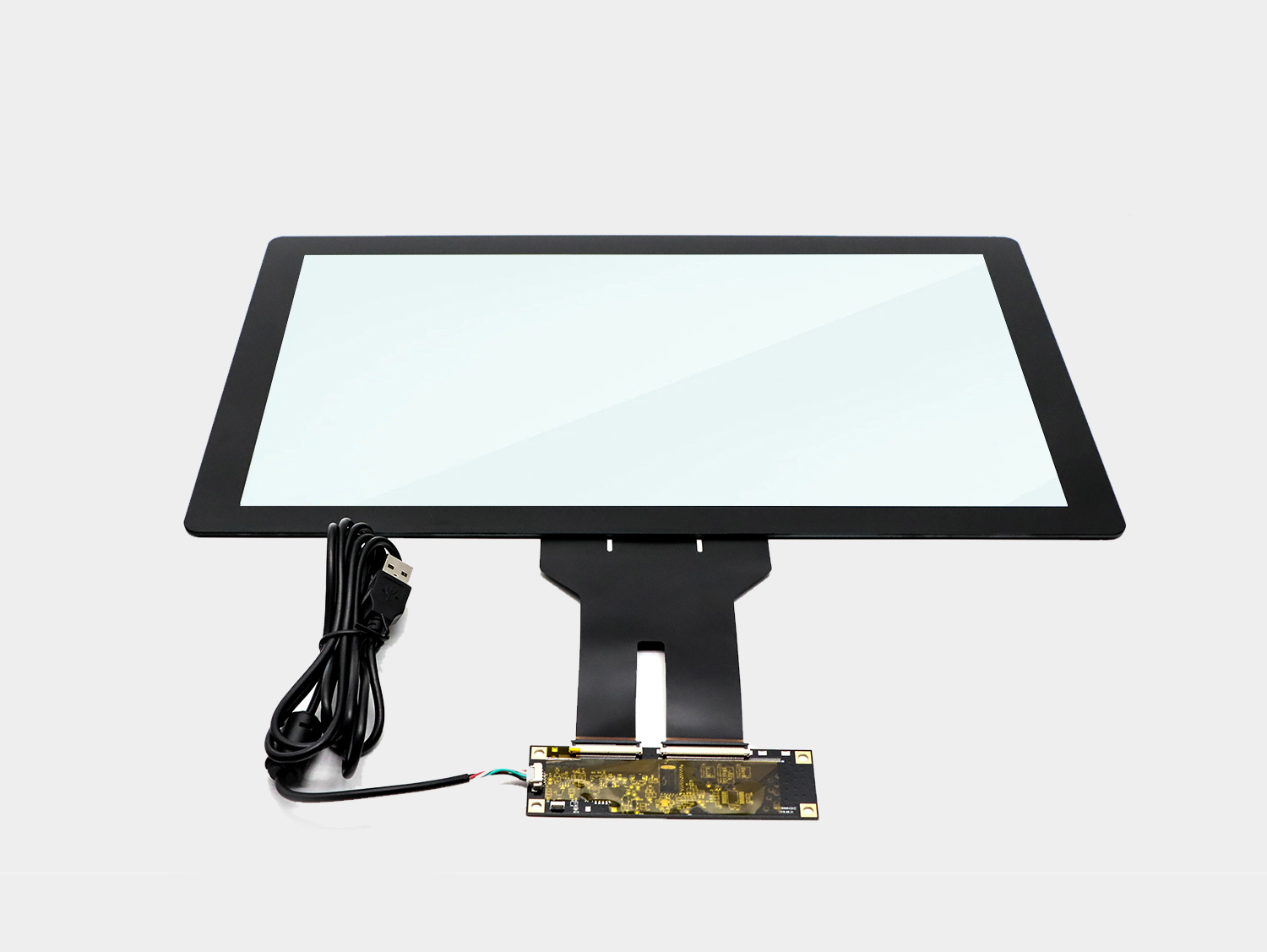

  • Connections and Systems
    Connections and Systems
    The steps to connect the capacitive touchscreen as follows: 1. Align and connect the touchscreen FPC and driver board pins,2.Connect the USB cable,3. Insert the FPC into the motherboard or control card, 4. Connect the capacitive touchscreen's USB to the host, 5. Configure and calibrate the software, 6. Test and installation complete.GreenTouch pcap touchscreens have broad operating system compatibility, supporting the following mainstream systems: Windows, Android, and Linux

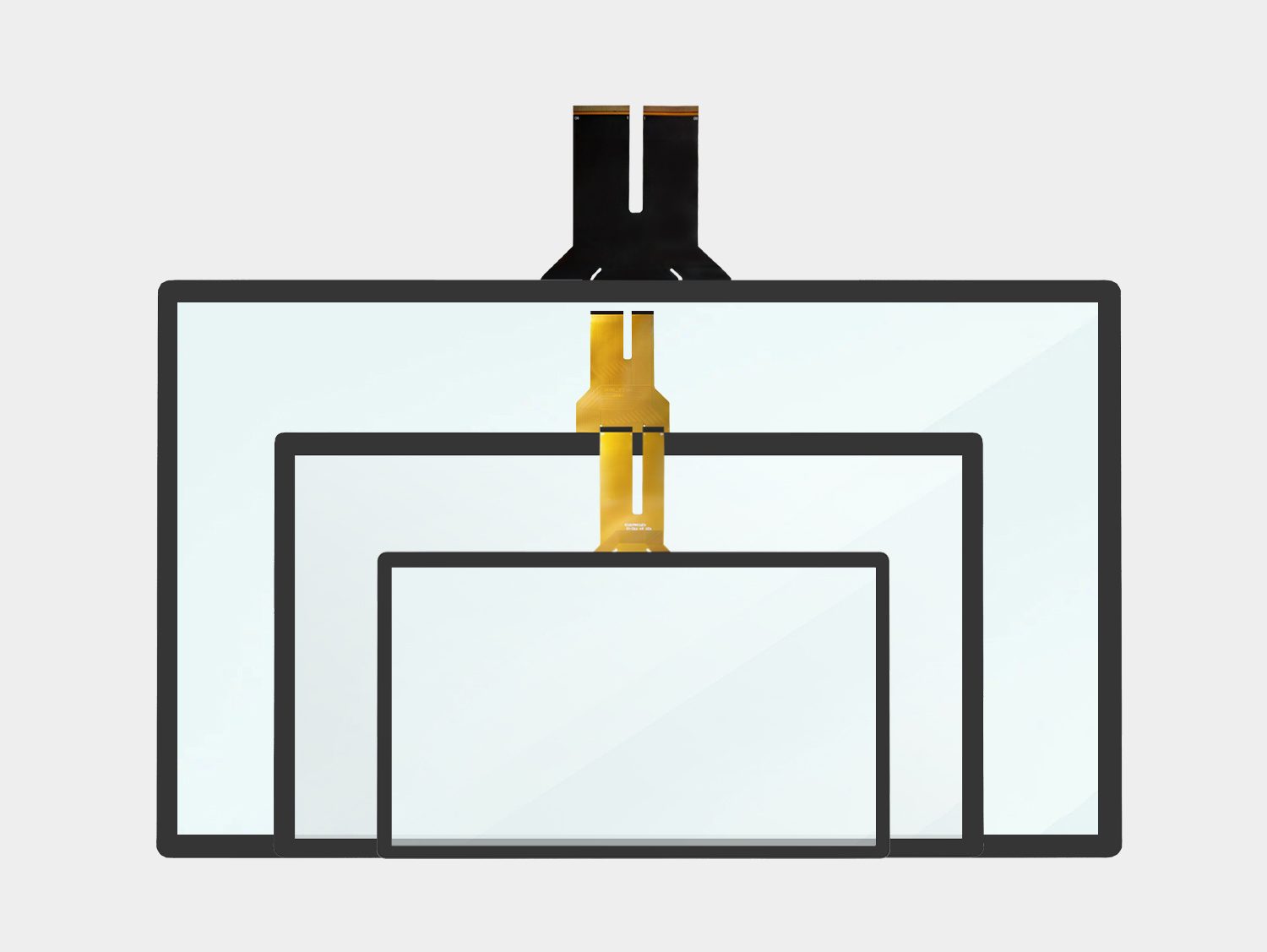

  • Multiple sizes available
    Multiple sizes available
    (Ratio 16:9)
    Size:23.6”,27”,32”,43”,49”,55”,65”

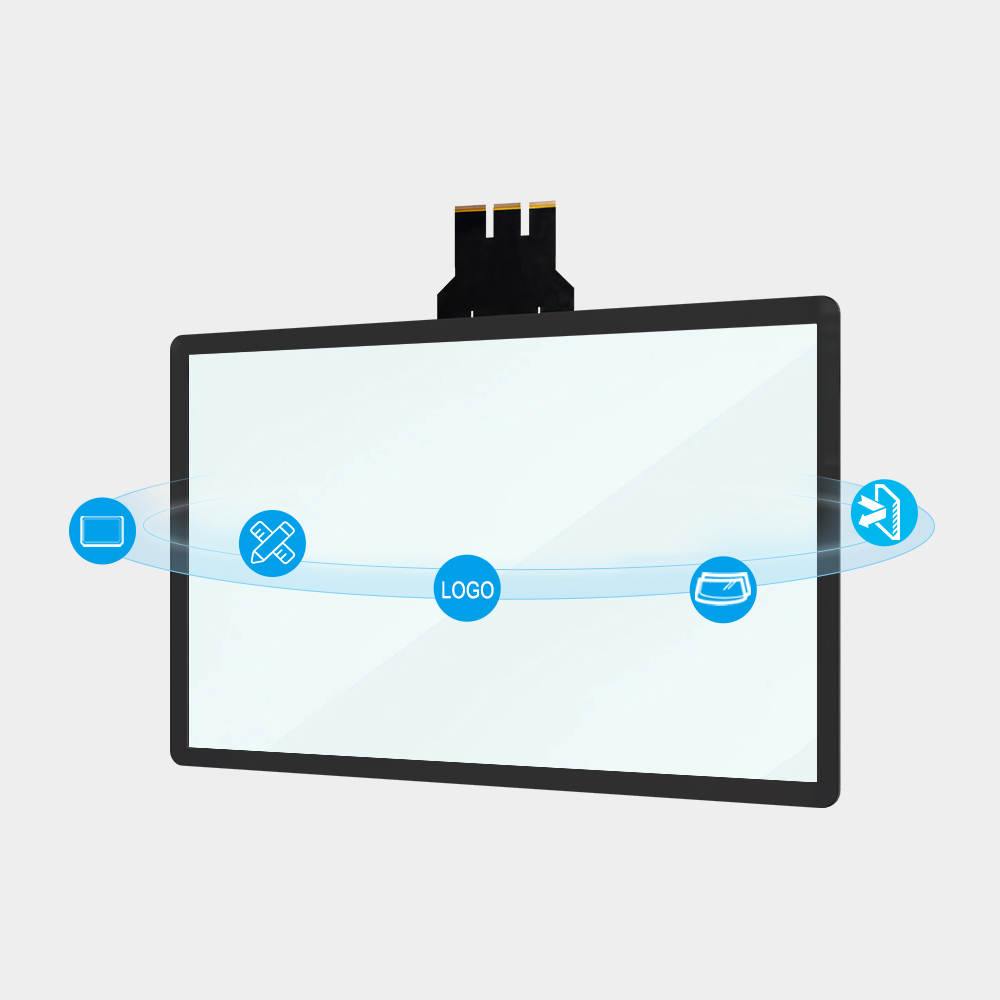

Customization Options
GreenTouch capacitive touch screens can be customized in terms of appearance, electrical interfaces, and structural design. For example:the screen size,Logo,FPC outlet location,packaging,ITO glass thickness, controllers and Interfaces,surface treatment: AG, AR, AF, antibacterial and bacteriostatic etc.
Capacitive Touch Screen 23.6 to 65 Inches
Specifications
General

Manufacturer:GreenTouch

Product Name:Capacitive Touch Screen

Regular Sizes:23.6",27",32",43",49",55",65"

Warranty:1-3 Year

Certificates:CE,FCC,RoHS

Panel

Panel Type:Glass+ITO Glass+SCA+FPC

Surface Hardness:≥6H

Diagonal Size:23.6 to 65 inches

Aspect Ratio:16:9

Resolution:4096 x 4096

Response Speed: <10ms

Touch Technology:Capacitive 10 to 20 touch points

Control Interface:USB or RS232

Touch Support System:Windows,Android,Linux

Environmental

Operating Time:Max. Non-Stop 24/7

Temperature Operating:–10°C to 50°C

Temperature Storage:-20°C to 60°C

Humidity: 90% relative humidity, no condensation

Connectivity

Interface:USB

Compliance

Certifications: CE,FCC,RoHS

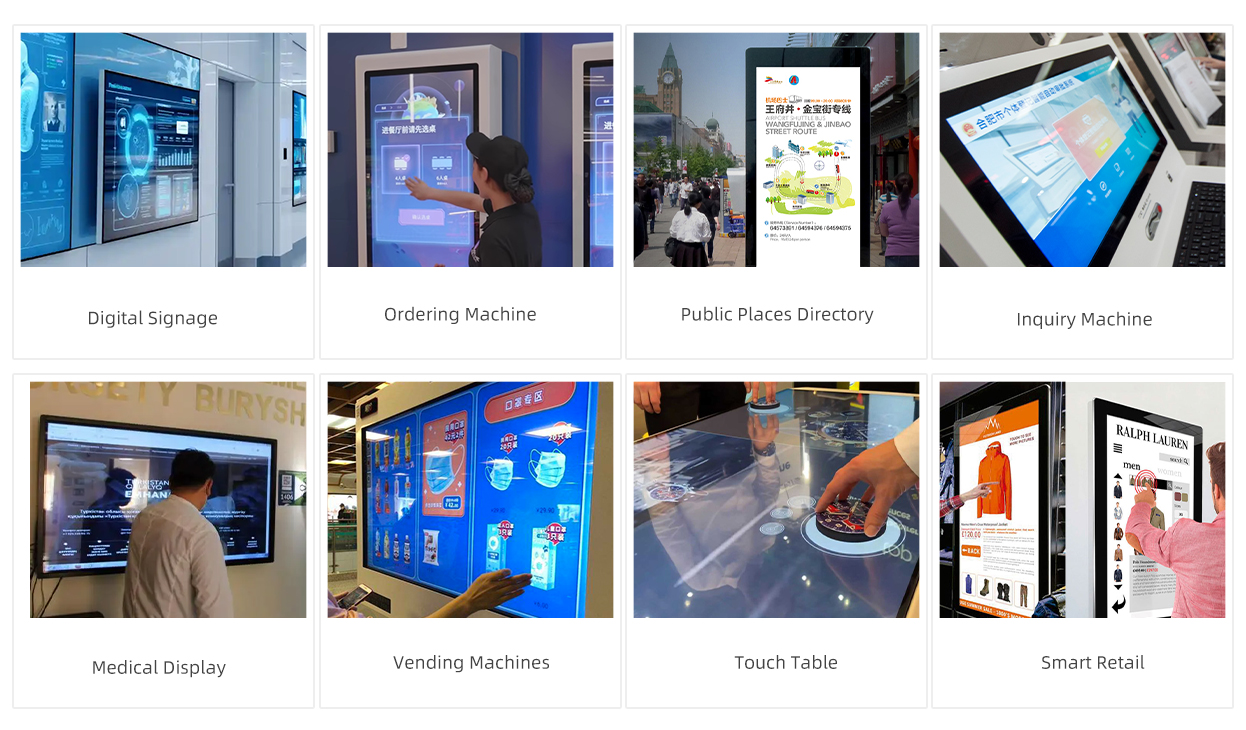

Application Field
Capacitive Touch Screen 23.6 to 65 Inches
Specification and download
Size

Model

DimensionsView AreaRatioSupport SystemsResolutionDrawing Download

23.6"

GT-CTP-Y23.6A-1

572.6*341.6mm

525*297mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y23.6A-1

27"

GT-CTP-Y27.0A-1

646.5*386.8mm

600*338mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y27.0A-1

32"

GT-CTP-Y32.0A-1

757.1*450.6mm

704*396mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y32.0A-1

43"

GT-CTP-Y43.0A-1

998.2*586.4mm

941*529mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y43.0A-1

43"

GT-CTP-Y43.0S-2

998.2*586.4mm

941*529mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y43.0S-2

49"

GT-CTP-Y49.0A-1

1132.7*663mm

1076*606mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y49.0A-1

49"

GT-CTP-Y49.0S-1

1132.7*663mm

1076*606mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y49.0S-1

55"

GT-CTP-Y55.0A-1

1268.6*739.4mm

1212*682mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y55.0A-1

55"

GT-CTP-Y55.0S-2

1268.6*739.4mm

1212*682mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y55.0S-2

65"

GT-CTP-Y65.0A-1

1510*888mm

1430*805mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y65.0A-1

65"

GT-CTP-Y65.0S-1

1484.5*878.3mm

1428*802mm

16:9

Windows,Android,Linux4096x4096

GT-CTP-Y65.0S-1
