Closed frame touch monitor 7 to 27 inches (3A series)

* Display Type: Active Matrix TFT LCD,LED Backlight

* Touch Type: Capacitive 10-point touch

* Waterproof and dustproof: IP65 (front)

* Explosion-proof: IK06 (front)

* Interface: VGA,DVI (optional HDMI, DP)

* Touch Support System: Windows,Android, Linux

* Certificate: FCC,CE,CB,RoHS

* Warranty: 1 year


Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

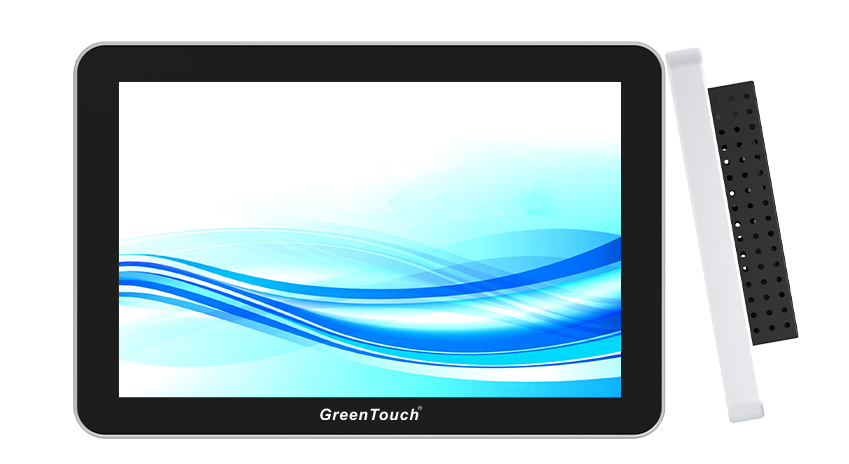

    Product Overview

    GreenTouch 3A series closed frame touch monitors are designed with industrial aesthetics and use A+ grade original industrial screens to provide a perfect touch solution for high-resolution display and multi-touch interactive experience.This model adopts capacitive 10 points touch technology.It only needs a slight touch to respond,and it can continue to work even if the screen is scratched.3A series touch monitors have better visual effect in sunlight.Because of their unique design and performance,they are widely used in rail transportation,education,medical and retail terminals and other industries.


    Product Features

    ♦ Pure flat front panel,adopt A+grade original industrial LED screen.

    ♦ Flat front IP65 waterproof and dustproof,IK06 explosion-proof.

    ♦ 10 points capacitive smooth touch,touch accuracy up to 0.1MM.

    ♦ Comply with EMC anti-interference standard,all-weather stable operation.

    ♦ Support custom expansion,support a variety of installation methods.

    ♦ The visual effect is better under the sun,and the backlight effect is not easy to appear.

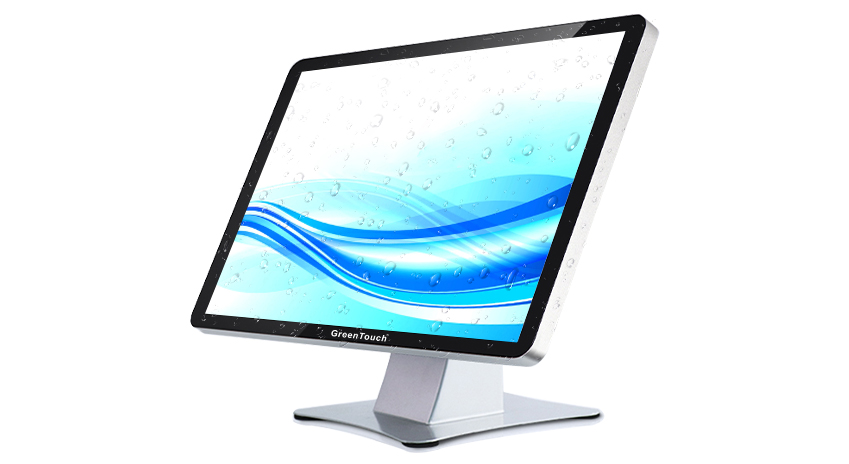

    Product Usage

    The front panel of GreenTouch 3A series touch monitor adopts IK06 explosion-proof tempered glass,which can effectively prevent dust and water droplets from intruding into the inside of the machine through the frame sticking process,and the protection level reaches IP65 level, which meets your industrial requirements.

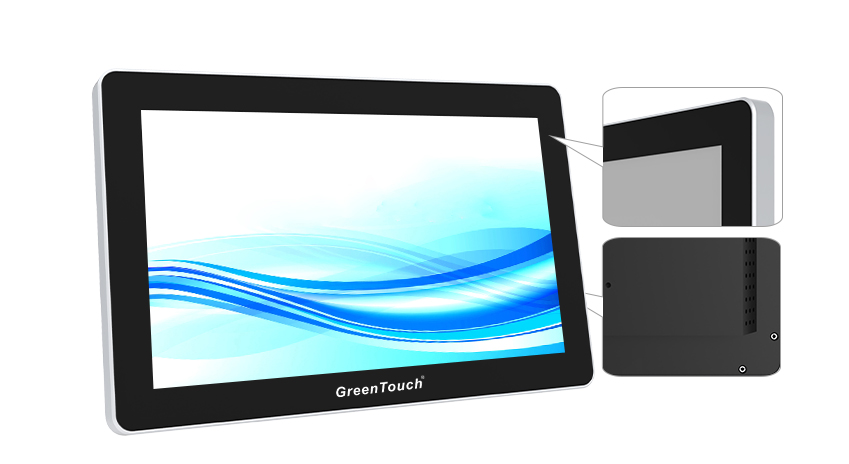

    Product Appearance

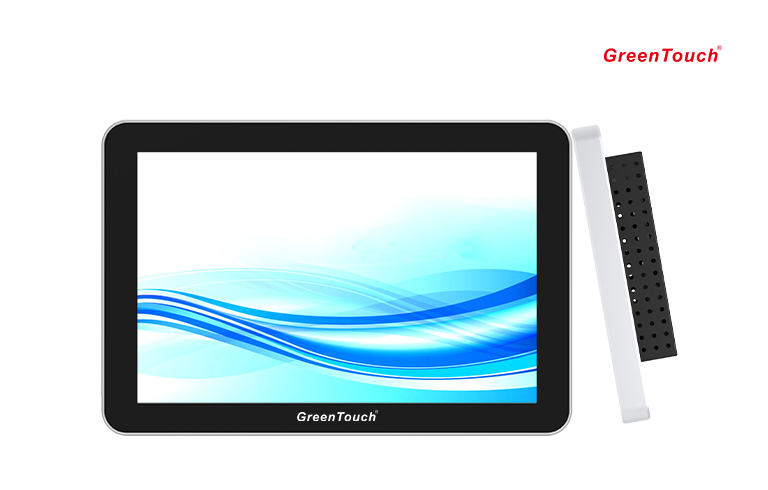

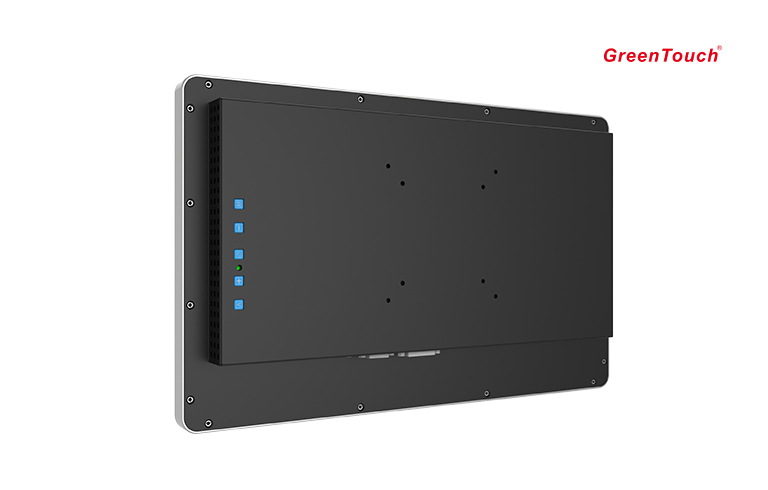

    This model adopts an industrial aesthetic appearance design,the frame is made of aluminum alloy,and the rear shell is made of aluminum alloy baking paint.

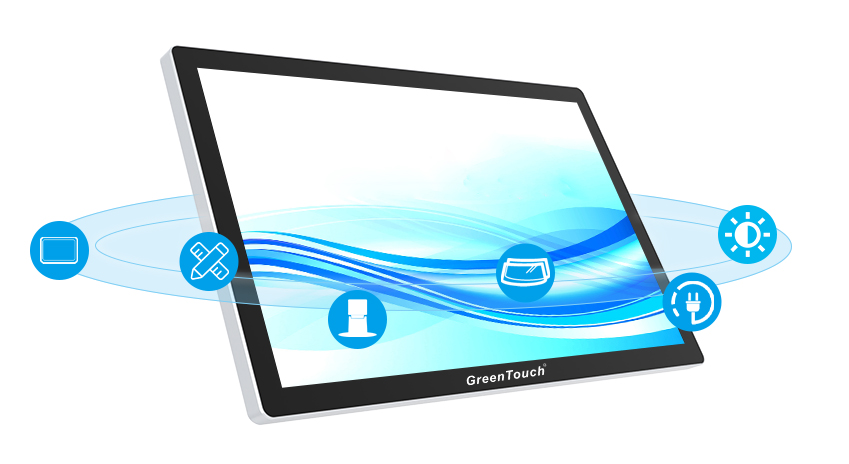

    Customizable

    ① Product size

    ② Customer Logo

    ③  LCD brightness(300-800 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

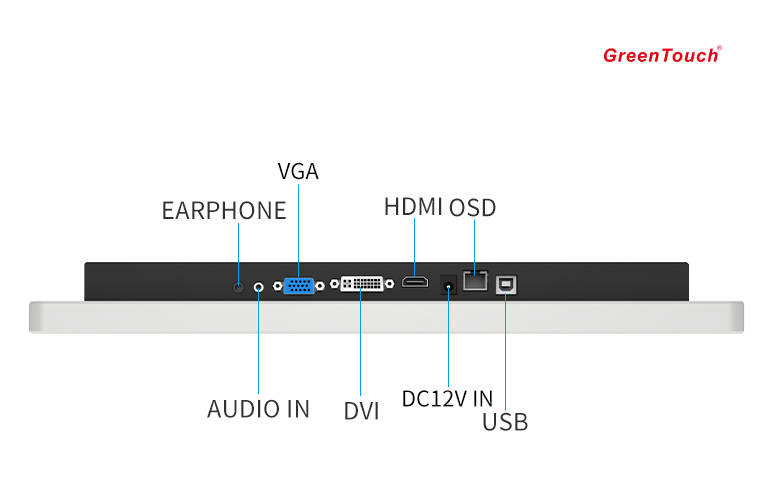

    ⑤ Display ports( VGA,DVI,HDMI,DP,USB or more)

    Technical parameter


    Installation

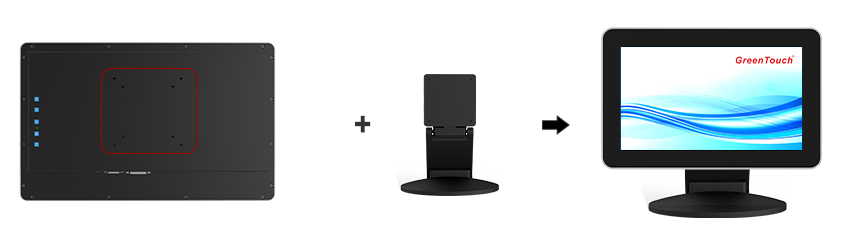

    (1) 75mm or100mm VESA hole in rear case for desktop mounting

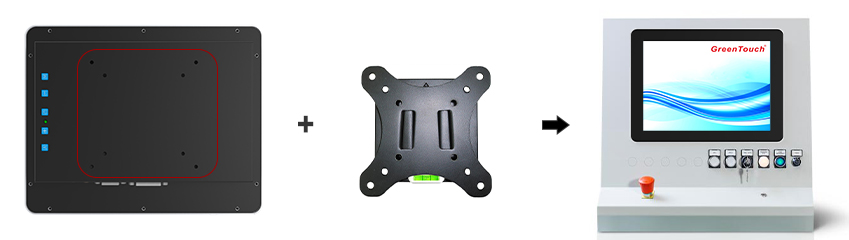

    (2) 75mm or100mm VESA hole in rear case for snap-in installation

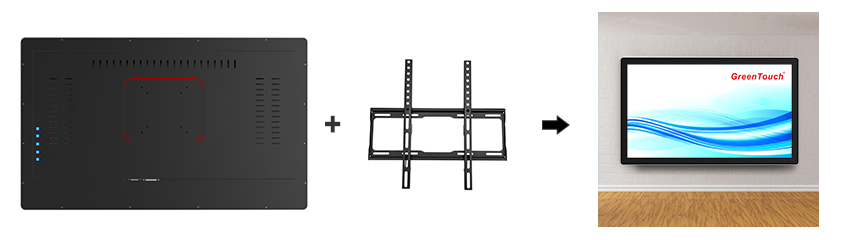

    (3) 75mm or100mm VESA hole in rear case for wall mount

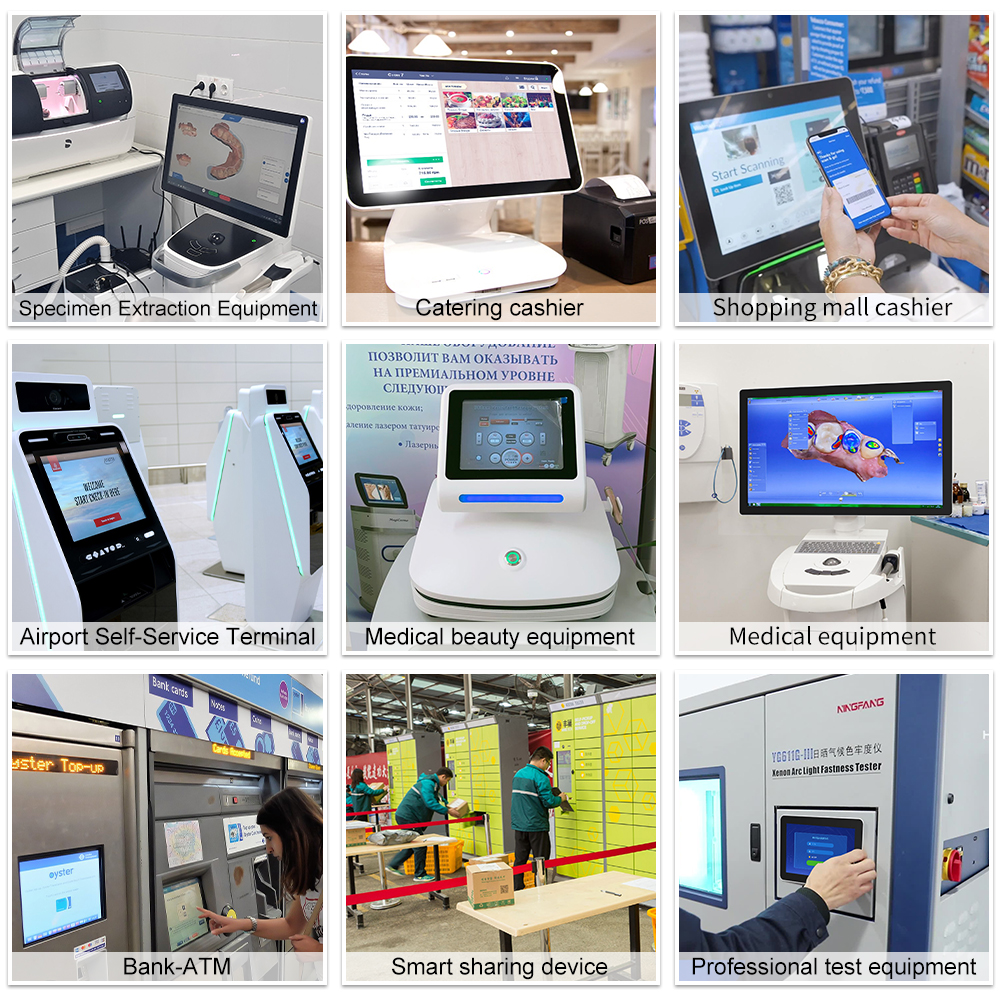

    Application Scenario




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download
    7"GT-TM-0703AVGA,DVI,HDMI

    16:9

    188.5x123.5x42.8mm154.2x85.9mm550 1024 600

    Download

    8"GT-TM-0803AVGA,DVI,HDMI

    16:9

    218.1 x140.9x42.8mm176.6x99.4mm500 1024 600

    Download

    9.7"

    GT-TM-0973A

    VGA,DVI,HDMI4:3242.1x192.9x42.8mm196.6x147.5mm3501024 768

    Download

    10.1"

    GT-TM-1013A

    VGA,DVI,HDMI16:10259.5x174.1x43.8mm216.9x135.6mm3301280 800

    Download

    10.4"GT-TM-1043AVGA,DVI,HDMI4:3261.6x208.8x43mm211.2x158.4mm3001024 x 768

    Download

    12.1"GT-TM-1213AVGA,DVI,HDMI

    4:3

    294.5x233x44mm245.8x184.3mm500 1024 x 768

    Download

    13.3"GT-TM-1333AVGA,DVI,HDMI

    16:9

    346.9x218.5x44mm293.8x165.2mm300 1920 1080

    Download

    15"

    GT-TM-1503A

    VGA,DVI,HDMI4:3355.4 x279.4x42.8mm304.1x228.1mm3001024 768

    Download

    15.6"

    GT-TM-1563A

    VGA,DVI,HDMI16:9398.9x248.2x42mm344.2x193.6mm4001920 1080

    Download

    17"GT-TM-1703AVGA,DVI,HDMI4:3389.3x321.7x42.8mm337.9x270.3mm2501280 x 1024

    Download

    18.5"GT-TM-0703AVGA,DVI,HDMI

    16:9

    456.9x277.4x42mm409.8x230.4mm250 1366 768

    Download

    19"GT-TM-1903AVGA,DVI,HDMI

    4:3

    428.7x353.5x42.8mm376.3x301.1mm250 1280 1024

    Download

    21.5"

    GT-TM-2153A

    VGA,DVI,HDMI16:9526 x317.3x42mm476.6x268.1mm2501920 x 1080

    Download

    22"

    GT-TM-2203A

    VGA,DVI,HDMI16:10524.1x346.5x42mm473.8x296.1mm2501680 1050

    Download

    23.6"GT-TM-2363AVGA,DVI,HDMI16:9574.5x346.8x42mm521.3x293.2mm3001920 x 1080

    Download

    23.8"

    GT-TM-2383A

    VGA,DVI,HDMI16:9574.5x346.8x42mm521.3x293.2mm3001920 1080

    Download

    27"GT-TM-2703AVGA,DVI,HDMI16:9656x394.6x42mm597.9x336.3mm3001920 x 1080

    Download
