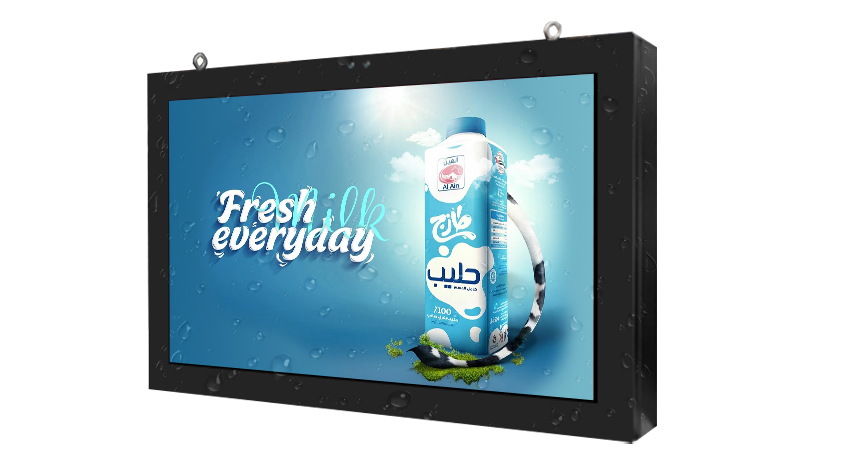

Outdoor wall mounted digital signage 21.5 to 86 inches

* Display Type: TFT-LCD, LED Backlight

* Touch Type: No touch or 10-point nano touch

* Video output port: 1 HDMI1.4 standard interface

* Interface: 2 USB external interfaces

* Processor: RK3288 quad core or other specified

* Waterproof and dustproof: conventional IP55 (IP65 Optional)

* Surface treatment: AG AR AF (optional)

* Supported operating system: Android version

* Certificates: UL, CUL (Recognized), FCC, CE, CB, China ROHS CQC

* Shelf life: 1 year


Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

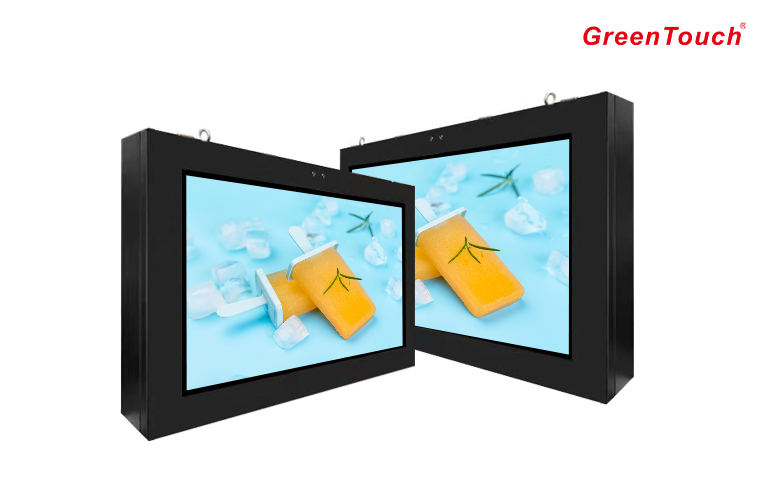

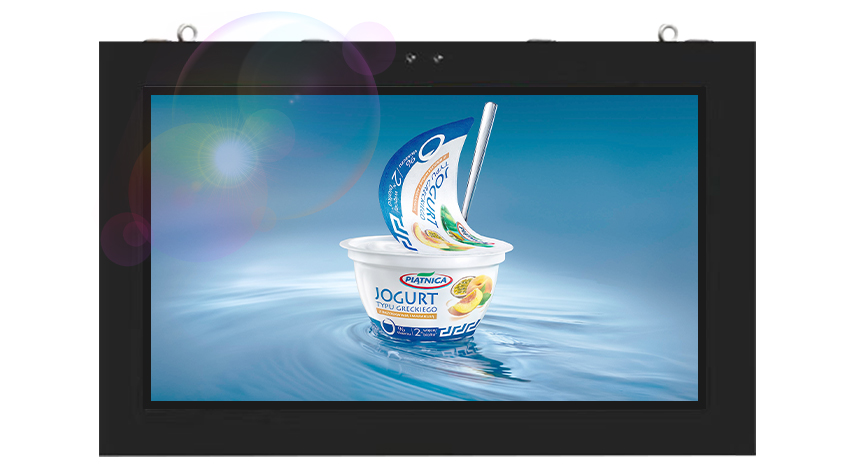

    Product Overview

    The brightness of GreenTouch outdoor wall-mounted advertising machine can reach 2000nits, and the bright display can be clearly visible in the sun, with a viewing angle of 178°. The display is equipped with an automatic photosensitive system, which can change the brightness of the display according to the ambient light. GreenTouch outdoor wall-mounted advertising machine defaults to air-cooled intelligent cooling, heating and exhaust air temperature control system, adopts intelligent direct ventilation cooling system, professional and special air duct cooling design, and has proven professionalism and reliability. The aircraft is designed and built with a long life cycle to supply long-term needs.

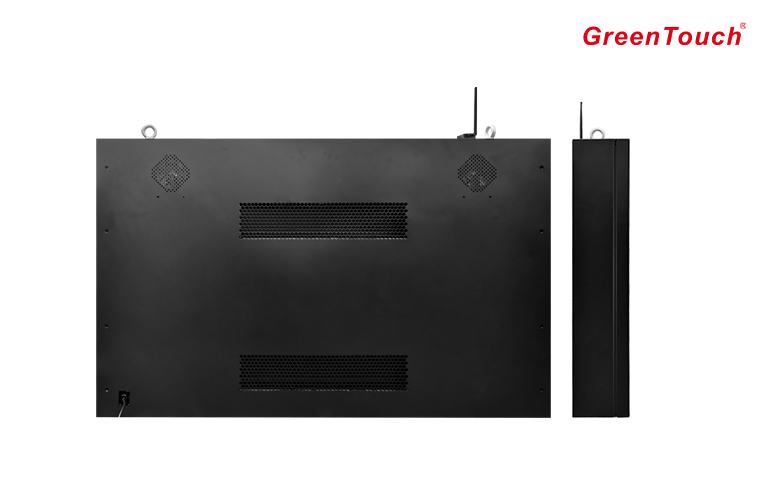

    Product Structure

    1. The shell is made of 1.5mm galvanized sheet, sprayed with outdoor special powder, anti-corrosion for more than 5 years

    2.The shell structure is designed with waterproof edge to meet the IP55 protection level

    3. The front protective glass of the whole screen is made of 5mm ultra-white tempered glass, with a light transmittance of ≥98% and high light transmittance.

    4.The whole machine adopts the front and rear double doors, which can facilitate the maintenance of the internal display screen, glass, heat dissipation components and electronic parts

    5.The whole machine adopts modular design, which is convenient for installation and maintenance

    Product Features

    ♦ The door lock is a three-level protection, the casing screws are hidden, and the screws cannot be removed

    ♦ IP55 waterproof, dustproof and lightning protection, three-layer composite sealing strip, no water entering from multiple angles; there are filters and lightning protection devices inside

    ♦ 7*24 hours of stable work, support timing switch, timing playback

    ♦ Default air-cooled intelligent cooling and heating exhaust air temperature control system, using intelligent direct ventilation cooling system, professional special air duct cooling design

    ♦ Built-in leakage protector to effectively protect leakage and other accidents

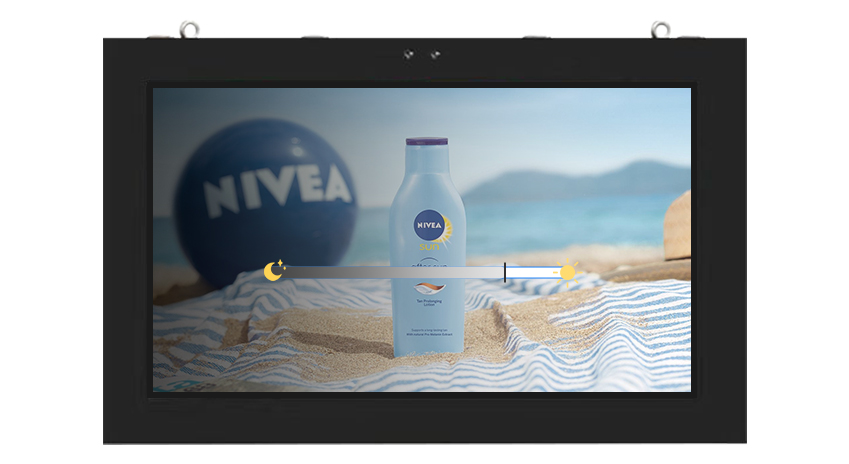

    ♦ It can automatically adjust the brightness according to the light and dark of the environment

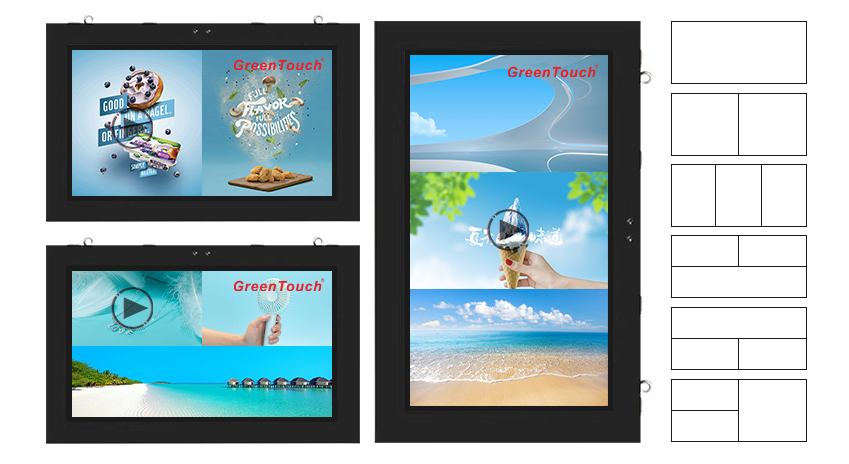

    Intelligent Split Screen System

    ⑴ Can support a variety of split screen methods. When creating an ad, you can stretch and drag the display area and size freely.

    ⑵ You can edit video, pictures, subtitles, RSS text, mix broadcast, time, weather, logo, web page, SWF, AV synchronous playback, etc.;

    ⑶ The system has a digital calendar clock, weather forecast and program template library, supports self-designed templates, and provides template preview function.


    System compatibility and scalability

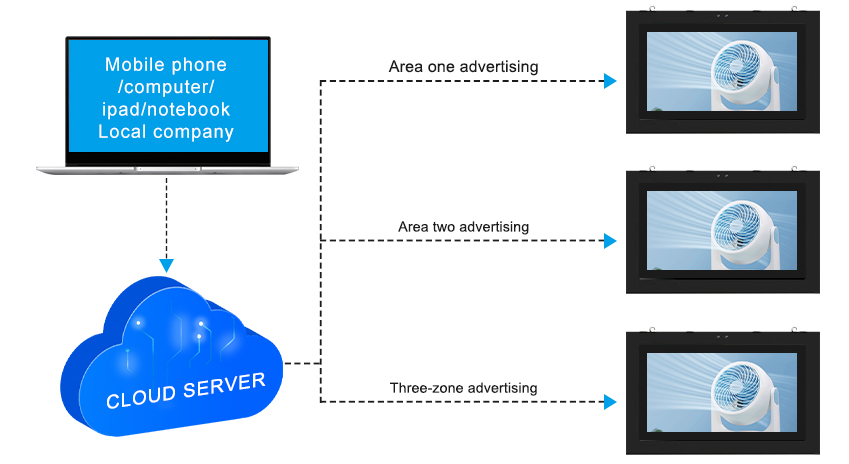

    The system adopts B/S architecture, without installing the client, you can open the IE browser on any computer to log in to the control background, and perform any cloud management on all terminals.

    Picture special effect playback - You can set the picture playback special effect function, such as: blinds.

    Live Streaming - Supports various forms of live streaming such as live streaming, live web video, etc.

    Play plan management - all the programs that need to be sent can be planned in advance.

    Remote control terminal - through management software, remote power on/off, restart, volume, etc.

    Remote real-time monitoring - can remotely monitor terminal dynamics in real time.

    Timing switch - can set multiple rounds of timing switch


    Extended functions (customizable)

    It can support the expansion of camera (video call, face recognition), microphone, touch screen, printer, QR code scanning, motion sensor, light box, virtual display, card reader, one-key alarm, voice control module and other functions.

    Technical parameter


    Installation

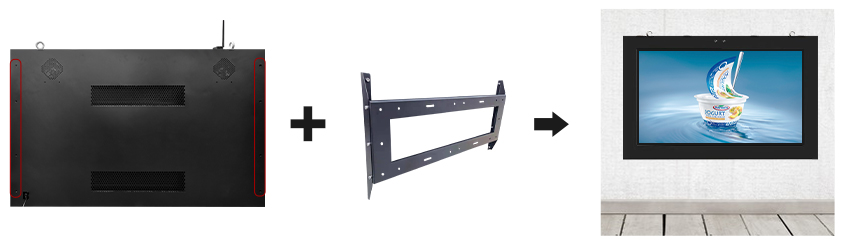

    (Mounting option 1) Wall Mounting

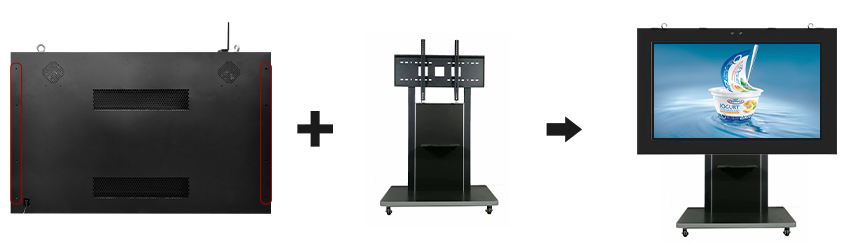

    (Mounting option 2) Mobile Bracket Mounting

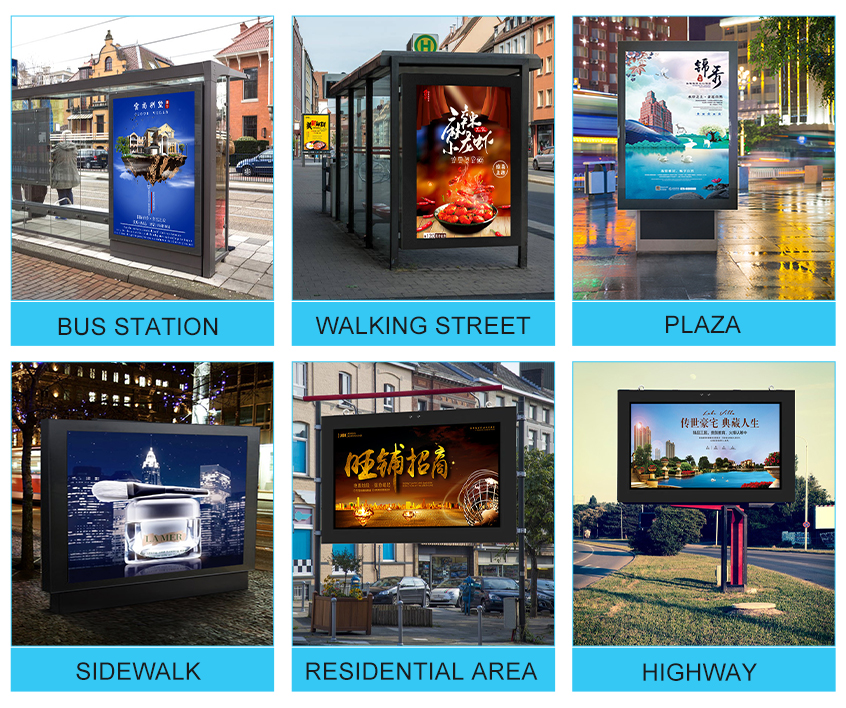

    Application Scenario




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download
    21.5"GT-HW-215WDBHDMI,USB*2

    16:9

    606X433X225mm476.6X268.1mm1500 1920 X 1080

    Download

    32"GT-HW-320WDBHDMI,USB*2

    16:9

    898.4X532.9X250mm698.4X392.9mm2000 1920 1080

    Download

    43"

    GT-HW-430WDB

    HDMI,USB*216:91140X730X250mm941.2X529.4mm20001920 X 1080

    Download

    49"GT-HW-490WDBHDMI,USB*216:91275X805X250mm1073.8X604mm20001920 X 1080

    Download

    55"GT-HW-550WDBHDMI,USB*216:91411.3X884X240mm1209.5X680.4mm20001920 X 1080

    Download

    65"GT-HW-650WDBHDMI,USB*216:91600.8X1007.1X250mm1431.4X806.5mm20001920 X 1080

    Download

    75"GT-HW-750WDBHDMI,USB*216:91840X1260X300mm1650.2 X928.3mm20001920 X 1080

    Download

    86"GT-HW-860WDBHDMI,USB*216:92100X1280X311mm1898 X1069mm20001920 X 1080

    Download
