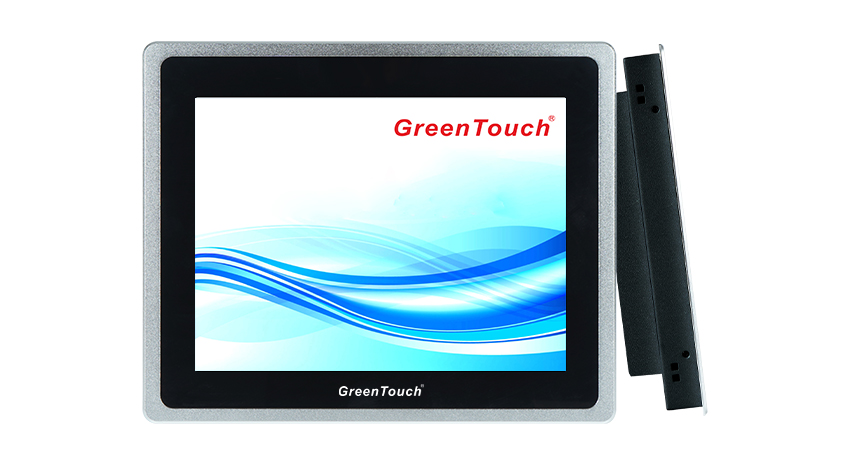

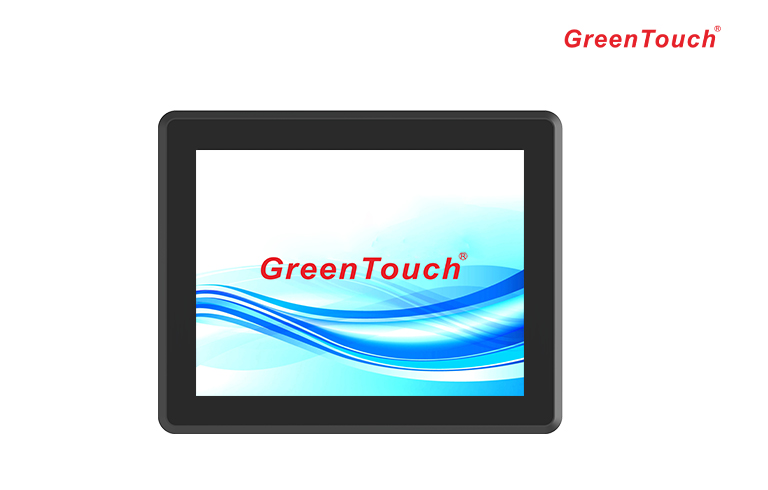

Panel mount touch monitor 10.1" - 23.8" (3E series)

* Display Type: Active Matrix TFT LCD,LED Backlight

* Touch Type: PCAP,10 Points Touch

* Water-proof/Dust-proof/Explosion-proof: IP65(Front)/IK06(Front)

* Interface: VGA, DVI (optional HDMI, DP)

* Touch Systems: Windows,Android,Linux

* Certificates: RoHS,FCC,CE,CB,HDMI Testing

* Warranty: 1 Year

Contact us
+(0086) 13823548639
peter@greentouch.com.cn
wanli889

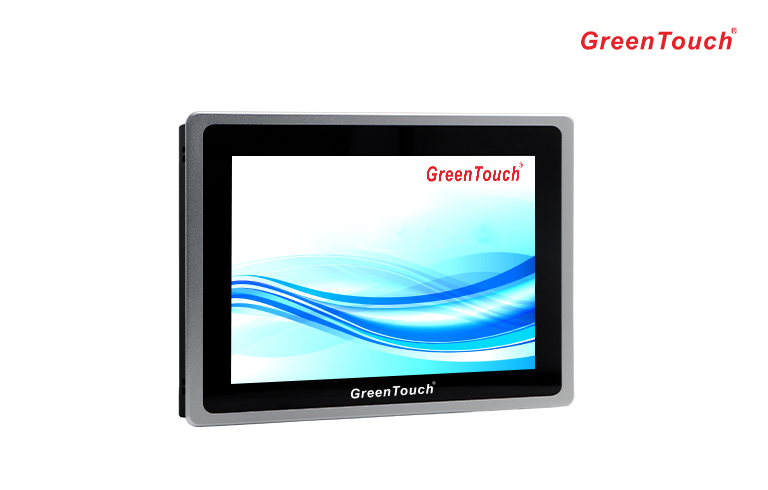

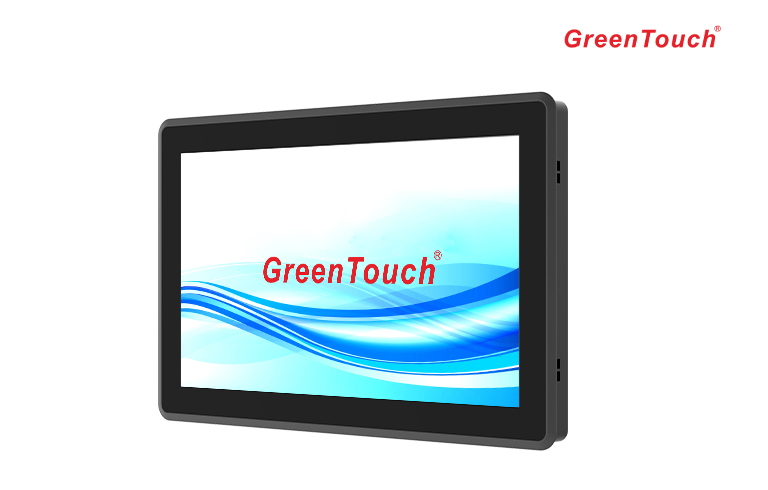

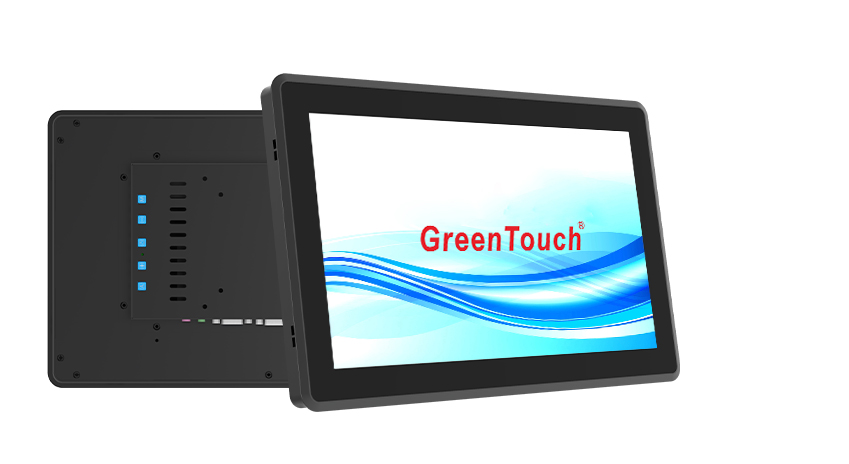

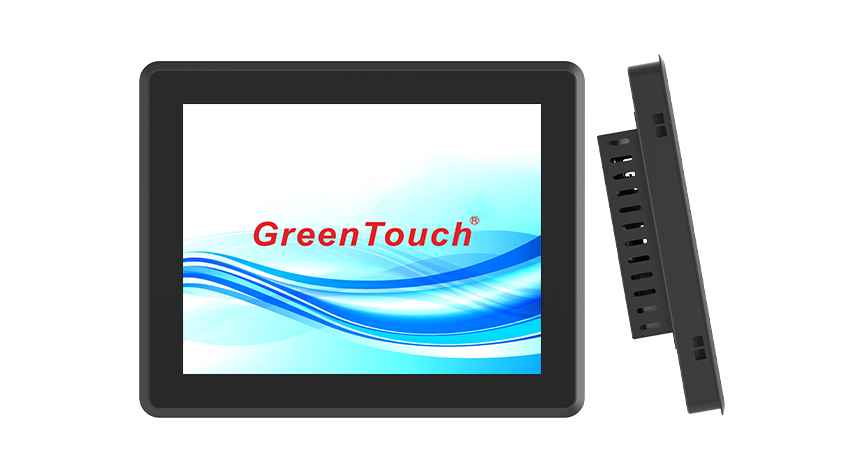

    Product Overview

    GreenTouch Industrial Touch Monitor adopts a precise small frame design, which makes it easier for customers to install the product on the cabinet, with a simple appearance and easy integration. This model is versatile and powerful, with modular design and optional configuration to meet most customer requirements. GreenTouch Industrial Touch Monitors have global regulatory agency certification, warranty and after-sales service. Provides a cost-effective all-in-one touch solution for industrial embedded system integrators and value-added distributors.


    Product Features

    ♦ Using LG, AUO, Chi Mei, Mitsubishi, BOE original industrial screen

    ♦ Flat front IP65 waterproof and dustproof

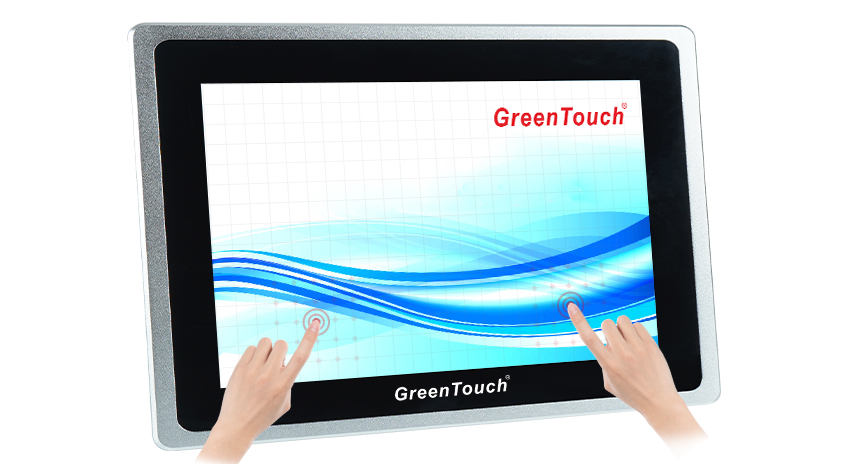

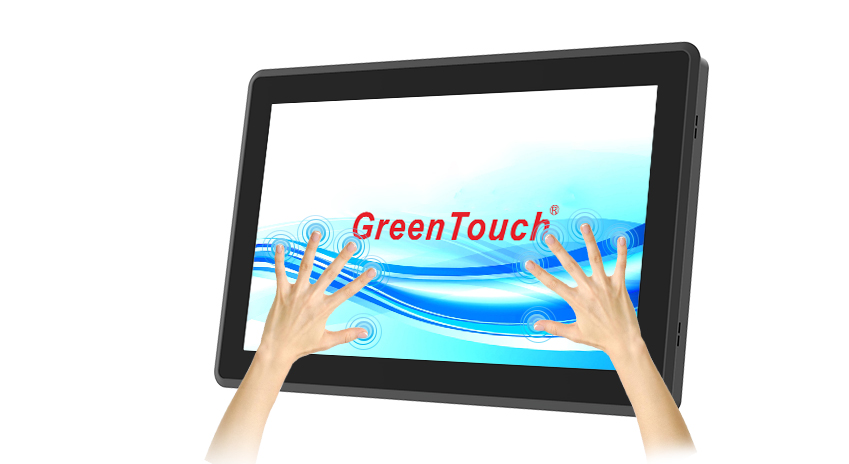

    ♦ 10-point capacitive touch, touch response time>25ms

    ♦ Meets EMC anti-interference standards

    ♦ IK06 is explosion-proof on the front, and the touch function is not easily affected

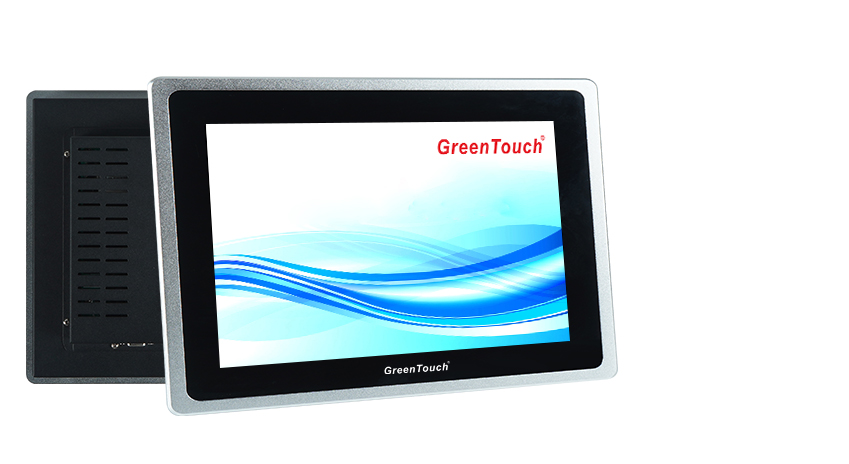

    ♦ Aluminum alloy front panel, rear shell sheet metal, fanless silent cooling design

    Product Test

    The monitor has passed the strict EMC anti-interference test and meets the EMC anti-interference standard; it is suitable for working in various industrial sites, indoor and outdoor signal interference and other environments

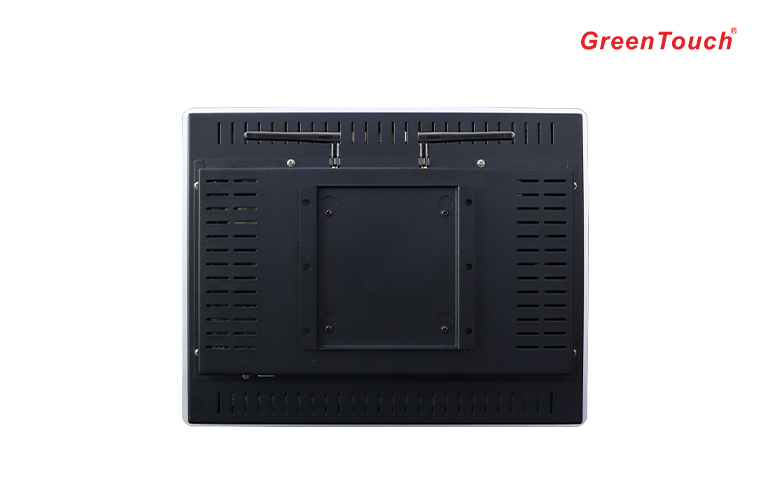

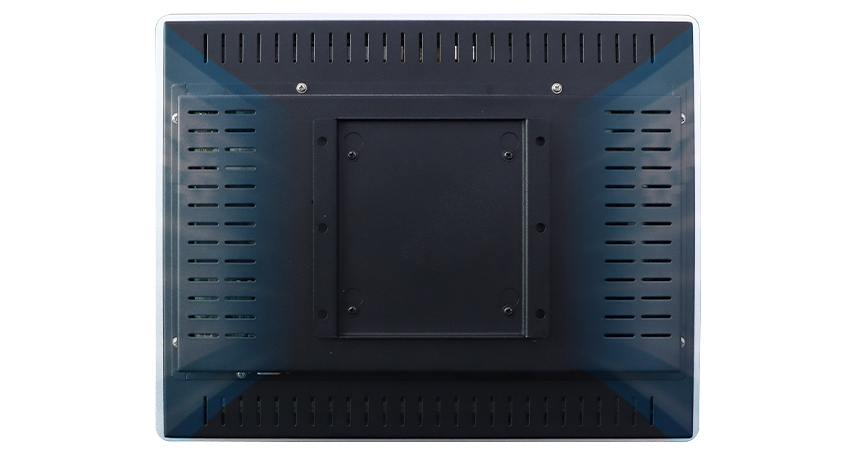

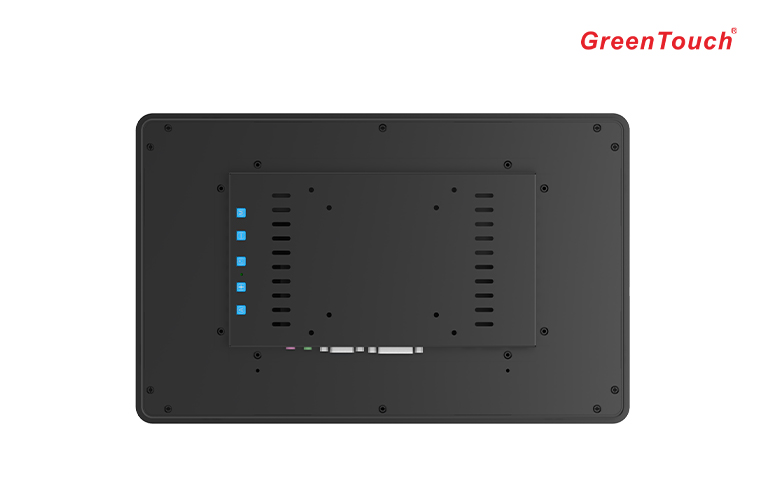

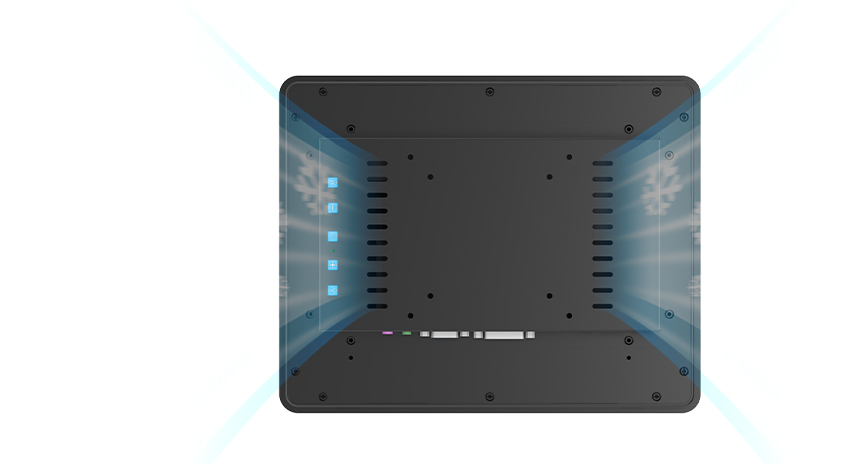

    Product Back Shell

    The back shell of the machine is equipped with dense ventilation holes to optimize the internal structure and improve the heat dissipation speed; there is no fan and zero noise, and it can run stably even under 7*24 hours of high-intensity work.


    Customizable

    ① Product size

    ② Customer Logo

    ③  LCD brightness(300-800 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

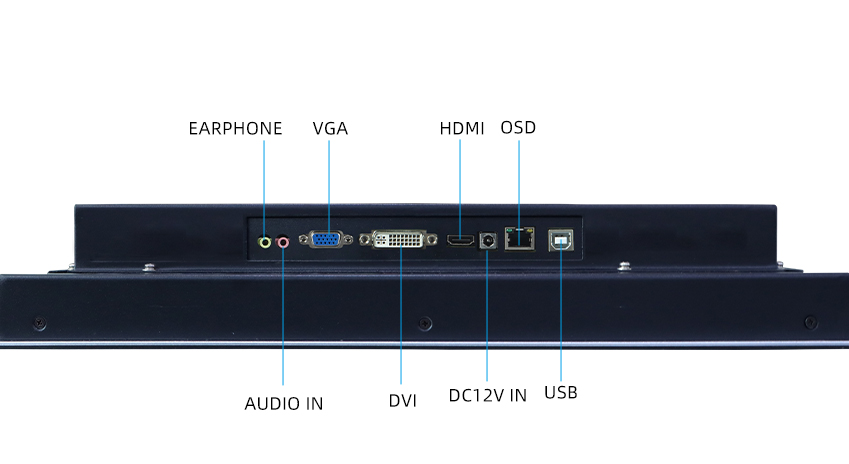

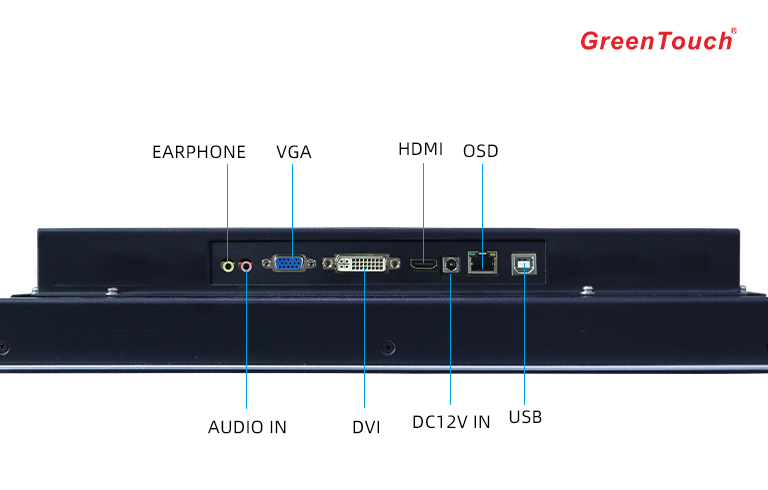

    ⑤ Display ports( VGA,DVI,HDMI,DP,USB or more)

    Technical parameter

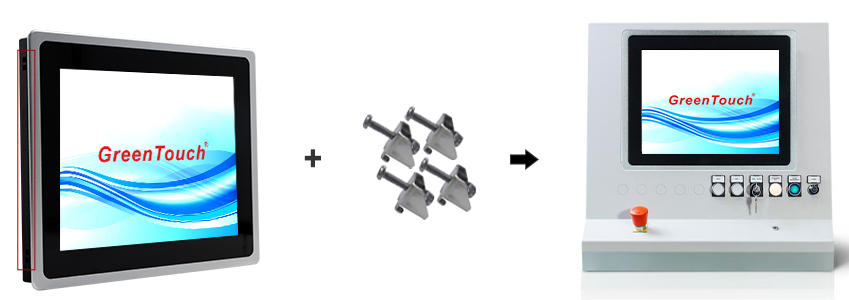

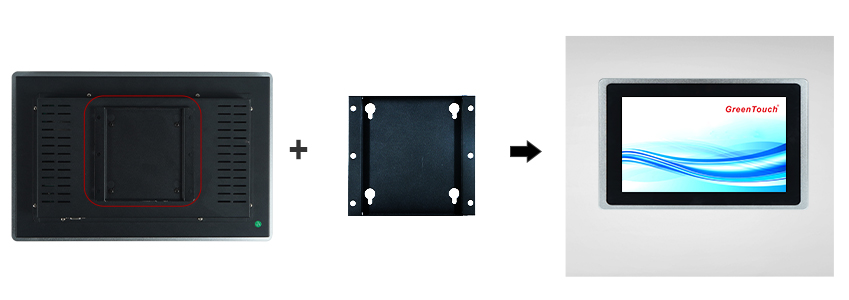

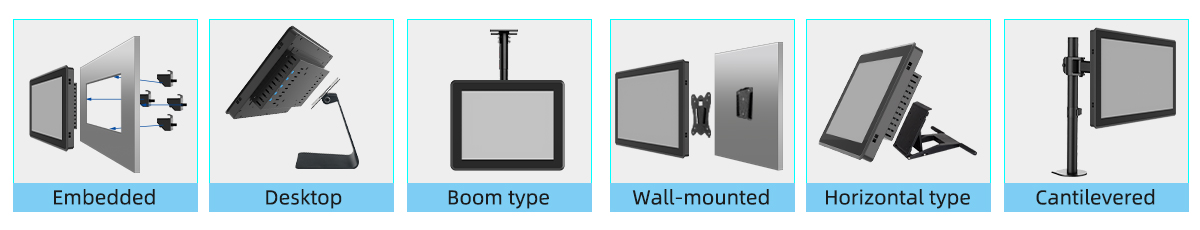

    Installation

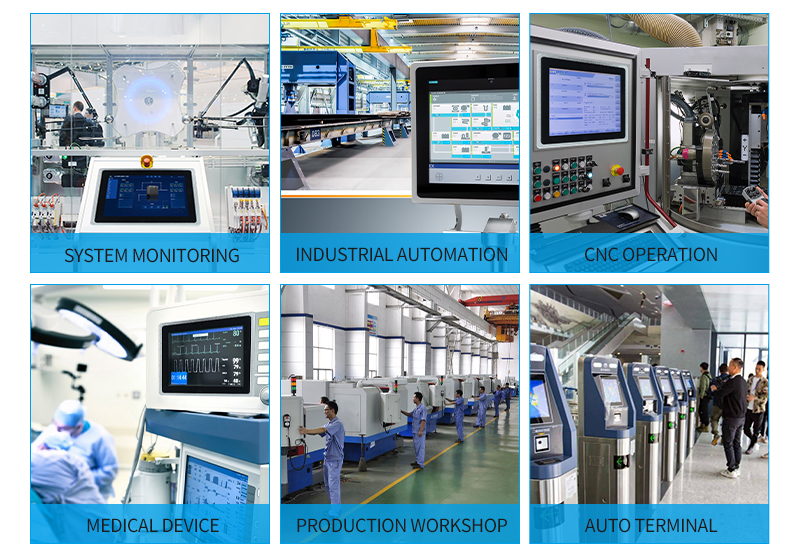

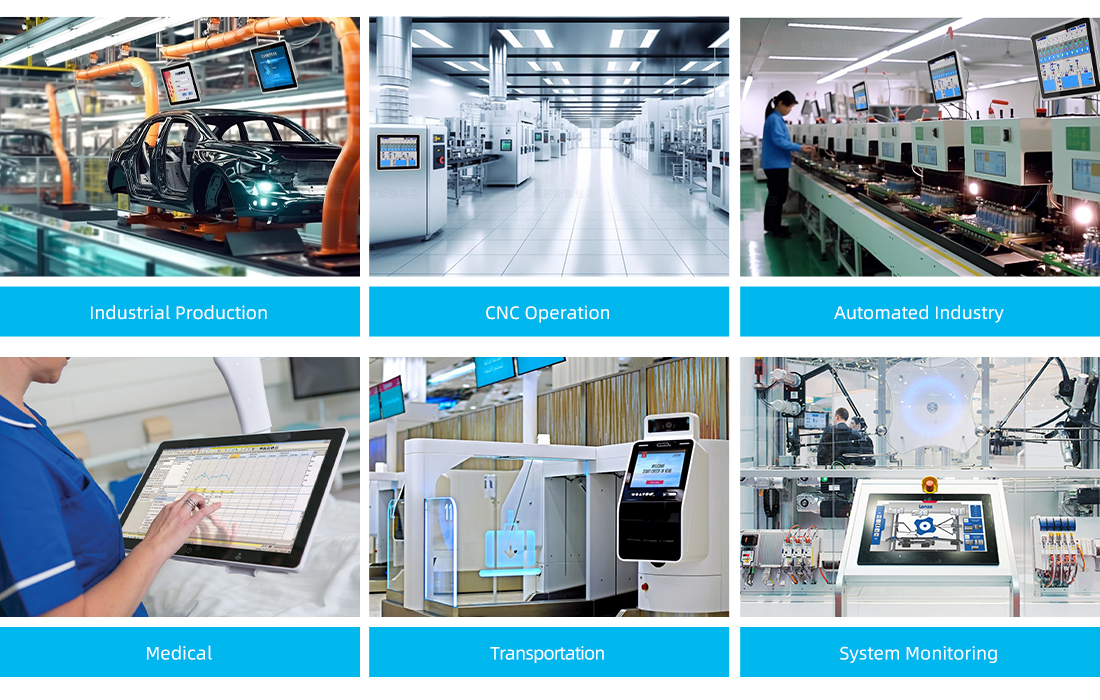

    Application Scenario




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download
    10.1"GT-TM1013EVGA,DVI,HDMI,DP

    16:10

    263x182x47mm217x136mm500 1280 800

    GT-TM1013E

    10.4"GT-TM1043EVGA,DVI,HDMI,DP4:3
    266x213x47mm210x158mm4001024 768

    GT-TM1043E

    12.1"GT-TM1213EVGA,DVI,HDMI,DP4:3299x237x47mm246x184mm5001024 768

    GT-TM1213E

    13.3"GT-TM1333EVGA,DVI,HDMI,DP

    16:9

    346x218x47mm294x166mm300 1920 1080

    GT-TM1333E

    15"

    GT-TM1503E

    VGA,DVI,HDMI,DP4:3364x288x47mm304x228mm3001024 768

    GT-TM1503E

    15.6"

    GT-TM1563E

    VGA,DVI,HDMI,DP16:9397x246x47mm344x194mm2501920 1080

    GT-TM1563E

    17"GT-TM1703EVGA,DVI,HDMI,DP5:4395x328x47mm338x270mm2501280x1024

    GT-TM1703E

    18.5"GT-TM1853EVGA,DVI,HDMI,DP16:9465x286x47mm410x230mm2501366x768

    GT-TM1853E

    19"GT-TM1903EVGA,DVI,HDMI,DP5:4431x356x47mm376x301mm2501280x1024

    GT-TM1903E

    21.5"GT-TM2153EVGA,DVI,HDMI,DP16:9523x323x47mm476x268mm2501920 1080

    GT-TM2153E

    23.6"GT-TM2363EVGA,DVI,HDMI,DP16:9583x346x47mm521x293mm2501920 1080

    GT-TM2363E

    23.8"GT-TM2383EVGA,DVI,HDMI,DP16:9583x355x47mm527x296mm2501920 1080

    GT-TM2383E
