Open frame touch screen monitor 15''-23.6''(5A series)

* Display Type: Active Matrix TFT LCD,LED Backlight

* Touch Type ①:PCAP,10 Points Touch

* Touch Type ②:Infrared,10 Points Touch

* Touch Type ③:4-wire/5-wire Resistive,sigle Touch

* Display Ports: VGA,DVI,HDMI,DP,USB or Customize More

* Certificates: FCC,CE,CB,HDMI

Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

    Product Overview

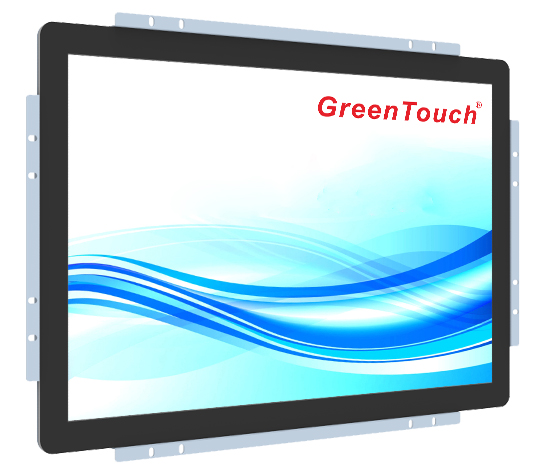

    GreenTouch's open frame touch monitor 5A series delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product.Designed with reliability from the start,they deliver outstanding image clarity and light transmission with stable,drift-free operation for accurate touch responses.5A precise small frame design will be completely sealed touch screen,make it easier for customers to install it in the cabinet.Designed and built by GreenTouch,the model has a long life cycle period and can supply long-term demands.Right picture is four wire/five wire resistive touch monitor.



    Quality And Service

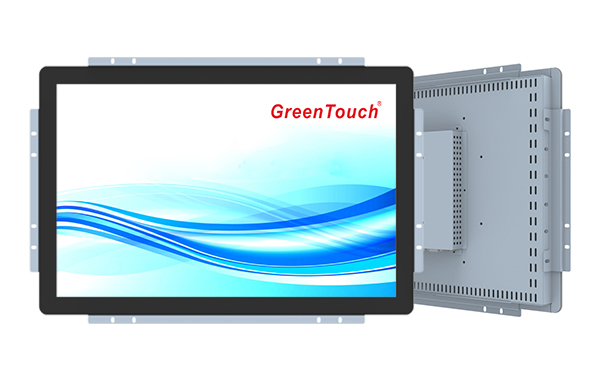

    The sizes of 5A series touch monitors as follows: 15",17",18.5",19",21.5",22",23.6",can select 4-wire resistive,5-wire resistive,projected capacitive,infrared touch technology.From product design to production,to software development and product testing,all the processes are under the responsibility of GreenTouch,pursuing the perfect operation of the product and good service.5A touch display is stable and reliable,with excellent image clarity,resolution,transparency,good accuracy and vivid images,which can instantly capture and attract attention.5A touch monitor have passed the CE,FCC,CB,RoHS,HDMI certifications.The left picture shows 10-point capacitive touch screen monitor.

                          Product Features

    ♦ Adopt AUO,LG,BOE international premium A+ grade original industrial LED screen.

     Regular size 15"-23.6",resistive,capacitive,infrared touch technologies are optional.

    Stable and sensitive,no jumping points,no break points,no blind spots.

    Industrial metal front shell and black frame,durable and reliable.

    Good sealing performance,passed EMC anti-interference testing.

    Optional external mounting bracket and standard VESA mounting.

    Running 24 hours a day,support OEM/ODM services.




    Back Shell And Installation

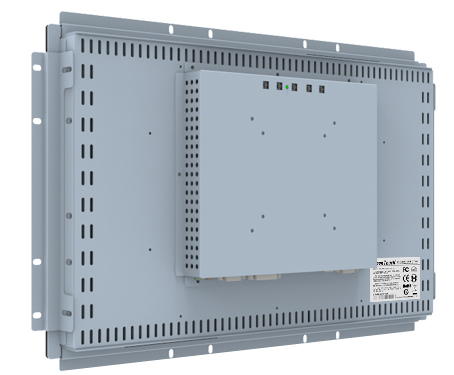

    As shown left picture,5A touch monitor is equipped with external bracket for embedded installation.The back shell is equipped with a standard VESA (100mm x 75mm) mounting hole for desktop or wall-mounted installation.The installation of these two methods is simple and easy to operate,allowing you to flexibly install in different scenarios.

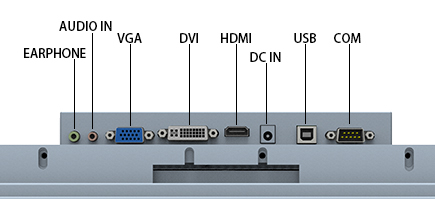

    Display Ports And Customization

    GreenTouch provides a wide range of customization options to meet your requirements,including product size,customer logo,LCD panel brightness 300-1000nits, glass cover surface treatment AG, AF, AR ,display ports(VGA,DVI,HDMI,DP,USB or more).The power plug is selected according to different styles of each country.

    Technical parameter



    Product Name:Open Frame Touch MonitorRegular Sizes: 15",17",18.5",19",21.5",22",23.6"
    Color:16.7MTouch Technology 1:
    Resistive  Single Touch
    Display Type:Active Matrix TFT LCD,LED BacklightTouch Technology 2:Capacitive 10 Points Touch
    Response Time5 msecTouch Technology 3:Infrared 10 Points Touch
     Contrast Ratio:15":700:1,Other Sizes:1000:1Interface:VGA,DVI,HDMI,DP(Optional)
    MTBF:50,000 HoursTemperature:Operating:0°C - 60°C, Storage:-20°C - 60°C
    Humidity:Operating: 20% to 80% (No Condensation); Storage: 10% to 90% (Non-condensing)Power consumption13.5W
    Warranty:1YearOSD:Digital OSD

    Mounting Options:

    100mm or 75mm VESA mounting,open bracket mounting
    Certificates:RoHS,FCC,CE,CB,HDMI
    Power:External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS,External DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS,(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm);
    User Controls:OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default, Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu

    Product Packaging






    Product Application




    Specification and download
    Size

    Model

    Touch TechnologyDisplay portsRatioDisplay Size(W*H*T)Active Area Dimensions(H*V)Brightness(nits)Resolution@60HzData Download

    15”

    GT-TM-1505A-4R

    Resistive

    VGA+DVI

    4:3

    329.5 x 256.5 x 48mm

    304 x 228mm

    400

    1024 x 768

    Download

    15”

    GT-TM-1505A-4R-HD

    Resistive

    VGA+DVI+HDMI

    4:3

    329.5 x 256.5 x 48mm

    304 x 228mm

    400

    1024 x 768

    Download

    15”

    GT-TM-1505A-5R

    Resistive

    VGA+DVI

    4:3

    329.5 x 256.5 x 48mm

    304 x 228mm

    400

    1024 x 768

    Download

    15”

    GT-TM-1505A-5R-HD

    Resistive

    VGA+DVI+HDMI

    4:3

    329.5 x 256.5 x 48mm

    304 x 228mm

    400

    1024 x 768

    Download

    15”

    GT-TM-1505A-CTW

    Capacitive

    VGA+DVI

    4:3

    358.5 x 282.5 x 48mm

    304 x 228mm

    450

    1024 x 768

    Download

    15”

    GT-TM-1505A-CTW-HD

    Capacitive

    VGA+DVI+HDMI

    4:3

    358.5 x 282.5 x 48mm

    304 x 228mm

    450

    1024 x 768

    Download

    15”

    GT-TM-1505A-IRB-HD

    Infrared

    VGA+DVI+HDMI

    4:3

    342 x 266 x 53mm

    304 x 228mm

    450

    1024 x 768

    Download

    15"

    GT-TM-1505A-IRK

    Infrared

    VGA+DVI

    4:3

    342 x 266 x 53mm

    304 x 228mm

    450

    1024 x 768

    Download
    15"GT-TM-1505A-IRK-HD

    Infrared

    VGA+DVI+HDMI4:3342 x 266 x 53mm304 x 228mm4501024 x 768Download

    17"

    GT-TM-1705A-4R

    ResistiveVGA+DVI5:4362 x 300 x 48mm337.9 x 270.3mm2001280 x 1024  Download

    17"

    GT-TM-1705A-4R-HD

    ResistiveVGA+DVI+HDMI5:4362 x 300 x 48mm337.9 x 270.3mm200 1280 x 1024  Download

    17"

    GT-TM-1705A-5R

    ResistiveVGA+DVI5:4362 x 300 x 48mm337.9 x 270.3mm2001280 x 1024  Download

    17"

    GT-TM-1705A-5R-HD

    Resistive

    VGA+DVI+HDMI5:4362 x 300 x 48mm337.9 x 270.3mm2001280 x 1024  Download

    17"

    GT-TM-1705A-CTWCapacitiveVGA+DVI

    5:4

    388 x 320 x 48mm337.9 x 270.3mm250 1280 x 1024  Download
    17"GT-TM-1705A-CTW-HDCapacitiveVGA+DVI+HDMI

    5:4

    388 x 320 x 48mm337.9 x 270.3mm250 1280 x 1024  Download
    17"GT-TM-1705A-IRB-HDInfraredVGA+DVI+HDMI5:4

    376 x 308 x 53mm

    337.9 x 270.3mm250 1280 x 1024  Download
    17"GT-TM-1705A-IRKInfraredVGA+DVI5:4

    376 x 308 x 53mm

    337.9 x 270.3mm250 1280 x 1024  Download
    17"GT-TM-1705A-IRK-HDInfraredVGA+DVI+HDMI

    5:4

    376 x 308 x 53mm337.9 x 270.3mm250 1280 x 1024  Download
    18.5"GT-TM-1855A-4RResistiveVGA+DVI

    16:9

    433 x 260 x 50mm409.8 x 230.4mm200 1366 x 768Download
    18.5"GT-TM-1855A-4R-HD

    Resistive

    VGA+DVI+HDMI16:9433 x 260 x 50mm409.8 x 230.4mm200 1366 x 768Download
    18.5"GT-TM-1855A-5RResistiveVGA+DVI

    16:9

    433 x 260 x 50mm409.8 x 230.4mm200 1366 x 768Download
    18.5"GT-TM-1855A-5R-HDResistiveVGA+DVI+HDMI

    16:9

    433 x 260 x 50mm

    409.8 x 230.4mm200 1366 x 768Download
    18.5"GT-TM-1855A-CTW

    Capacitive

    VGA+DVI16:9456.7x 277 x 50mm409.8 x 230.4mm2501366 x 768Download
    18.5"GT-TM-1855A-CTW-HDCapacitiveVGA+DVI+HDMI

    16:9

    456.7 x 277 x 50mm409.8 x 230.4mm2501366 x 768Download
    18.5"GT-TM-1855A-IRKInfraredVGA+DVI

    16:9

    454 x 275 x 55mm409.8 x 230.4mm2501366 x 768Download
    18.5"GT-TM-1855A-IRK-HDInfraredVGA+DVI+HDMI

    16:9

    454 x 275 x 55mm409.8 x 230.4mm250 1366 x 768Download
    19"GT-TM-1905A-4RResistiveVGA+DVI5:4399 x 327 x 48mm376 x 301mm3001280 x 1024Download
    19"GT-TM-1905A-4R-HDResistiveVGA+DVI+HDMI5:4399 x 327 x 48mm376 x 301mm3001280 x 1024Download
    19"GT-TM-1905A-5RResistiveVGA+DVI5:4399 x 327 x 48mm376 x 301mm3001280 x 1024Download
    19"GT-TM-1905A-5R-HDResistiveVGA+DVI+HDMI5:4399 x 327 x 48mm376 x 301mm3001280 x 1024Download
    19"GT-TM-1905A-CTWCapacitiveVGA+DVI5:4421 x 346 x 48mm376 x 301mm3501280 x 1024Download
    19"GT-TM-1905A-CTW-HDCapacitiveVGA+DVI+HDMI5:4421 x 346 x 48mm376 x 301mm3501280 x 1024

    Download

    19"GT-TM-1905A-IRKInfraredVGA+DVI5:4420 x 345 x 53mm376 x 301mm3501280 x 1024

    Download

    19"GT-TM-1905A-IRK-HDInfraredVGA+DVI+HDMI5:4420 x 345 x 53mm376 x 301mm3501280 x 1024

    Download

    21.5"GT-TM-2155A-4RResistiveVGA+DVI16:9499 x 296 x 50mm476.6 x 268.1mm2001920 x 1080

    Downloa

    d

    21.5"GT-TM-2155A-4R-HDResistiveVGA+DVI+HDMI16:9499 x 296 x 50mm476.6 x 268.1mm2001920 x 1080

    Downloa

    d


    21.5"GT-TM-2155A-5RResistiveVGA+DVI16:9499 x 296 x 50mm476.6 x 268.1mm2001920 x 1080

    Downloa

    d


    21.5"GT-TM-2155A-5R-HDResistiveVGA+DVI+HDMI16:9499 x 296 x 50mm476.6 x 268.1mm2001920 x 1080

    Downloa

    d


    21.5"GT-TM-2155A-CTWCapacitiveVGA+DVI16:9532 x 325 x 50mm476.6 x 268.1mm2501920 x 1080

    Downloa

    d

    21.5"GT-TM-2155A-CTW-HDCapacitiveVGA+DVI+HDMI16:9532 x 325 x 50mm476.6 x 268.1mm2501920 x 1080

    Downloa

    d

    21.5"GT-TM-2155A-IRB-HDInfraredVGA+DVI+HDMI16:9520 x 311 x 55mm476.6 x 268.1mm2501920 x 1080

    Downloa

    d


    21.5"GT-TM2155A-IRKInfraredVGA+DVI16:9520 x 311 x 55mm476.6 x 268.1mm2501920 x 1080

    Downloa

    d


    21.5"GT-TM2155A-IRK-HDInfraredVGA+DVI+HDMI16:9520 x 311 x 55mm476.6 x 268.1mm2501920 x 1080

    Downloa

    d


    22''GT-TM-2205A-4RResistiveVGA+DVI16:10497 x 323 x 50mm473.8 x 296.1mm2001680 x 1050

    Downloa

    d

    22"GT-TM-2205A-4R-HDResistiveVGA+DVI+HDMI16:10497 x 323 x 50mm473.8 x 296.1mm2001680 x 1050

    Downloa

    d


    22"GT-TM-2205A-5RResistiveVGA+DVI16:10497 x 323 x 50mm473.8 x 296.1mm2001680 x 1050

    Downloa

    d


    22"GT-TM-2205A-5R-HDResistiveVGA+DVI+HDMI16:10497 x 323 x 50mm473.8 x 296.1mm2001680 x 1050

    Downloa

    d

    22"GT-TM2205A-IRKInfraredVGA+DVI16:10518 x 340 x 55mm473.8 x 296.1mm2501680 x 1050

    Downloa

    d


    22"GT-TM2205A-IRK-HDInfraredVGA+DVI+HDMI16:10518 x 340 x 55mm473.8 x 296.1mm2501680 x 1050

    Downloa

    d


    23.6"GT-TM-2365A-CTWCapacitiveVGA+DVI16:9573 x 342 x 50mm525.2 x 297.2mm2501920 x 1080

    Download


    23.6"GT-TM-2365A-CTW-HDCapacitiveVGA+DVI+HDMI16:9573 x 342 x 50mm525.2 x 297.2mm2501920 x 1080Download
    23.6"GT-TM2365A-IRKInfraredVGA+DVI16:9566*338*55mm525.2 x 297.2mm2501920 x 1080

    Download

    23.6"GT-TM2365A-IRK-HDInfrared
    VGA+DVI+HDMI16:9566*338*55mm525.2 x 297.2mm2501920 x 1080

    Download
