* Application: casino,game hall,KTV
* Display Type: active matrix TFT LCD,LED backlight
* Regular Sizes: 21.5”,27”,32”,43”
* Outer Edge: colorful LED marquee design
* Water-proof/Dust-proof: IP65(Front)
* Explosion-proof: IK08(Front)
* Interface: VGA,DVI,HDMI,DP,COM,USB(optional)
* Touch Systems: Windows,Android,Linux,3M
* Certificates: RoHS,FCC,CE,CB,HDMI Testing
GreenTouch is the world's leading manufacturer and seller of gaming touch monitors,they are widely used at world-famous casinos.We are proud of our advanced technology,the monitor perform consistently even when running 24-hours a day in high humidity and high temperatures.GreenTouch unique capability to provide customized solutions ensures that our optimized displays are ideal for an engaging and fun gaming environment.

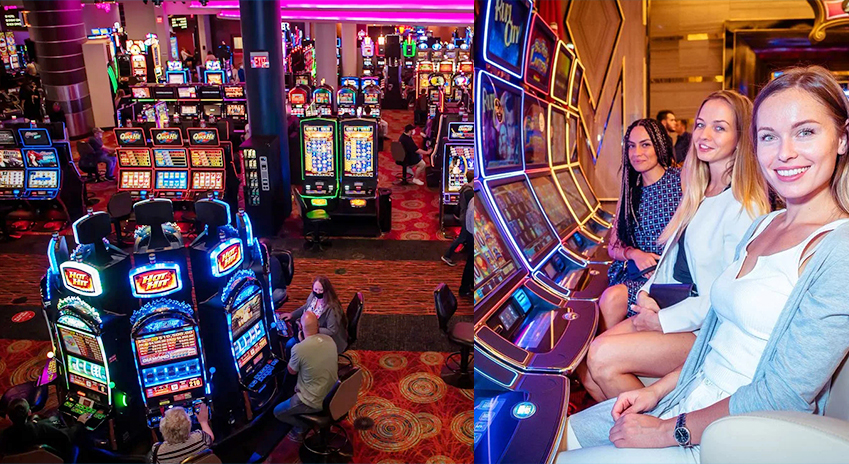

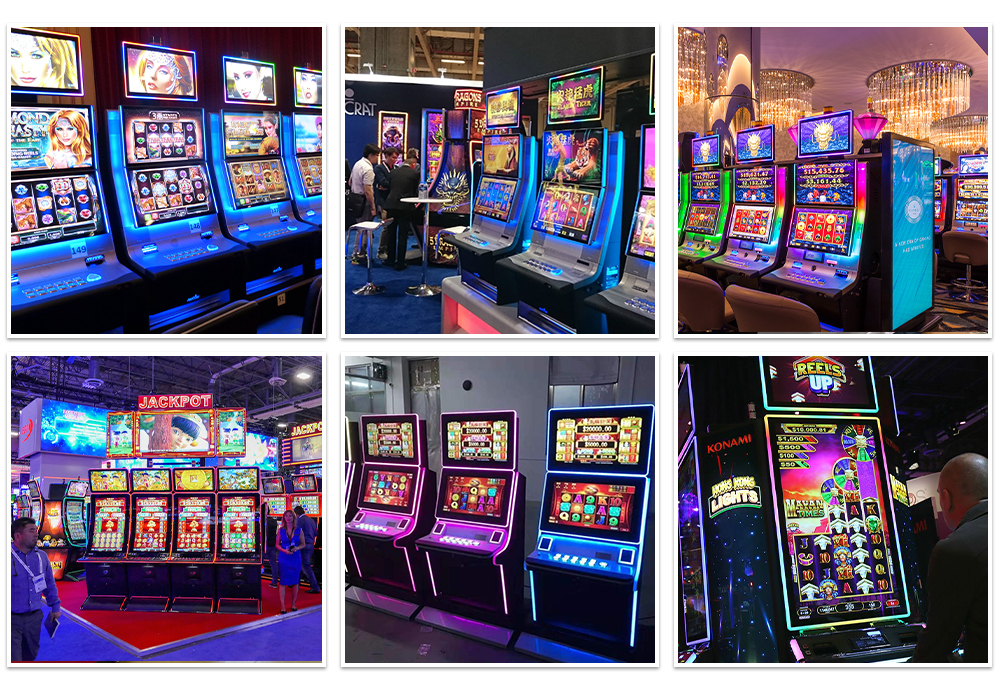

LED bar touch monitor has its unique design and performance,and is mainly used in casinos,game halls,video game cities,KTV and other entertainment and leisure places.

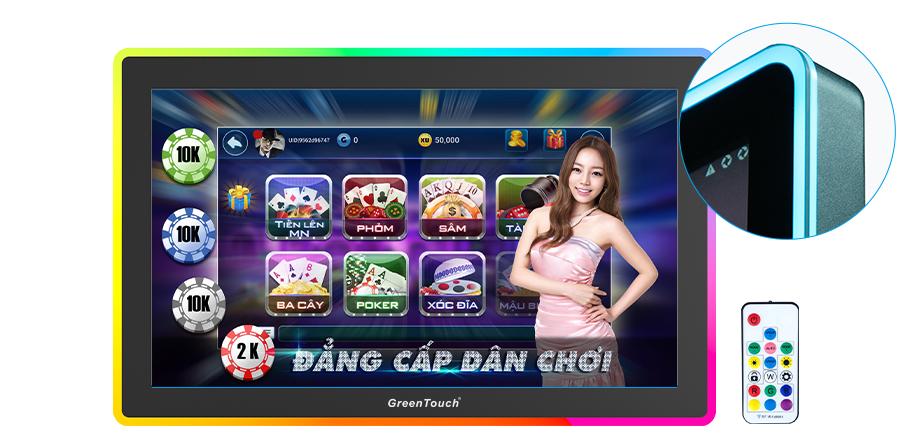

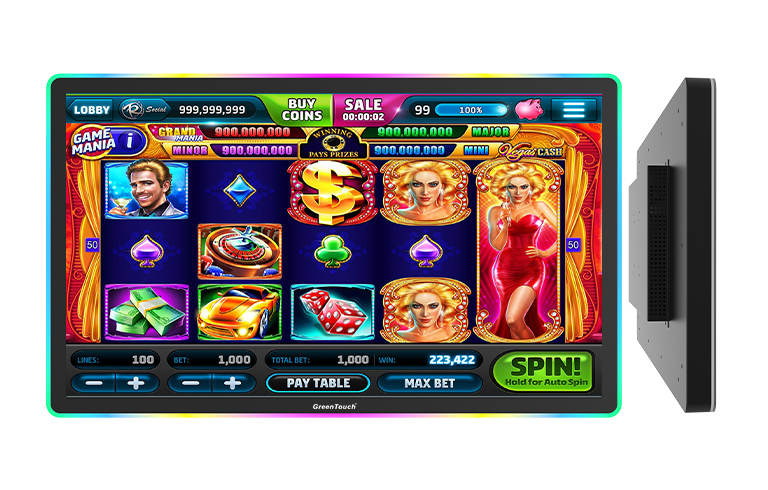

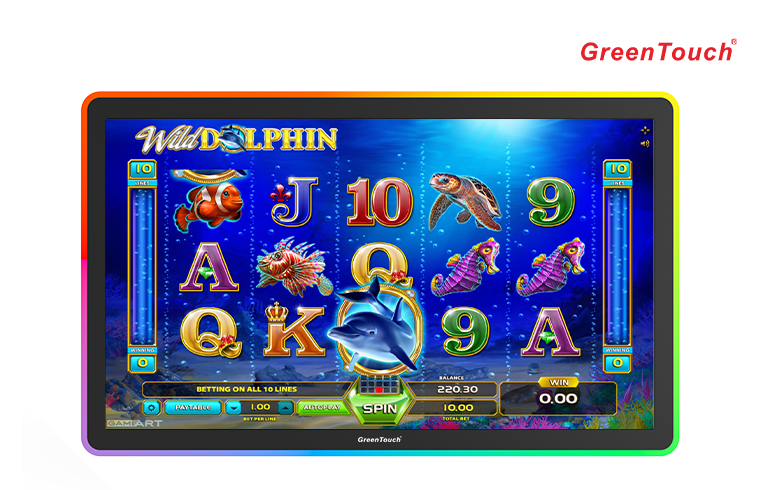

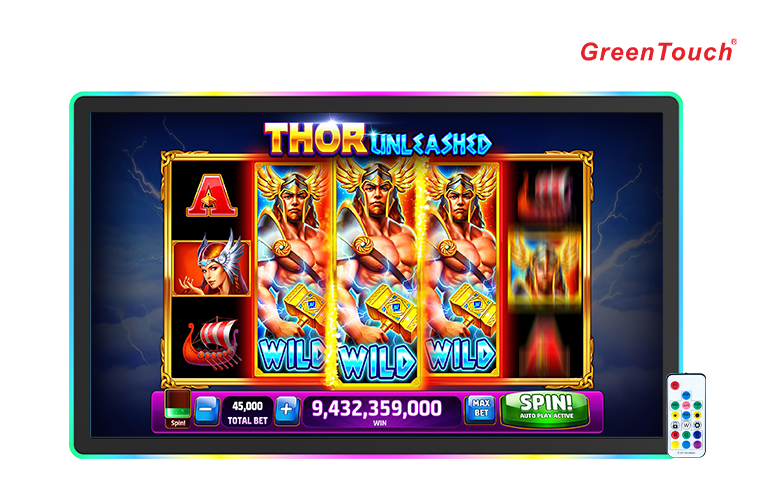

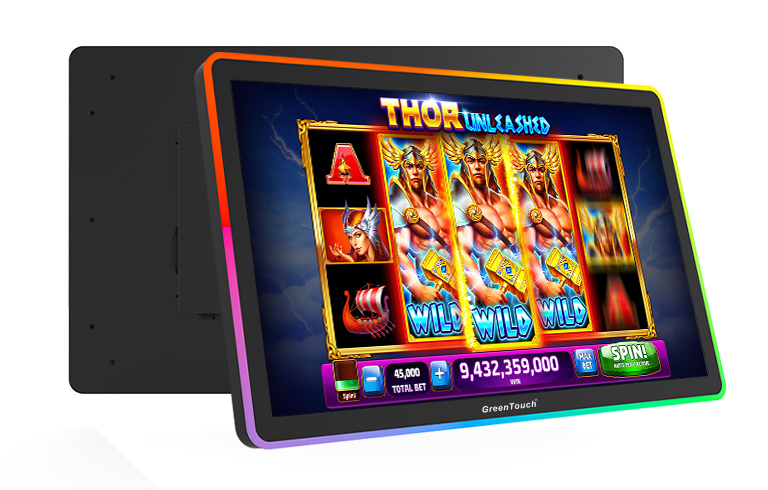

LED Bar touchscreen monitor (21.5",27",32",43") adopts the trendy colorful LED marquee design on the outer edge.Each display is equipped with an light adjustment remote control,which can select RGB colorful (red,green,blue,white,yellow,orange,purple) jump mode to set a variety of lighting effects,support 358 lighting modes,customize the composite color,change speed,direction,sequence,etc.
★ Highly-reliable display solutions for round-the-clock entertainment.
★ High definition TFT LCD,pure flat front panel,good game visual experience.

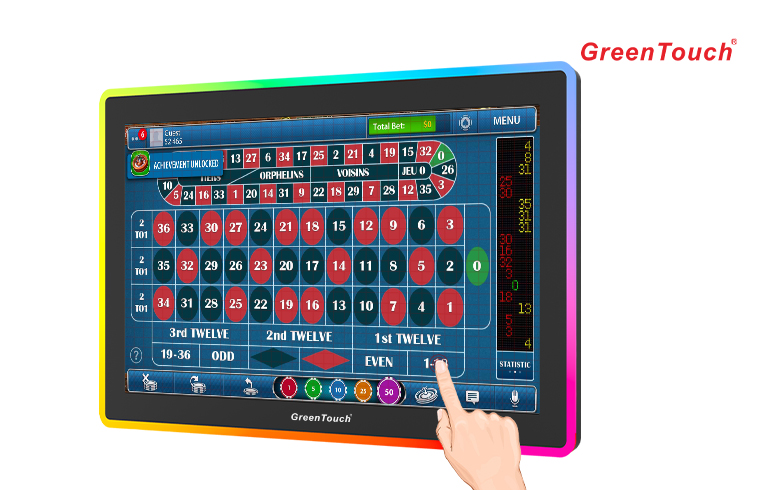

★ Capacitive flexible touch,adopt A+grade original industrial Led screen.
★ Front panel is waterproof(IP65),dustproof (IP65) and explosion-proof(IK08).
★ Industrial plastic front shell,industrial black metal frame,durable and reliable.
★ Compatible with Windows,Android,Linux systems and supports 3M protocol.
① Product size
② Customer Logo
③ LCD brightness(300-800 cd/m²)
④ Glass of surface treatment AG,AF,AR
⑤ Display ports( VGA,DVI,HDMI,DP,USB or more)
Installation

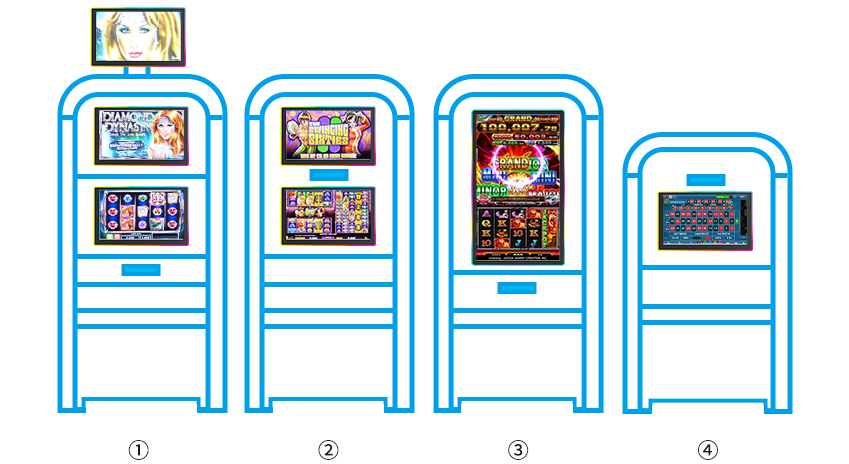

Back shell has mounting holes for embedded or wall mounted installation.
Environment
Size | Model | Display ports | Ratio | Display Size (W*H*T) | Active Area Dimensions(H*V) | Brightness (nits) | Resolution @60Hz | Data Download |
21.5" | GT-PM-2153M-CTW-HD | VGA,DVI,HDMI | 16:9 | 545.1 x 342 x 56.5mm | 476.6 x 267.7mm | 250 | 1920 x 1080 | |
21.5" | GT-PM-2153M-CTW-HD-DP | VGA,HDMI,DP | 16:9 | 545.1 x 342 x 56.5mm | 476.6 x 267.7mm | 250 | 1920 x 1080 | |
27" | GT-PM-2703M-CTW-HD | VGA,DVI,HDMI | 16:9 | 668 x 406 x 66mm | 597.6 x 336.1mm | 300 | 1920 x 1080 | |
27" | GT-PM-2703M-CTW-HD-DP | VGA,HDMI,DP | 16:9 | 668x 406x 66mm | 597.6 x 336.1mm | 300 | 1920 x 1080 | |
32" | GT-PM-3203M-CTW-HD | VGA,DVI,HDMI | 16:9 | 765.9 x 466.5 x 66mm | 699.9 x 394.5mm | 400 | 1920 x 1080 | Download |
32" | GT-PM-3203M-CTW-HD-DP | VGA,HDMI,DP | 16:9 | 765.9 x 466.5 x 66mm | 699.9 x 394.5mm | 400 | 1920 x 1080 | Download |
43" | GT-PM-4303M-CTW-HD | VGA,DVI,HDMI | 16:9 | 1024 x 612.5 x 70.5mm | 941.1 x 529.4mm | 400 | 1920 x 1080 | Download |
43" | GT-PM-4303M-CTW-HD-DP | VGA,HDMI,DP | 16:9 | 1024 x 612.5 x 70.5mm | 941.1 x 529.4mm | 400 | 1920 x 1080 | Download |
