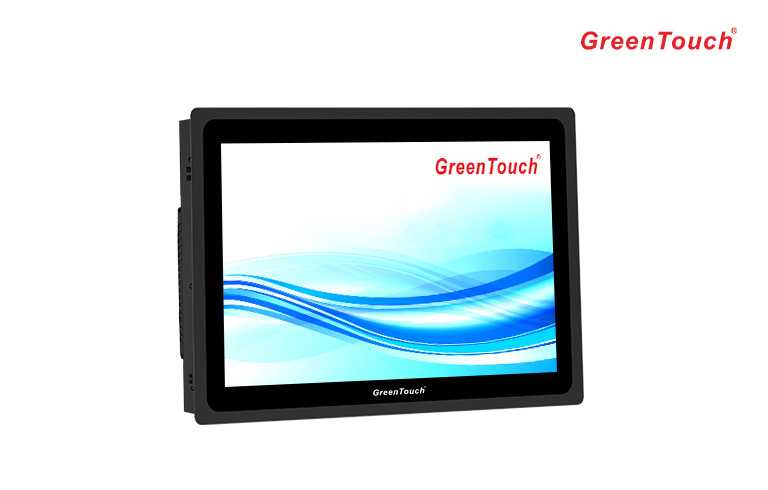

Industrial Touch Monitor 15 to 21.5 inches (ZL series)

* Display Type: Active Matrix TFT LCD,LED Backlight

* Touch Type: PCAP,10 Points Touch

* Water-proof/Dust-proof/Explosion-proof: IP65(Front)/IK08(Front)

* Interface: VGA, DVI (optional HDMI, DP)

* Touch Systems: Windows,Android,Linux

* Certificates: RoHS,FCC,CE,CB,HDMI Testing

* Warranty: 1 Year

Contact us
+86-138-2354-8639
peter@greentouch.com.cn
wanli889
Product video

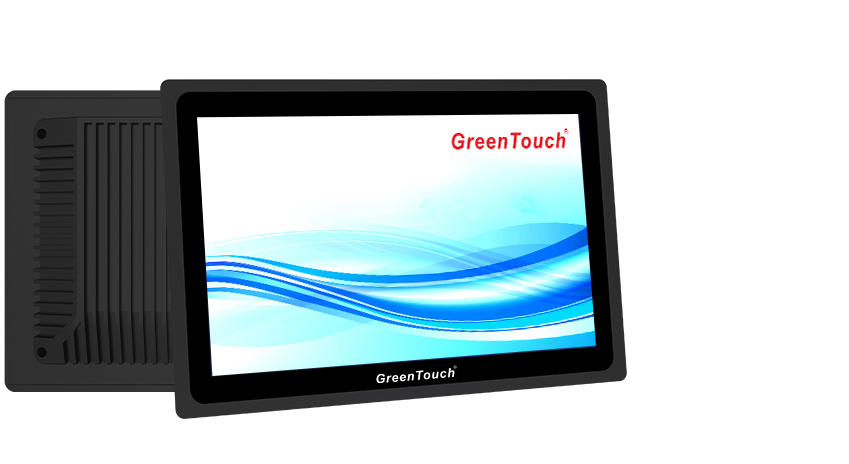

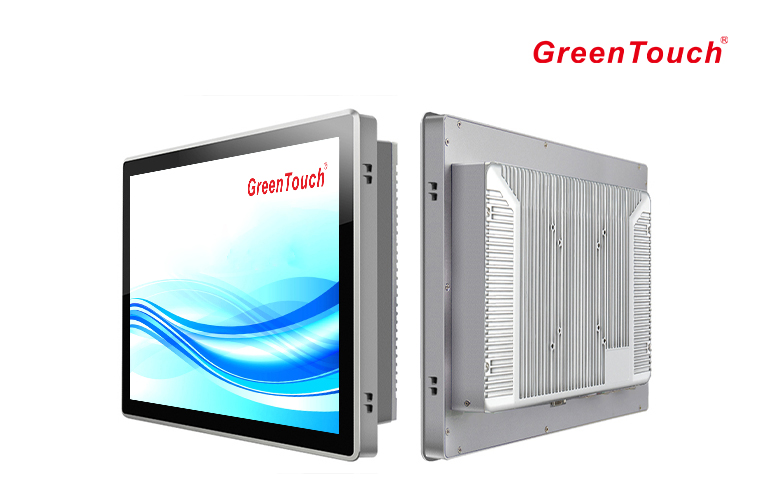

    Product Overview

    GreenTouch industrial touch monitor adopts a precise small frame design, which completely seals the touch screen, making it better dustproof, antifouling and waterproof. The model adopts aluminum alloy custom mold, one-time die-casting, with durable military quality; the rear shell adopts fin-type heat dissipation design to increase the heat dissipation area. GreenTouch industrial touch monitors are fully configured and available in various sizes, and support customized services such as LCD brightness, customer LOGO, and interfaces.


    Product Features

    ♦ Using LG, AUO, Chi Mei, Mitsubishi, BOE original industrial screen

     Flat front IP65 waterproof and dustproof

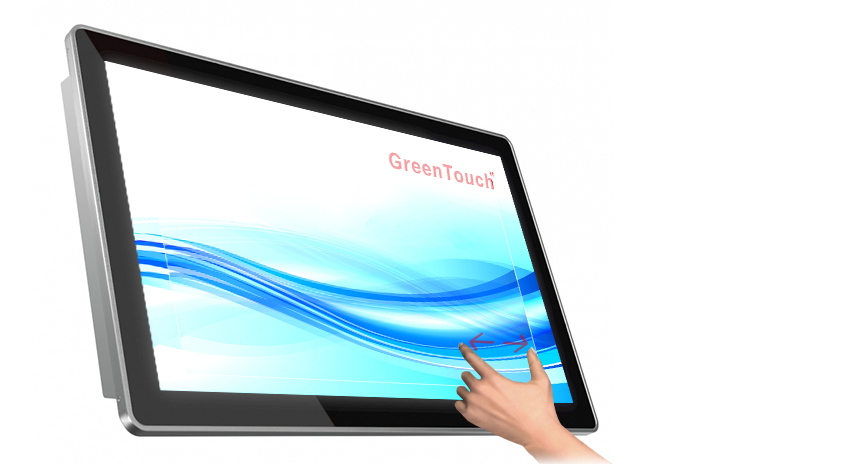

    ♦ 10-point capacitive touch, touch response time>20ms

    ♦ Meets EMC anti-interference standards

    ♦ One-piece forming, standard structure, tighter overall

    ♦ All-aluminum shell, fanless silent cooling design

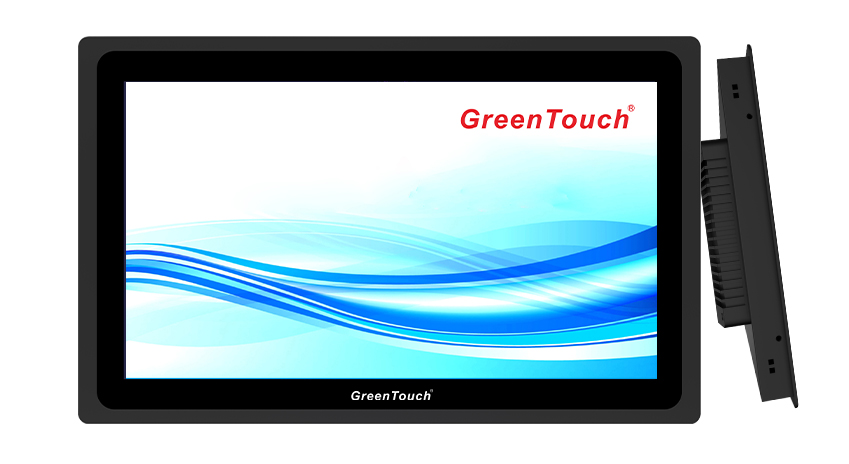

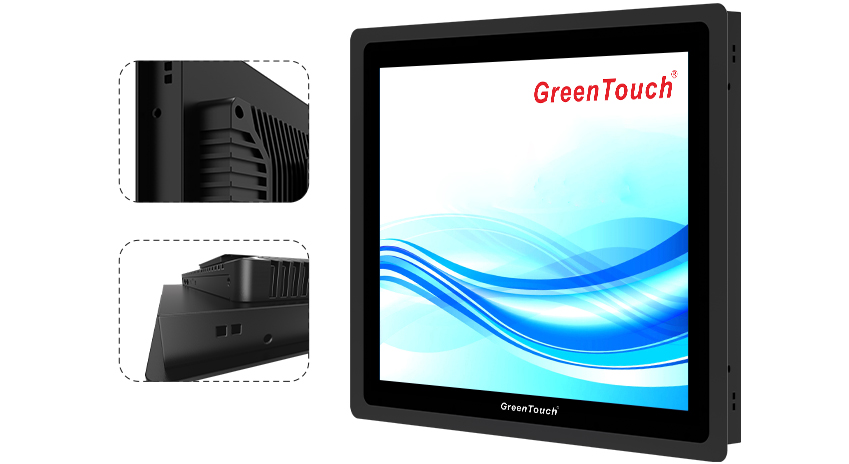

    Product Structure

    The display frame back shell adopts aluminum alloy custom mold, one-time die-casting, more standard structure and tighter overall.

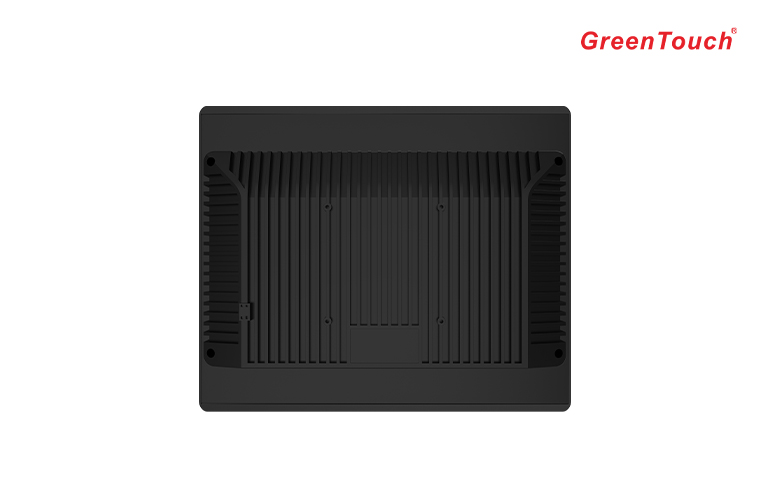

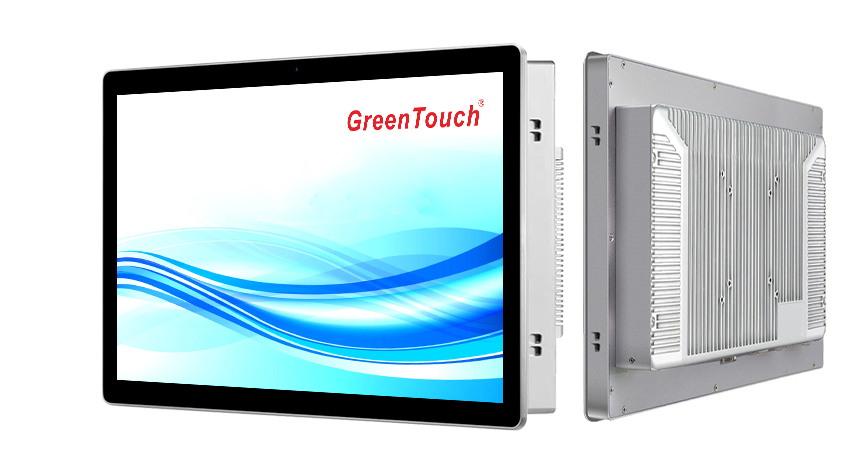

    Product Back Shell

    The rear shell of the machine adopts a fin-type heat dissipation design to increase the heat dissipation area; no fan and zero noise, it can run stably even under 7*24 hours of high-intensity work.


    Customizable

    ① Product size

    ② Customer Logo

    ③  LCD brightness(300-800 cd/m²)

    ④ Glass of surface treatment AG,AF,AR

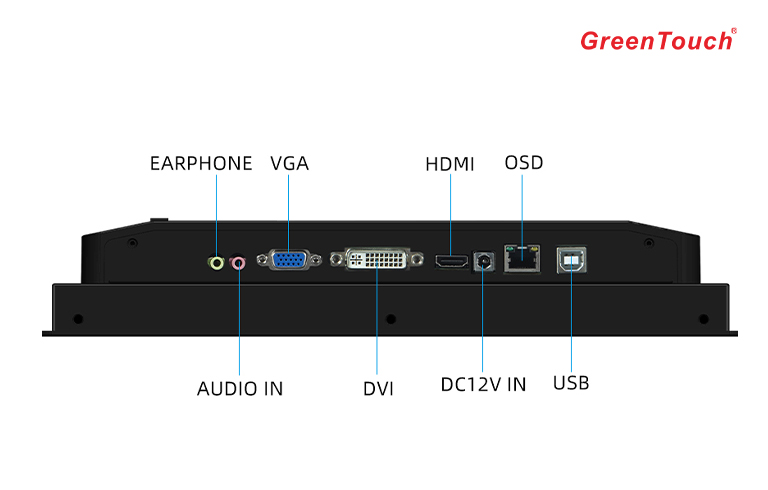

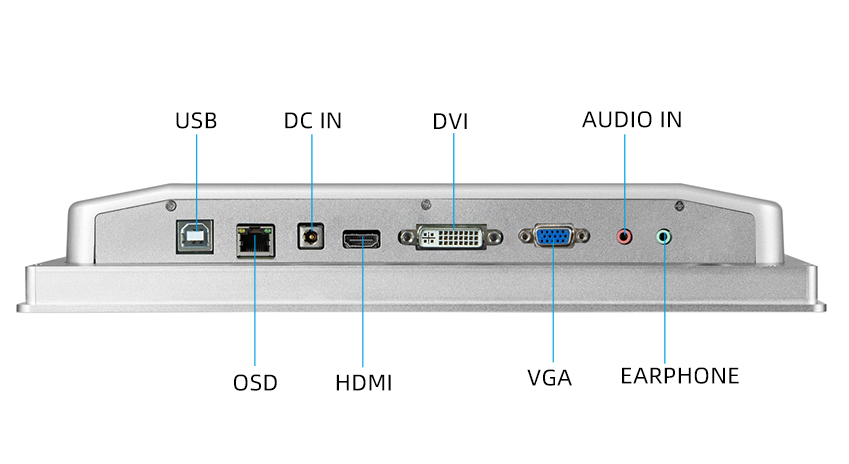

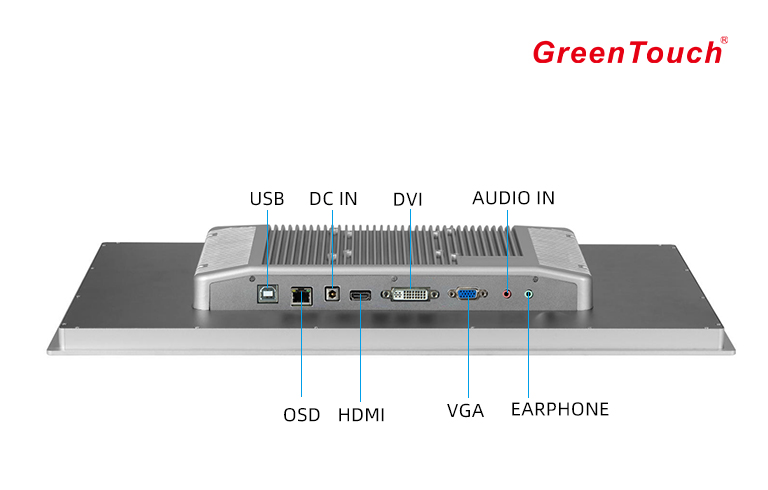

    ⑤ Display ports( VGA,DVI,HDMI,DP,USB or more)

    Technical parameter


    Installation

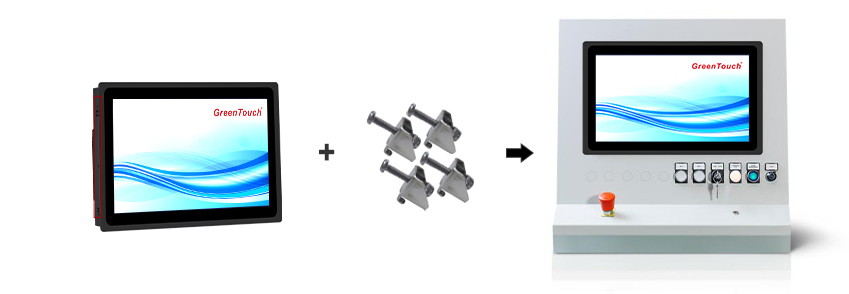

    ① Fixed holes for snap-in installation

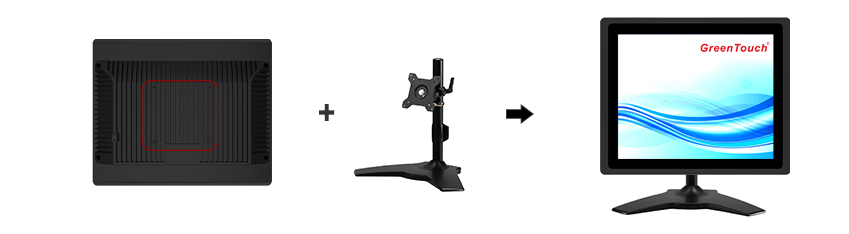

    ②100mm VESA hole in rear case for desktop mounting

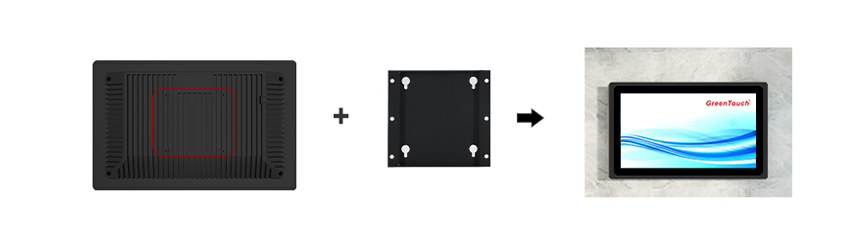

    ③100mm VESA hole in rear case for wall mount

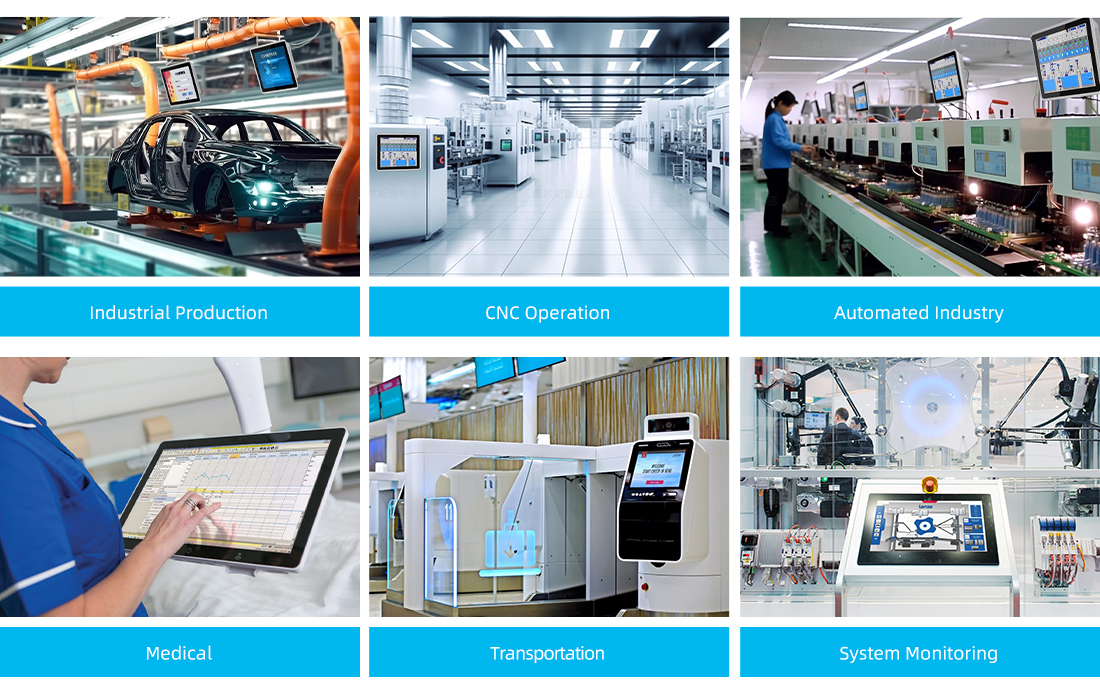

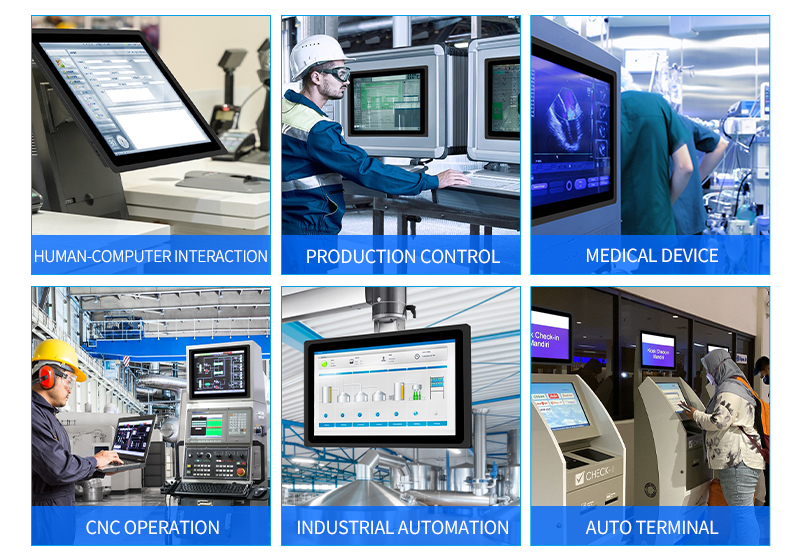

    Application Scenario




    Specification and download
    Size

    Model

    Display portsRatio

    Display Size

    (W*H*T)

    Active Area

    Dimensions(H*V)

    Brightness

    (nits)

    Resolution

    @60Hz

    Data Download
    15"GT-TM-ZL-150HSNDVGA,DVI,HDMI

    4:3

    378x297x61.3mm304x288mm300 1024 768

    Download

    15.6"GT-TM-ZL-156HSNDVGA,DVI,HDMI

    16:9

    420x269x656.2mm344x194mm400 1920 1080

    Download

    17"

    GT-TM-ZL-170HSND

    VGA,DVI,HDMI4:3413x342x65.8mm338x270mm2501080 1024

    Download

    19"

    GT-TM-ZL-190HSND

    VGA,DVI,HDMI4:3453x375.5x66.3mm376x301mm2501080 1024

    Download

    21.5"GT-TM-ZL-215HSNDVGA,DVI,HDMI16:9559x349.3x59.2mm476.5x268mm2501920 x 1080Download
